Information schema

Applies to: Databricks SQL Databricks Runtime 10.4 LTS and above Unity Catalog only

The INFORMATION_SCHEMA is a SQL standard based schema, provided in every catalog created on Unity Catalog.

Within the information schema, you can find a set of views describing the objects known to the schema’s catalog that you are privileged to see. The information schema of the SYSTEM catalog returns information about objects across all catalogs within the metastore. Information schema system tables do not contain metadata about hive_metastore objects.

The purpose of the information schema is to provide a SQL based, self describing API to the metadata.

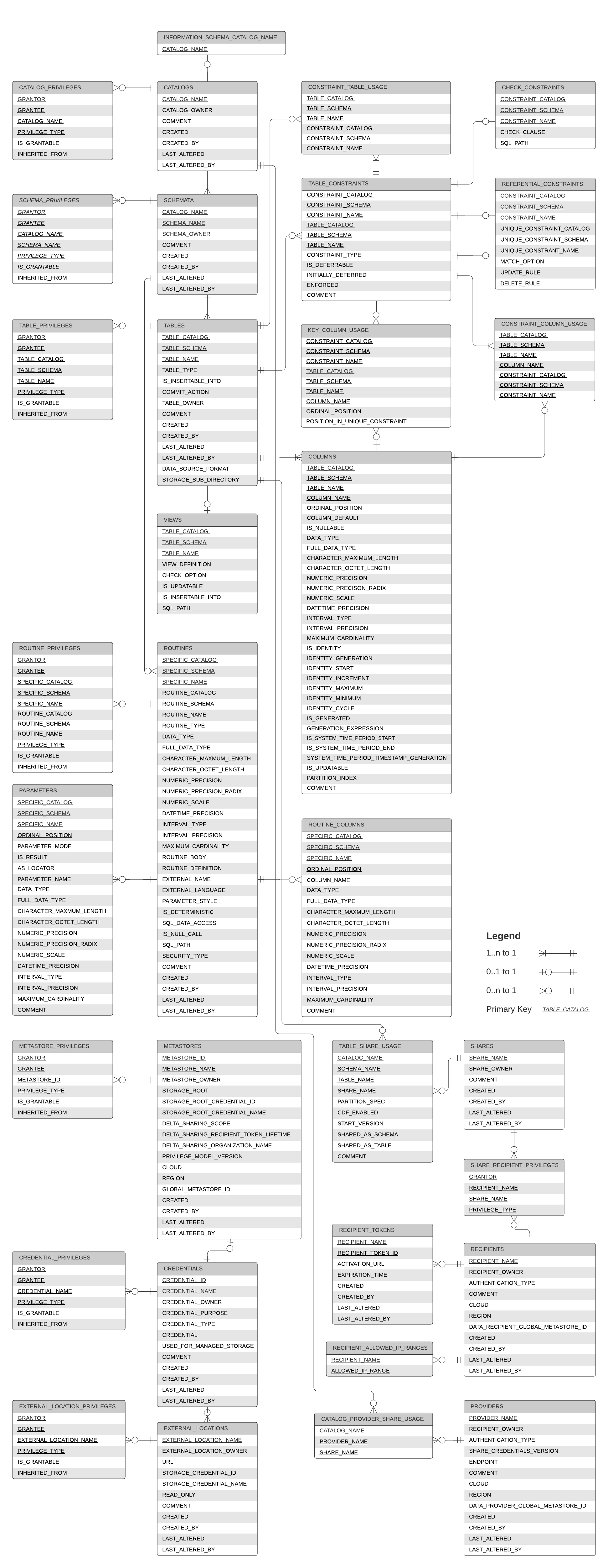

Entity relationship diagram of the information schema

The following entity relationship (ER) diagram provides an overview of a subset of information schema views and how they relate to each other.

Information schema views

Name	Description
CATALOG_PRIVILEGES	Lists principals that have privileges on the catalogs.
CATALOG_PROVIDER_SHARE_USAGE	Describes provider share mounted onto catalogs.
CATALOG_TAGS	Contains tags that have been applied to the catalogs.
CATALOGS	Describes catalogs.
CHECK_CONSTRAINTS	Reserved for future use.
COLUMN_MASKS	Describes column masks on table columns in the catalog.
COLUMN_TAGS	Contains column tagging metadata within a table.
COLUMNS	Describes columns of tables and views in the catalog.
CONNECTION_PRIVILEGES	Lists principals that have privileges on the foreign connections.
CONNECTIONS	Describes foreign connections.
CONSTRAINT_COLUMN_USAGE	Describes the constraints referencing columns in the catalog.
CONSTRAINT_TABLE_USAGE	Describes the constraints referencing tables in the catalog.
EXTERNAL_LOCATION_PRIVILEGES	Lists principals that have privileges on the external locations.
EXTERNAL_LOCATIONS	Describes external locations.
INFORMATION_SCHEMA_CATALOG_NAME	Returns the name of this information schema’s catalog.
KEY_COLUMN_USAGE	Lists the columns of the primary or foreign key constraints within the catalog.
METASTORE_PRIVILEGES	Lists principals that have privileges on the current metastore.
METASTORES	Describes the current metastore.
PARAMETERS	Describes parameters of routines (functions) in the catalog.
PROVIDERS	Describes providers.
RECIPIENT_ALLOWED_IP_RANGES	Lists allowed IP ranges for recipients.
RECIPIENT_TOKENS	Lists tokens for recipients.
RECIPIENTS	Describes recipients.
REFERENTIAL_CONSTRAINTS	Describes referential (foreign key) constraints defined in the catalog.
ROUTINE_COLUMNS	Describes result columns of table valued functions.
ROUTINE_PRIVILEGES	Lists principals that have privileges on the routines in the catalog.
ROUTINES	Describes routines (functions) in the catalog.
ROW_FILTERS	Describes row filters on tables in the catalog.
SCHEMA_PRIVILEGES	Lists principals that have privileges on the schemas in the catalog.
SCHEMA_TAGS	Contains schema tagging metadata within the schema.
SCHEMA_SHARE_USAGE	Describes the schemas referenced in shares.
SCHEMATA	Describes schemas within the catalog.
SHARE_RECIPIENT_PRIVILEGES	Describes the recipients granted access to shares.
SHARES	Describes shares.
STORAGE_CREDENTIAL_PRIVILEGES	Lists principals that have privileges on the storage credentials.
STORAGE_CREDENTIALS	Describes storage credentials.
TABLE_CONSTRAINTS	Describes metadata for all primary and foreign key constraints within the catalog.
TABLE_PRIVILEGES	Lists principals that have privileges on the tables and views in the catalog.
TABLE_SHARE_USAGE	Describes the tables referenced in shares.
TABLE_TAGS	Contains table tagging metadata within a table.
TABLES	Describes tables and views defined within the catalog.
VIEWS	Describes view specific information about the views in the catalog.
VOLUMES	Describes volumes defined in the catalog.
VOLUME_PRIVILEGES	Lists principals that have privileges on the volumes in the catalog.
VOLUME_TAGS	Contains volume tagging metadata applied to a volume.

Notes

While identifiers are case-insensitive when referenced in SQL statements, they are stored in the information schema as STRING. This implies that you must either search for them using the case in which the identifier is stored, or use functions such as ilike.

Examples

> SELECT table_name, column_name
    FROM information_schema.columns
    WHERE data_type = 'DOUBLE'
      AND table_schema = 'information_schema';

The following are examples of workflows that use the system level information schema tables.

If you want to view all tables that have been created in the last 24 hours, your query could look like the following.

> SELECT table_name, table_owner, created_by, last_altered, last_altered_by, table_catalog
    FROM system.information_schema.tables
    WHERE  datediff(now(), last_altered) < 1;

If you want to view how many tables you have in each schema, consider the following example.

> SELECT table_schema, count(table_name)
    FROM system.information_schema.tables
    WHERE table_schema = 'tpch'
    GROUP BY table_schema
    ORDER BY 2 DESC
