Overview of enumeration of interface collections on USB composite devices

Interfaces on a composite USB device can be grouped in collections. The USB generic parent driver (Usbccgp.sys) can enumerate interface collections in four ways.

These four methods of enumeration of interface collections are arranged hierarchically in the following manner:

1. Vendor-supplied callback routines

   If the vendor has registered a callback routine with the USB Generic Parent Driver (Usbccgp.sys), the generic parent driver gives precedence to the callback routine, and allows the callback routine to group interfaces rather than using some other method. For more information on the enumeration of interface collection using vendor-supplied callback routines, see Enumeration of Interface Collections on USB Composite Devices.

2. Union functional descriptors

   . If the vendor has enabled CDC and WMCDC enumeration in the USB generic parent driver, the generic parent driver uses union functional descriptors (UFDs) to group interfaces into collections. When enabled, this method has precedence over all other methods, except for vendor-supplied callback routines.

3. Interface association descriptors

   If interface association descriptors (IADs) are present, the USB generic parent driver always groups interfaces by using IADs rather than by using legacy methods. Microsoft recommends that vendors use IADs to define interface collections.

4. Legacy audio method

   The USB generic parent driver is able to enumerate interface collections by using legacy techniques that are reserved for audio functions. The generic parent driver does not use this method if there are any IADs on the device.

Customizing enumeration of interface collections for composite devices

Some USB devices have interface collections that the USB Interface Association Descriptor (IAD) is unable to describe. In Windows Vista and later operating systems, vendors can customize the way the USB Generic Parent Driver (Usbccgp.sys) defines and enumerates a device's interface collections. This is done through an enumeration callback routine in a filter driver. The callback routine assists the generic parent driver in defining custom interface collections for the device.

For the generic parent driver to define custom interface collections, the vendor of the composite device must:

1. Implement the enumeration callback routine (USBC_START_DEVICE_CALLBACK).
2. Supply a pointer to the callback routine in the USB device configuration interface (StartDeviceCallback member of USBC_DEVICE_CONFIGURATION_INTERFACE_V1).
3. Provide an INF file that matches the device ID of the composite device and explicitly loads both the USB generic parent driver and the filter driver.

Implementation considerations

The filter driver that contains the enumeration callback routine can be either an upper or a lower filter driver. When the USB generic parent driver receives an IRP_MN_START_DEVICE request to start a composite device, it queries for the USB device configuration interface by sending an IRP_MN_QUERY_INTERFACE request to the top of the driver stack.

On receiving an IRP_MN_QUERY_INTERFACE request, the filter driver must check the GUID type in the InterfaceType member of the request to verify that the interface that is requested is of type USB_BUS_INTERFACE_USBC_CONFIGURATION_GUID. If it is, the filter driver returns a pointer to the interface in the Interface member of the IRP.

The enumeration callback routine must return a pointer to an array of function descriptors (USBC_FUNCTION_DESCRIPTOR) that describe the interface collections. Each function descriptor contains an array of interface descriptors (USB_INTERFACE_DESCRIPTOR) that describe the interface collection. The callback routine must allocate both the function descriptors and the interface descriptors from non-paged pool. The generic parent driver releases this memory. The callback routine must ensure that the NumberOfInterfaces member of each USB_INTERFACE_DESCRIPTOR accurately reports the number of interfaces in the interface collection.

The generic parent driver creates a physical device object (PDO) for each function descriptor.

The USB device configuration interface and the enumeration callback routine is summarized in Generic Parent Driver Routines.

USB generic parent driver loading mechanism

When a composite device meets the requirements described in Enumeration of USB Composite Devices, the operating system generates a compatible ID of USB\COMPOSITE to indicate that the device is composite. The compatible ID produces a match in Usb.inf, and the operating system loads the USB generic parent driver, automatically, without the help of a vendor-supplied INF file.

However, this default mechanism does not work for composite devices that require custom enumeration of interface collections, because in the default mechanism the system does not load the required vendor-supplied filter driver. For the enumeration callback routine mechanism to work, the filter driver that exposes the USB device configuration interface must already be loaded when the USB generic parent enumerates the interface collections of the composite device. This requires the vendor of the composite device to install an INF file that matches the device ID of the composite device and explicitly loads both the USB generic parent driver and the filter driver.

Support for the Wireless Mobile Communication Device Class

In Windows Vista the USB Generic Parent Driver (Usbccgp.sys) provides support for devices that are included in the Universal Serial Bus (USB) Communication Device Class (CDC) and USB Wireless Mobile Communication Device Class (WMCDC).

The USB Wireless Mobile Communication Device Class (WMCDC) specification establishes a standard for connection, control, and content exchange between a host and a wireless mobile device (for example, a cell phone) when the device is connected to a USB port. WMCDC is an extension of the communication device class (CDC), which includes a broad range of communication and networking devices. This section describes the architecture that supports CDC and WMCDC devices in Windows operating systems.

WMCDC devices consist of multiple functions that are grouped into logical handsets. Most WMCDC devices have a single logical handset, but a device might have multiple logical handsets. Logical handsets typically include functions such as a data/fax modem, an object store, and a call control facility. A logical handset might also include supporting functions that are defined by other USB specifications such as the USB Audio Class specification, the USB Human Input Device (HID) class specification, and the USB Video Class specification.

The Windows WMCDC architecture uses native Windows drivers to manage the functions of your WMCDC device. For example, you can use the Windows telephony application program interface (TAPI) subsystem to manage the voice and data/fax modem functions of your device and the Windows network driver interface specification (NDIS) subsystem to manage the device's Ethernet LAN function. Furthermore, you can manage some functions, such as an Object Exchange Protocol (OBEX) function, in user-mode software with the assistance of WinUSB (Winusb.sys).

This image shows an example driver stack for a WMCDC device.

In the preceding figure, the WMCDC device contains a single logical handset: an OBEX function and a modem function. A vendor-supplied INF file loads native Windows drivers to manage the modem. The OBEX function is managed by a vendor-supplied user-mode driver that runs in the User-Mode Driver Framework (UMDF). The user-mode driver uses the Windows Portable Devices (WPD) protocol to communicate with user applications and the interface that the Introduction to WinUSB for Developers exports to communicate with the USB stack. In general, a vendor-supplied INF file will load a separate instance of Winusb.sys for each interface collection that uses Winusb.sys.

Registry Settings

The USB stack does not automatically support WMCDC. You must provide an INF file that loads an instance of Usbccgp.sys. The INF file must contain an AddReg section that sets the EnumeratorClass registry value in the software key that is associated with Usbccgp.sys to a REG_BINARY value that is constructed from three numbers: 0x02, 0x00, and 0x 00. The following code example from an example INF file illustrates how to set EnumeratorClass to the appropriate value.

[CCGPDriverInstall.NT]
Include=usb.inf
Needs=Composite.Dev.NT
AddReg=CCGPDriverInstall.AddReg

[CCGPDriverInstall.NT.Services]
Include=usb.inf
Needs=Composite.Dev.NT.Services

[CCGPDriverInstall.AddReg]
HKR,,EnumeratorClass, 0x00000001,02,00,00

The value that you must assign to EnumeratorClass is constructed from three 1-byte binary values that are represented in the INF file by pairs of hexadecimal digits: 02, 00, and 00. These three numbers correspond to the values that the USB Implementers Forum has assigned to the CDC device class, CDC device subclass and CDC device protocol, respectively.

The following topics further describe the WMCDC:

Enumerating interface collections on WMCDC

The USB wireless mobile communication device class (WMCDC) is a subclass of the USB communications device class (CDC). The WMCDC specification extends but does not substantially change the CDC guidelines for defining interface collections. In particular, WMCDC devices must comply with the CDC guidelines for defining interface collections.

CDC interface collections contain a master interface (USB_INTERFACE_DESCRIPTOR) that belongs to the communication interface class (bInterfaceClass = 0x02) or data interface class (bInterfaceClass = 0x0A). If the master interface belongs to the communication interface class (which is the typical situation), the subclass of the master interface (bInterfaceSubClass) specifies a CDC control model. The control model indicates the type of interfaces included in the interface collection. For a description of the control models that the USB Implementers Forum defines, see the CDC specification and the WMCDC specification.

The master interface of an interface collection is followed by a set of mandatory class-specific functional descriptors, including a union functional descriptor (UFD). The UFD lists the numbers of the interfaces that belong to the collection. The bMasterInterface field of the UFD contains the number of the master interface. Zero or more bSubordinateInterface fields contain the numbers of the other (subordinate) interfaces in the collection.

For most types of control models, the USB Generic Parent Driver (Usbccgp.sys) creates one physical device object (PDO) for each UFD. But some control models include an audio interface that the generic parent driver enumerates separately from the interface collection that the audio interface belongs to. The audio interface appears in the list of subordinate interfaces (bSubordinateInterface) in the UFD of the interface collection, but the generic parent driver creates a separate PDO for the audio interface. Both the PDO for the audio interface and the PDO for the interface collection that the audio interface belongs to are directly above the functional device object (FDO) of the parent composite device in the device object tree. The PDO of the audio interface is not a child of the interface collection.

There are two control models whose enumeration characteristics are configurable in the registry: the wireless handset control model (WHCM), which defines a logical handset, and the Object Exchange Protocol (OBEX) control model. To configure the enumeration characteristics of these two control models, you must provide an INF file that loads an instance of Usbccgp.sys and sets the value of CdcFlags in the software key for that instance of Usbccgp.sys. The following table describes the configuration options of CdcFlags.

CdcFlags bit	Bit set to 0	Bit set to 1
0 (mask = 0x00000001)	The USB generic parent driver creates a separate PDO for each OBEX interface.	The USB generic parent driver creates a single PDO for all OBEX interfaces.
1 (mask = 0x00000010)	The USB generic parent driver does not create PDOs for WHCM interfaces (logical handsets). These interfaces remain hidden from the perspective of the device object tree.	The USB generic parent driver creates a PDO for each WHCM interface.

For example, to clear both bits (set them to 0), your INF file should have the following line in a DDInstall.AddReg section.

HKR, , CdcFlags, 0x00010001, 0x00000000

To set both bits to 1, your INF file should have the following line.

HKR, , CdcFlags, 0x00010001, 0x00000011

To set both bit 0 to 1 and bit 1 to 0, your INF file should have the following line.

HKR, , CdcFlags, 0x00010001, 0x00000001

Either bit can be set or reset, independently of the other bit.

The following figures illustrate how different registry configurations can create different device trees for the same device.

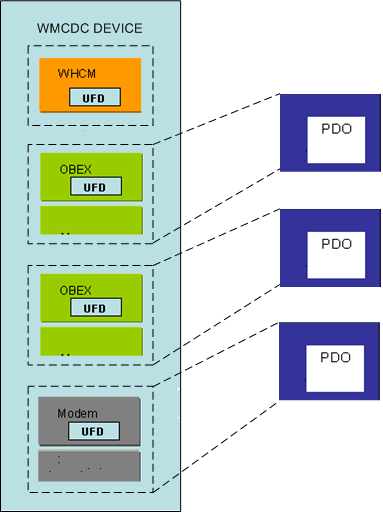

The following figure illustrates the PDO configuration when both bit 0 and bit 1 of CdcFlags are 0.

The wireless handset control model (WHCM) interface collection in the preceding figure contains three subordinate interface collections (bSubordinateInterface): two OBEX collections and a modem collection. Bit 0 of the CdcFlags is 0, so the USB generic parent driver does not create a PDO for the WHCM interface collection. Bit 1 of the CdcFlags is 0, so the USB generic parent driver generates a separate PDO for each OBEX interface collection.

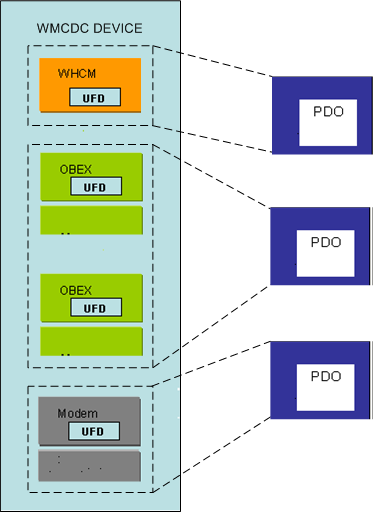

The following figure illustrates the PDO configuration when both bit 0 and bit 1 of CdcFlags are set.

Because bit 0 of CdcFlags is set to 1, the USB generic parent driver creates a PDO for the WHCM interface collection. Because bit 1 of CdcFlags is set to 1, the USB generic parent driver groups the two OBEX collections together and generates a single PDO for both OBEX collections.

You might want to represent OBEX collections with a single PDO at the kernel level and to distinguish between each individual OBEX collection within a user-mode driver. The Windows Portable Devices (WPD) protocol can help you multiplex data streams between different OBEX functions at the user level, when all of the OBEX functions are grouped into a single PDO at the kernel level.

The following example INF file loads the USB generic parent driver to manage a WMCDC device and instructs the USB generic parent to create PDOs for logical handsets and to create a single PDO for all OBEX collections in the logical handset.

[Version]
Signature="$Windows NT$"
Class=USB
ClassGUID={36FC9E60-C465-11CF-8056-444553540000}
Provider=%MSFT%
DriverVer=07/01/2001,5.1.2600.0
CatalogFile=ExampleCatalog.cat
PnpLockdown=1

[ControlFlags]
ExcludeFromSelect=*

[Manufacturer]
CompanyName=CompanyName,NTamd64

[CompanyName.NTamd64]
%COMPANYNAME.DeviceDesc%=CCGPDriverInstall,USB\Vid_????&Pid_????

[CCGPDriverInstall.NT]
Include=usb.inf
Needs=Composite.Dev.NT
AddReg=CCGPDriverInstall.AddReg

[CCGPDriverInstall.NT.Services]
Include=usb.inf
Needs=Composite.Dev.NT.Services

[CCGPDriverInstall.AddReg]
HKR,,EnumeratorClass,0x00000001,02,00,00
HKR,,CdcFlags,0x00010001,0x00010001

[Strings]
MSFT="Microsoft"
COMPANYNAME.DeviceDesc="USB Phone Parent"

Handling CDC and WMCDC interface collections

The USB generic parent driver handles wireless handset control model (WHCM) interfaces in a special way.

The following list summarizes the most important ways in which the handling of CDC and WMCDC interface collections differs from that of other interface collections:

• The wireless mobile communication device class permits a limited amount of nesting of interface collections. In particular, a logical handset interface collection (that is, a WHCM interface collection) can contain other subordinate interface collections. For example, a WMCDC-compliant phone can have an WHCM interface collection, which in turn, contains an abstract control model collection and an OBEX collection.
• You can configure the USB generic parent driver to not enumerate WHCM interface collections. WHCM interface collections that are not enumerated remain hidden, but the generic parent driver uses information from the union function descriptors (UFDs) that belong to an WHCM interface collections to group and enumerate subordinate interface collections.
• You can configure the USB generic parent driver to create separate physical device objects (PDOs) for OBEX control model interface collections, or to create a single PDO for all OBEX control model interface collections.
• The list of interface numbers in a UFD can have gaps. That is, the interface numbers of a UFD can refer to interfaces that are not contiguous. This type of numbering is not valid, for example, for the USB Interface Association Descriptor (IAD), whose interfaces must be contiguous and have sequential numbers.
• UFDs can include related audio interface collections
• Hardware identifiers (IDs) for CDC and WMCDC interface collections must include the interface subclass. Other USB interfaces, whose hardware IDs contain a MI_%02X suffix that specifies the interface number, do not contain information about the interface subclass. The subclass information is included in the hardware ID to allow vendors to provide INF files with hardware ID matches for specific interface collections, instead of relying on the position of the interface in the descriptor layout to determine which driver to load for the collection. The subclass information in the hardware ID also allows a gradual migration path from current vendor-supplied drivers that manage WMCDC interface collections to alternatives, such as user-mode drivers. For a general discussion of how USB interface hardware IDs are formatted, see Identifiers for USB Devices.

CDC and WMCDC Control Models

The CDC and WMCDC Control Models section describes the properties of interface collections that are supported in Microsoft Windows operating systems. Each description includes, among other things, a list of hardware and device identifiers (IDs) that the USB generic parent driver generates for the interface collection.

Most of the interface collections that Windows supports correspond to control models that belong to the communication device class (CDC) and wireless mobile communication device class (WMCDC), but the operating system also supports legacy audio and video interface collections and an interface collection that the Mobile Computing Promotion Consortium (MCPC) defines.

The interface collections that are described in this section are the following:

Audio Class Interfaces

USB Audio Device class interface collections that occur on CDC and WMCDC devices have the following properties.

Property	Description
Reference	Universal Serial Bus Device Class Definition for Audio Devices, version 1.0.
Class	All interfaces in the interface collection must belong to the Audio Device Class (0x01).
Subclass	Each interface in the interface collection must have a different subclass from the first interface in the collection.
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	Zero or more contiguous interfaces that belong to the streaming subclass (0x02).
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&MI_%02x USB\Vid_%04x&Pid_%04x&MI_%02x The hardware IDs for audio interface collections do not contain interface class-specific information.
Compatible IDs	USB\Class_01&SubClass_01&Prot_00 USB\Class_01&SubClass_01 USB\Class_01 The format of compatible IDs for audio interface collections contains embedded information about the interface class, interface subclass, and the protocol. For audio interface collections on a CDC or WMCDC device, the interface class is 01, the subclass is 01, and the protocol is 00.

CDC Abstract Control Model

There are two versions of the Abstract Control Model (ACM). The original version is defined in the USB Communication Device Class (CDC) specification. The USB Wireless Mobile Communication Device Class (WMCDC) specification contains an extended definition of the ACM.

Interface collections that comply with the WMCDC specification are described on this page.

Interface collections that comply with the CDC specification have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.6.2.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	ACM (0x02).
Protocol	Any.
Enumerated	Yes.
Related interfaces	One data class interface and optional audio class interfaces that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_02&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_02 USB\Vid_%04x&Pid_%04x&Cdc_02&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_02
Compatible IDs	USB\Class_02&SubClass_02&Prot_%02X USB\Class_02&SubClass_02 USB\Class_02
Special handling	The UFD can reference an audio interface collection that is enumerated independently of the ACM interface collection.

CDC ATM Networking Control Model

USB CDC ATM Networking Control Model (ANCM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.8.3
Class of the master interface	Communication Interface Class (0x02)
Subclass of the master interface	ANCM (0x07)
Protocol	None (0x00)
Enumerated	Yes
Related interfaces	One data class interface that is referenced by the Union Functional Descriptor (UFD)
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_07&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_07 USB\Vid_%04x&Pid_%04x&Cdc_07&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_07
Compatible IDs	USB\Class_02&SubClass_07&Prot_00 USB\Class_02&SubClass_07 USB\Class_02
Special handling	None

CDC CAPI control model

USB CDC Common ISDN API (CAPI) Control Model interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.7.2
Class of the master interface	Communication Interface Class (0x02)
Subclass of the master interface	CAPI (0x05)
Protocol	None (0x00)
Enumerated	Yes
Related interfaces	One data class interface that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_05&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_05
Compatible IDs	USB\Class_02&SubClass_05&Prot_00 USB\Class_02&SubClass_05
Special handling	None

CDC direct line control model

USB CDC direct line control model (DLCM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.6.1.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	DLCM (0x01).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	Audio Class or vendor-defined interfaces that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_01&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_01 USB\Vid_%04x&Pid_%04x&Cdc_01&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_01
Compatible IDs	USB\Class_02&SubClass_01&Prot_00 USB\Class_02&SubClass_01``USB\Class_02
Special handling	The UFD references an audio class interface collection that is enumerated independently of the DLCM interface collection.

CDC Ethernet networking control model

USB CDC Ethernet networking control model (ENCM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.8.2.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	ENCM (0x06).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	One data class interface that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_06&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_06 USB\Vid_%04x&Pid_%04x&Cdc_06&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_06
Compatible IDs	USB\Class_02&SubClass_06&Prot_00 USB\Class_02&SubClass_06 USB\Class_02
Special handling	The compatible IDs of this control model have a match in a Microsoft-supplied INF file. If the operating system does not find a match for one of the hardware IDs in a vendor-supplied INF file, the system automatically loads the native NDIS miniport driver to manage the interface collection.

CDC multi-channel ISDN control model

USB CDC multi-channel ISDN control model (MCCM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.7.1
Class of the master Interface	Communication Interface Class (0x02)
Subclass of the master interface	MCCM (0x04)
Protocol	None (0x00)
Enumerated	Yes
Related interfaces	Multiple data class interfaces that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_04&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_04 USB\Vid_%04x&Pid_%04x&Cdc_04&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_04
Compatible IDs	USB\Class_02&SubClass_04&Prot_00 USB\Class_02&SubClass_04 USB\Class_02
Special handling	None

CDC telephone control model

USB CDC telephone control model (TCM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus Class Definitions for Communication Devices, version 1.1, Section 3.6.3.
Class of the master interface	Communication Interface Class (0x02).
SubClass of the master interface	TCM (0x03).
Protocol	Any.
Enumerated	Yes.
Related interfaces	Audio class interfaces that the union functional descriptor (UFD) references.
Hardware ID	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_03&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_03 USB\Vid_%04x&Pid_%04x&Cdc_03&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_03
Compatible ID	USB\Class_02&SubClass_03&Prot_%02X USB\Class_02&SubClass_03 USB\Class_02
Special handling	The UFD can reference an audio class interface collection that is enumerated independently of the TCM interface collection.

MCPC vendor-unique interfaces

The Mobile Computing Promotion Consortium (MCPC) defined a format for interface collections before the Wireless Mobile Communication Device Class (WMCDC) specification provided a format for vendor-unique CDC devices. Therefore, MCPC interface collections do not comply with the WMCDC standard.

However, the USB generic parent driver can enumerate MCPC interface collections if WMCDC is enabled. MCPC interface collections have the following properties.

Property	Description
Reference	Mobile Computing Promotion Consortium (MCPC) GL-004 specification
Class	CDC (0x02)
Subclass	0x88
Protocol	None (0x00)
Enumerated	Yes
Related interfaces	Zero or more data class interfaces that the union functional descriptor (UFD) references
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_88&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_88 USB\Vid_%04x&Pid_%04x&Cdc_88&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_88
Compatible IDs	USB\Class_02&SubClass_88&Prot_00 USB\Class_02&SubClass_88 USB\Class_02
Special handling	None

Video class interfaces

USB video device class interface collections that occur on CDC and WMCDC devices have the following properties.

Property	Description
Reference	Universal Serial Bus Device Class Definition for Video Devices, version 1.0.
Class	Video (0x0E).
Subclass	Video Control (0x01).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	Zero or more contiguous interfaces that belong to the streaming subclass (0x02).
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&MI_%02x USB\Vid_%04x&Pid_%04x&MI_%02x
Compatible IDs	USB\Class_0E&SubClass_01&Prot_00 USB\Class_0E&SubClass_01 USB\Class_0E
Special handling	Video class interface collections receive special handling on CDC devices. On non-CDC devices, video class interface collections are defined by interface association descriptors (IADs). On CDC devices, video class interface collections are defined by union functional descriptors (UFDs).

WMCDC abstract control model

There are two versions of the abstract control model (ACM). The original version is defined in the USB Communication Device Class (CDC) specification. The USB Wireless Mobile Communication Device Class (WMCDC) specification contains an extended definition of the ACM. ACM collections that contain a fax/modem function should use the WMCDC definition of ACM rather than the original CDC ACM definition.

Interface collections that comply with the CDC specification are described on this page.

Interface collections that comply with the WMCDC specification have the following properties.

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.2.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	ACM (0x02).
Protocol	If the collection uses an AT Command Set Protocol, the protocol value that is embedded in the compatible IDs is 0x01. If the collection uses one of the protocols that the WMCDC specification describes, the protocol value that is embedded in the compatible IDs is 0x2 through 0x06, or 0xFE.
Enumerated	Yes.
Related interfaces	One data class interface that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_Modem&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_Modem USB\Vid_%04x&Pid_%04x&Cdc_Modem&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_Modem
Compatible IDs	USB\Class_02&SubClass_Modem&Prot_%02X USB\Class_02&SubClass_Modem USB\Class_02
Special handling	The UFD might reference an audio interface collection that is enumerated independently of the ACM interface collection. Interface collections must comply with the special descriptor and endpoint requirements that are specified in section 6.2 of the WMCDC specification. If the interface collection does not comply with the WMCDC requirements but the interface complies with CDC requirements, the USB generic parent driver will enumerate the interface collection and generic hardware IDs with CDC formats. The compatible IDs of this control model have a match in a Microsoft-supplied INF file. If the operating system does not find a match for one of the hardware IDs in a vendor-supplied INF file, the system automatically loads the native telephony application programming interface (TAPI) modem filter driver to manage the modem function and sets the appropriate TAPI registry settings, unless the protocol code is 0xFE. If the protocol code is 0xFE, the vendor must supply a device or class co-installer to correctly populate the TAPI registry settings.

WMCDC device management model

USB WMCDC device management model (DMM) interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.6.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	DMM (0x09).
Protocol	Any.
Enumerated	Yes.
Related interfaces	None.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_09&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_09 USB\Vid_%04x&Pid_%04x&Cdc_09&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_09
Compatible IDs	USB\Class_02&SubClass_09&Prot_%02X USB\Class_02&SubClass_09 USB\Class_02
Special handling	This control model does not use a union functional descriptor (UFD).

WMCDC mobile direct line model

USB WMCDC mobile direct line model (MDLM) interface collections have the following properties:

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.7
Class of the master interface	Communication Interface Class (0x02)
Subclass of the master interface	MDLM (0x0A)
Protocol	Any
Enumerated	Yes
Related interfaces	One or more data class interfaces that the union functional descriptor (UFD) references
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_0A&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_0A USB\Vid_%04x&Pid_%04x&Cdc_0A&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_0A
Compatible IDs	USB\Class_02&SubClass_0A&Prot_%02X USB\Class_02&SubClass_0A USB\Class_02
Special handling	None.

WMCDC OBEX control model (multiple PDOs)

There are two ways to enumerate Object Exchange Protocol (OBEX) Control Model interface collections: the USB generic parent driver can group all of the OBEX interfaces together and create a single physical device object (PDO) for all of the OBEX interfaces, or the parent driver can create a separate PDO for each OBEX interface.

When the USB generic parent driver assigns separate PDOs to each OBEX interface, the PDOs have the following properties.

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.5.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	OBEX (0x0B).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	One data class interface that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_0B&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_0B USB\Vid_%04x&Pid_%04x&Cdc_0B&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_0B
Compatible IDs	USB\Class_02&SubClass_0B&Prot_00 USB\Class_02&SubClass_0B USB\Class_02
Special handling	The registry settings that are associated with the instance of the USB generic parent driver that manages the composite device determine whether OBEX interfaces are managed with a single PDO or multiple PDOs.

WMCDC OBEX control model (single PDO)

There are two ways to enumerate Object Exchange Protocol (OBEX) control model interface collections: the USB generic parent driver can group all of the OBEX interfaces together and create a single physical device object (PDO) for all of the OBEX interfaces, or the parent driver can create a separate PDO for each OBEX interface.

When the USB generic parent driver assigns a single PDO to all of the OBEX interfaces, the PDO has the following properties.

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.5.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	OBEX (0x0B).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	One data class interface that the union functional descriptor (UFD) references.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&WPD_OBEX&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&WPD_OBEX USB\Vid_%04x&Pid_%04x&WPD_OBEX&MI_%02x USB\Vid_%04x&Pid_%04x&WPD_OBEX
Compatible IDs	USB\Class_02&WPD_OBEX USB\Class_02
Special handling	The registry settings that are associated with the instance of the USB generic parent driver that manages the composite device determine whether OBEX interfaces are managed with a single PDO or multiple PDOs. For an explanation of the registry settings that specify how the USB generic parent driver enumerates OBEX interfaces, see Enumeration of Interface Collections on USB Composite Devices.

WMCDC wireless handset control model

The USB generic parent driver does not always enumerate wireless handset control model (WHCM) interface collections. The registry settings that are associated with the instance of the USB generic parent driver that manages the WHCM interface collection determine whether the USB generic parent driver creates a physical device object (PDO) for the interface collection or not. For an explanation of the registry settings that specify how the USB generic parent driver enumerates WHCM interfaces, see Enumeration of Interface Collections on USB Composite Devices.

Enumerated WHCM interface collections have the following properties.

Property	Description
Reference	Universal Serial Bus CDC Subclass Specification for Wireless Mobile Communication Devices, version 1.0, Section 6.1.
Class of the master interface	Communication Interface Class (0x02).
Subclass of the master interface	WHCM (0x08).
Protocol	None (0x00).
Enumerated	Yes.
Related interfaces	None.
Hardware IDs	USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_08&MI_%02x USB\Vid_%04x&Pid_%04x&Rev_%04x&Cdc_08 USB\Vid_%04x&Pid_%04x&Cdc_08&MI_%02x USB\Vid_%04x&Pid_%04x&Cdc_08
Compatible IDs	USB\Class_02&SubClass_08&Prot_00 USB\Class_02&SubClass_08 USB\Class_02
Special handling	The union functional descriptor (UFD) identifies interfaces that are associated with a logical handset.

The hardware ID formats in the preceding topics describe use the following conventions:

• a C-language printf format represents integers. For example, "%04x" means a 4-digit hexadecimal integer, "%02x" means a 2-digit hexadecimal integer, and so on.
• The integer that follows the string "Vid_" is a 4-digit hexadecimal representation of the vendor code that the USB committee (<www.usb.org>) assigns to the vendor.
• The integer that follows the string "Pid_" is a 4-digit hexadecimal representation of the product code that the vendor assigns to the device.
• The integer that follows the string "Rev_" is a 4-digit hexadecimal representation of the revision number of the device.
• The integer that follows the string "Cdc_" is the interface subclass.
• The integer that follows the string "Prot_" is the protocol number.
• The integer that follows the string "MI_" is a 2-digit hexadecimal representation of the interface number, which is extracted from the bInterfaceNumber field of the interface descriptor.

Enumeration of interface collections on USB devices with IADs

If a USB composite device has an interface association descriptor (IAD) in its firmware, Windows enumerates interface collections as though each collection were a single device and assigns a single physical device object (PDO) to each interface collection and associates hardware and compatible identifiers (IDs) with the PDO. For a detailed description of IADs, see USB Interface Association Descriptor. This section describes the hardware IDs and compatible identifiers (IDs) assigned to interface collections associated with an IAD.

Hardware IDs of USB devices with IADs

USB\VID_v(4)&PID_p(4)&Rev_r(4)&MI_z(2)

USB\VID_v(4)&PID_p(4)&MI_z(2)

In these hardware IDs,

• v(4) is the four-digit vendor code that the USB committee assigns to the vendor and that is extracted from the idVendor field of the device descriptor.
• p(4) is the four-digit product code that the vendor assigns to the device and that is extracted from the idProduct field of the device descriptor.
• r(4) is the four-digit device release number, in binary coded decimal revision, that the vendor assigns to the device and that is extracted from the bcdDevice field of the device descriptor.
• z(2) is the two-digit interface number that is extracted from the bFirstInterface field of IAD.

Compatible IDs of USB devices with IADs

USB\Class_c(2)&SubClass_s(2)&Prot_p(2)

USB\Class_c(2)&SubClass_s(2)

USB\Class_c(2)

In these compatible IDs, c(2), s(2), and p(2) contain values that are taken, respectively, from the bFunctionClass, bFunctionSubClass, and bFunctionProtocol fields of the IAD.

You cannot use IADs recursively to bind functions of functions. In particular, if a device has IAD descriptors in its firmware, the generic parent driver will not group interfaces by audio device class, as described in Enumeration of Interface Collections on USB Composite Devices.

Enumeration of interface collections on audio devices without IADs

For audio devices, the Windows operating system can enumerate groups of interfaces (interface collections) that are associated with a function and assign a single physical device object (PDO) to each group, even when the device does not have an interface association descriptor (IAD).

The operating system groups the interfaces of composite audio devices into interface collections, if the interfaces meet the following conditions:

• All interfaces in the interface collection must be consecutive. In other words, the interfaces must be adjacent to one another in firmware memory.
• All interfaces in the interface collection must belong to the audio device class. The device manufacturer specifies that an interface belongs to the audio device class by assigning a value of 0x01 to the bInterfaceClass field of the interface descriptor.
• Each interface in the interface collection must have a different subclass from the first interface in the collection.The bInterfaceSubClass field of the interface descriptor specifies the device subclass of the interface.

If an interface does not meet all of these three conditions, Windows will attempt to enumerate it separately instead of grouping it with the other audio class interfaces.

The operating system does not group audio class interfaces in a special way if an interface association descriptor (IAD) is present in device firmware. The IAD method is always the preferred method of grouping USB interfaces.

This section describes hardware and compatible identifiers (IDs) associated with the PDO that is created by the operating system for an interface collection whose interfaces belong to the audio device class.

Hardware IDs of audio devices without IADs

USB\VID_v(4)&PID_p(4)&Rev_r(4)&MI_z(2)

USB\VID_v(4)&PID_p(4)&MI_z(2)

In these hardware IDs,

• v(4) is the four-digit vendor code that the USB standards committee assigns to the vendor and that is extracted from the idVendor field of the device descriptor.
• p(4) is the four-digit product code that the vendor assigns to the device and that is extracted from the idProduct field of the device descriptor.
• r(4) is the four-digit device release number, in binary coded decimal revision, that the vendor assigns to the device and that is extracted from the bcdDevice field of the device descriptor.
• z(2) is the two-digit interface number that is extracted from the bInterfaceNumber field of the interface descriptor.

Compatible IDs of audio devices without IADs

USB\Class_c(2)&SubClass_s(2)&Prot_p(2)

USB\Class_c(2)&SubClass_s(2)

USB\Class_c(2)

In these compatible IDs, c(2), s(2), and p(2) contain values that are taken, respectively, from the bInterfaceClass, bInterfaceSubClass, and bInterfaceProtocol fields of the first USB interface descriptor in each interface collection.

Related topics

• USB Generic Parent Driver (Usbccgp.sys)
• Microsoft-provided USB drivers
