Split view control

  • Artikel

A split view control has an expandable/collapsible pane and a content area.

Important APIs: SplitView class

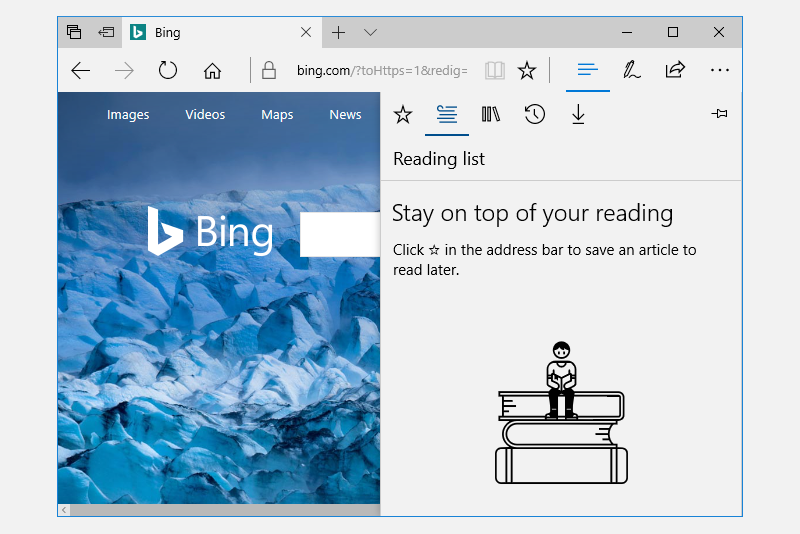

Here is an example of the Microsoft Edge app using SplitView to show its Hub.

Microsoft Edge split view example

A split view's content area is always visible. The pane can expand and collapse or remain in an open state, and can present itself from either the left side or right side of an app window. The pane has four modes:

  • Overlay

    The pane is hidden until opened. When open, the pane overlays the content area.

  • Inline

    The pane is always visible and doesn't overlay the content area. The pane and content areas divide the available screen real estate.

  • CompactOverlay

    A narrow portion of the pane is always visible in this mode, which is just wide enough to show icons. The default closed pane width is 48px, which can be modified with CompactPaneLength. If the pane is opened, it will overlay the content area.

  • CompactInline

    A narrow portion of the pane is always visible in this mode, which is just wide enough to show icons. The default closed pane width is 48px, which can be modified with CompactPaneLength. If the pane is opened, it will reduce the space available for content, pushing the content out of its way.

Is this the right control?

The split view control can be used to create any "drawer" experience where users can open and close the supplemental pane. For example, you can use SplitView to build the list/details pattern.

If you'd like to build a navigation menu with an expand/collapse button and a list of navigation items, then use the NavigationView control.

Examples

WinUI 2 Gallery
WinUI Gallery

If you have the WinUI 2 Gallery app installed, click here to open the app and see the SplitView in action.

Create a split view

Here's a SplitView control with an open Pane appearing inline next to the Content.

<SplitView IsPaneOpen="True"
           DisplayMode="Inline"
           OpenPaneLength="296">
    <SplitView.Pane>
        <TextBlock Text="Pane"
                   FontSize="24"
                   VerticalAlignment="Center"
                   HorizontalAlignment="Center"/>
    </SplitView.Pane>

    <Grid>
        <TextBlock Text="Content"
                   FontSize="24"
                   VerticalAlignment="Center"
                   HorizontalAlignment="Center"/>
    </Grid>
</SplitView>

Get the sample code
