EmbossBitmapEffect.LightAngle Property
Definition
Important
Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.
Note: This API is now obsolete. The non-obsolete alternative is Effect. Gets or sets the direction the artificial light is cast upon the embossed object.
public:
property double LightAngle { double get(); void set(double value); };public double LightAngle { get; set; }member this.LightAngle : double with get, setPublic Property LightAngle As DoubleProperty Value
The direction the artificial light is cast upon the embossed object. The valid range is from 0-360 (degrees) with 0 specifying the right-hand side of the object and successive values moving counter-clockwise around the object. The default value is 45.
Remarks
The direction of light cast on the embossed object affects the shadowing of the embossed visual object.

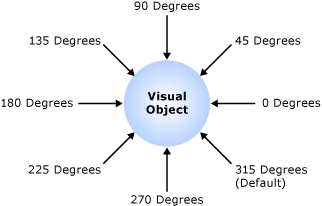

The following diagram shows what direction light comes from for a given value of this property:
Dependency Property Information
| Identifier field | LightAngleProperty |
Metadata properties set to true |
None |
