Get started with this simple example of the Import and Export Wizard
Applies to:
SQL Server
SSIS Integration Runtime in Azure Data Factory
Learn what to expect in the SQL Server Import and Export Wizard by walking through a common scenario - importing data from an Excel spreadsheet to a SQL Server database. Even if you plan to use a different source and a different destination, this topic shows you most of what you need to know about running the wizard.
Prerequisite - Is the wizard installed on your computer?
If you want to run the wizard, but you don't have Microsoft SQL Server installed on your computer, you can install the SQL Server Import and Export Wizard by installing SQL Server Data Tools (SSDT). For more info, see Download SQL Server Data Tools (SSDT).
Here's the Excel source data for this example

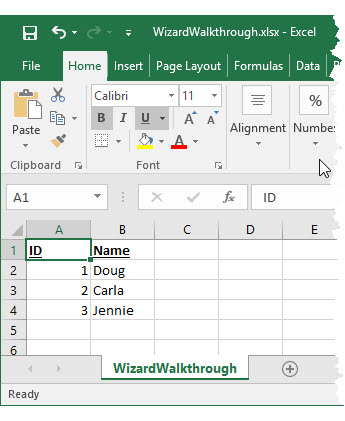

Here's the source data that you're going to copy - a small two-column table in the WizardWalkthrough worksheet of the WizardWalkthrough.xlsx Excel workbook.
Here's the SQL Server destination database for this example

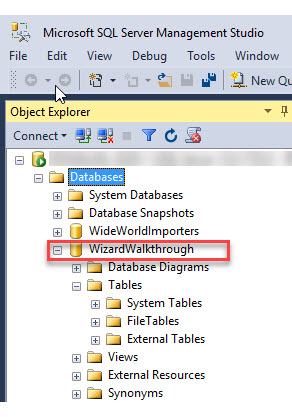

Here (in SQL Server Management Studio) is the SQL Server destination database to which you're going to copy the source data. The destination table isn't there - you're going to let the wizard create the table for you.
Step 1 - Start the wizard

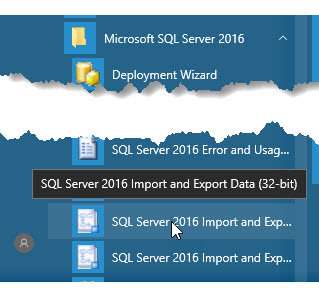

You start the wizard from the Microsoft SQL Server 2016 group on the Windows Start menu.
Note
For this example, you pick the 32-bit wizard because you have the 32-bit version of Microsoft Office installed. As a result, you have to use the 32-bit data provider to connect to Excel. For many other data sources, you can typically pick the 64-bit wizard.
To use the 64-bit version of the SQL Server Import and Export Wizard, you have to install SQL Server. SQL Server Data Tools (SSDT) and SQL Server Management Studio (SSMS) are 32-bit applications and only install 32-bit files, including the 32-bit version of the wizard.
For more info, see Start the SQL Server Import and Export Wizard.
Step 2 - View the Welcome page

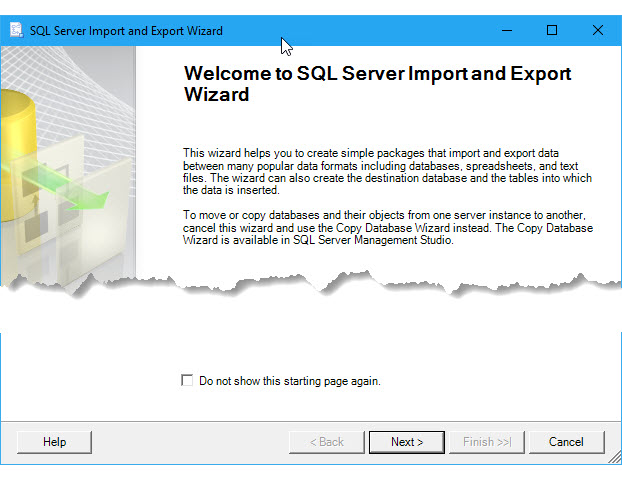

The first page of the wizard is the Welcome page.
You probably don't want to see this page again, so select Do not show this starting page again.
Step 3 - Pick Excel as your data source

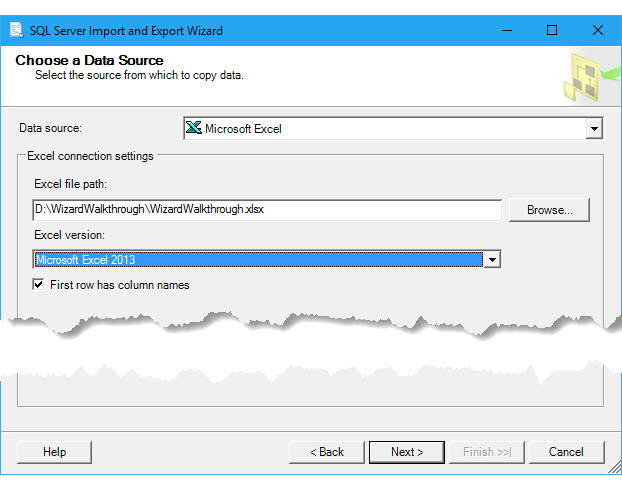

On the next page, Choose a Data Source, you pick Microsoft Excel as your data source. Then you browse to pick the Excel file. Finally you specify the Excel version that you used to create the file.
Important
For detailed info about connecting to Excel files, and about limitations and known issues for loading data from or to Excel files, see Load data from or to Excel with SQL Server Integration Services (SSIS).
For more info about this page of the wizard, see Choose a Data Source.
Step 4 - Pick SQL Server as your destination

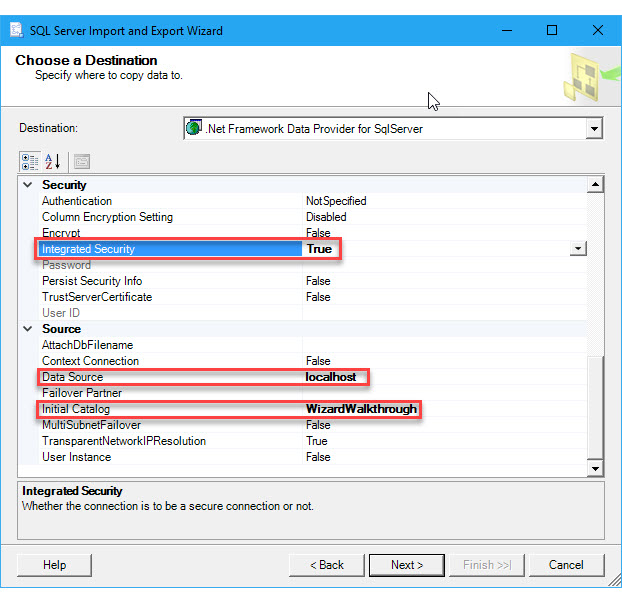

On the next page, Choose a Destination, you pick Microsoft SQL Server as your destination by picking one of the data providers in the list that connects to SQL Server. In this example, you pick the .Net Framework Data Provider for SQL Server.
The page displays a list of provider properties. Many of these are unfriendly names and unfamiliar settings. Fortunately, to connect to any enterprise database, you typically have to provide only three pieces of information. You can ignore the default values for the other settings.
| Required info | .Net Framework Data Provider for SQL Server property |
|---|---|
| Server name | Data Source |
| Authentication (login) info | Integrated Security; or User ID and Password If you want to see a dropdown list of databases on the server, you first have to provide valid login info. |
| Database name | Initial Catalog |
For more info about connecting to SQL Server, see Connect to a SQL Server Data Source. For more info about this page of the wizard, see Choose a Destination.
Step 5 - Copy a table instead of writing a query

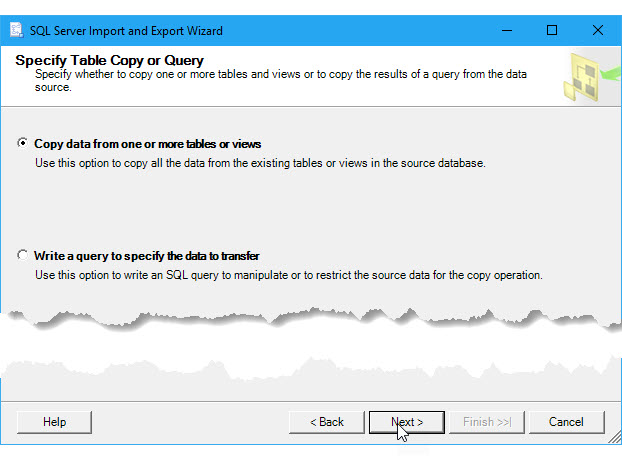

On the next page, Specify Table Copy or Query, you specify that you want to copy the entire table of source data. You don't want to write a query in the SQL language to select the data to copy.
For more info about this page of the wizard, see Specify Table Copy or Query.
Step 6 - Pick the table to copy

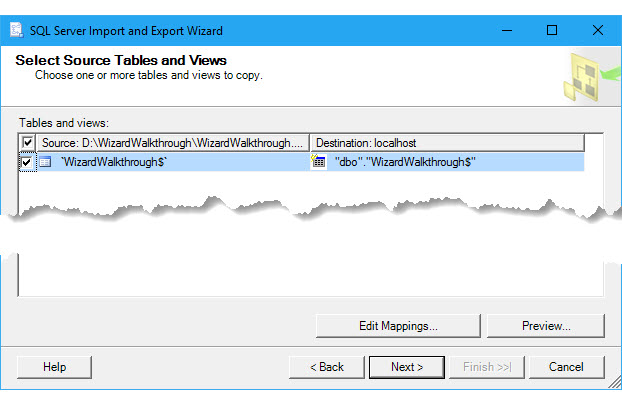

On the next page, Select Source Tables and Views, you pick the table or tables that you want to copy from the data source. Then you map each selected source table to a new or existing destination table.
In this example, by default the wizard has mapped the WizardWalkthrough$ worksheet in the Source column to a new table with the same name at the SQL Server destination. (The Excel workbook only contains a single worksheet.)
- The dollar sign ($) on the name of the source table indicates an Excel worksheet. (A named range in Excel is represented by its name alone.)
- The starburst on the destination table icon indicates that the wizard is going to create a new destination table.

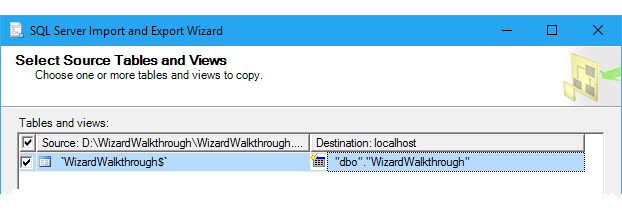

You probably want to remove the dollar sign ($) from the name of the new destination table.
For more info about this page of the wizard, see Select Source Tables and Views.
Optional step 7 - Review the column mappings

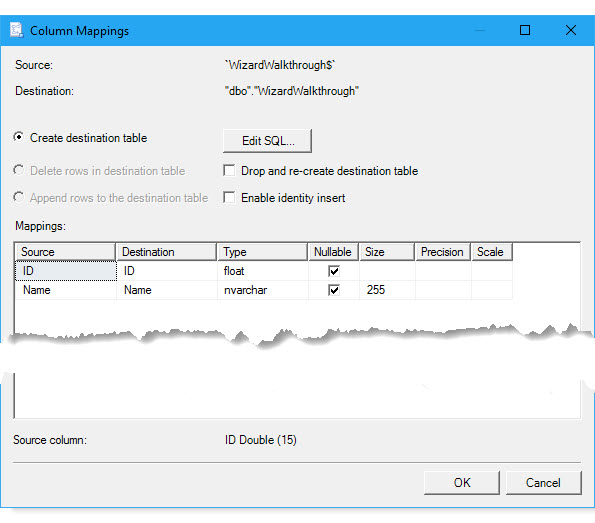

Before you leave the Select Source Tables and Views page, optionally click the Edit Mappings button to open the Column Mappings dialog box. Here, in the Mappings table, you see how the wizard is going to map columns in the source worksheet to columns in the new destination table.
For more info about this page of the wizard, see Column Mappings.
Optional step 8 - Review the CREATE TABLE statement

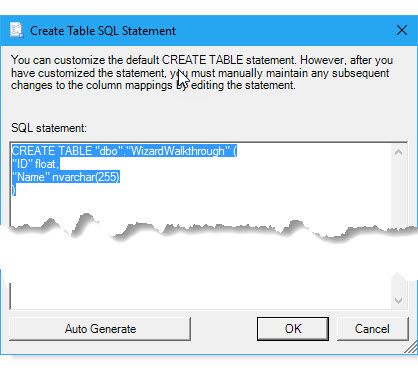

While the Column Mappings dialog box is open, optionally click the Edit SQL button to open the Create Table SQL Statement dialog box. Here you see the CREATE TABLE statement generated by the wizard to create the new destination table. Typically you don't have to change the statement.
For more info about this page of the wizard, see Create Table SQL Statement.
Optional step 9 - Preview the data to copy

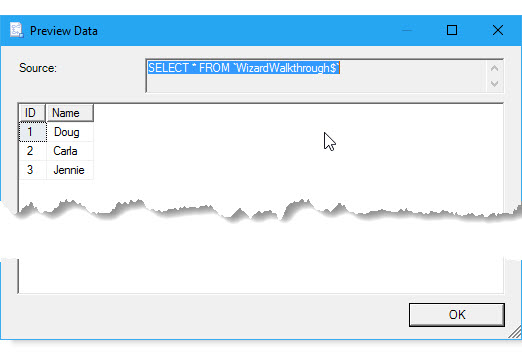

After you click OK to close the Create Table SQL Statement dialog box, then click OK again to close the Column Mappings dialog box, you're back on the Select Source Tables and Views page. Optionally click the Preview button to see a sample of the data that the wizard is going to copy. In this example, it looks OK.
For more info about this page of the wizard, see Preview Data.
Step 10 - Yes, you want to run the import-export operation

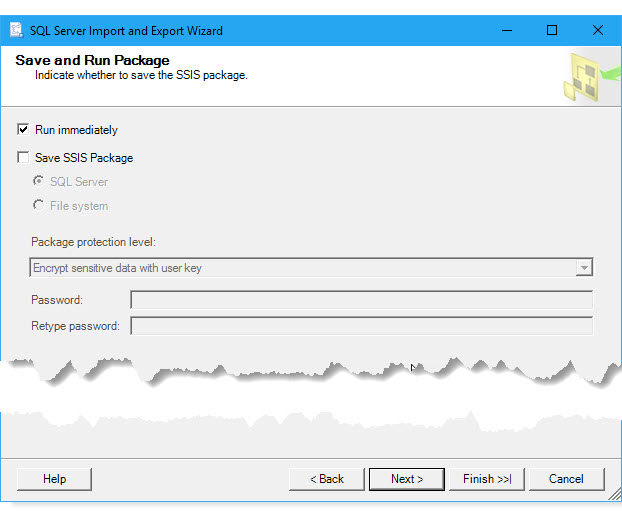

On the next page, Save and Run Package, you leave Run immediately enabled to copy the data as soon as you click Finish on the next page. Or you can skip the next page by clicking Finish on the Save and Run Package page.
For more info about this page of the wizard, see Save and Run Package.
Step 11 - Finish the wizard and run the import-export operation

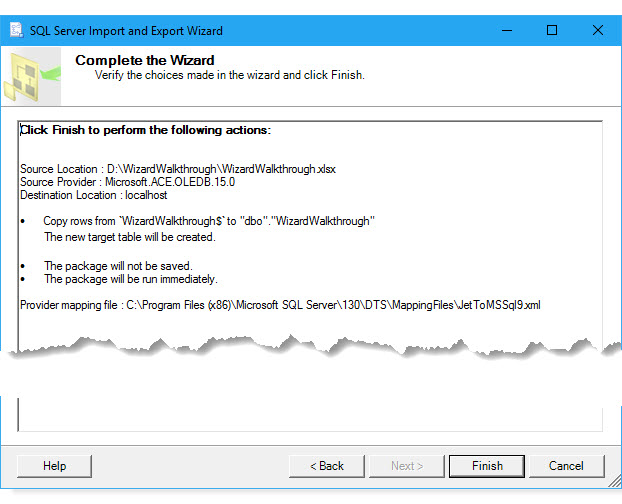

If you clicked Next instead of Finish on the Save and Run Package page, then on the next page, Complete the Wizard, you see a summary of what the wizard is going to do. Click Finish to run the import-export operation.
For more info about this page of the wizard, see Complete the Wizard.
Step 12 - Review what the wizard did

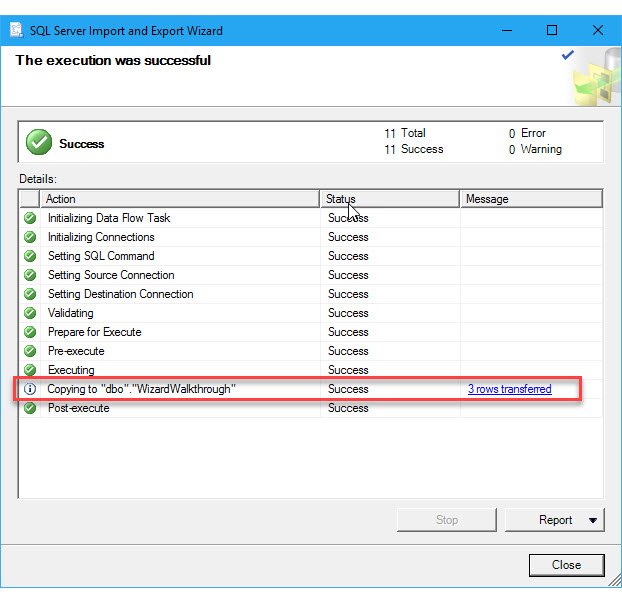

On the final page, watch as the wizard finishes each task, then review the results. The highlighted line indicates that the wizard copied your data successfully. You're finished!
For more info about this page of the wizard, see Performing Operation.
Here's the new table of data copied to SQL Server

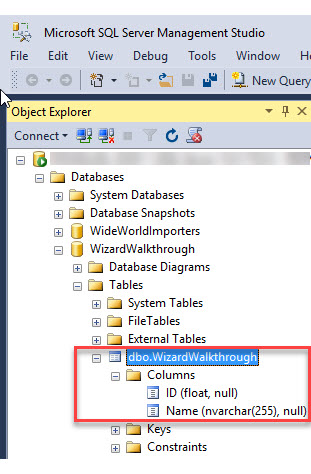

Here (in SQL Server Management Studio) you see the new destination table that the wizard created in SQL Server.
Here (again in SSMS) you see the data that the wizard copied to SQL Server.
Learn more
Learn more about how the wizard works.
Learn more about the wizard. If you're looking for an overview of the wizard, see Import and Export Data with the SQL Server Import and Export Wizard.
Learn about the steps in the wizard. If you're looking for info about the steps in the wizard, select the page you want from the list here - Steps in the SQL Server Import and Export Wizard. There's also a separate page of documentation for each page of the wizard.
Learn how to connect to data sources and destinations. If you're looking for info about how to connect to your data, select the page you want from the list here - Connect to data sources with the SQL Server Import and Export Wizard. There's a separate page of documentation for each of several commonly used data sources.
Learn more about loading data from and to Excel. If you're looking for info about connecting to Excel files, and about limitations and known issues for loading data from or to Excel files, see Load data from or to Excel with SQL Server Integration Services (SSIS).
