Quickstart: Deploy a SQL Server Linux container to Kubernetes using Helm charts

Applies to: SQL Server - Linux

This quickstart takes you through the steps to deploy SQL Server on Linux containers to Azure Kubernetes Service (AKS) with Helm charts, from a Windows client machine.

AKS is a managed Kubernetes service for deploying and managing container clusters. Helm is an open-source packaging tool that helps you install and manage the lifecycle of Kubernetes applications.

Prerequisites

• An Azure subscription. If you don't have an Azure subscription, you can create a free account.

• Create an AKS cluster.

• Download and review the sample Helm chart for this quickstart. The sample chart contains many configuration options for customizing your SQL Server deployment.

Install client tools

On your Windows client machine, you need the following tools.

• Azure CLI for Windows.
• Helm for Windows.

If you prefer to use a different client operating system, you need to select the appropriate packages for that platform.

Install kubectl using the Az PowerShell module

You use kubectl to interact with the Kubernetes cluster. For more information, see az aks install-cli.

To install kubectl, run the following command from your Windows command prompt:

Windows Command Prompt

az aks install-cli

Tip

You can add kubectl to your local PATH environment variable, so that you don't have to type in the full path each time.

Connect kubectl to the AKS cluster

1. You need to merge the context of the AKS cluster, so that kubectl or helm commands run on that specific AKS cluster.

   To merge, run the command as described in the Connect to AKS cluster article:

   Windows Command Prompt

   az aks get-credentials --resource-group <resourcegroupname> --name <aks clustername>


   You should see the following output, where <clustername> is the cluster you provided, and <username> is your local Windows user account:

   Output

   Merged "<clustername>" as current context in C:\Users\<username>\.kube.config


2. Confirm that the merge was successful by running kubectl get nodes. The output should show the nodes in the context of your AKS cluster.

   Output

   NAME                    STATUS   ROLES   AGE    VERSION
   <aks-node>-vmss000000   Ready    agent   141d   v1.16.13
   <aks-node>-vmss000001   Ready    agent   141d   v1.16.13


Review the sample Helm chart

You're now ready to deploy the SQL Server on AKS cluster via the Helm chart.

This quickstart provides a sample "as-is" sample "as-is" Helm chart. The sample is for reference only. Remember to review the readme file to understand the configuration values that match your configuration requirements.

If you want to deploy SQL Server in StatefulSet mode, which is the recommended mode for SQL Server deployments, you can view a sample "as-is" StatefulSet-based Helm chart deployment instead.

1. Download the sample Helm chart.

2. Switch to the directory where you downloaded the sample chart, and modify the values.yaml file if needed.

Deploy SQL Server to the AKS cluster

Deploy SQL Server using the following command. The deployment name is customizable, so you can change mssql-latest-deploy to anything that you'd like.

Windows Command Prompt

helm install mssql-latest-deploy . --set ACCEPT_EULA.value=Y --set MSSQL_PID.value=Developer

In the previous example, the chart and its files are in the current directory, represented by the period (.). You can specify the path of the chart if you prefer.

If successful, you see similar output:

Output

NAME: mssql-latest-deploy
LAST DEPLOYED: Wed Apr 06 21:36:19 2022
NAMESPACE: default
STATUS: deployed
REVISION: 1

Verify SQL Server deployment

Deploying to a Kubernetes cluster can take a few minutes. To verify that your deployment was successful, run the following command:

Windows Command Prompt

kubectl get all

If successful, you see similar output:

Output

NAME                                      READY   STATUS    RESTARTS   AGE
pod/mssql-latest-deploy-7f8c7f5bc-9grmg   1/1     Running   0          2m56s

NAME                          TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
service/kubernetes            ClusterIP      10.0.0.1       <none>        443/TCP          141d
service/mssql-latest-deploy   LoadBalancer   10.0.247.220   20.40.0.145   1433:30780/TCP   2m56s

NAME                                  READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/mssql-latest-deploy   1/1     1            1           2m56s

NAME                                            DESIRED   CURRENT   READY   AGE
replicaset.apps/mssql-latest-deploy-7f8c7f5bc   1         1         1       2m56s

Connect to the SQL Server running on AKS

You can connect to the SQL Server instance using any familiar SQL Server client tool, such as SQL Server Management Studio (SSMS), Azure Data Studio, or sqlcmd.

For example, if you connect to the SQL Server instance using SSMS, you can use the following settings:

• Server name: Use the External-IP address for the mssql-latest-deploy service. In this example, it's 20.40.0.145.
• Authentication: Select SQL Server Authentication from the dropdown list.
• Login: Use sa, which is the system administrator account.
• Password: The sa password matches the value you provided in the MSSQL_SA_PASSWORD configuration option, in the values.yaml file of the Helm chart.

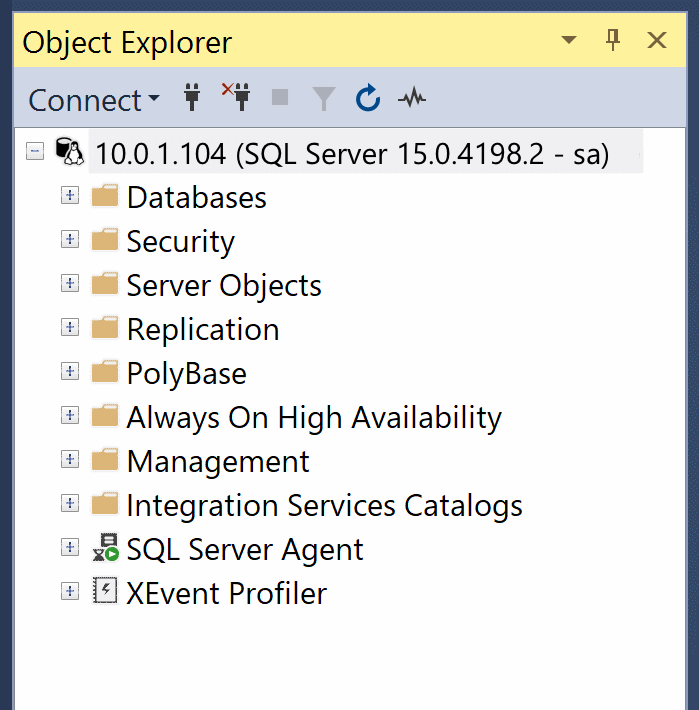

Once you connect, you can expand the SQL Server instance in Object Explorer.

Clean up resources

If you're not going to continue using your AKS cluster, remember to delete your cluster.
