Debug live ASP.NET Azure apps using the Snapshot Debugger

The Snapshot Debugger takes a snapshot of your in-production apps when code that you're interested in executes. To instruct the debugger to take a snapshot, you set snappoints and logpoints in your code. The debugger lets you see exactly what went wrong, without impacting traffic of your production application. The Snapshot Debugger can help you dramatically reduce the time it takes to resolve issues that occur in production environments.

Snappoints and logpoints are similar to breakpoints, but unlike breakpoints, snappoints don't halt the application when hit. Typically, capturing a snapshot at a snappoint takes 10-20 milliseconds.

In this tutorial, you will:

  • Start the Snapshot Debugger
  • Set a snappoint and view a snapshot
  • Set a logpoint

Prerequisites

  • Snapshot Debugger is only available starting in Visual Studio 2017 Enterprise version 15.5 or higher with the Azure development workload. (Under the Individual components tab, you find it under Debugging and testing > Snapshot debugger.)

    If it's not already installed, install Visual Studio 2019. If you're updating from a previous Visual Studio installation, run the Visual Studio Installer and check the Snapshot Debugger component in the ASP.NET and web development workload.

  • Basic or higher Azure App Service plan.

  • Snapshot collection is available for the following web apps running in Azure App Service:

    • ASP.NET applications running on .NET Framework 4.6.1 or later.
    • ASP.NET Core applications running on .NET Core 2.0 or later on Windows.

Open your project and start the Snapshot Debugger

  1. Open the project you would like to snapshot debug.

    Important

    To snapshot debug, you need to open the same version of source code that is published to your Azure App Service.

  2. Choose Debug > Attach Snapshot Debugger.... Select the Azure App Service your project is deployed to and an Azure storage account, and then click Attach. Snapshot Debugger also supports Azure Kubernetes Service and Azure Virtual Machines (VM) & Virtual Machine Scale Sets.

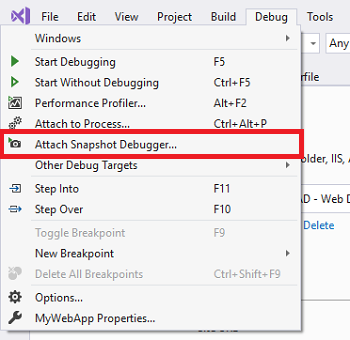

    Launch the snapshot debugger from the Debug menu

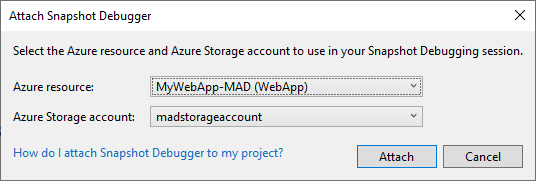

    Select Azure Resource

    Important

    The first time you select Attach Snapshot Debugger, you're prompted to install the Snapshot Debugger site extension on your Azure App Service. This installation requires a restart of your Azure App Service.

    Note

    (Visual Studio 2019 version 16.2 and above) Snapshot Debugger has enabled Azure cloud support. Make sure that both the Azure resource and Azure Storage account you select are from the same cloud. Please contact your Azure administrator if you have questions about your enterprise's Azure compliance configurations.

    Visual Studio is now in snapshot debugging mode. Snapshot debugging mode

    The Modules window shows you when all the modules have loaded for the Azure App Service (choose Debug > Windows > Modules to open this window).

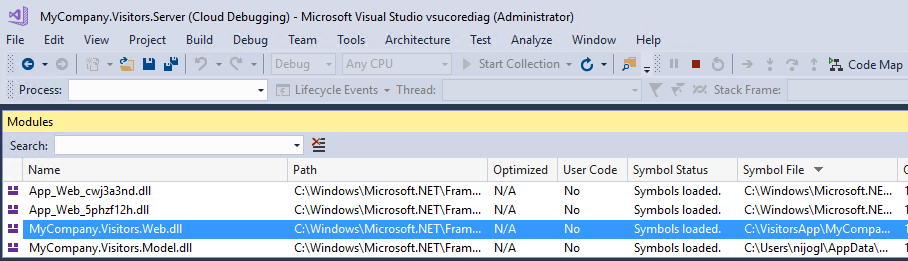

    Check the Modules window

Set a snappoint

  1. In the code editor, click the left gutter next to a line of code you're interested in to set a snappoint. Make sure it's code that you know will execute.

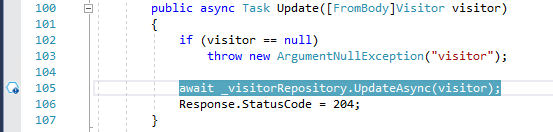

    Set a snappoint

  2. Click Start Collection to turn on the snappoint.

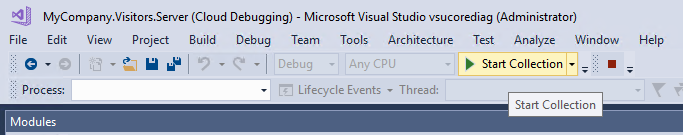

    Turn on the snappoint

    Tip

    You can't step when viewing a snapshot, but you can place multiple snappoints in your code to follow execution at different lines of code. If you have multiple snappoints in your code, the Snapshot Debugger makes sure that the corresponding snapshots are from the same end-user session. The Snapshot Debugger does this even if there are many users hitting your app.

Take a snapshot

Once a snappoint is set, you can either manually generate a snapshot by going to the browser view of your web site and running the line of code marked or wait for your users to generate one from their usage of the site.

Inspect snapshot data

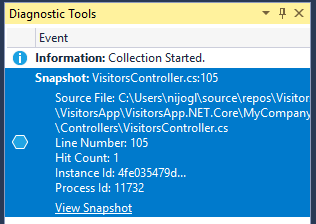

  1. When the snappoint is hit, a snapshot appears in the Diagnostic Tools window. To open this window, choose Debug > Windows > Show Diagnostic Tools.

    Open a snappoint

  2. Double-click the snappoint to open the snapshot in the code editor.

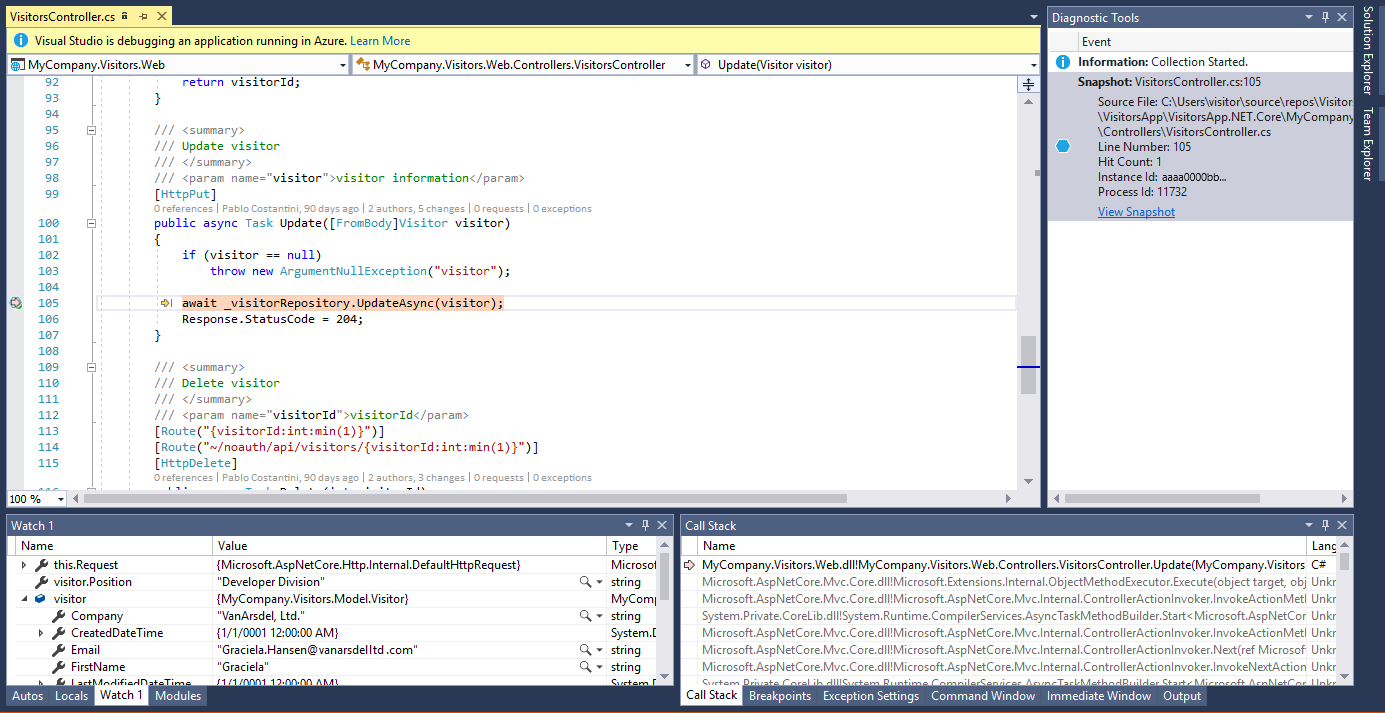

    Inspect snapshot data

    From this view, you can hover over variables to view DataTips, use the Locals, Watches, and Call Stack windows, and also evaluate expressions.

    The website itself is still live and end users aren't affected. Only one snapshot is captured per snappoint by default: after a snapshot is captured the snappoint turns off. If you want to capture another snapshot at the snappoint, you can turn the snappoint back on by clicking Update Collection.

You can also add more snappoints to your app and turn them on with the Update Collection button.

Need help? See the Troubleshooting and known issues and FAQ for snapshot debugging pages.

Set a conditional snappoint

If it's difficult to recreate a particular state in your app, consider using a conditional snappoint. Conditional snappoints help you control when to take a snapshot such as when a variable contains a particular value that you want to inspect. You can set conditions using expressions, filters, or hit counts.

To create a conditional snappoint

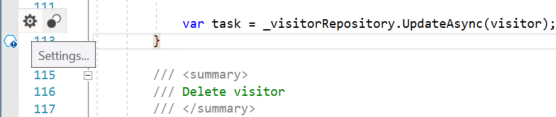

  1. Right-click a snappoint icon (the hollow sphere) and choose Settings.

    Choose Settings

  2. In the snappoint settings window, type an expression.

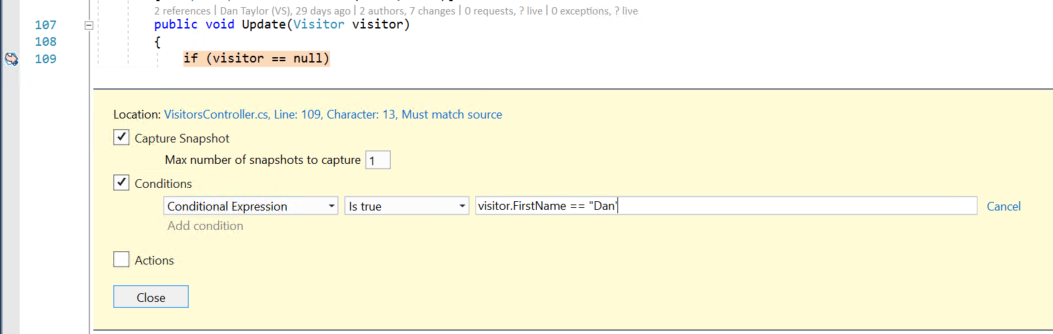

    Type an expression

    In the preceding illustration, the snapshot is only taken for the snappoint when visitor.FirstName == "Dan".

Set a logpoint

In addition to taking a snapshot when a snappoint is hit, you can also configure a snappoint to log a message (that is, create a logpoint). You can set logpoints without having to redeploy your app. Logpoints are executed virtually and cause no impact or side effects to your running application.

To create a logpoint

  1. Right-click a snappoint icon (the blue hexagon) and choose Settings.

  2. In the snappoint settings window, select Actions.

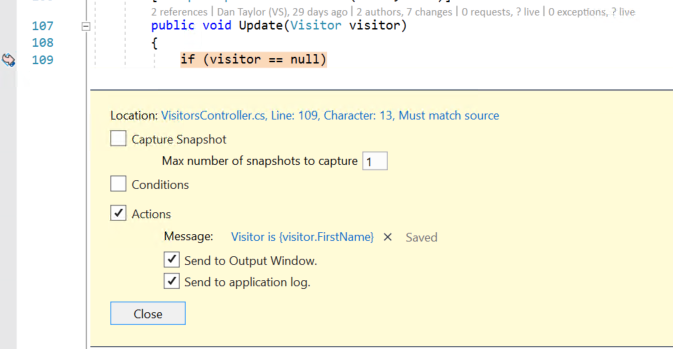

    Create a logpoint

  3. In the Message field, you can enter the new log message you want to log. You can also evaluate variables in your log message by placing them inside curly braces.

    If you choose Send to Output Window, when the logpoint is hit, the message appears in the Diagnostic Tools window.

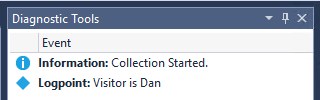

    Logpoint data in the Diagnostic Tools window

    If you choose Send to application log, when the logpoint is hit, the message appears anywhere that you can see messages from System.Diagnostics.Trace (or ILogger in .NET Core), such as App Insights.

In this tutorial, you've learned how to use the Snapshot Debugger for App Services. You may want to read more details about this feature.
