AI on Windows Sample Gallery
A collection of samples that demonstrate a variety of ways to enhance your Windows apps using local APIs and Machine Learning (ML) models, local hardware acceleration using DirectML, and using cloud-based APIs.
Enhance your Windows apps with AI using local APIs and ML models
These samples will help you to enhance your Windows apps with AI using local APIs and Machine Learning models.

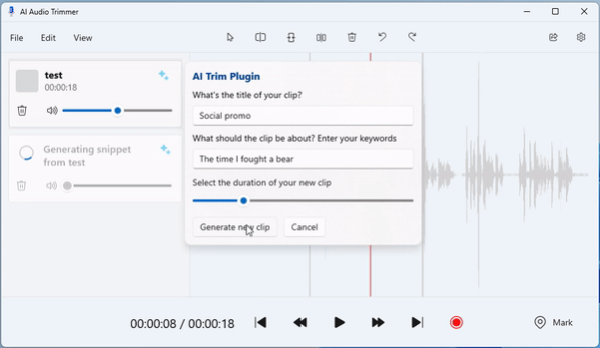

AI-powered Audio Editor
GitHub Repo: AI Audio Editor Sample
Description: The AI-powered Audio Editor demonstrates building a WinUI 3 audio editing app which utilizes AI to match snips of audio to a relevant query. An example use-case could be a podcast creator who wants to create short audio clips of their content to promote on Social Media. The sample uses local ML model inference to handle transcription and semantic search.
Features: Local Model Inferencing with ONNX Runtime, Whisper model, Embeddings model
AI-powered Notes App
GitHub Repo: AI-powered Notes Sample App
Description: This AI-powered note taking application demonstrates the use of APIs including OCR Text Recognition, Audio Transcription through local ML model, Semantic Search through a local embeddings model, local language model usage with Phi3 for summarization, autocomplete, and text reasoning, and Retrieval Augmented Generation (RAG) for grounding language models to real data.
Features: Semantic search with local model, Audio transcription with local model, Local Retreval Augmented generation (RAG) with Phi3, Local Text summarization and reasoning with Phi3, Text extraction from images with OCR API

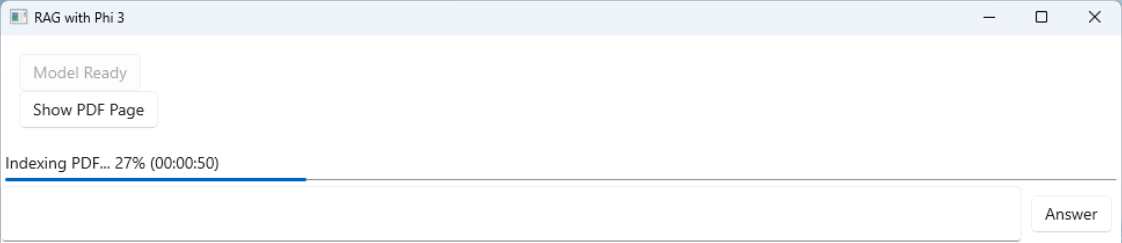

Retrieval Augmented Generation (RAG) with PDFs and Phi3
GitHub Repo: RAG PDF Analyzer WPF Sample App
Description: This WPF sample app demonstrates how to build an experience with a local language model (such as Phi3) to answer questions about content in a PDF document. The sample finds answers by referencing a knowledge base outside of the model's own training data before generating a response. This pattern, called Retrieval Augmented Generation (RAG), is an example of how to ground a language model to real-world authoritative data.
Features: Retrieval Augmented Generation (RAG), ONNX Runtime Generative AI, DirectML

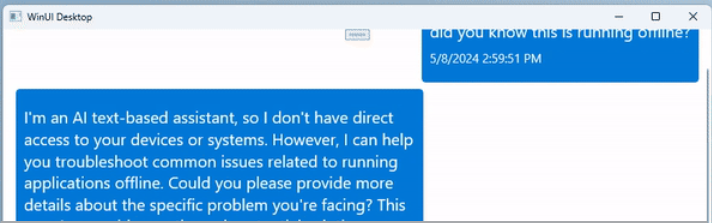

Phi3 Generative AI Chat
GitHub Repo: Phi3 Chat WinUI 3 Sample
Description: This WinUI 3 app sample demonstrates how to use the ONNX Runtime Generative AI library to build a chat experience with a local language model, specifically the Phi3 Small Language Model (SLM).
Features: Phi3, ONNX Runtime Generative AI, DirectML
Windows Studio Effects sample
GitHub Repo: Windows Studio Effects sample app
Description: Learn how to control Camera Studio Effects from your Windows application in this code sample. Check if a supported camera is available on the system (requires a device with an NPU and built-in camera), then gets and sets extended camera controls associated with Windows Studio Effects, such as Background Blur, Eye Gaze Correction and Automatic Framing.
Features: Windows Studio Effects
Local Hardware Acceleration through DirectML

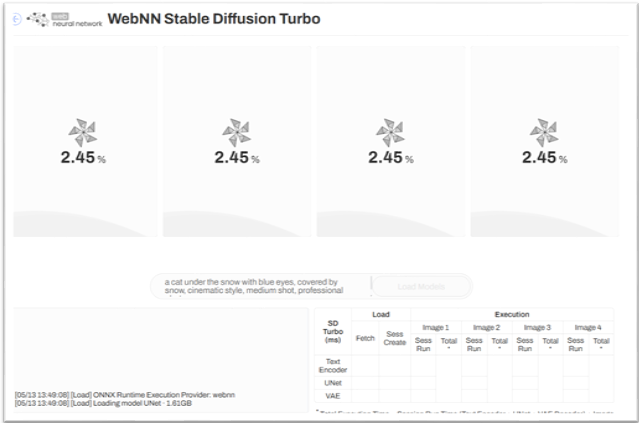

Hardware accelerated Stable Diffusion on the web
GitHub Repo: WebNN Stable Diffusion Turbo
Description: This sample illustrates how to use WebNN with ONNX Runtime web to run Stable Diffusion locally on the GPU with DirectML. SD-Turbo is a fast generative text-to-image model that can synthesize photorealistic images from a text prompt in a single network evaluation. In the demo, you can generate an image in 2s on AI PC devices by leveraging WebNN API, a dedicated low-level API for neural network inference hardware acceleration.
Features: Local Image Generation, WebNN, DirectML
App Type: JavaScript, Web apps
Hardware accelerated Segment Anything on the web
GitHub Repo: WebNN Segment Anything
Description: This sample illustrates how to use WebNN with ONNX Runtime web to run Segment Anything locally on the GPU with DirectML. Segment Anything is a new AI model from Meta AI that can "cut out" any object. In the demo, you can segment any object from your uploaded images.
Features: Local Image Segmentation, WebNN, DirectML
App Type: JavaScript, Web apps
Hardware accelerated Whisper on the web
GitHub Repo: WebNN Whisper Base
Description: This sample illustrates how to use WebNN with ONNX Runtime web to run the Whisper model’s speech-to-text capabilities locally on the GPU or NPU with DirectML. Whisper Base is a pre-trained model for automatic speech recognition (ASR) and speech translation. In the demo, you can experience the speech to text feature by using on-device inference powered by WebNN API and DirectML, especially the NPU acceleration.
Features: Local speech-to-text, WebNN, DirectML
App Type: JavaScript, Web apps

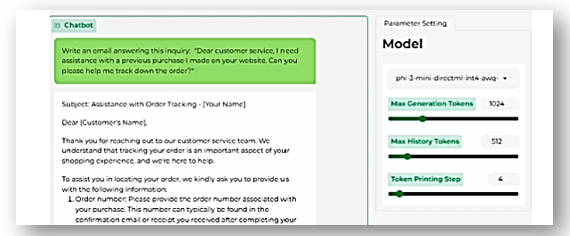

Hardware accelerated and pre-optimized ONNX Runtime language models (Phi3, Llama3, etc) with DirectML
GitHub Repo: DirectML examples in the Olive repo
Description: This sample illustrates how to run a pre-optimized ONNX Runtime (ORT) language model locally on the GPU with DirectML. The sample includes instructions on how to set up your environment, download the latest pre-trained language models using the ORT Generate API and run the model in a Gradio app.
Features: Hardware Acceleration, GenAI, ONNX, ONNX Runtime, DirectML
App Type: Python, Gradio

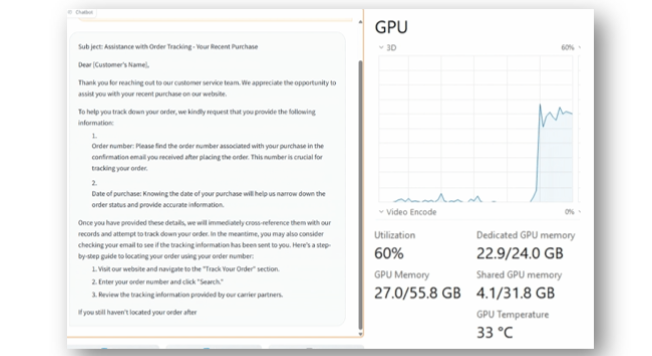

Hardware accelerated PyTorch models (Phi3, Llama3, etc) with DirectML
GitHub Repo: DirectML PyTorch samples
Description: This sample illustrates how to run a PyTorch language model locally on the GPU with DirectML. The sample includes instructions on how to set up your environment, download the latest pre-trained language models and run the model in a Gradio app. This sample supports various open-source language models such as Llama models, Phi3-mini, Phi2 and Mistral-7B.
Features: Hardware Acceleration, PyTorch, DirectML
App Type: Python, Gradio
Enhance your Windows apps with AI using cloud APIs
More cloud-based API samples can be found in the Azure AI services documentation.
Add OpenAI chat completions to your WinUI 3 / Windows App SDK app
Tutorial: Add OpenAI chat completions to your WinUI 3 / Windows App SDK app
Description: Integrate the OpenAI chat completion capabilities into a WinUI 3 / Windows App SDK desktop app.
Features: OpenAI chat completion
Add DALL-E to your WinUI 3 / Windows App SDK desktop app
Tutorial: Add DALL-E to your WinUI 3 / Windows App SDK desktop app
Description: Integrate the OpenAI DALL-E image generation capabilities into a WinUI 3 / Windows App SDK desktop app.
Features: Image generation
Create a recommendation app with .NET MAUI and ChatGPT
Tutorial: Create a recommendation app with .NET MAUI and ChatGPT
Description: Integrate the OpenAI chat completion capabilities into a .NET MAUI desktop app.
Features: Image generation
Add DALL-E to your .NET MAUI Windows desktop app
Tutorial: Add DALL-E to your .NET MAUI Windows desktop app
Description: Integrate the OpenAI DALL-E image generation capabilities into a .NET MAUI desktop app.
Features: Image generation
Legacy WinML samples
GitHub Repo: WinML samples on GitHub
Description: WinML continues to be supported, but these samples have not been updated to reflect modern AI use.
