Calendar, date, and time controls

  • Artikel

Date and time controls give you standard, localized ways to let a user view and set date and time values in your app. This article provides design guidelines and helps you pick the right control.

Open the WinUI 3 Gallery app and see DateAndTime in action.

The WinUI 3 Gallery app includes interactive examples of most WinUI 3 controls, features, and functionality. Get the app from the Microsoft Store or get the source code on GitHub

Which date or time control should you use?

There are four date and time controls to choose from; the control you use depends on your scenario. Use this info to pick the right control to use in your app.

Control Example Description
Calendar view Example of calendar view Use to pick a single date or a range of dates from an always visible calendar.
Calendar date picker Screenshot of a calendar date picker. Use to pick a single date from a contextual calendar.
Date picker Example of date picker Use to pick a single known date when contextual info isn't important.
Time picker Example of time picker Use to pick a single time value.

Calendar view

CalendarView lets a user view and interact with a calendar that they can navigate by month, year, or decade. A user can select a single date or a range of dates. It doesn't have a picker surface and the calendar is always visible.

The calendar view is made up of 3 separate views: the month view, year view, and decade view. By default, it starts with the month view open, but you can specify any view as the startup view.

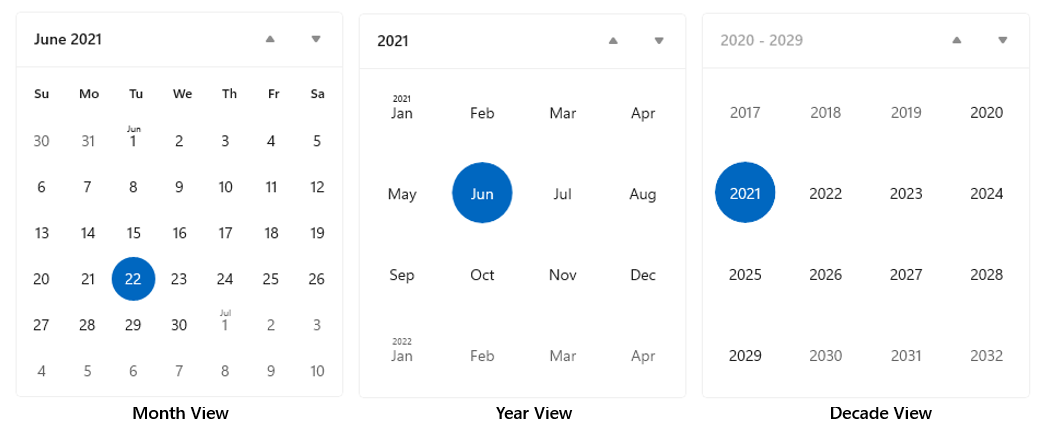

Screenshot of three Calendar Views showing a Month View, a Year View, and a Decade View.

  • If you need to let a user select multiple dates, you must use a CalendarView.
  • If you need to let a user pick only a single date and don't need a calendar to be always visible, consider using a CalendarDatePicker or DatePicker control.

Calendar date picker

CalendarDatePicker is a drop down control that's optimized for picking a single date from a calendar view where contextual information like the day of the week or fullness of the calendar is important. You can modify the calendar to provide additional context or to limit available dates.

The entry point displays placeholder text if a date has not been set; otherwise, it displays the chosen date. When the user selects the entry point, a calendar view expands for the user to make a date selection. The calendar view overlays other UI; it doesn't push other UI out of the way.

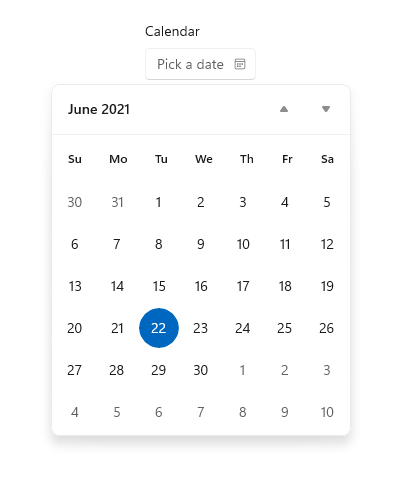

Screenshot of a Calendar Date Picker showing an empty select a date text box and then one populated with a calendar beneath it.

  • Use a calendar date picker for things like choosing an appointment or departure date.

Date picker

The DatePicker control provides a standardized way to choose a specific date.

The entry point displays the chosen date, and when the user selects the entry point, a picker surface expands vertically from the middle for the user to make a selection. The date picker overlays other UI; it doesn't push other UI out of the way.

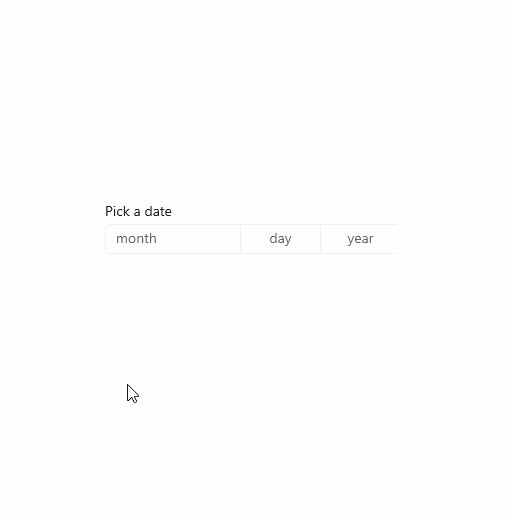

Example of the date picker expanding

  • Use a date picker to let a user pick a known date, such as a date of birth, where the context of the calendar is not important.

Time picker

The TimePicker is used to select a single time value for things like appointments or a departure time. It's a static display that is set by the user or in code, but it doesn't update to display the current time.

The entry point displays the chosen time, and when the user selects the entry point, a picker surface expands vertically from the middle for the user to make a selection. The time picker overlays other UI; it doesn't push other UI out of the way.

Example of the time picker expanding

  • Use a time picker to let a user pick a single time value.

Create a date or time control

See these articles for info and examples specific to each date and time control.

Use a date picker and time picker together

This example shows how to use a DatePicker and TimePicker together to let a user select their arrival date and time. You handle the SelectedDateChanged and SelectedTimeChanged events to update a single DateTime instance named arrivalDateTime. The user can also clear the date and time pickers after they have been set.

A date picker, time picker, button, and text label.

<StackPanel>
    <DatePicker x:Name="arrivalDatePicker" Header="Arrival date"
                DayFormat="{}{day.integer} ({dayofweek.abbreviated})"
                SelectedDateChanged="ArrivalDatePicker_SelectedDateChanged"/>
    <StackPanel Orientation="Horizontal">
        <TimePicker x:Name="arrivalTimePicker" Header="Arrival time"
                MinuteIncrement="15"
                SelectedTimeChanged="ArrivalTimePicker_SelectedTimeChanged"/>
        <Button Content="Clear" Click="ClearDateButton_Click"
                VerticalAlignment="Bottom" Height="30" Width="54"/>
    </StackPanel>
    <TextBlock x:Name="arrivalText" Margin="0,12"/>
</StackPanel>

public sealed partial class MainPage : Page
{
    DateTime arrivalDateTime;

    public MainPage()
    {
        this.InitializeComponent();

        // Set minimum to the current year and maximum to five years from now.
        arrivalDatePicker.MinYear = DateTimeOffset.Now;
        arrivalDatePicker.MaxYear = DateTimeOffset.Now.AddYears(5);
    }

    private void ArrivalTimePicker_SelectedTimeChanged(TimePicker sender, TimePickerSelectedValueChangedEventArgs args)
    {
        if (arrivalTimePicker.SelectedTime != null)
        {
            arrivalDateTime = new DateTime(arrivalDateTime.Year, arrivalDateTime.Month, arrivalDateTime.Day,
                                           args.NewTime.Value.Hours, args.NewTime.Value.Minutes, args.NewTime.Value.Seconds);
        }
        arrivalText.Text = arrivalDateTime.ToString();
    }

    private void ArrivalDatePicker_SelectedDateChanged(DatePicker sender, DatePickerSelectedValueChangedEventArgs args)
    {
        if (arrivalDatePicker.SelectedDate != null)
        {
            if (VerifyDateIsFuture((DateTimeOffset)arrivalDatePicker.SelectedDate) == true)
            {
                arrivalDateTime = new DateTime(args.NewDate.Value.Year, args.NewDate.Value.Month, args.NewDate.Value.Day,
                                               arrivalDateTime.Hour, arrivalDateTime.Minute, arrivalDateTime.Second);
                arrivalText.Text = arrivalDateTime.ToString();
            }
            else
            {
                arrivalDatePicker.SelectedDate = null;
                arrivalText.Text = "Arrival date must be later than today.";
            }
        }
    }

    private bool VerifyDateIsFuture(DateTimeOffset date)
    {
        if (date > DateTimeOffset.Now)
        {
            return true;
        }
        return false;
    }

    private void ClearDateButton_Click(object sender, RoutedEventArgs e)
    {
        arrivalDateTime = new DateTime();
        arrivalDatePicker.SelectedDate = null;
        arrivalTimePicker.SelectedTime = null;
        arrivalText.Text = string.Empty;
    }
}

Globalization

The XAML date controls support each of the calendar systems supported by Windows. These calendars are specified in the Windows.Globalization.CalendarIdentifiers class. Each control uses the correct calendar for your app's default language, or you can set the CalendarIdentifier property to use a specific calendar system.

The time picker control supports each of the clock systems specified in the Windows.Globalization.ClockIdentifiers class. You can set the ClockIdentifier property to use either a 12-hour clock or 24-hour clock. The type of the property is String, but you must use values that correspond to the static string properties of the ClockIdentifiers class. These are: TwelveHour (the string "12HourClock")and TwentyFourHour (the string "24HourClock"). "12HourClock" is the default value.

DateTime and Calendar values

The date objects used in the XAML date and time controls have a different representation depending on your programming language.

A related concept is the Calendar class, which influences how dates are interpreted in context. All Windows Runtime apps can use the Windows.Globalization.Calendar class. C# and Visual Basic apps can alternatively use the System.Globalization.Calendar class, which has very similar functionality. (Windows Runtime apps can use the base .NET Calendar class but not the specific implementations; for example, GregorianCalendar.)

.NET also supports a type named DateTime, which is implicitly convertible to a DateTimeOffset. So you might see a "DateTime" type being used in .NET code that's used to set values that are really DateTimeOffset. For more info on the difference between DateTime and DateTimeOffset, see Remarks in the DateTimeOffset class.

Note

Properties that take date objects can't be set as a XAML attribute string, because the Windows Runtime XAML parser doesn't have a conversion logic for converting strings to dates as DateTime/DateTimeOffset objects. You typically set these values in code. Another possible technique is to define a date that's available as a data object or in the data context, then set the property as a XAML attribute that references a {Binding} markup extension expression that can access the date as data.

Get the sample code

For developers (XAML)
