Write unit tests for C/C++ in Visual Studio

  • Artykuł

Applies to: yesVisual Studio noVisual Studio for Mac

Note

This article applies to Visual Studio 2017. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

You can write and run your C++ unit tests by using the Test Explorer window. It works just like it does for other languages. For more information about using Test Explorer, see Run unit tests with Test Explorer.

Note

Some features such as Live Unit Testing, Coded UI Tests and IntelliTest aren't supported for C++.

Visual Studio includes these C++ test frameworks with no additional downloads required:

  • Microsoft Unit Testing Framework for C++
  • Google Test
  • Boost.Test
  • CTest

You can use the installed frameworks, or write your own test adapter for whatever framework you want to use within Visual Studio. A test adapter integrates unit tests with the Test Explorer window. Several third-party adapters are available on the Visual Studio Marketplace. For more information, see Install third-party unit test frameworks.

Visual Studio 2017 and later (Professional and Enterprise)

C++ unit test projects support CodeLens.

Visual Studio 2017 and later (all editions)

  • Google Test Adapter is included as a default component of the Desktop development with C++ workload. It has a project template that you can add to a solution. Right-click on the solution node in Solution Explorer and choose Add > New Project on the shortcut menu to add the project template. It also has options you can configure via Tools > Options. For more information, see How to: Use Google Test in Visual Studio.

  • Boost.Test is included as a default component of the Desktop development with C++ workload. It's integrated with Test Explorer, but currently doesn't have a project template. It must be manually configured. For more information, see How to: Use Boost.Test in Visual Studio.

  • CTest support is included with the C++ CMake tools component, which is part of the Desktop development with C++ workload. For more information, see How to: Use CTest in Visual Studio.

Visual Studio 2015 and earlier

You can download the Google Test adapter and Boost.Test Adapter extensions on the Visual Studio Marketplace. Find them at Test adapter for Boost.Test and Test adapter for Google Test.

Basic test workflow

The following sections show the basic steps to get you started with C++ unit testing. The basic configuration is similar for both the Microsoft and Google Test frameworks. Boost.Test requires that you manually create a test project.

Create a test project in Visual Studio 2017

Define and run tests inside one or more test projects. You create the projects in the same solution as the code you want to test. To add a new test project,

  1. Right-click on the Solution node in Solution Explorer and choose Add > New Project.

  2. In the left pane, choose Visual C++ Test. Then, choose one of the project types from the center pane. The following illustration shows the test projects that are available when the Desktop Development with C++ workload is installed:

    C++ Test Projects

Create references to other projects in the solution

To enable access to the functions in the project under test, add a reference to the project in your test project. Right-click on the test project node in Solution Explorer for a pop-up menu. Choose Add > Reference. In the Add Reference dialog, choose the project(s) you want to test.

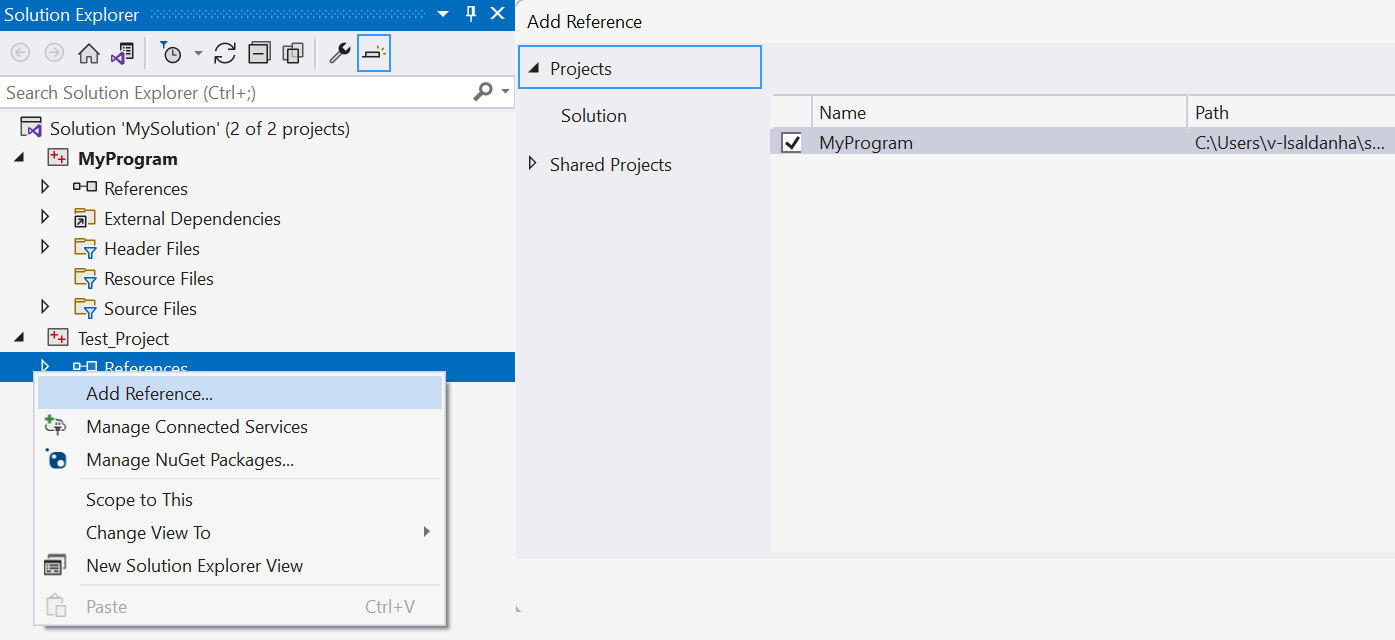

Add reference

If the test code doesn't export the functions that you want to test, add the output .obj or .lib files to the dependencies of the test project. For more information, see To link the tests to the object or library files.

Add #include directives for header files

Next, in your unit test .cpp file, add an #include directive for any header files that declare the types and functions you want to test. Type #include " and then IntelliSense activates to help you choose. Repeat for any more headers.

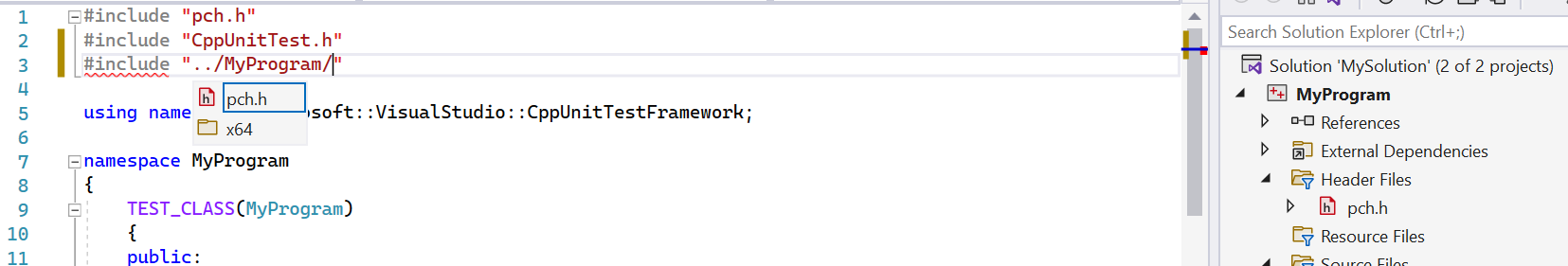

Screenshot of the Solution Explorer showing an #include directive being added with IntelliSense highlighting a header file for inclusion.

To avoid having to type the full path in each include statement in the source file, add the required folders in Project > Properties > C/C++ > General > Additional Include Directories.

Write test methods

Note

This section shows syntax for the Microsoft Unit Testing Framework for C/C++. It is documented here: Microsoft.VisualStudio.TestTools.CppUnitTestFramework API reference. For Google Test documentation, see Google Test primer. For Boost.Test, see Boost Test library: The unit test framework.

The .cpp file in your test project has a stub class and method defined for you. They show an example of how to write test code. The signatures use the TEST_CLASS and TEST_METHOD macros, which make the methods discoverable from the Test Explorer window.

Screenshot of the Test Explorer window that shows the unittest1.cpp code file containing a stub class and method using the TEST_CLASS and TEST_METHOD macros.

TEST_CLASS and TEST_METHOD are part of the Microsoft Native Test Framework. Test Explorer discovers test methods in other supported frameworks in a similar way.

A TEST_METHOD returns void. To produce a test result, use the static methods in the Assert class to test actual results against expected results. In the following example, assume MyClass has a constructor that takes a std::string. This example shows how you can test that the constructor initializes the class the way you expect:

TEST_METHOD(TestClassInit)
{
    std::string name = "Bill";
    MyClass mc(name);
    Assert::AreEqual(name, mc.GetName());
}

In the previous example, the result of the Assert::AreEqual call determines whether the test passes or fails. The Assert class contains many other methods to compare expected results with actual results.

You can add traits to test methods to specify test owners, priority, and other information. You can then use these values to sort and group tests in Test Explorer. For more information, see Run unit tests with Test Explorer.

Run the tests

  1. On the Test menu, choose Windows > Test Explorer. The following illustration shows a test project whose tests have not yet run.

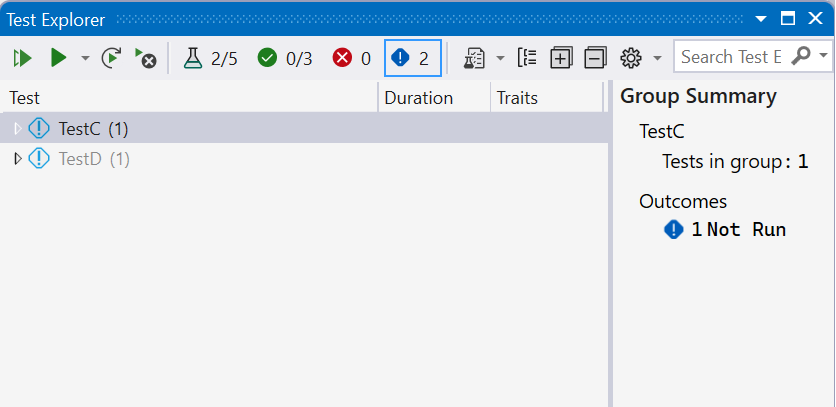

    Test Explorer before running tests

    Note

    CTest integration with Test Explorer is not yet available. Run CTest tests from the CMake main menu.

  2. If any of your tests are missing from the window, build the test project by right-clicking its node in Solution Explorer and choosing Build or Rebuild.

  3. In Test Explorer, choose Run All, or select the specific tests you want to run. Right-click on a test for other options, including running it in debug mode with breakpoints enabled. After running all the tests, the window shows the tests that passed and the ones that failed.

    Test Explorer after tests are run

For failed tests, the message displays details that help to diagnose the cause. Right-click on the failing test for a pop-up menu. Choose Debug to step through the function where the failure occurred.

For more information on using Test Explorer, see Run unit tests with Test Explorer.

For more information on unit testing, see Unit test basics.

Use CodeLens

Visual Studio 2017 and later (Professional and Enterprise editions)

CodeLens lets you quickly see the status of a unit test without leaving the code editor.

Initialize CodeLens for a C++ unit test project in any of the following ways:

  • Edit and build your test project or solution.
  • Rebuild your project or solution.
  • Run tests from the Test Explorer window.

After it's initialized, you can see the test status icons above each unit test.

C++ CodeLens Icons

Click on the icon for more information, or to run or debug the unit test:

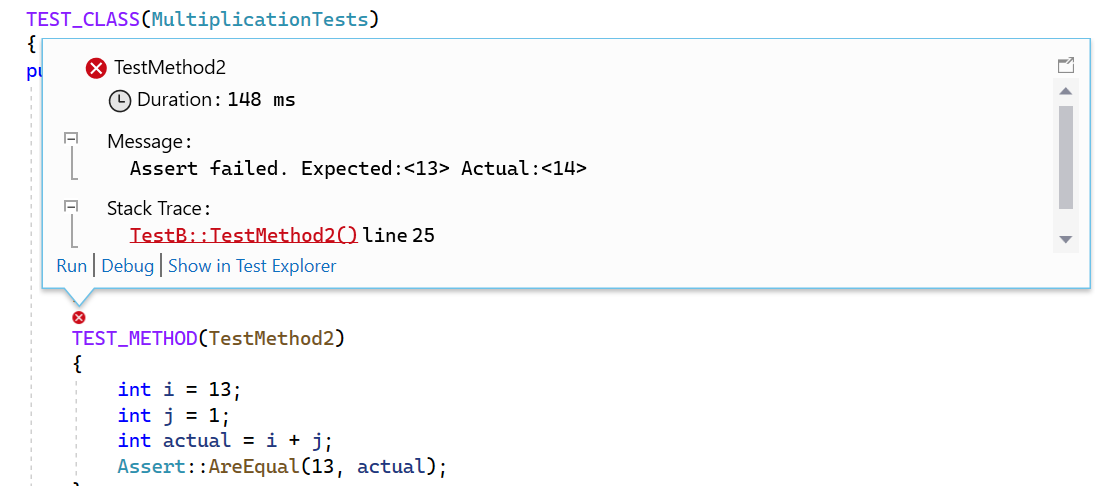

C++ CodeLens Run and Debug
