Connect to your Microsoft Fabric tenant in the same tenant as Microsoft Purview (Preview)

  • Artykuł

Important

Scanning a Microsoft Fabric tenant will bring in metadata and lineage from Fabric items including Power BI. The experience of registering a Fabric tenant and setting up a scan is similar to Power BI tenant and shared among all Fabric items. The scanning of Fabric items other than Power BI is currently in preview. The Supplemental Terms of Use for Microsoft Azure Previews include additional legal terms that apply to Azure features that are in beta, in preview, or otherwise not yet released into general availability.

This article outlines how to register a Microsoft Fabric tenant that's in the same tenant as your Microsoft Purview resource, and how to authenticate and interact with the Fabric source in Microsoft Purview. For more information about Microsoft Purview in general, read the introductory article.

Note

Starting from December 13th 2023, scanning Fabric tenants registered with the Fabric data source in Microsoft Purview will capture metadata and lineage from Fabric items including Power BI. The new feature will become available in all Microsoft Purview public cloud regions in the following days.

For scanning a Power BI tenant, see our Power BI documentation.

Supported capabilities

Metadata Extraction Full Scan Incremental Scan Scoped Scan Classification Labeling Access Policy Lineage Data Sharing Live view
Yes Yes Yes Yes No No No Yes No Yes
Experiences Fabric items Available in scan Available in live view (same tenant only)
Real-Time Analytics KQL Database Yes Yes
KQL Queryset Yes Yes
Data Science Experiment Yes Yes
ML model Yes Yes
Data Factory Data pipeline Yes Yes
Dataflow Gen2 Yes Yes
Data Engineering Lakehouse Yes Yes
Notebook Yes Yes
Spark Job Definition Yes Yes
SQL analytics endpoint Yes Yes
Data Warehouse Warehouse Yes Yes
Power BI Dashboard Yes Yes
Dataflow Yes Yes
Datamart Yes Yes
Semantic model (Dataset) Yes Yes
Report Yes Yes
Paginated report Yes

Supported scenarios for Fabric scans

Scenarios Microsoft Purview public access allowed/denied Fabric public access allowed /denied Runtime option Authentication option Deployment checklist
Public access with Azure IR Allowed Allowed Azure Runtime Managed Identity / Delegated authentication / Service principal Review deployment checklist
Public access with Self-hosted IR Allowed Allowed SHIR or Kubernetes SHIR Service principal Review deployment checklist
Private access Denied Allowed Managed VNet IR (v2 only) Managed Identity / Delegated authentication / Service principal Review deployment checklist

Note

The supported scenarios above apply for non-Power BI items in Fabric. See the Power BI documentation for supported scenarios applicable for Power BI items.

Known limitations

  • Currently for all Fabric items besides Power BI, only item level metadata and lineage will be scanned, scanning metadata and lineage of sub level items like Lakehouse tables or files isn't supported.
  • For self-hosted integration runtime, the standard self-hosted integration runtime with minimal version 5.40.8836.1 or Kubernetes supported self-hosted integration runtime is supported.
  • Empty workspaces are skipped.
  • Currently, service principal authentication is necessary to scan Microsoft Fabric lakehouses.

Prerequisites

Before you start, make sure you have the following prerequisites:

Authentication options

Deployment checklist

Use any of the following deployment checklists during the setup or for troubleshooting purposes, based on your scenario:

Scan same-tenant Fabric using Azure IR and Managed Identity in public network

  1. Make sure Fabric and Microsoft Purview accounts are in the same tenant.

  2. Make sure Fabric tenant ID is entered correctly during the registration.

  3. Make sure your Fabric Metadata model is up to date by enabling metadata scanning.

  4. From Azure portal, validate if Microsoft Purview account Network is set to public access.

  5. From Fabric tenant Admin Portal, make sure Fabric tenant is configured to allow public network.

  6. In Microsoft Entra tenant, create a security group.

  7. From Microsoft Entra tenant, make sure Microsoft Purview account MSI is member of the new security group.

  8. On the Fabric Tenant Admin portal, validate if Allow service principals to use read-only admin APIs is enabled for the new security group.

Register Fabric tenant

This section describes how to register a Fabric tenant in Microsoft Purview for same-tenant scenario.

  1. Select the Data Map on the left navigation.

  2. Then select Register.

    Select Fabric as your data source.

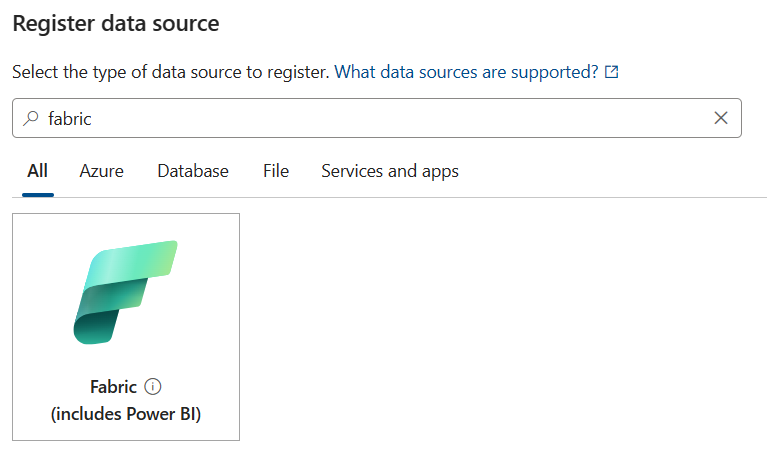

    Image showing the list of data sources available to choose with fabric selected.

  3. Give your Fabric instance a friendly name and select a collection.

    The name must be between 3-63 characters long and must contain only letters, numbers, underscores, and hyphens. Spaces aren't allowed.

    By default, the system will find the Fabric tenant that exists in the same Microsoft Entra tenant.

Authentication to scan

To be able to scan your Microsoft Fabric tenant and review its metadata, you'll first need to create a way to authenticate with the Fabric tenant, and then give Microsoft Purview the authentication information.

Authenticate to Fabric tenant

In Microsoft Entra tenant, where Fabric tenant is located:

  1. In the Azure portal, search for Microsoft Entra ID.

  2. Create a new security group in your Microsoft Entra ID, by following Create a basic group and add members using Microsoft Entra ID.

    Tip

    You can skip this step if you already have a security group you want to use.

  3. Select Security as the Group Type.

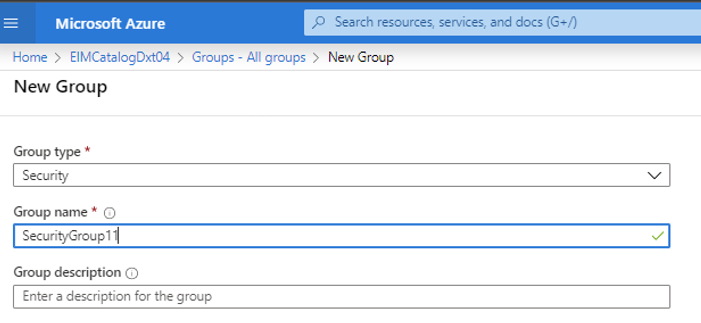

    Screenshot of security group type.

  4. Add any relevant users to the security group:

    • If you're using Managed Identity as authentication method, add your Microsoft Purview managed identity to this security group. Select Members, then select + Add members.

      Screenshot of how to add the catalog's managed instance to group.

    • If you're using delegated authentication or service principal as authentication method, add your service principal to this security group. Select Members, then select + Add members.

  5. Search for your Microsoft Purview managed identity or service principal and select it.

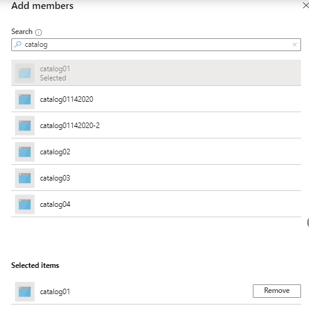

    Screenshot showing how to add catalog by searching for its name.

    You should see a success notification showing you that it was added.

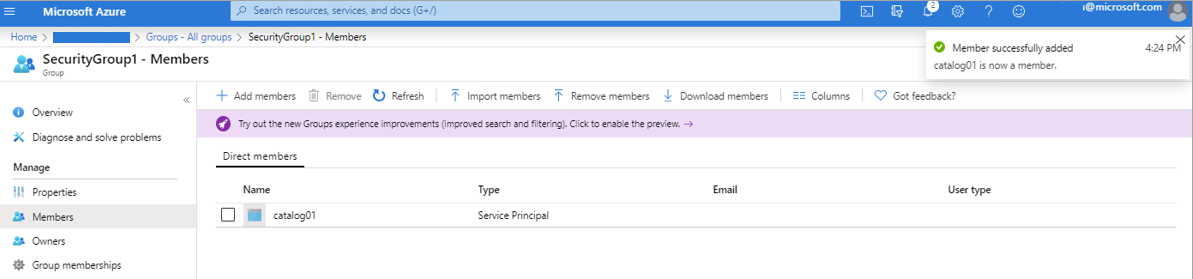

    Screenshot showing successful addition of catalog managed identity.

Associate the security group with Fabric tenant

  1. Log into the Fabric admin portal.

  2. Select the Tenant settings page.

    Important

    You need to be a Fabric Admin to see the tenant settings page.

  3. Select Admin API settings > Allow service principals to use read-only admin APIs.

  4. Select Specific security groups.

  5. Select Admin API settings > Enhance admin APIs responses with detailed metadata and Enhance admin APIs responses with DAX and mashup expressions > Enable the toggle to allow Microsoft Purview Data Map automatically discover the detailed metadata of Fabric datasets as part of its scans.

    Important

    After you update the Admin API settings on your Fabric tenant, wait around 15 minutes before registering a scan and test connection.

    Caution

    When you allow the security group you created (that has your Microsoft Purview managed identity as a member) to use read-only admin APIs, you also allow it to access the metadata (e.g. dashboard and report names, owners, descriptions, etc.) for all of your Fabric artifacts in this tenant. Once the metadata has been pulled into the Microsoft Purview, Microsoft Purview's permissions, not Fabric permissions, determine who can see that metadata.

    Note

    You can remove the security group from your developer settings, but the metadata previously extracted won't be removed from the Microsoft Purview account. You can delete it separately, if you wish.

Configure credentials for scans in Microsoft Purview

Managed identity

If you've followed all the steps to authenticate Microsoft Purview to Fabric, no other authentication steps are needed for Managed Identities.

Service principal

  1. In the Azure portal, select Microsoft Entra ID and create an App Registration in the tenant. Provide a web URL in the Redirect URI. For information about the Redirect URI see this documentation from Microsoft Entra ID.

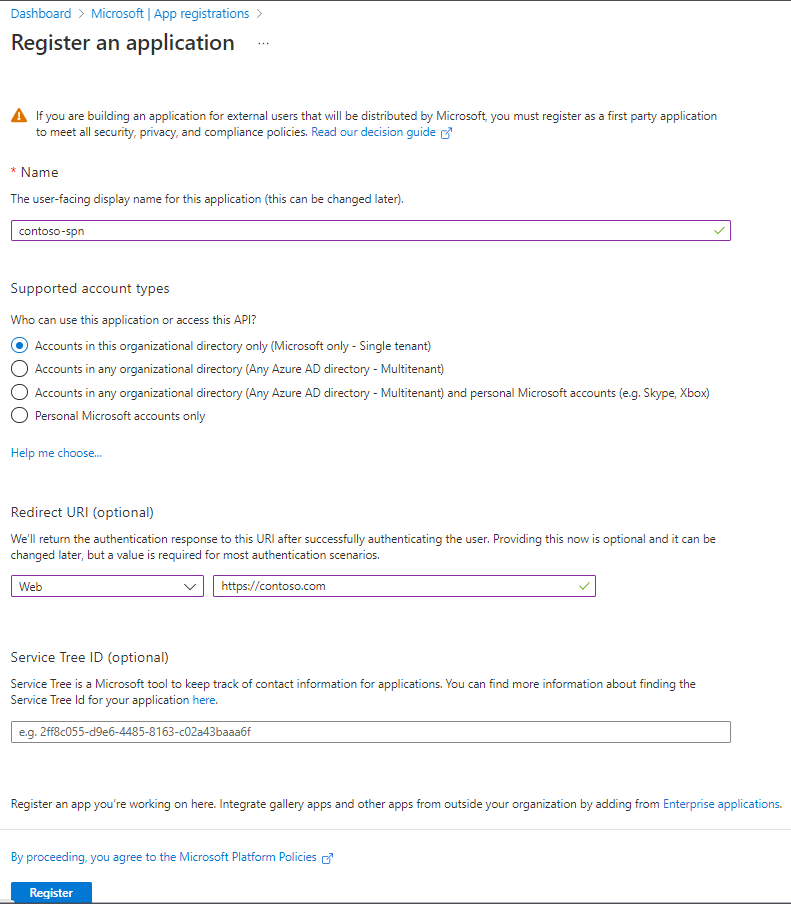

    Screenshot how to create an app registration in Microsoft Entra ID.

  2. Take note of Client ID(App ID).

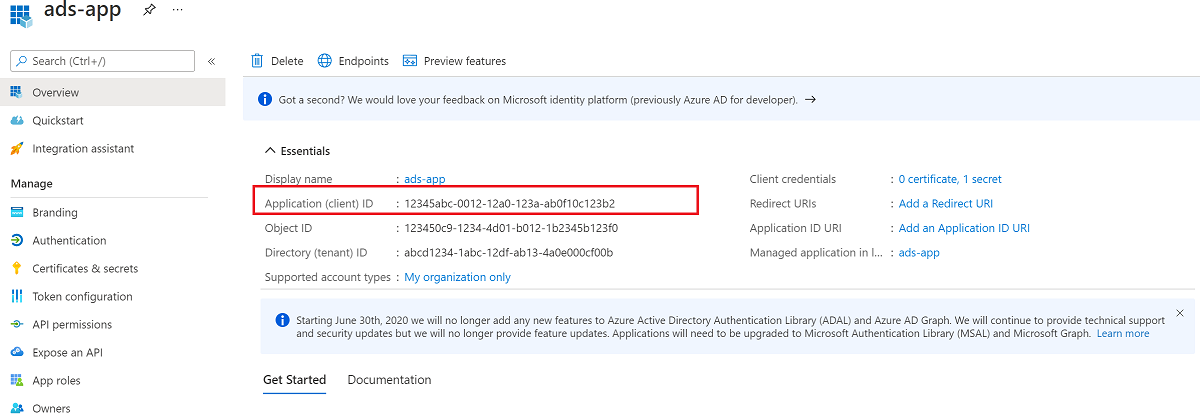

    Screenshot how to create a Service principle with the client ID highlighted.

  3. From Microsoft Entra dashboard, select newly created application and then select App registration. From API Permissions, assign the application the following delegated permissions:

    • Microsoft Graph openid
    • Microsoft Graph User.Read

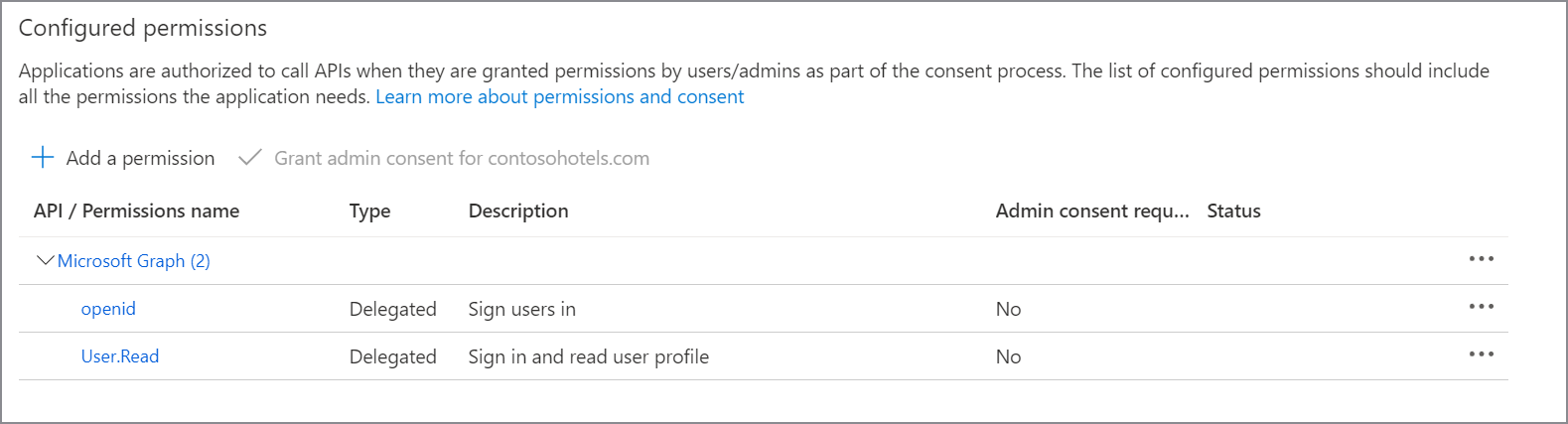

    Screenshot of delegated permissions on Microsoft Graph.

  4. Under Advanced settings, enable Allow Public client flows.

  5. Under Certificates & secrets, create a new secret and save it securely for next steps.

  6. In Azure portal, navigate to your Azure key vault.

  7. Select Settings > Secrets and select + Generate/Import.

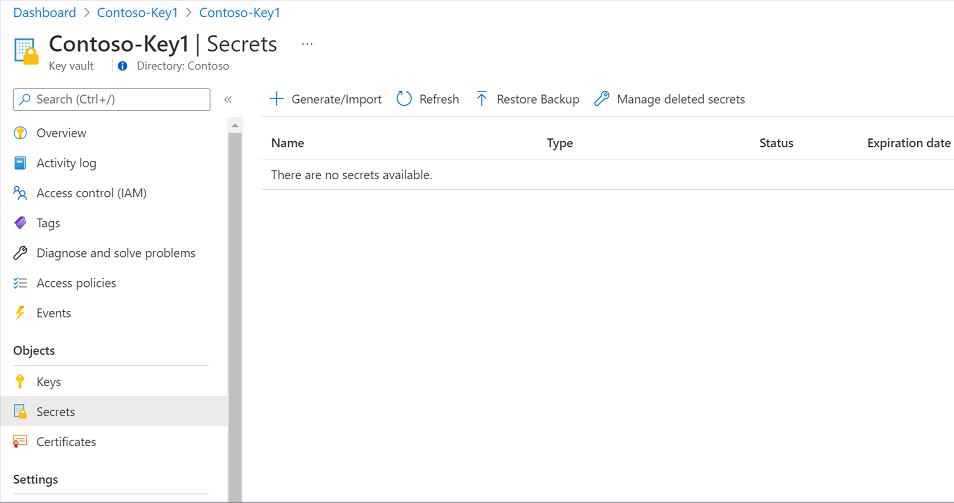

    Screenshot how to navigate to Azure Key Vault and generate a secret.

  8. Enter a name for the secret and for Value, type the newly created secret for the App registration. Select Create to complete.

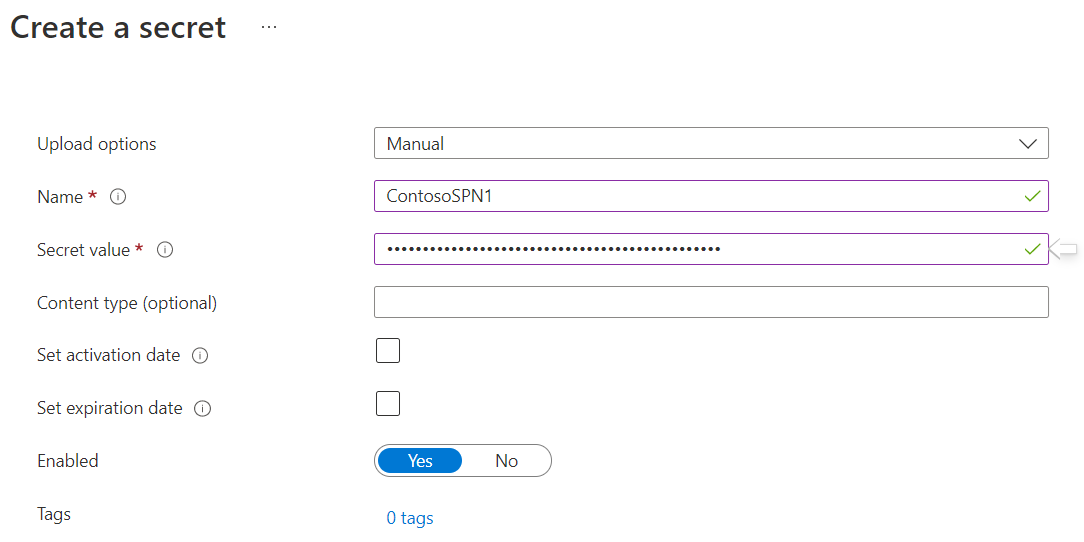

    Screenshot how to generate an Azure Key Vault secret for SPN.

  9. If your key vault isn't connected to Microsoft Purview yet, you'll need to create a new key vault connection.

  10. Now that your secret is created, in Microsoft Purview, go to the Credentials page under Management.

    Tip

    Alternatively, you can create a new credential during the scanning process.

  11. Create your new Credential by selecting + New.

  12. Provide required parameters:

    • Name: Provide a unique name for credential
    • Authentication method: Service principal
    • Tenant ID: Your Fabric tenant ID
    • Client ID: Use Service Principal Client ID (App ID) you created earlier
    • Key Vault Connection: the Microsoft Purview connection to the Key Vault where you created your secret earlier.
    • Secret name: the name of the secret you created earlier.

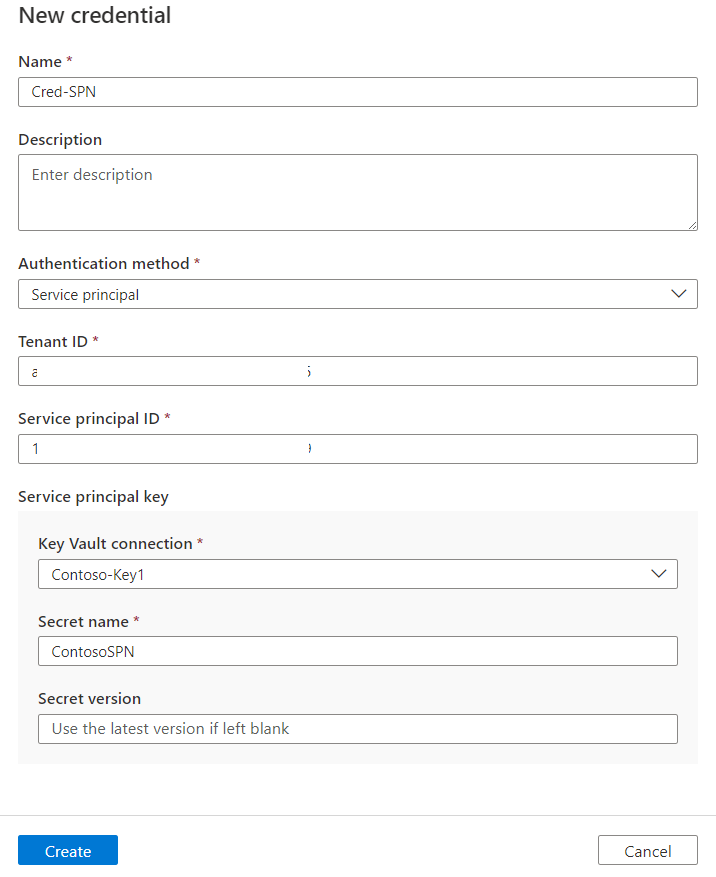

    Screenshot of the new credential menu, showing Fabric credential for SPN with all required values supplied.

  13. Once all the details have been filled in, select Create.

Delegated authentication

  1. Create a user account in Microsoft Entra tenant and assign the user to Microsoft Entra role, Fabric Administrator. Take note of username and sign in to change the password.

  2. Navigate to your Azure key vault.

  3. Select Settings > Secrets and select + Generate/Import.

    Screenshot how to navigate to Azure Key Vault.

  4. Enter a name for the secret and for Value, type the newly created password for the Microsoft Entra user. Select Create to complete.

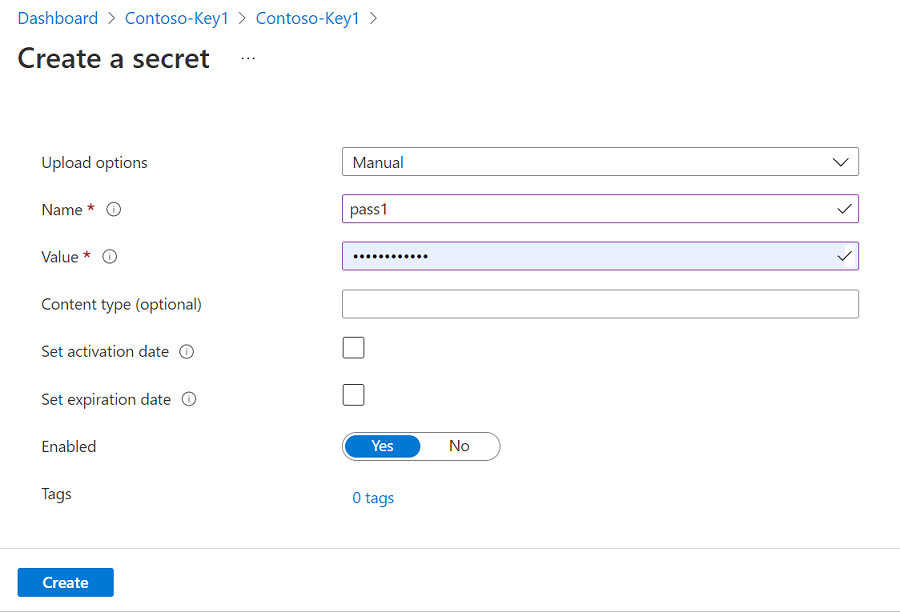

    Screenshot how to generate an Azure Key Vault secret.

  5. If your key vault isn't connected to Microsoft Purview yet, you'll need to create a new key vault connection

  6. Create an App Registration in your Microsoft Entra tenant. Provide a web URL in the Redirect URI.

    Screenshot how to create App in Microsoft Entra ID.

  7. Take note of Client ID(App ID).

    Screenshot how to create a Service principle.

  8. From Microsoft Entra dashboard, select newly created application and then select API permissions. Assign the application the following delegated permissions, and grant admin consent for the tenant:

    • Fabric Service Tenant.Read.All
    • Microsoft Graph openid
    • Microsoft Graph User.Read

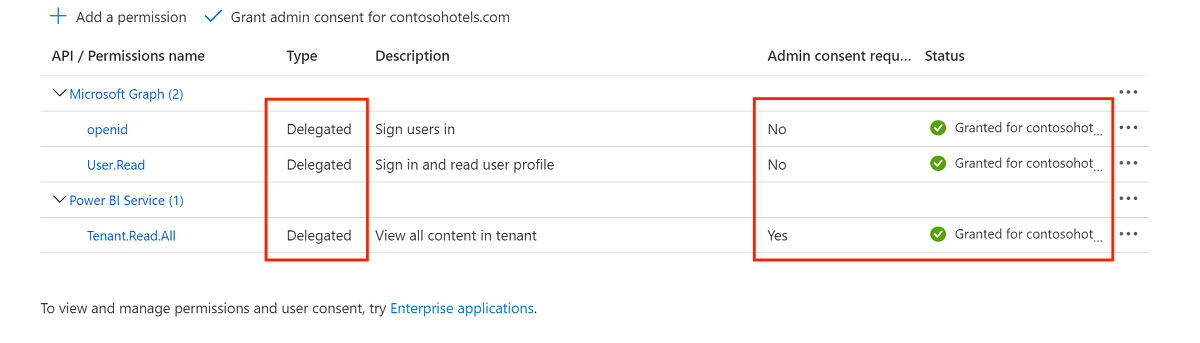

    Screenshot of delegated permissions on Fabric Service and Microsoft Graph.

  9. Under Advanced settings, enable Allow Public client flows.

  10. Next, in Microsoft Purview, go to the Credentials page under Management to create a new credential.

    Tip

    Alternatively, you can create a new credential during the scanning process.

  11. Create your new Credential by selecting + New.

  12. Provide required parameters:

    • Name: Provide a unique name for credential
    • Authentication method: Delegated auth
    • Client ID: Use Service Principal Client ID (App ID) you created earlier
    • User name: Provide the username of Fabric Administrator you created earlier
    • Key Vault Connection: the Microsoft Purview connection to the Key Vault where you created your secret earlier.
    • Secret name: the name of the secret you created earlier.

    Screenshot of the new credential menu, showing Fabric credential for Delegated Auth with all required values supplied.

  13. Once all the details have been filled in, select Create.

Create scan

  1. In the Microsoft Purview Studio, navigate to the Data map in the left menu.

  2. Navigate to Sources.

  3. Select the registered Fabric source.

  4. Select + New scan.

  5. Give your scan a name.

  6. Select either your managed identity credential, or the credential you created for your service principal or delegated authentication.

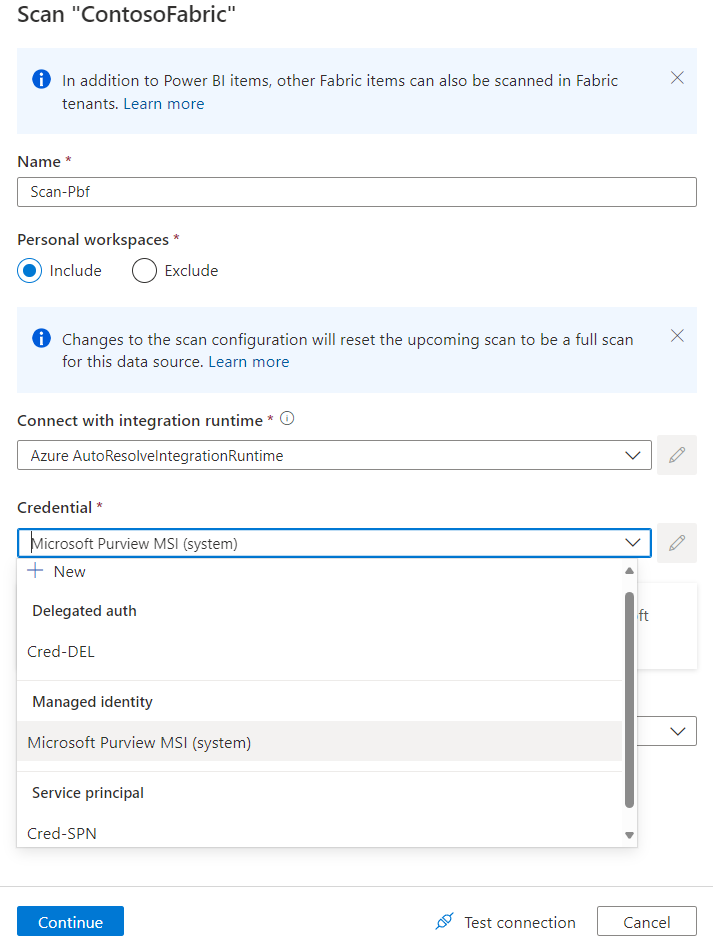

    Image showing Fabric scan setup.

  7. Select Test Connection before continuing to next steps. If Test Connection failed, select View Report to see the detailed status and troubleshoot the problem.

    1. Access - Failed status means the user authentication failed. Scans using managed identity will always pass because no user authentication required. If using service principal or delegated authentication, make sure your Key Vault credential was correctly set up and that Microsoft Purview has access to the key vault.
    2. Assets (+ lineage) - Failed status means the Microsoft Purview - Fabric authorization has failed. Make sure the Microsoft Purview managed identity is added to the security group associated in Fabric admin portal.
    3. Detailed metadata (Enhanced) - Failed status means the Fabric admin portal is disabled for the following setting - Enhance admin APIs responses with detailed metadata

    Tip

    For more troubleshooting, see the deployment checklist to make sure you've covered every step in your scenario.

  8. Set up a scan trigger. Your options are Recurring, and Once.

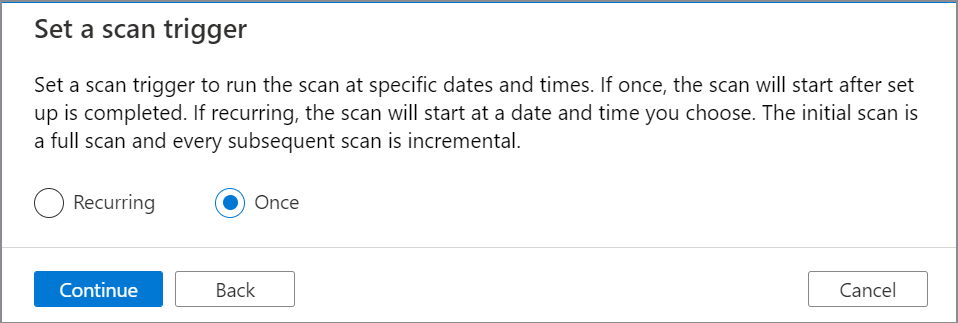

    Screenshot of the Microsoft Purview scan scheduler.

  9. On Review new scan, select Save and run to launch your scan.

View your scans and scan runs

To view existing scans:

  1. Go to the Microsoft Purview portal. On the left pane, select Data map.
  2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.
  3. Select the scan that has results you want to view. The pane shows you all the previous scan runs, along with the status and metrics for each scan run.
  4. Select the run ID to check the scan run details.

Manage your scans

To edit, cancel, or delete a scan:

  1. Go to the Microsoft Purview portal. On the left pane, select Data Map.

  2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.

  3. Select the scan that you want to manage. You can then:

    • Edit the scan by selecting Edit scan.
    • Cancel an in-progress scan by selecting Cancel scan run.
    • Delete your scan by selecting Delete scan.

Note

  • Deleting your scan does not delete catalog assets created from previous scans.

Next steps

Now that you've registered your source, follow the below guides to learn more about Microsoft Purview and your data.
