Generate App insights reports to monitor non-Microsoft applications

App insights is a SharePoint Advanced Management feature that lets IT administrators gain insights on the various non-Microsoft applications registered to your Microsoft Entra admin center and how they access your SharePoint content. This report can help you maintain and protect the integrity of your content.

The report is based on the Microsoft audit data logged when a non-Microsoft application accesses content through the following set of events:

• FileAccessed
• FileDownloaded
• FileModified
• FileUploaded

What do you need to generate App insights reports?

What are the license requirements?

Your organization needs to have the right license and meet certain administrative permissions or roles to use the feature described in this article.

First, your organization must have one of the following base licenses:

• Office 365 E3, E5, or A5
• Microsoft 365 E1, E3, E5, or A5

Additionally, you need to have Microsoft 365 Copilot license.

Note

At least one user in your organization must be assigned a Copilot license (this user doesn't need to be a SharePoint administrator). If your organization has a Copilot license and at least one person in your organization is assigned a Copilot license, SharePoint administrators automatically gain access to the SharePoint Advanced Management features needed for Copilot deployment.

Administrator requirements

You must be a SharePoint administrator or have equivalent permissions.

App insights reports in SharePoint admin center

Data collection for Enterprise App Insight report

Important

As a one time activity you will see a pop up on the UI to enable data collection for 'Enterprise App Insight' reports, so that the product starts to collect the relevant audit data to build this report. Once enabled, the reports can be generated 24 hours later and contains data from the time of data collection. Data is stored for 28 days. If no reports are generated even once in three months, data collection is paused and should be enabled again.

Create report

1. Sign in to SharePoint admin center with your SharePoint admin credentials.

2. In the left pane, expand Reports and then select App insights.

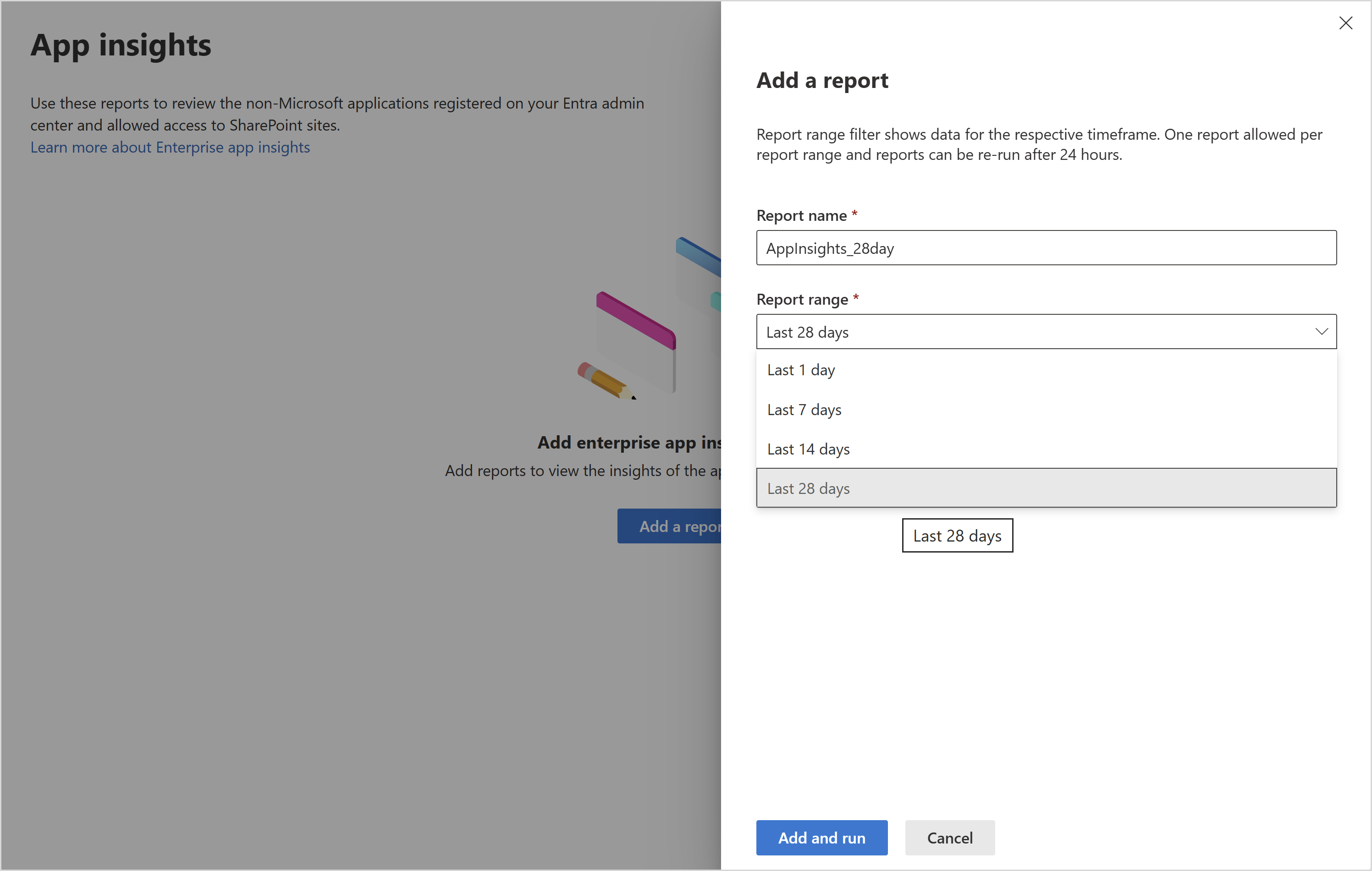

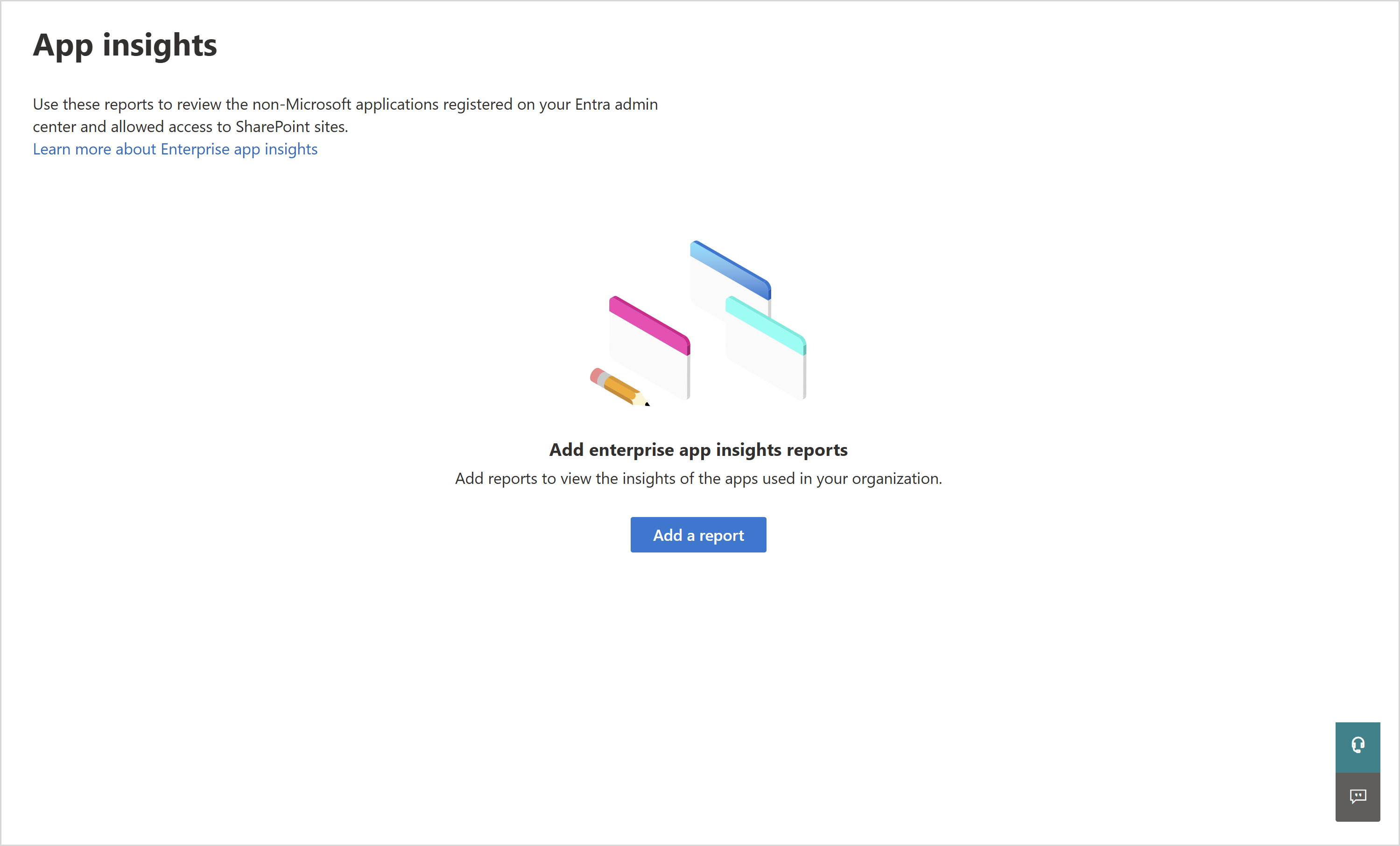

3. Once on the App insights landing page, select Add a report to generate a new report.



4. Under Report range, you can specify and filter data from a respective time frame for your report.

5. Select Add and run.

Note

• It can take up to several hours for generated reports to be available.
• Only one report is allowed per report range.
• Reports can be rerun after 24 hours.

Manage reports in SharePoint admin center

View report status

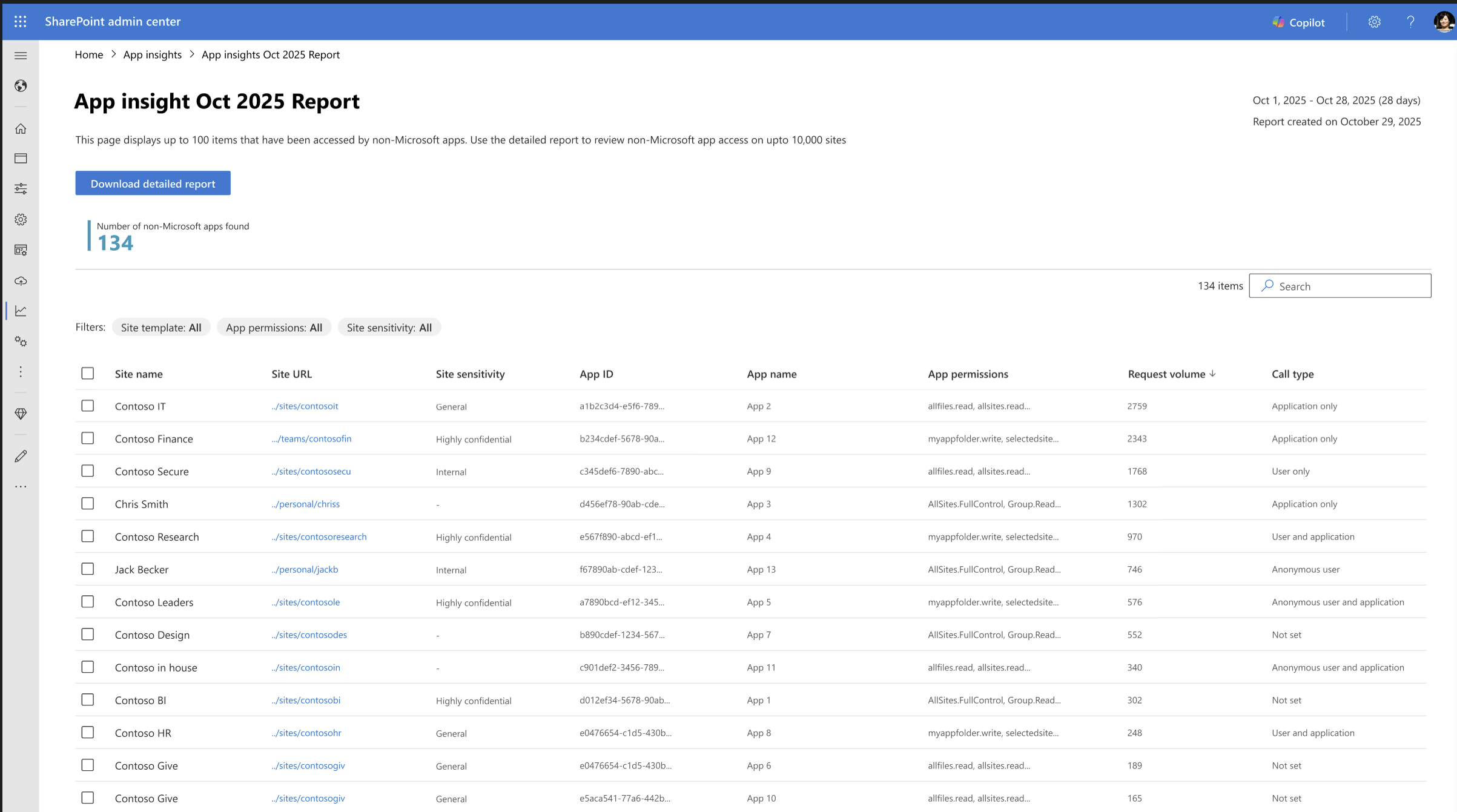

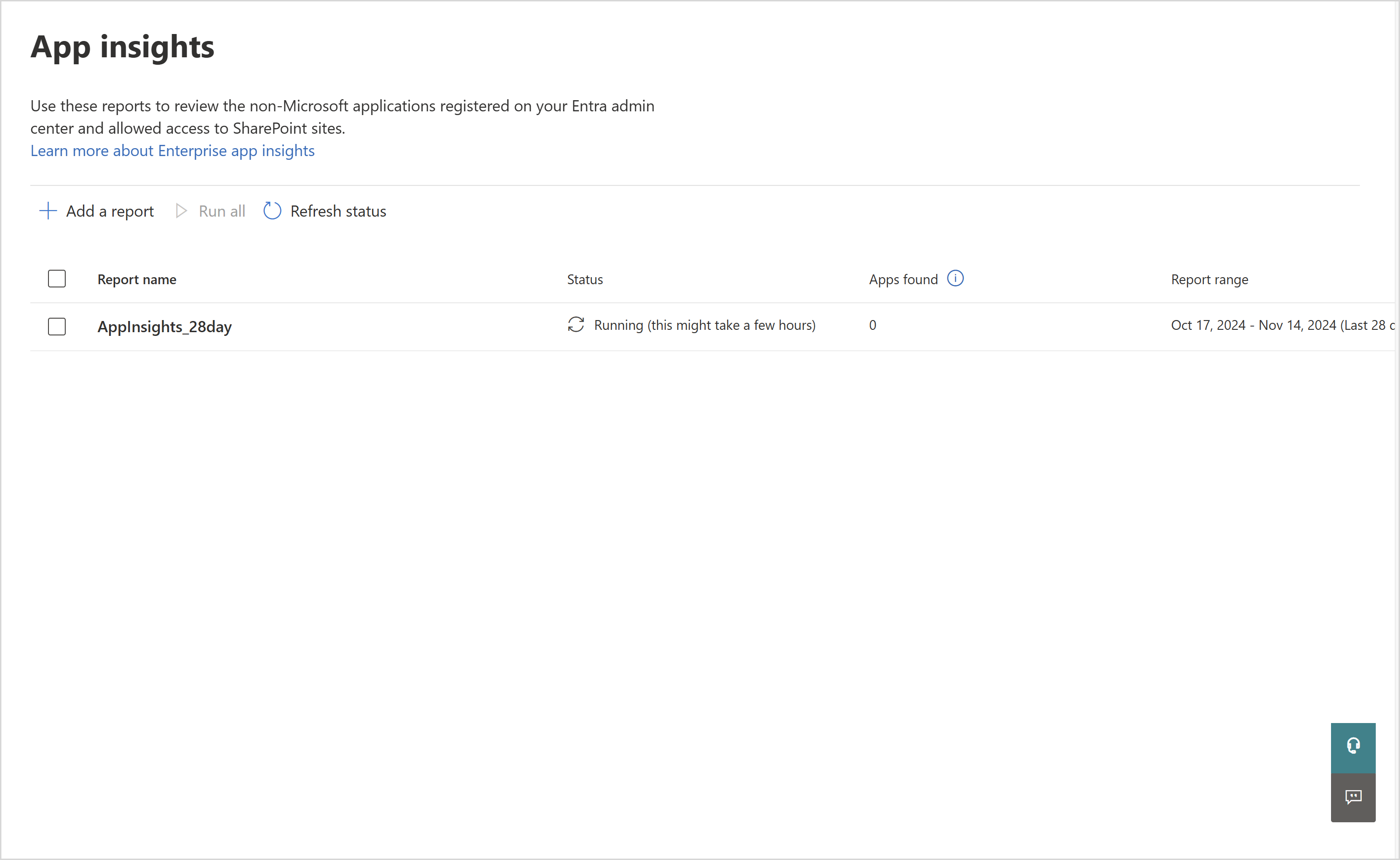

To check if a report is ready or when it was last updated, see the Status column. When a report is ready, select it to view the data.

You're able to see the top 100 (by request volume) results on the screen.

You can also filter by App name, App permissions, and Site sensitivity to view relevant results from the top 100 rows.

Important

To view up to 1 million results, you must select Download detailed report.

Delete report

To delete a report, select the existing report you want to delete and select Delete report.

Rerun a report

To get updated data for a given report range, select an existing report and select Run.

Tip

A rerun prompt also appears if you select Add a report and select a report range for which there already exists a report.

App insights reports in SharePoint PowerShell Module

You can generate and manage App insights reports using SharePoint Online Management Shell.

1. Download and install the latest version of SharePoint Online Management Shell.
2. Connect to SharePoint Online as a SharePoint Administrator in Microsoft 365. For more information about SharePoint Online Management Shell, see Getting started with SharePoint Online Management Shell.
3. Ensure you have the SharePoint Advanced Management license.

PowerShell commands for App insights reports

To perform the necessary operations, use the following commands:

Create a one-day default duration report

To generate report for the default duration of one day, run the following command:

Start-SPOEnterpriseAppInsightsReport

Create report for any other duration

To generate report for any other duration, run the following command:

Start-SPOEnterpriseAppInsightsReport -ReportPeriodInDays $ReportPeriodInDays (possible values = 1, 7, 14, 28)

Check status of all active and available reports

To check status of all active and available reports, run the following command:

Get-SPOEnterpriseAppInsightsReport

Check status of a specific report

To check status of a specific report, run the following command:

Get-SPOEnterpriseAppInsightsReport -reportID $reportID (for the given report ID)

View a specific report

To view a specific report, run the following command:

Get-SPOEnterpriseAppInsightsReport -reportID $reportID

Download a report

To download the report, run the following command:

Get-SPOEnterpriseAppInsightsReport -reportID $reportID -action download

Important

Rerun and delete report capabilities are unavailable for PowerShell. The Create report cmdlets can be used with relevant report duration.

Known experiences

• In new tenants, it can take a few days for data to be available and for these reports to be generated successfully. In large tenants, the data can be delayed by up to 48 hours (about two days).
• A report can be rerun only after 24 hours since the last report generation.
• There can only be one report for each value of Report range. This means that you can see a maximum of four reports in the Enterprise Application Insights homepage.
• These reports are powered by Audit data and don't include all audit events.
• You might see App ID of a non-Microsoft app, but App name of a middle-tier app in some cases.
