Data binding in depth

Important APIs

• {x:Bind} markup extension
• Binding class
• DataContext
• INotifyPropertyChanged

Note

This topic describes data binding features in detail. For a short, practical introduction, see Data binding overview.

This topic is about data binding for the APIs that reside in the Windows.UI.Xaml.Data namespace.

Data binding is a way for your app's UI to display data, and optionally to stay in sync with that data. Data binding allows you to separate the concern of data from the concern of UI, and that results in a simpler conceptual model as well as better readability, testability, and maintainability of your app.

You can use data binding to simply display values from a data source when the UI is first shown, but not to respond to changes in those values. This is a mode of binding called one-time, and it works well for a value that doesn't change during run-time. Alternatively, you can choose to "observe" the values and to update the UI when they change. This mode is called one-way, and it works well for read-only data. Ultimately, you can choose to both observe and update, so that changes that the user makes to values in the UI are automatically pushed back into the data source. This mode is called two-way, and it works well for read-write data. Here are some examples.

• You could use the one-time mode to bind an Image to the current user's photo.
• You could use the one-way mode to bind a ListView to a collection of real-time news articles grouped by newspaper section.
• You could use the two-way mode to bind a TextBox to a customer's name in a form.

Independent of mode, there are two kinds of binding, and they're both typically declared in UI markup. You can choose to use either the {x:Bind} markup extension or the {Binding} markup extension. And you can even use a mixture of the two in the same app—even on the same UI element. {x:Bind} is new for Windows 10 and it has better performance. All the details described in this topic apply to both kinds of binding unless we explicitly say otherwise.

Sample apps that demonstrate {x:Bind}

• {x:Bind} sample.
• QuizGame.
• XAML UI Basics sample.

Sample apps that demonstrate {Binding}

• Download the Bookstore1 app.
• Download the Bookstore2 app.

Every binding involves these pieces

• A binding source. This is the source of the data for the binding, and it can be an instance of any class that has members whose values you want to display in your UI.
• A binding target. This is a DependencyProperty of the FrameworkElement in your UI that displays the data.
• A binding object. This is the piece that transfers data values from the source to the target, and optionally from the target back to the source. The binding object is created at XAML load time from your {x:Bind} or {Binding} markup extension.

In the following sections, we'll take a closer look at the binding source, the binding target, and the binding object. And we'll link the sections together with the example of binding a button's content to a string property named NextButtonText, which belongs to a class named HostViewModel.

Binding source

Here's a very rudimentary implementation of a class that we could use as a binding source.

If you're using C++/WinRT, then add new Midl File (.idl) items to the project, named as shown in the C++/WinRT code example listing below. Replace the contents of those new files with the MIDL 3.0 code shown in the listing, build the project to generate HostViewModel.h and .cpp, and then add code to the generated files to match the listing. For more info about those generated files and how to copy them into your project, see XAML controls; bind to a C++/WinRT property.

public class HostViewModel
{
    public HostViewModel()
    {
        this.NextButtonText = "Next";
    }

    public string NextButtonText { get; set; }
}

// HostViewModel.idl
namespace DataBindingInDepth
{
    runtimeclass HostViewModel
    {
        HostViewModel();
        String NextButtonText;
    }
}

// HostViewModel.h
// Implement the constructor like this, and add this field:
...
HostViewModel() : m_nextButtonText{ L"Next" } {}
...
private:
    std::wstring m_nextButtonText;
...

// HostViewModel.cpp
// Implement like this:
...
hstring HostViewModel::NextButtonText()
{
    return hstring{ m_nextButtonText };
}

void HostViewModel::NextButtonText(hstring const& value)
{
    m_nextButtonText = value;
}
...

That implementation of HostViewModel, and its property NextButtonText, are only appropriate for one-time binding. But one-way and two-way bindings are extremely common, and in those kinds of binding the UI automatically updates in response to changes in the data values of the binding source. In order for those kinds of binding to work correctly, you need to make your binding source "observable" to the binding object. So in our example, if we want to one-way or two-way bind to the NextButtonText property, then any changes that happen at run-time to the value of that property need to be made observable to the binding object.

One way of doing that is to derive the class that represents your binding source from DependencyObject, and expose a data value through a DependencyProperty. That's how a FrameworkElement becomes observable. FrameworkElements are good binding sources right out of the box.

A more lightweight way of making a class observable—and a necessary one for classes that already have a base class—is to implement System.ComponentModel.INotifyPropertyChanged. This really just involves implementing a single event named PropertyChanged. An example using HostViewModel is below.

...
using System.ComponentModel;
using System.Runtime.CompilerServices;
...
public class HostViewModel : INotifyPropertyChanged
{
    private string nextButtonText;

    public event PropertyChangedEventHandler PropertyChanged = delegate { };

    public HostViewModel()
    {
        this.NextButtonText = "Next";
    }

    public string NextButtonText
    {
        get { return this.nextButtonText; }
        set
        {
            this.nextButtonText = value;
            this.OnPropertyChanged();
        }
    }

    public void OnPropertyChanged([CallerMemberName] string propertyName = null)
    {
        // Raise the PropertyChanged event, passing the name of the property whose value has changed.
        this.PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
    }
}

// HostViewModel.idl
namespace DataBindingInDepth
{
    runtimeclass HostViewModel : Windows.UI.Xaml.Data.INotifyPropertyChanged
    {
        HostViewModel();
        String NextButtonText;
    }
}

// HostViewModel.h
// Add this field:
...
    winrt::event_token PropertyChanged(Windows::UI::Xaml::Data::PropertyChangedEventHandler const& handler);
    void PropertyChanged(winrt::event_token const& token) noexcept;

private:
    winrt::event<Windows::UI::Xaml::Data::PropertyChangedEventHandler> m_propertyChanged;
...

// HostViewModel.cpp
// Implement like this:
...
void HostViewModel::NextButtonText(hstring const& value)
{
    if (m_nextButtonText != value)
    {
        m_nextButtonText = value;
        m_propertyChanged(*this, Windows::UI::Xaml::Data::PropertyChangedEventArgs{ L"NextButtonText" });
    }
}

winrt::event_token HostViewModel::PropertyChanged(Windows::UI::Xaml::Data::PropertyChangedEventHandler const& handler)
{
    return m_propertyChanged.add(handler);
}

void HostViewModel::PropertyChanged(winrt::event_token const& token) noexcept
{
    m_propertyChanged.remove(token);
}
...

Now the NextButtonText property is observable. When you author a one-way or a two-way binding to that property (we'll show how later), the resulting binding object subscribes to the PropertyChanged event. When that event is raised, the binding object's handler receives an argument containing the name of the property that has changed. That's how the binding object knows which property's value to go and read again.

So that you don't have to implement the pattern shown above multiple times, if you're using C# then you can just derive from the BindableBase base class that you'll find in the QuizGame sample (in the "Common" folder). Here's an example of how that looks.

public class HostViewModel : BindableBase
{
    private string nextButtonText;

    public HostViewModel()
    {
        this.NextButtonText = "Next";
    }

    public string NextButtonText
    {
        get { return this.nextButtonText; }
        set { this.SetProperty(ref this.nextButtonText, value); }
    }
}

// Your BindableBase base class should itself derive from Windows::UI::Xaml::DependencyObject. Then, in HostViewModel.idl, derive from BindableBase instead of implementing INotifyPropertyChanged.

Note

For C++/WinRT, any runtime class that you declare in your application that derives from a base class is known as a composable class. And there are constraints around composable classes. For an application to pass the Windows App Certification Kit tests used by Visual Studio and by the Microsoft Store to validate submissions (and therefore for the application to be successfully ingested into the Microsoft Store), a composable class must ultimately derive from a Windows base class. Meaning that the class at the very root of the inheritance hierarchy must be a type originating in a Windows.* namespace. If you do need to derive a runtime class from a base class—for example, to implement a BindableBase class for all of your view models to derive from—then you can derive from Windows.UI.Xaml.DependencyObject.

Raising the PropertyChanged event with an argument of String.Empty or null indicates that all non-indexer properties on the object should be re-read. You can raise the event to indicate that indexer properties on the object have changed by using an argument of "Item[indexer]" for specific indexers (where indexer is the index value), or a value of "Item[]" for all indexers.

A binding source can be treated either as a single object whose properties contain data, or as a collection of objects. In C# and Visual Basic code, you can one-time bind to an object that implements List(Of T) to display a collection that doesn't change at run-time. For an observable collection (observing when items are added to and removed from the collection), one-way bind to ObservableCollection(Of T) instead. In C++/CX code, you can bind to Vector<T> for both observable and non-observable collections, and C++/WinRT has its own types. To bind to your own collection classes, use the guidance in the following table.

Scenario	C# and VB (CLR)	C++/WinRT	C++/CX
Bind to an object.	Can be any object.	Can be any object.	Object must have BindableAttribute or implement ICustomPropertyProvider.
Get property change notifications from a bound object.	Object must implement INotifyPropertyChanged.	Object must implement INotifyPropertyChanged.	Object must implement INotifyPropertyChanged.
Bind to a collection.	List(Of T)	IVector of IInspectable, or IBindableObservableVector. See XAML items controls; bind to a C++/WinRT collection and Collections with C++/WinRT.	Vector<T>
Get collection change notifications from a bound collection.	ObservableCollection(Of T)	IObservableVector of IInspectable. For example, winrt::single_threaded_observable_vector<T>.	IObservableVector<T>. Vector<T> implements this interface.
Implement a collection that supports binding.	Extend List(Of T) or implement IList, IList(Of Object), IEnumerable, or IEnumerable(Of Object). Binding to generic IList(Of T) and IEnumerable(Of T) is not supported.	Implement IVector of IInspectable. See XAML items controls; bind to a C++/WinRT collection and Collections with C++/WinRT.	Implement IBindableVector, IBindableIterable, IVector<Object^>, IIterable<Object^>, IVector<IInspectable*>, or IIterable<IInspectable*>. Binding to generic IVector<T> and IIterable<T> is not supported.
Implement a collection that supports collection change notifications.	Extend ObservableCollection(Of T) or implement (non-generic) IList and INotifyCollectionChanged.	Implement IObservableVector of IInspectable, or IBindableObservableVector.	Implement IBindableVector and IBindableObservableVector.
Implement a collection that supports incremental loading.	Extend ObservableCollection(Of T) or implement (non-generic) IList and INotifyCollectionChanged. Additionally, implement ISupportIncrementalLoading.	Implement IObservableVector of IInspectable, or IBindableObservableVector. Additionally, implement ISupportIncrementalLoading	Implement IBindableVector, IBindableObservableVector, and ISupportIncrementalLoading.

You can bind list controls to arbitrarily large data sources, and still achieve high performance, by using incremental loading. For example, you can bind list controls to Bing image query results without having to load all the results at once. Instead, you load only some results immediately, and load additional results as needed. To support incremental loading, you must implement ISupportIncrementalLoading on a data source that supports collection change notifications. When the data binding engine requests more data, your data source must make the appropriate requests, integrate the results, and then send the appropriate notifications in order to update the UI.

Binding target

In the two examples below, the Button.Content property is the binding target, and its value is set to a markup extension that declares the binding object. First {x:Bind} is shown, and then {Binding}. Declaring bindings in markup is the common case (it's convenient, readable, and toolable). But you can avoid markup and imperatively (programmatically) create an instance of the Binding class instead if you need to.

<Button Content="{x:Bind ...}" ... />

<Button Content="{Binding ...}" ... />

If you're using C++/WinRT or Visual C++ component extensions (C++/CX), then you'll need to add the BindableAttribute attribute to any runtime class that you want to use the {Binding} markup extension with.

Important

If you're using C++/WinRT, then the BindableAttribute attribute is available if you've installed the Windows SDK version 10.0.17763.0 (Windows 10, version 1809), or later. Without that attribute, you'll need to implement the ICustomPropertyProvider and ICustomProperty interfaces in order to be able to use the {Binding} markup extension.

Binding object declared using {x:Bind}

There's one step we need to do before we author our {x:Bind} markup. We need to expose our binding source class from the class that represents our page of markup. We do that by adding a property (of type HostViewModel in this case) to our MainPage page class.

namespace DataBindingInDepth
{
    public sealed partial class MainPage : Page
    {
        public MainPage()
        {
            this.InitializeComponent();
            this.ViewModel = new HostViewModel();
        }

        public HostViewModel ViewModel { get; set; }
    }
}

// MainPage.idl
import "HostViewModel.idl";

namespace DataBindingInDepth
{
    runtimeclass MainPage : Windows.UI.Xaml.Controls.Page
    {
        MainPage();
        HostViewModel ViewModel{ get; };
    }
}

// MainPage.h
// Include a header, and add this field:
...
#include "HostViewModel.h"
...
    DataBindingInDepth::HostViewModel ViewModel();

private:
    DataBindingInDepth::HostViewModel m_viewModel{ nullptr };
...

// MainPage.cpp
// Implement like this:
...
MainPage::MainPage()
{
    InitializeComponent();

}

DataBindingInDepth::HostViewModel MainPage::ViewModel()
{
    return m_viewModel;
}
...

That done, we can now take a closer look at the markup that declares the binding object. The example below uses the same Button.Content binding target we used in the "Binding target" section earlier, and shows it being bound to the HostViewModel.NextButtonText property.

<!-- MainPage.xaml -->
<Page x:Class="DataBindingInDepth.Mainpage" ... >
    <Button Content="{x:Bind Path=ViewModel.NextButtonText, Mode=OneWay}" ... />
</Page>

Notice the value that we specify for Path. This value is interpreted in the context of the page itself, and in this case the path begins by referencing the ViewModel property that we just added to the MainPage page. That property returns a HostViewModel instance, and so we can dot into that object to access the HostViewModel.NextButtonText property. And we specify Mode, to override the {x:Bind} default of one-time.

The Path property supports a variety of syntax options for binding to nested properties, attached properties, and integer and string indexers. For more info, see Property-path syntax. Binding to string indexers gives you the effect of binding to dynamic properties without having to implement ICustomPropertyProvider. For other settings, see {x:Bind} markup extension.

To illustrate that the HostViewModel.NextButtonText property is indeed observable, add a Click event handler to the button, and update the value of HostViewModel.NextButtonText. Build, run, and click the button to see the value of the button's Content update.

// MainPage.xaml.cs
private void Button_Click(object sender, RoutedEventArgs e)
{
    this.ViewModel.NextButtonText = "Updated Next button text";
}

// MainPage.cpp
void MainPage::ClickHandler(IInspectable const&, RoutedEventArgs const&)
{
    ViewModel().NextButtonText(L"Updated Next button text");
}

Note

Changes to TextBox.Text are sent to a two-way bound source when the TextBox loses focus, and not after every user keystroke.

DataTemplate and x:DataType

Inside a DataTemplate (whether used as an item template, a content template, or a header template), the value of Path is not interpreted in the context of the page, but in the context of the data object being templated. When using {x:Bind} in a data template, so that its bindings can be validated (and efficient code generated for them) at compile-time, the DataTemplate needs to declare the type of its data object using x:DataType. The example given below could be used as the ItemTemplate of an items control bound to a collection of SampleDataGroup objects.

<DataTemplate x:Key="SimpleItemTemplate" x:DataType="data:SampleDataGroup">
    <StackPanel Orientation="Vertical" Height="50">
      <TextBlock Text="{x:Bind Title}"/>
      <TextBlock Text="{x:Bind Description}"/>
    </StackPanel>
  </DataTemplate>

Weakly-typed objects in your Path

Consider for example that you have a type named SampleDataGroup, which implements a string property named Title. And you have a property MainPage.SampleDataGroupAsObject, which is of type object, but which actually returns an instance of SampleDataGroup. The binding <TextBlock Text="{x:Bind SampleDataGroupAsObject.Title}"/> will result in a compile error because the Title property is not found on the type object. The remedy for this is to add a cast to your Path syntax like this: <TextBlock Text="{x:Bind ((data:SampleDataGroup)SampleDataGroupAsObject).Title}"/>. Here's another example where Element is declared as object but is actually a TextBlock: <TextBlock Text="{x:Bind Element.Text}"/>. And a cast remedies the issue: <TextBlock Text="{x:Bind ((TextBlock)Element).Text}"/>.

If your data loads asynchronously

Code to support {x:Bind} is generated at compile-time in the partial classes for your pages. These files can be found in your obj folder, with names like (for C#) <view name>.g.cs. The generated code includes a handler for your page's Loading event, and that handler calls the Initialize method on a generated class that represent's your page's bindings. Initialize in turn calls Update to begin moving data between the binding source and the target. Loading is raised just before the first measure pass of the page or user control. So if your data is loaded asynchronously it may not be ready by the time Initialize is called. So, after you've loaded data, you can force one-time bindings to be initialized by calling this.Bindings.Update();. If you only need one-time bindings for asynchronously-loaded data then it's much cheaper to initialize them this way than it is to have one-way bindings and to listen for changes. If your data does not undergo fine-grained changes, and if it's likely to be updated as part of a specific action, then you can make your bindings one-time, and force a manual update at any time with a call to Update.

Note

{x:Bind} is not suited to late-bound scenarios, such as navigating the dictionary structure of a JSON object, nor duck typing. "Duck typing" is a weak form of typing based on lexical matches on property names (as in, "if it walks, swims, and quacks like a duck, then it's a duck"). With duck typing, a binding to the Age property would be equally satisfied with a Person or a Wine object (assuming that those types each had an Age property). For these scenarios, use the {Binding} markup extension.

Binding object declared using {Binding}

If you're using C++/WinRT or Visual C++ component extensions (C++/CX) then, to use the {Binding} markup extension, you'll need to add the BindableAttribute attribute to any runtime class that you want to bind to. To use {x:Bind}, you don't need that attribute.

// HostViewModel.idl
// Add this attribute:
[Windows.UI.Xaml.Data.Bindable]
runtimeclass HostViewModel : Windows.UI.Xaml.Data.INotifyPropertyChanged
...

Important

If you're using C++/WinRT, then the BindableAttribute attribute is available if you've installed the Windows SDK version 10.0.17763.0 (Windows 10, version 1809), or later. Without that attribute, you'll need to implement the ICustomPropertyProvider and ICustomProperty interfaces in order to be able to use the {Binding} markup extension.

{Binding} assumes, by default, that you're binding to the DataContext of your markup page. So we'll set the DataContext of our page to be an instance of our binding source class (of type HostViewModel in this case). The example below shows the markup that declares the binding object. We use the same Button.Content binding target we used in the "Binding target" section earlier, and we bind to the HostViewModel.NextButtonText property.

<Page xmlns:viewmodel="using:DataBindingInDepth" ... >
    <Page.DataContext>
        <viewmodel:HostViewModel x:Name="viewModelInDataContext"/>
    </Page.DataContext>
    ...
    <Button Content="{Binding Path=NextButtonText}" ... />
</Page>

// MainPage.xaml.cs
private void Button_Click(object sender, RoutedEventArgs e)
{
    this.viewModelInDataContext.NextButtonText = "Updated Next button text";
}

// MainPage.cpp
void MainPage::ClickHandler(IInspectable const&, RoutedEventArgs const&)
{
    viewModelInDataContext().NextButtonText(L"Updated Next button text");
}

Notice the value that we specify for Path. This value is interpreted in the context of the page's DataContext, which in this example is set to an instance of HostViewModel. The path references the HostViewModel.NextButtonText property. We can omit Mode, because the {Binding} default of one-way works here.

The default value of DataContext for a UI element is the inherited value of its parent. You can of course override that default by setting DataContext explicitly, which is in turn inherited by children by default. Setting DataContext explicitly on an element is useful when you want to have multiple bindings that use the same source.

A binding object has a Source property, which defaults to the DataContext of the UI element on which the binding is declared. You can override this default by setting Source, RelativeSource, or ElementName explicitly on the binding (see {Binding} for details).

Inside a DataTemplate, the DataContext is automatically set to the data object being templated. The example given below could be used as the ItemTemplate of an items control bound to a collection of any type that has string properties named Title and Description.

<DataTemplate x:Key="SimpleItemTemplate">
    <StackPanel Orientation="Vertical" Height="50">
      <TextBlock Text="{Binding Title}"/>
      <TextBlock Text="{Binding Description"/>
    </StackPanel>
  </DataTemplate>

Note

By default, changes to TextBox.Text are sent to a two-way bound source when the TextBox loses focus. To cause changes to be sent after every user keystroke, set UpdateSourceTrigger to PropertyChanged on the binding in markup. You can also completely take control of when changes are sent to the source by setting UpdateSourceTrigger to Explicit. You then handle events on the text box (typically TextBox.TextChanged), call GetBindingExpression on the target to get a BindingExpression object, and finally call BindingExpression.UpdateSource to programmatically update the data source.

The Path property supports a variety of syntax options for binding to nested properties, attached properties, and integer and string indexers. For more info, see Property-path syntax. Binding to string indexers gives you the effect of binding to dynamic properties without having to implement ICustomPropertyProvider. The ElementName property is useful for element-to-element binding. The RelativeSource property has several uses, one of which is as a more powerful alternative to template binding inside a ControlTemplate. For other settings, see {Binding} markup extension and the Binding class.

What if the source and the target are not the same type?

If you want to control the visibility of a UI element based on the value of a boolean property, or if you want to render a UI element with a color that's a function of a numeric value's range or trend, or if you want to display a date and/or time value in a UI element property that expects a string, then you'll need to convert values from one type to another. There will be cases where the right solution is to expose another property of the right type from your binding source class, and keep the conversion logic encapsulated and testable there. But that isn't flexible nor scalable when you have large numbers, or large combinations, of source and target properties. In that case you have a couple of options:

• If using {x:Bind} then you can bind directly to a function to do that conversion
• Or you can specify a value converter which is an object designed to perform the conversion

Value Converters

Here's a value converter, suitable for a one-time or a one-way binding, that converts a DateTime value to a string value containing the month. The class implements IValueConverter.

public class DateToStringConverter : IValueConverter
{
    // Define the Convert method to convert a DateTime value to
    // a month string.
    public object Convert(object value, Type targetType,
        object parameter, string language)
    {
        // value is the data from the source object.
        DateTime thisdate = (DateTime)value;
        int monthnum = thisdate.Month;
        string month;
        switch (monthnum)
        {
            case 1:
                month = "January";
                break;
            case 2:
                month = "February";
                break;
            default:
                month = "Month not found";
                break;
        }
        // Return the value to pass to the target.
        return month;
    }

    // ConvertBack is not implemented for a OneWay binding.
    public object ConvertBack(object value, Type targetType,
        object parameter, string language)
    {
        throw new NotImplementedException();
    }
}

// See the "Formatting or converting data values for display" section in the "Data binding overview" topic.

And here's how you consume that value converter in your binding object markup.

<UserControl.Resources>
  <local:DateToStringConverter x:Key="Converter1"/>
</UserControl.Resources>
...
<TextBlock Grid.Column="0"
  Text="{x:Bind ViewModel.Month, Converter={StaticResource Converter1}}"/>
<TextBlock Grid.Column="0"
  Text="{Binding Month, Converter={StaticResource Converter1}}"/>

The binding engine calls the Convert and ConvertBack methods if the Converter parameter is defined for the binding. When data is passed from the source, the binding engine calls Convert and passes the returned data to the target. When data is passed from the target (for a two-way binding), the binding engine calls ConvertBack and passes the returned data to the source.

The converter also has optional parameters: ConverterLanguage, which allows specifying the language to be used in the conversion, and ConverterParameter, which allows passing a parameter for the conversion logic. For an example that uses a converter parameter, see IValueConverter.

Note

If there is an error in the conversion, do not throw an exception. Instead, return DependencyProperty.UnsetValue, which will stop the data transfer.

To display a default value to use whenever the binding source cannot be resolved, set the FallbackValue property on the binding object in markup. This is useful to handle conversion and formatting errors. It is also useful to bind to source properties that might not exist on all objects in a bound collection of heterogeneous types.

If you bind a text control to a value that is not a string, the data binding engine will convert the value to a string. If the value is a reference type, the data binding engine will retrieve the string value by calling ICustomPropertyProvider.GetStringRepresentation or IStringable.ToString if available, and will otherwise call Object.ToString. Note, however, that the binding engine will ignore any ToString implementation that hides the base-class implementation. Subclass implementations should override the base class ToString method instead. Similarly, in native languages, all managed objects appear to implement ICustomPropertyProvider and IStringable. However, all calls to GetStringRepresentation and IStringable.ToString are routed to Object.ToString or an override of that method, and never to a new ToString implementation that hides the base-class implementation.

Note

Starting in Windows 10, version 1607, the XAML framework provides a built in boolean to Visibility converter. The converter maps true to the Visible enumeration value and false to Collapsed so you can bind a Visibility property to a boolean without creating a converter. To use the built in converter, your app's minimum target SDK version must be 14393 or later. You can't use it when your app targets earlier versions of Windows 10. For more info about target versions, see Version adaptive code.

Function binding in {x:Bind}

{x:Bind} enables the final step in a binding path to be a function. This can be used to perform conversions, and to perform bindings that depend on more than one property. See Functions in x:Bind

Element-to-element binding

You can bind the property of one XAML element to the property of another XAML element. Here's an example of how that looks in markup.

<TextBox x:Name="myTextBox" />
<TextBlock Text="{x:Bind myTextBox.Text, Mode=OneWay}" />

Important

For the necessary workflow for element-to-element binding using C++/WinRT, see Element-to-element binding.

Resource dictionaries with {x:Bind}

The {x:Bind} markup extension depends on code generation, so it needs a code-behind file containing a constructor that calls InitializeComponent (to initialize the generated code). You re-use the resource dictionary by instantiating its type (so that InitializeComponent is called) instead of referencing its filename. Here's an example of what to do if you have an existing resource dictionary and you want to use {x:Bind} in it.

TemplatesResourceDictionary.xaml

<ResourceDictionary
    x:Class="ExampleNamespace.TemplatesResourceDictionary"
    .....
    xmlns:examplenamespace="using:ExampleNamespace">

    <DataTemplate x:Key="EmployeeTemplate" x:DataType="examplenamespace:IEmployee">
        <Grid>
            <TextBlock Text="{x:Bind Name}"/>
        </Grid>
    </DataTemplate>
</ResourceDictionary>

TemplatesResourceDictionary.xaml.cs

using Windows.UI.Xaml.Data;

namespace ExampleNamespace
{
    public partial class TemplatesResourceDictionary
    {
        public TemplatesResourceDictionary()
        {
            InitializeComponent();
        }
    }
}

MainPage.xaml

<Page x:Class="ExampleNamespace.MainPage"
    ....
    xmlns:examplenamespace="using:ExampleNamespace">

    <Page.Resources>
        <ResourceDictionary>
            ....
            <ResourceDictionary.MergedDictionaries>
                <examplenamespace:TemplatesResourceDictionary/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Page.Resources>
</Page>

Event binding and ICommand

{x:Bind} supports a feature called event binding. With this feature, you can specify the handler for an event using a binding, which is an additional option on top of handling events with a method on the code-behind file. Let's say you have a RootFrame property on your MainPage class.

public sealed partial class MainPage : Page
{
    ...
    public Frame RootFrame { get { return Window.Current.Content as Frame; } }
}

You can then bind a button's Click event to a method on the Frame object returned by the RootFrame property like this. Note that we also bind the button's IsEnabled property to another member of the same Frame.

<AppBarButton Icon="Forward" IsCompact="True"
IsEnabled="{x:Bind RootFrame.CanGoForward, Mode=OneWay}"
Click="{x:Bind RootFrame.GoForward}"/>

Overloaded methods cannot be used to handle an event with this technique. Also, if the method that handles the event has parameters then they must all be assignable from the types of all of the event's parameters, respectively. In this case, Frame.GoForward is not overloaded and it has no parameters (but it would still be valid even if it took two object parameters). Frame.GoBack is overloaded, though, so we can't use that method with this technique.

The event binding technique is similar to implementing and consuming commands (a command is a property that returns an object that implements the ICommand interface). Both {x:Bind} and {Binding} work with commands. So that you don't have to implement the command pattern multiple times, you can use the DelegateCommand helper class that you'll find in the QuizGame sample (in the "Common" folder).

Binding to a collection of folders or files

You can use the APIs in the Windows.Storage namespace to retrieve folder and file data. However, the various GetFilesAsync, GetFoldersAsync, and GetItemsAsync methods do not return values that are suitable for binding to list controls. Instead, you must bind to the return values of the GetVirtualizedFilesVector, GetVirtualizedFoldersVector, and GetVirtualizedItemsVector methods of the FileInformationFactory class. The following code example from the StorageDataSource and GetVirtualizedFilesVector sample shows the typical usage pattern. Remember to declare the picturesLibrary capability in your app package manifest, and confirm that there are pictures in your Pictures library folder.

protected override void OnNavigatedTo(NavigationEventArgs e)
{
    var library = Windows.Storage.KnownFolders.PicturesLibrary;
    var queryOptions = new Windows.Storage.Search.QueryOptions();
    queryOptions.FolderDepth = Windows.Storage.Search.FolderDepth.Deep;
    queryOptions.IndexerOption = Windows.Storage.Search.IndexerOption.UseIndexerWhenAvailable;

    var fileQuery = library.CreateFileQueryWithOptions(queryOptions);

    var fif = new Windows.Storage.BulkAccess.FileInformationFactory(
        fileQuery,
        Windows.Storage.FileProperties.ThumbnailMode.PicturesView,
        190,
        Windows.Storage.FileProperties.ThumbnailOptions.UseCurrentScale,
        false
        );

    var dataSource = fif.GetVirtualizedFilesVector();
    this.PicturesListView.ItemsSource = dataSource;
}

You will typically use this approach to create a read-only view of file and folder info. You can create two-way bindings to the file and folder properties, for example to let users rate a song in a music view. However, any changes are not persisted until you call the appropriate SavePropertiesAsync method (for example, MusicProperties.SavePropertiesAsync). You should commit changes when the item loses focus because this triggers a selection reset.

Note that two-way binding using this technique works only with indexed locations, such as Music. You can determine whether a location is indexed by calling the FolderInformation.GetIndexedStateAsync method.

Note also that a virtualized vector can return null for some items before it populates their value. For example, you should check for null before you use the SelectedItem value of a list control bound to a virtualized vector, or use SelectedIndex instead.

Binding to data grouped by a key

If you take a flat collection of items (books, for example, represented by a BookSku class) and you group the items by using a common property as a key (the BookSku.AuthorName property, for example) then the result is called grouped data. When you group data, it is no longer a flat collection. Grouped data is a collection of group objects, where each group object has

• a key, and
• a collection of items whose property matches that key.

To take the books example again, the result of grouping the books by author name results in a collection of author name groups where each group has

• a key, which is an author name, and
• a collection of the BookSkus whose AuthorName property matches the group's key.

In general, to display a collection, you bind the ItemsSource of an items control (such as ListView or GridView) directly to a property that returns a collection. If that's a flat collection of items then you don't need to do anything special. But if it's a collection of group objects (as it is when binding to grouped data) then you need the services of an intermediary object called a CollectionViewSource which sits between the items control and the binding source. You bind the CollectionViewSource to the property that returns grouped data, and you bind the items control to the CollectionViewSource. An extra value-add of a CollectionViewSource is that it keeps track of the current item, so you can keep more than one items control in sync by binding them all to the same CollectionViewSource. You can also access the current item programmatically through the ICollectionView.CurrentItem property of the object returned by the CollectionViewSource.View property.

To activate the grouping facility of a CollectionViewSource, set IsSourceGrouped to true. Whether you also need to set the ItemsPath property depends on exactly how you author your group objects. There are two ways to author a group object: the "is-a-group" pattern, and the "has-a-group" pattern. In the "is-a-group" pattern, the group object derives from a collection type (for example, List<T>), so the group object actually is itself the group of items. With this pattern you do not need to set ItemsPath. In the "has-a-group" pattern, the group object has one or more properties of a collection type (such as List<T>), so the group "has a" group of items in the form of a property (or several groups of items in the form of several properties). With this pattern you need to set ItemsPath to the name of the property that contains the group of items.

The example below illustrates the "has-a-group" pattern. The page class has a property named ViewModel, which returns an instance of our view model. The CollectionViewSource binds to the Authors property of the view model (Authors is the collection of group objects) and also specifies that it's the Author.BookSkus property that contains the grouped items. Finally, the GridView is bound to the CollectionViewSource, and has its group style defined so that it can render the items in groups.

<Page.Resources>
    <CollectionViewSource
    x:Name="AuthorHasACollectionOfBookSku"
    Source="{x:Bind ViewModel.Authors}"
    IsSourceGrouped="true"
    ItemsPath="BookSkus"/>
</Page.Resources>
...
<GridView
ItemsSource="{x:Bind AuthorHasACollectionOfBookSku}" ...>
    <GridView.GroupStyle>
        <GroupStyle
            HeaderTemplate="{StaticResource AuthorGroupHeaderTemplateWide}" ... />
    </GridView.GroupStyle>
</GridView>

You can implement the "is-a-group" pattern in one of two ways. One way is to author your own group class. Derive the class from List<T> (where T is the type of the items). For example, public class Author : List<BookSku>. The second way is to use a LINQ expression to dynamically create group objects (and a group class) from like property values of the BookSku items. This approach—maintaining only a flat list of items and grouping them together on the fly—is typical of an app that accesses data from a cloud service. You get the flexibility to group books by author or by genre (for example) without needing special group classes such as Author and Genre.

The example below illustrates the "is-a-group" pattern using LINQ. This time we group books by genre, displayed with the genre name in the group headers. This is indicated by the "Key" property path in reference to the group Key value.

using System.Linq;
...
private IOrderedEnumerable<IGrouping<string, BookSku>> genres;

public IOrderedEnumerable<IGrouping<string, BookSku>> Genres
{
    get
    {
        if (this.genres == null)
        {
            this.genres = from book in this.bookSkus
                          group book by book.genre into grp
                          orderby grp.Key
                          select grp;
        }
        return this.genres;
    }
}

Remember that when using {x:Bind} with data templates we need to indicate the type being bound to by setting an x:DataType value. If the type is generic then we can't express that in markup so we need to use {Binding} instead in the group style header template.

    <Grid.Resources>
        <CollectionViewSource x:Name="GenreIsACollectionOfBookSku"
        Source="{x:Bind Genres}"
        IsSourceGrouped="true"/>
    </Grid.Resources>
    <GridView ItemsSource="{x:Bind GenreIsACollectionOfBookSku}">
        <GridView.ItemTemplate x:DataType="local:BookTemplate">
            <DataTemplate>
                <TextBlock Text="{x:Bind Title}"/>
            </DataTemplate>
        </GridView.ItemTemplate>
        <GridView.GroupStyle>
            <GroupStyle>
                <GroupStyle.HeaderTemplate>
                    <DataTemplate>
                        <TextBlock Text="{Binding Key}"/>
                    </DataTemplate>
                </GroupStyle.HeaderTemplate>
            </GroupStyle>
        </GridView.GroupStyle>
    </GridView>

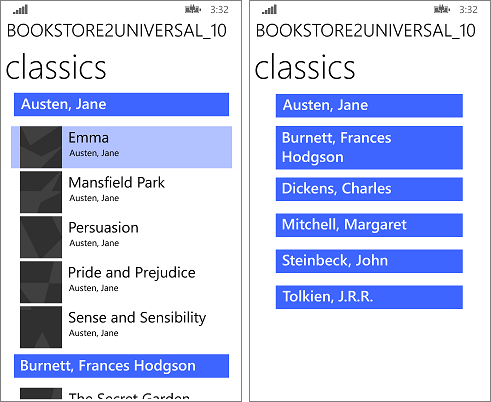

A SemanticZoom control is a great way for your users to view and navigate grouped data. The Bookstore2 sample app illustrates how to use the SemanticZoom. In that app, you can view a list of books grouped by author (the zoomed-in view) or you can zoom out to see a jump list of authors (the zoomed-out view). The jump list affords much quicker navigation than scrolling through the list of books. The zoomed-in and zoomed-out views are actually ListView or GridView controls bound to the same CollectionViewSource.

When you bind to hierarchical data—such as subcategories within categories—you can choose to display the hierarchical levels in your UI with a series of items controls. A selection in one items control determines the contents of subsequent items controls. You can keep the lists synchronized by binding each list to its own CollectionViewSource and binding the CollectionViewSource instances together in a chain. This is called a master/details (or list/details) view. For more info, see How to bind to hierarchical data and create a master/details view.

Diagnosing and debugging data binding problems

Your binding markup contains the names of properties (and, for C#, sometimes fields and methods). So when you rename a property, you'll also need to change any binding that references it. Forgetting to do that leads to a typical example of a data binding bug, and your app either won't compile or won't run correctly.

The binding objects created by {x:Bind} and {Binding} are largely functionally equivalent. But {x:Bind} has type information for the binding source, and it generates source code at compile-time. With {x:Bind} you get the same kind of problem detection that you get with the rest of your code. That includes compile-time validation of your binding expressions, and debugging by setting breakpoints in the source code generated as the partial class for your page. These classes can be found in the files in your obj folder, with names like (for C#) <view name>.g.cs). If you have a problem with a binding then turn on Break On Unhandled Exceptions in the Microsoft Visual Studio debugger. The debugger will break execution at that point, and you can then debug what has gone wrong. The code generated by {x:Bind} follows the same pattern for each part of the graph of binding source nodes, and you can use the info in the Call Stack window to help determine the sequence of calls that led up to the problem.

{Binding} does not have type information for the binding source. But when you run your app with the debugger attached, any binding errors appear in the Output window in Visual Studio.

Creating bindings in code

Note  This section only applies to {Binding}, because you can't create {x:Bind} bindings in code. However, some of the same benefits of {x:Bind} can be achieved with DependencyObject.RegisterPropertyChangedCallback, which enables you to register for change notifications on any dependency property.

You can also connect UI elements to data using procedural code instead of XAML. To do this, create a new Binding object, set the appropriate properties, then call FrameworkElement.SetBinding or BindingOperations.SetBinding. Creating bindings programmatically is useful when you want to choose the binding property values at run-time or share a single binding among multiple controls. Note, however, that you cannot change the binding property values after you call SetBinding.

The following example shows how to implement a binding in code.

<TextBox x:Name="MyTextBox" Text="Text"/>

// Create an instance of the MyColors class
// that implements INotifyPropertyChanged.
MyColors textcolor = new MyColors();

// Brush1 is set to be a SolidColorBrush with the value Red.
textcolor.Brush1 = new SolidColorBrush(Colors.Red);

// Set the DataContext of the TextBox MyTextBox.
MyTextBox.DataContext = textcolor;

// Create the binding and associate it with the text box.
Binding binding = new Binding() { Path = new PropertyPath("Brush1") };
MyTextBox.SetBinding(TextBox.ForegroundProperty, binding);

' Create an instance of the MyColors class
' that implements INotifyPropertyChanged.
Dim textcolor As New MyColors()

' Brush1 is set to be a SolidColorBrush with the value Red.
textcolor.Brush1 = New SolidColorBrush(Colors.Red)

' Set the DataContext of the TextBox MyTextBox.
MyTextBox.DataContext = textcolor

' Create the binding and associate it with the text box.
Dim binding As New Binding() With {.Path = New PropertyPath("Brush1")}
MyTextBox.SetBinding(TextBox.ForegroundProperty, binding)

{x:Bind} and {Binding} feature comparison

Feature	{x:Bind} vs. {Binding}	Notes
Path is the default property	{x:Bind a.b.c} - {Binding a.b.c}
Path property	{x:Bind Path=a.b.c} - {Binding Path=a.b.c}	In x:Bind, Path is rooted at the Page by default, not the DataContext.
Indexer	{x:Bind Groups[2].Title} - {Binding Groups[2].Title}	Binds to the specified item in the collection. Only integer-based indexes are supported.
Attached properties	{x:Bind Button22.(Grid.Row)} - {Binding Button22.(Grid.Row)}	Attached properties are specified using parentheses. If the property is not declared in a XAML namespace, then prefix it with an xml namespace, which should be mapped to a code namespace at the head of the document.
Casting	{x:Bind groups[0].(data:SampleDataGroup.Title)} - Not needed for {Binding}.	Casts are specified using parentheses. If the property is not declared in a XAML namespace, then prefix it with an xml namespace, which should be mapped to a code namespace at the head of the document.
Converter	{x:Bind IsShown, Converter={StaticResource BoolToVisibility}} - {Binding IsShown, Converter={StaticResource BoolToVisibility}}	Converters must be declared at the root of the Page/ResourceDictionary, or in App.xaml.
ConverterParameter, ConverterLanguage	{x:Bind IsShown, Converter={StaticResource BoolToVisibility}, ConverterParameter=One, ConverterLanguage=fr-fr} - {Binding IsShown, Converter={StaticResource BoolToVisibility}, ConverterParameter=One, ConverterLanguage=fr-fr}	Converters must be declared at the root of the Page/ResourceDictionary, or in App.xaml.
TargetNullValue	{x:Bind Name, TargetNullValue=0} - {Binding Name, TargetNullValue=0}	Used when the leaf of the binding expression is null. Use single quotes for a string value.
FallbackValue	{x:Bind Name, FallbackValue='empty'} - {Binding Name, FallbackValue='empty'}	Used when any part of the path for the binding (except for the leaf) is null.
ElementName	{x:Bind slider1.Value} - {Binding Value, ElementName=slider1}	With {x:Bind} you're binding to a field; Path is rooted at the Page by default, so any named element can be accessed via its field.
RelativeSource: Self	<Rectangle x:Name="rect1" Width="200" Height="{x:Bind rect1.Width}" ... /> - <Rectangle Width="200" Height="{Binding Width, RelativeSource={RelativeSource Self}}" ... />	With {x:Bind}, name the element and use its name in Path.
RelativeSource: TemplatedParent	Not needed for {x:Bind} - {Binding <path>, RelativeSource={RelativeSource TemplatedParent}}	With {x:Bind} TargetType on ControlTemplate indicates binding to template parent. For {Binding} Regular template binding can be used in control templates for most uses. But use TemplatedParent where you need to use a converter, or a two-way binding.<
Source	Not needed for {x:Bind} - <ListView ItemsSource="{Binding Orders, Source={StaticResource MyData}}"/>	For {x:Bind} you can directly use the named element, use a property or a static path.
Mode	{x:Bind Name, Mode=OneWay} - {Binding Name, Mode=TwoWay}	Mode can be OneTime, OneWay, or TwoWay. {x:Bind} defaults to OneTime; {Binding} defaults to OneWay.
UpdateSourceTrigger	{x:Bind Name, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged} - {Binding UpdateSourceTrigger=PropertyChanged}	UpdateSourceTrigger can be Default, LostFocus, or PropertyChanged. {x:Bind} does not support UpdateSourceTrigger=Explicit. {x:Bind} uses PropertyChanged behavior for all cases except TextBox.Text, where it uses LostFocus behavior.
