Tutorial: Ambiente básico do Active Directory
Este tutorial orienta você na criação de um ambiente básico do Active Directory.
Você pode usar o ambiente criado no tutorial para testar vários aspectos de cenários de identidade híbrida e será um pré-requisito para alguns dos tutoriais. Se você já tiver um ambiente do Active Directory, poderá usá-lo como substituto. Essas informações são fornecidas para pessoas que estão começando desde o princípio.
Este tutorial consiste em
Pré-requisitos
A seguir estão os pré-requisitos necessários para concluir este tutorial
- Um computador com Hyper-V instalado. É recomendável fazer isso em um computador Windows 10 ou um computador Windows Server 2016.
- Um adaptador de rede externa para permitir que a máquina virtual comunique-se com a Internet.
- Uma assinatura do Azure
- Uma cópia do Windows Server 2016
- Microsoft .NET Framework 4.7.1
Observação
Este tutorial usa scripts do PowerShell para que você possa criar o ambiente do tutorial no menor tempo possível. Cada um dos scripts usa variáveis que são declaradas no início dos scripts. Você pode e deve alterar as variáveis para refletir seu ambiente.
Os scripts usados criam um ambiente do Active Directory geral antes de instalar o agente de provisionamento de nuvem do Microsoft Entra Connect. Eles são relevantes para todos os tutoriais.
Cópias dos scripts do PowerShell que são usados neste tutorial estão disponíveis no GitHub aqui.
Criar uma máquina virtual
A primeira etapa necessária para colocar o ambiente de identidade híbrida em funcionamento é criar uma máquina virtual que será usada como o servidor local do Active Directory. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
#Declare variables $VMName = 'DC1' $Switch = 'External' $InstallMedia = 'D:\ISO\en_windows_server_2016_updated_feb_2018_x64_dvd_11636692.iso' $Path = 'D:\VM' $VHDPath = 'D:\VM\DC1\DC1.vhdx' $VHDSize = '64424509440' #Create New Virtual Machine New-VM -Name $VMName -MemoryStartupBytes 16GB -BootDevice VHD -Path $Path -NewVHDPath $VHDPath -NewVHDSizeBytes $VHDSize -Generation 2 -Switch $Switch #Set the memory to be non-dynamic Set-VMMemory $VMName -DynamicMemoryEnabled $false #Add DVD Drive to Virtual Machine Add-VMDvdDrive -VMName $VMName -ControllerNumber 0 -ControllerLocation 1 -Path $InstallMedia #Mount Installation Media $DVDDrive = Get-VMDvdDrive -VMName $VMName #Configure Virtual Machine to Boot from DVD Set-VMFirmware -VMName $VMName -FirstBootDevice $DVDDrive
Concluir a implantação de sistema operacional
Para concluir a criação da máquina virtual, é necessário concluir a instalação do sistema operacional.
- Gerenciador Hyper-V, clique duas vezes na máquina virtual
- Clique no botão Iniciar.
- Você verá a mensagem "Pressione qualquer tecla para inicializar usando um CD ou DVD". Prossiga e faça isso.
- Na tela de inicialização do Windows Server, selecione o idioma e clique em Avançar.
- Clique em Instalar Agora.
- Insira a chave de licença e clique em Avançar.
- Marque **Eu aceito os termos da licença e clique em Avançar.
- Selecione Personalizado: instalar somente o Windows (Avançado)
- Clique em Avançar.
- Quando a instalação estiver concluída, reinicie a máquina virtual, entre e execute as atualizações do Windows para garantir que a VM seja a mais atualizada. Instale as últimas atualizações.
Instalar os pré-requisitos do Active Directory
Agora que você tem uma máquina virtual ativa, precisa executar algumas etapas antes de instalar o Active Directory. Ou seja, precisa renomear a máquina virtual, definir um endereço IP estático e informações de DNS e instalar as Ferramentas de Administração de Servidor Remoto. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
#Declare variables $ipaddress = "10.0.1.117" $ipprefix = "24" $ipgw = "10.0.1.1" $ipdns = "10.0.1.117" $ipdns2 = "8.8.8.8" $ipif = (Get-NetAdapter).ifIndex $featureLogPath = "c:\poshlog\featurelog.txt" $newname = "DC1" $addsTools = "RSAT-AD-Tools" #Set static IP address New-NetIPAddress -IPAddress $ipaddress -PrefixLength $ipprefix -InterfaceIndex $ipif -DefaultGateway $ipgw # Set the DNS servers Set-DnsClientServerAddress -InterfaceIndex $ipif -ServerAddresses ($ipdns, $ipdns2) #Rename the computer Rename-Computer -NewName $newname -force #Install features New-Item $featureLogPath -ItemType file -Force Add-WindowsFeature $addsTools Get-WindowsFeature | Where installed >>$featureLogPath #Restart the computer Restart-Computer
Criar um ambiente AD do Windows Server
Agora que você tem a VM criada e ela foi renomeada e tem um endereço IP estático, pode instalar e configurar o Active Directory Domain Services. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
#Declare variables $DatabasePath = "c:\windows\NTDS" $DomainMode = "WinThreshold" $DomainName = "contoso.com" $DomaninNetBIOSName = "CONTOSO" $ForestMode = "WinThreshold" $LogPath = "c:\windows\NTDS" $SysVolPath = "c:\windows\SYSVOL" $featureLogPath = "c:\poshlog\featurelog.txt" $Password = "Pass1w0rd" $SecureString = ConvertTo-SecureString $Password -AsPlainText -Force #Install AD DS, DNS and GPMC start-job -Name addFeature -ScriptBlock { Add-WindowsFeature -Name "ad-domain-services" -IncludeAllSubFeature -IncludeManagementTools Add-WindowsFeature -Name "dns" -IncludeAllSubFeature -IncludeManagementTools Add-WindowsFeature -Name "gpmc" -IncludeAllSubFeature -IncludeManagementTools } Wait-Job -Name addFeature Get-WindowsFeature | Where installed >>$featureLogPath #Create New AD Forest Install-ADDSForest -CreateDnsDelegation:$false -DatabasePath $DatabasePath -DomainMode $DomainMode -DomainName $DomainName -SafeModeAdministratorPassword $SecureString -DomainNetbiosName $DomainNetBIOSName -ForestMode $ForestMode -InstallDns:$true -LogPath $LogPath -NoRebootOnCompletion:$false -SysvolPath $SysVolPath -Force:$true
Criar um usuário do AD do Windows Server
Agora que você tem o ambiente do Active Directory, precisa de uma conta de teste. Essa conta será criada no ambiente AD local e, em seguida, sincronizada com o Microsoft Entra ID. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
# Filename: 4_CreateUser.ps1 # Description: Creates a user in Active Directory. This is part of # the Azure AD Connect password hash sync tutorial. # # DISCLAIMER: # Copyright (c) Microsoft Corporation. All rights reserved. This # script is made available to you without any express, implied or # statutory warranty, not even the implied warranty of # merchantability or fitness for a particular purpose, or the # warranty of title or non-infringement. The entire risk of the # use or the results from the use of this script remains with you. # # # # #Declare variables $Givenname = "Allie" $Surname = "McCray" $Displayname = "Allie McCray" $Name = "amccray" $Password = "Pass1w0rd" $Identity = "CN=ammccray,CN=Users,DC=contoso,DC=com" $SecureString = ConvertTo-SecureString $Password -AsPlainText -Force #Create the user New-ADUser -Name $Name -GivenName $Givenname -Surname $Surname -DisplayName $Displayname -AccountPassword $SecureString #Set the password to never expire Set-ADUser -Identity $Identity -PasswordNeverExpires $true -ChangePasswordAtLogon $false -Enabled $true
Criar um locatário do Microsoft Entra
Dica
As etapas neste artigo podem variar ligeiramente com base no portal do qual você começa.
Agora, é necessário criar um locatário do Microsoft Entra para que seja possível sincronizar os usuários com a nuvem. Para criar um novo locatário do Microsoft Entra, faça o seguinte.
- Entre no centro de administração do Microsoft Entra e entre com uma conta que tenha sua assinatura do Microsoft Entra.
- Clique em Visão Geral.
- Clique em Gerenciar locatários.
- Selecione Criar
. - Forneça um nome para a organização juntamente com o nome de domínio inicial. Em seguida, selecione Criar. Isso criará criar o diretório.
- Depois que for concluído, clique no link aqui para gerenciar o diretório.
Crie um administrador global no Microsoft Entra ID
Agora que você tem um locatário do Microsoft Entra, crie uma conta de administrador global. Para criar a conta de administrador global, faça o seguinte.

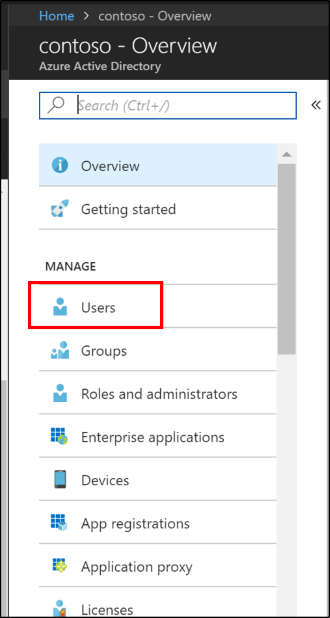

- Em Gerenciar, selecione Usuários.
- Selecione Todos os usuários e, em seguida, selecione + Novo usuário.

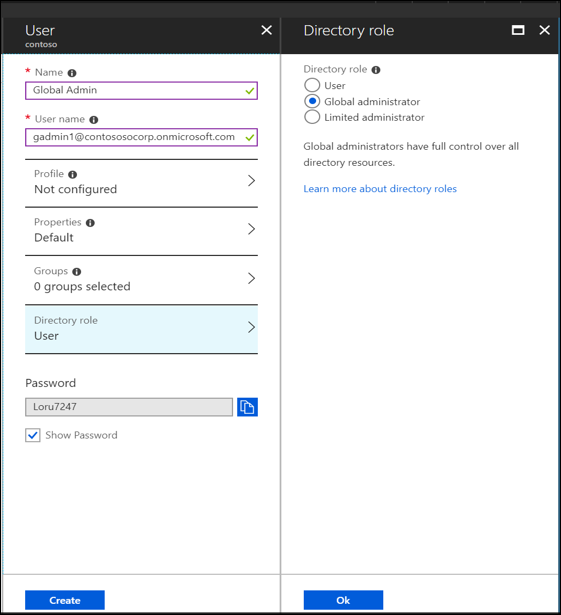

- Forneça um nome e um nome de usuário para esse usuário. Este será o Administrador Global para o locatário. Talvez você também queira alterar a Função do diretório para Administrador global. Também é possível mostrar a senha temporária. Ao concluir, selecione Criar.
- Depois que isso for concluído, abra um novo navegador da Web e entre em myapps.microsoft.com usando a nova conta de administrador global e a senha temporária.
- Altere a senha do administrador global para algo que você irá se lembrar.
Opcional: servidor e floresta adicionais
A seguir está uma seção opcional que fornece as etapas para criar um servidor e/ou floresta adicional. Isso pode ser usado em alguns dos tutoriais mais avançados, como Piloto do Microsoft Entra Connect para a sincronização de nuvem.
Se você precisar apenas de um servidor adicional, poderá parar após a etapa Criar a máquina virtual e ingressar o servidor no domínio existente que foi criado acima.
Criar uma máquina virtual
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
# Filename: 1_CreateVM_CP.ps1 # Description: Creates a VM to be used in the tutorial. # # DISCLAIMER: # Copyright (c) Microsoft Corporation. All rights reserved. #This script is made available to you without any express, implied or statutory warranty, not even the implied warranty of merchantability or fitness for a particular purpose, or the warranty of title or non-infringement. The entire risk of the use or the results from the use of this script remains with you. # # # # #Declare variables $VMName = 'CP1' $Switch = 'External' $InstallMedia = 'D:\ISO\en_windows_server_2016_updated_feb_2018_x64_dvd_11636692.iso' $Path = 'D:\VM' $VHDPath = 'D:\VM\CP1\CP1.vhdx' $VHDSize = '64424509440' #Create New Virtual Machine New-VM -Name $VMName -MemoryStartupBytes 16GB -BootDevice VHD -Path $Path -NewVHDPath $VHDPath -NewVHDSizeBytes $VHDSize -Generation 2 -Switch $Switch #Set the memory to be non-dynamic Set-VMMemory $VMName -DynamicMemoryEnabled $false #Add DVD Drive to Virtual Machine Add-VMDvdDrive -VMName $VMName -ControllerNumber 0 -ControllerLocation 1 -Path $InstallMedia #Mount Installation Media $DVDDrive = Get-VMDvdDrive -VMName $VMName #Configure Virtual Machine to Boot from DVD Set-VMFirmware -VMName $VMName -FirstBootDevice $DVDDrive
Concluir a implantação de sistema operacional
Para concluir a criação da máquina virtual, é necessário concluir a instalação do sistema operacional.
- Gerenciador Hyper-V, clique duas vezes na máquina virtual
- Clique no botão Iniciar.
- Você verá a mensagem "Pressione qualquer tecla para inicializar usando um CD ou DVD". Prossiga e faça isso.
- Na tela de inicialização do Windows Server, selecione o idioma e clique em Avançar.
- Clique em Instalar Agora.
- Insira a chave de licença e clique em Avançar.
- Marque **Eu aceito os termos da licença e clique em Avançar.
- Selecione Personalizado: instalar somente o Windows (Avançado)
- Clique em Avançar.
- Quando a instalação estiver concluída, reinicie a máquina virtual, entre e execute as atualizações do Windows para garantir que a VM seja a mais atualizada. Instale as últimas atualizações.
Instalar os pré-requisitos do Active Directory
Agora que você tem uma máquina virtual ativa, precisa executar algumas etapas antes de instalar o Active Directory. Ou seja, precisa renomear a máquina virtual, definir um endereço IP estático e informações de DNS e instalar as Ferramentas de Administração de Servidor Remoto. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
# Filename: 2_ADPrep_CP.ps1 # Description: Prepares your environment for Active Directory. This is part of # the Azure AD Connect password hash sync tutorial. # # DISCLAIMER: # Copyright (c) Microsoft Corporation. All rights reserved. This # script is made available to you without any express, implied or # statutory warranty, not even the implied warranty of # merchantability or fitness for a particular purpose, or the # warranty of title or non-infringement. The entire risk of the # use or the results from the use of this script remains with you. # # # # #Declare variables $ipaddress = "10.0.1.118" $ipprefix = "24" $ipgw = "10.0.1.1" $ipdns = "10.0.1.118" $ipdns2 = "8.8.8.8" $ipif = (Get-NetAdapter).ifIndex $featureLogPath = "c:\poshlog\featurelog.txt" $newname = "CP1" $addsTools = "RSAT-AD-Tools" #Set static IP address New-NetIPAddress -IPAddress $ipaddress -PrefixLength $ipprefix -InterfaceIndex $ipif -DefaultGateway $ipgw #Set the DNS servers Set-DnsClientServerAddress -InterfaceIndex $ipif -ServerAddresses ($ipdns, $ipdns2) #Rename the computer Rename-Computer -NewName $newname -force #Install features New-Item $featureLogPath -ItemType file -Force Add-WindowsFeature $addsTools Get-WindowsFeature | Where installed >>$featureLogPath #Restart the computer Restart-Computer
Criar um ambiente AD do Windows Server
Agora que você tem a VM criada e ela foi renomeada e tem um endereço IP estático, pode instalar e configurar o Active Directory Domain Services. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
# Filename: 3_InstallAD_CP.ps1 # Description: Creates an on-premises AD environment. This is part of # the Azure AD Connect password hash sync tutorial. # # DISCLAIMER: # Copyright (c) Microsoft Corporation. All rights reserved. This # script is made available to you without any express, implied or # statutory warranty, not even the implied warranty of # merchantability or fitness for a particular purpose, or the # warranty of title or non-infringement. The entire risk of the # use or the results from the use of this script remains with you. # # # # #Declare variables $DatabasePath = "c:\windows\NTDS" $DomainMode = "WinThreshold" $DomainName = "fabrikam.com" $DomaninNetBIOSName = "FABRIKAM" $ForestMode = "WinThreshold" $LogPath = "c:\windows\NTDS" $SysVolPath = "c:\windows\SYSVOL" $featureLogPath = "c:\poshlog\featurelog.txt" $Password = "Pass1w0rd" $SecureString = ConvertTo-SecureString $Password -AsPlainText -Force #Install AD DS, DNS and GPMC start-job -Name addFeature -ScriptBlock { Add-WindowsFeature -Name "ad-domain-services" -IncludeAllSubFeature -IncludeManagementTools Add-WindowsFeature -Name "dns" -IncludeAllSubFeature -IncludeManagementTools Add-WindowsFeature -Name "gpmc" -IncludeAllSubFeature -IncludeManagementTools } Wait-Job -Name addFeature Get-WindowsFeature | Where installed >>$featureLogPath #Create New AD Forest Install-ADDSForest -CreateDnsDelegation:$false -DatabasePath $DatabasePath -DomainMode $DomainMode -DomainName $DomainName -SafeModeAdministratorPassword $SecureString -DomainNetbiosName $DomainNetBIOSName -ForestMode $ForestMode -InstallDns:$true -LogPath $LogPath -NoRebootOnCompletion:$false -SysvolPath $SysVolPath -Force:$true
Criar um usuário do AD do Windows Server
Agora que você tem o ambiente do Active Directory, precisa de uma conta de teste. Essa conta será criada no ambiente AD local e, em seguida, sincronizada com o Microsoft Entra ID. Faça o seguinte:
Abra o ISE do PowerShell como Administrador.
Execute o seguinte script.
# Filename: 4_CreateUser_CP.ps1 # Description: Creates a user in Active Directory. This is part of # the Azure AD Connect password hash sync tutorial. # # DISCLAIMER: # Copyright (c) Microsoft Corporation. All rights reserved. This # script is made available to you without any express, implied or # statutory warranty, not even the implied warranty of # merchantability or fitness for a particular purpose, or the # warranty of title or non-infringement. The entire risk of the # use or the results from the use of this script remains with you. # # # # #Declare variables $Givenname = "Anna" $Surname = "Ringdal" $Displayname = "Anna Ringdal" $Name = "aringdal" $Password = "Pass1w0rd" $Identity = "CN=aringdal,CN=Users,DC=fabrikam,DC=com" $SecureString = ConvertTo-SecureString $Password -AsPlainText -Force #Create the user New-ADUser -Name $Name -GivenName $Givenname -Surname $Surname -DisplayName $Displayname -AccountPassword $SecureString #Set the password to never expire Set-ADUser -Identity $Identity -PasswordNeverExpires $true -ChangePasswordAtLogon $false -Enabled $true
Conclusão
Agora você tem um ambiente que pode ser usado para os tutoriais existentes e para testar recursos adicionais fornecidos pela sincronização de nuvem.
