Como: Definir uma tabela com XAML

O exemplo a seguir demonstra como definir um Table usando Extensible Application Markup Language (XAML). A tabela de exemplo tem quatro colunas (representadas por TableColumn elementos) e várias linhas (representadas por TableRow elementos) contendo dados, bem como informações de título, cabeçalho e rodapé. As linhas devem estar contidas em um TableRowGroup elemento . Cada linha da tabela é composta por uma ou mais células (representadas por TableCell elementos). O conteúdo de uma célula da tabela deve estar contido num elemento Block; neste caso, são usados elementos Paragraph. A tabela também hospeda um hiperlink (representado pelo elemento Hyperlink) na linha de rodapé.

Exemplo

<FlowDocumentReader>
  <FlowDocument>

    <Table CellSpacing="5">

      <Table.Columns>
        <TableColumn/>
        <TableColumn/>
        <TableColumn/>
        <TableColumn/>
      </Table.Columns>

      <TableRowGroup>

        <!-- Title row for the table. -->
        <TableRow Background="SkyBlue">
          <TableCell ColumnSpan="4" TextAlignment="Center">
            <Paragraph FontSize="24pt" FontWeight="Bold">Planetary Information</Paragraph>
          </TableCell>
        </TableRow>

        <!-- Header row for the table. -->
        <TableRow Background="LightGoldenrodYellow">
          <TableCell><Paragraph FontSize="14pt" FontWeight="Bold">Planet</Paragraph></TableCell>
          <TableCell><Paragraph FontSize="14pt" FontWeight="Bold">Mean Distance from Sun</Paragraph></TableCell>
          <TableCell><Paragraph FontSize="14pt" FontWeight="Bold">Mean Diameter</Paragraph></TableCell>
          <TableCell><Paragraph FontSize="14pt" FontWeight="Bold">Approximate Mass</Paragraph></TableCell>
        </TableRow>

        <!-- Sub-title row for the inner planets. -->
        <TableRow>
          <TableCell ColumnSpan="4"><Paragraph FontSize="14pt" FontWeight="Bold">The Inner Planets</Paragraph></TableCell>
        </TableRow>

        <!-- Four data rows for the inner planets. -->
        <TableRow>
          <TableCell><Paragraph>Mercury</Paragraph></TableCell>
          <TableCell><Paragraph>57,910,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>4,880 km</Paragraph></TableCell>
          <TableCell><Paragraph>3.30e23 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow Background="lightgray">
          <TableCell><Paragraph>Venus</Paragraph></TableCell>
          <TableCell><Paragraph>108,200,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>12,103.6 km</Paragraph></TableCell>
          <TableCell><Paragraph>4.869e24 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow>
          <TableCell><Paragraph>Earth</Paragraph></TableCell>
          <TableCell><Paragraph>149,600,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>12,756.3 km</Paragraph></TableCell>
          <TableCell><Paragraph>5.972e24 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow Background="lightgray">
          <TableCell><Paragraph>Mars</Paragraph></TableCell>
          <TableCell><Paragraph>227,940,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>6,794 km</Paragraph></TableCell>
          <TableCell><Paragraph>6.4219e23 kg</Paragraph></TableCell>
        </TableRow>

        <!-- Sub-title row for the outter planets. -->
        <TableRow>
          <TableCell ColumnSpan="4"><Paragraph FontSize="14pt" FontWeight="Bold">The Major Outer Planets</Paragraph></TableCell>
        </TableRow>

        <!-- Four data rows for the major outter planets. -->
        <TableRow>
          <TableCell><Paragraph>Jupiter</Paragraph></TableCell>
          <TableCell><Paragraph>778,330,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>142,984 km</Paragraph></TableCell>
          <TableCell><Paragraph>1.900e27 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow Background="lightgray">
          <TableCell><Paragraph>Saturn</Paragraph></TableCell>
          <TableCell><Paragraph>1,429,400,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>120,536 km</Paragraph></TableCell>
          <TableCell><Paragraph>5.68e26 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow>
          <TableCell><Paragraph>Uranus</Paragraph></TableCell>
          <TableCell><Paragraph>2,870,990,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>51,118 km</Paragraph></TableCell>
          <TableCell><Paragraph>8.683e25 kg</Paragraph></TableCell>
        </TableRow>
        <TableRow Background="lightgray">
          <TableCell><Paragraph>Neptune</Paragraph></TableCell>
          <TableCell><Paragraph>4,504,000,000 km</Paragraph></TableCell>
          <TableCell><Paragraph>49,532 km</Paragraph></TableCell>
          <TableCell><Paragraph>1.0247e26 kg</Paragraph></TableCell>
        </TableRow>

        <!-- Footer row for the table. -->
        <TableRow>
          <TableCell ColumnSpan="4"><Paragraph FontSize="10pt" FontStyle="Italic">
            Information from the
            <Hyperlink NavigateUri="http://encarta.msn.com/encnet/refpages/artcenter.aspx">Encarta</Hyperlink>
            web site.
            </Paragraph></TableCell>
        </TableRow>

      </TableRowGroup>
    </Table>
  </FlowDocument>
</FlowDocumentReader>

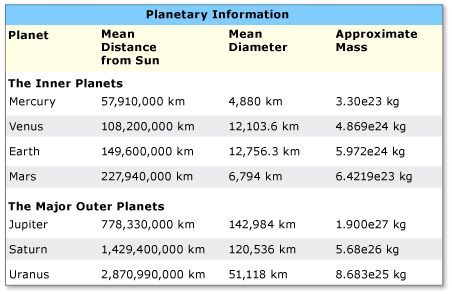

A figura a seguir mostra como a tabela definida neste exemplo é renderizada:
