Controlo ocular alargado no Unity
Para aceder ao repositório do GitHub para obter o exemplo de controlo ocular alargado:
O controlo ocular alargado é uma nova capacidade no HoloLens 2. É um superconjunto do controlo ocular padrão, que apenas fornece dados combinados de olhar para os olhos. O controlo ocular alargado também fornece dados individuais de olhar para os olhos e permite que as aplicações definam diferentes taxas de fotogramas para os dados de mira, como 30, 60 e 90fps. Outras funcionalidades, como a abertura ocular e a vergência ocular, não são suportadas por HoloLens 2 neste momento.
O SDK de Controlo Ocular Alargado permite que as aplicações acedam a dados e funcionalidades de controlo ocular alargado. Pode ser utilizado em conjunto com as APIs OpenXR ou as APIs WinRT legadas.
Este artigo aborda as formas de utilizar o SDK de controlo ocular alargado no Unity, juntamente com o Plug-in OpenXR Mixed Reality.
Configuração do projeto
-
Configure o projeto unity para desenvolvimento do HoloLens.
- Selecione a capacidade De Entrada de Olhar
- Importe o Mixed Reality Plug-in OpenXR a partir da ferramenta de funcionalidades MRTK.
- Importe o pacote NuGet do SDK de Controlo Ocular para o seu projeto do Unity.
- Transfira e instale o pacote NuGetForUnity .
- No editor do Unity, aceda a

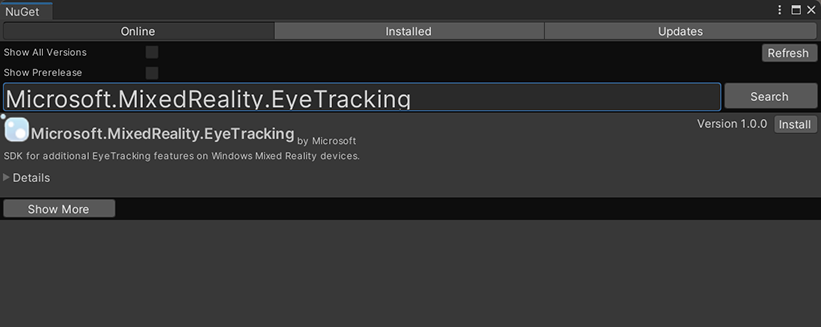

NuGet->Manage NuGet Packagese, em seguida, procureMicrosoft.MixedReality.EyeTracking - Clique no botão Instalar para importar a versão mais recente do pacote NuGet.
- Adicione os scripts auxiliares do Unity.
- Adicione o
ExtendedEyeGazeDataProvider.csscript a partir daqui ao projeto do Unity. - Crie uma cena e, em seguida, anexe o
ExtendedEyeGazeDataProvider.csscript a qualquer GameObject.
- Adicione o
- Consuma as funções de
ExtendedEyeGazeDataProvider.cse implemente as suas lógicas. - Criar e implementar no HoloLens.
Consumir funções de ExtendedEyeGazeDataProvider
Nota
O ExtendedEyeGazeDataProvider script depende de algumas APIs do plug-in OpenXR Mixed Reality para converter as coordenadas dos dados de olhar atento. Não pode funcionar se o projeto do Unity utilizar o plug-in do Windows XR preterido ou o XR Incorporado legado na versão mais antiga do Unity. Para que o controlo ocular alargado também funcione nesses cenários:
- Se apenas precisar de aceder às definições da taxa de fotogramas, o plug-in Mixed Reality OpenXR não é necessário e pode modificar o
ExtendedEyeGazeDataProviderpara manter apenas a lógica relacionada com a taxa de fotogramas. - Se ainda precisar de aceder a dados individuais de olhar atento, terá de utilizar as APIs WinRT no Unity. Para ver como utilizar o SDK de controlo ocular alargado com AS APIs WinRT, consulte a secção "Consulte Também".
A ExtendedEyeGazeDataProvider classe encapsula as APIs do SDK de controlo ocular alargado. Fornece funções para obter a leitura de olhares atentos no espaço mundial do Unity ou em relação à câmara principal.
Seguem-se exemplos de código a consumir ExtendedEyeGazeDataProvider para obter os dados de análise.
ExtendedEyeGazeDataProvider extendedEyeGazeDataProvider;
void Update() {
timestamp = DateTime.Now;
var leftGazeReadingInWorldSpace = extendedEyeGazeDataProvider.GetWorldSpaceGazeReading(extendedEyeGazeDataProvider.GazeType.Left, timestamp);
var rightGazeReadingInWorldSpace = extendedEyeGazeDataProvider.GetWorldSpaceGazeReading(extendedEyeGazeDataProvider.GazeType.Right, timestamp);
var combinedGazeReadingInWorldSpace = extendedEyeGazeDataProvider.GetWorldSpaceGazeReading(extendedEyeGazeDataProvider.GazeType.Combined, timestamp);
var combinedGazeReadingInCameraSpace = extendedEyeGazeDataProvider.GetCameraSpaceGazeReading(extendedEyeGazeDataProvider.GazeType.Combined, timestamp);
}
Quando o ExtendedEyeGazeDataProvider script é executado, define a taxa de fotogramas de dados de olhar para a opção mais alta, que atualmente é de 90fps.
Referência da API do SDK de controlo ocular alargado
Além de utilizar o ExtendedEyeGazeDataProvider script, também pode criar o seu próprio script para consumir as APIs do SDK que se seguem diretamente.
namespace Microsoft.MixedReality.EyeTracking
{
/// <summary>
/// Allow discovery of Eye Gaze Trackers connected to the system
/// This is the only class from the Extended Eye Tracking SDK that the application will instantiate,
/// other classes' instances will be returned by method calls or properties.
/// </summary>
public class EyeGazeTrackerWatcher
{
/// <summary>
/// Constructs an instance of the watcher
/// </summary>
public EyeGazeTrackerWatcher();
/// <summary>
/// Starts trackers enumeration.
/// </summary>
/// <returns>Task representing async action; completes when the initial enumeration is completed</returns>
public System.Threading.Tasks.Task StartAsync();
/// <summary>
/// Stop listening to trackers additions and removal
/// </summary>
public void Stop();
/// <summary>
/// Raised when an Eye Gaze tracker is connected
/// </summary>
public event System.EventHandler<EyeGazeTracker> EyeGazeTrackerAdded;
/// <summary>
/// Raised when an Eye Gaze tracker is disconnected
/// </summary>
public event System.EventHandler<EyeGazeTracker> EyeGazeTrackerRemoved;
}
/// <summary>
/// Represents an Eye Tracker device
/// </summary>
public class EyeGazeTracker
{
/// <summary>
/// True if Restricted mode is supported, which means the driver supports providing individual
/// eye gaze vector and frame rate
/// </summary>
public bool IsRestrictedModeSupported;
/// <summary>
/// True if Vergence Distance is supported by tracker
/// </summary>
public bool IsVergenceDistanceSupported;
/// <summary>
/// True if Eye Openness is supported by the driver
/// </summary>
public bool IsEyeOpennessSupported;
/// <summary>
/// True if individual gazes are supported
/// </summary>
public bool AreLeftAndRightGazesSupported;
/// <summary>
/// Get the supported target frame rates of the tracker
/// </summary>
public System.Collections.Generic.IReadOnlyList<EyeGazeTrackerFrameRate> SupportedTargetFrameRates;
/// <summary>
/// NodeId of the tracker, used to retrieve a SpatialLocator or SpatialGraphNode to locate the tracker in the scene
/// for the Perception API, use SpatialGraphInteropPreview.CreateLocatorForNode
/// for the Mixed Reality OpenXR API, use SpatialGraphNode.FromDynamicNodeId
/// </summary>
public Guid TrackerSpaceLocatorNodeId;
/// <summary>
/// Opens the tracker
/// </summary>
/// <param name="restrictedMode">True if restricted mode active</param>
/// <returns>Task representing async action; completes when the initial enumeration is completed</returns>
public System.Threading.Tasks.Task OpenAsync(bool restrictedMode);
/// <summary>
/// Closes the tracker
/// </summary>
public void Close();
/// <summary>
/// Changes the target frame rate of the tracker
/// </summary>
/// <param name="newFrameRate">Target frame rate</param>
public void SetTargetFrameRate(EyeGazeTrackerFrameRate newFrameRate);
/// <summary>
/// Try to get tracker state at a given timestamp
/// </summary>
/// <param name="timestamp">timestamp</param>
/// <returns>State if available, null otherwise</returns>
public EyeGazeTrackerReading TryGetReadingAtTimestamp(DateTime timestamp);
/// <summary>
/// Try to get tracker state at a system relative time
/// </summary>
/// <param name="time">time</param>
/// <returns>State if available, null otherwise</returns>
public EyeGazeTrackerReading TryGetReadingAtSystemRelativeTime(TimeSpan time);
/// <summary>
/// Try to get first first tracker state after a given timestamp
/// </summary>
/// <param name="timestamp">timestamp</param>
/// <returns>State if available, null otherwise</returns>
public EyeGazeTrackerReading TryGetReadingAfterTimestamp(DateTime timestamp);
/// <summary>
/// Try to get the first tracker state after a system relative time
/// </summary>
/// <param name="time">time</param>
/// <returns>State if available, null otherwise</returns>
public EyeGazeTrackerReading TryGetReadingAfterSystemRelativeTime(TimeSpan time);
}
/// <summary>
/// Represents a frame rate supported by an Eye Tracker
/// </summary>
public class EyeGazeTrackerFrameRate
{
/// <summary>
/// Frames per second of the frame rate
/// </summary>
public UInt32 FramesPerSecond;
}
/// <summary>
/// Snapshot of Gaze Tracker state
/// </summary>
public class EyeGazeTrackerReading
{
/// <summary>
/// Timestamp of state
/// </summary>
public DateTime Timestamp;
/// <summary>
/// Timestamp of state as system relative time
/// Its SystemRelativeTime.Ticks could provide the QPC time to locate tracker pose
/// </summary>
public TimeSpan SystemRelativeTime;
/// <summary>
/// Indicates of user calibration is valid
/// </summary>
public bool IsCalibrationValid;
/// <summary>
/// Tries to get a vector representing the combined gaze related to the tracker's node
/// </summary>
/// <param name="origin">Origin of the gaze vector</param>
/// <param name="direction">Direction of the gaze vector</param>
/// <returns></returns>
public bool TryGetCombinedEyeGazeInTrackerSpace(out System.Numerics.Vector3 origin, out System.Numerics.Vector3 direction);
/// <summary>
/// Tries to get a vector representing the left eye gaze related to the tracker's node
/// </summary>
/// <param name="origin">Origin of the gaze vector</param>
/// <param name="direction">Direction of the gaze vector</param>
/// <returns></returns>
public bool TryGetLeftEyeGazeInTrackerSpace(out System.Numerics.Vector3 origin, out System.Numerics.Vector3 direction);
/// <summary>
/// Tries to get a vector representing the right eye gaze related to the tracker's node position
/// </summary>
/// <param name="origin">Origin of the gaze vector</param>
/// <param name="direction">Direction of the gaze vector</param>
/// <returns></returns>
public bool TryGetRightEyeGazeInTrackerSpace(out System.Numerics.Vector3 origin, out System.Numerics.Vector3 direction);
/// <summary>
/// Tries to read vergence distance
/// </summary>
/// <param name="value">Vergence distance if available</param>
/// <returns>bool if value is valid</returns>
public bool TryGetVergenceDistance(out float value);
/// <summary>
/// Tries to get left Eye openness information
/// </summary>
/// <param name="value">Eye Openness if valid</param>
/// <returns>bool if value is valid</returns>
public bool TryGetLeftEyeOpenness(out float value);
/// <summary>
/// Tries to get right Eye openness information
/// </summary>
/// <param name="value">Eye openness if valid</param>
/// <returns>bool if value is valid</returns>
public bool TryGetRightEyeOpenness(out float value);
}
}
