Storing Additional User Information (C#)

by Scott Mitchell

Note

Since this article was written, the ASP.NET Membership providers have been superseded by ASP.NET Identity. We strongly recommend updating apps to use the ASP.NET Identity platform rather than the Membership providers featured at the time this article was written. ASP.NET Identity has a number of advantages over the ASP.NET Membership system, including :

• Better performance
• Improved extensibility and testability
• Support for OAuth, OpenID Connect, and two-factor authentication
• Claims-based Identity support
• Better interoperability with ASP.Net Core

Download Code or Download PDF

In this tutorial we will answer this question by building a very rudimentary guestbook application. In doing so, we will look at different options for modeling user information in a database, and then see how to associate this data with the user accounts created by the Membership framework.

Introduction

ASP.NET's Membership framework offers a flexible interface for managing users. The Membership API includes methods for validating credentials, retrieving information about the currently logged on user, creating a new user account, and deleting a user account, among others. Each user account in the Membership framework contains only the properties needed for validating credentials and performing essential user account-related tasks. This is evidenced by the methods and properties of the MembershipUser class, which models a user account in the Membership framework. This class has properties like UserName, Email, and IsLockedOut, and methods like GetPassword and UnlockUser.

Oftentimes, applications need to store additional user information not included in the Membership framework. For example, an online retailer might need to let each user store her shipping and billing addresses, payment information, delivery preferences, and contact phone number. Furthermore, each order in the system is associated with a particular user account.

The MembershipUser class does not include properties like PhoneNumber or DeliveryPreferences or PastOrders. So how do we track the user information needed by the application and have it integrate with the Membership framework? In this tutorial we will answer this question by building a very rudimentary guestbook application. In doing so, we will look at different options for modeling user information in a database, and then see how to associate this data with the user accounts created by the Membership framework. Let's get started!

Step 1: Creating the Guestbook Application's Data Model

There are a variety of techniques that can be employed to capture user information in a database and associate it with the user accounts created by the Membership framework. In order to illustrate these techniques, we will need to augment the tutorial web application so that it captures some sort of user-related data. (Currently, the application's data model contains only the application services tables needed by the SqlMembershipProvider.)

Let's create a very simple guestbook application where an authenticated user can leave a comment. In addition to storing guestbook comments, let's allow each user to store his home town, homepage, and signature. If provided, the user's home town, homepage, and signature will appear on each message he has left in the guestbook.

Adding theGuestbookCommentsTable

In order to capture the guestbook comments, we need to create a database table named GuestbookComments that has columns like CommentId, Subject, Body, and CommentDate. We also need to have each record in the GuestbookComments table reference the user who left the comment.

To add this table to our database, go to the Database Explorer in Visual Studio and drill down into the SecurityTutorials database. Right-click on the Tables folder and choose Add New Table. This brings up an interface that allows us to define the columns for the new table.

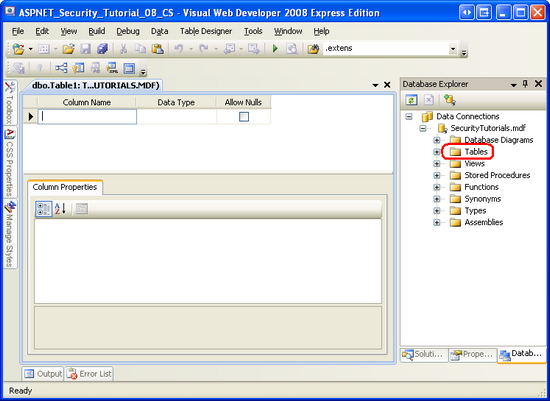

Figure 1: Add a New Table to the SecurityTutorials Database (Click to view full-size image)

Next, define the GuestbookComments's columns. Start by adding a column named CommentId of type uniqueidentifier. This column will uniquely identify each comment in the guestbook, so disallow NULL s and mark it as the table's primary key. Rather than providing a value for the CommentId field on each INSERT, we can indicate that a new uniqueidentifier value should be automatically generated for this field on INSERT by setting the column's default value to NEWID(). After adding this first field, marking it as the primary key, and settings its default value, your screen should look similar to the screen shot shown in Figure 2.

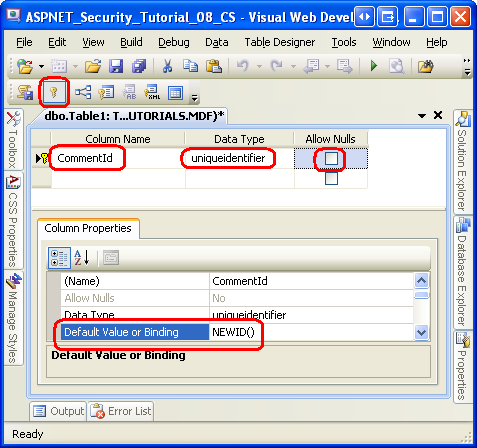

Figure 2: Add a Primary Column Named CommentId (Click to view full-size image)

Next, add a column named Subject of type nvarchar(50) and a column named Body of type nvarchar(MAX), disallowing NULL s in both columns. Following that, add a column named CommentDate of type datetime. Disallow NULL s and set the CommentDate column's default value to getdate().

All that remains is to add a column that associates a user account with each guestbook comment. One option would be to add a column named UserName of type nvarchar(256). This is a suitable choice when using a Membership provider other than the SqlMembershipProvider. But when using the SqlMembershipProvider, as we are in this tutorial series, the UserName column in the aspnet_Users table is not guaranteed to be unique. The aspnet_Users table's primary key is UserId and is of type uniqueidentifier. Therefore, the GuestbookComments table needs a column named UserId of type uniqueidentifier (disallowing NULL values). Go ahead and add this column.

Note

As we discussed in the Creating the Membership Schema in SQL Server tutorial, the Membership framework is designed to enable multiple web applications with different user accounts to share the same user store. It does this by partitioning user accounts into different applications. And while each username is guaranteed to be unique within an application, the same username may be used in different applications using the same user store. There is a composite UNIQUE constraint in the aspnet_Users table on the UserName and ApplicationId fields, but not one on just the UserName field. Consequently, it is possible for the aspnet_Users table to have two (or more) records with the same UserName value. There is, however, a UNIQUE constraint on the aspnet_Users table's UserId field (since it is the primary key). A UNIQUE constraint is important because without it we cannot establish a foreign key constraint between the GuestbookComments and aspnet_Users tables.

After adding the UserId column, save the table by clicking on the Save icon in the Toolbar. Name the new table GuestbookComments.

We have one last issue to attend to with the GuestbookComments table: we need to create a foreign key constraint between the GuestbookComments.UserId column and the aspnet_Users.UserId column. To achieve this, click the Relationship icon in the Toolbar to launch the Foreign Key Relationships dialog box. (Alternatively, you can launch this dialog box by going to the Table Designer menu and choosing Relationships.)

Click the Add button in the lower left corner of the Foreign Key Relationships dialog box. This will add a new foreign key constraint, although we still need to define the tables that participate in the relationship.

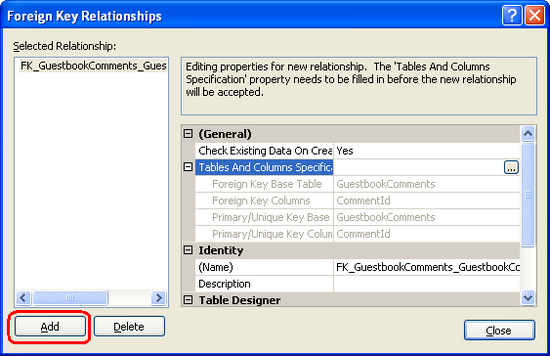

Figure 3: Use the Foreign Key Relationships Dialog Box to Manage a Table's Foreign Key Constraints (Click to view full-size image)

Next, click the ellipses icon in the "Table and Columns Specifications" row on the right. This will launch the Tables and Columns dialog box, from which we can specify the primary key table and column and the foreign key column from the GuestbookComments table. In particular, select aspnet_Users and UserId as the primary key table and column, and UserId from the GuestbookComments table as the foreign key column (see Figure 4). After defining the primary and foreign key tables and columns, click OK to return to the Foreign Key Relationships dialog box.

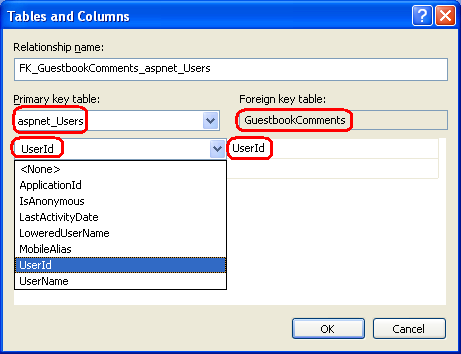

Figure 4: Establish a Foreign Key Constraint Between the aspnet_Users and GuesbookComments Tables (Click to view full-size image)

At this point the foreign key constraint has been established. The presence of this constraint ensures relational integrity between the two tables by guaranteeing that there will never be a guestbook entry referring to a non-existent user account. By default, a foreign key constraint will disallow a parent record to be deleted if there are corresponding child records. That is, if a user makes one or more guestbook comments, and then we attempt to delete that user account, the delete will fail unless his guestbook comments are deleted first.

Foreign key constraints can be configured to automatically delete the associated child records when a parent record is deleted. In other words, we can setup this foreign key constraint so that a user's guestbook entries are automatically deleted when her user account is deleted. To accomplish this, expand the "INSERT And UPDATE Specification" section and set the "Delete Rule" property to Cascade.

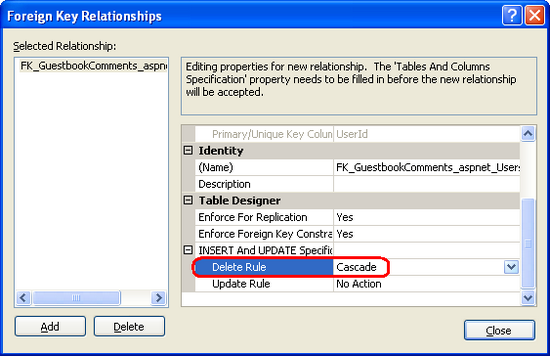

Figure 5: Configure the Foreign Key Constraint to Cascade Deletes (Click to view full-size image)

To save the foreign key constraint, click the Close button to exit out of the Foreign Key Relationships. Then click the Save icon in the Toolbar to save the table and the this relationship.

Storing the User's Home Town, Homepage, and Signature

The GuestbookComments table illustrates how to store information that shares a one-to-many relationship with user accounts. Since each user account may have an arbitrary number of associated comments, this relationship is modeled by creating a table to hold the set of comments that includes a column that links back each comment to a particular user. When using the SqlMembershipProvider, this link is best established by creating a column named UserId of type uniqueidentifier and a foreign key constraint between this column and aspnet_Users.UserId.

We now need to associate three columns with each user account to store the user's home town, homepage, and signature, which will appear in his guestbook comments. There are number of different ways to accomplish this:

• Add new columns to theaspnet_Usersoraspnet_Membershiptables. I would not recommend this approach because it modifies the schema used by the SqlMembershipProvider. This decision may come back to haunt you down the road. For example, what if a future version of ASP.NET uses a different SqlMembershipProvider schema. Microsoft may include a tool to migrate the ASP.NET 2.0 SqlMembershipProvider data to the new schema, but if you have modified the ASP.NET 2.0 SqlMembershipProvider schema, such a conversion may not be possible.

• Use ASP.NET's Profile framework, defining a profile property for the home town, homepage, and signature. ASP.NET includes a Profile framework that is designed to store additional user-specific data. Like the Membership framework, the Profile framework is built atop the provider model. The .NET Framework ships with a SqlProfileProvider sthat stores profile data in a SQL Server database. In fact, our database already has the table used by the SqlProfileProvider (aspnet_Profile), as it was added when we added the application services back in the Creating the Membership Schema in SQL Server tutorial.
  The main benefit of the Profile framework is that it allows for developers to define the profile properties in Web.config – no code needs to be written to serialize the profile data to and from the underlying data store. In short, it is incredibly easy to define a set of profile properties and to work with them in code. However, the Profile system leaves a lot to be desired when it comes to versioning, so if you have an application where you expect new user-specific properties to be added at a later time, or existing ones to be removed or modified, then the Profile framework may not be the best option. Moreover, the SqlProfileProvider stores the profile properties in a highly denormalized fashion, making it next to impossible to run queries directly against the profile data (such as, how many users have a home town of New York).
  For more information on the Profile framework, consult the "Further Readings" section at the end of this tutorial.

• Add these three columns to a new table in the database and establish a one-to-one relationship between this table andaspnet_Users. This approach involves a bit more work than with the Profile framework, but offers maximum flexibility in how the additional user properties are modeled in the database. This is the option we will use in this tutorial.

We will create a new table called UserProfiles to save the home town, homepage, and signature for each user. Right-click on the Tables folder in the Database Explorer window and choose to create a new table. Name the first column UserId and set its type to uniqueidentifier. Disallow NULL values and mark the column as a primary key. Next, add columns named: HomeTown of type nvarchar(50); HomepageUrl of type nvarchar(100); and Signature of type nvarchar(500). Each of these three columns can accept a NULL value.

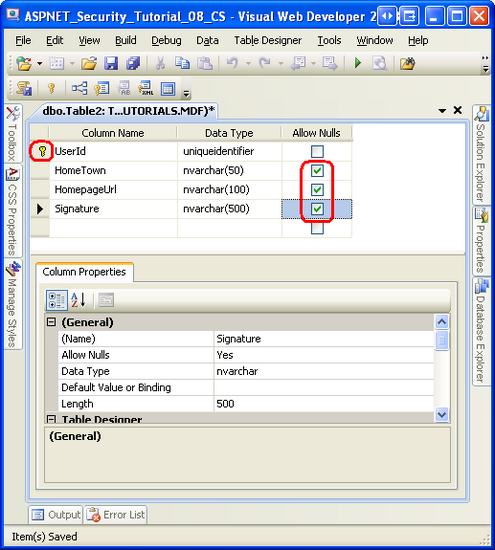

Figure 6: Create the UserProfiles Table (Click to view full-size image)

Save the table and name it UserProfiles. Lastly, establish a foreign key constraint between the UserProfiles table's UserId field and the aspnet_Users.UserId field. As we did with the foreign key constraint between the GuestbookComments and aspnet_Users tables, have this constraint cascade deletes. Since the UserId field in UserProfiles is the primary key, this ensures that there will be no more than one record in the UserProfiles table for each user account. This type of relationship is referred to as one-to-one.

Now that we have the data model created, we are ready to use it. In Steps 2 and 3 we will look at how the currently logged on user can view and edit their home town, homepage, and signature information. In Step 4 we will create the interface for authenticated users to submit new comments to the guestbook and view the existing ones.

Step 2: Displaying the User's Home Town, Homepage, and Signature

There are a variety of ways to allow the currently logged on user to view and edit his home town, homepage, and signature information. We could manually create the user interface with TextBox and Label controls or we could use one of the data Web controls, such as the DetailsView control. To perform the database SELECT and UPDATE statements we could write ADO.NET code in our page's code-behind class or, alternatively, employ a declarative approach with the SqlDataSource. Ideally our application would contain a tiered architecture, which we could either invoke programmatically from the page's code-behind class or declaratively via the ObjectDataSource control.

Since this tutorial series focuses on forms authentication, authorization, user accounts, and roles, there will not be a thorough discussion of these different data access options or why a tiered architecture is preferred over executing SQL statements directly from the ASP.NET page. I am going to walk through using a DetailsView and SqlDataSource – the quickest and easiest option – but the concepts discussed can certainly be applied to alternative Web controls and data access logic. For more information on working with data in ASP.NET, refer to my Working with Data in ASP.NET 2.0 tutorial series.

Open the AdditionalUserInfo.aspx page in the Membership folder and add a DetailsView control to the page, setting its ID property to UserProfile and clearing out its Width and Height properties. Expand the DetailsView's Smart Tag and choose to bind it to a new data source control. This will launch the DataSource Configuration Wizard (see Figure 7). The first step asks you to specify the data source type. Since we are going to connect directly to the SecurityTutorials database, choose the Database icon, specifying the ID as UserProfileDataSource.

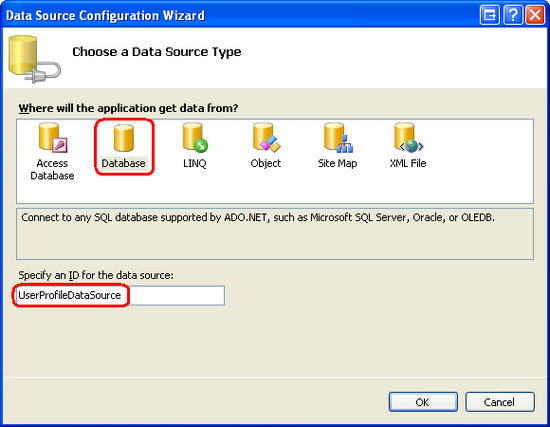

Figure 7: Add a New SqlDataSource Control Named UserProfileDataSource (Click to view full-size image)

The next screen prompts for the database to use. We have already defined a connection string in Web.config for the SecurityTutorials database. This connection string name – SecurityTutorialsConnectionString – should be in the drop-down list. Select this option and click Next.

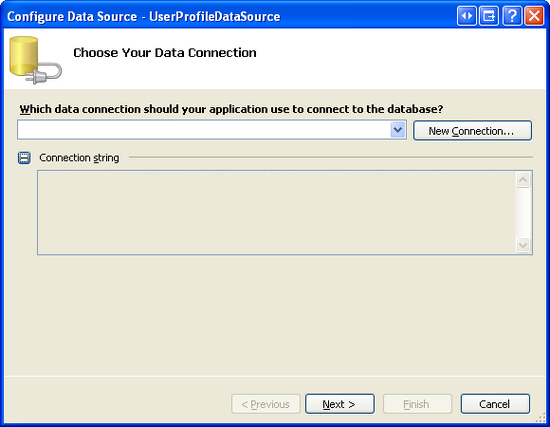

Figure 8: Choose SecurityTutorialsConnectionString from the Drop-Down List (Click to view full-size image)

The subsequent screen asks us to specify the table and columns to query. Choose the UserProfiles table from the drop-down list and check all of the columns.

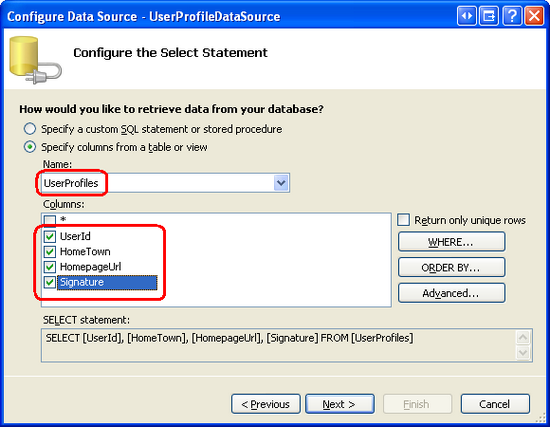

Figure 9: Bring Back All of the Columns from the UserProfiles Table (Click to view full-size image)

The current query in Figure 9 returns all of the records in UserProfiles, but we are only interested in the currently logged on user's record. To add a WHERE clause, click the WHERE button to bring up the Add WHERE Clause dialog box (see Figure 10). Here you can select the column to filter on, the operator, and the source of the filter parameter. Select UserId as the column and "=" as the Operator.

Unfortunately there is no built-in parameter source to return the currently logged on user's UserId value. We will need to grab this value programmatically. Therefore, set the Source drop-down list to "None," click the Add button to add the parameter, and then click OK.

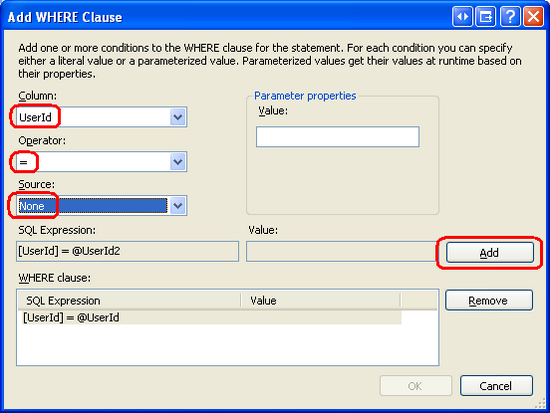

Figure 10: Add a Filter Parameter on the UserId Column (Click to view full-size image)

After clicking OK you will be returned to the screen shown in Figure 9. This time, however, the SQL query at the bottom of the screen should include a WHERE clause. Click Next to move on to the "Test Query" screen. Here you can run the query and see the results. Click Finish to complete the wizard.

Upon completing the DataSource Configuration Wizard, Visual Studio creates the SqlDataSource control based on the settings specified in the wizard. Moreover, it manually adds BoundFields to the DetailsView for each column returned by the SqlDataSource's SelectCommand. There's no need to show the UserId field in the DetailsView, since the user does not need to know this value. You can remove this field directly from the DetailsView control's declarative markup or by clicking the "Edit Fields" link from its Smart Tag.

At this point your page's declarative markup should look similar to the following:

<asp:DetailsView ID="UserProfile" runat="server"
     AutoGenerateRows="False" DataKeyNames="UserId"
     DataSourceID="UserProfileDataSource">
     <Fields>
          <asp:BoundField DataField="HomeTown" HeaderText="HomeTown"
               SortExpression="HomeTown" />
          <asp:BoundField DataField="HomepageUrl" HeaderText="HomepageUrl"
               SortExpression="HomepageUrl" />
          <asp:BoundField DataField="Signature" HeaderText="Signature"
               SortExpression="Signature" />
     </Fields>
</asp:DetailsView>
<asp:SqlDataSource ID="UserProfileDataSource" runat="server"
          ConnectionString="<%$ ConnectionStrings:SecurityTutorialsConnectionString %>"
          SelectCommand="SELECT [UserId], [HomeTown], [HomepageUrl], [Signature] FROM
          [UserProfiles] WHERE ([UserId] = @UserId)">
     <SelectParameters>
          <asp:Parameter Name="UserId" Type="Object" />
     </SelectParameters>
</asp:SqlDataSource>

We need to programmatically set the SqlDataSource control's UserId parameter to the currently logged in user's UserId before the data is selected. This can be accomplished by creating an event handler for the SqlDataSource's Selecting event and adding the following code there:

protected void UserProfileDataSource_Selecting(object sender,
          SqlDataSourceSelectingEventArgs e)
{
     // Get a reference to the currently logged on user
     MembershipUser currentUser = Membership.GetUser();

     // Determine the currently logged on user's UserId value
     Guid currentUserId = (Guid)currentUser.ProviderUserKey;

     // Assign the currently logged on user's UserId to the @UserId parameter
     e.Command.Parameters["@UserId"].Value = currentUserId;
}

The above code starts by obtaining a reference to the currently logged on user by calling the Membership class's GetUser method. This returns a MembershipUser object, whose ProviderUserKey property contains the UserId. The UserId value is then assigned to the SqlDataSource's @UserId parameter.

Note

The Membership.GetUser() method returns information about the currently logged on user. If an anonymous user is visiting the page, it will return a value of null. In such a case, this will lead to a NullReferenceException on the following line of code when attempting to read the ProviderUserKey property. Of course, we don't have to worry about Membership.GetUser() returning a null value in the AdditionalUserInfo.aspx page because we configured URL authorization in a previous tutorial so that only authenticated users could access the ASP.NET resources in this folder. If you need to access information about the currently logged on user in a page where anonymous access is permitted, make sure to check that a non-null MembershipUser object is returned from the GetUser() method before referencing its properties.

If you visit the AdditionalUserInfo.aspx page through a browser you will see a blank page because we have yet to add any rows to the UserProfiles table. In Step 6 we will look at how to customize the CreateUserWizard control to automatically add a new row to the UserProfiles table when a new user account is created. For now, however, we will need to manually create a record in the table.

Navigate to the Database Explorer in Visual Studio and expand the Tables folder. Right-click on the aspnet_Users table and choose "Show Table Data" to see the records in the table; do the same thing for the UserProfiles table. Figure 11 shows these results when tiled vertically. In my database there are currently aspnet_Users records for Bruce, Fred, and Tito, but no records in the UserProfiles table.

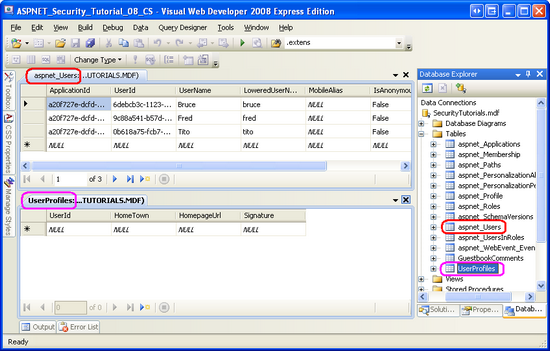

Figure 11: The Contents of the aspnet_Users and UserProfiles Tables are Displayed (Click to view full-size image)

Add a new record to the UserProfiles table by manually typing in values for the HomeTown, HomepageUrl, and Signature fields. The easiest way to get a valid UserId value in the new UserProfiles record is to select the UserId field from a particular user account in the aspnet_Users table and copy and paste it into the UserId field in UserProfiles. Figure 12 shows the UserProfiles table after a new record has been added for Bruce.

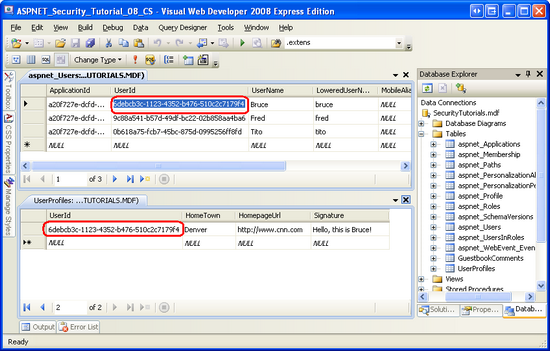

Figure 12: A Record was Added to UserProfiles for Bruce (Click to view full-size image)

Return to the AdditionalUserInfo.aspx page, logged in as Bruce. As Figure 13 shows, Bruce's settings are displayed.

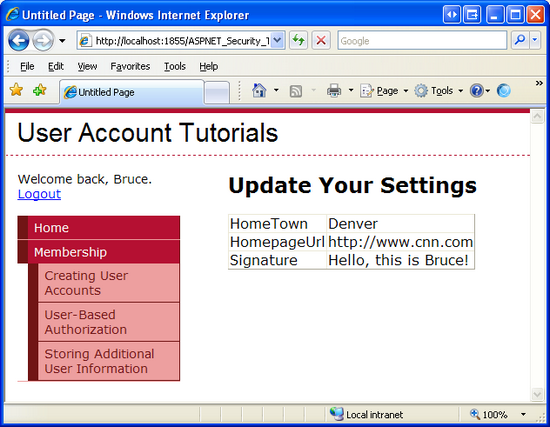

Figure 13: The Currently Visiting User is Shown His Settings (Click to view full-size image)

Note

Go ahead and manually add records in the UserProfiles table for each Membership user. In Step 6 we will look at how to customize the CreateUserWizard control to automatically add a new row to the UserProfiles table when a new user account is created.

Step 3: Allowing the User to Edit His Home Town, Homepage, and Signature

At this point the currently logged in user can view their home town, homepage, and signature setting, but they cannot yet modify them. Let's update the DetailsView control so that the data can be edited.

The first thing we need to do is add an UpdateCommand for the SqlDataSource, specifying the UPDATE statement to execute and its corresponding parameters. Select the SqlDataSource and, from the Properties window, click on the ellipses next to the UpdateQuery property to bring up the Command and Parameter Editor dialog box. Enter the following UPDATE statement into the textbox:

UPDATE UserProfiles SET
     HomeTown = @HomeTown,
     HomepageUrl = @HomepageUrl,
     Signature = @Signature
WHERE UserId = @UserId

Next, click the "Refresh Parameters" button, which will create a parameter in the SqlDataSource control's UpdateParameters collection for each of the parameters in the UPDATE statement. Leave the source for all of the parameters set to None and click the OK button to complete the dialog box.

Figure 14: Specify the SqlDataSource's UpdateCommand and UpdateParameters (Click to view full-size image)

Due to the additions we made to the SqlDataSource control, the DetailsView control can now support editing. From the DetailsView's Smart Tag, check the "Enable Editing" checkbox. This adds a CommandField to the control's Fields collection with its ShowEditButton property set to True. This renders an Edit button when the DetailsView is displayed in read-only mode and Update and Cancel buttons when displayed in edit mode. Rather than requiring the user to click Edit, though, we can have the DetailsView render in an "always editable" state by setting the DetailsView control's DefaultMode property to Edit.

With these changes, your DetailsView control's declarative markup should look similar to the following:

<asp:DetailsView ID="UserProfile" runat="server"
          AutoGenerateRows="False" DataKeyNames="UserId"
          DataSourceID="UserProfileDataSource" DefaultMode="Edit">
     <Fields>
          <asp:BoundField DataField="HomeTown" HeaderText="HomeTown"
               SortExpression="HomeTown" />
          <asp:BoundField DataField="HomepageUrl" HeaderText="HomepageUrl"
               SortExpression="HomepageUrl" />
          <asp:BoundField DataField="Signature" HeaderText="Signature"
               SortExpression="Signature" />
          <asp:CommandField ShowEditButton="True" />
     </Fields>
</asp:DetailsView>

Note the addition of the CommandField and the DefaultMode property.

Go ahead and test this page through a browser. When visiting with a user that has a corresponding record in UserProfiles, the user's settings are displayed in an editable interface.

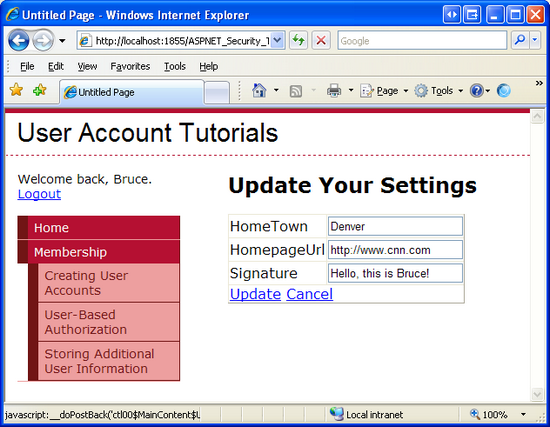

Figure 15: The DetailsView Renders an Editable Interface (Click to view full-size image)

Try changing the values and clicking the Update button. It appears as if nothing happens. There is a postback and the values are saved to the database, but there's no visual feedback that the save occurred.

To remedy this, return to Visual Studio and add a Label control above the DetailsView. Set its ID to SettingsUpdatedMessage, its Text property to "Your settings have been updated," and its Visible and EnableViewState properties to false.

<asp:Label ID="SettingsUpdatedMessage" runat="server"
     Text="Your settings have been updated."
     EnableViewState="false"
     Visible="false"></asp:Label>

We need to display the SettingsUpdatedMessage Label whenever the DetailsView is updated. To accomplish this, create an event handler for the DetailsView's ItemUpdated event and add the following code:

protected void UserProfile_ItemUpdated(object sender, DetailsViewUpdatedEventArgs e)
{
     SettingsUpdatedMessage.Visible = true;
}

Return to the AdditionalUserInfo.aspx page through a browser and update the data. This time, a helpful status message is displayed.

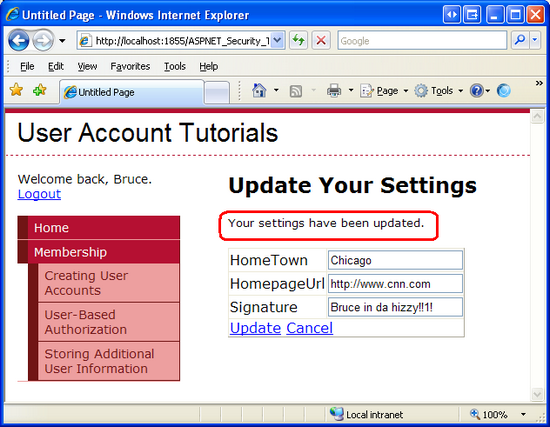

Figure 16: A Short Message is Displayed When the Settings are Updated (Click to view full-size image)

Note

The DetailsView control's editing interface leaves a lot to be desired. It uses standard-sized textboxes, but the Signature field should probably be a multi-line textbox. A RegularExpressionValidator should be used to ensure that the homepage URL, if entered, starts with "http://" or "https://". Moreover, since the DetailsView control has its DefaultMode property set to Edit, the Cancel button does not do anything. It should either be removed or, when clicked, redirect the user to some other page (such as ~/Default.aspx). I leave these enhancements as an exercise for the reader.

Adding a Link to theAdditionalUserInfo.aspxPage in the Master Page

Currently, the website does not provide any links to the AdditionalUserInfo.aspx page. The only way to reach it is to enter the page's URL directly into the browser's Address bar. Let's add a link to this page in the Site.master master page.

Recall that the master page contains a LoginView Web control in its LoginContent ContentPlaceHolder that displays different markup for authenticated and anonymous visitors. Update the LoginView control's LoggedInTemplate to include a link to the AdditionalUserInfo.aspx page. After making these changes the LoginView control's declarative markup should look similar to the following:

<asp:LoginView ID="LoginView1" runat="server">
     <LoggedInTemplate>
          Welcome back,
          <asp:LoginName ID="LoginName1" runat="server" />.
          <br />
          <asp:HyperLink ID="lnkUpdateSettings" runat="server"
               NavigateUrl="~/Membership/AdditionalUserInfo.aspx">
               Update Your Settings</asp:HyperLink>
     </LoggedInTemplate>
     <AnonymousTemplate>
          Hello, stranger.
     </AnonymousTemplate>
</asp:LoginView>

Note the addition of the lnkUpdateSettings HyperLink control to the LoggedInTemplate. With this link in place, authenticated users can quickly jump to the page to view and modify their home town, homepage, and signature settings.

Step 4: Adding New Guestbook Comments

The Guestbook.aspx page is where authenticated users can view the guestbook and leave a comment. Let's start with creating the interface to add new guestbook comments.

Open the Guestbook.aspx page in Visual Studio and construct a user interface consisting of two TextBox controls, one for the new comment's subject and one for its body. Set the first TextBox control's ID property to Subject and its Columns property to 40; set second's ID to Body, its TextMode to MultiLine, and its Width and Rows properties to "95%" and 8, respectively. To complete the user interface, add a Button Web control named PostCommentButton and set its Text property to "Post Your Comment".

Since each guestbook comment requires a subject and body, add a RequiredFieldValidator for each of the TextBoxes. Set the ValidationGroup property of these controls to "EnterComment"; likewise, set the PostCommentButton control's ValidationGroup property to "EnterComment". For more information on ASP.NET's validation controls, check out Form Validation in ASP.NET.

After crafting the user interface your page's declarative markup should look something like the following:

<h3>Leave a Comment</h3>
<p>
     <b>Subject:</b>
     <asp:RequiredFieldValidator ID="SubjectReqValidator" runat="server"
          ErrorMessage="You must provide a value for Subject"
          ControlToValidate="Subject" ValidationGroup="EnterComment">
     </asp:RequiredFieldValidator><br/>
     <asp:TextBox ID="Subject" Columns="40" runat="server"></asp:TextBox>
</p>
<p>
     <b>Body:</b>
     <asp:RequiredFieldValidator ID="BodyReqValidator" runat="server"
          ControlToValidate="Body"
          ErrorMessage="You must provide a value for Body" ValidationGroup="EnterComment">
     </asp:RequiredFieldValidator><br/>
     <asp:TextBox ID="Body" TextMode="MultiLine" Width="95%"
          Rows="8" runat="server"></asp:TextBox>
</p>
<p>
     <asp:Button ID="PostCommentButton" runat="server"
          Text="Post Your Comment"
          ValidationGroup="EnterComment" />
</p>

With the user interface complete, our next task is to insert a new record into the GuestbookComments table when the PostCommentButton is clicked. This can be accomplished in a number of ways: we can write ADO.NET code in the Button's Click event handler; we can add a SqlDataSource control to the page, configure its InsertCommand, and then call its Insert method from the Click event handler; or we could build a middle tier that was responsible for inserting new guestbook comments, and invoke this functionality from the Click event handler. Since we looked at using a SqlDataSource in Step 3, let's use ADO.NET code here.

Note

The ADO.NET classes used to programmatically access data from a Microsoft SQL Server database are located in the System.Data.SqlClient namespace. You may need to import this namespace into your page's code-behind class (i.e., using System.Data.SqlClient;).

Create an event handler for the PostCommentButton's Click event and add the following code:

protected void PostCommentButton_Click(object sender, EventArgs e)
{
     if (!Page.IsValid)
          return;

     // Determine the currently logged on user's UserId
     MembershipUser currentUser = Membership.GetUser();
     Guid currentUserId = (Guid)currentUser.ProviderUserKey;

     // Insert a new record into GuestbookComments
     string connectionString =
          ConfigurationManager.ConnectionStrings["SecurityTutorialsConnectionString"].ConnectionString;
     string insertSql = "INSERT INTO GuestbookComments(Subject, Body, UserId) VALUES(@Subject,
               @Body, @UserId)";

     using (SqlConnection myConnection = new SqlConnection(connectionString))
     {
          myConnection.Open();
          SqlCommand myCommand = new SqlCommand(insertSql, myConnection);
          myCommand.Parameters.AddWithValue("@Subject", Subject.Text.Trim());
          myCommand.Parameters.AddWithValue("@Body", Body.Text.Trim());
          myCommand.Parameters.AddWithValue("@UserId", currentUserId);
          myCommand.ExecuteNonQuery();
          myConnection.Close();
     }

     // "Reset" the Subject and Body TextBoxes
     Subject.Text = string.Empty;
     Body.Text = string.Empty;
}

The Click event handler starts by checking that the user-supplied data is valid. If it is not, the event handler exits before inserting a record. Assuming the supplied data is valid, the currently logged on user's UserId value is retrieved and stored in the currentUserId local variable. This value is needed because we must supply a UserId value when inserting a record into GuestbookComments.

Following that, the connection string for the SecurityTutorials database is retrieved from Web.config and the INSERT SQL statement is specified. A SqlConnection object is then created and opened. Next, a SqlCommand object is constructed and the values for the parameters used in the INSERT query are assigned. The INSERT statement is then executed and the connection closed. At the end of the event handler, the Subject and Body TextBoxes' Text properties are cleared out so that the user's values are not persisted across the postback.

Go ahead and test out this page in a browser. Since this page is in the Membership folder it is not accessible to anonymous visitors. Therefore, you will need to first log on (if you have not already). Enter a value into the Subject and Body TextBoxes and click the PostCommentButton button. This will cause a new record to be added to GuestbookComments. On postback, the subject and body you provided are wiped from the TextBoxes.

After clicking the PostCommentButton button there is no visual feedback that the comment was added to the guestbook. We still need to update this page to display the existing guestbook comments, which we will do in Step 5. Once we accomplish that, the just-added comment will appear in the list of comments, providing adequate visual feedback. For now, confirm that your guestbook comment was saved by examining the contents of the GuestbookComments table.

Figure 17 shows the contents of the GuestbookComments table after two comments have been left.

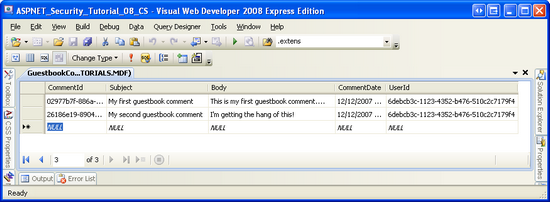

Figure 17: You Can See the Guestbook Comments in the GuestbookComments Table (Click to view full-size image)

Note

If a user attempts to insert a guestbook comment that contains potentially dangerous markup – such as HTML – ASP.NET will throw an HttpRequestValidationException. To learn more about this exception, why it's thrown, and how to permit users to submit potentially dangerous values, consult the Request Validation Whitepaper.

Step 5: Listing the Existing Guestbook Comments

In addition to leaving comments, a user visiting the Guestbook.aspx page should also be able to view the guestbook's existing comments. To accomplish this, add a ListView control named CommentList to the bottom of the page.

Note

The ListView control is new to ASP.NET version 3.5. It is designed to display a list of items in a very customizable and flexible layout, yet still offer built-in editing, inserting, deleting, paging, and sorting functionality like the GridView. If you are using ASP.NET 2.0, you will need to use the DataList or Repeater control instead. For more information on using the ListView, see Scott Guthrie's blog entry, The asp:ListView Control, and my article, Displaying Data with the ListView Control.

Open the ListView's Smart Tag and, from the Choose Data Source drop-down list, bind the control to a new data source. As we saw in Step 2, this will launch the Data Source Configuration Wizard. Select the Database icon, name the resulting SqlDataSource CommentsDataSource, and click OK. Next, select the SecurityTutorialsConnectionString connection string from the drop-down list and click Next.

At this point in Step 2 we specified the data to query by picking the UserProfiles table from the drop-down list and selecting the columns to return (refer back to Figure 9). This time, however, we want to craft a SQL statement that pulls back not only the records from GuestbookComments, but also the commenter's home town, homepage, signature, and username. Therefore, select the "Specify a custom SQL statement or stored procedure" radio button and click Next.

This will bring up the "Define Custom Statements or Stored Procedures" screen. Click the Query Builder button to graphically build the query. The Query Builder starts by prompting us to specify the tables we want to query from. Select the GuestbookComments, UserProfiles, and aspnet_Users tables and click OK. This will add all three tables to the design surface. Since there are foreign key constraints amongst the GuestbookComments, UserProfiles, and aspnet_Users tables, the Query Builder automatically JOIN s these tables.

All that remains is to specify the columns to return. From the GuestbookComments table select the Subject, Body, and CommentDate columns; return the HomeTown, HomepageUrl, and Signature columns from the UserProfiles table; and return UserName from aspnet_Users. Also, add "ORDER BY CommentDate DESC" to the end of the SELECT query so that the most recent posts are returned first. After making these selections, your Query Builder interface should look similar to the screen shot in Figure 18.

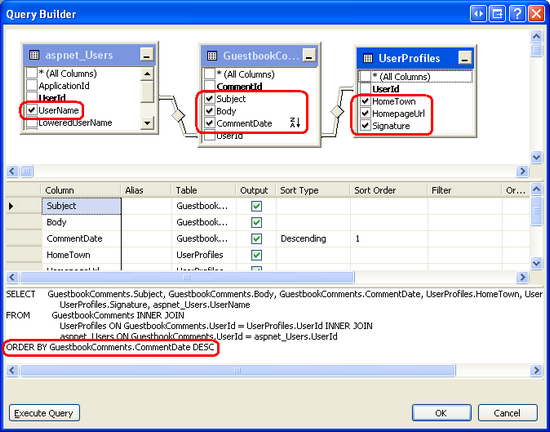

Figure 18: The Constructed Query JOIN s the GuestbookComments, UserProfiles, and aspnet_Users Tables (Click to view full-size image)

Click OK to close the Query Builder window and return to the "Define Custom Statements or Stored Procedures" screen. Click Next to advance to the "Test Query" screen, where you may view the query results by clicking the Test Query button. When you're ready, click Finish to complete the Configure Data Source wizard.

When we completed the Configure Data Source wizard in Step 2, the associated DetailsView control's Fields collection was updated to include a BoundField for each column returned by the SelectCommand. The ListView, however, remains unchanged; we still need to define its layout. The ListView's layout can be constructed manually through its declarative markup or from the "Configure ListView" option in its Smart Tag. I usually prefer defining the markup by hand, but use whatever method is most natural to you.

I ended up using the following LayoutTemplate, ItemTemplate, and ItemSeparatorTemplate for my ListView control:

<asp:ListView ID="CommentList" runat="server" DataSourceID="CommentsDataSource">
     <LayoutTemplate>
          <span ID="itemPlaceholder" runat="server" />
          <p>
               <asp:DataPager ID="DataPager1" runat="server">
                    <Fields>
                         <asp:NextPreviousPagerField ButtonType="Button"
                              ShowFirstPageButton="True"
                              ShowLastPageButton="True" />
                    </Fields>
               </asp:DataPager>
          </p>
     </LayoutTemplate>
     <ItemTemplate>
          <h4><asp:Label ID="SubjectLabel" runat="server"
               Text='<%# Eval("Subject") %>' /></h4>
          <asp:Label ID="BodyLabel" runat="server"
               Text='<%# Eval("Body").ToString().Replace(Environment.NewLine, "<br />") %>' />
          <p>
               ---<br />
               <asp:Label ID="SignatureLabel" Font-Italic="true" runat="server"
                    Text='<%# Eval("Signature") %>' />
               <br />
               <br />
               My Home Town:
               <asp:Label ID="HomeTownLabel" runat="server"
                    Text='<%# Eval("HomeTown") %>' />
               <br />
               My Homepage:
               <asp:HyperLink ID="HomepageUrlLink" runat="server"
                    NavigateUrl='<%# Eval("HomepageUrl") %>'
                    Text='<%# Eval("HomepageUrl") %>' />
          </p>
          <p align="center">
               Posted by
               <asp:Label ID="UserNameLabel" runat="server"
                    Text='<%# Eval("UserName") %>' /> on
               <asp:Label ID="CommentDateLabel" runat="server"
                    Text='<%# Eval("CommentDate") %>' />
          </p>
     </ItemTemplate>
     <ItemSeparatorTemplate>
          <hr />
     </ItemSeparatorTemplate>
</asp:ListView>

The LayoutTemplate defines the markup emitted by the control, while the ItemTemplate renders each item returned by the SqlDataSource. The ItemTemplate's resulting markup is placed in the LayoutTemplate's itemPlaceholder control. In addition to the itemPlaceholder, the LayoutTemplate includes a DataPager control, which limits the ListView to showing just 10 guestbook comments per page (the default) and renders a paging interface.

My ItemTemplate displays each guestbook comment's subject in an <h4> element with the body situated below the subject. Note that syntax used for displaying the body takes the data returned by the Eval("Body") databinding statement, converts it to a string, and replaces line breaks with the <br /> element. This conversion is needed in order to show the line breaks entered when submitting the comment since whitespace is ignored by HTML. The user's signature is displayed beneath the body in italics, followed by the user's home town, a link to his homepage, the date and time the comment was made, and the username of the person who left the comment.

Take a moment to view the page through a browser. You should see the comments that you added to the guestbook in Step 5 displayed here.

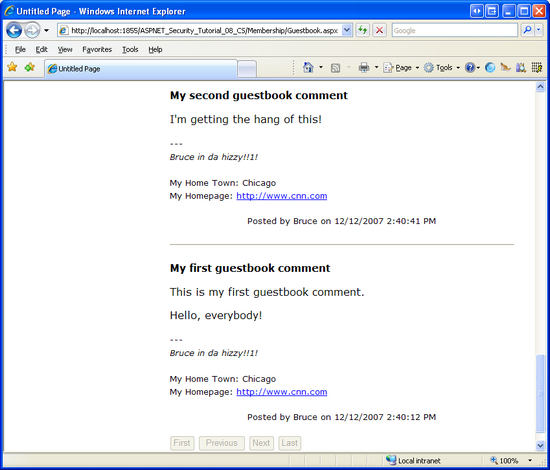

Figure 19: Guestbook.aspx Now Displays the Guestbook's Comments (Click to view full-size image)

Try adding a new comment to the guestbook. Upon clicking the PostCommentButton button the page posts back and the comment is added to the database, but the ListView control is not updated to show the new comment. This can be fixed by either:

• Updating the PostCommentButton button's Click event handler so that it invokes the ListView control's DataBind() method after inserting the new comment into the database, or
• Setting the ListView control's EnableViewState property to false. This approach works because by disabling the control's view state, it must rebind to the underlying data on every postback.

The tutorial website downloadable from this tutorial illustrates both techniques. The ListView control's EnableViewState property to false and the code needed to programmatically rebind the data to the ListView is present in the Click event handler, but is commented out.

Note

Currently the AdditionalUserInfo.aspx page allows the user to view and edit their home town, homepage, and signature settings. It might be nice to update AdditionalUserInfo.aspx to display the logged in user's guestbook comments. That is, in addition to examining and modifying her information, a user can visit the AdditionalUserInfo.aspx page to see what guestbook comments she's made in the past. I leave this as an exercise for the interested reader.

Step 6: Customizing the CreateUserWizard Control to Include an Interface for the Home Town, Homepage, and Signature

The SELECT query used by the Guestbook.aspx page uses an INNER JOIN to combine the related records amongst the GuestbookComments, UserProfiles, and aspnet_Users tables. If a user that has no record in UserProfiles makes a guestbook comment, the comment won't be displayed in the ListView because the INNER JOIN only returns GuestbookComments records when there are matching records in UserProfiles and aspnet_Users. And as we saw in Step 3, if a user does not have a record in UserProfiles she cannot view or edit her settings in the AdditionalUserInfo.aspx page.

Needless to say, due to our design decisions it is important that every user account in the Membership system have a matching record in the UserProfiles table. What we want is for a corresponding record to be added to UserProfiles whenever a new Membership user account is created through the CreateUserWizard.

As discussed in the Creating User Accounts tutorial, after the new Membership user account is created the CreateUserWizard control raises its CreatedUser event. We can create an event handler for this event, get the UserId for the just-created user, and then insert a record into the UserProfiles table with default values for the HomeTown, HomepageUrl, and Signature columns. What's more, it is possible to prompt the user for these values by customizing the CreateUserWizard control's interface to include additional TextBoxes.

Let's first look at how to add a new row to the UserProfiles table in the CreatedUser event handler with default values. Following that, we will see how to customize the CreateUserWizard control's user interface to include additional form fields to collect the new user's home town, homepage, and signature.

Adding a Default Row toUserProfiles

In the Creating User Accounts tutorial we added a CreateUserWizard control to the CreatingUserAccounts.aspx page in the Membership folder. In order to have the CreateUserWizard control add a record to UserProfiles table upon user account creation, we need to update the CreateUserWizard control's functionality. Rather than making these changes to the CreatingUserAccounts.aspx page, let's instead add a new CreateUserWizard control to EnhancedCreateUserWizard.aspx page and make the modifications for this tutorial there.

Open the EnhancedCreateUserWizard.aspx page in Visual Studio and drag a CreateUserWizard control from the Toolbox onto the page. Set the CreateUserWizard control's ID property to NewUserWizard. As we discussed in the Creating User Accounts tutorial, the CreateUserWizard's default user interface prompts the visitor for the necessary information. Once this information has been supplied, the control internally creates a new user account in the Membership framework, all without us having to write a single line of code.

The CreateUserWizard control raises a number of events during its workflow. After a visitor supplies the request information and submits the form, the CreateUserWizard control initially fires its CreatingUser event. If there is a problem during the create process, the CreateUserError event is fired; however, if the user is successfully created, then the CreatedUser event is raised. In the Creating User Accounts tutorial we created an event handler for the CreatingUser event to ensure that the supplied username did not contain any leading or trailing spaces, and that the username did not appear anywhere in the password.

In order to add a row in the UserProfiles table for the just-created user, we need to create an event handler for the CreatedUser event. By the time the CreatedUser event has fired, the user account has already been created in the Membership framework, enabling us to retrieve the account's UserId value.

Create an event handler for the NewUserWizard's CreatedUser event and add the following code:

protected void NewUserWizard_CreatedUser(object sender, EventArgs e)
{
     // Get the UserId of the just-added user
     MembershipUser newUser = Membership.GetUser(NewUserWizard.UserName);
     Guid newUserId = (Guid)newUser.ProviderUserKey;

     // Insert a new record into UserProfiles
     string connectionString =
          ConfigurationManager.ConnectionStrings["SecurityTutorialsConnectionString"].ConnectionString;
     string insertSql = "INSERT INTO UserProfiles(UserId, HomeTown, HomepageUrl,
          Signature) VALUES(@UserId, @HomeTown, @HomepageUrl, @Signature)";

     using (SqlConnection myConnection = new SqlConnection(connectionString))
     {
          myConnection.Open();
          SqlCommand myCommand = new SqlCommand(insertSql, myConnection);
          myCommand.Parameters.AddWithValue("@UserId", newUserId);
          myCommand.Parameters.AddWithValue("@HomeTown", DBNull.Value);
          myCommand.Parameters.AddWithValue("@HomepageUrl", DBNull.Value);
          myCommand.Parameters.AddWithValue("@Signature", DBNull.Value);
          myCommand.ExecuteNonQuery();
          myConnection.Close();
     }
}

The above code beings by retrieving the UserId of the just-added user account. This is accomplished by using the Membership.GetUser(username) method to return information about a particular user, and then using the ProviderUserKey property to retrieve their UserId. The username entered by the user in the CreateUserWizard control is available via its UserName property.

Next, the connection string is retrieved from Web.config and the INSERT statement is specified. The necessary ADO.NET objects are instantiated and the command executed. The code assigns a DBNull instance to the @HomeTown, @HomepageUrl, and @Signature parameters, which has the effect of inserting database NULL values for the HomeTown, HomepageUrl, and Signature fields.

Visit the EnhancedCreateUserWizard.aspx page through a browser and create a new user account. After doing so, return to Visual Studio and examine the contents of the aspnet_Users and UserProfiles tables (like we did back in Figure 12). You should see the new user account in aspnet_Users and a corresponding UserProfiles row (with NULL values for HomeTown, HomepageUrl, and Signature).

Figure 20: A New User Account and UserProfiles Record Have Been Added (Click to view full-size image)

After the visitor has supplied his new account information and clicked the "Create User" button, the user account is created and a row added to the UserProfiles table. The CreateUserWizard then displays its CompleteWizardStep, which displays a success message and a Continue button. Clicking the Continue button causes a postback, but no action is taken, leaving the user stuck on the EnhancedCreateUserWizard.aspx page.

We can specify a URL to send the user to when the Continue button is clicked via the CreateUserWizard control's ContinueDestinationPageUrl property. Set the ContinueDestinationPageUrl property to "~/Membership/AdditionalUserInfo.aspx". This takes the new user to AdditionalUserInfo.aspx, where they can view and update their settings.

Customizing the CreateUserWizard's Interface to Prompt for the New User's Home Town, Homepage, and Signature

The CreateUserWizard control's default interface is sufficient for simple account creation scenarios where only core user account information like username, password, and email need be collected. But what if we wanted to prompt the visitor to enter her home town, homepage, and signature while creating her account? It is possible to customize the CreateUserWizard control's interface to collect additional information at signup, and this information may be used in the CreatedUser event handler to insert additional records into the underlying database.

The CreateUserWizard control extends the ASP.NET Wizard control, which is a control that allows a page developer to define a series of ordered WizardSteps. The Wizard control renders the active step and provides a navigation interface that allows the visitor to move through these steps. The Wizard control is ideal for breaking down a long task into several short steps. For more information on the Wizard control, see Creating a Step-by-Step User Interface with the ASP.NET 2.0 Wizard Control.

The CreateUserWizard control's default markup defines two WizardSteps: CreateUserWizardStep and CompleteWizardStep.

<asp:CreateUserWizard ID="NewUserWizard" runat="server"
     ContinueDestinationPageUrl="~/Membership/AdditionalUserInfo.aspx">
     <WizardSteps>
          <asp:CreateUserWizardStep ID="CreateUserWizardStep1" runat="server">
          </asp:CreateUserWizardStep>
          <asp:CompleteWizardStep ID="CompleteWizardStep1" runat="server">
          </asp:CompleteWizardStep>
     </WizardSteps>
</asp:CreateUserWizard>

The first WizardStep, CreateUserWizardStep, renders the interface that prompts for the username, password, email, and so on. After the visitor supplies this information and clicks "Create User", she is shown the CompleteWizardStep, which shows the success message and a Continue button.

To customize the CreateUserWizard control's interface to include additional form fields, we can:

• Create one or more newWizardSteps to contain the additional user interface elements. To add a new WizardStep to the CreateUserWizard, click the "Add/Remove WizardSteps" link from its Smart Tag to launch the WizardStep Collection Editor. From there you can add, remove, or reorder the steps in the wizard. This is the approach we will use for this tutorial.

• Convert theCreateUserWizardStepinto an editableWizardStep. This replaces the CreateUserWizardStep with an equivalent WizardStep whose markup defines a user interface that matches the CreateUserWizardStep's. By converting the CreateUserWizardStep into a WizardStep we can reposition the controls or add additional user interface elements to this step. To convert the CreateUserWizardStep or CompleteWizardStep into an editable WizardStep, click the "Customize Create User Step" or "Customize Complete Step" link from the control's Smart Tag.

• Use some combination of the above two options.

One important thing to keep in mind is that the CreateUserWizard control executes its user account creation process when the "Create User" button is clicked from within its CreateUserWizardStep. It doesn't matter if there are additional WizardStep s after the CreateUserWizardStep or not.

When adding a custom WizardStep to the CreateUserWizard control to collect additional user input, the custom WizardStep can be placed before or after the CreateUserWizardStep. If it comes before the CreateUserWizardStep then the additional user input collected from the custom WizardStep is available for the CreatedUser event handler. However, if the custom WizardStep comes after CreateUserWizardStep then by the time the custom WizardStep is displayed the new user account has already been created and the CreatedUser event has already fired.

Figure 21 shows the workflow when the added WizardStep precedes the CreateUserWizardStep. Since the additional user information has been collected by the time the CreatedUser event fires, all we have to do is update the CreatedUser event handler to retrieve these inputs and use those for the INSERT statement's parameter values (rather than DBNull.Value).

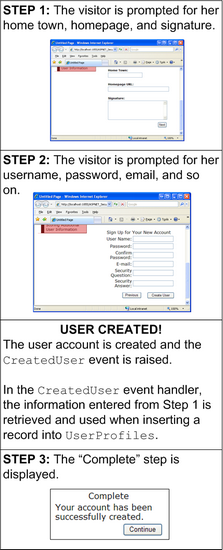

Figure 21: The CreateUserWizard Workflow When an Additional WizardStep Precedes the CreateUserWizardStep (Click to view full-size image)

If the custom WizardStep is placed after the CreateUserWizardStep, however, the create user account process occurs before the user has had a chance to enter her home town, homepage, or signature. In such a case, this additional information needs to be inserted into the database after the user account has been created, as Figure 22 illustrates.

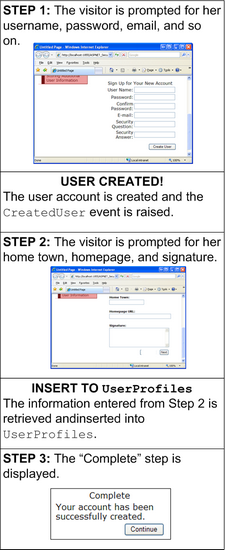

Figure 22: The CreateUserWizard Workflow When an Additional WizardStep Comes After the CreateUserWizardStep (Click to view full-size image)

The workflow shown in Figure 22 waits to insert a record into the UserProfiles table until after Step 2 completes. If the visitor closes her browser after step 1, however, we will have reached a state where a user account was created, but no record was added to UserProfiles. One workaround is to have a record with NULL or default values inserted into UserProfiles in the CreatedUser event handler (which fires after step 1), and then update this record after step 2 completes. This ensures that a UserProfiles record will be added for the user account even if the user quits the registration process midway through.

For this tutorial let's create a new WizardStep that occurs after the CreateUserWizardStep but before the CompleteWizardStep. Let's first get the WizardStep in place and configured and then we'll look at the code.

From the CreateUserWizard control's Smart Tag, select the "Add/Remove WizardStep s", which brings up the WizardStep Collection Editor dialog. Add a new WizardStep, setting its ID to UserSettings, its Title to "Your Settings" and its StepType to Step. Then position it so that it comes after the CreateUserWizardStep ("Sign Up for Your New Account") and before the CompleteWizardStep ("Complete"), as shown in Figure 23.

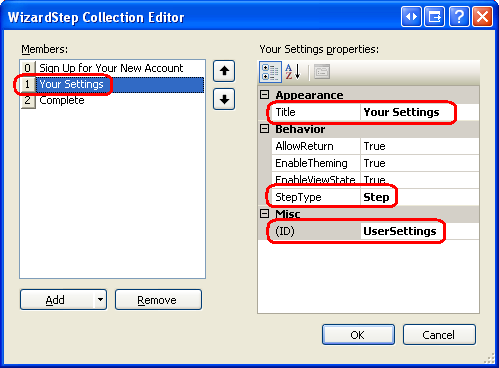

Figure 23: Add a New WizardStep to the CreateUserWizard Control (Click to view full-size image)

Click OK to close the WizardStep Collection Editor dialog. The new WizardStep is evidenced by the CreateUserWizard control's updated declarative markup:

<asp:CreateUserWizard ID="NewUserWizard" runat="server"
     ContinueDestinationPageUrl="~/Membership/AdditionalUserInfo.aspx">
     <WizardSteps>
          <asp:CreateUserWizardStep ID="CreateUserWizardStep1" runat="server">
          </asp:CreateUserWizardStep>
          <asp:WizardStep runat="server" ID="UserSettings" StepType="Step"
               Title="Your Settings">
          </asp:WizardStep>
          <asp:CompleteWizardStep ID="CompleteWizardStep1" runat="server">
          </asp:CompleteWizardStep>
     </WizardSteps>
</asp:CreateUserWizard>

Note the new <asp:WizardStep> element. We need to add the user interface to collect the new user's home town, homepage, and signature here. You can enter this content in the declarative syntax or through the Designer. To use the Designer, select the "Your Settings" step from the drop-down list in the Smart Tag to see the step in the Designer.

Note

Selecting a step through the Smart Tag's drop-down list updates the CreateUserWizard control's ActiveStepIndex property, which specifies the index of the starting step. Therefore, if you use this drop-down list to edit the "Your Settings" step in the Designer, be sure to set it back to "Sign Up for Your New Account" so that this step is shown when users first visit the EnhancedCreateUserWizard.aspx page.

Create a user interface within the "Your Settings" step that contains three TextBox controls named HomeTown, HomepageUrl, and Signature. After constructing this interface, the CreateUserWizard's declarative markup should look similar to the following:

<asp:CreateUserWizard ID="NewUserWizard" runat="server"
     ContinueDestinationPageUrl="~/Membership/AdditionalUserInfo.aspx">
     <WizardSteps>
          <asp:CreateUserWizardStep ID="CreateUserWizardStep1" runat="server">
          </asp:CreateUserWizardStep>
          <asp:WizardStep runat="server" ID="UserSettings" StepType="Step"
               Title="Your Settings">
               <p>
                    <b>Home Town:</b><br />
                    <asp:TextBox ID="HomeTown" runat="server"></asp:TextBox>
               </p>
               <p>
                    <b>Homepage URL:</b><br />
                    <asp:TextBox ID="HomepageUrl" Columns="40" runat="server"></asp:TextBox>
               </p>
               <p>
                    <b>Signature:</b><br />
                    <asp:TextBox ID="Signature" TextMode="MultiLine" Width="95%"
                         Rows="5" runat="server"></asp:TextBox>
               </p>
          </asp:WizardStep>
          <asp:CompleteWizardStep ID="CompleteWizardStep1" runat="server">
          </asp:CompleteWizardStep>
     </WizardSteps>
</asp:CreateUserWizard>

Go ahead and visit this page through a browser and create a new user account, specifying values for the home town, homepage, and signature. After completing the CreateUserWizardStep the user account is created in the Membership framework and the CreatedUser event handler runs, which adds a new row to UserProfiles, but with a database NULL value for HomeTown, HomepageUrl, and Signature. The values entered for the home town, homepage, and signature are never used. The net result is a new user account with a UserProfiles record whose HomeTown, HomepageUrl, and Signature fields have yet to be specified.

We need to execute code after the "Your Settings" step that takes the home town, honepage, and signature values entered by the user and updates the appropriate UserProfiles record. Each time the user moves between steps in a Wizard control, the Wizard's ActiveStepChanged event fires. We can create an event handler for this event and update the UserProfiles table when the "Your Settings" step has completed.

Add an event handler for the CreateUserWizard's ActiveStepChanged event and add the following code:

protected void NewUserWizard_ActiveStepChanged(object sender, EventArgs e)
{
     // Have we JUST reached the Complete step?
     if (NewUserWizard.ActiveStep.Title == "Complete")
     {
          WizardStep UserSettings = NewUserWizard.FindControl("UserSettings") as
          WizardStep;

          // Programmatically reference the TextBox controls
          TextBox HomeTown = UserSettings.FindControl("HomeTown") as TextBox;
          TextBox HomepageUrl = UserSettings.FindControl("HomepageUrl") as TextBox;
          TextBox Signature = UserSettings.FindControl("Signature") as TextBox;

          // Update the UserProfiles record for this user
          // Get the UserId of the just-added user
          MembershipUser newUser = Membership.GetUser(NewUserWizard.UserName);
          Guid newUserId = (Guid)newUser.ProviderUserKey;

          // Insert a new record into UserProfiles
          string connectionString =
               ConfigurationManager.ConnectionStrings["SecurityTutorialsConnectionString"].ConnectionString;
          string updateSql = "UPDATE UserProfiles SET HomeTown = @HomeTown, HomepageUrl
               = @HomepageUrl, Signature = @Signature WHERE UserId = @UserId";

          using (SqlConnection myConnection = new SqlConnection(connectionString))
          {
               myConnection.Open();
               SqlCommand myCommand = new SqlCommand(updateSql, myConnection);
               myCommand.Parameters.AddWithValue("@HomeTown", HomeTown.Text.Trim());
               myCommand.Parameters.AddWithValue("@HomepageUrl", HomepageUrl.Text.Trim());
               myCommand.Parameters.AddWithValue("@Signature", Signature.Text.Trim());
               myCommand.Parameters.AddWithValue("@UserId", newUserId);
               myCommand.ExecuteNonQuery();
               myConnection.Close();
          }
     }
}

The above code starts by determining if we have just reached the "Complete" step. Since the "Complete" step occurs immediately after the "Your Settings" step, then when the visitor reaches "Complete" step that means she just finished the "Your Settings" step.

In such a case, we need to programmatically reference the TextBox controls within the UserSettings WizardStep. This is accomplished by first using the FindControl method to programmatically referencing the UserSettings WizardStep, and then again to reference the TextBoxes from within the WizardStep. Once the TextBoxes have been referenced, we're ready to execute the UPDATE statement. The UPDATE statement has the same number of parameters as the INSERT statement in the CreatedUser event handler, but here we use the home town, homepage, and signature values supplied by the user.

With this event handler in place, visit the EnhancedCreateUserWizard.aspx page through a browser and create a new user account specifying values for the home town, homepage, and signature. After creating the new account you should be redirected to the AdditionalUserInfo.aspx page, where the just-entered home town, homepage, and signature information is displayed.

Note

Our website currently has two pages from which a visitor can create a new account: CreatingUserAccounts.aspx and EnhancedCreateUserWizard.aspx. The website's sitemap and login page point to the CreatingUserAccounts.aspx page, but the CreatingUserAccounts.aspx page does not prompt the user for their home town, homepage, and signature information and does not add a corresponding row to UserProfiles. Therefore, either update the CreatingUserAccounts.aspx page so that it offers this functionality or update the sitemap and login page to reference EnhancedCreateUserWizard.aspx instead of CreatingUserAccounts.aspx. If you choose the latter option, be sure to update the Membership folder's Web.config file so as to allow anonymous users access to the EnhancedCreateUserWizard.aspx page.

Summary

In this tutorial we looked at techniques for modeling data that is related to user accounts within the Membership framework. In particular, we looked at modeling entities that share a one-to-many relationship with user accounts as well as data that shares a one-to-one relationship. Furthermore, we saw how this related information could be displayed, inserted, and updated, with some examples using the SqlDataSource control and others using ADO.NET code.

This tutorial completes our look at user accounts. Starting with the next tutorial we will turn our attention to roles. Over the next several tutorials we will look at the Roles framework, see how to create new roles, how to assign roles to users, how to determine what roles a user belongs to, and how to apply role-based authorization.

Happy Programming!

Further Reading

For more information on the topics discussed in this tutorial, refer to the following resources:

• Accessing and Updating Data in ASP.NET 2.0
• ASP.NET 2.0 Wizard Control
• Creating a Step-by-Step User Interface with the ASP.NET 2.0 Wizard Control
• Creating Custom DataSource Control Parameters
• Customizing the CreateUserWizard Control
• DetailsView Control QuickStarts
• Displaying Data with the ListView Control
• Dissecting the Validation Controls in ASP.NET 2.0
• Editing Insert and Deleting Data
• Form Validation in ASP.NET
• Gathering Custom User Registration Information
• Profiles in ASP.NET 2.0
• The asp:ListView Control
• User Profiles QuickStart

About the Author

Scott Mitchell, author of multiple ASP/ASP.NET books and founder of 4GuysFromRolla.com, has been working with Microsoft Web technologies since 1998. Scott works as an independent consultant, trainer, and writer. His latest book is Sams Teach Yourself ASP.NET 2.0 in 24 Hours. Scott can be reached at mitchell@4guysfromrolla.com or via his blog at http://ScottOnWriting.NET.

Special Thanks To…

This tutorial series was reviewed by many helpful reviewers. Interested in reviewing my upcoming MSDN articles? If so, drop me a line at mitchell@4GuysFromRolla.com.

Previous Next
