Deployment plan examples (preview)

This article shows patterns that deployment plans are commonly used for. Each one describes the deployment groups and the actions attached to them, so that you can build the equivalent on the canvas.

For how to build a plan, see Create a deployment plan.

Deploy an item that depends on data another item produces

This is the most common reason to use a plan.

The workspace

A sales team keeps its analytics solution in a single git-connected workspace that holds four items:

Item	Type	What it does
Sales_Lakehouse	Lakehouse	Stores the sales tables. It's empty when it deploys, because a deployment copies item definitions, not data.
Hydrate_TopCustomers	Notebook	Writes the raw source rows into the lakehouse.
Publish_TopCustomers	Notebook	Turns those rows into the published dbo.top_customers table.
Sales_Warehouse	Warehouse	Holds the view dbo.vw_top_customers, which reads dbo.top_customers.

Why deployment order alone isn't enough

Fabric uses item lineage to detect that the warehouse view references a lakehouse table, so it deploys the lakehouse before the warehouse.

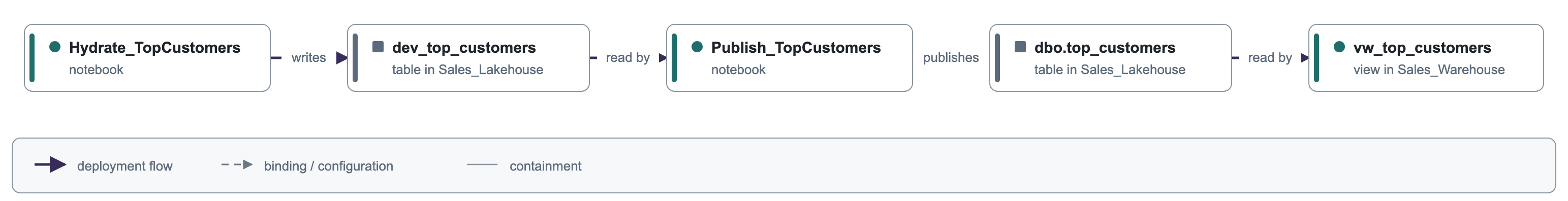

Lineage doesn't show that the table must be populated before the view is valid. The table doesn't arrive with the item definition. The two notebooks produce it at run time:

Deploy this workspace without a plan and the deployment fails. Every item is copied correctly, but the warehouse view is created against a table that no one has produced yet, and the deployment reports that the object name is invalid. The target is left partially deployed.

Nothing is wrong with the items. What's missing is the instruction to run the notebooks between deploying the lakehouse and deploying the warehouse. That instruction is the plan.

The plan

The plan has two deployment groups, one for the lakehouse and one for the warehouse. The lakehouse group runs both notebooks as post-deploy actions:

Deployment group	Item deployed	Post-deploy actions	Depends on
Sales_Lakehouse	Sales_Lakehouse (lakehouse)	1. Run Hydrate_TopCustomers 2. Run Publish_TopCustomers	Nothing
Sales_Warehouse	Sales_Warehouse (warehouse)	None	Sales_Lakehouse

After the lakehouse deploys, Hydrate_TopCustomers writes the source rows. Then Publish_TopCustomers creates dbo.top_customers and waits until the SQL analytics endpoint exposes the table. The lakehouse group finishes only after both actions finish. Fabric can then deploy the warehouse and create its view.

The notebooks are actions in the lakehouse group, not separate deployment groups. Publish_TopCustomers depends on Hydrate_TopCustomers, and the warehouse group depends on the completed lakehouse group.

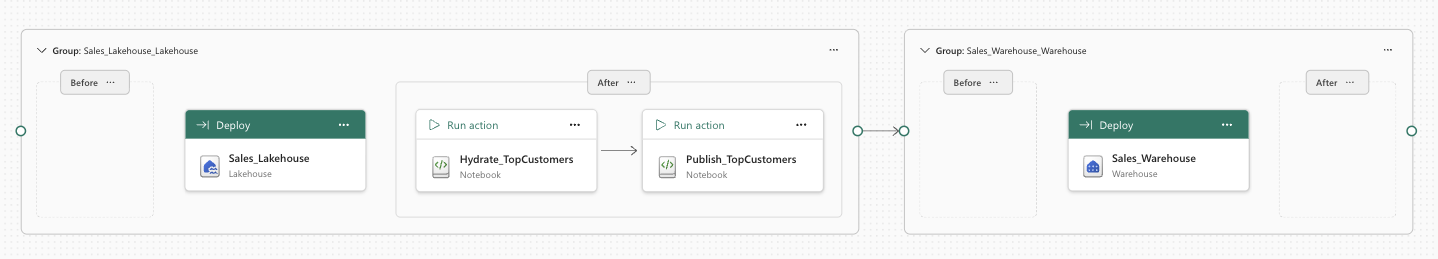

Here's the same plan on the canvas:

Understand the plan.yml structure

You build a plan on the canvas. When the workspace is connected to Git, the plan is stored as a plan.yml file in the deployment-plan item's folder, so it's reviewed and versioned like any other item:

$schema: https://developer.microsoft.com/json-schemas/fabric/item/deploymentPlan/definition/plan/1.0.0/schema.json
version: 1.0.0
groups:
  - name: Sales_Lakehouse
    logicalId: 11111111-1111-1111-1111-111111111111
    postActions:
      - name: Run Hydrate_TopCustomers
        job:
          type: Execute
          logicalId: 22222222-2222-2222-2222-222222222222
      - name: Run Publish_TopCustomers
        dependsOn:
          - actionName: Run Hydrate_TopCustomers
        job:
          type: Execute
          logicalId: 33333333-3333-3333-3333-333333333333
  - name: Sales_Warehouse
    logicalId: 44444444-4444-4444-4444-444444444444
    dependsOn:
      - groupName: Sales_Lakehouse

The file has the following structure:

Element	Purpose
$schema	Identifies the schema that validates the plan definition.
version	Identifies the plan definition version.
groups	Contains the deployment groups in the plan.
name	Gives a group or action a unique name that dependencies can reference.
logicalId	Identifies the Fabric item across workspaces.
dependsOn	Declares dependencies on another group or action by name.
preActions and postActions	Run supported jobs before or after the group's item deploys.
job	Identifies the job type, item logical ID, and optional parameters for an action.

A few things to notice in this definition:

• A group names one item. logicalId is the item's logical ID, the same identifier Git integration uses, so the plan stays valid as the item moves between workspaces.
• Group order is expressed with dependsOn, not by position in the file. Reordering the groups in the file changes nothing.
• Action order is also expressed with dependsOn. Run Publish_TopCustomers starts only after Run Hydrate_TopCustomers finishes.
• postActions run after the group's item deploys. Use preActions for work that has to happen first, such as a validation check.

Tip

An action is finished when the item's run ends, not when downstream services catch up. In this example, the last cell of Publish_TopCustomers waits until the lakehouse SQL analytics endpoint has cataloged the new table. Put that kind of readiness check inside the action, because the plan doesn't wait on your behalf.

Refresh content after it deploys

A deployment updates item definitions. It doesn't run anything, so a semantic model or a report reflects the new definition but not new data.

Deployment group	Item deployed	Runs after the item deploys	Depends on
Sales_Warehouse	Sales_Warehouse (warehouse)	None	Nothing
Sales_Model	Sales_Model (semantic model)	Run a data pipeline that refreshes the model	Sales_Warehouse

Attach this plan to a deployment pipeline deployment so that promoting to a stage leaves the target ready to use rather than needing a manual refresh.

Validate before anything deploys

A pre-deploy action runs before the item in its group deploys, so you can use one as a gate.

An action can only run an item that's already deployed, so the check itself is deployed by an earlier group:

Deployment group	Item deployed	Runs before the item deploys	Depends on
Preflight	Preflight_Checks (notebook)	None	Nothing
First_Real_Item	The first item of the release	Run Preflight_Checks	Preflight

If the check fails, the deployment stops and nothing that depends on that group deploys. Use this to confirm that connections resolve, that a required capacity is running, or that a source system is available before a release begins.

Note

A pre-deploy action can't run the item its own group deploys, because that item doesn't exist in the target yet. Deploy the item that performs the check in an earlier group, as shown here.

Order work that lineage can't see

Two items can be completely independent as far as lineage is concerned, and still need an order. A plan is how you express that.

Deployment group	Item deployed	Depends on
Reference_Data	The item that produces reference data	Nothing
Domain_Item	An item that reads reference data through a connection rather than a direct reference	Reference_Data

Because the dependency runs through a connection rather than an item reference, Fabric can't infer it. The plan supplies the order.
