PassKit in Xamarin.iOS

  • Articol

The iOS Wallet app allows users to store digital passes on their devices. These passes are generated by merchants and sent to the customer via email, URLs, or through the merchant's own iOS app. These passes can represent various things, from movie tickets to loyalty cards to boarding passes. The PassKit framework allows developers to interact with passes programmatically.

This document introduces Wallet and using the PassKit API with Xamarin.iOS.

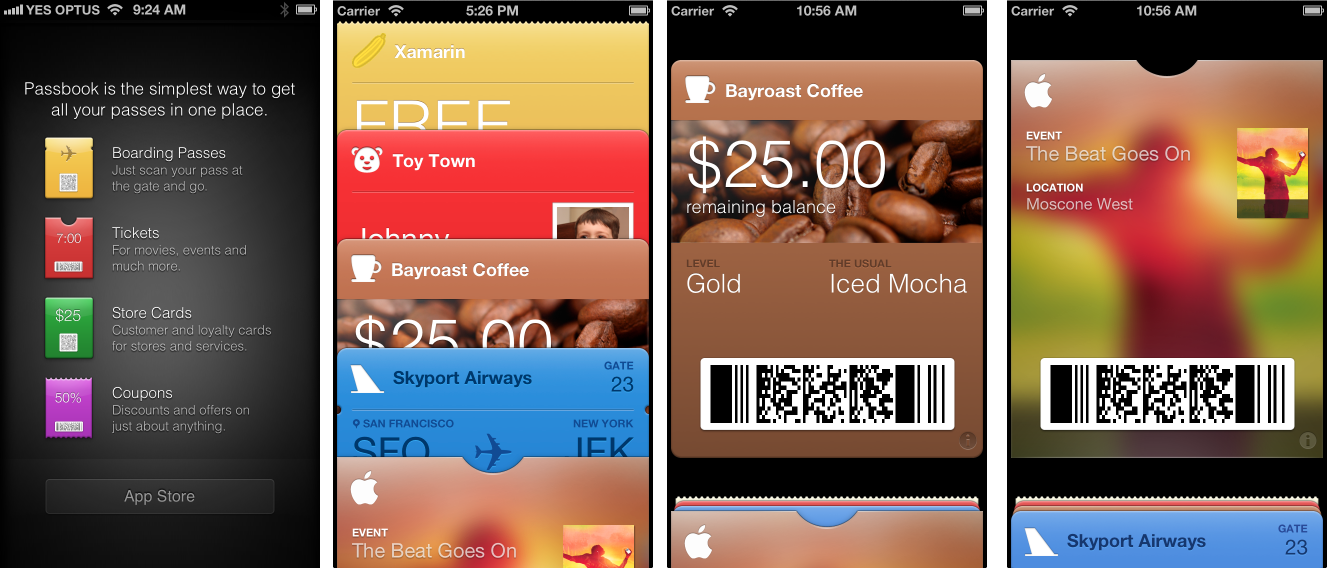

The Wallet stores and organizes all the passes on a phone

Requirements

The PassKit features discussed in this document require iOS 6 and Xcode 4.5, along with Xamarin.iOS 6.0.

Introduction

The key problem that PassKit solves is the distribution and management of barcodes. Some real-world examples of how barcodes are currently used include:

  • Buying movie tickets online – Customers are typically emailed a barcode that represents their tickets. This barcode is printed and taken to the cinema to be scanned for entry.
  • Loyalty cards – Customers carry a number of different store-specific cards in their wallet or purse, for display and scanning when they purchase goods.
  • Coupons – Coupons are distributed via email, as printable web pages, through letterboxes and as barcodes in newspapers and magazines. Customers bring them to a store for scanning, to receive goods, services or discounts in return.
  • Boarding passes – Similar to buying a movie ticket.

PassKit offers an alternative for each of these scenarios:

  • Movie tickets – After purchase, the customer adds an event ticket pass (via email or a website link). As the time for the movie approaches, the pass will automatically appear on the lock-screen as a reminder, and on arrival at the cinema the pass is easily retrieved and displayed in Wallet for scanning.
  • Loyalty cards – Rather than (or in addition to) providing a physical card, stores can issue (via email or after a website login) a Store Card Pass. The store can provide additional features such as updating the balance of the account on the pass via push notifications, and using geolocation services the pass could automatically appear on the lock-screen when the customer is near a store location.
  • Coupons – Coupon passes can easily be generated with unique characteristics to help with tracking, and distributed via email or website links. Downloaded coupons can automatically appear on the lock-screen when the user is near a specific location, and/or on a given date (such as when the expiry date is approaching). Because the coupons are stored on the user’s phone, they are always handy and do not get misplaced. Coupons might encourage customers to download Companion Apps because App Store links can be incorporated into the Pass, increasing engagement with the customer.
  • Boarding passes – After an online check-in process, the customer would receive their boarding pass via email or a link. A Companion App provided by the transport provider could include the check-in process, and also allow the customer to perform additional functions like choosing their seat or meal. The transport provider can use push notifications to update the pass if transport is delayed or canceled. As the boarding time approaches the pass will appear on the lock-screen as a reminder and to provide quick access to the Pass.

At its core, PassKit provides a simple and convenient way to store and display barcodes on your iOS device. With the additional time and location lock-screen integration, push notifications and Companion Application integrate it offers a foundation for very sophisticated sales, ticketing and billing services.

PassKit Ecosystem

PassKit is not just an API within CocoaTouch, rather it is part of a larger ecosystem of apps, data and services that facilitate the secure sharing and management of barcodes and other data. This high-level diagram shows the different entities that can be involved in creating and using passes:

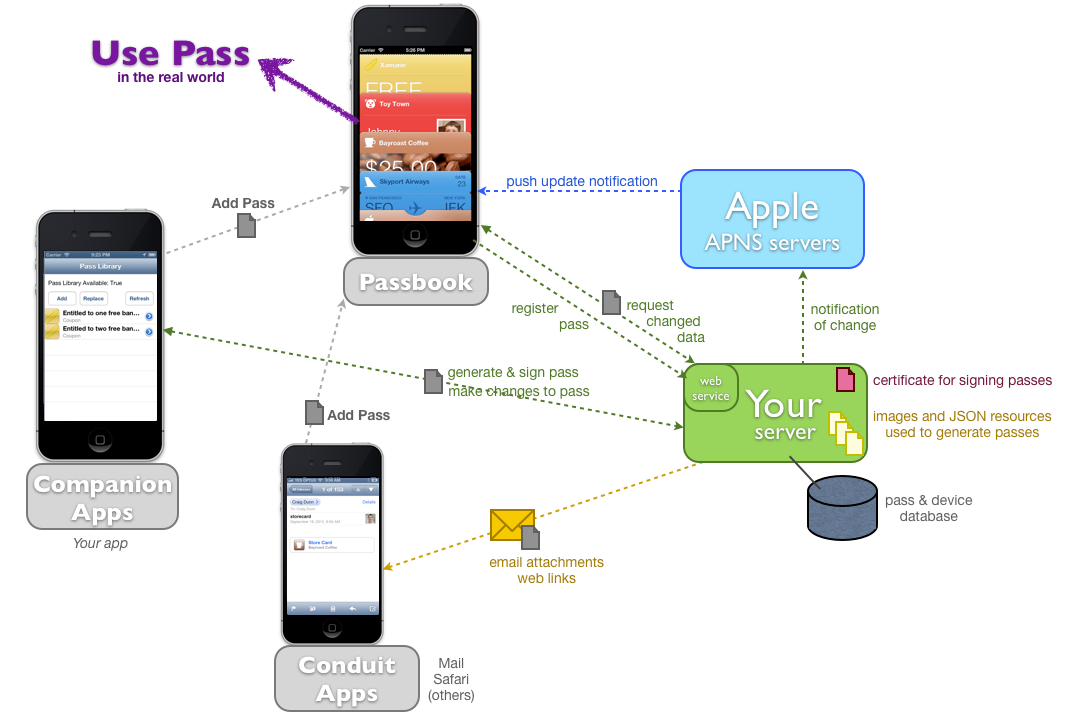

This high level diagram shows the entities involved in creating and using passes

Each piece of the ecosystem has a clearly-defined role:

  • Wallet – Apple’s built-in iOS app that stores and displays passes. This is the only place that passes are rendered for use in the real world (ie the barcode is displayed, along with all the localized data in the pass).
  • Companion Apps – iOS 6 apps built by pass providers to extend the functionality of the passes they issue, such as adding value to a store card, changing the seat on a boarding pass or other business-specific function. Companion Apps are not required for a pass to be useful.
  • Your server – A secure server where passes can be generated and signed for distribution. Your Companion App may connect to your server to generate new passes or request updates to existing passes. You may optionally implement the web service API that Wallet would call to update passes.
  • APNS Servers – Your server has the ability to notify Wallet of updates to a pass on a given device using APNS. Push a notification to Wallet which will then contact your server for details of the change. Companion apps do not need to implement APNS for this feature (they can listen to the PKPassLibraryDidChangeNotification ).
  • Conduit Apps – Applications that don’t directly manipulate passes (like companion apps do), but which can improve their utility by recognizing passes and allowing them to be added to Wallet. Mail clients, social network browsers and other data aggregation apps may all encounter attachments or links to passes.

The entire ecosystem looks complex, so it’s worth noting that some components are optional and much simpler PassKit implementations are possible.

What is a Pass?

A pass is a collection of data representing a ticket, coupon or card. It may be intended for a single use by an individual (and therefore contain details such as a flight number and seat allocation) or it may a multiple use token that can be shared by any number of users (such as a discount coupon). A detailed description is available in Apple’s About Pass Files document.

Types

Currently five supported types, which can be distinguished in the Wallet app by the layout and top edge of the pass:

  • Event Ticket – small semicircular cutout.
  • Boarding Pass – notches in side, transport-specific icon can be specified (eg. bus, train, airplane).
  • Store Card – rounded top, like a credit or debit card.
  • Coupon – perforated along the top.
  • Generic – same as Store Card, rounded top.

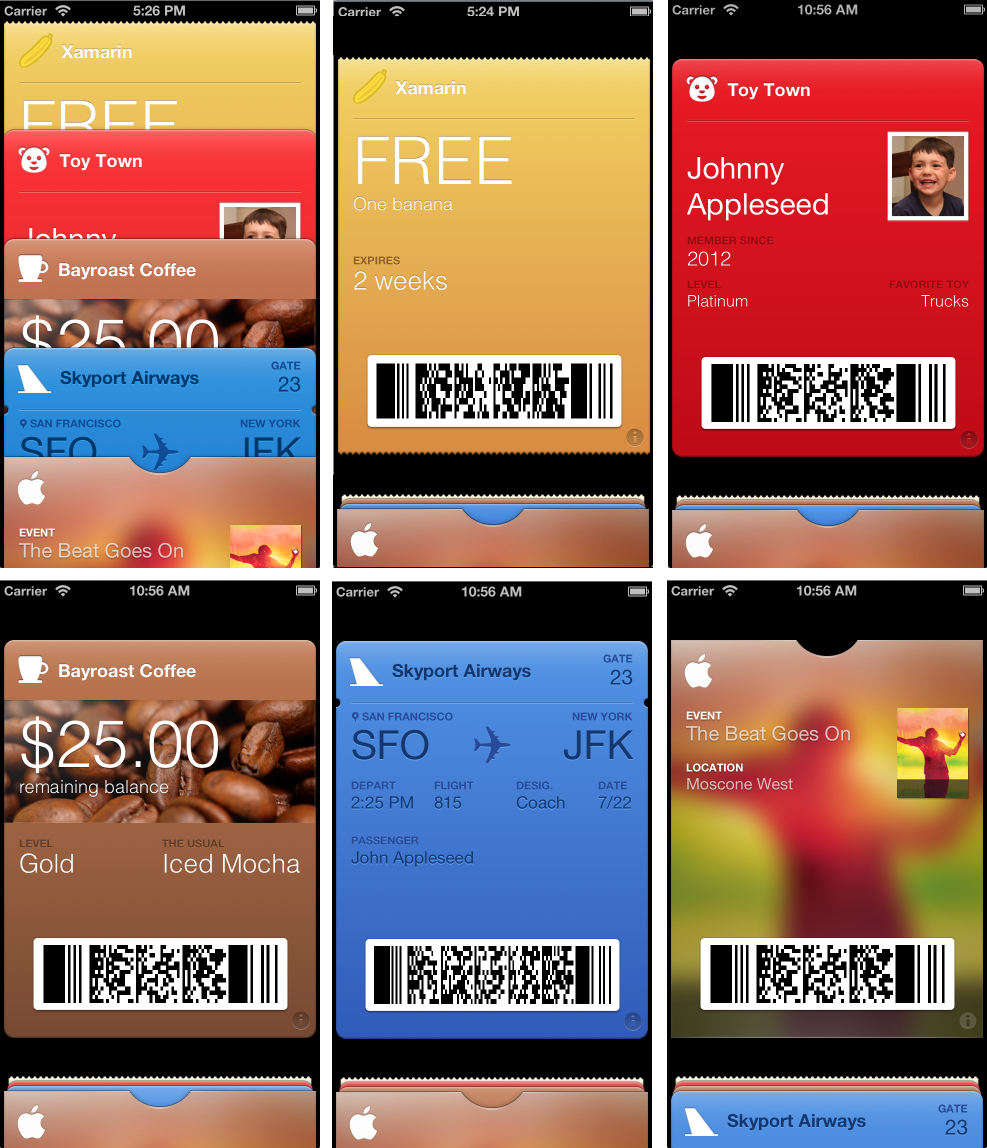

The five pass types are shown in this screenshot (in order: coupon, generic, store card, boarding pass and event ticket):

The five pass types are shown in this screenshot

File Structure

A pass file is actually a ZIP archive with a .pkpass extension, containing some specific JSON files (required), a variety of image files (optional) as well as localized strings (also optional).

  • pass.json – required. Contains all the information for the pass.
  • manifest.json – required. Contains SHA1 hashes for each file in the pass except the signature file and this file (manifest.json).
  • signature – required. Created by signing the manifest.json file with the certificate generated in the iOS Provisioning Portal.
  • logo.png – optional.
  • background.png – optional.
  • icon.png – optional.
  • Localizable strings files – optional.

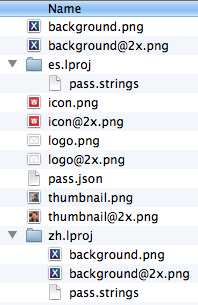

Directory structure of a pass file is shown below (this is the contents of the ZIP archive):

Directory structure of a pass file is shown here

pass.json

JSON is the format because passes are typically created on a server – it means that the generation code is platform-agnostic on the server. The three key pieces of information in every pass are:

  • teamIdentifier – This links all passes you generate to your App Store account. This value is visible in the iOS Provisioning Portal.
  • passTypeIdentifier – Register in Provisioning Portal to group passes together (if you produce more than one type). For example, a coffee shop might create a store card pass type to allow their customers to earn loyalty credits, but also a separate coupon pass type to create and distribute discount coupons. That same coffee shop might even hold live music events and issue Event Ticket passes for those.
  • serialNumber – A unique string within this passTypeidentifier . The value is opaque to Wallet, but is important for tracking specific passes when communicating with your server.

There is a large number of other JSON keys in each Pass, an example of which is shown below:

{
   "passTypeIdentifier":"com.xamarin.passkitdoc.banana",  //Type Identifier (iOS Provisioning Portal)
   "formatVersion":1,                                     //Always 1 (for now)
   "organizationName":"Xamarin",                          //The name which appears on push notifications
   "serialNumber":"12345436XYZ",                          //A number for you to identify this pass
   "teamIdentifier":"XXXAAA1234",                         //Your Team ID
   "description":"Xamarin Demo",                          //
   "foregroundColor":"rgb(54,80,255)",                    //color of the data text (note the syntax)
   "backgroundColor":"rgb(209,255,247)",                  //color of the background
   "labelColor":"rgb(255,15,15)",                         //color of label text and icons
   "logoText":"Banana ",                                  //Text that appears next to logo on top
   "barcode":{                                            //Specification of the barcode (optional)
      "format":"PKBarcodeFormatQR",                       //Format can be QR, Text, Aztec, PDF417
      "message":"FREE-BANANA",                            //What to encode in barcode
      "messageEncoding":"iso-8859-1"                      //Encoding of the message
   },
   "relevantDate":"2012-09-15T15:15Z",                    //When to show pass on screen. ISO8601 formatted.
  /* The following fields are specific to which type of pass. The name of this object specifies the type, e.g., boardingPass below implies this is a boarding pass. Other options include storeCard, generic, coupon, and eventTicket */
   "boardingPass":{
/*headerFields, primaryFields, secondaryFields, and auxiliaryFields are arrays of field object. Each field has a key, label, and value*/
      "headerFields":[          //Header fields appear next to logoText
         {
            "key":"h1-label",   //Must be unique. Used by iOS apps to get the data.
            "label":"H1-label", //Label of the field
            "value":"H1"        //The actual data in the field
         },
         {
            "key":"h2-label",
            "label":"H2-label",
            "value":"H2"
         }
      ],
      "primaryFields":[       //Appearance differs based on pass type
         {
            "key":"p1-label",
            "label":"P1-label",
            "value":"P1"
         }
      ],
      "secondaryFields":[     //Typically appear below primaryFields
         {
            "key":"s1-label",
            "label":"S1-label",
            "value":"S1"
         }
      ],
      "auxiliaryFields":[    //Appear below secondary fields
         {
            "key":"a1-label",
            "label":"A1-label",
            "value":"A1"
         }
      ],
      "transitType":"PKTransitTypeAir"  //Only present in boradingPass type. Value can
                                        //Air, Bus, Boat, or Train. Impacts the picture
                                        //that shows in the middle of the pass.
   }
}

Barcodes

Only 2D formats are supported: PDF417, Aztec, QR. Apple claims that 1D barcodes are unsuited to scanning on a backlit phone screen.

Alternate text displayed below the barcode is optional – some merchants want to be able to read/type manually.

ISO-8859-1 encoding is the most common, check which encoding is used by the scanning systems that will read your passes.

Relevancy (Lock Screen)

There are two types of data that can cause a pass to be displayed on the lock-screen:

Location

Up to 10 locations can be specified in a Pass, eg stores that a customer frequently visits, or the location of a cinema or airport. A customer could set these locations via a Companion App or the provider could determine them from usage data (if collected with the customer’s permission).

When the pass is displayed on the lock-screen, a fence is calculated so that when the user leaves the area the pass is hidden from the lock-screen. The radius is tied to pass style to prevent abuse.

Date and Time

Only one date/time can be specified in a Pass. The date and time is useful for triggering lock-screen reminders for boarding passes and event tickets.

Can be updated via push or via PassKit API, so that the date/time could be updated in the case of a multiple-use ticket (such as a season ticket to a theatre or sporting complex).

Localization

Translating a pass into multiple languages is similar to localizing an iOS application – create language specific directories with the .lproj extension and place the localized elements inside. Text translations should be entered into a pass.strings file, while localized images should have the same name as the image they replace in the Pass root.

Security

Passes are signed with a private certificate that you generate in the iOS Provisioning Portal. The steps to sign the pass are:

  1. Calculate a SHA1 hash for each file in the pass directory (do not include the manifest.json or signature file, neither of which should exist at this stage anyway).
  2. Write manifest.json as a JSON key/value list of each filename with its hash.
  3. Use the certificate to sign the manifest.json file and write the result to a file called signature .
  4. ZIP the everything up and give the resulting file a .pkpass file extension.

Because your private key is required to sign the pass, this process should only be done on a secure server that you control. DO NOT distribute your keys to try and generate passes in an application.

Configuration and Setup

This section contains instructions to help setup your provisioning details and create your first pass.

Provisioning PassKit

In order for a pass to enter the App Store, it must be linked to a developer account. This requires two steps:

  1. The pass must be registered using a unique identifier, called the Pass Type ID.
  2. A valid Certificate must be generated to sign the pass with the developer's digital signature.

To create a Pass Type ID do the following.

Create a Pass Type ID

The first step is to set up a Pass Type ID for each different type of pass to be supported. The Pass ID (or Pass Type identifier) creates a unique identifier for the Pass. We will use this ID to link the pass with your developer account using a Certificate.

  1. In the Certificates, Identifiers, and Profiles section of the iOS Provisioning Portal, navigate to Identifiers and select Pass Type IDs . Then select the + button to create a new pass type: Create a new pass type

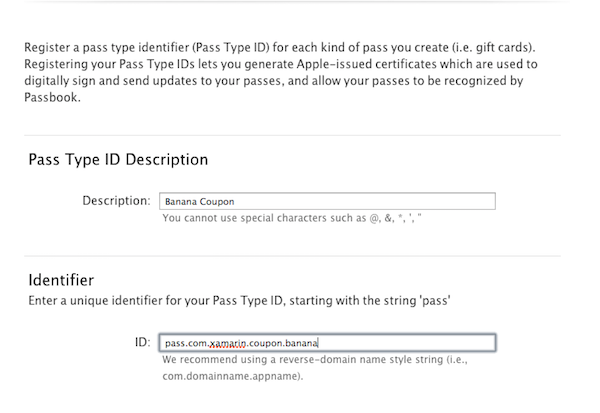

  2. Provide a Description (name) and Identifier (unique string) for the Pass. Note that all Pass Type IDs must begin with the string pass. In this example we use pass.com.xamarin.coupon.banana : Provide a Description and Identifier

  3. Confirm the Pass ID by pressing the Register button.

Generate A Certificate

To create a new Certificate for this Pass Type ID, do the following:

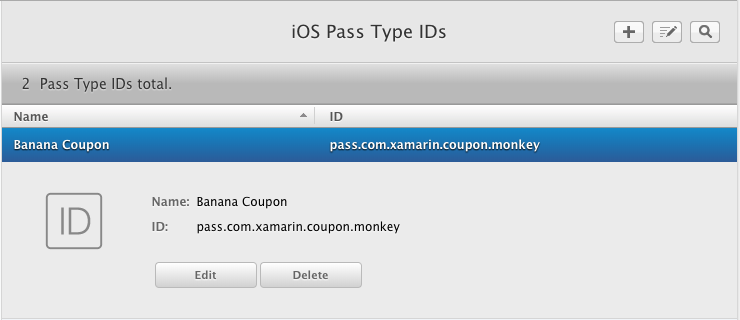

  1. Select the newly created Pass ID from the list, and click Edit : Select the new Pass ID from the list

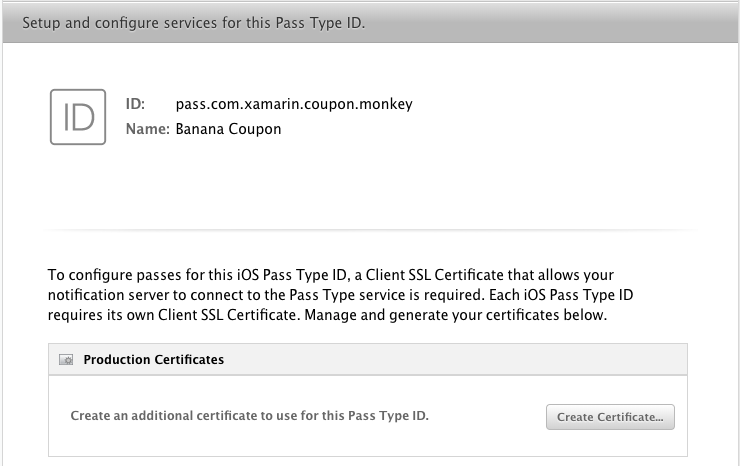

    Then, select Create Certificate… :

    Select Create Certificate

  2. Follow the steps to create a Certificate Signing Request (CSR).

  3. Press the Continue button on the developer portal and upload the CSR to generate your certificate.

  4. Download the certificate and double-click on it to install it in your keychain.

Now that we have created a certificate for this Pass Type ID, the next section describes how to build a pass manually.

For more information on Provisioning for Wallet, refer to the Working with Capabilities guide.

Create a Pass Manually

Now that we’ve created the Pass Type we can manually craft a pass to test on the simulator or a device. The steps to create a pass are:

  • Create a directory to contain the pass files.
  • Create a pass.json file that contains all the required data.
  • Include images in folder (if required).
  • Calculate SHA1 hashes for every file in the folder, and write to manifest.json.
  • Sign manifest.json with the downloaded certificate .p12 file.
  • ZIP the directory’s contents and rename with .pkpass extension.

There are some source files in the sample code for this article that can be used to generate a pass. Use the files in the CouponBanana.raw directory of the CreateAPassManually directory. The following files are present:

These files are present

Open pass.json and edit the JSON. You must at least update the passTypeIdentifier and teamIdentifer to match your Apple Developer account.

"passTypeIdentifier" : "pass.com.xamarin.coupon.banana",
"teamIdentifier" : "?????????",

You must then calculate the hashes for each file and create the manifest.json file. It will look something like this when you’re done:

{
  "icon@2x.png" : "30806547dcc6ee084a90210e2dc042d5d7d92a41",
  "icon.png" : "87e9ffb203beb2cce5de76113f8e9503aeab6ecc",
  "pass.json" : "c83cd1441c17ecc6c5911bae530d54500f57d9eb",
  "logo.png" : "b3cd8a488b0674ef4e7d941d5edbb4b5b0e6823f",
  "logo@2x.png" : "3ccd214765507f9eab7244acc54cc4ac733baf87"
}

Next a signature must be generated for this file using the certificate (.p12 file) that was generated for this Pass Type ID.

Signing On a Mac

Download the Wallet Seed Support Materials from the Apple Downloads site. Use the signpass tool to turn your folder into a pass (this will also calculate the SHA1 hashes and ZIP the output into a .pkpass file).

Testing

If you were to examine the output of these tools (by setting the filename to .zip and then opening it), you would see the following files (note the addition of the manifest.json and signature files):

Examining the output of these tools

Once you have signed, ZIPped and renamed the file (eg. to BananaCoupon.pkpass) you can drag it into the simulator to test, or email it to yourself to retrieve on a real device. You should see a screen to Add the pass, like this:

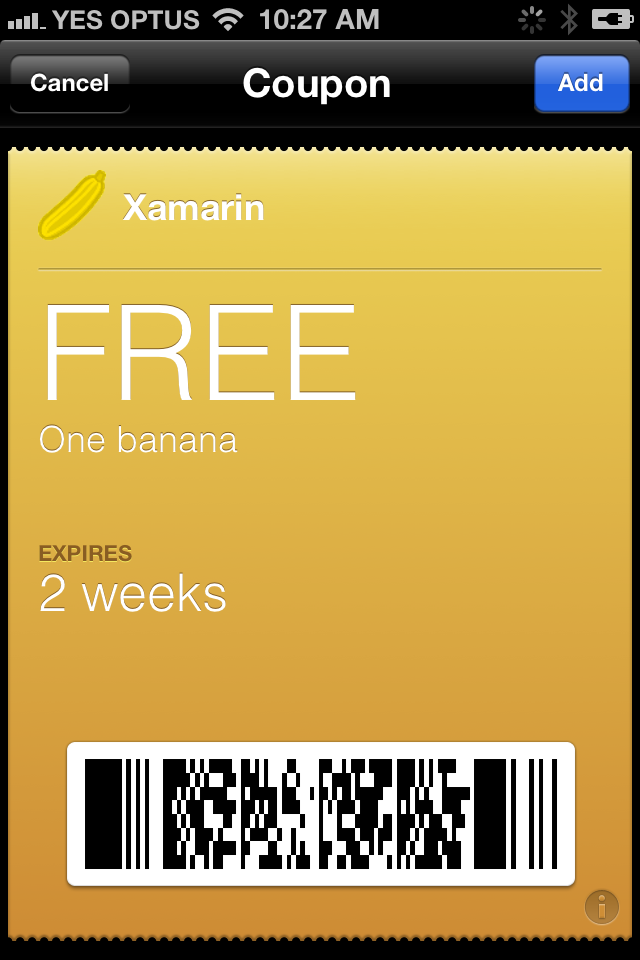

Add the pass screen

Normally that process would be automated on a server, however manual pass creation might be an option for small businesses that are only creating coupons that do not require the support of a back-end server.

Wallet

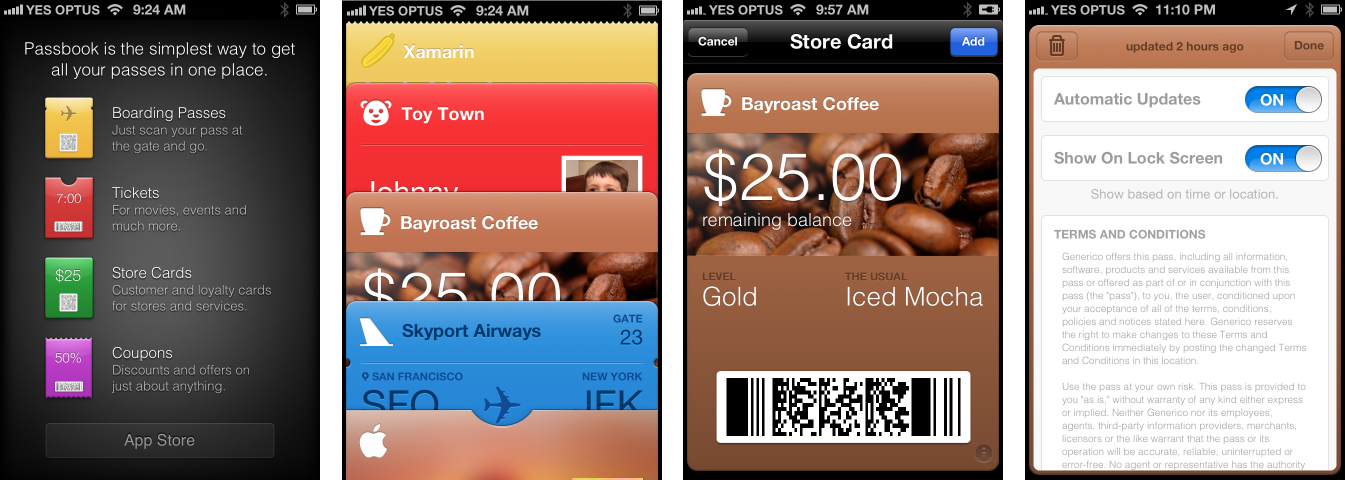

Wallet is the central piece of the PassKit ecosystem. This screenshot shows the empty Wallet, and how the pass list and individual passes look:

This screenshot shows the empty Wallet, and how the pass list and individual passes look

Features of Wallet include:

  • It is the only place that passes are rendered with their barcode for scanning.
  • User can change the settings for updates. If enabled, push notifications can trigger updates to the data in the Pass.
  • User can enable or disable lock-screen integration. If enabled, this allows the pass to automatically appear on their lock screen, based on relevant time and location data embedded in the pass.
  • The reverse side of the pass supports pull-to-refresh, if a web-server-URL is supplied in the pass JSON.
  • Companion Apps can be opened (or downloaded) if the app’s ID is supplied in the pass JSON.
  • Passes can be deleted (with a cute shredding animation).

Adding Passes into Wallet

Passes can be added to Wallet in the following ways:

  • Conduit Apps – These do not manipulate passes directly, they simply load pass files and present the user with the option of adding them to Wallet.

  • Companion Apps – These are written by providers to distribute passes and offer additional functionality to browse or edit them. Xamarin.iOS applications have complete access to the PassKit API to create and manipulate passes. Passes can then be added to Wallet using the PKAddPassesViewController. This process is described in more detail in the Companion Applications section of this document.

Conduit Applications

Conduit applications are intermediate apps that might receive passes on behalf of a user, and should be programmed to recognize their content-type and provide functionality to add to the Wallet. Examples of conduit apps include:

  • Mail – Recognizes attachment as a Pass.
  • Safari – Recognizes the pass Content-Type when a pass URL link is clicked.
  • Other custom apps – Any app that receive attachments or open links (social media clients, mail readers, etc).

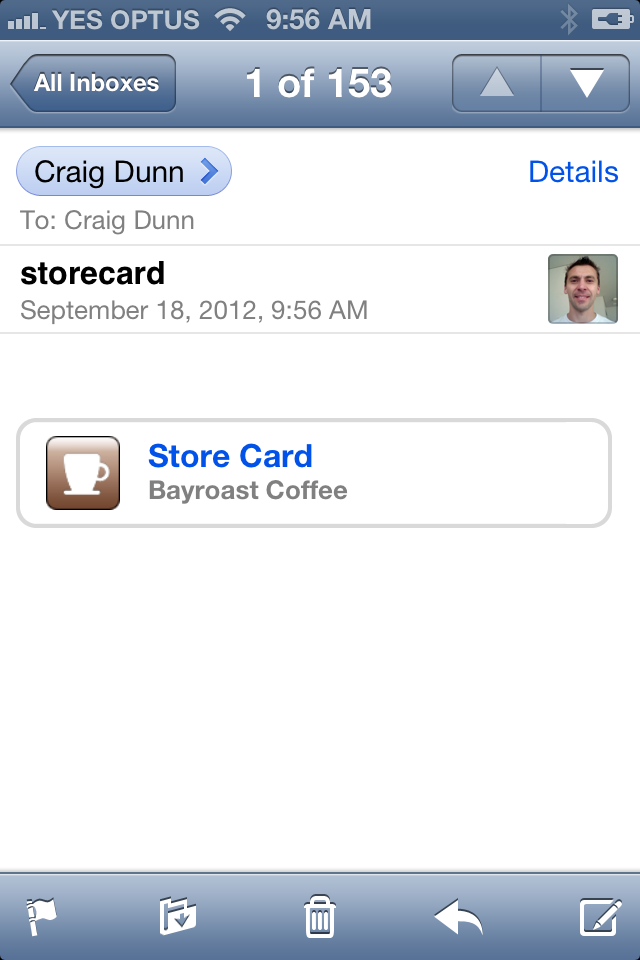

This screenshot shows how Mail in iOS 6 recognizes a pass attachment and (when touched) offers to Add it to Wallet.

This screenshot shows how Mail in iOS 6 recognizes a pass attachment

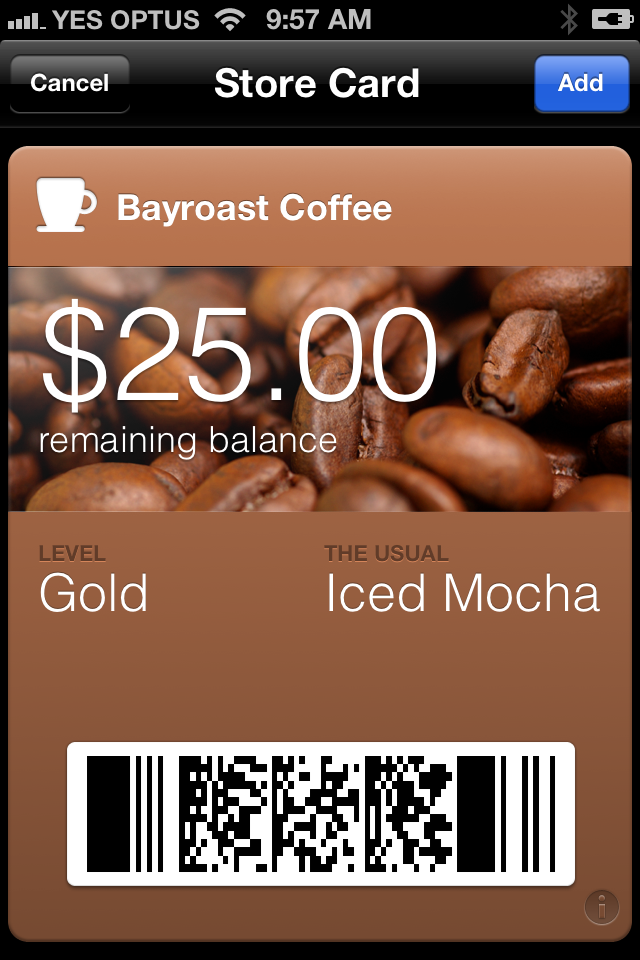

This screenshot shows how Mail offers to add a pass attachment to Wallet

If you are building an app that could be a conduit for passes, they can be recognized by:

  • File extension - .pkpass
  • MIME Type - application/vnd.apple.pkpass
  • UTI – com.apple.pkpass

The basic operation of a conduit application is to retrieve the pass file and call PassKit’s PKAddPassesViewController to give the user the option to add the pass to their Wallet. The implementation of this view controller is covered in the next section on Companion Applications.

Conduit Applications do not need to be provisioned for a specific pass Type ID in the same way that Companion Applications do.

Companion Applications

A companion application provides additional functionality for working with passes, including creating a Pass, updating information associated with a Pass and otherwise managing passes associated with the application.

Companion applications should not attempt to duplicate the features of Wallet. They are not intended to display passes for scanning.

This remainder of this section describes how to build a basic Companion App that interacts with PassKit.

Provisioning

Because Wallet is a store technology, the application needs to be provisioned separately and cannot use Team Provisioning Profile or Wildcard App ID. Refer to the Working with Capabilities guide to create a unique App ID and Provisioning Profile for the Wallet application.

Entitlements

The Entitlements.plist file should be included in all recent Xamarin.iOS project. To add a new Entitlements.plist file, follow the steps in the Working with Entitlements guide.

To set entitlements do the following:

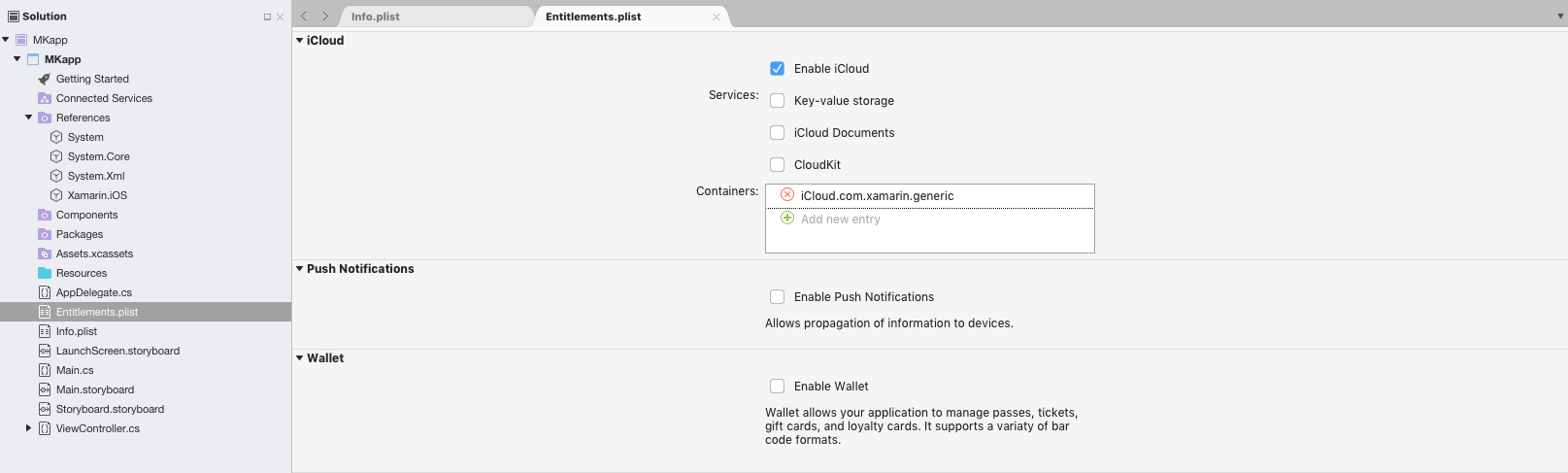

Double-click on the Entitlements.plist file in the Solution Pad to open the Entitlements.plist editor:

Entitlements.plst editor

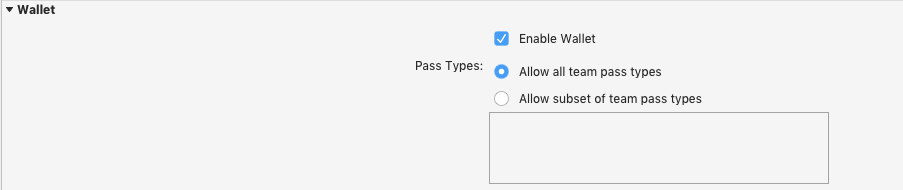

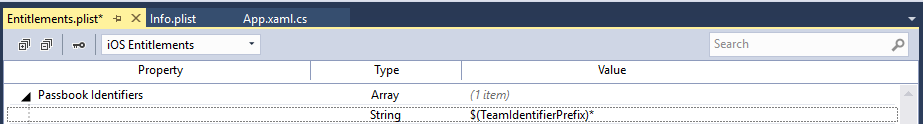

Under the Wallet section, select the Enable Wallet option

Enable wallet entitlement

The default option is for your app to allow all pass types. However, it is possible to restrict your app and only allow a subset of team pass types. To enable this select the Allow subset of team pass types and enter the pass type identifier of the subset that you wish to allow.

Debugging

If you have problems deploying your application, check that you are using the correct Provisioning Profile and that the Entitlements.plist is selected as the Custom entitlements file in the iPhone Bundle Signing options.

If you experience this error when deploying:

Installation failed: Your code signing/provisioning profiles are not correctly configured (error: 0xe8008016)

then the pass-type-identifiers entitlements array is incorrect (or does not match the Provisioning Profile). Verify the Pass Type IDs and your Team ID are correct.

Classes

The following PassKit classes are available for apps to access passes:

  • PKPass – An instance of a Pass.
  • PKPassLibrary – Provides the API to access the passes on the device.
  • PKAddPassesViewController – Used to display a pass for the user to save in their Wallet.
  • PKAddPassesViewControllerDelegate – Xamarin.iOS developers

Example

Refer to the PassLibrary project in the sample for this article. It demonstrates the following common functions that would be required in a Wallet Companion Application:

Check that Wallet is Available

Wallet is not available on the iPad, so applications should check before attempting to access PassKit features.

if (PKPassLibrary.IsAvailable) {
    // create an instance and do stuff...
}

Creating a Pass Library Instance

The PassKit library is not a singleton, applications should create and store and instance to access the PassKit API.

if (PKPassLibrary.IsAvailable) {
    library = new PKPassLibrary ();
    // do stuff...
}

Get a List of Passes

Applications can request a list of passes from the library. This list is automatically filtered by PassKit, so that you can only see passes that have been created with your Team ID and which are listed in your Entitlements.

var passes = library.GetPasses ();  // returns PKPass[]

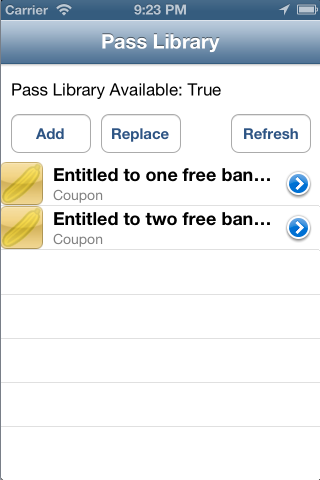

Note that the simulator does not filter the list of passes returned, so this method should always be tested on real devices. This list can be displayed in a UITableView. The sample app looks like this after two coupons have been added:

The sample app look like this after two coupons have been added

Displaying Passes

A limited set of information is available for rendering of passes within companion apps.

Choose from this set of standard properties to display lists of passes, as the example code does.

string passInfo =
                "Desc:" + pass.LocalizedDescription
                + "\nOrg:" + pass.OrganizationName
                + "\nID:" + pass.PassTypeIdentifier
                + "\nDate:" + pass.RelevantDate
                + "\nWSUrl:" + pass.WebServiceUrl
                + "\n#" + pass.SerialNumber
                + "\nPassUrl:" + pass.PassUrl;

This string is shown as an alert in the sample:

The Coupon Selected alert in the sample

You can also use the LocalizedValueForFieldKey() method to retrieve data from fields in the passes you have designed (since you will know what fields should be present). The example code does not show this.

Loading a Pass from a File

Because a pass can only be added to Wallet with the user’s permission, a view controller must be presented to let them decide. This code is used in the Add button in the example, to load a pre-built pass that is embedded in the app (you should replace this with one that you have signed):

NSData nsdata;
using ( FileStream oStream = File.Open (newFilePath, FileMode.Open ) ) {
        nsdata = NSData.FromStream ( oStream );
}
var err = new NSError(new NSString("42"), -42);
var newPass = new PKPass(nsdata,out err);
var pkapvc = new PKAddPassesViewController(newPass);
NavigationController.PresentModalViewController (pkapvc, true);

The pass is presented with Add and Cancel options:

The pass presented with Add and Cancel options

Replace an Existing Pass

Replacing an existing pass does not require the user’s permission, however it will fail if the pass does not already exist.

if (library.Contains (newPass)) {
     library.Replace (newPass);
}

Editing a Pass

PKPass isn’t mutable, so you cannot update pass objects in your code. To alter the data in a pass an application must have access to a web server that can keep a record of passes and generate a new pass file with updated values which the application can download.

Pass file creation must be done on a server because passes must be signed with a certificate that must be kept private and secure.

Once an updated pass file has been generated, use the Replace method to overwrite the old data on the device.

Display a Pass for scanning

As previously noted, only Wallet can display a pass for scanning. A Pass can be displayed using the OpenUrl method as shown:

UIApplication.SharedApplication.OpenUrl (p.PassUrl);

Receiving Notifications Of Changes

Applications can listen for changes being made to the Pass Library using the PKPassLibraryDidChangeNotification. Changes could be caused by notifications triggering updates in the background, so it is good practice to listen for them in your app.

noteCenter = NSNotificationCenter.DefaultCenter.AddObserver (PKPassLibrary.DidChangeNotification, (not) => {
    BeginInvokeOnMainThread (() => {
        new UIAlertView("Pass Library Changed", "Notification Received", null, "OK", null).Show();
        // refresh the list
        var passlist = library.GetPasses ();
        table.Source = new TableSource (passlist, library);
        table.ReloadData ();
    });
}, library);  // IMPORTANT: must pass the library in

It is important to pass a library instance when registering for the notification because PKPassLibrary is not a singleton.

Server Processing

A detailed discussion of building a server application to support PassKit is beyond the scope of this introductory article.

See dotnet-passbook open source C# server-side code.

Push Notifications

A detailed discussion of using push notifications to update passes is beyond the scope of this introductory article.

You would be required to implement the REST-like API defined by Apple to respond to web requests from Wallet when updates are required.

See Apple's Updating a Pass guide for more information.

Summary

This article introduced PassKit, outlined some of the reasons why it is useful and described the different parts that must be implemented for a full PassKit solution. It described the steps required to configure your Apple Developer account to create passes, the process to make a pass manually and also how to access the PassKit APIs from a Xamarin.iOS application.
