Tutorial: Transform and protect your API

  • Článok

APPLIES TO: All API Management tiers

In this tutorial, you learn about configuring common policies to transform your API. You might want to transform your API so it doesn't reveal private backend info. Transforming an API can help you hide the technology stack info that's running in the backend, or hide the original URLs that appear in the body of the API's HTTP response.

This tutorial also explains how to protect your backend API by configuring a rate limit policy, so that the API isn't overused by developers. For more policy options, see API Management policies.

Note

By default, API Management configures a global forward-request policy. The forward-request policy is needed for the gateway to complete a request to a backend service.

In this tutorial, you learn how to:

  • Transform an API to strip response headers
  • Replace original URLs in the body of the API response with API Management gateway URLs
  • Protect an API by adding a rate limit policy (throttling)
  • Test the transformations

Screenshot of API Management policies in the portal.

Prerequisites

Go to your API Management instance

  1. In the Azure portal, search for and select API Management services.

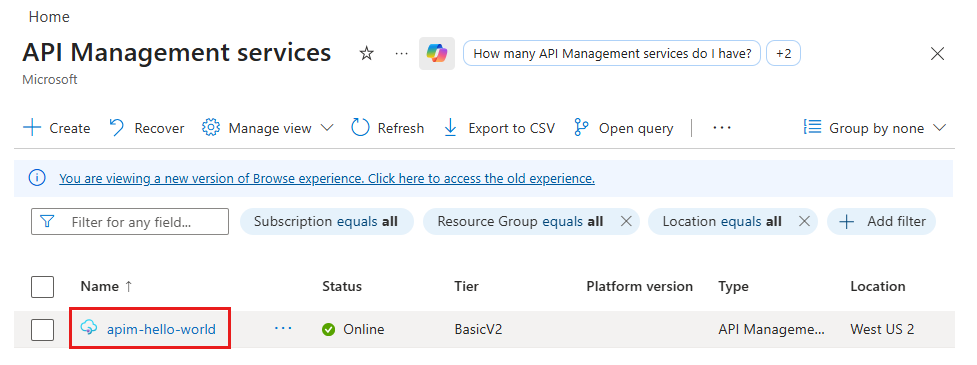

    Select API Management services

  2. On the API Management services page, select your API Management instance.

    Select your API Management instance

Transform an API to strip response headers

This section shows how to hide the HTTP headers that you don't want to show to your users. For example, delete the following headers in the HTTP response:

  • X-Powered-By
  • X-AspNet-Version

Test the original response

To see the original response:

  1. In your API Management service instance, select APIs.
  2. Select Demo Conference API from your API list.
  3. Select the Test tab, on the top of the screen.
  4. Select the GetSpeakers operation, and then select Send.

The original API response should look similar to the following response:

Screenshot of the original API response in the portal.

As you can see, the response includes the X-AspNet-Version and X-Powered-By headers.

Set the transformation policy

This example shows how to use the form-based policy editor, which helps you configure many policies without having to edit the policy XML statements directly.

  1. Select Demo Conference API > Design > All operations.

  2. In the Outbound processing section, select + Add policy.

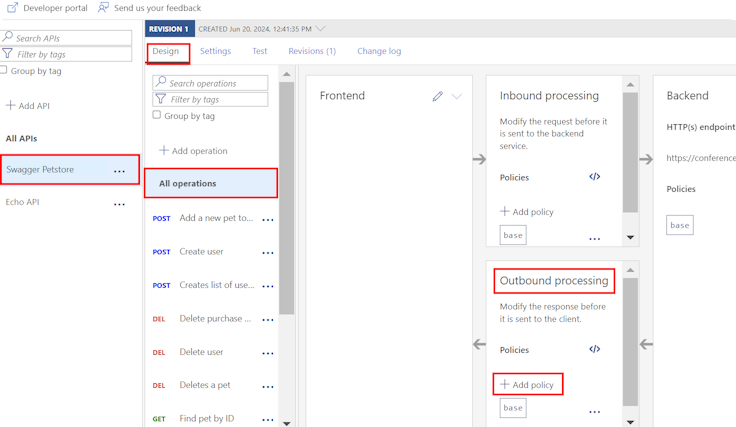

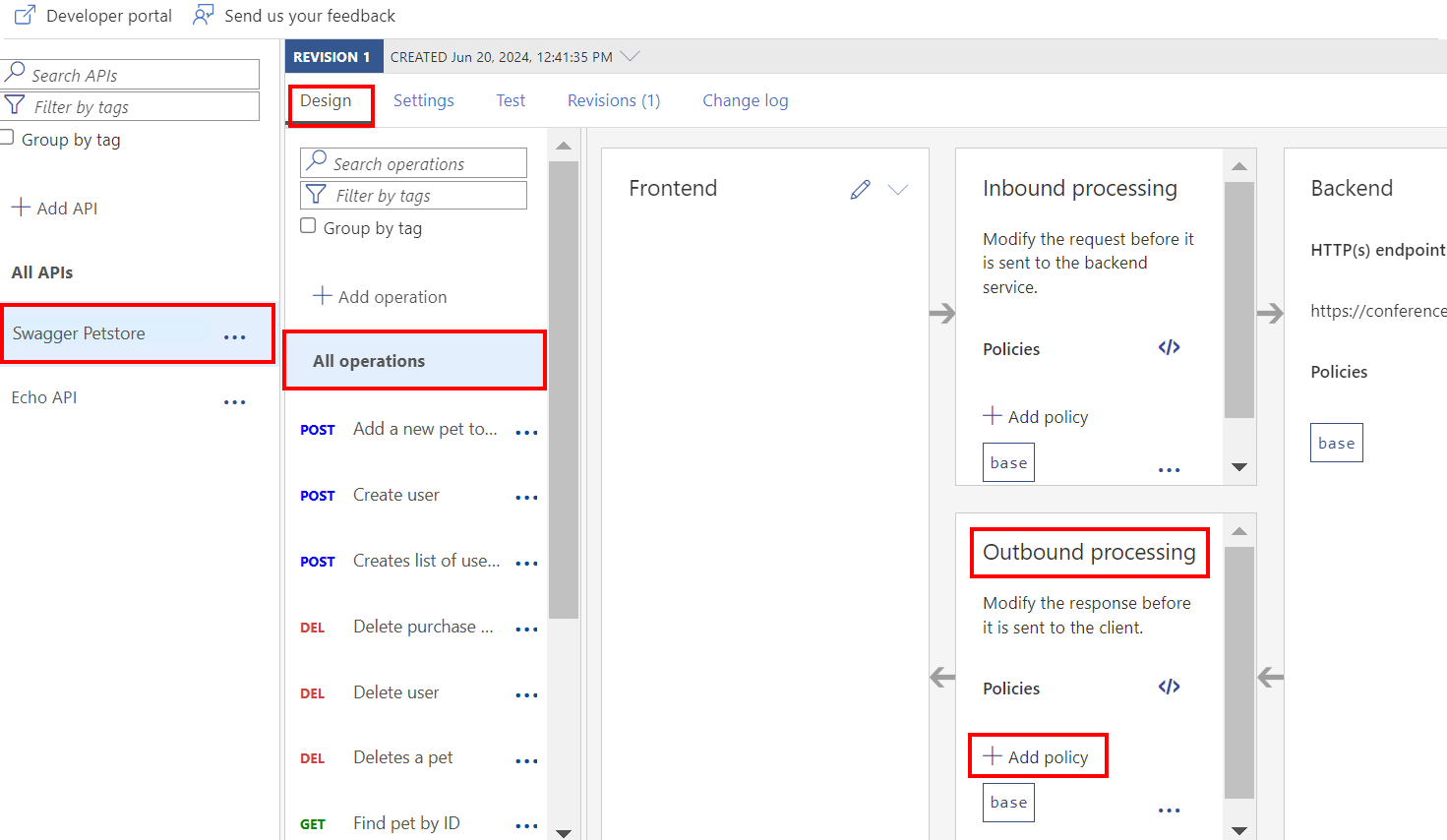

    Screenshot of navigating to outbound policy in the portal.

  3. In the Add outbound policy window, select Set headers.

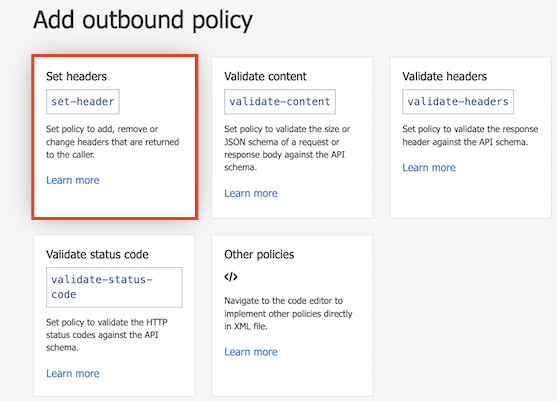

    Screenshot of configuring the Set headers policy in the portal.

  4. To configure the Set headers policy, do the following:

    1. Under Name, enter X-Powered-By.
    2. Leave Value empty. If a value appears in the dropdown, delete it.
    3. Under Action, select delete.
    4. Select Save.

  5. Repeat the preceding two steps to add a Set headers policy that deletes the X-AspNet-Version header:

  6. After configuration, two set-header policy elements appear in the Outbound processing section.

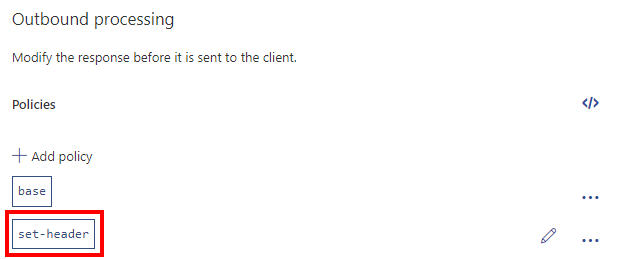

    Screenshot of the Set headers outbound policies in the portal.

Replace original URLs in the body of the API response with API Management gateway URLs

This section shows how to replace original URLs that appear in the body of the API's HTTP response with API Management gateway URLs. You might want to hide the original backend URLs from users.

Test the original response

To see the original response:

  1. Select Demo Conference API > Test.

  2. Select the GetSpeakers operation, and then select Send.

    As you can see, the response includes the original backend URLs:

    Screenshot of original URLs in response in the portal.

Set the transformation policy

In this example, you use the policy code editor to add the policy XML snippet directly to the policy definition.

  1. Select Demo Conference API > Design > All operations.

  2. In the Outbound processing section, select the code editor (</>) icon.

    Screenshot of navigating to outbound policy code editor in the portal.

  3. Position the cursor inside the <outbound> element on a blank line. Then select Show snippets at the top-right corner of the screen.

    Screenshot of selecting show snippets in outbound policy editor in the portal.

  4. In the right window, under Transformation policies, select Mask URLs in content.

    The <redirect-content-urls /> element is added at the cursor.

    Screenshot of inserting mask URLs in content policy in the portal.

  5. Select Save.

Protect an API by adding rate limit policy (throttling)

This section shows how to add protection to your backend API by configuring rate limits, so that the API isn't overused by developers. In this example, the limit is set to three calls per 15 seconds for each subscription ID. After 15 seconds, a developer can retry calling an API.

  1. Select Demo Conference API > Design > All operations.

  2. In the Inbound processing section, select the code editor (</>) icon.

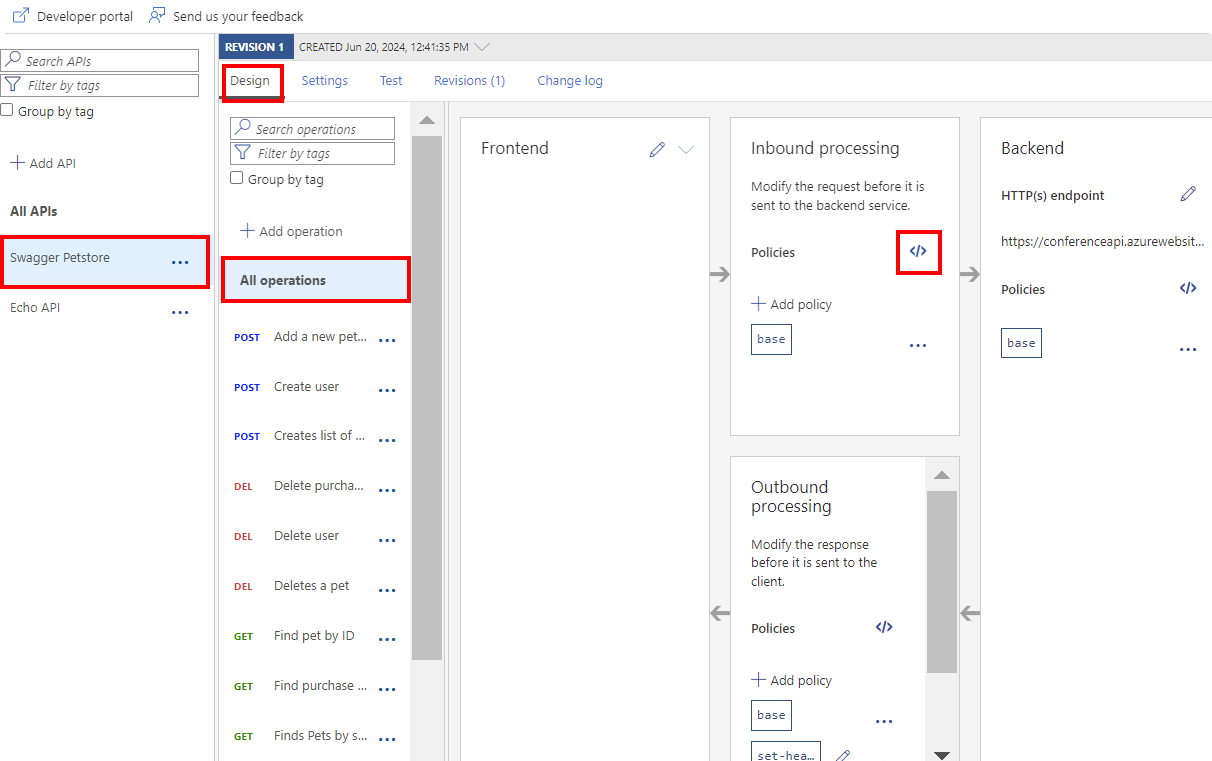

    Screenshot of navigating to inbound policy code editor in the portal.

  3. Position the cursor inside the <inbound> element on a blank line. Then, select Show snippets at the top-right corner of the screen.

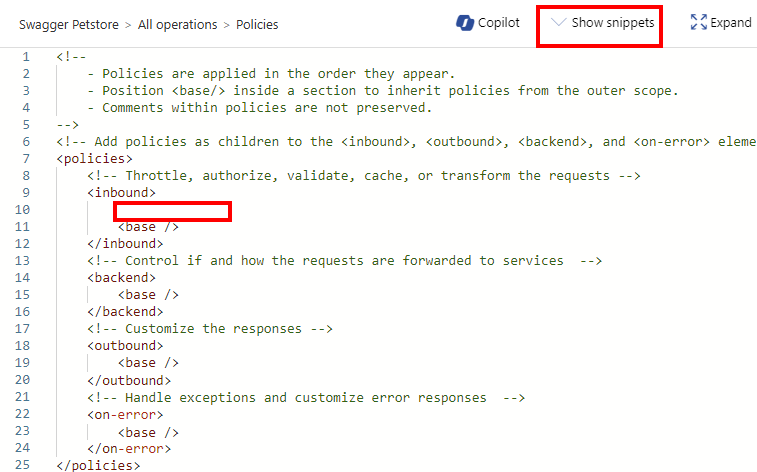

    Screenshot of selecting show snippets in inbound policy editor in the portal.

  4. In the right window, under Access restriction policies, select Limit call rate per key.

    The <rate-limit-by-key /> element is added at the cursor.

    Screenshot of inserting limit call rate per key policy in the portal.

  5. Modify your <rate-limit-by-key /> code in the <inbound> element to the following code. Then select Save.

    <rate-limit-by-key calls="3" renewal-period="15" counter-key="@(context.Subscription.Id)" />

Test the transformations

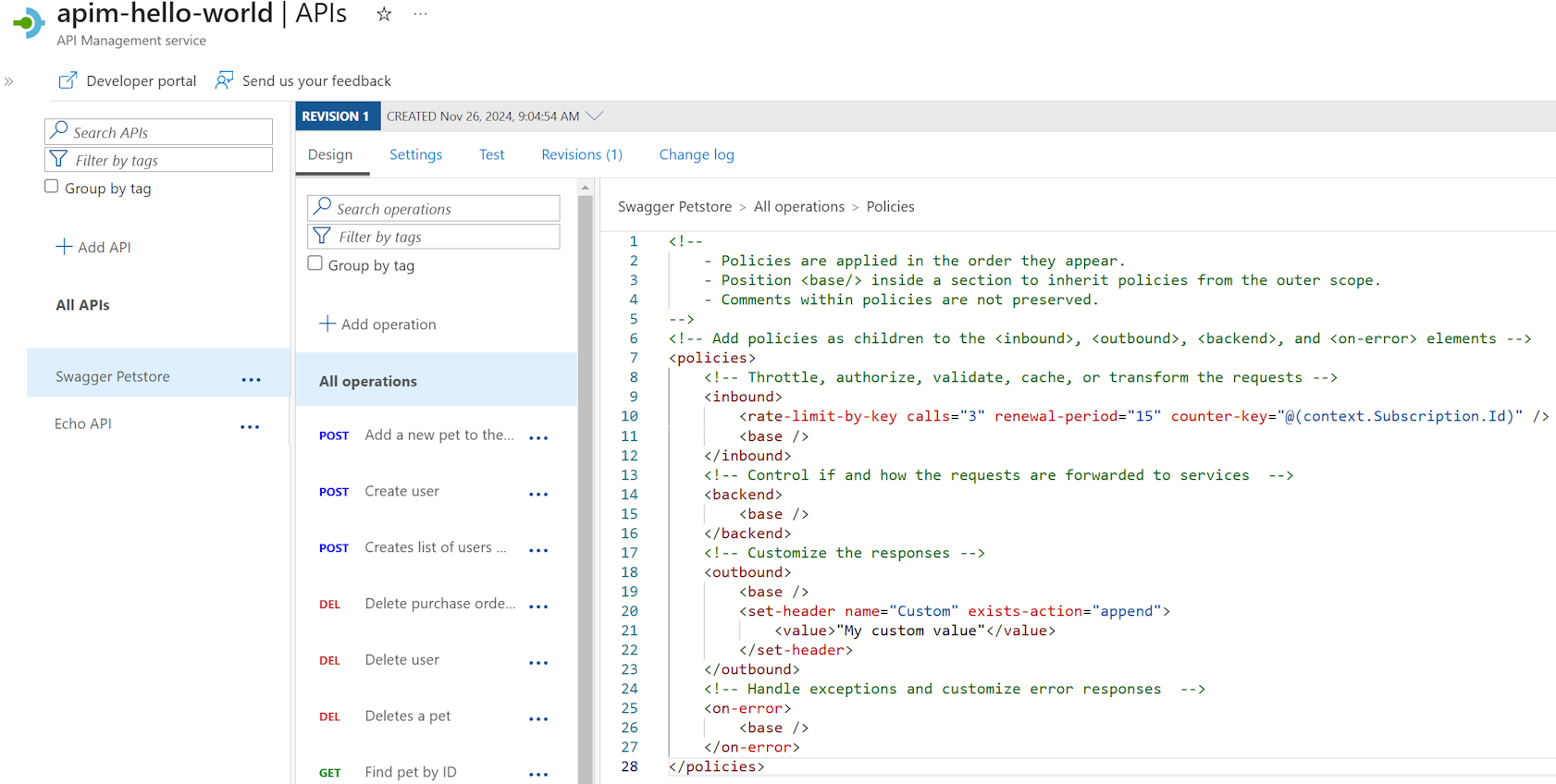

At this point, if you look at the code in the code editor, your policies look like the following code:

<policies>
   <inbound>
     <rate-limit-by-key calls="3" renewal-period="15" counter-key="@(context.Subscription.Id)" />
     <base />
   </inbound>
   <backend>
     <base />
   </backend>
   <outbound>
     <set-header name="X-Powered-By" exists-action="delete" />
     <set-header name="X-AspNet-Version" exists-action="delete" />
     <redirect-content-urls />
     <base />
   </outbound>
   <on-error>
     <base />
   </on-error>
</policies>

The rest of this section tests policy transformations that you set in this article.

Test the stripped response headers

  1. Select Demo Conference API > Test.

  2. Select the GetSpeakers operation and select Send.

    As you can see, the X-AspNet-Version and X-Powered-By headers were removed:

    Screenshot showing stripped response headers in the portal.

Test the replaced URL

  1. Select Demo Conference API > Test.

  2. Select the GetSpeakers operation and select Send.

    As you can see, the URLs are replaced.

    Screenshot showing replaced URLs in the portal.

Test the rate limit (throttling)

  1. Select Demo Conference API > Test.

  2. Select the GetSpeakers operation. Select Send four times in a row.

    After sending the request four times, you get the 429 Too Many Requests response.

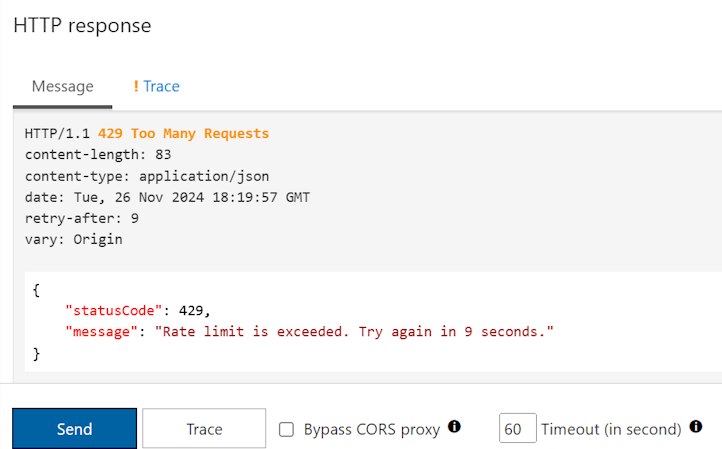

    Screenshot showing Too Many Requests in the response in the portal.

  3. Wait for 15 seconds or more and then select Send again. This time you should get a 200 OK response.

Summary

In this tutorial, you learned how to:

  • Transform an API to strip response headers
  • Replace original URLs in the body of the API response with API Management gateway URLs
  • Protect an API by adding rate limit policy (throttling)
  • Test the transformations
