When an inventory reservation hierarchy of the Batch-below[location] type is associated with products, businesses that sell batch-tracked products and run their logistics as operations that are enabled for the warehouse management processes (WMS) can't reserve specific batches of those products for customer sales orders.
In a similar way, specific license plates can't be reserved for products on sales orders when those products are associated with the default reservation hierarchy.
This article describes the inventory reservation policy that lets these businesses reserve specific batches or license plates, even when the products are associated with a Batch-below[location] reservation hierarchy.
Inventory reservation hierarchy
This section summarizes the existing inventory reservation hierarchy.
The inventory reservation hierarchy dictates that, as far as storage dimensions are concerned, the demand order carries the mandatory dimensions of site, warehouse, and inventory status. In other words, the mandatory dimensions are all the dimensions above the location dimension in the reservation hierarchy, while the warehouse logic is responsible for assigning a location to the requested quantities and reserving the location. In the interactions between the demand order and the warehouse operations, the demand order is expected to indicate where the order must be shipped from (that is, what site and warehouse). The warehouse then relies on its logic to find the required quantity in the warehouse premises.
However, to reflect the operational model of the business, tracking dimensions (batch and serial numbers) are subject to more flexibility. An inventory reservation hierarchy can accommodate scenarios where the following conditions apply:
The business relies on its warehouse operations to manage picking of quantities that have batch or serial numbers after the quantities have been found in the warehousing storage space. This model is often referred to as Batch-below[location] or Serial-below[location]. It's typically used when a product's batch or serial number identification isn't important to the customers who place the demand with the selling company.
The business relies on its warehouse operations to manage picking of quantities that have batch or serial numbers before the quantities have been found in the warehousing storage space. If batch or serial numbers are necessary as part of a customer's order specification, they are recorded on the demand order, and the warehouse operations that find the quantities in the warehouse aren't allowed to change them. This model is referred to as Batch-above[location] or Serial-above[location]. Because the dimensions above location are the specific requirements for the demands that must be fulfilled, the warehouse logic won't allocate them. These dimensions must always be specified on the demand order or in the related reservations.
In these scenarios, the challenge is that only one inventory reservation hierarchy can be assigned to each released product. Therefore, for the WMS to handle tracked items, after the hierarchy assignment determines when the batch or serial number should be reserved (either when the demand order is taken or during the warehouse picking work), this timing can't be changed on an ad-hoc basis.
Flexible reservation for batch-tracked items
Business scenario
In this scenario, a company uses an inventory strategy where finished goods are tracked by batch numbers. This company also uses the WMS workload. Because this workload has well-equipped logic for planning and running warehouse picking and shipping operations for batch-enabled items, most of the finished items are associated with a Batch-below[location] inventory reservation hierarchy. The advantage of this type of operational setup is that decisions (which are effectively reservation decisions) about which batches to pick and where to put them in the warehouse are postponed until the warehouse picking operations start. They aren't made when the customer's order is placed.
Although the Batch-below[location] reservation hierarchy serves the company's business goals well, many of the company's established customers require the same batch that they previously purchased when they reorder products. Therefore, the company is looking for flexibility in the way that the batch reservation rules are handled, so that, depending on the customers' demand for the same item, the following behaviors occur:
A batch number can be recorded and reserved when the order is taken by the sales processor, and it can't be changed during warehouse operations and/or taken by other demands. This behavior helps guarantee that the batch number that was ordered is shipped to the customer.
If the batch number isn't important to the customer, the warehouse operations can determine a batch number during picking work, after sales order registration and reservation have been done.
Allowing reservation of a specific batch on the sales order
To accommodate the desired flexibility in the batch reservation behavior for items that are associated with a Batch-below[location] inventory reservation hierarchy, inventory managers must select the Allow reservation on demand order check box for the Batch number level on the Inventory reservation hierarchies page.
When the Batch number level in the hierarchy is selected, all dimensions above that level and up through the Location level will be automatically selected. (By default, all dimensions above the Location level are preselected.) This behavior reflects the logic where all dimensions in the range between the batch number and location are also automatically reserved after you reserve a specific batch number on the order line.
Poznámka
The Allow reservation on demand order check box applies only to reservation hierarchy levels that are below the warehouse location dimension.
Batch number and License plate are the only levels in the hierarchy that are open for the flexible reservation policy. In other words, you can't select the Allow reservation on demand order check box for the Location or Serial number level.
If your reservation hierarchy includes the serial number dimension (which must always be below the Batch number level), and if you've turned on batch-specific reservation for the batch number, the system will continue to handle serial number reservation and picking operations, based on the rules that apply to the Serial-below[location] reservation policy.
At any point, you can allow batch-specific reservation for an existing Batch-below[location] reservation hierarchy in your deployment. This change won't affect any reservations and open warehouse work that were created before the change occurred. However, the Allow reservation on demand order check box can't be cleared if inventory transactions of the Reserved ordered, Reserved physical, or Ordered issue type exist for one or more items that are associated with that reservation hierarchy.
Poznámka
If an item's existing reservation hierarchy doesn't allow batch specification on the order, you can reassign it to a reservation hierarchy that does allow batch specification, provided that the hierarchy level structure is the same in both hierarchies. Use the Change reservation hierarchy for items function to do the reassignment. This change might be relevant when you want to prevent flexible batch reservation for a subset of batch-tracked items but allow it for the rest of the product portfolio.
Regardless of whether you've selected the Allow reservation on demand order check box, if you don't want to reserve a specific batch number for the item on an order line, default warehouse operations logic that is valid for a Batch-below[location] reservation hierarchy will still apply.
Reserve a specific batch number for a customer order
After a batch-tracked item's Batch-below[location] inventory reservation hierarchy is set up to allow reservation of specific batch numbers on sales orders, sales order processors can take customer orders for the same item in one of the following ways, depending on the customer's request:
Enter order details without specifying a batch number – This approach should be used when the product's batch specification isn't important to the customer. All existing processes that are associated with handling an order of this type in the system remain unchanged. No additional considerations are required on the part of users.
Enter order details and reserve a specific batch number – This approach should be used when the customer requests a specific batch. Typically, customers will request a specific batch when they are reordering a product that they previously purchased. This type of batch-specific reservation is referred to as order-committed reservation.
The following set of rules is valid when quantities are processed, and a batch number is committed to a specific order:
To allow reservation of a specific batch number for an item under the Batch-below[location] reservation policy, the system must reserve all dimensions up through location. This range typically includes the license plate dimension.
Location directives aren't used when picking work is created for a sales line that uses order-committed batch reservation.
During warehouse processing of work for order-committed batches, neither the user nor the system is allowed to change the batch number. (This processing includes exception handling.)
The following example shows the end-to-end flow.
Example scenario: Batch number allocation
For this example, demo data must be installed, and you must use the USMF demo data company.
Set up an inventory reservation hierarchy to allow batch-specific reservation
Go to Warehouse management > Setup > Inventory > Reservation hierarchy.
Select New.
In the Name field, enter a name (for example, BatchFlex).
In the Description field, enter a description (for example, Batch below flexible).
In the Selected field, select Serial number and Owner, and then select the left arrow button to move them to the Available field.
Select OK.

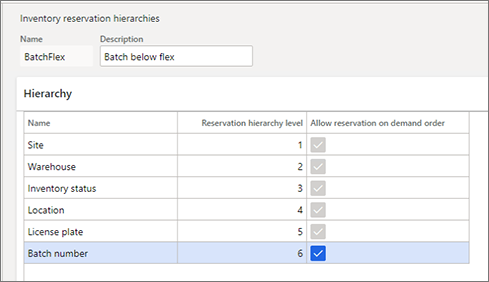

In the row for the Batch number dimension level, select the Allow reservation on demand order check box. The License plate and Location levels are automatically selected, and you can't clear the check boxes for them.
Select Save.
Create a new released product
Set the product's three master data parameters by using these values:
In the Storage dimension group field, select Ware.
In the Tracking dimension group field, select Batch-Phy.
In the Reservation hierarchy field, select BatchFlex.
Create two batch numbers, such as B11 and B22.
Add item quantities to on-hand stock by using the following values.
Warehouse
Batch number
Location
License plate
Quantity
24
B11
BULK-001
None
10
24
B11
FL-001
LP11
10
24
B22
FL-002
LP22
10
Enter sales order details
Go to Sales and marketing > Sales orders > All sales orders.
Select New.
On the sales order header, in the Customer account field, enter US-003.
Add a line for the new item, and enter 10 as the quantity. Make sure that the Warehouse field is set to 24.
On the Sales order lines FastTab, select Inventory, and then, in the Maintain group, select Batch reservation. The Batch reservation page shows a list of batches that are available for reservation for the order line. For this example, it shows a quantity of 20 for batch number B11 and a quantity of 10 for batch number B22. Note that the Batch reservation page cannot be accessed from a line if the item on that line is associated with Batch-below[location] reservation hierarchy unless it is set up to allow batch-specific reservation.
Poznámka
To reserve a specific batch for a sales order, you must use the Batch reservation page.
If you enter the batch number directly on the sales order line, the system will behave as though you entered a specific batch value for an item that is subject to the Batch-below[location] reservation policy. When you save the line, you will receive a warning message. If you confirm that the batch number should be specified directly on the order line, the line won't be handled by the regular warehouse management logic.
If you reserve the quantity from the Reservation page, no specific batch will be reserved, and the execution of warehouse operations for the line will follow the rules that are applicable under the Batch-below[location] reservation policy.
In general, this page works and is interacted with in the same way for items that have an associated reservation hierarchy of the Batch-above[location] type. However, the following exceptions apply:

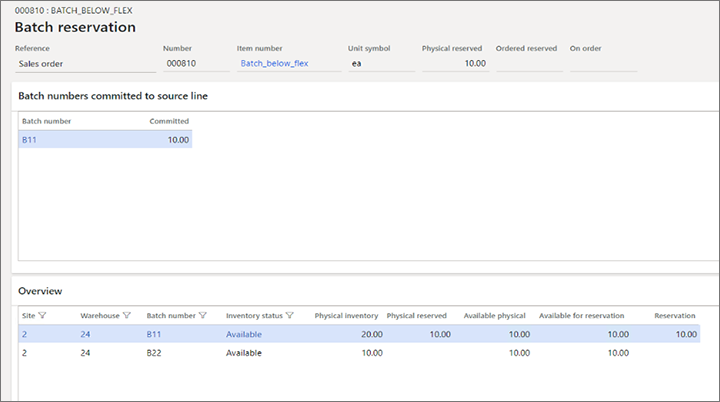

The Batch numbers committed to source line FastTab shows the batch numbers that are reserved for the order line. The batch values in the grid will be shown throughout the fulfillment cycle of the order line, including the warehouse processing stages. By contrast, on the Overview FastTab, regular order line reservation (that is, reservation that is done for the dimensions above the Location level) is shown in the grid up to the point when warehouse work is created. The work entity then takes over the line reservation, and the line reservation no longer appears on the page. The Batch numbers committed to source line FastTab helps guarantee that the sales order processor can view the batch numbers that were committed to the customer's order at any point during its lifecycle, up through invoicing.
In addition to reserving a specific batch, a user can manually select the batch's specific location and license plate instead of letting the system automatically select them. This capability is related to the design of the order-committed batch reservation mechanism. As was mentioned earlier, when a batch number is reserved for an item under the Batch-below[location] reservation policy, the system must reserve all dimensions up through location. Therefore, warehouse work will carry the same storage dimensions that were reserved by the users who worked with the orders, and it might not always represent the item storage placement that is convenient, or even possible, for picking operations. If order processors are aware of the warehouse constraints, they might want to manually select the specific locations and license plates when they reserve a batch. In this case, the user must use the Display dimensions functionality on the page header, and must add the location and license plate in the grid on the Overview FastTab.
On the Batch reservation page, select the line for batch B11, and then select Reserve line. There is no designated logic for assigning locations and license plates during automatic reservation. You can manually enter the quantity in the Reservation field. Notice that, on the Batch numbers committed to source line FastTab, batch B11 is shown as Committed.
Poznámka
Reservation of the quantity on a sales order line can be done across multiple batches. Likewise, reservation of the same batch can be done against multiple locations and license plates (if license plates are enabled for the locations).
Reservation of a specific batch for the quantity on a sales order line can also be partial. For example, the total quantity of 100 units can be reserved so that a specific batch is committed to 20 units, whereas 80 units are reserved at the site and warehouse levels for any available batch. In this case, the WMS will handle picking operations by using two separate work lines.
Go to Product information management > Products > Released products. Select your item, and then select Manage inventory > View > Transactions.

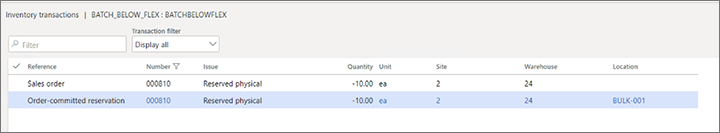

Review the item's inventory transactions that are related to the sales order line reservation.
A transaction where the Reference field is set to Sales order and the Issue field is set to Reserved physical represents the order line reservation for the inventory dimensions above the Location level. According to the item's inventory reservation hierarchy, those dimensions are site, warehouse, and inventory status.
A transaction where the Reference field is set to Order-committed reservation and the Issue field is set to Reserved physical represents the order line reservation for the specific batch and all inventory dimensions above it. According to the item's inventory reservation hierarchy, those dimensions are batch number and location. In this example, the location is Bulk-001.
On the sales order header, select Warehouse > Actions > Release to warehouse. The order line is now waved, and a load and work are created.
Review and process warehouse work that has order-committed batch numbers
On the Sales order lines FastTab, select Warehouse > Work details.
The work that handles the picking operation for batch quantities that are committed to the sales order line has the following characteristics:
To create work, the system uses work templates but not location directives. All the standard settings that are defined for work templates, such as a maximum number of pick lines or a specific unit of measure, will be applied to determine when new work should be created. However, the rules that are associated with location directives for identifying pick locations aren't considered, because the order-committed reservation already specifies all the inventory dimensions. Those inventory dimensions include the dimensions at the warehouse storage level. Therefore, the work inherits those dimensions without having to consult location directives.
The batch number isn't shown on the pick line (as is the case for the work line that is created for an item that has an associated Batch-above[location] reservation hierarchy.) Instead, the "from" batch number and all other storage dimensions are shown on the work line's work inventory transaction that is referenced from the associated inventory transactions.

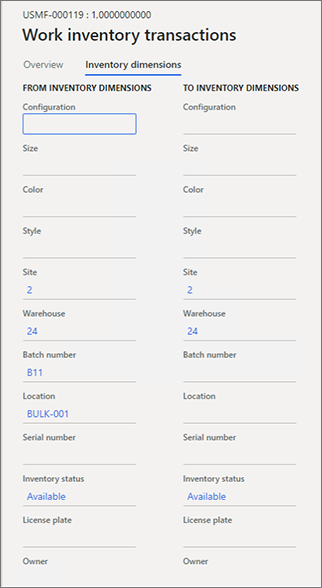

After work is created, the item's inventory transaction where the Reference field is set to Order-committed reservation is removed. The inventory transaction where the Reference field is set to Work now holds the physical reservation on all the quantity's inventory dimensions.
Warehouse operations can proceed to handle execution of the work in the usual manner. However, the instructions on the mobile device will instruct the worker to pick a specific batch number. In warehouse environments where locations are license plate–controlled, after a worker reaches a location that stores the same batch on multiple license plates, they can pick from any license plate that isn't already reserved (for example, by another order-committed reservation or work that originates from a reservation of that type.)
If it turns out to be impractical to pick from the location that is specified on the work line, the warehouse operators can use one of the following actions to redirect picking of the specific batch from a more convenient location:
The standard Override location action on a mobile device (provided that the warehouse worker's Allow pick location override setting is enabled)
The Change location action on the Work list details page.
On the mobile device, finish picking and putting the work.
The quantity of 10 for batch number B11 is now picked for the sales order line and put in the Baydoor location. At this point, it's ready to be loaded onto the truck and dispatched to the customer's address.
Flexible license plate reservation
Business scenario
In this scenario, a company uses warehouse management and work processing, and handles load planning at the level of individual pallets/containers outside Supply Chain Management before work is created. These containers are represented by license plates in the inventory dimensions. Therefore, for this approach, specific license plates must be pre-assigned to sales order lines before picking work is done. The company is looking for flexibility in the way that the license plate reservation rules are handled, so that the following behaviors occur:
A license plate can be recorded and reserved when the order is taken by the sales processor, and it can't be taken by other demands. This behavior helps guarantee that the license plate that was planned is shipped to the customer.
If the license plate isn't already assigned to a sales order line, warehouse personnel can select a license plate during picking work, after sales order registration and reservation are completed.
Turn flexible license plate reservation on or off
Before you can use flexible license plate reservation, two features must be turned on for your system. Admins can use the feature management settings to check the status of the features and turn them on if they are required. You must turn on the features in the following order:
Flexible warehouse-level dimension reservation (As of Supply Chain Management version 10.0.29, this feature is mandatory and can't be turned off.)
Flexible order-committed license plate reservation (As of Supply Chain Management version 10.0.29, this feature is mandatory and can't be turned off.)
Reserve a specific license plate on the sales order
To enable license plate reservation on an order, you must select the Allow reservation on demand order check box for the License plate level on the Inventory reservation hierarchies page for the hierarchy that is associated with the relevant item.
You can enable license plate reservation on the order at any point in your deployment. This change won't affect any reservations or open warehouse work that were created before the change occurred. However, you can't clear the Allow reservation on demand order check box if open outbound inventory transactions that have an issue status of On order, Reserved ordered, or Reserved physical exist for one or more items that are associated with that reservation hierarchy.
Even if the Allow reservation on demand order check box is selected for the License plate level, it's still possible not to reserve a specific license plate on the order. In this case, the default warehouse operations logic that is valid for the reservation hierarchy applies.
To reserve a specific license plate, you must use an Open Data Protocol (OData) process. In the application, you can do this reservation directly from a sales order by using the Order-committed reservations per license plate option of the Open in Excel command. In the entity data that is opened in the Excel add-in, you must enter the following reservation-related data and then select Publish to send the data back to Supply Chain Management:
Reference (Only the Sales order value is supported.)
Order number (The value can be derived from the lot.)
Lot ID
License plate
Quantity
If you must reserve a specific license plate for a batch-tracked item, use the Batch reservation page, as described in the Enter sales order details section.
When the sales order line that uses an order-committed license plate reservation is processed by warehouse operations, location directives aren't used.
If a warehouse work item consists of lines that equal a complete pallet and have license plate–committed quantities, you can optimize the picking process by using a mobile device menu item where the Handle by license plate option is set to Yes. A warehouse worker can then scan a license plate to complete a pick instead of having to scan the items from the work one by one.
Because the Handle by license plate functionality doesn't support work that covers multiple pallets, it's better to have a separate work item for different license plates. To use this approach, add the Order-committed license plate ID field as a work header break on the Work template page.
Poznámka
For the order-committed work creation process, an "order-committed inventory dimension" value will be assigned to the picking work lines, and it won't be possible to view the license plate value directly. Only the User directed process is supported when setting up a mobile device menu item.
Example scenario: Set up and process an order-committed license plate reservation
This scenario shows how to set up and process an order-committed license plate reservation.
Make demo data available
This scenario refers to values and records that are included in the standard demo data that is provided for Supply Chain Management. If you want to work through the scenario by using the values that are provided here, be sure to work on an environment where the demo data is installed. Additionally, set the legal entity to USMF before you begin.
Create an inventory reservation hierarchy that allows for license plate reservation
Go to Warehouse management > Setup > Inventory > Reservation hierarchy.
Select New.
In the Name field, enter a value (for example, FlexibleLP).
In the Description field, enter a value (for example, Flexible LP reservation).
In the Selected list, select Batch number, Serial number, and Owner.
Select the Remove button to move the selected records to the Available list.
Select OK.

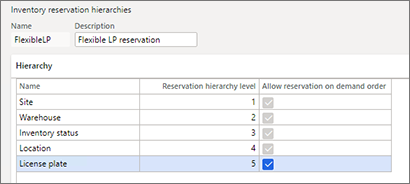

In the row for the License plate dimension level, select the Allow reservation on demand order check box. The Location level is automatically selected, and you can't clear the check box for it.
Select Save.
Create two released products
Go to Product information management > Products > Released products.
On the Action Pane, select New.
In the New released product dialog box, set the following values:
Product number:Item1
Item number:Item1
Item model group:FIFO
Item group:Audio
Storage dimension group:Ware
Tracking dimension group:None
Reservation hierarchy:FlexibleLP
Select OK to create the product and close the dialog box.
The new product is opened. On the Warehouse FastTab, set the Unit sequence group ID field to ea.
Repeat the previous steps to create a second product that has the same settings, but set the Product number and Item number fields to Item2.
On the Action Pane, on the Manage inventory tab, in the View group, select On-hand inventory. Then select Quantity adjustment.
Adjust the on-hand inventory of the new items as specified in the following table.
Item
Warehouse
Location
License plate
Quantity
Item1
24
FL-010
LP01
10
Item1
24
FL-011
LP02
10
Item2
24
FL-010
LP01
5
Item2
24
FL-011
LP02
5
Poznámka
You must create the two license plates and use locations that allow for mixed items, such as FL-010 and FL-011.
Create a sales order and reserve a specific license plate
Go to Sales and marketing > Sales orders > All sales orders.
Select New.
In the Create sales order dialog box, set the following values:
Customer account:US-001
Warehouse:24
Select OK to close the Create sales order dialog box and open the new sales order.
On the Sales order lines FastTab, add a line that has the following settings:
Item number:Item1
Quantity:10
Add a second sales order line that has the following settings:
Item number:Item2
Quantity:5
Select Save.
On the Line details FastTab, on the Setup tab, make a note of the Lot ID value for each line. These values will be required during reservation of specific license plates.
Poznámka
To reserve a specific license plate, you must use the Order-committed reservations per license plate data entity. To reserve a batch-tracked item on a specific license plate, you can also use the Batch reservation page, as described in the Enter sales order details section.
If you enter the license plate directly on the sales order line and confirm it to the system, warehouse management processing won't be used for the line.
Select Open in Microsoft Office, select Order-committed reservations per license plate, and download the file.
Open the downloaded file in Excel, and select Enable editing to enable the Excel add-in to run.
If you're running the Excel add-in for the first time, select Trust this Add-in.
If you're prompted to sign in, select Sign in, and then sign in by using the same credentials that you used to sign in to Supply Chain Management.
To reserve an item on a specific license plate, in the Excel add-in, select New to add a reservation line, and then set the following values:
Lot ID: Enter the Lot ID value that you found for the sales order line for Item1.
License plate:LP02
ReservedInventoryQuantity:10
Select New to add another reservation line, and set the following values:
Lot ID: Enter the Lot ID value you found for the sales order line for Item2.
License plate:LP02
ReservedInventoryQuantity:5
In the Excel add-in, select Publish to send the data back to Supply Chain Management.
Poznámka
The reservation line will appear in the system only if publishing is completed without errors.
Go back to Supply Chain Management.
To review the item's reservation, on the Sales order lines FastTab, on the Inventory menu, select Maintain > Reservation. Notice that, for the sales order line for Item1, inventory of 10 is reserved, and for the sales order line for Item2, inventory of 5 is reserved.
To review inventory transactions that are related to the sales order line reservation, on the Sales order lines FastTab, on the Inventory menu, select View > Transactions. Notice that there are two transactions that are related to the reservation: one where the Reference field is set to Sales order and one where the Reference field is set to Order-committed reservation.
Poznámka
A transaction where the Reference field is set to Sales order represents the order line reservation for inventory dimensions that are above the Location level (site, warehouse, and inventory status). A transaction where the Reference field is set to Order-committed reservation represents the order line reservation for the specific license plate and location.
To release the sales order, on the Action Pane, on the Warehouse tab, in the Actions group, select Release to warehouse.
Review and process warehouse work with order-committed license plates assigned
On the Sales order lines FastTab, on the Warehouse menu, select Work details.
As when reservation is done for a specific batch, the system doesn't use location directives when it creates the work for the sales order that uses license plate reservation. Because the order-committed reservation specifies all the inventory dimensions, including the location, location directives don't have to be used, because those inventory dimensions are just entered in the work. They are shown in the From inventory dimensions section on the Work inventory transactions page.
Poznámka
After the work is created, the item's inventory transaction where the Reference field is set to Order-committed reservation is removed. The inventory transaction where the Reference field is set to Work now holds the physical reservation for all the quantity's inventory dimensions.
On the mobile device, finish picking and putting the work by using a menu item where the Handle by license plate check box is selected.
Poznámka

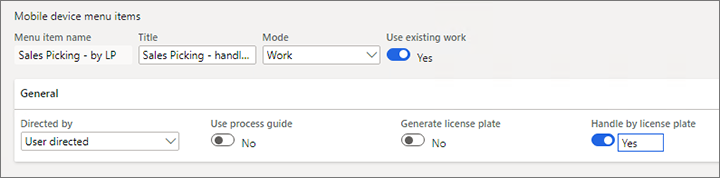

The Handle by license plate functionality helps you process the whole license plate. If you must process part of the license plate, you can't use this functionality.
We recommend that you have separate work generated for each license plate. To achieve this result, use the Work header breaks feature on the Work template page.
License plate LP02 is now picked for sales order lines and put to the Baydoor location. At this point, it's ready to be loaded and dispatched to the customer.
Exception handling of warehouse work that has order-committed batch numbers
Warehouse work for picking order-committed batch numbers is subject to the same standard warehouse exception handling and actions as regular work. In general, the open work or work line can be canceled, it can be interrupted because a user location is full, it can be short-picked, and it can be updated because of a movement. Likewise, the picked quantity of work that has already been completed can be reduced, or the work can be reversed.
The following key rule is applied to all these exception handling actions: the batch number that was reserved for the customer can never be replaced with a different batch number, but its storage dimensions (location and license plate) can be changed through either a manual update by the user or an automatic update by the system. The automatic update is based on the same random assignment of storage dimensions that applied when a specific batch was automatically reserved but no storage dimensions were specified.
Example scenario
An example of this scenario is a situation where previously completed work is being unpicked by using the Reduce picked quantity function. This example assumes that you've already completed the steps that are described in Example scenario: Batch number allocation. It continues from that example.
Go to Warehouse management > Loads > Active loads.
Select the load that was created in connection with the shipment of your sales order.
From the Load order lines FastTab, select Reduce picked quantity.
On the Reduce picked quantity page, in the Move to location field, select FL-001.
In the Move to license plate field, select LP33.
In the grid, in the Inventory quantity to unpick field, enter 10.
Select OK.
Here are the results of the unpicking action:
The status of the previously closed work is set to Canceled.
New work of the Inventory movement type is created for the unpicked quantity of 10 for batch number B11. This work represents the movement from the Baydoor location to license plate LP33 in location FL-001. The status is set to Closed.
The system re-reserves the batch number that was originally ordered, and assigns the location and license plate IDs. (This process is equivalent to running the Reserve line function for the order line for a given batch number). As a result, batch B11 is shown as committed on the Batch numbers committed to source line FastTab of the Batch reservation page, and the Reservation field contains a quantity of 10 for batch number B11. Additionally, the Location field is set to FL-001, and the License plate field is set to LP11. (You can add these fields to the grid if they aren't visible.)
The following tables provide an overview that shows how the system handles order-committed batch reservation for specific warehouse actions. To interpret the content in the tables, assume that each warehouse action is run in the context of existing warehouse work that originates from an order-committed batch reservation, or that execution of each warehouse action affects work of that type.
Poznámka
In these tables, the "Batch quantity is available" column indicates whether a batch quantity is available in addition to the quantity that is either already reserved for the current order-committed reservations or already reserved by the warehouse work that originates from reservations of that type.
Override the pick location on the open work
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
The Allow pick location override option is enabled on the worker.
Yes
Select the Override location menu item on the Warehouse Management mobile app when you start picking work.
Select Suggest.
Confirm the new location that is suggested based on batch quantity availability.
On the current work, the following actions occur:
The location on the pick line is updated to the new location. (If the location is license plate–controlled, a random license plate is assigned to the work inventory transaction, and the worker can pick from any license plate that has available quantity.)
If the quantity is found on more than one license plate in the new location, the original pick line is split into multiple lines to match each license plate.
Not applicable
No
Select the Override location menu item on the Warehouse Management mobile app when you start picking work.
Manually enter a location.
The Override location action isn't possible. It fails, and an error is thrown.
Not applicable
Full button – Split a work line because of overflow on the user location
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
The Allow splitting of work option is enabled on the mobile device menu item.
Not applicable
Select the Full menu item on the Warehouse Management mobile app when you process picking work.
In the Pick Qty field, enter a partial quantity of the required pick to indicate the full capacity.
On the current work, the quantity is updated to the remaining quantity that must be picked.
New work for the picked quantity is created and closed.
Not applicable
Reduce the picked quantity of completed work (from a load)
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
Not applicable
Yes
Open the Reduce picked quantity page from the load line.
Enter the full quantity to unpick.
Select a "move to" location/license plate.
Work that is associated with the load line is canceled.
New work for the inventory movement is created and closed.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
See the previous row.
The quantity is re-reserved for the same batch, and for the same location and license plate (if the location is license plate–controlled) that were entered during unpicking.
Move an item within a warehouse
Poznámka
This warehouse action is applicable only to movement of the Work creation process type, not to movement by template.
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
The Allow movement of inventory with associated work option is enabled on the worker.
Yes
Start a movement on the Warehouse Management mobile app.
Enter "from" and "to" locations.
On all existing work that is affected by the move, the pick location is updated to the new "to" location.
New work for the inventory movement is created and closed.
All existing reservations that are affected by the quantity movement from the given location are re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
See the previous row.
All existing reservations that are affected by the quantity movement from the given location are re-reserved for the same batch, and for the new "to" location and license plate (if the location is license plate–controlled).
Reverse the picked quantity of completed work (from a load or a wave)
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
Not applicable
Yes
Open the Reverse work page.
On the request page, select the Leave items at current location option.
All work that is associated with the load is canceled.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
See the previous row.
The quantity is re-reserved for the same batch, and for the location and license plate where the quantity was left upon reversal.
Yes
Open the Reverse work page.
On the request page, select the Assign items to this location option.
The current work is canceled.
New work for the inventory movement is created and closed.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
See the previous row.
The quantity is re-reserved for the same batch, and for the location and license plate that the quantity was assigned to upon reversal.
Yes/No
Open the Reverse work page.
On the request page, select the Move items to this location option.
Reversal isn't supported.
Not applicable
Yes/No
Open the Reverse work page.
On the request page, select the Move items based on location directives option.
Reversal isn't supported.
Not applicable
Short-pick a quantity – Register the quantity as physically not found at the location/license plate while you perform picking work
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
A work exception of the Short pick type is set up, where Item reallocation = None, Adjust inventory = Yes, and Remove reservations = No.
Yes
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Pick Quantity field, enter 0 (zero).
In the Reason field, enter No reallocation.
The current work is closed, and the picked quantity is 0 (zero).
An inventory transaction of the Counting type and the Sold issue type is created to represent the adjustment.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
The short-picking action fails, and an error is thrown.
The current work remains open.
Not applicable
A work exception of the Short pick type is set up, where Item reallocation = None, Adjust inventory = Yes, and Remove reservations = Yes.
Yes
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Pick Quantity field, enter 0 (zero).
In the Reason field, enter No reallocation.
The current work is closed, and the picked quantity is 0 (zero).
An inventory transaction of the Counting type and the Sold issue type is created to represent the adjustment.
All existing reservations that are affected by the quantity adjustment in the short-picked location are re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
See the previous row.
All existing reservations that are affected by the quantity adjustment in the short-picked location are removed.
A work exception of the Short pick type is set up, where Item reallocation = Manual, Adjust inventory = Yes, and Remove reservations = No/Yes. Additionally, the Allow manual item reallocation option is enabled on the worker.
Yes
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Shortpick Quantity field, enter 0 (zero).
In the Reason field, select Short Picking with manual reallocation.
Select the location/license plate in the list.
On the current work, the following actions occur:
The pick line is closed, and the picked quantity is 0 (zero).
The put line is canceled.
A new pick line is created. It uses the location/license plate that the user selected.
A new put line is created.
An inventory transaction of the Counting type and the Sold issue type is created to represent the adjustment.
Not applicable
A work exception of the Short pick type is set up, where Item reallocation = Manual, Adjust inventory = Yes, and Remove reservations = No. Additionally, the Allow manual item reallocation option is enabled on the worker.
No
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Shortpick Quantity field, enter 0 (zero).
In the Reason field, select Short Picking with manual reallocation.
The short-picking action fails, and an error is thrown.
Not applicable
A work exception of the Short pick type is set up, where Item reallocation = Manual, Adjust inventory = Yes, and Remove reservations = Yes. Additionally, the Allow manual item reallocation option is enabled on the worker.
No
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Shortpick Quantity field, enter 0 (zero).
In the Reason field, select Short Picking with manual reallocation.
Select the location/license plate in the list.
On the current work, the following actions occur:
The pick line is closed, and the picked quantity is 0 (zero).
The put line is canceled.
An inventory transaction of the Counting type and the Sold issue type is created to represent the adjustment.
All existing reservations that are affected by the quantity adjustment in the short-picked location/license plate are removed.
A work exception of the Short pick type is set up, where Item reallocation = Automatic, Adjust inventory = Yes/No, and Remove reservations = Yes/No.
Not applicable
Select the Shortpick menu item on the Warehouse Management mobile app when you run picking work.
In the Shortpick Quantity field, enter 0 (zero).
In the Reason field, select Short Picking with automatic reallocation.
Short-picking that involves automatic reallocation isn't supported.
Short-picking that involves automatic reallocation isn't supported.
Change the inventory status
Poznámka
This warehouse action can be performed from multiple entry points. The example that is shown here uses Inventory status change action on the On-hand by location page.
Key setup parameter
Batch quantity is available
Key user steps
Warehouse work
Order-committed batch reservation
On the Warehouse tab, in the Warehouse record, the Remove reservations and markings field is set to Reservations or Markings and reservations.
Yes
Select a specific location.
Select a line that has a specific item, location, and license plate (if the location is license plate–controlled).
Select Inventory status change.
Set the Inventory status field to Blocking.
Inventory status changes aren't allowed for quantities that are reserved for work.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
Two inventory transactions of the Inventory status change type are created to represent the change in the inventory status dimension.
An inventory transaction of the Inventory blocking type and the Reserved physical issue type is created to represent the reservation of the blocked quantity.
No
See the previous row.
Inventory status changes aren't allowed for quantities that are reserved for work.
The reservation is removed.
Two inventory transactions of the Inventory status change type are created to represent the change in the inventory status dimension.
An inventory transaction of the Inventory blocking type and the Reserved physical issue type is created to represent the reservation of the blocked quantity.
On the Warehouse tab, in the Warehouse record, the Remove reservations and markings field is set to None.
Yes
Select a specific location.
Select a line that has a specific item, location, and license plate (if the location is license plate–controlled).
Select Inventory status change.
Set the Inventory status field to Blocking.
Inventory status changes aren't allowed for quantities that are reserved for work.
The quantity is re-reserved for the same batch. The system randomly assigns a location and license plate (if the location is license plate–controlled) where the quantity is available.
No
See the previous row.
Inventory status changes aren't allowed for quantities that are reserved for work.
Inventory status changes aren't allowed.
Limitations
The flexible warehouse-level dimension reservation functionality doesn't support the following features:
Catch weight management
Physical negative inventory
Reservation against ordered supply
Transfer orders and raw material picking
The container consolidation rule for packing by directive unit has limitations. For order-committed reservations, we recommend that you not use container build templates where the Pack by directive unit field is enabled. In the current design, location directives aren't used when warehouse work is created. Therefore, only the lowest unit in the unit sequence group (the inventory unit) is applied during the containerization wave step.
Do you need to assign serial or lot numbers to items on outbound orders like sales orders? This module discusses how you can select serial numbers and lot numbers on outbound orders.
