Clone an existing Git repo

TFS 2017 | TFS 2015 | TFS 2013

Visual Studio 2019 | Visual Studio 2017 | Visual Studio 2015

You can create a local copy of a remote Git repo by cloning it into a local folder on your computer. Cloning a remote repo downloads all commits on all branches of the repo, unless you use the --single-branch clone option. Cloning links each branch in your new local repo with the corresponding branch in the remote repo. That way, when you push to share your local branch changes with your team, the corresponding remote branch is updated. Similarly, when you pull to update your local branch with changes made by your team, updates from the corresponding remote branch are retrieved. The remote repo can be an Azure Repos Git repo, a GitHub repo, or other hosted Git repo.

This article provides procedures for the following tasks:

• Get the clone URL for an Azure Repos Git repo
• Get the clone URL for a GitHub repo
• Clone an Azure Repos Git repo
• Clone a GitHub repo
• Clone any Git repo
• Open a Visual Studio solution from a cloned repo

For an overview of the Git workflow, see Azure Repos Git tutorial.

Prerequisites for access to Azure Repos

• To view code, you must be a member of an Azure DevOps project with Basic access or higher. If you aren't a project member, get added.

• To clone or contribute to code, you must be a member of the Contributors security group or have the corresponding permissions.

Get the clone URL of an Azure Repos Git repo

Typically, you need to know the clone URL of the remote repo that you want to clone. The clone URL uniquely identifies the remote repo.

Note

When you're signed into an Azure DevOps project, Visual Studio supports searching for and cloning project repos without needing to know the clone URL.

1. From your web browser, open the team project for your Azure DevOps organization, and then choose Repos > Files to open the Files view.



2. In the Files view, choose Clone to launch the Clone Repository popup.



3. Copy the clone URL from the Clone Repository popup.



Get the clone URL of a GitHub repo

Typically, you need to know the clone URL of the remote repo that you want to clone. The clone URL uniquely identifies the remote repo.

Note

When you're signed into GitHub, Visual Studio supports searching for and cloning GitHub repos without needing to know the clone URL.

1. Open a browser and navigate to your GitHub account, select the Repositories tab, and choose the repository to clone.



2. On the GitHub repository page, choose Code to launch the Clone popup. Copy the clone URL from the Clone popup.



Clone an Azure Repos Git repo

By signing in as a member of an Azure DevOps project, you can clone private repos that are accessible to you, and public repos. Visual Studio supports search, clone, and sync operations on repos that are accessible through authentication.

Note

You can clone a public Azure Repos Git repo without signing in as a member of its parent Azure DevOps project. To clone a public Git repo without signing in, see Clone any Git repo and Connect to a project in Azure DevOps.

Visual Studio 2019

Visual Studio 2019 version 16.8 and later versions provides a Git version control experience while maintaining the Team Explorer Git user interface. To use Team Explorer, uncheck Tools > Options > Preview Features > New Git user experience from the menu bar. You can use Git features from either interface interchangeably. Below, we provide a side-by-side comparison for cloning an Azure Repos Git repo.

Visual Studio Git

1. From the Git menu on the menu bar, choose Clone Repository to open the Clone a repository window.

2. In the Clone a repository window, select Azure DevOps under Browse a repository to open the Connect to a Project window.

3. In the Connect to a Project window, sign in to Azure DevOps and choose the remote repo you want to clone. You can use the search box to filter the list of remote repos. If you don't see the remote repo, select Add Azure DevOps Server to add the server that hosts the repo. Verify the local folder path where you want the local clone to be created, and then select Clone.

Visual Studio Team Explorer

1. In Team Explorer, select Connect to open the Connect page, and then choose Manage Connections > Connect to Project.

2. In the Connect to a Project window, sign in to Azure DevOps and choose the remote repo you want to clone. You can use the search box to filter the list of remote repos. If you don't see the remote repo, select Add Azure DevOps Server to add the server that hosts the repo. Verify the local folder path where you want the local clone to be created, and then select Clone.

After you've cloned a remote Git repo, Visual Studio detects the local clone and adds it to the list of Local Repositories in the Git menu.

Visual Studio 2017 & earlier

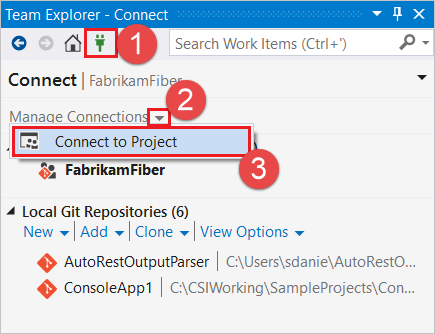

1. In Team Explorer, open the Connect page by selecting the Connect button. Choose Manage Connections then Connect to Project.

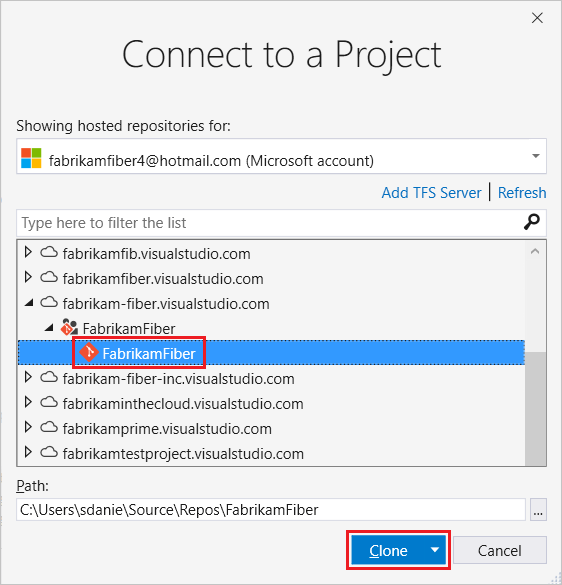

2. In Connect to a Project, select the repo you want to clone from the list and select Clone.



   If you don't see your repo listed, filter the list to find it. You may need to add an Azure DevOps Server where the repo is hosted. Select the Add Azure DevOps Server link.

3. Verify the location of the cloned repo on your PC and select Clone.

Git Command Line

To clone an Azure Repos Git repo from the command line, see Clone any Git repo.

Clone a GitHub repo

By signing into GitHub or using SSH authentication, you can clone private repos that are accessible to you, and public repos. Visual Studio supports search, clone, and sync operations on repos that are accessible through authentication.

Note

You can clone a public GitHub repo without signing in to GitHub or otherwise authenticating. To clone a public Git repo without signing in, see Clone any Git repo.

Visual Studio 2019

Visual Studio 2019 version 16.8 and later versions provide a Git version control experience that supports search, clone, and sync operations on GitHub repos that are accessible through authentication. To clone a GitHub repo using Team Explorer, see Clone any Git repo. The following steps apply to the Git version control experience.

1. From the Git menu on the menu bar, choose Clone Repository to open the Clone a repository window.



2. In the Clone a repository window, select GitHub under Browse a repository to open the Open from GitHub window.



3. In the Open from GitHub window, sign in to GitHub and choose the remote repo you want to clone. You can use the search box to filter the list of remote repos. Verify the local folder path where you want the local clone to be created, and then choose Clone.



After you've cloned a remote Git repo, Visual Studio detects the local clone and adds it to the list of Local Repositories in the Git menu.

Visual Studio 2017 & earlier

To clone a GitHub repo using Team Explorer, see Clone any Git repo.

Git Command Line

To clone a GitHub repo from the command line, see Clone any Git repo.

Note

You can also clone a GitHub repo from the command line by using the GitHub CLI.

Clone any Git repo

You can clone any Git repo that's accessible to you by using the clone URL of the repo.

Visual Studio 2019

Visual Studio 2019 version 16.8 and later versions provides a Git version control experience while maintaining the Team Explorer Git user interface. To use Team Explorer, uncheck Tools > Options > Preview Features > New Git user experience from the menu bar. You can use Git features from either interface interchangeably. Below, we provide a side-by-side comparison for cloning any Git repo.

Visual Studio Git

1. From the Git menu on the menu bar, choose Clone Repository to open the Clone a repository window.

2. In the Clone a repository window, enter the clone URL of the remote Git repo that you want to clone, verify the local folder path where you want to create the local clone, and then choose Clone.

Visual Studio Team Explorer

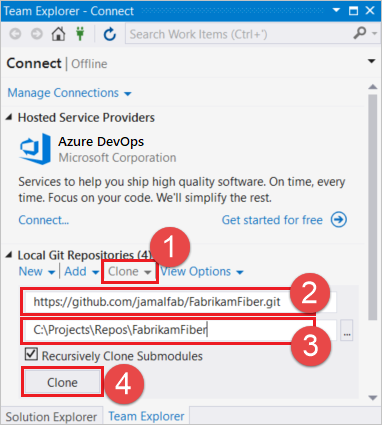

1. In Team Explorer, select Connect to open the Connect page, and then choose Clone under Local Git Repositories.

2. Enter the clone URL of the remote Git repo that you want to clone, verify the local folder path where you want to create the local clone, and then choose Clone. To clone the remote Git repo and any Git repos that are nested within it, leave Recursively Clone Submodules checked.

After you've cloned a remote Git repo, Visual Studio detects the local clone and adds it to the list of Local Repositories in the Git menu.

Visual Studio 2017 & earlier

1. In Team Explorer, open the Connect page by selecting the Connect button. Choose Manage Connections then Connect to Project.



2. Select Clone under Local Git Repositories and enter the URL for your Git repo. Your team or Git hosting provider gives you this URL.

3. Select a folder where you want your cloned repo, and then choose Clone.



Git Command Line

1. If you haven't already, download and install Git. Enable Git Credential Manager when prompted during the install, or configure SSH authentication.

2. At the command prompt, run the Git clone command with the clone URL of the remote repo. This command will create a local clone repo under the current folder.

git clone <clone URL>

The Git clone command also let's you specify a folder path after the clone URL to create the repo in a specific location. For example:

git clone https://fiber-teams@dev.azure.com/fiber-teams/FiberTests/_git/FiberTests C:\Repos\FiberTests

The Git clone command also let's you clone just a single branch. This option is useful when only one branch of a large repo is of interest to you.

git clone <clone URL> --single-branch <branch name>

Note

When you clone a remote repository, Git assigns the alias origin as shorthand for the URL of the remote repo you cloned. Git commands often use that alias.

Open a Visual Studio solution from a cloned repo

Visual Studio 2019

Visual Studio 2019 version 16.8 and later versions provides a Git version control experience while maintaining the Team Explorer Git user interface. To use Team Explorer, uncheck Tools > Options > Preview Features > New Git user experience from the menu bar. You can use Git features from either interface interchangeably. Below, we provide a side-by-side comparison for opening a Visual Studio solution from a cloned repo.

Visual Studio Git

1. Choose the File > Open > Project/Solution from the menu bar, and select the solution file to open.

2. The Visual Studio solution that you selected is now open in Solution Explorer.

Visual Studio Team Explorer

1. Right-click on a repository in the Connect view of Team Explorer and choose Open.

2. In the Home view of Team Explorer, double-click your solution file under Solutions.

3. The Visual Studio solution that you selected is now open in Solution Explorer.

Visual Studio 2017 & earlier

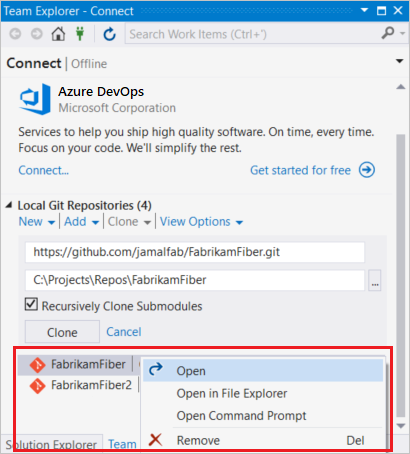

1. Right-click on a repository in the Team Explorer Connect view and select Open.

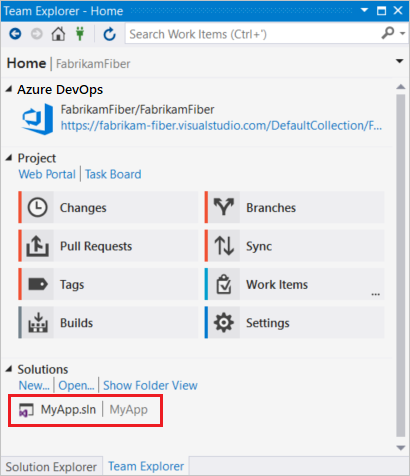

In the Home view in Team Explorer, double-click your project solution file in the Solutions area. The solution opens in Solution Explorer.

Git Command Line

At the command prompt, run the following command to open a Visual Studio solution from a cloned repo. This command isn't a Git command.

start <solution filepath>

For example:

start C:\Repos\FiberTests\FiberTests.sln

Next steps

Save work with commits
