How to migrate mailboxes from one Microsoft 365 or Office 365 organization to another
Note
At this time, we have a Public Preview of the native Cross-tenant mailbox migration located at https://aka.ms/CrossTenantMailboxMigration

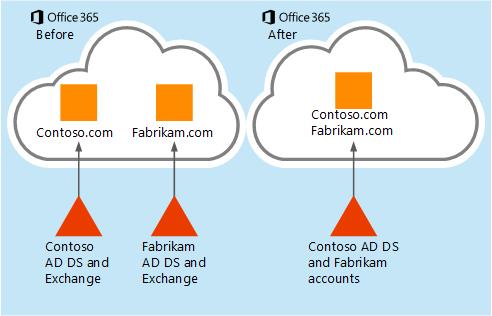

This article explains how to migrate mailboxes and service settings from one Microsoft 365 or Office 365 organization to another Microsoft 365 or Office 365 organization in a business-merger scenario. If you have more than 500 users to migrate or a large amount of SharePoint data to migrate, it's a good idea to work with a Microsoft solution provider.
The scenario in this article is based on two fictional companies - Contoso.com and Fabrikam.com - using two separate Office 365 organizations. Contoso has purchased Fabrikam and is moving the Fabrikam users and data to the contoso.com Office 365 organization.
| Domain | Tenant 1 (Target) | Tenant 2 (Source) |
|---|---|---|
| Custom email domain: | contoso.com | fabrikam.com |
| Office 365 initial domain: | contoso.onmicrosoft.com | fabrikam.onmicrosoft.com |
Scenario: Migrate using a third-party migration tool
This scenario assumes that user, group, and other objects from the Fabrikam Company will be manually created in Office 365, imported into the portal via script, or merged into the Contoso Active Directory through Active Directory Domain Services (AD DS) consolidation.
When complete, all Fabrikam accounts will exist in the Contoso.com Office 365 organization, and will all use @fabrikam.com for the UPN. The final addressing scheme was chosen for simplicity and brevity but can of course be modified to meet your requirements.
Planning: Two weeks before you migrate
If using a third-party migration tool to migrate your users, purchase the needed licenses for your migration.
Client considerations
For Outlook 2010 or above, you only need to remove the Outlook user profile and create it again.
For Outlook 2007 and Outlook 2010, when you're restarting the client, autodiscover will configure the client and rebuild the .OST file.
For the Skype for Business client, once migration is complete, since the process creates a new profile, you need to add contacts.
Tenant preparation and licensing
The source tenant is the Fabrikam Office 365 organization from which you're migrating users and data. The target tenant is the Contoso Office 365 organization to which you're migrating.
Increase licenses in Target Office 365 organization to accommodate all mailboxes that will be migrated from the source tenant.
Create Administrator accounts in source and target tenants for use in migrating from Office 365 to another Office 365. Some migration tools might require more than one admin account in the source tenant to optimize the data throughput.
Room, resource, distribution group, and user object creation in the target tenant
To create the resources in the target (Contoso) tenant:
If the Azure AD Connect tool will be used to sync all objects from the Contoso Active Directory Domain Services (AD DS), the objects from the source (Fabrikam) tenant AD DS must be created in the target tenant (Contoso) AD DS through consolidation.
AD DS consolidation can be done using various AD DS tools. Consolidation can take extra time and planning depending on how many objects are being moved, so it can be completed ahead of the migration project.
Verify that all new users and groups are synced to the Contoso.com target tenant via directory synchronization. The objects should appear as user@contoso.onmicrosoft.com in the new tenant since the Fabrikam domain hasn't been moved over at this time. The primary email address for the users and groups can be updated to @fabrikam.com after the domain move is complete.
If directory synchronization won't be used, or if any Rooms, Resources, Groups, or Users are managed in the Microsoft 365 admin center of the source tenant; these objects must be created in the target tenant. Objects can be created manually in the Microsoft 365 admin center or for larger numbers import a CSV file by using the bulk add feature in the Microsoft 365 admin center, or by using Windows PowerShell.
End-user communications
To communicate the migration to the end users in your organization:
Create a communication plan and begin to notify users of the upcoming migration and service changes.
After migration, the Auto-Complete List (also known as the nickname cache) will have to be cleared on all Outlook clients. To remove all recipients from your Auto-Complete list in Outlook 2010 later, see Manage suggested recipients in the To, Cc, and Bcc boxes with Auto-Complete.
Make users aware of how to connect to Outlook on the web (formerly known as Outlook Web App) with their new sign-on information in case they have a problem after migration.
Preparation and premigration activities: Three days before you migrate
Domain preparation
To prepare the domain for migration, complete the following steps.
Begin domain verification process on target (Contoso) tenant for the Fabrikam.com email domain.
In the contoso.com Microsoft 365 admin center, add the Fabrikam.com domain and create TXT records in Domain Name Systems (DNS) for verification.
Note
The verification will fail because the domain is still in use in the other tenant.
Performing this step now allows the DNS record time to propagate as it can take up to 72 hours. Final validation occurs later in the process.
Migration scheduling
To schedule the migration:
Create master list of user mailboxes you want to migrate.
Create mailbox mapping .CSV file for the third-party migration tool you're using. This mapping file will be used by the migration tool to match the source mailbox with the target tenant mailbox when migration occurs. We recommend that you use the *.onmicrosoft.com 'initial' domain for mapping the source accounts since the custom email domain will be constantly changing.
Mail exchanger record (MX record) time to live (TTL) test
Next, you'll schedule the TTL test.
In DNS, change the TTL value on the MX record for the primary email domain you wish to transfer to a small number (that is, 5 minutes). If the TTL can't be lowered to 5 minutes, make note of the lowest value. Example, if the lowest value is 4 hours, the MX record has to be changed 4 hours before your migration begins.
Mx Lookup can be used to verify MX and DNS changes.
Disable directory sync in source tenant
In the source tenant Microsoft 365 admin center, disable directory sync. This process can take 24 hours or more so it must be done ahead of the migration. Once disabled in the portal, any changes to the source tenant AD DS will no longer sync to the Office 365 organization. Adjust your existing user and group provisioning process accordingly.
Migration: The day you migrate
These are the steps you need the day you perform the migration.
MX record change - Stop inbound mail flow
Change your primary MX record from Office 365 to domain that isn't reachable, that is "unreachable.example.com". Internet mail servers attempting to deliver new mail will queue the mail and attempt redelivery for 24 hours. Using this method, some email may return a nondelivery report (NDR) depending on the server attempting to deliver the email. If this is a problem use an MX record backup service. There are many third-party services that queue your email for days or weeks. Once your migration is complete, these services deliver the queued mail to your new Office 365 organization.
Tip
If your TTL is short, for example, five minutes, this step can be done at the end of the work day to cause less disruption. If you have a larger TTL, you must change the MX record ahead of time to allow the TTL to expire. Example, a four hour TTL must be changed before 2 PM if you plan to begin migrations at 6 PM.
Verify your MX and DNS changes if necessary. Nslookup or a service like MxToolbox can be used to verify MX and DNS changes.
Source tenant preparation
The primary email domain, fabrikam.com, must be removed from all objects in the source tenant before the domain can be moved to the target tenant.
If you had also set up your domain with a SharePoint public website, then before you can remove the domain, you first have to set the website's URL back to the initial domain.
Remove all Lync licenses from the users in the source tenant using Lync admin portal. This removes the Lync Sip address connected to Fabrikam.com.
Reset default email addresses on Office 365 source mailboxes to the initial domain (fabrikam.onmicrosoft.com).
Reset default email addresses on all Distribution Lists, Rooms, and Resources to the initial domain (fabrikam.onmicrosoft.com) in source tenant.
Remove all secondary email (proxy addresses) from user objects that are still using @fabrikam.com.
Set default domain in source tenant to fabrikam.onmicrosoft.com routing domain (in the admin portal, click your company name in the upper right corner).
Use Windows PowerShell command
Get-MsolUser -DomainName Fabrikam.comto retrieve a list of all objects that are still using the domain and blocking removal.For common domain removal issues, see You get an error message when you try to remove a domain from Office 365.
Target tenant preparation
Complete the verification of the Fabrikam.com domain in the contoso.com tenant. You may have to wait one hour after removing the domain from the old tenant.
Configure autodiscover CNAME (internal/External) optional.
If you're using AD FS, configure the new domain in target tenant for AD FS.
Begin mailbox activation in the contoso.com tenant > Assign licenses to all of the new user accounts.
Set the Fabrikam.com email domain as the primary address on the new users. This can be done by selecting/editing multiple unlicensed users in the portal or by using Windows PowerShell.
If you aren't using the password hash sync feature, pass-through authentication or AD FS, set password on all mailboxes in the target (Contoso) tenant. If you aren't using a common password, notify users of the new password.
Once mailboxes are licensed and active, transition the mail routing. Point the Fabrikam MX record to Office 365 target (Contoso) tenant. When the MX TTL expires, mail begins to flow into the new empty mailboxes. If you're using an MX backup service, you can release the email to the new mailboxes.
Perform verification testing of mail flow to/from new mailboxes in the target tenant.
If you're using Exchange Online Protection (EOP): In the target tenant recreate mail flow rules (also known as transport rules), connectors, blocklists, allowlists, etc. from source tenant.
Begin migration
To minimize downtime and user inconvenience, determine the best method for migration.
Migration for 500 users or less: Migrate Mail Calendar and contact data to target tenant mailboxes. Limit mail migration by date if possible; for example, the last six months of data.
Migration for more than 500 users: Use a multi-pass approach where you migrate contacts, calendars, and only one week of email for all users, then on succeeding days or weeks, do multiple passes to fill in the mailboxes with older email data.
Start your mail migration via the third-party migration tool.
Monitor migration progress with the tools provided by the vendor. Send out periodic progress reports during migration to management and migration team.
Do second or third pass migrations, optional after all migrations are complete.
At the end of migration, Outlook 2007 and 2010 will sync the entire mailbox for each user, consuming considerable bandwidth depending on how much data you migrated into each mailbox. Outlook 2013 will only cache 12 months of data by default. This setting can be configured to more or less data, for example, only 3 months of data, which can lighten bandwidth usage.
Post migration: Cleanup
User may receive NDRs when replying to migrated email messages. The Outlook Auto-Complete List (also known as the nickname cache) needs to be cleared. To remove all recipients from your Auto-Complete list in Outlook 2010 later, see Manage suggested recipients in the To, Cc, and Bcc boxes with Auto-Complete. Alternatively, add the old legacy DN as an x.500 proxy address to all users.
Sample Windows PowerShell scripts
Use the following sample Windows PowerShell scripts as a starting point for creating your own scripts.
Office 365 bulk password reset
Create a CSV file named password.csv.
Insert "upn" and "newpassword" columns in this file (Example: johnsmith@contoso.com, Password1)
Use the Windows PowerShell command:
Import-Csv password.csv|%{Set-MsolUserPassword -userPrincipalName $_.upn -NewPassword $_.newpassword -ForceChangePassword $false}
Copy all Office 365 accounts with a specific proxy address into a CSV file
##########################################################################
# Script: showproxies.ps1
# Copies all accounts in Microsoft 365 that contain/don't contain a specific
# proxyaddress to a .CSV file (addresses.csv)
#
# Change the following variable to the proxy address string you want to find:
# $proxyaddr = "onmicrosoft.com"
################################################################################
$proxyaddr = "onmicrosoft.com"
# Create an object to hold the results
$addresses = @()
# Get every mailbox in the Exchange Organization
$Mailboxes = Get-Mailbox -ResultSize Unlimited
# Loop through the mailboxes
ForEach ($mbx in $Mailboxes) {
# Loop through every address assigned to the mailbox
Foreach ($address in $mbx.EmailAddresses) {
# If it contains XXX, Record it
if ($address.ToString().ToLower().contains($proxyaddr)) {
# This is an email address. Add it to the list
$obj = "" | Select-Object Alias,EmailAddress
$obj.Alias = $mbx.Alias
$obj.EmailAddress = $address.ToString() #.SubString(10)
$addresses += $obj
}
}
}
# Export the final object to a csv in the working directory
$addresses | Export-Csv addresses.csv -NoTypeInformation
# Open the csv with the default handler
Invoke-Item addresses.csv
##### END OF SHOWPROXIES.PS1
Bulk Create room mailboxes in Microsoft 365
Note
Before you run the following script, you need to install the Exchange Online PowerShell module. For instructions, see Install and maintain the Exchange Online PowerShell module. The module uses modern authentication.
Typically, you can use the script as-is if your organization is Microsoft 365 or Microsoft 365 GCC. If your organization is Office 365 Germany, Microsoft 365 GCC High, or Microsoft 365 DoD, you need to edit the
Connect-ExchangeOnlineline in the script. Specifically, you need to use the ExchangeEnvironmentName parameter and the appropriate value for your organization type. For more information, see the examples in Connect to Exchange Online PowerShell.
################################################################################
# Script: create-rooms.ps1
# Description:*** RUN THIS SCRIPT FROM A WINDOWS POWERSHELL SESSION ***
# This script creates room mailboxes in Microsoft 365.
# Syntax:Create-Rooms.ps1 -InputFile "file name.csv"
#
# Dependencies: Input file should contain 3 columns: RoomName, RoomSMTPAddress, RoomCapacity
#
################################################################################
param( $inputFile )
Function Usage
{
$strScriptFileName = ($MyInvocation.ScriptName).substring(($MyInvocation.ScriptName).lastindexofany("\") + 1).ToString()
@"
NAME:
$strScriptFileName
EXAMPLE:
C:\PS> .\$strScriptFileName -InputFile `"file name.csv`"
"@
}
If (-not $InputFile) {Usage;Exit}
If ($ExchRemoteCmdlets.State -ne "Opened")
{
Write-Host
Write-Host Connecting to Exchange Online PowerShell...
Write-Host
Import-Module ExchangeOnlineManagement
Connect-ExchangeOnline
$Global:ExchRemoteCmdlets = Get-PSSession -Name ExchangeOnlineInternalSession*
}
# Import the CSV file in Exchange Online
$csv = Import-CSV $inputfile
# Create Rooms contained in the CSV file in Exchange Online
$csv | foreach-object{
New-Mailbox -Name $_.RoomName -Room -PrimarySmtpAddress $_.RoomSMTPAddress -ResourceCapacity $_.RoomCapacity
}
##### END OF CREATE-ROOMS.PS1
Bulk remove secondary email address from mailboxes
Note
Before you run the following script, you need to install the Exchange Online PowerShell module. For instructions, see Install and maintain the Exchange Online PowerShell module. The module uses modern authentication.
Typically, you can use the script as-is if your organization is Microsoft 365 or Microsoft 365 GCC. If your organization is Office 365 Germany, Microsoft 365 GCC High, or Microsoft 365 DoD, you need to edit the
Connect-ExchangeOnlineline in the script. Specifically, you need to use the ExchangeEnvironmentName parameter and the appropriate value for your organization type. For more information, see the examples in Connect to Exchange Online PowerShell.
##########################################################################
# Script: remove-proxy.ps1
# Description:*** RUN THIS SCRIPT FROM A WINDOWS POWERSHELL SESSION ***
# This script will remove a secondary email address from many users
#
# Syntax:remove-proxy.ps1 -InputFile "filename.csv"
#
# Dependencies:Input file should contain 2 columns: Username, Emailsuffix
# Example: Username=tim, Emailsuffix=fabrikam.com
# Script will remove the address tim@fabrikam.com from the mailbox for Tim.
# NOTE: Address must be secondary; it will not remove primary email address.
#
################################################################################
param( $inputFile )
Function Usage
{
$strScriptFileName = ($MyInvocation.ScriptName).substring(($MyInvocation.ScriptName).lastindexofany
("\") + 1).ToString()
@"
NAME:
$strScriptFileName
EXAMPLE:
C:\PS> .\$strScriptFileName -inputfile `"file name.csv`"
"@
}
If (-not $inputFile) {Usage;Exit}
If ($ExchRemoteCmdlets.State -ne "Opened")
{
Write-Host
Write-Host Connecting to Exchange Online PowerShell...
Write-Host
Import-Module ExchangeOnlineManagement
Connect-ExchangeOnline
$Global:ExchRemoteCmdlets = Get-PSSession -Name ExchangeOnlineInternalSession*
}
# Import the CSV file and change primary smtp address in Exchange Online
$csv = Import-CSV $inputfile
$csv | foreach-object{
# Set variable for email address to remove in Exchange Online
$removeaddr = $_.username + "@" + $_.emailsuffix
Write-Host ("Processing User: " + $_.UserName +" - Removing " + $removeaddr)
Set-Mailbox $_.Username -EmailAddresses @{Remove=$removeaddr}
}
##### END OF REMOVE-PROXY.PS1
