Use the Azure portal to resize the VMs on your Azure Stack Edge Pro GPU

  • Članek

APPLIES TO: Yes for Pro GPU SKUAzure Stack Edge Pro - GPUYes for Pro 2 SKUAzure Stack Edge Pro 2Yes for Pro R SKUAzure Stack Edge Pro RYes for Mini R SKUAzure Stack Edge Mini R

This article explains how to resize the virtual machines (VMs) deployed on your Azure Stack Edge Pro GPU device.

About VM sizing

The VM size determines the amount of compute resources (like CPU, GPU, and memory) that are made available to the VM. You should create virtual machines by using a VM size appropriate for your application workload.

Even though all the machines will be running on the same hardware, machine sizes have different limits for disk access. This can help you manage overall disk access across your VMs. If a workload increases, you can also resize an existing virtual machine.

For more information, see Supported VM sizes for your device.

Prerequisites

Before you resize a VM running on your device via the Azure portal, make sure that:

  1. You have at least one VM deployed on your device. To create this VM, see the instructions in Deploy VM on your Azure Stack Edge Pro via the Azure portal.

  2. Your VM should be in Stopped state. To stop your VM, go to Virtual machines > Overview and select the VM you want to stop. In the Overview page, select Stop and then select Yes when prompted for confirmation. Before you resize your VM, you must stop the VM.

    Screenshot of the screen for stopping a VM from the Virtual Machines overview. The Yes button is highlighted.

Resize a VM

Follow these steps to resize a virtual machine deployed on your device.

  1. Go to the virtual machine that you have stopped, and select VM size (change) in the virtual machine Details.

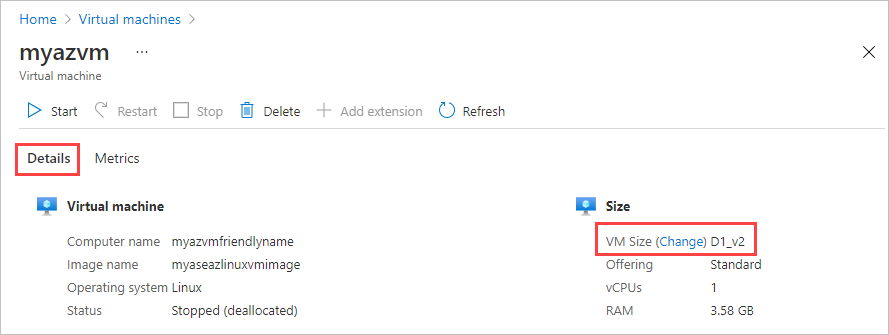

    Screenshot of the Details tab for a virtual machine. The Details tab and the VM Size option are highlighted.

  2. In the Change VM size blade, from the command bar, select the VM size and then select Change.

    Screenshot of the Change VM size screen. A VM size is highlighted, as is the Change button.

  3. You'll see a notification that the virtual machine is being updated. After the virtual machine is successfully updated, the Overview page refreshes to display the resized VM.

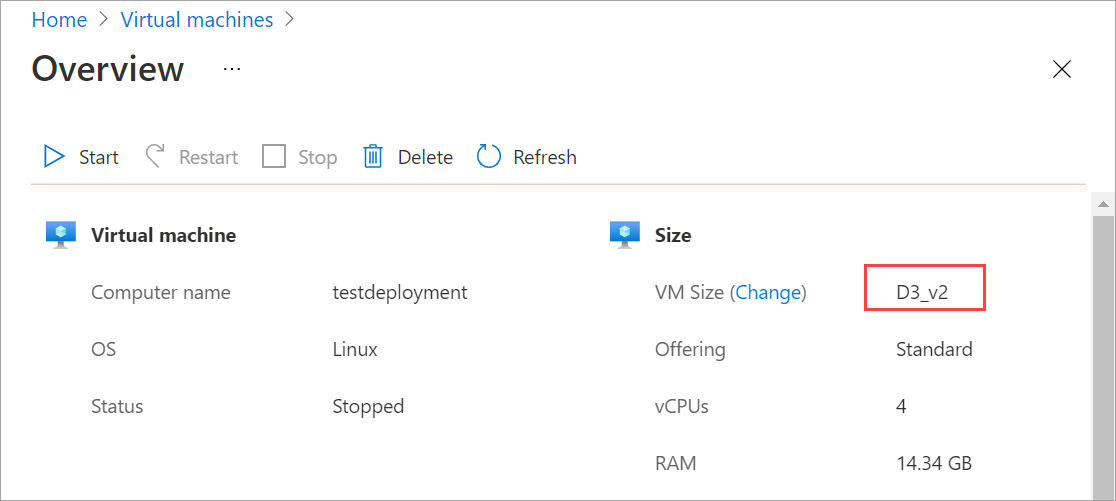

    Screenshot of the Overview page for a VM. The VM Size value for the resized VM is highlighted.

Next steps

To learn how to deploy virtual machines on your Azure Stack Edge Pro device, see Deploy virtual machines via the Azure portal.
