Monitor VM activity on your Azure Stack Edge Pro GPU device

  • Članek

APPLIES TO: Yes for Pro GPU SKUAzure Stack Edge Pro - GPUYes for Pro 2 SKUAzure Stack Edge Pro 2Yes for Pro R SKUAzure Stack Edge Pro RYes for Mini R SKUAzure Stack Edge Mini R

This article describes how to view activity logs in the Azure portal for virtual machines on your Azure Stack Edge Pro GPU device.

Note

You can zoom in on a VM's CPU and memory usage during periods of activity on the Metrics tab for the virtual machine. For more information, see Monitor VM metrics.

View activity logs

To view activity logs for the virtual machines on your Azure Stack Edge Pro GPU device, do these steps:

  1. Go to the device and then to Virtual Machines. Select Activity log.

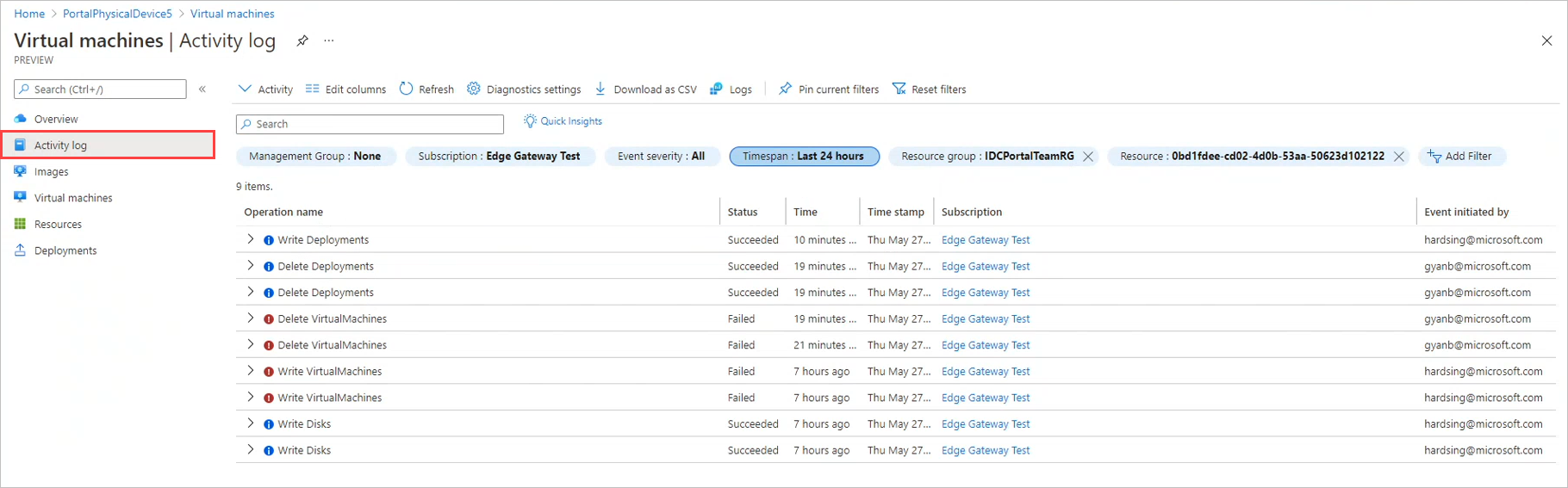

    Screenshot showing the Activity log pane for virtual machines on an Azure Stack Edge device. Activity log is highlighted in the navigation pane.

    You'll see the VM guest logs for virtual machines on the device.

  2. Use filters above the list to target the activity you need to see.

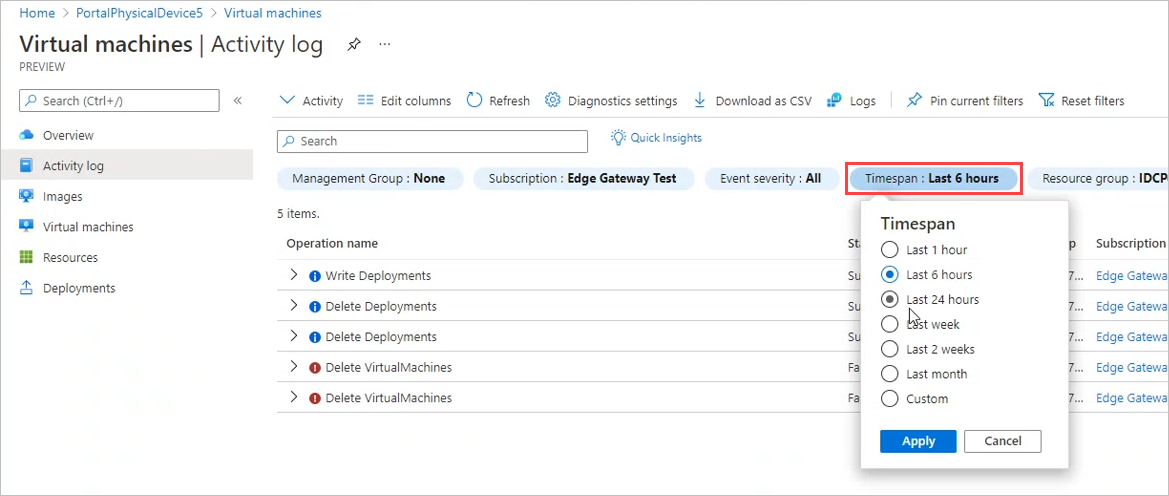

    Screenshot showing the Timespan options on the Activity logs page for Virtual Machines. The selected time span is highlighted.

  3. Click the down arrow by an operation name to view the associated activity.

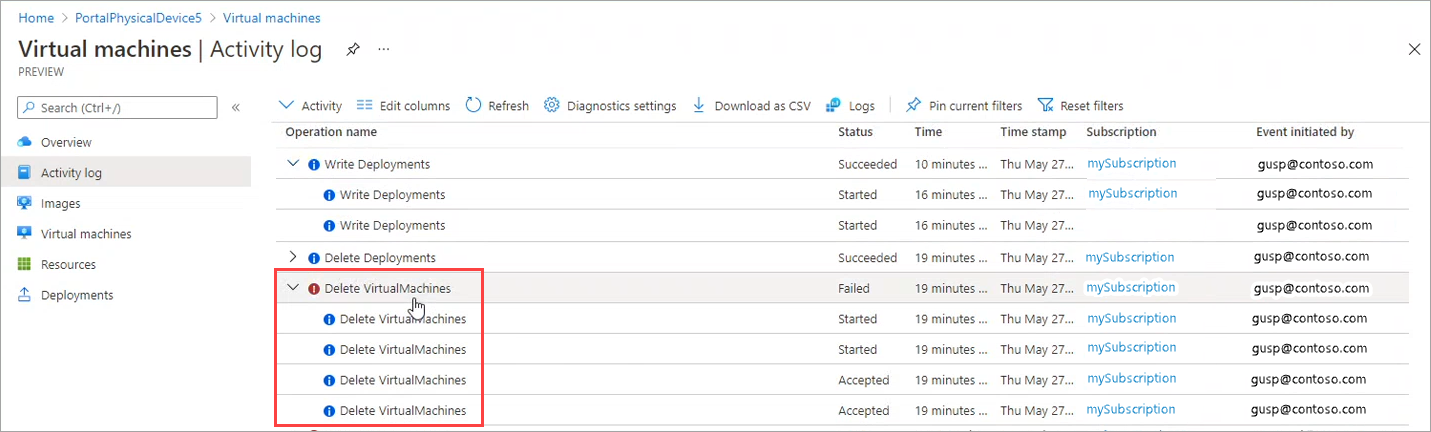

    Screenshot showing the Activity logs page for Virtual Machines on an Azure Stack Edge device. An expanded operation is highlighted in the list.

On any Activity log pane in Azure, you can filter and sort activities, select columns to display, drill down to details for a specific activity, and get Quick Insights into errors, failed deployments, alerts, service health, and security changes over the last 24 hours. For more information about the logs and the filtering options, see View activity logs.
