Debug Power BI custom visuals
This article describes some basic debugging procedures that you can use when developing your visual. After you read this article, you should be able to debug your visual by inserting breakpoints and working with exceptions.
Insert breakpoints
The visual's entire JavaScript is reloaded every time the visual is updated. Any breakpoints that you add will be lost when the debug visual is refreshed.
As a workaround, use debugger statements in your code. We recommend that you turn off automatic reload while using debugger in your code.
Here's an example of how to use a debugger statement in your update method:
public update(options: VisualUpdateOptions) {
console.log('Visual update', options);
debugger;
this.target.innerHTML = `<p>Update count: <em>${(this.updateCount</em></p>`;
}
Catch exceptions
When you're working on your visual, you notice that the Power BI service "consumes" all errors. This behavior is an intentional feature of Power BI. It prevents misbehaving visuals from causing the entire app to become unstable.
As a workaround, add code to catch and log your exceptions, or set your debugger to break on caught exceptions.
Log exceptions with a decorator
To log exceptions in your Power BI visual, you need define an exception-logging decorator. To define the decorator, add the following code to your visual:
export function logExceptions(): MethodDecorator {
return function (target: Object, propertyKey: string, descriptor: TypedPropertyDescriptor<any>): TypedPropertyDescriptor<any> {
return {
value: function () {
try {
return descriptor.value.apply(this, arguments);
} catch (e) {
console.error(e);
throw e;
}
}
}
}
}
You can use this decorator on any function to see error logging as follows:
@logExceptions()
public update(options: VisualUpdateOptions) {
Break on exceptions
You can set the browser to break on caught exceptions. Breaking stops code execution wherever an error happens, and you can debug from there.

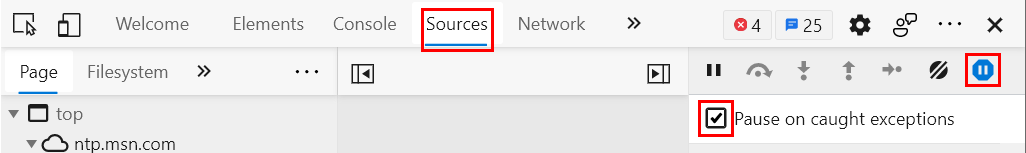

Open DevTools (F12).
Go to the Sources tab.
Select the Pause on exceptions icon (stop sign with a pause symbol).
Select the Pause on caught exceptions checkbox.
