Contrast effect

Increases or decreases the contrast of an image.

The CLSID for this effect is CLSID_D2D1Contrast.

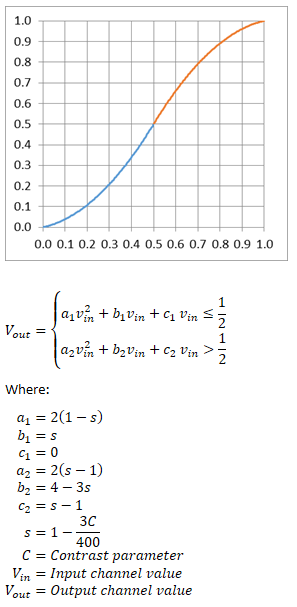

The contrast function modifies each color channel value using two, piecewise quadratic polynomials that meet with slope continuity at the point (0.5, 0.5).

• Example Images
• Sample Code
• Effect Properties
• Requirements
• Related topics

Example images

This example shows the output of the effect with maximum contrast applied (Contrast = 1.0).

Before

After

Sample code

ComPtr<ID2D1Effect> contrastEffect;
m_d2dContext->CreateEffect(CLSID_D2D1Contrast, &contrastEffect);

contrastEffect->SetInput(0, bitmap);
contrastEffect->SetValue(D2D1_CONTRAST_PROP_CONTRAST, 0.5f);
contrastEffect->SetValue(D2D1_CONTRAST_PROP_CLAMP_INPUT, TRUE);

m_d2dContext->BeginDraw();
m_d2dContext->DrawImage(contrastEffect.Get());
m_d2dContext->EndDraw();

Effect properties

The properties for the contrast effect are defined by the D2D1_CONTRAST_PROP enumeration.

Requirements

Requirement	Value
Minimum supported client	Windows 10 [desktop apps | Windows Store apps]
Minimum supported server	Windows 10 [desktop apps | Windows Store apps]
Header	d2d1effects_2.h
Library	d2d1.lib, dxguid.lib

Related topics

• ID2D1Effect interface
