Use named values in Azure API Management policies

APPLIES TO: All API Management tiers

API Management policies are a powerful capability of the system that allow the publisher to change the behavior of the API through configuration. Policies are a collection of statements that are executed sequentially on the request or response of an API. Policy statements can be constructed using literal text values, policy expressions, and named values.

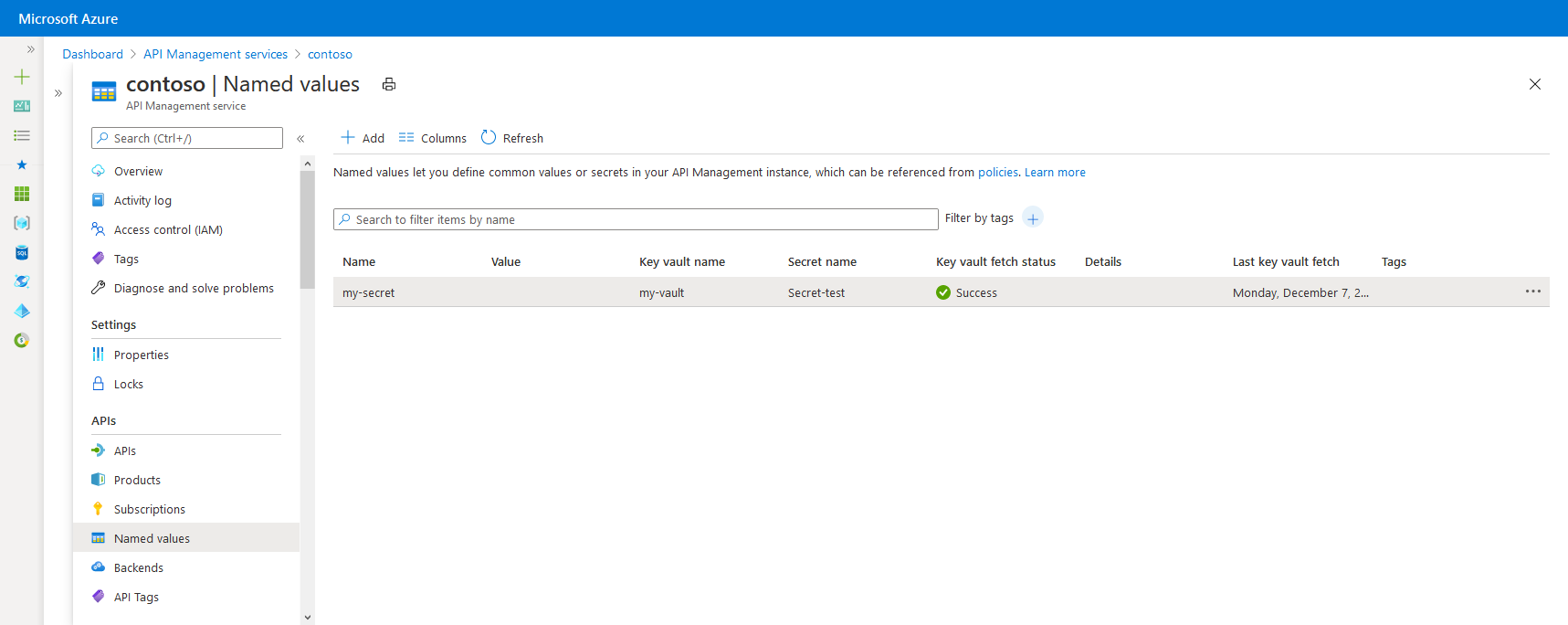

Named values are a global collection of name/value pairs in each API Management instance. There is no imposed limit on the number of items in the collection. Named values can be used to manage constant string values and secrets across all API configurations and policies.

Value types

Type	Description
Plain	Literal string or policy expression
Secret	Literal string or policy expression that is encrypted by API Management
Key vault	Identifier of a secret stored in an Azure key vault.

Plain values or secrets can contain policy expressions. For example, the expression @(DateTime.Now.ToString()) returns a string containing the current date and time.

For details about the named value attributes, see the API Management REST API reference.

Key vault secrets

Secret values can be stored either as encrypted strings in API Management (custom secrets) or by referencing secrets in Azure Key Vault.

Using key vault secrets is recommended because it helps improve API Management security:

• Secrets stored in key vaults can be reused across services
• Granular access policies can be applied to secrets
• Secrets updated in the key vault are automatically rotated in API Management. After update in the key vault, a named value in API Management is updated within 4 hours. You can also manually refresh the secret using the Azure portal or via the management REST API.

Note

The secrets stored in Azure Key Vault must be between 1 and 4096 characters, as API Management cannot retrieve values that exceed this limit.

Prerequisites

• If you have not created an API Management service instance yet, see Create an API Management service instance.

Prerequisites for key vault integration

Note

Currently, this feature isn't available in workspaces.

• If you don't already have a key vault, create one. For steps to create a key vault, see Quickstart: Create a key vault using the Azure portal.

  To create or import a secret to the key vault, see Quickstart: Set and retrieve a secret from Azure Key Vault using the Azure portal.

• Enable a system-assigned or user-assigned managed identity in the API Management instance.

Configure access to key vault

1. In the portal, navigate to your key vault.

2. In the left menu, select Access configuration, and note the Permission model that is configured.

3. Depending on the permission model, configure either a key vault access policy or Azure RBAC access for an API Management managed identity.

   To add a key vault access policy:


   1. In the left menu, select Access policies.
   2. On the Access policies page,select + Create.
   3. On the Permissions tab, under Secret permissions, select Get and List, then select Next.
   4. On the Principal tab, Select principal, search for the resource name of your managed identity, and then select Next. If you're using a system-assigned identity, the principal is the name of your API Management instance.
   5. Select Next again. On the Review + create tab, select Create.

   To configure Azure RBAC access:


   1. In the left menu, select Access control (IAM).
   2. On the Access control (IAM) page, select Add role assignment.
   3. On the Role tab, select Key Vault Certificate User.
   4. On the Members tab, select Managed identity > + Select members.
   5. On the Select managed identity page, select the system-assigned managed identity or a user-assigned managed identity associated with your API Management instance, and then select Select.
   6. Select Review + assign.

Requirements for Key Vault firewall

If Key Vault firewall is enabled on your key vault, the following are additional requirements:

• You must use the API Management instance's system-assigned managed identity to access the key vault.

• In Key Vault firewall, enable the Allow Trusted Microsoft Services to bypass this firewall option.

• Ensure that your local client IP address is allowed to access the key vault temporarily while you select a certificate or secret to add to Azure API Management. For more information, see Configure Azure Key Vault networking settings.

  After completing the configuration, you may block your client address in the key vault firewall.

Virtual network requirements

If the API Management instance is deployed in a virtual network, also configure the following network settings:

• Enable a service endpoint to Azure Key Vault on the API Management subnet.
• Configure a network security group (NSG) rule to allow outbound traffic to the AzureKeyVault and AzureActiveDirectory service tags.

For details, see Network configuration when setting up Azure API Management in a VNet.

Add or edit a named value

Add a key vault secret to API Management

See Prerequisites for key vault integration.

Important

When adding a key vault secret to your API Management instance, you must have permissions to list secrets from the key vault.

Caution

When using a key vault secret in API Management, be careful not to delete the secret, key vault, or managed identity used to access the key vault.

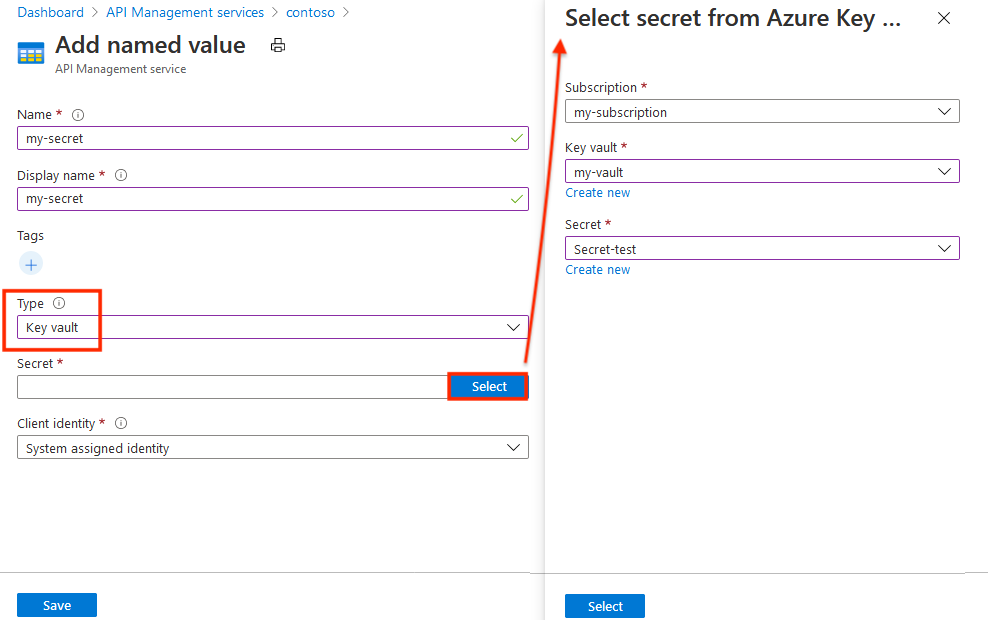

1. In the Azure portal, navigate to your API Management instance.

2. Under APIs, select Named values > +Add.

3. Enter a Name identifier, and enter a Display name used to reference the property in policies.

4. In Value type, select Key vault.

5. Enter the identifier of a key vault secret (without version), or choose Select to select a secret from a key vault.

   Important

   If you enter a key vault secret identifier yourself, ensure that it doesn't have version information. Otherwise, the secret won't rotate automatically in API Management after an update in the key vault.

6. In Client identity, select a system-assigned or an existing user-assigned managed identity. Learn how to add or modify managed identities in your API Management service.

   Note

   The identity needs permissions to get and list secrets from the key vault. If you haven't already configured access to the key vault, API Management prompts you so it can automatically configure the identity with the necessary permissions.

7. Add one or more optional tags to help organize your named values, then Save.

8. Select Create.



Add a plain or secret value to API Management

Portal

1. In the Azure portal, navigate to your API Management instance.
2. Under APIs, select Named values > +Add.
3. Enter a Name identifier, and enter a Display name used to reference the property in policies.
4. In Value type, select Plain or Secret.
5. In Value, enter a string or policy expression.
6. Add one or more optional tags to help organize your named values, then Save.
7. Select Create.

Once the named value is created, you can edit it by selecting the name. If you change the display name, any policies that reference that named value are automatically updated to use the new display name.

Azure CLI

To begin using Azure CLI:

• Use the Bash environment in Azure Cloud Shell. For more information, see Quickstart for Bash in Azure Cloud Shell.



• If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.

  • If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Sign in with the Azure CLI.

  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use extensions with the Azure CLI.

  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.

To add a named value, use the az apim nv create command:

az apim nv create --resource-group apim-hello-word-resource-group \
    --display-name "named_value_01" --named-value-id named_value_01 \
    --secret true --service-name apim-hello-world --value test

After you create a named value, you can update it by using the az apim nv update command. To see all your named values, run the az apim nv list command:

az apim nv list --resource-group apim-hello-word-resource-group \
    --service-name apim-hello-world --output table

To see the details of the named value you created for this example, run the az apim nv show command:

az apim nv show --resource-group apim-hello-word-resource-group \
    --service-name apim-hello-world --named-value-id named_value_01

This example is a secret value. The previous command does not return the value. To see the value, run the az apim nv show-secret command:

az apim nv show-secret --resource-group apim-hello-word-resource-group \
    --service-name apim-hello-world --named-value-id named_value_01

To delete a named value, use the az apim nv delete command:

az apim nv delete --resource-group apim-hello-word-resource-group \
    --service-name apim-hello-world --named-value-id named_value_01

Use a named value

The examples in this section use the named values shown in the following table.

Name	Value	Secret
ContosoHeader	TrackingId	False
ContosoHeaderValue	••••••••••••••••••••••	True
ExpressionProperty	@(DateTime.Now.ToString())	False
ContosoHeaderValue2	This is a header value.	False

To use a named value in a policy, place its display name inside a double pair of braces like {{ContosoHeader}}, as shown in the following example:

<set-header name="{{ContosoHeader}}" exists-action="override">
  <value>{{ContosoHeaderValue}}</value>
</set-header>

In this example, ContosoHeader is used as the name of a header in a set-header policy, and ContosoHeaderValue is used as the value of that header. When this policy is evaluated during a request or response to the API Management gateway, {{ContosoHeader}} and {{ContosoHeaderValue}} are replaced with their respective values.

Named values can be used as complete attribute or element values as shown in the previous example, but they can also be inserted into or combined with part of a literal text expression as shown in the following example:

<set-header name = "CustomHeader{{ContosoHeader}}" ...>

Named values can also contain policy expressions. In the following example, the ExpressionProperty expression is used.

<set-header name="CustomHeader" exists-action="override">
    <value>{{ExpressionProperty}}</value>
</set-header>

When this policy is evaluated, {{ExpressionProperty}} is replaced with its value, @(DateTime.Now.ToString()). Since the value is a policy expression, the expression is evaluated and the policy proceeds with its execution.

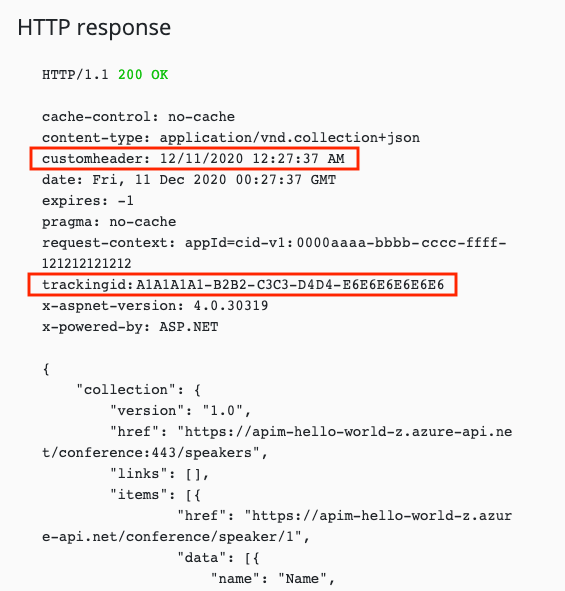

You can test this in the Azure portal or the developer portal by calling an operation that has a policy with named values in scope. In the following example, an operation is called with the two previous example set-header policies with named values. Notice that the response contains two custom headers that were configured using policies with named values.

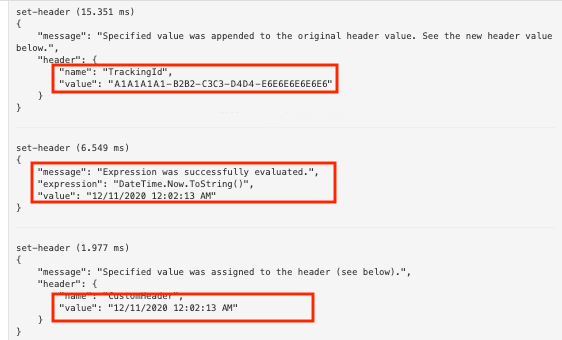

If you look at the outbound API trace for a call that includes the two previous sample policies with named values, you can see the two set-header policies with the named values inserted as well as the policy expression evaluation for the named value that contained the policy expression.

String interpolation can also be used with named values.

<set-header name="CustomHeader" exists-action="override">
    <value>@($"The URL encoded value is {System.Net.WebUtility.UrlEncode("{{ContosoHeaderValue2}}")}")</value>
</set-header>

The value for CustomHeader will be The URL encoded value is This+is+a+header+value..

Caution

If a policy references a secret in Azure Key Vault, the value from the key vault will be visible to users who have access to subscriptions enabled for API request tracing.

While named values can contain policy expressions, they can't contain other named values. If text containing a named value reference is used for a value, such as Text: {{MyProperty}}, that reference won't be resolved and replaced.

Delete a named value

To delete a named value, select the name and then select Delete from the context menu (...).

Important

If the named value is referenced by any API Management policies, you can't delete it until you remove the named value from all policies that use it.

Next steps

• Learn more about working with policies
  • Policies in API Management
  • Policy reference
  • Policy expressions
