Application security groups

  • Чланак

Application security groups enable you to configure network security as a natural extension of an application's structure, allowing you to group virtual machines and define network security policies based on those groups. You can reuse your security policy at scale without manual maintenance of explicit IP addresses. The platform handles the complexity of explicit IP addresses and multiple rule sets, allowing you to focus on your business logic. To better understand application security groups, consider the following example:

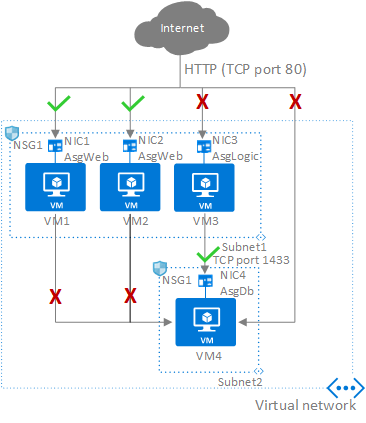

Diagram of Application security groups.

In the previous picture, NIC1 and NIC2 are members of the AsgWeb application security group. NIC3 is a member of the AsgLogic application security group. NIC4 is a member of the AsgDb application security group. Though each network interface (NIC) in this example is a member of only one application security group, a network interface can be a member of multiple application security groups, up to the Azure limits. None of the network interfaces have an associated network security group. NSG1 is associated to both subnets and contains the following rules:

Allow-HTTP-Inbound-Internet

This rule is needed to allow traffic from the internet to the web servers. Because inbound traffic from the internet is denied by the DenyAllInbound default security rule, no extra rule is needed for the AsgLogic or AsgDb application security groups.

Priority Source Source ports Destination Destination ports Protocol Access
100 Internet * AsgWeb 80 TCP Allow

Deny-Database-All

Because the AllowVNetInBound default security rule allows all communication between resources in the same virtual network, this rule is needed to deny traffic from all resources.

Priority Source Source ports Destination Destination ports Protocol Access
120 * * AsgDb 1433 Any Deny

Allow-Database-BusinessLogic

This rule allows traffic from the AsgLogic application security group to the AsgDb application security group. The priority for this rule is higher than the priority for the Deny-Database-All rule. As a result, this rule is processed before the Deny-Database-All rule, so traffic from the AsgLogic application security group is allowed, whereas all other traffic is blocked.

Priority Source Source ports Destination Destination ports Protocol Access
110 AsgLogic * AsgDb 1433 TCP Allow

Network interfaces that are members of the application security group apply the rules that specify it as the source or destination. The rules don't affect other network interfaces. If the network interface isn't a member of an application security group, the rule isn't applied to the network interface, even though the network security group is associated to the subnet.

Application security groups have the following constraints:

  • There are limits to the number of application security groups you can have in a subscription, and other limits related to application security groups. For details, see Azure limits.

  • All network interfaces assigned to an application security group have to exist in the same virtual network that the first network interface assigned to the application security group is in. For example, if the first network interface assigned to an application security group named AsgWeb is in the virtual network named VNet1, then all subsequent network interfaces assigned to ASGWeb must exist in VNet1. You can't add network interfaces from different virtual networks to the same application security group.

  • If you specify an application security group as the source and destination in a security rule, the network interfaces in both application security groups must exist in the same virtual network.

    • An example would be if AsgLogic had network interfaces from VNet1 and AsgDb had network interfaces from VNet2. In this case, it would be impossible to assign AsgLogic as the source and AsgDb as the destination in a rule. All network interfaces for both the source and destination application security groups need to exist in the same virtual network.

Tip

To minimize the number of security rules you need, and the need to change the rules, plan out the application security groups you need and create rules using service tags or application security groups, rather than individual IP addresses, or ranges of IP addresses, whenever possible.
