Tutorial: Microsoft Entra single sign-on (SSO) integration with PagerDuty

In this tutorial, you'll learn how to integrate PagerDuty with Microsoft Entra ID. When you integrate PagerDuty with Microsoft Entra ID, you can:

• Control in Microsoft Entra ID who has access to PagerDuty.
• Enable your users to be automatically signed-in to PagerDuty with their Microsoft Entra accounts.
• Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

• A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
• PagerDuty single sign-on (SSO) enabled subscription.

Note

If you are using MFA or Passwordless authentication with Microsoft Entra ID then switch off the AuthnContext value in the SAML Request. Otherwise Microsoft Entra ID will throw the error on mismatch of the AuthnContext and will not send the token back to the application.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

• PagerDuty supports SP initiated SSO

Add PagerDuty from the gallery

To configure the integration of PagerDuty into Microsoft Entra ID, you need to add PagerDuty from the gallery to your list of managed SaaS apps.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > New application.
3. In the Add from the gallery section, type PagerDuty in the search box.
4. Select PagerDuty from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra single sign-on for PagerDuty

Configure and test Microsoft Entra SSO with PagerDuty using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in PagerDuty.

To configure and test Microsoft Entra SSO with PagerDuty, complete the following building blocks:

1. Configure Microsoft Entra SSO - to enable your users to use this feature.
   1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
   2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
2. Configure PagerDuty SSO - to configure the single sign-on settings on application side.
   1. Create PagerDuty test user - to have a counterpart of B.Simon in PagerDuty that is linked to the Microsoft Entra representation of user.
3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

2. Browse to Identity > Applications > Enterprise applications > PagerDuty > Single sign-on.

3. On the Select a single sign-on method page, select SAML.

4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.



5. On the Basic SAML Configuration section, perform the following steps:

   a. In the Sign on URL text box, type a URL using the following pattern: https://<tenant-name>.pagerduty.com

   b. In the Identifier (Entity ID) text box, type a URL using the following pattern: https://<tenant-name>.pagerduty.com

   c. In the Reply URL text box, type a URL using the following pattern: https://<tenant-name>.pagerduty.com

   Note

   These values are not real. Update these values with the actual Sign on URL, Identifier and Reply URL. Contact PagerDuty Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.



7. On the Set up PagerDuty section, copy the appropriate URL(s) based on your requirement.



Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
2. Browse to Identity > Users > All users.
3. Select New user > Create new user, at the top of the screen.
4. In the User properties, follow these steps:
   1. In the Display name field, enter B.Simon.
   2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
   3. Select the Show password check box, and then write down the value that's displayed in the Password box.
   4. Select Review + create.
5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to PagerDuty.

1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
2. Browse to Identity > Applications > Enterprise applications > PagerDuty.
3. In the app's overview page, find the Manage section and select Users and groups.
4. Select Add user, then select Users and groups in the Add Assignment dialog.
5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
7. In the Add Assignment dialog, click the Assign button.

Configure PagerDuty SSO

1. In a different web browser window, sign into your Pagerduty company site as an administrator.

2. In the menu on the top, click Account Settings.



3. Click Single Sign-on.



4. On the Enable Single Sign-on (SSO) page, perform the following steps:



   a. Open your base-64 encoded certificate downloaded from Azure portal in notepad, copy the content of it into your clipboard, and then paste it to the X.509 Certificate textbox

   b. In the Login URL textbox, paste Login URL..

   c. In the Logout URL textbox, paste Logout URL..

   d. Select Allow username/password login.

   e. Select Require EXACT authentication context comparison checkbox.

   f. Click Save Changes.

Create PagerDuty test user

To enable Microsoft Entra users to sign into PagerDuty, they must be provisioned into PagerDuty. In the case of PagerDuty, provisioning is a manual task.

Note

You can use any other Pagerduty user account creation tools or APIs provided by Pagerduty to provision Microsoft Entra user accounts.

To provision a user account, perform the following steps:

1. Sign into your Pagerduty tenant.

2. In the menu on the top, click Users.

3. Click Add Users.

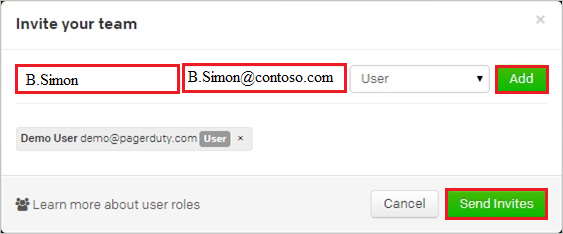

4. On the Invite your team dialog, perform the following steps:



   a. Type the First and Last Name of user like B.Simon.

   b. Enter Email address of user like b.simon@contoso.com.

   c. Click Add, and then click Send Invites.

   Note

   All added users will receive an invite to create a PagerDuty account.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

• Click on Test this application, this will redirect to PagerDuty Sign-on URL where you can initiate the login flow.

• Go to PagerDuty Sign-on URL directly and initiate the login flow from there.

• You can use Microsoft My Apps. When you click the PagerDuty tile in the My Apps, this will redirect to PagerDuty Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure PagerDuty you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
