Manage Change Tracking and Inventory

  • Članak

Important

Change Tracking and Inventory using Log Analytics agent has retired on 31 August 2024 and will work on limited support till 01 February 2025. We recommend that you use Azure Monitoring Agent as the new supporting agent. Follow the guidelines for migration from Change Tracking and inventory using Log Analytics to Change Tracking and inventory using Azure Monitoring Agent version.

Note

Change Tracking & Inventory with Log Analytics onboarding via Azure portal will not be allowed since the service has retired on 31st August 2024. We recommend that you configure new version of Change Tracking & Inventory with AMA. Your existing VMs on Change Tracking & Inventory with legacy agent will continue to work till 1st February, 2025. For more information, see Enable Change Tracking and Inventory using Azure Monitoring Agent.

When you add a new file or registry key to track, Azure Automation enables it for Change Tracking and Inventory. This article describes how to configure tracking, review tracking results, and handle alerts when changes are detected.

Before using the procedures in this article, ensure that you've enabled Change Tracking and Inventory on your VMs using one of these techniques:

Limit the scope for the deployment

Change Tracking and Inventory uses a scope configuration within the workspace to target the computers to receive changes. For more information, see Limit Change Tracking and Inventory deployment scope.

Track files

You can use Change Tracking and Inventory to track changes to files and folders/directories. This section tells how to configure file tracking on Windows and on Linux.

Configure file tracking on Windows

Use the following steps to configure file tracking on Windows computers:

  1. Sign in to the Azure portal.

  2. In the Azure portal, select All services. In the list of resources, type Automation. As you begin typing, the list filters suggestions based on your input. Select Automation Accounts.

  3. In your list of Automation accounts, select the account you chose when you enabled Change Tracking and Inventory.

  4. In your Automation account, select Change tracking under Configuration Management.

  5. Select Edit Settings (the gear symbol).

  6. On the Workspace Configuration page, select Windows Files, then click + Add to add a new file to track.

  7. On the Add Windows File for Change Tracking pane, enter the information for the file or folder to track and click Save. The following table defines the properties that you can use for the information.

    Property Description
    Enabled True if the setting is applied, and False otherwise.
    Item Name Friendly name of the file to be tracked.
    Group A group name for logically grouping files.
    Enter Path The path to check for the file, for example, c:\temp\*.txt. You can also use environment variables, such as %winDir%\System32\\\*.*.
    Path Type The type of path. Possible values are File and Folder.
    Recursion True if recursion is used when looking for the item to be tracked, and False otherwise.
    Upload file content True to upload file content on tracked changes, and False otherwise.

    If you plan on configuring monitoring of files and folders using wildcards, consider the following:

    • Wildcards are required for tracking multiple files.
    • Wildcards can only be used in the last segment of a path, such as C:\folder\file or /etc/.conf*
    • If an environment variable includes a path that is not valid, validation will succeed but the path will fail when inventory runs.
    • When setting the path, avoid general paths such as c:.** which will result in too many folders being traversed.

  8. Ensure that you specify True for Upload file content. This setting enables file content tracking for the indicated file path.

Configure file tracking on Linux

Use the following steps to configure file tracking on Linux computers:

  1. Select Edit Settings (the gear symbol).

  2. On the Workspace Configuration page, select Linux Files, then select + Add to add a new file to track.

  3. On the Add Linux File for Change Tracking page, enter the information for the file or directory to track and then select Save. The following table defines the properties that you can use for the information.

    Property Description
    Enabled True if the setting is applied, and False otherwise.
    Item Name Friendly name of the file to be tracked.
    Group A group name for logically grouping files.
    Enter Path The path to check for the file, for example, /etc/*.conf.
    Path Type The type of path. Possible values are File and Directory.
    Recursion True if recursion is used when looking for the item to be tracked, and False otherwise.
    Use Sudo True to use sudo when checking for the item, and False otherwise.
    Note: The Use Sudo feature is currently available on the Azure portal and not yet implemented in the Change Tracking service. Therefore, when you edit the settings on the Azure portal, you will not find any change in the service.
    Links Setting that determines how to deal with symbolic links when traversing directories. Possible values are:
    Ignore - Ignores symbolic links and doesn't include the files/directories referenced.
    Follow - Follows the symbolic links during recursion and also includes the files/directories referenced.
    Manage - Follows the symbolic links and allows alteration of returned content.
    Note: The Manage option isn't recommended, as it doesn't support file content retrieval.
    Upload file content True to upload file content on tracked changes, and False otherwise.

  4. Ensure that you specify True for Upload file content. This setting enables file content tracking for the indicated file path.

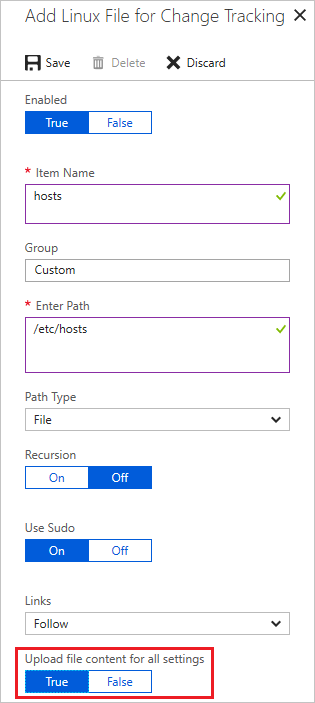

    Add Linux file

Track file contents

File content tracking allows you to view the contents of a file before and after a tracked change. The feature saves the file contents to a storage account after each change occurs. Here are some rules to follow for tracking file contents:

  • A standard storage account using the Resource Manager deployment model is required for storing file content.
  • By default, storage accounts accept connections from clients on any network. If you have secured your storage account to allow only certain traffic, you need to modify your configuration rules to allow your Automation account to connect to it. See Configure Azure Storage firewalls and virtual networks.
  • Don't use premium and classic deployment model storage accounts. See About Azure Storage accounts.
  • You can connect the storage account to only one Automation account.
  • Change Tracking and Inventory must be enabled in your Automation account.

Note

If the file size appears >1.25MB, then FileContentChecksum is incorrect due to memory constraints in the checksum calculation.

Enable tracking for file content changes

Use the following steps to enable tracking for changes to file contents:

  1. Select Edit Settings (the gear symbol).

  2. Select File Content and then select Link. This selection opens the Add Content Location for Change Tracking page.

    Add content location

  3. Select the subscription and storage account to use for storing the file contents.

  4. If you want to enable file content tracking for all existing tracked files, select On for Upload file content for all settings. You can change this setting for each file path later.

    Set storage account

  5. Change Tracking and Inventory shows storage account and Shared Access Signature (SAS) URIs when it enables file content change tracking. The signatures expire after 365 days, and you can recreate them by selecting Regenerate.

    List account keys

View the contents of a tracked file

Once Change Tracking and Inventory detects a change for a tracked file, you can view the file contents on the Change Details pane.

List changes

  1. On the Change tracking page from your Automation account, choose a file in the list of changes and then select View File Content Changes to see the contents of the file. The change details pane shows you the standard before and after file information for each property.

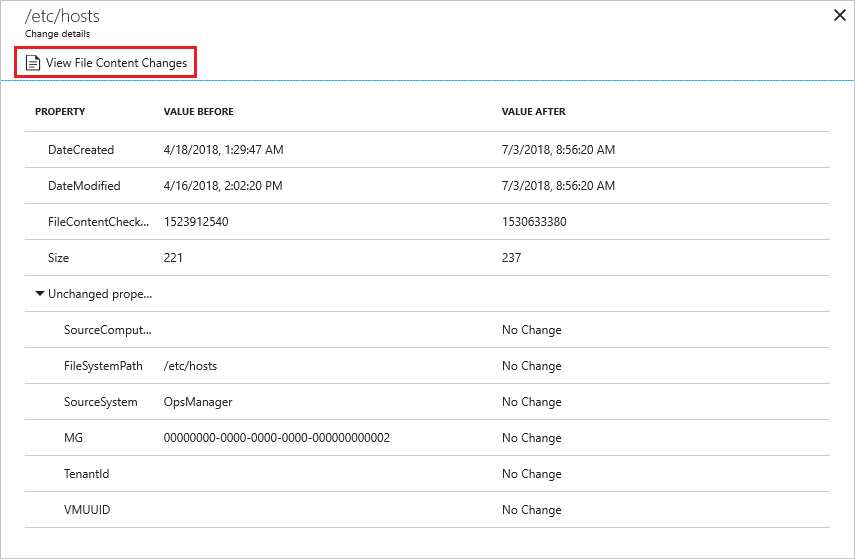

    Change details

  2. You're viewing the file contents in a side-by-side view. You can select Inline to see an inline view of the changes.

Track registry keys

Use the following steps to configure registry key tracking on Windows computers:

  1. On the Change tracking page from your Automation account, select Edit Settings (the gear symbol).

  2. On the Workspace Configuration page, select Windows Registry.

  3. Select + Add to add a new registry key to track.

  4. On the Add Windows Registry for Change Tracking page, enter the information for the key to track and then select Save. The following table defines the properties that you can use for the information. When specifying a registry path, it must be the key and not a value.

    Property Description
    Enabled True if a setting is applied, and False otherwise.
    Item Name Friendly name of the registry key to track.
    Group Group name for logically grouping registry keys.
    Windows Registry Key Key name with path, for example, HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\User Shell Folders\Common Startup.

Search logs for change records

You can do various searches against the Azure Monitor logs for change records. With the Change tracking page open, click Log Analytics to open the Logs page. The following table provides sample log searches for change records.

Query Description
ConfigurationData
| where ConfigDataType == "WindowsServices" and SvcStartupType == "Auto"
| where SvcState == "Stopped"
| summarize arg_max(TimeGenerated, *) by SoftwareName, Computer		 Shows the most recent inventory records for Windows services that were set to Auto but were reported as being Stopped. Results are limited to the most recent record for the specified software name and computer.
ConfigurationChange
| where ConfigChangeType == "Software" and ChangeCategory == "Removed"
| order by TimeGenerated desc		 Shows change records for removed software.
