Upgrade your DPM installation

  • Artikel

Important

Service Provider Foundation (SPF) is discontinued from System Center 2025. However, SPF 2022 will continue to work with System Center 2025 components.

This article provides the upgrade information for System Center 2025 - Data Protection Manager (DPM).

Upgrade to DPM 2025

You can install System Center - 2025 Data Protection Manager (DPM) on Windows Server 2025. You can upgrade to DPM 2025 from the following versions:

Upgrade path for DPM 2025

If you upgrade from DPM 2022 to DPM 2025, ensure that your installation has the following necessary updates:

  • Upgrade the DPM server to DPM 2025.
  • Upgrade the MARS agent to the latest version (if installed).
  • Update the agents on the protected servers.
  • Upgrade the DPM Remote Administrator on all production servers.
  • Backups continue without rebooting your production server.

Upgrade steps for DPM

Note

If the name of the existing DPM database is DPMDB or the DPM server is using a remote SQL server instance shared by multiple DPM servers, rename the database before you upgrade. See related known issues and workaround here.

  1. To install the DPM, select Setup.exe to open the System Center 2025 wizard.

  2. Under Install, select Data Protection Manager to start the setup wizard. Agree to the license terms and conditions and follow the setup wizard.

    For instructions on installing DPM, see Installing DPM.

Migrate the DPM database during the upgrade

You may want to move the DPM Database as part of an upgrade. For example:

  • You're merging instances of SQL Server.
  • You're moving to a remote, more powerful SQL Server.
  • You want to add fault tolerance by using a SQL Server cluster or you want to move from a remote SQL Server to a local SQL Server or vice versa.

DPM 2022 setup allows you to migrate the DPM database to different SQL Servers during an upgrade.

Possible database migration scenarios

The following scenarios exist when you're upgrading DPM 2022 to DPM 2025 using a:

  • Local instance and migrating to a remote instance of SQL Server during setup.
  • Remote instance and migrating to a local instance of SQL Server during setup.
  • Local instance and migrating to a remote SQL Server Cluster instance during setup.
  • Local instance and migrating to a different local instance of SQL Server during setup.
  • Remote instance and migrating to a different remote instance of SQL Server during setup.
  • Remote instance and migrating to a remote SQL Server Cluster instance during setup.

Prepare for a database migration

If you want to use a new SQL server to migrate the DPM database before you upgrade DPM, ensure that both the SQL Servers have the same:

  • SQL Server requirements
  • Setup configuration
  • Firewall rules
  • DPM Support files (sqlprep)

Additionally, review the SQL Server prerequisites for DPM.

Once you've the new instance of SQL Server installed and prepared for DPM use, you must create a backup of the current DPM database and restore it on the new SQL Server.

Pre-upgrade steps: Back up and restore DPM 2022 database to a new SQL instance

This example prepares a remote SQL Server cluster to use in migration.

  1. On the System Center Data Protection Manager server or the remote SQL Server hosting the DPM database, start Microsoft SQL Management Studio and connect to the SQL instance hosting the current DPM DPMDB.

  2. Right-click the DPM database, and under Tasks, select the Back Up… option.

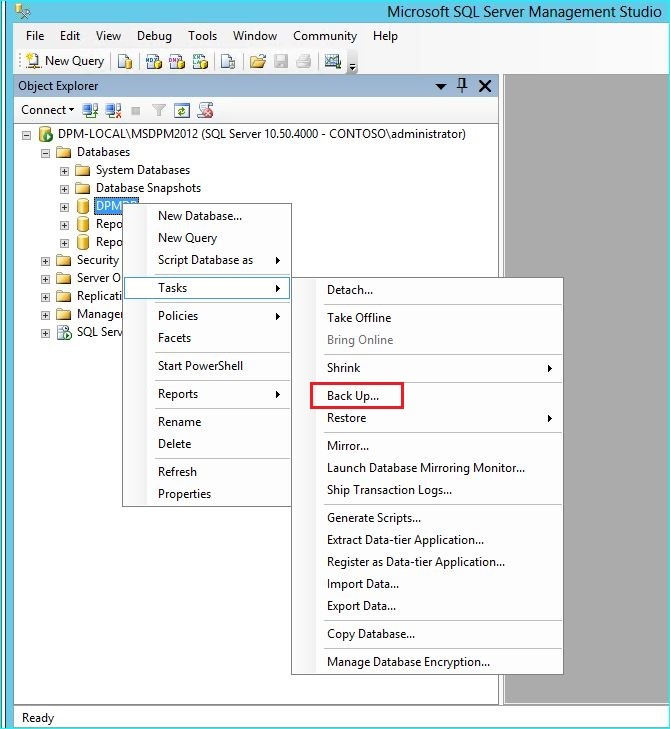

    Screenshot showing the Select Backup.

  3. Add a backup destination and file name, and then select OK to start the backup.

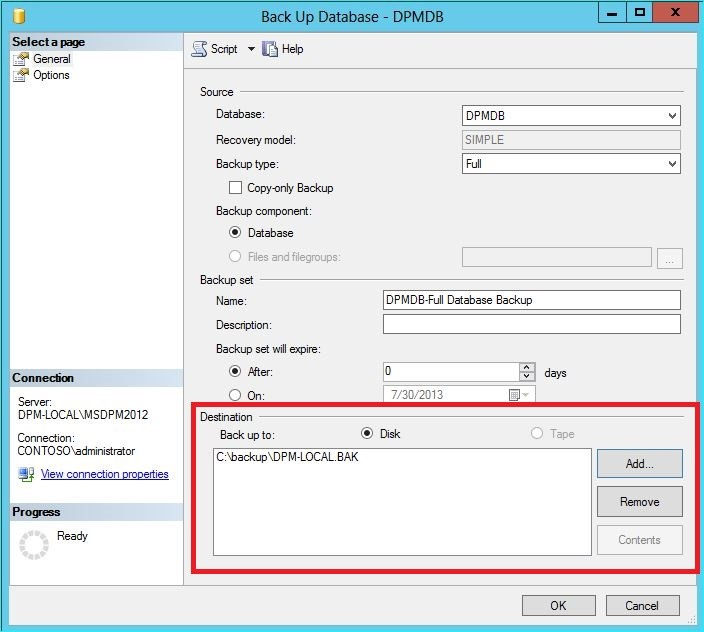

    Screenshot showing the Confirm.

  4. After the backup is complete, copy the output file to the remote SQL Server. If this is a SQL Cluster, copy it to the active node hosting the SQL Instance you want to use in the DPM upgrade. Before you can restore the DPM database, you must copy it to the Shared Cluster disk.

  5. On the Remote SQL Server, start Microsoft SQL Management Studio and connect to the SQL Instance you want to use in the DPM upgrade. If this is a SQL Cluster, do this on the Active node that you copied the DPM backup file to. The backup file should now be located on the shared cluster disk.

  6. Right-click the Databases icon, then select the Restore Database… option. This starts the restore wizard.

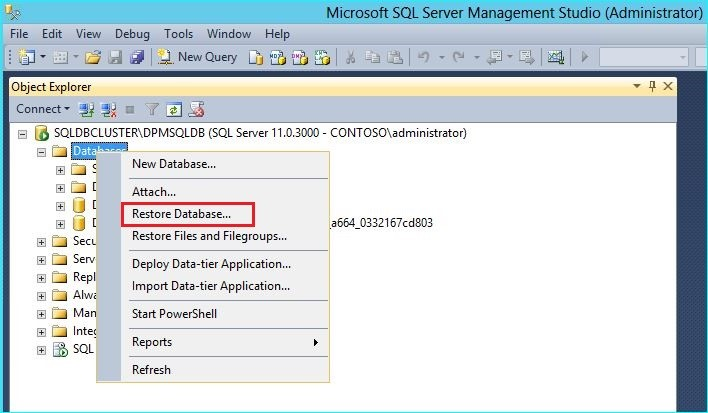

    Screenshot showing the Select restore database.

  7. Select Device under Source, and then locate the database backup file that was copied in the previous step and select it. Verify the restore options and restore location, and then select OK to start the restore. Fix any issue that arises until the restore is successful.

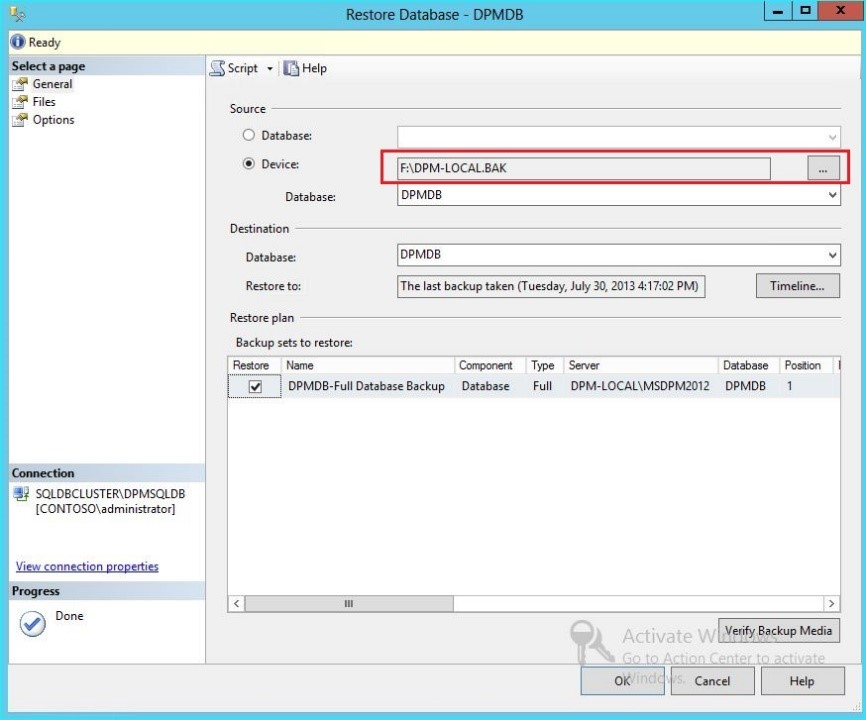

    Screenshot showing the Restore database.

  8. After the restore is complete, the restored database will be seen under Databases with the original name. This database will be used during the upgrade. You can exit Microsoft SQL Management Studio and start the upgrade process on the original DPM server.

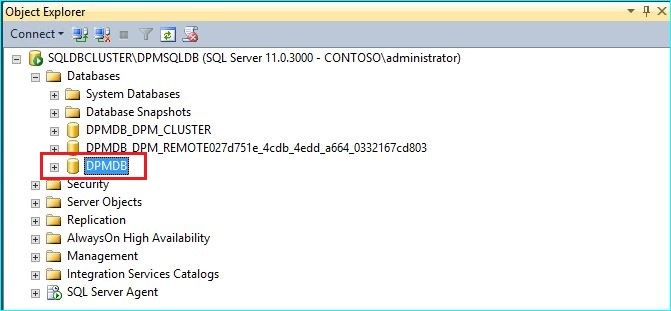

    Screenshot showing the Select DPMDB.

  9. If the new SQL server is a remote SQL Server, install the SQL management tools on the DPM server. The SQL management tools must be the same version matching the SQL Server hosting the DPMDB.

Start upgrade to migrate DPMDB to a different SQL Server

Note

If sharing a SQL Instance, run the DPM installations (or upgrades) sequentially. Parallel installations may cause errors.

  1. After the pre-migration preparation steps are complete, start the DPM 2022 Installation process. DPM Setup shows the information about the current instance of the SQL Server pre-populated. This is where you can select a different instance of the SQL Server or change to a Clustered SQL Instance used in the migration.

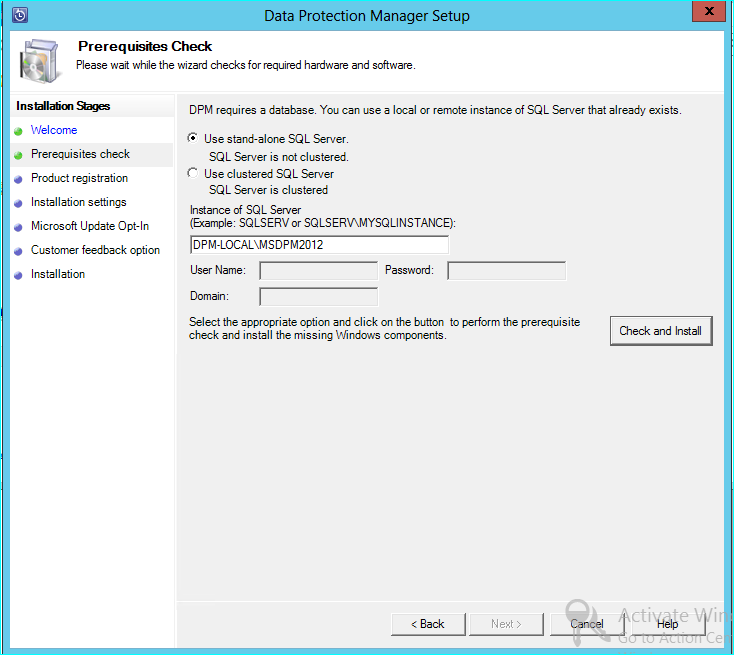

    Screenshot showing the DPM setup page.

  2. Change the SQL Settings to use the instance of the SQL Server you restored the DPM Database to. If it's a SQL cluster, you must also specify a separate instance of the SQL Server used for SQL reporting. It's presumed that firewall rules and SQLPrep have already run. You've to enter the correct credentials and then select Check and Install.

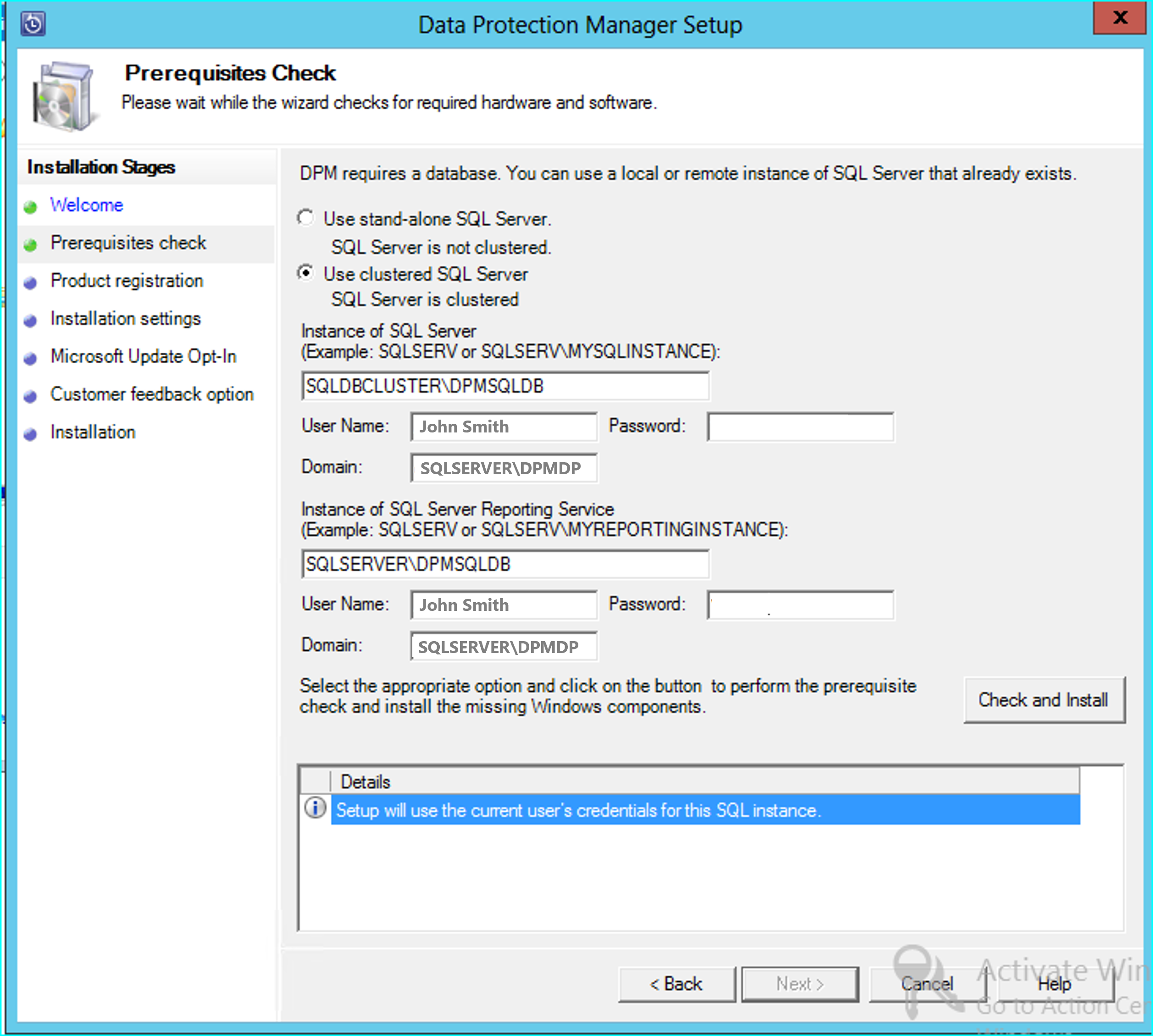

    Screenshot showing the Install database page.

  3. The Prerequisite check should succeed, and then select Next to continue with the upgrade.

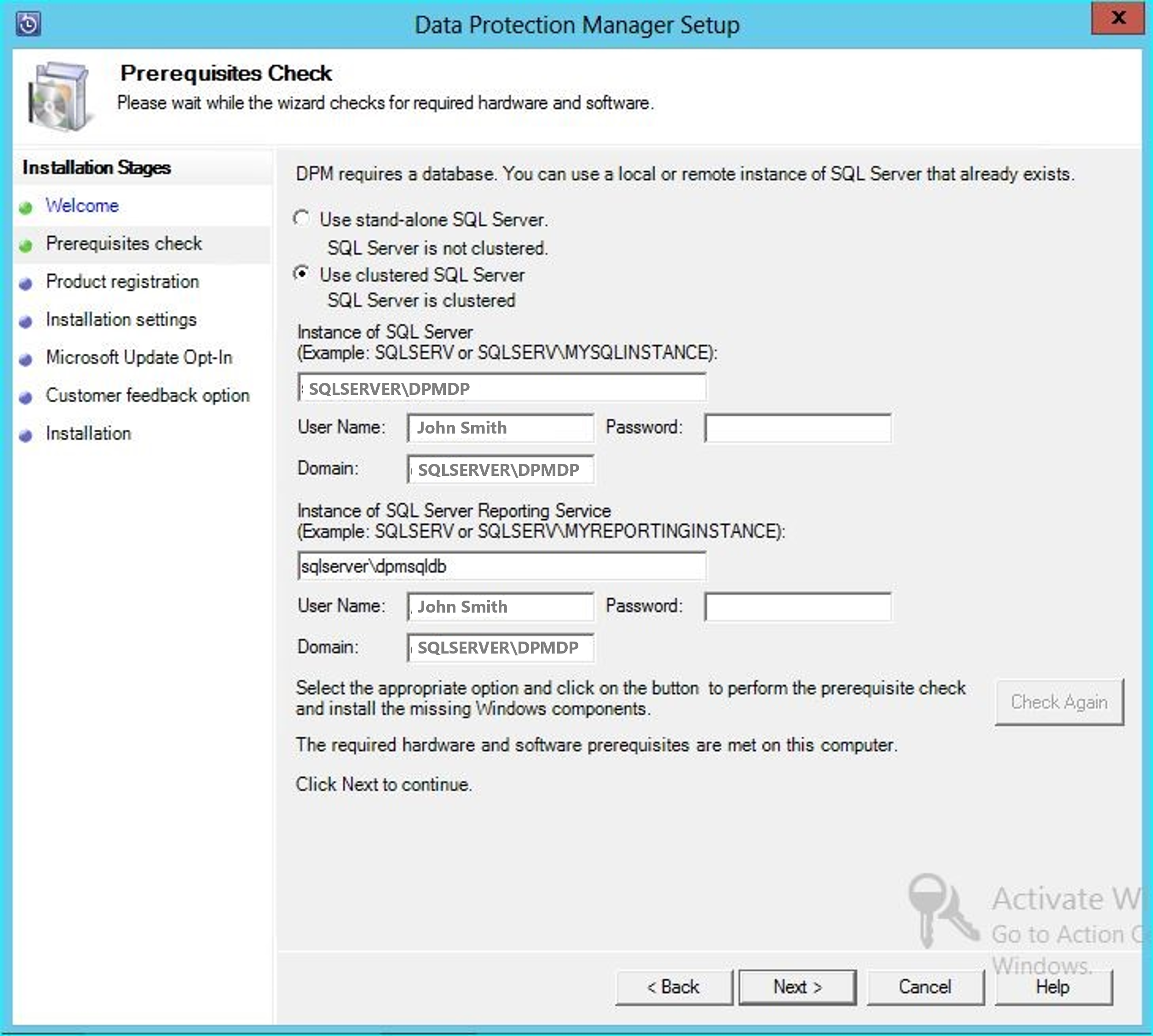

    Screenshot showing the Prerequisites check page.

  4. Continue with the wizard options and complete the setup.

  5. After the setup is complete, the corresponding database name on the instance specified will be DPMPB_DPMServerName. As this may be shared with other DPM servers, the naming convention for the DPM database will now be: DPM2016$DPMDB_DPMServerName.

Add storage for Modern Backup Storage

To store backups efficiently, DPM 2025 uses Volumes. Disks can also be used to continue storing backups.

Add volumes and disks

If you run DPM 2025 on the Windows Server, you can use volumes to store the backup data. Volumes provide storage savings and faster backups. You can give the volume a friendly name, and you can change the name. You can apply the friendly name while adding the volume or later by selecting the Friendly Name column of the desired volume. You can also use PowerShell to add or change friendly names for volumes.

To add a volume in the administrator console:

  1. In the DPM Administrator console, select the Management feature > Disk Storage > Add.

  2. In the Add Disk Storage page, select an available volume > Add, enter a friendly name for the volume and then select OK.

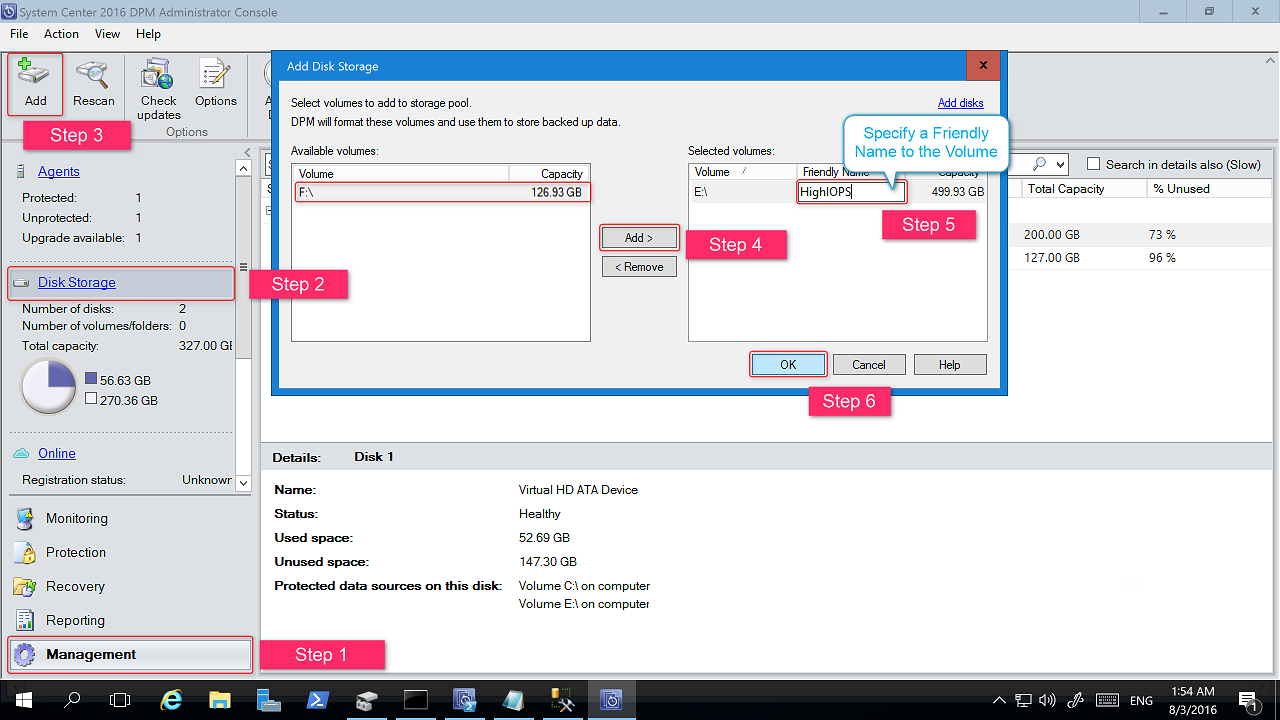

    Screenshot showing how to Add volume.

If you want to add a disk, it must belong to a protection group with legacy storage. Those disks can only be used for those protection groups. If the DPM server doesn't have sources with legacy protection, the disk won't appear. For more information on adding disks, see Screenshot showing how to add disks to increase legacy storage.. You can't give disks a friendly name.

Assign Workloads to Volumes

DPM 2022 allows you to specify the types of workloads to be assigned to specific volumes. For example, expensive volumes that support high IOPS can be configured to store only the workloads that require frequent, high-volume backups like SQL with transaction logs.

To update the properties of a volume in the storage pool on a DPM server, use the PowerShell cmdlet, Update-DPMDiskStorage.

Update-DPMDiskStorage

Syntax

Parameter Set: Volume

Update-DPMDiskStorage [-Volume] <Volume> [[-FriendlyName] <String> ] [[-DatasourceType] <VolumeTag[]> ] [-Confirm] [-WhatIf] [ <CommonParameters>]

The changes made through PowerShell are reflected in the UI.

Migrate legacy storage to Modern Backup Storage

After upgrading to DPM 2019 and the operating system to Windows Server 2019, you can update your existing protection groups to the new DPM 2022 features. By default, protection groups aren't changed and continue to function as they were configured in the earlier version of your DPM. Updating protection groups to use Modern Backup Storage is optional. To update the protection group, stop the protection of all data sources with the Retain Data option and add the data sources to a new protection group. DPM begins protecting these data sources the new way.

Use the following steps:

  1. In the Administrator Console, select the Protection feature, and in the Protection Group Member list, right-click the member and then select Stop protection of member....

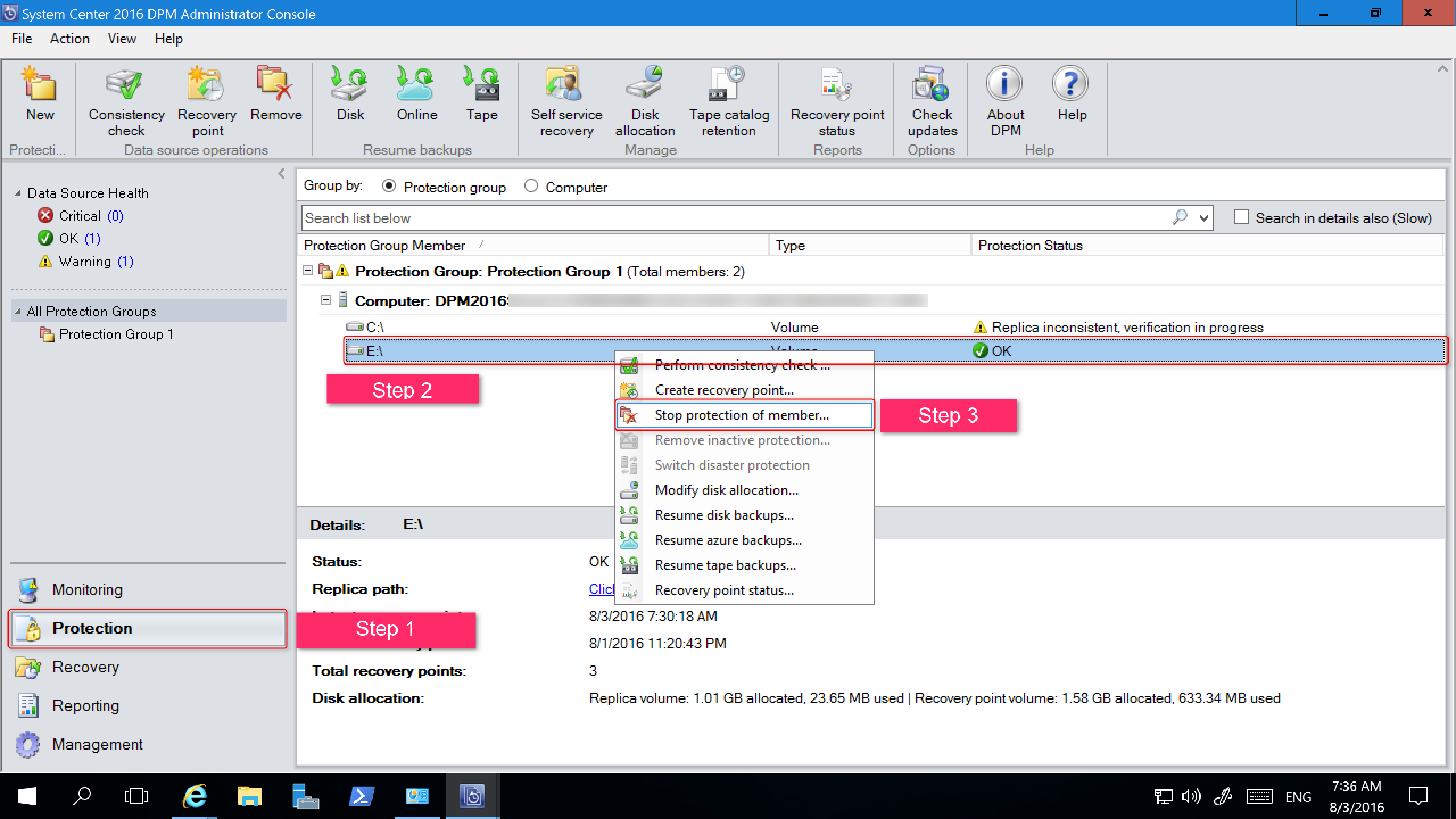

    Screenshot showing how to stop protection.

    The Remove from Group page opens.

  2. In the Remove from Group page, review the used disk space and the available free space in the storage pool. The default is to leave the recovery points on the disk and allow them to expire per their associated retention policy. Select OK.

    If you want to immediately return the used disk space to the free storage pool, select Delete replica on disk. This will delete the backup data (and recovery points) associated with that member.

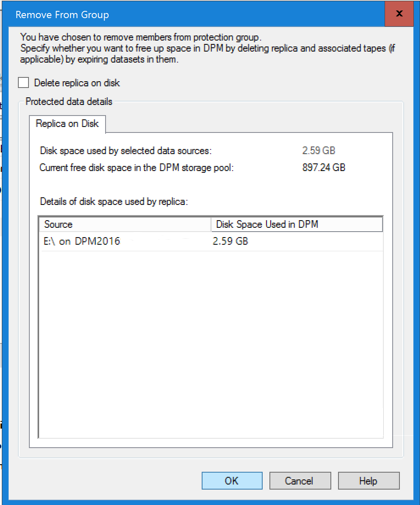

    Screenshot showing how to retain data.

  3. Create a new protection group that uses Modern Backup Storage and include the unprotected data sources.

Add Disks to increase legacy storage

If you want to use legacy storage with DPM 2025, it may be required to add disks to increase legacy storage. To add disk storage:

  1. On the Administrator Console, select Management.

  2. Select Disk Storage.

  3. On the tool ribbon, select Add.

    The Add Disk Storage page opens.

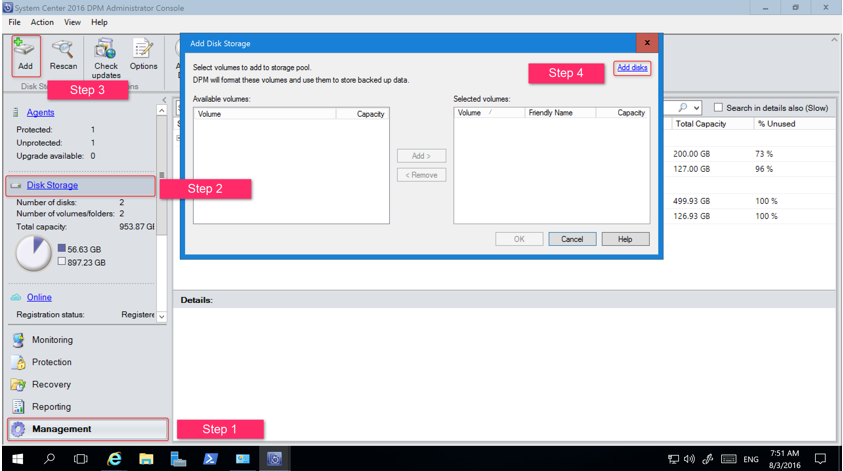

    Screenshot showing add disks page.

  4. In the Add Disk Storage page, select Add disks.

    DPM provides a list of available disks.

  5. Select the disks, select Add to add the disks, and then select OK.

Enable Cloud Protection

You can back up a DPM server to Azure. The high-level steps are:

  • Create an Azure subscription,
  • Register the server with the Azure Backup service,
  • Download vault credentials and the Azure Backup Agent,
  • Configure the server's vault credentials and backup policy.

For more information on backing up DPM to the cloud, see Preparing to backup workloads to Azure with DPM.

This article provides the upgrade information for System Center 2022 - Data Protection Manager (DPM).

Upgrade to DPM 2022

You can install System Center - 2022 Data Protection Manager (DPM) on Windows Server 2019. You can upgrade to DPM 2022 from the following versions:

Upgrade path for DPM 2022

If you upgrade from DPM 2019 to DPM 2022, ensure that your installation has the following necessary updates:

  • Upgrade the DPM server to DPM 2022.
  • Upgrade the MARS agent to the latest version (if installed).
  • Update the agents on the protected servers.
  • Upgrade the DPM Remote Administrator on all production servers.
  • Backups continue without rebooting your production server.

Upgrade steps for DPM

Note

If the name of the existing DPM database is DPMDB or the DPM server is using a remote SQL server instance shared by multiple DPM servers, rename the database before you upgrade. See related known issues and workaround here.

  1. To install the DPM, select Setup.exe to open the System Center 2022 wizard.

  2. Under Install, select Data Protection Manager to start the setup wizard. Agree to the license terms and conditions and follow the setup wizard.

    For instructions on installing DPM, see Installing DPM.

Migrate the DPM database during the upgrade

You may want to move the DPM Database as part of an upgrade. For example:

  • You're merging instances of SQL Server.
  • You're moving to a remote, more powerful SQL Server.
  • You want to add fault tolerance by using a SQL Server cluster or you want to move from a remote SQL Server to a local SQL Server or vice versa.

DPM 2022 setup allows you to migrate the DPM database to different SQL Servers during an upgrade.

Possible database migration scenarios

The following scenarios exist when you're upgrading DPM 2019 to DPM 2022 using a:

  1. Local instance and migrating to a remote instance of SQL Server during setup.
  2. Remote instance and migrating to a local instance of SQL Server during setup.
  3. Local instance and migrating to a remote SQL Server Cluster instance during setup.
  4. Local instance and migrating to a different local instance of SQL Server during setup.
  5. Remote instance and migrating to a different remote instance of SQL Server during setup.
  6. Remote instance and migrating to a remote SQL Server Cluster instance during setup.

Prepare for a database migration

If you want to use a new SQL server to migrate the DPM database before you upgrade DPM, ensure that both the SQL Servers have the same:

  • SQL Server requirements
  • Setup configuration
  • Firewall rules
  • DPM Support files (sqlprep)

Additionally, review the SQL Server prerequisites for DPM.

Once you've the new instance of SQL Server installed and prepared for DPM use, you must create a backup of the current DPM database and restore it on the new SQL Server.

Pre-upgrade steps: Back up and restore DPM 2019 database to a new SQL instance

This example prepares a remote SQL Server cluster to use in migration.

  1. On the System Center Data Protection Manager server or the remote SQL Server hosting the DPM database, start Microsoft SQL Management Studio and connect to the SQL instance hosting the current DPM DPMDB.

  2. Right-click the DPM database, and under Tasks, select the Back Up… option.

    Screenshot showing the Select Backup.

  3. Add a backup destination and file name, and then select OK to start the backup.

    Screenshot showing the Confirm.

  4. After the backup is complete, copy the output file to the remote SQL Server. If this is a SQL Cluster, copy it to the active node hosting the SQL Instance you want to use in the DPM upgrade. Before you can restore the DPM database, you must copy it to the Shared Cluster disk.

  5. On the Remote SQL Server, start Microsoft SQL Management Studio and connect to the SQL Instance you want to use in the DPM upgrade. If this is a SQL Cluster, do this on the Active node that you copied the DPM backup file to. The backup file should now be located on the shared cluster disk.

  6. Right-click the Databases icon, then select the Restore Database… option. This starts the restore wizard.

    Screenshot showing the Select restore database.

  7. Select Device under Source, and then locate the database backup file that was copied in the previous step and select it. Verify the restore options and restore location, and then select OK to start the restore. Fix any issue that arises until the restore is successful.

    Screenshot showing the Restore database.

  8. After the restore is complete, the restored database will be seen under Databases with the original name. This database will be used during the upgrade. You can exit Microsoft SQL Management Studio and start the upgrade process on the original DPM server.

    Screenshot showing the Select DPMDB.

  9. If the new SQL server is a remote SQL Server, install the SQL management tools on the DPM server. The SQL management tools must be the same version matching the SQL Server hosting the DPMDB.

Start upgrade to migrate DPMDB to a different SQL Server

Note

If sharing a SQL Instance, run the DPM installations (or upgrades) sequentially. Parallel installations may cause errors.

  1. After the pre-migration preparation steps are complete, start the DPM 2019 Installation process. DPM Setup shows the information about the current instance of the SQL Server pre-populated. This is where you can select a different instance of the SQL Server or change to a Clustered SQL Instance used in the migration.

    Screenshot showing the DPM setup page.

  2. Change the SQL Settings to use the instance of the SQL Server you restored the DPM Database to. If it's a SQL cluster, you must also specify a separate instance of the SQL Server used for SQL reporting. It's presumed that firewall rules and SQLPrep have already run. You've to enter the correct credentials and then select Check and Install.

    Screenshot showing the Install database page.

  3. The Prerequisite check should succeed, and then select Next to continue with the upgrade.

    Screenshot showing the Prerequisites check page.

  4. Continue with the wizard options and complete the setup.

  5. After the setup is complete, the corresponding database name on the instance specified will be DPMPB_DPMServerName. As this may be shared with other DPM servers, the naming convention for the DPM database will now be: DPM2016$DPMDB_DPMServerName

Add storage for Modern Backup Storage

To store backups efficiently, DPM 2022 uses Volumes. Disks can also be used to continue storing backups.

Add volumes and disks

If you run DPM 2022 on the Windows Server, you can use volumes to store the backup data. Volumes provide storage savings and faster backups. You can give the volume a friendly name, and you can change the name. You can apply the friendly name while adding the volume or later by selecting the Friendly Name column of the desired volume. You can also use PowerShell to add or change friendly names for volumes.

To add a volume in the administrator console:

  1. In the DPM Administrator console, select the Management feature > Disk Storage > Add.

  2. In the Add Disk Storage page, select an available volume > Add, enter a friendly name for the volume and then select OK.

    Screenshot showing how to Add volume.

If you want to add a disk, it must belong to a protection group with legacy storage. Those disks can only be used for those protection groups. If the DPM server doesn't have sources with legacy protection, the disk won't appear. For more information on adding disks, see Screenshot showing how to add disks to increase legacy storage.. You can't give disks a friendly name.

Assign Workloads to Volumes

DPM 2022 allows you to specify the types of workloads to be assigned to specific volumes. For example, expensive volumes that support high IOPS can be configured to store only the workloads that require frequent, high-volume backups like SQL with transaction logs.

To update the properties of a volume in the storage pool on a DPM server, use the PowerShell cmdlet, Update-DPMDiskStorage.

Update-DPMDiskStorage

Syntax

Parameter Set: Volume

Update-DPMDiskStorage [-Volume] <Volume> [[-FriendlyName] <String> ] [[-DatasourceType] <VolumeTag[]> ] [-Confirm] [-WhatIf] [ <CommonParameters>]

The changes made through PowerShell are reflected in the UI.

Migrate legacy storage to Modern Backup Storage

After upgrading to DPM 2019 and the operating system to Windows Server 2019, you can update your existing protection groups to the new DPM 2019 features. By default, protection groups aren't changed and continue to function as they were configured in the earlier version of your DPM. Updating protection groups to use Modern Backup Storage is optional. To update the protection group, stop the protection of all data sources with the Retain Data option and add the data sources to a new protection group. DPM begins protecting these data sources the new way.

Use the following steps:

  1. In the Administrator Console, select the Protection feature, and in the Protection Group Member list, right-click the member and then select Stop protection of member....

    Screenshot showing how to stop protection.

    The Remove from Group page opens.

  2. In the Remove from Group page, review the used disk space and the available free space in the storage pool. The default is to leave the recovery points on the disk and allow them to expire per their associated retention policy. Select OK.

    If you want to immediately return the used disk space to the free storage pool, select Delete replica on disk. This will delete the backup data (and recovery points) associated with that member.

    Screenshot showing how to retain data.

  3. Create a new protection group that uses Modern Backup Storage and include the unprotected data sources.

Add Disks to increase legacy storage

If you want to use legacy storage with DPM 2022, it may be required to add disks to increase legacy storage. To add disk storage:

  1. On the Administrator Console, select Management.

  2. Select Disk Storage.

  3. On the tool ribbon, select Add.

    The Add Disk Storage page opens.

    Screenshot showing add disks page.

  4. In the Add Disk Storage page, select Add disks.

    DPM provides a list of available disks.

  5. Select the disks, select Add to add the disks, and then select OK.

Enable Cloud Protection

You can back up a DPM server to Azure. The high-level steps are:

  • Create an Azure subscription,
  • Register the server with the Azure Backup service,
  • Download vault credentials and the Azure Backup Agent,
  • Configure the server's vault credentials and backup policy.

For more information on backing up DPM to the cloud, see Preparing to backup workloads to Azure with DPM.

This article provides the upgrade information for System Center 2019 - Data Protection Manager (DPM).

Upgrade to DPM 2019

You can install System Center - 2019 Data Protection Manager (DPM) on Windows Server 2016 or 2019. You can upgrade to DPM 2019 from the following versions:

Note

Existing Data Protection Manager to Microsoft Azure customers should upgrade to the latest agent (version 2.0.9238.0 or later). If the latest agent isn't installed, online backups might fail and no Data Protection Manager to Microsoft Azure operation will work (applicable for 2019 UR4).

Upgrade path for DPM 2019

If you upgrade from DPM 2016 to DPM 2019, ensure that your installation has the following necessary updates:

  • Upgrade the DPM server to DPM 2019.
  • Update the agents on the protected servers.
  • Upgrade the DPM Remote Administrator on all production servers.
  • Backups continue without rebooting your production server.

Upgrade steps for DPM

  1. To install DPM, double-click Setup.exe to open the System Center 2019 wizard.

  2. Under Install, select Data Protection Manager to start the setup wizard. Agree to the license terms and conditions and follow the setup wizard.

    For instructions on installing DPM, see the article Installing DPM.

Migrate the DPM database during upgrade

You may want to move the DPM Database as part of an upgrade. For example:

  • You're merging instances of SQL Server.
  • You're moving to a remote, more powerful SQL Server.
  • You want to add fault tolerance by using a SQL Server cluster.
  • You want to move from a remote SQL Server to a local SQL Server or vice versa.

DPM 2019 setup allows you to migrate the DPM database to different SQL Servers during an upgrade.

Possible database migration scenarios

The following scenarios exist when you're upgrading DPM 2016/1801/1807 to DPM 2019 using a:

  1. Local instance and migrating to a remote instance of SQL Server during setup.
  2. Remote instance and migrating to a local instance of SQL Server during setup.
  3. Local instance and migrating to a remote SQL Server Cluster instance during setup.
  4. Local instance and migrating to a different local instance of SQL Server during setup.
  5. Remote instance and migrating to a different remote instance of SQL Server during setup.
  6. Remote instance and migrating to a remote SQL Server Cluster instance during setup.

Prepare for a database migration

If you want to use a new SQL server to migrate the DPM database, before you upgrade DPM, ensure that both the SQL Servers have the same:

  • SQL Server requirements
  • Setup configuration
  • Firewall rules
  • DPM Support files (sqlprep)

Once you've the new instance of SQL Server installed and prepared for DPM use, you must create a backup of the current DPM database and restore it on the new SQL Server.

Pre-upgrade steps: Back up and restore DPM 2016/1801/1807 database to a new SQL instance

This example prepares a remote SQL Server cluster to use in a migration.

  1. On the System Center Data Protection Manager server or on the remote SQL Server hosting the DPM database, start Microsoft SQL Management Studio and connect to the SQL Instance hosting the current DPM DPMDB.

  2. Right-click the DPM database and under Tasks, select the Back Up… option.

    Screenshot of Microsoft SQL Management Studio page showing Select Backup option.

  3. Add a backup destination and file name, and then select OK to start the backup.

    Screenshot of Microsoft SQL Management Studio page showing backup destination.

  4. After the backup is complete, copy the output file to the remote SQL Server. If this is a SQL Cluster, copy it to the active node hosting the SQL instance you want to use in the DPM upgrade. Before you can restore the DPM database, you must copy it to the Shared Cluster disk.

  5. On the Remote SQL Server, start Microsoft SQL Management Studio and connect to the SQL instance you want to use in the DPM upgrade. If this is a SQL Cluster, do this on the Active node that you copied the DPM backup file to. The backup file should now be located on the shared cluster disk.

  6. Right-click the Databases icon, then select the Restore Database… option. This starts the restore wizard.

    Screenshot of Microsoft SQL Management Studio showing select restore database option.

  7. Select Device under Source, and then locate the database backup file that was copied in the previous step and select it. Verify the restore options and restore location, and then select OK to start the restore. Fix any issue that arises until the restore is successful.

    Screenshot of Microsoft SQL Management Studio showing Restore database option.

  8. After the restore is complete, the restored database will be seen under Databases with the original name. This database will be used during the upgrade. You can exit Microsoft SQL Management Studio and start the upgrade process on the original DPM server.

    Screenshot of Microsoft SQL Management Studio showing Select DPMDB option.

  9. If the new SQL server is a remote SQL server, install the SQL management tools on the DPM server. The SQL management tools must be the same version matching the SQL server hosting the DPMDB.

Start upgrade to migrate DPMDB to a different SQL Server

Note

If sharing a SQL instance, run the DPM installations (or upgrades) sequentially. Parallel installations may cause errors.

  1. After the pre-migration preparation steps are complete, start the DPM 2019 Installation process. DPM Setup shows the information about the current instance of SQL Server pre-populated. This is where you can select a different instance of the SQL Server or change to a Clustered SQL instance used in the migration.

    Screenshot of the DPM setup page.

  2. Change the SQL Settings to use the instance of SQL Server you restored the DPM Database to. If it's a SQL cluster, you must also specify a separate instance of the SQL Server used for SQL reporting. It's presumed that firewall rules and SQLPrep have already run. You've to enter the correct credentials and then select the Check and Install button.

    Screenshot showing the Install database page.

  3. Prerequisite check should succeed, and then select Next to continue with the upgrade.

    Screenshot showing the Prerequisites check page.

  4. Continue with the wizard options and complete the setup.

  5. After the setup is complete, the corresponding database name on the instance specified will now be DPMPB_DPMServerName. As this may be shared with other DPM servers, the naming convention for the DPM database will now be: DPM2016$DPMDB_DPMServerName

Add storage for Modern Backup Storage

To store backups efficiently, DPM 2019 uses Volumes. Disks can also be used to continue storing backups.

Add volumes and disks

If you run DPM 2019 on Windows Server, you can use volumes to store backup data. Volumes provide storage savings and faster backups. You can give the volume a friendly name, and you can change the name. You can apply the friendly name while adding the volume or later by selecting the Friendly Name column of the desired volume. You can also use PowerShell to add or change friendly names for volumes.

To add a volume in the administrator console:

  1. In the DPM Administrator console, select the Management feature > Disk Storage > Add.

  2. In the Add Disk Storage page, select an available volume > select Add > type a friendly name for the volume > select OK.

    Screenshot showing how to Add volume.

If you want to add a disk, it must belong to a protection group with legacy storage. Those disks can only be used for those protection groups. If the DPM server doesn't have sources with legacy protection, the disk won't appear. For more information on adding disks, see Screenshot showing how to add disks to increase legacy storage.. You can't give disks a friendly name.

Assign Workloads to Volumes

DPM 2019 allows you to specify the types of workloads to be assigned to specific volumes. For example, expensive volumes that support high IOPS can be configured to store only the workloads that require frequent, high-volume backups like SQL with transaction logs.

To update the properties of a volume in the storage pool on a DPM server, use the PowerShell cmdlet, Update-DPMDiskStorage.

Update-DPMDiskStorage

Syntax

Parameter Set: Volume

Update-DPMDiskStorage [-Volume] <Volume> [[-FriendlyName] <String> ] [[-DatasourceType] <VolumeTag[]> ] [-Confirm] [-WhatIf] [ <CommonParameters>]

The changes made through PowerShell are reflected in the UI.

Migrate legacy storage to Modern Backup Storage

After upgrading to DPM 2019 and the operating system to Windows Server 2016/2019, you can update your existing protection groups to the new DPM 2016 features. By default, protection groups aren't changed and continue to function as they were configured in the earlier version of your DPM. Updating protection groups to use Modern Backup Storage is optional. To update the protection group, stop the protection of all the data sources with Retain Data option, and add the data sources to a new protection group. DPM begins protecting these data sources the new way.

Use the following steps:

  1. In the Administrator Console, select the Protection feature, and in the Protection Group Member list, right-click the member and then select Stop protection of member....

    Screenshot showing how to stop protection.

    The Remove from Group page opens.

  2. In the Remove from Group page, review the used disk space and the available free space in the storage pool. The default is to leave the recovery points on the disk and allow them to expire per their associated retention policy. Select OK.

    If you want to immediately return the used disk space to the free storage pool, select Delete replica on disk. This will delete the backup data (and recovery points) associated with that member.

    Screenshot showing how to Retain data

  3. Create a new protection group that uses Modern Backup Storage and include the unprotected data sources.

Add Disks to increase legacy storage

If you want to use legacy storage with DPM 2019, it may become necessary to add disks to increase legacy storage. To add disk storage:

  1. On the Administrator Console, select Management.

  2. Select Disk Storage.

  3. On the tool ribbon, select Add.

    The Add Disk Storage page opens.

    Screenshot showing add disks page.

  4. In the Add Disk Storage page, select Add disks.

    DPM provides a list of available disks.

  5. Select the disks, select Add to add the disks and then select OK.

Enable Cloud Protection

You can back up a DPM server to Azure. The high-level steps are:

  • Create an Azure subscription,
  • Register the server with the Azure Backup service,
  • Download vault credentials and the Azure Backup Agent,
  • Configure the server's vault credentials and backup policy.

For more information on backing up DPM to the cloud, see Preparing to backup workloads to Azure with DPM.

This article provides the upgrade information for System Center 2016 - Data Protection Manager (DPM).

Upgrade to DPM 2016

You can install DPM 2016 on Windows Server 2012 R2 or on Windows Server 2016. If you're installing DPM 2016 on Windows Server 2012 R2, you must upgrade an existing DPM installation from DPM 2012 R2 with Update Rollup 10 or greater. Before you upgrade or install DPM 2016, read the Installation prerequisites.

Note

If you use DPM 2012 R2 to protect VMware VMs, you can't upgrade to DPM 2016 even after you stop the protection. Upgrade fails with an error 34517 - DPM 2016 does not support VMware Backup yet. To fix this issue, follow the upgrade procedure here.

Upgrade path for DPM 2016

If you're going to upgrade from a previous version of DPM to DPM 2016, ensure that your installation has the necessary updates:

  • Upgrade DPM 2012 R2 to DPM 2012 R2 Update Rollup 10. You can obtain the Update Rollups from Windows Update.
  • Upgrade DPM 2012 R2 Update Rollup 10 to DPM 2016.
  • Update the agents on the protected servers.
  • Upgrade Windows Server 2012 R2 to Windows Server 2016.
  • Upgrade DPM Remote Administrator on all production servers.
  • Backups will continue without rebooting your production server.

Upgrade steps for DPM

  1. To install DPM, double-click Setup.exe to open the System Center 2016 Wizard.
  2. Under Install, select Data Protection Manager to start the setup wizard. Agree to the license terms and conditions and follow the setup wizard.

Some DPM 2016 features, such as Modern Backup Storage, require the Windows Server 2016 RTM build. It's possible to upgrade DPM 2016 from DPM 2012 R2, running on Windows Server 2012 R2. However, customers receiving DPM 2016 will want the latest features, so Microsoft recommends installing DPM 2016 on a new installation of Windows Server 2016 RTM. For instructions on installing DPM, see the article Installing DPM 2016.

Migrating the DPM database during upgrade

You may want to move the DPM Database as part of an upgrade. For example:

  • You're merging instances of SQL Server.
  • You're moving to a remote, more powerful SQL Server.
  • You want to add fault tolerance by using a SQL Server cluster
  • You want to move from a remote SQL server to a local SQL server or vice versa.

DPM 2016 setup allows you to migrate the DPM database to different SQL Servers during an upgrade.

Possible database migration scenarios

  1. Upgrading DPM 2012 R2 using a local instance and migrating to a remote instance of SQL Server during setup.
  2. Upgrading DPM 2012 R2 using a remote instance and migrating to a local instance of SQL Server during setup.
  3. Upgrading DPM 2012 R2 using a local instance and migrating to a remote SQL Server Cluster instance during setup.
  4. Upgrading DPM 2012 R2 using a local instance and migrating to a different local instance of SQL Server during setup.
  5. Upgrading DPM 2012 R2 using a remote instance and migrating to a different remote instance of SQL Server during setup.
  6. Upgrading DPM 2012 R2 using a remote instance and migrating to a remote SQL Server Cluster instance during setup.

Preparing for a database migration

The new SQL Server that you want to use to migrate the DPM database to must have the same SQL Server requirements, setup configuration, firewall rules, and DPM Support files (sqlprep) installed before performing the DPM Upgrade.

Once you've the new instance of SQL Server installed and prepped for use by DPM, you must create a backup of the current DPM 2012 R2 UR10 KB3143871 (4.2.1473.0) or a later database and restore it on the new SQL Server.

Pre-upgrade steps: Back up and restore DPM 2012 R2 DPM database to a new SQL instance

In this example, we'll prepare a remote SQL Server cluster to use for the migration.

  1. On the System Center Data Protection Manager 2012 R2 server or on the remote SQL Server hosting the DPM database, start Microsoft SQL Management Studio and connect to the SQL instance hosting the current DPM 2012 R2 DPMDB.

  2. Right-click the DPM database, and under Tasks, select the Back Up… option.

    Screenshot of Microsoft SQL Management Studio page showing Select Backup option

  3. Add a backup destination and file name, and then select OK to start the backup.

    Screenshot of Confirm option.

  4. After the backup is complete, copy the output file to the remote SQL Server. If this is a SQL Cluster, copy it to the active node hosting the SQL instance you want to use in the DPM upgrade. You've to copy it to the Shared Cluster disk before you can restore it.

  5. On the Remote SQL Server, start Microsoft SQL Management Studio and connect to the SQL instance you want to use in the DPM upgrade. If this is a SQL Cluster, do this on the Active node that you copied the DPM backup file to. The backup file should now be located on the shared cluster disk.

  6. Right-click the Databases icon, then select the Restore Database… option. This starts the restore wizard.

    Screenshot of Microsoft SQL Management Studio showing select restore database option.

  7. Select Device under Source, and then locate the database backup file that was copied in the previous step and select it. Verify the restore options and restore location, and then select OK to start the restore. Fix any issue that arises until the restore is successful.

    Screenshot of Microsoft SQL Management Studio showing Restore database option.

  8. After the restore is complete, the restored database will be seen under the Databases with the original name. This Database will be used during the upgrade. You can exit Microsoft SQL Management Studio and start the upgrade process on the original DPM Server.

    Screenshot of Microsoft SQL Management Studio showing Select DPMDB option.

  9. If the new SQL Server is a remote SQL Server, install the SQL management tools on the DPM server. The SQL management tools must be the same version matching the SQL Server hosting the DPMDB.

Starting upgrade to migrate DPMDB to a different SQL Server

Note

If sharing a SQL instance, run the DPM installations (or upgrades) sequentially. Parallel installations may cause errors.

  1. After the pre-migration preparation steps are complete, start the DPM 2016 Installation process. DPM setup shows the information about current instance of SQL Server pre-populated. This is where you can select a different instance of the SQL Server or change to a Clustered SQL instance used in the migration.

    Screenshot of the DPM setup page.

  2. Change the SQL Settings to use the instance of SQL Server you restored the DPM Database to. If it’s a SQL cluster, you must also specify a separate instance of the SQL Server used for SQL reporting. It's presumed that firewall rules and SQLPrep have already run. You've to enter the correct credentials and then select the Check and Install button.

    Screenshot showing the Install database page.

  3. Prerequisite check should succeed, and then press NEXT to continue with the upgrade.

    Screenshot showing the Prerequisites check page.

  4. Continue with the wizard options and complete the setup.

  5. After setup is complete, the corresponding database name on the instance specified will now be DPMPB_DPMServerName. As this may be shared with other DPM servers, the naming convention for the DPM database will now be: DPM2016$DPMDB_DPMServerName

Adding Storage for Modern Backup Storage

To store backups efficiently, DPM 2016 uses volumes. Disks can also be used to continue storing backups like DPM 2012 R2.

Add Volumes and Disks

If you run DPM 2016 on Windows Server, you can use volumes to store backup data. Volumes provide storage savings and faster backups. You can give the volume a friendly name, and you can change the name. You can apply the friendly name while adding the volume or later by selecting the Friendly Name column of the desired volume. You can also use PowerShell to add or change friendly names for volumes.

To add a volume in the administrator console:

  1. In the DPM Administrator console, select the Management feature > Disk Storage > Add.

  2. In the Add Disk Storage page, select an available volume > select Add > enter a friendly name for the volume > select OK.

    Screenshot showing how to Add volume.

If you want to add a disk, it must belong to a protection group with legacy storage. Those disks can only be used for those protection groups. If the DPM server doesn't have sources with legacy protection, the disk won't appear. For more information on adding disks, see Screenshot showing how to add disks to increase legacy storage.. You can't give disks a friendly name.

Assign Workloads to Volumes

DPM 2016 allows the user to specify which kinds of workloads should be assigned to which volumes. For example, expensive volumes that support high IOPS can be configured to store only the workloads that require frequent, high-volume backups like SQL with transaction Logs.

To update the properties of a volume in the storage pool on a DPM server, use the PowerShell cmdlet Update-DPMDiskStorage.

Update-DPMDiskStorage

Syntax

Parameter Set: Volume

Update-DPMDiskStorage [-Volume] <Volume> [[-FriendlyName] <String> ] [[-DatasourceType] <VolumeTag[]> ] [-Confirm] [-WhatIf] [ <CommonParameters>]

The changes made through PowerShell are reflected in the UI.

Protecting Data Sources

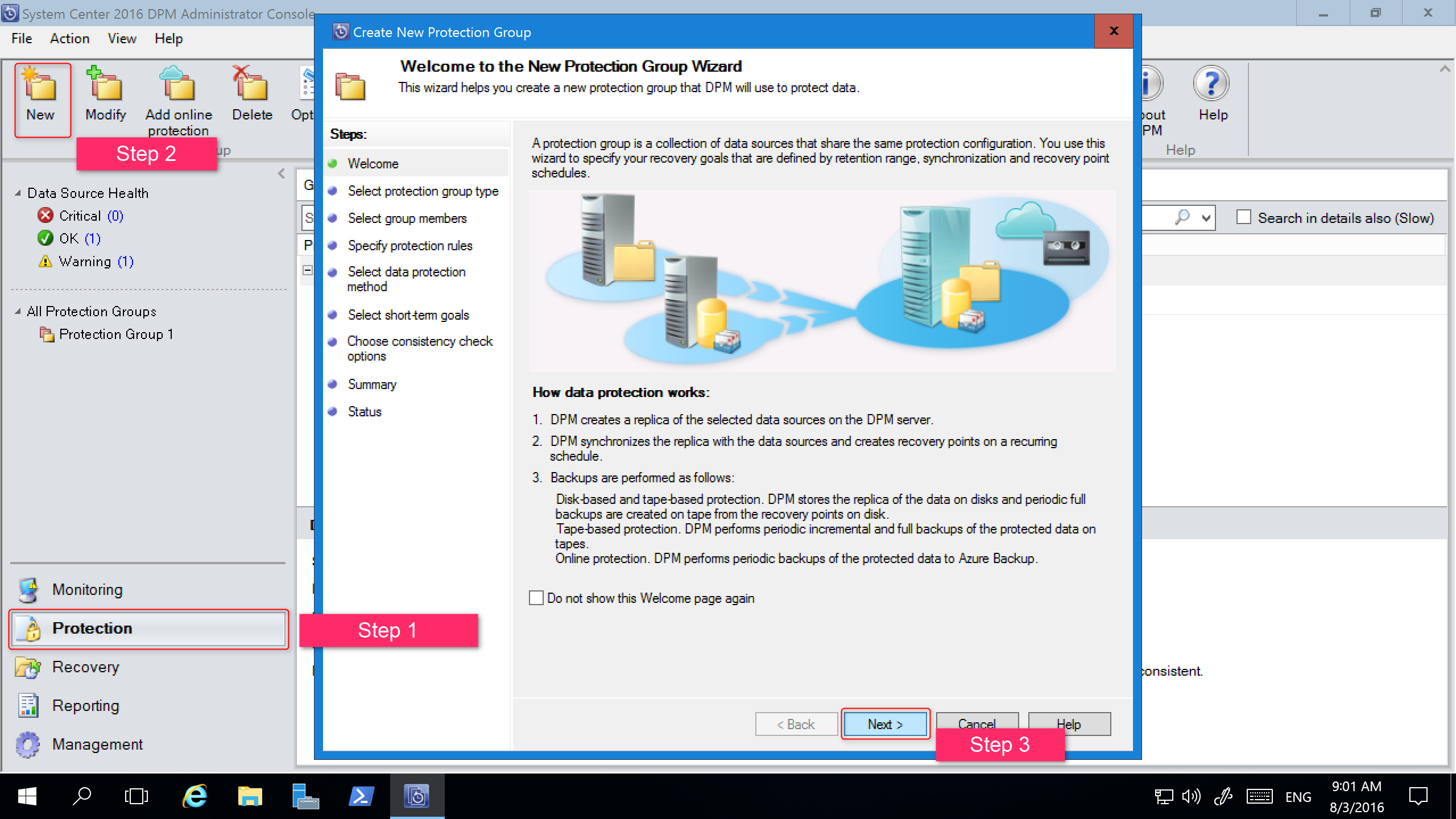

To begin protecting data sources, create a Protection Group. The following procedure highlights changes or additions to the New Protection Group wizard.

To create a Protection Group:

  1. In the DPM Administrator Console, select the Protection feature.

  2. On the tool ribbon, select New.

    The Create new Protection Group wizard opens.

    Screenshot of Create protection group wizard page.

  3. Select Next to advance the wizard to the Select Protection Group Type screen.

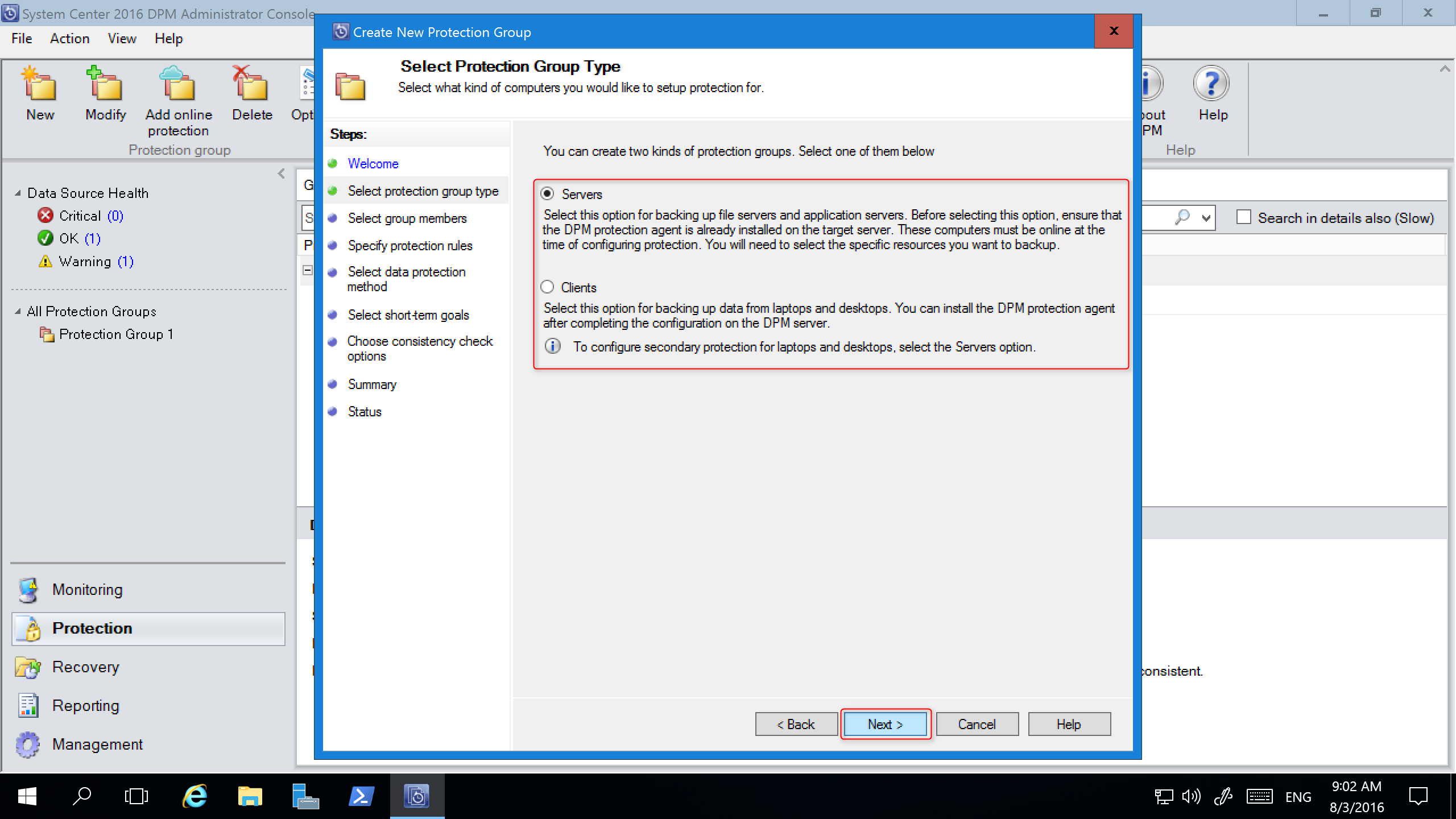

  4. On the Select Protection Group Type screen, select the type of Protection Group to be created and then select Next.

    Screenshot of choose server or client page.

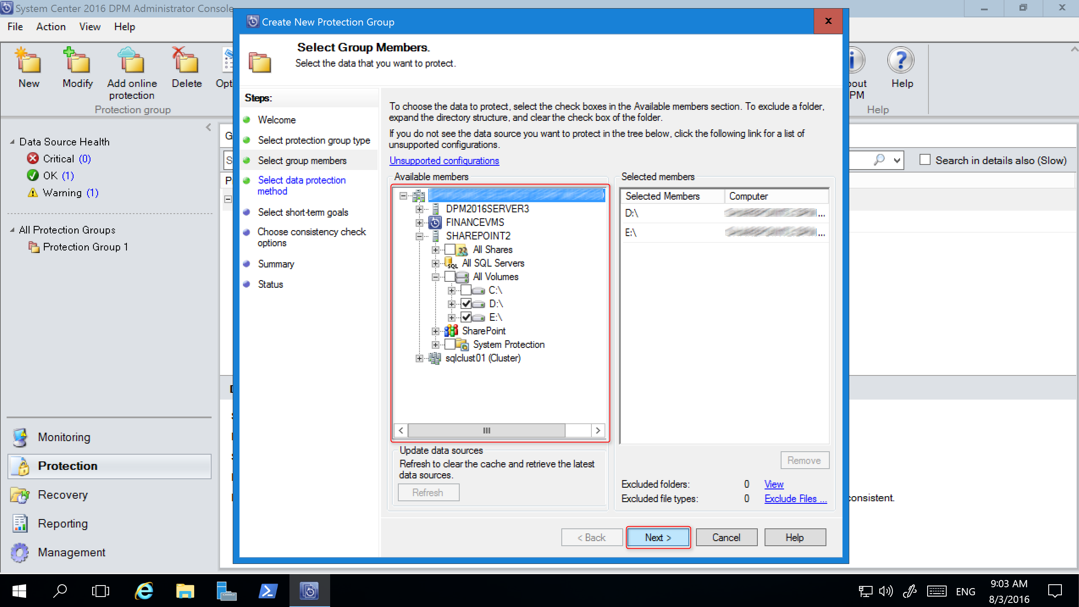

  5. On the Select Group Members screen, in the Available members pane, DPM lists the members with protection agents. For the purposes of this example, select volume D:\ and E:\ to add them to the Selected members pane. Once you've chosen the members for the protection group, select Next.

    Screenshot of select group members for protection group page.

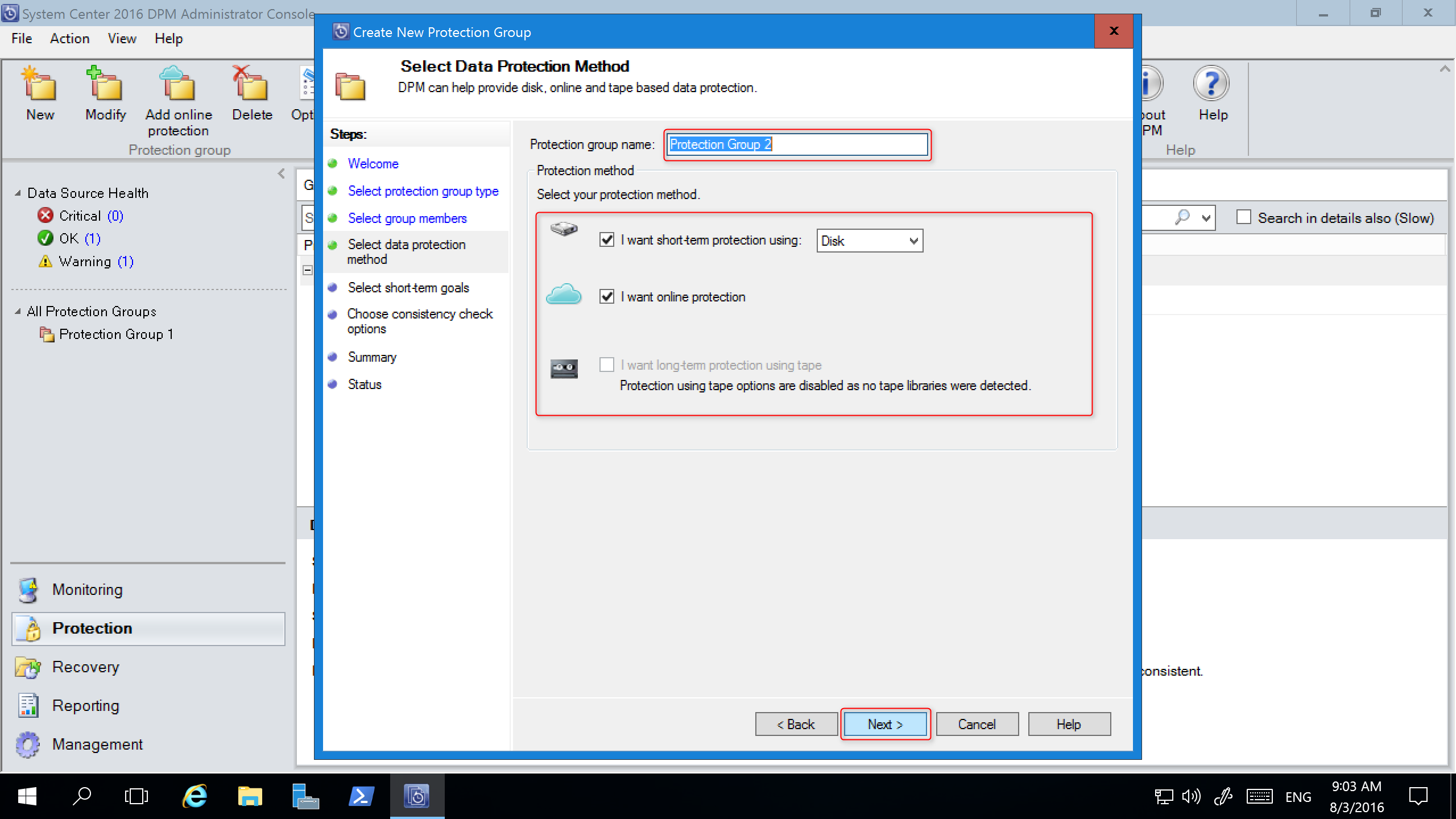

  6. On the Select Data Protection Method screen, enter a name for the Protection group, select the protection method(s) and select Next. If you want short-term protection, you must use Disk backup.

    Screenshot showing select data protection method.

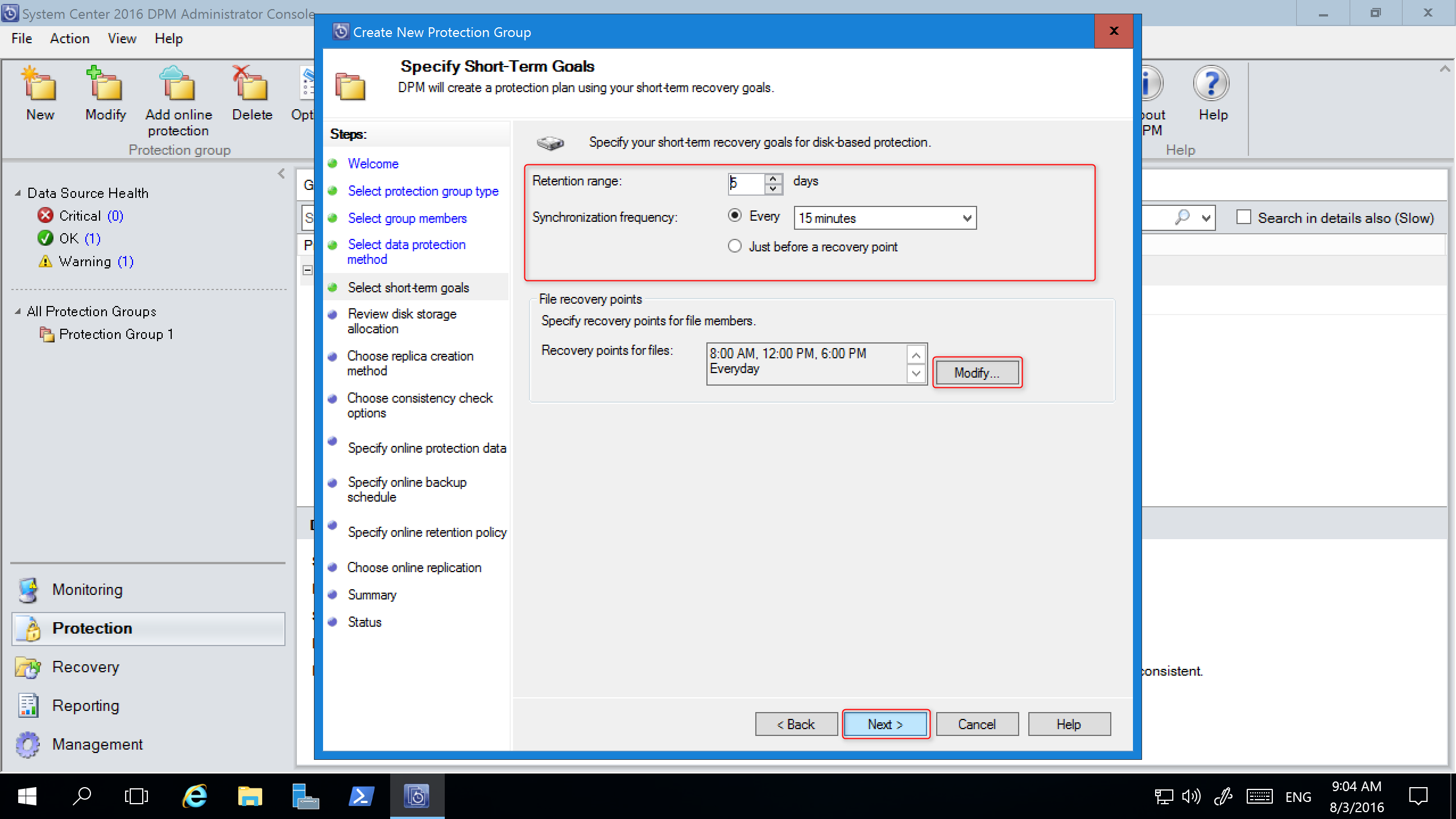

  7. On the Specify Short-Term Goals screen, specify the details for Retention Range and Synchronization Frequency, and select Next. If desired, select Modify to change the schedule when recovery points are taken.

    Screeenshot showing specify short-term goals page.

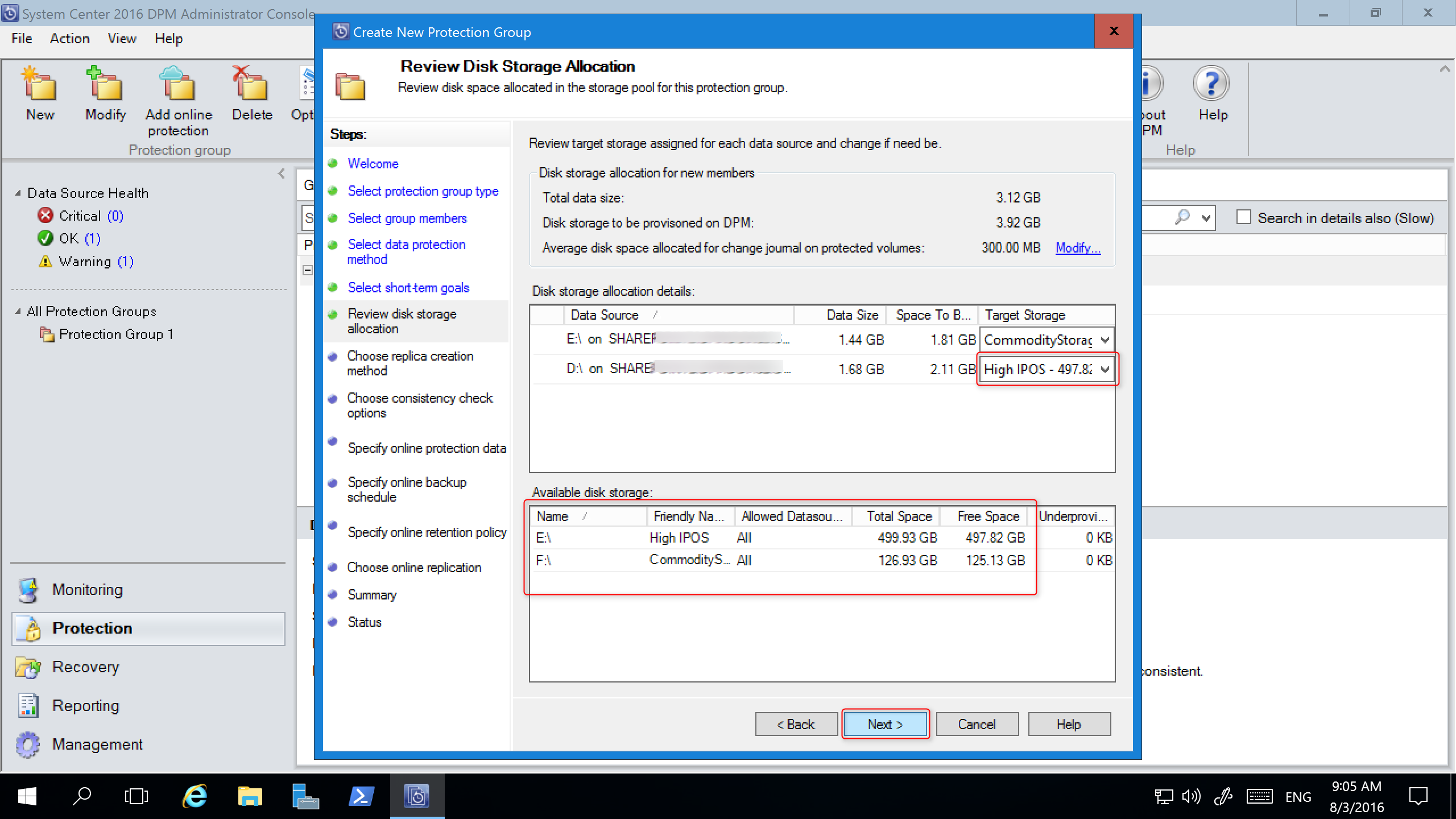

  8. The Review Disk Storage Allocation screen provides the details about the selected data sources, their size, the Space to be Provisioned, and Target Storage Volume.

    Screenshot showing Review Disk Storage Allocation page.

    The storage volumes are determined based on the workload volume allocation (set using PowerShell) and the available storage. You can change the storage volumes by selecting other volumes from the dropdown menu. If you change the Target Storage, the Available disk storage dynamically changes to reflect the Free Space and Underprovisioned Space.

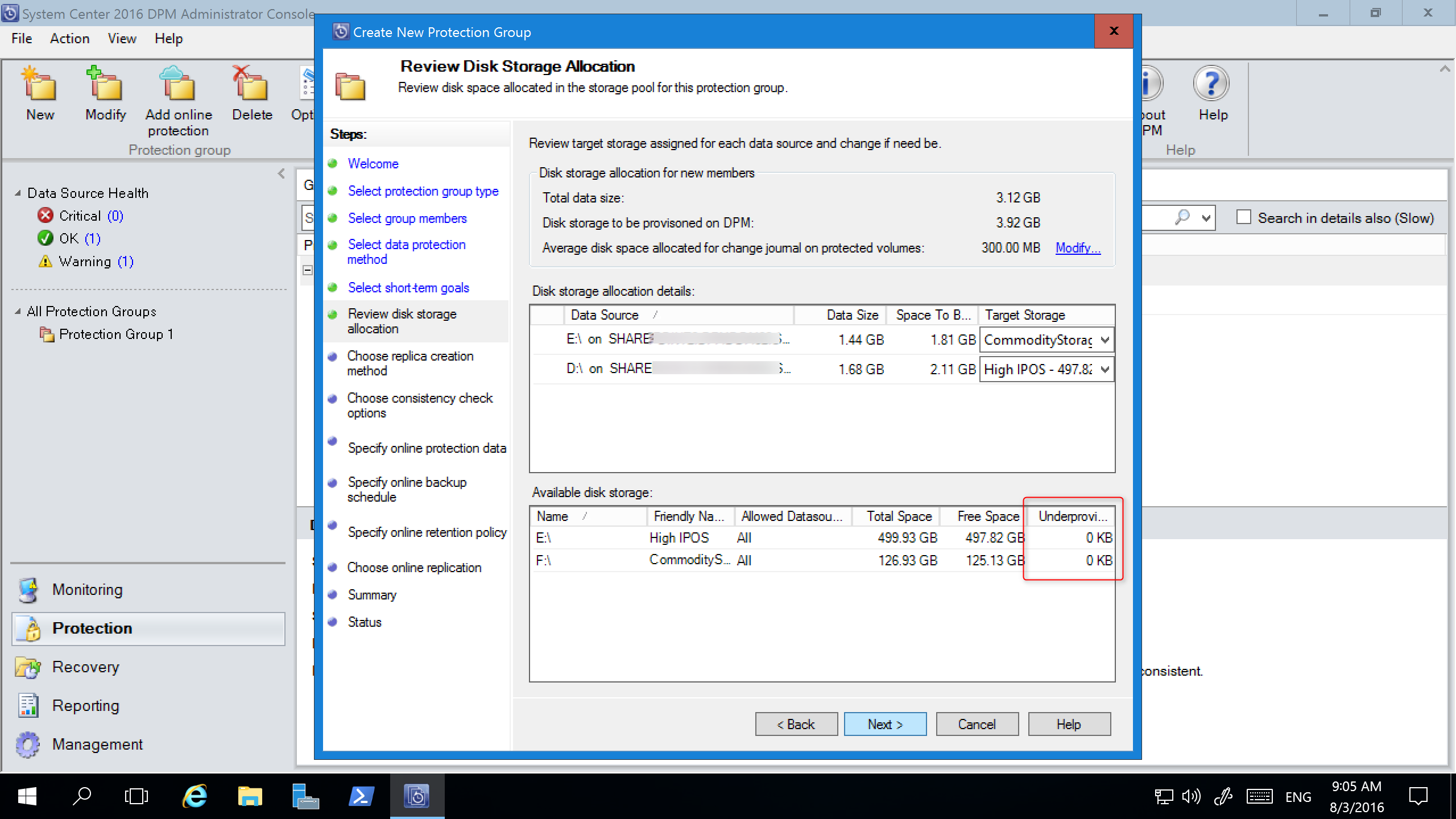

    The Underprovisioned Space column in Available disk storage reflects the amount of additional storage needed if the data sources grow as planned. Use this value to help plan your storage needs to enable smooth backups. If the value is zero, then there are no potential problems with storage in the foreseeable future. If the value is a number other than zero, then you don't have sufficient storage allocated - based on your protection policy and the data size of your protected members.

    Screenshot of Underallocated disk storage page.

The remainder of the New Protection Group wizard is unchanged from DPM 2012 R2. Continue through the wizard to complete the creation of your new protection group.

Migrating legacy storage to Modern Backup Storage

After upgrading DPM 2012 R2 to DPM 2016 and the operating system to Windows Server 2016, you can update your existing protection groups to the new DPM 2016 features. By default, protection groups aren't changed and continue to function as they were configured in DPM 2012 R2. Updating protection groups to use Modern Backup Storage is optional. To update the protection group, stop the protection of all the data sources with Retain Data and add the data sources to a new protection group. DPM begins protecting these data sources the new way.

  1. In the Administrator Console, select the Protection feature, and in the Protection Group Member list, right-click the member and select Stop protection of member....

    Screenshot showing how to stop protection.

    The Remove from Group page opens.

  2. In the Remove from Group page, review the used disk space and the available free space in the storage pool. The default is to leave the recovery points on the disk and allow them to expire per their associated retention policy. Select OK.

    If you want to immediately return the used disk space to the free storage pool, select Delete replica on disk. This will delete the backup data (and recovery points) associated with that member.

    Screenshot showing how to Retain data.

  3. Create a new protection group that uses Modern Backup Storage and include the unprotected data sources.

Adding Disks to increase legacy storage

If you want to use legacy storage with DPM 2016, it may become necessary to add disks to increase legacy storage. To add disk storage:

  1. On the Administrator Console, select Management.

  2. Select Disk Storage.

  3. On the tool ribbon, select Add.

    The Add Disk Storage page opens.

    Screenshot showing add disks page.

  4. In the Add Disk Storage page, select Add disks.

    DPM provides a list of available disks.

  5. Select the disks, select Add to add the disks, and select OK.

New PowerShell cmdlets

For DPM 2016, two new cmdlets: Mount-DPMRecoveryPoint and Dismount-DPMRecoveryPoint are available. Select the cmdlet name to see its reference documentation.

Enable Cloud Protection

You can back up a DPM server to Azure. The high-level steps are:

  • create an Azure subscription,
  • register the server with the Azure Backup service,
  • download vault credentials and the Azure Backup Agent,
  • configure the server's vault credentials and backup policy.

For more information on backing up DPM to the cloud, see Preparing to backup workloads to Azure with DPM.

Next steps
