Managing Virtual Machines with Windows Admin Center

  • Artikel
  • Gäller för:
    ✅ Windows Admin Center, ✅ Windows Admin Center Preview

The Virtual Machines tool is available in Server, Failover Cluster, or Hyper-Converged Cluster connections if the Hyper-V role is enabled on the server or cluster. You can use the Virtual Machines tool to manage Hyper-V hosts running Windows Server 2012 or later, either installed with Desktop Experience or as Server Core. Hyper-V Server 2012, 2016, 2019, and 2022 are also supported.

Key features

Highlights of the Virtual Machines tool in Windows Admin Center include:

  • High-level Hyper-V host resource monitoring. View overall CPU and memory usage, IO performance metrics, VM health alerts and events for the Hyper-V host server or entire cluster in a single dashboard.
  • Unified experience bringing Hyper-V Manager and Failover Cluster Manager capabilities together. View all the virtual machines across a cluster and drill down into a single virtual machine for advanced management and troubleshooting.
  • Simplified, yet powerful workflows for virtual machine management. New UI experiences tailored to IT administration scenarios to create, manage, and replicate virtual machines.

Here are some of the Hyper-V tasks you can do in Windows Admin Center:

Monitor Hyper-V host resources and performance

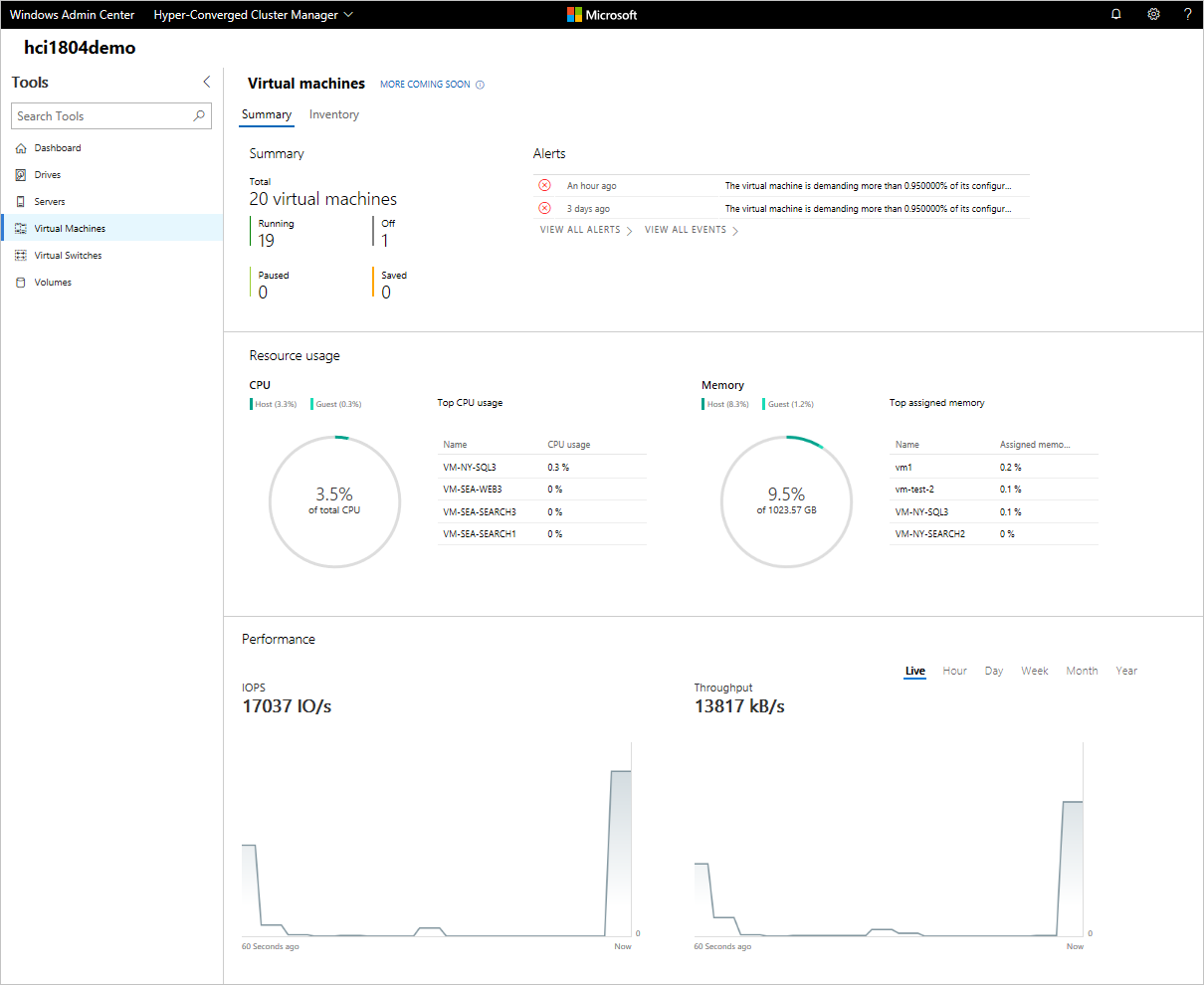

Virtual Machines Summary screen

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. There are two tabs at the top of the Virtual Machines tool, the Summary tab and the Inventory tab. The Summary tab provides a holistic view of Hyper-V host resources and performance for the current server or entire cluster, including the following:
    • The number of VMs grouped by state - running, off, paused and saved
    • Recent health alerts or Hyper-V event log events (Alerts are only available for hyper-converged clusters running Windows Server 2016 or later)
    • CPU and memory usage with host vs guest breakdown
    • Top VMs consuming the most CPU and memory resources
    • Live and historical data line charts for IOPS and IO throughput (Storage performance line charts are only available for hyper-converged clusters running Windows Server 2016 or later. Historical data is only available for hyper-converged clusters running Windows Server 2019)

View virtual machine inventory

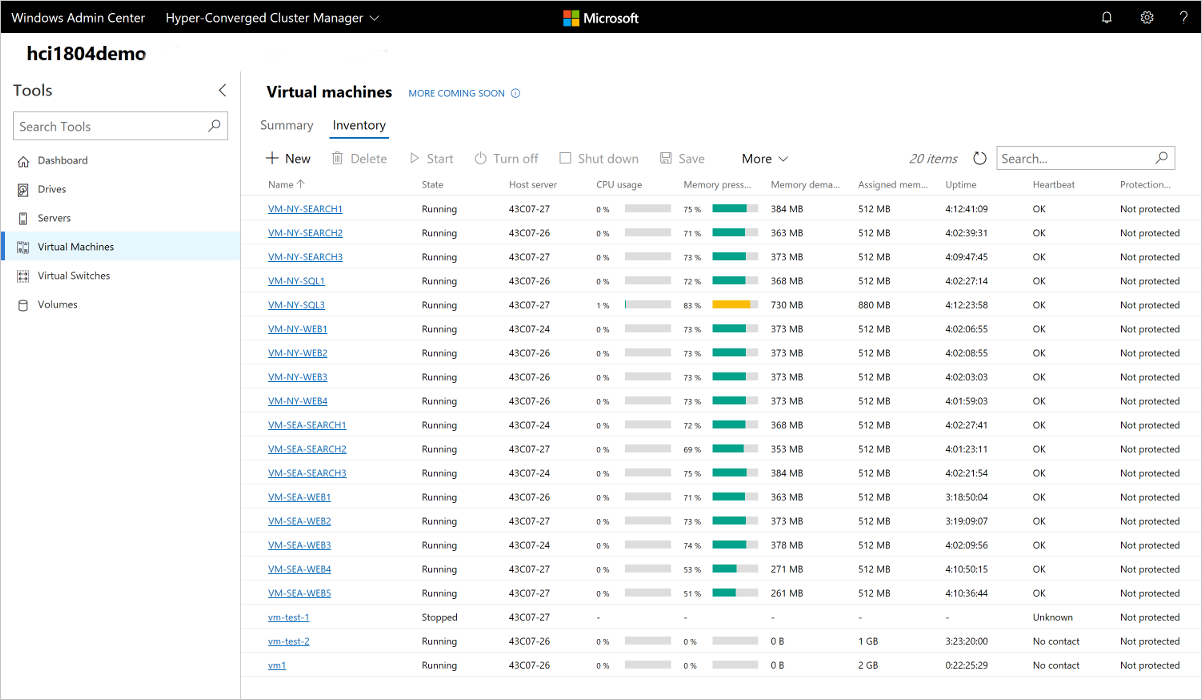

Virtual Machines Inventory screen

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. There are two tabs at the top of the Virtual Machines tool, the Summary tab and the Inventory tab. The Inventory tab lists the virtual machines available on the current server or entire cluster, and provides commands to manage individual virtual machines. You can:
    • View a list of the virtual machines running on the current server or cluster.
    • View the virtual machine's state and host server if you're viewing virtual machines for a cluster. Also view CPU and memory usage from the host perspective, including memory pressure, memory demand and assigned memory, and the virtual machine's uptime, heartbeat status. and protection status using Azure Site Recovery.
    • Create a new virtual machine.
    • Delete, start, turn off, shut down, pause, resume, reset, or rename a virtual machine. Also save the virtual machine, delete a saved state, or create a checkpoint.
    • Change settings for a virtual machine.
    • Connect to a virtual machine console using VMConnect via the Hyper-V host.
    • Replicate a virtual machine using Azure Site Recovery.
    • For operations that can be run on multiple VMs, such as Start, Shut down, Save, Pause, Delete, Reset, you can select multiple VMs and run the operation at once.

NOTE: If you're connected to a cluster, the Virtual Machine tool will only display clustered virtual machines. We plan to also show non-clustered virtual machines in the future.

Create a new virtual machine

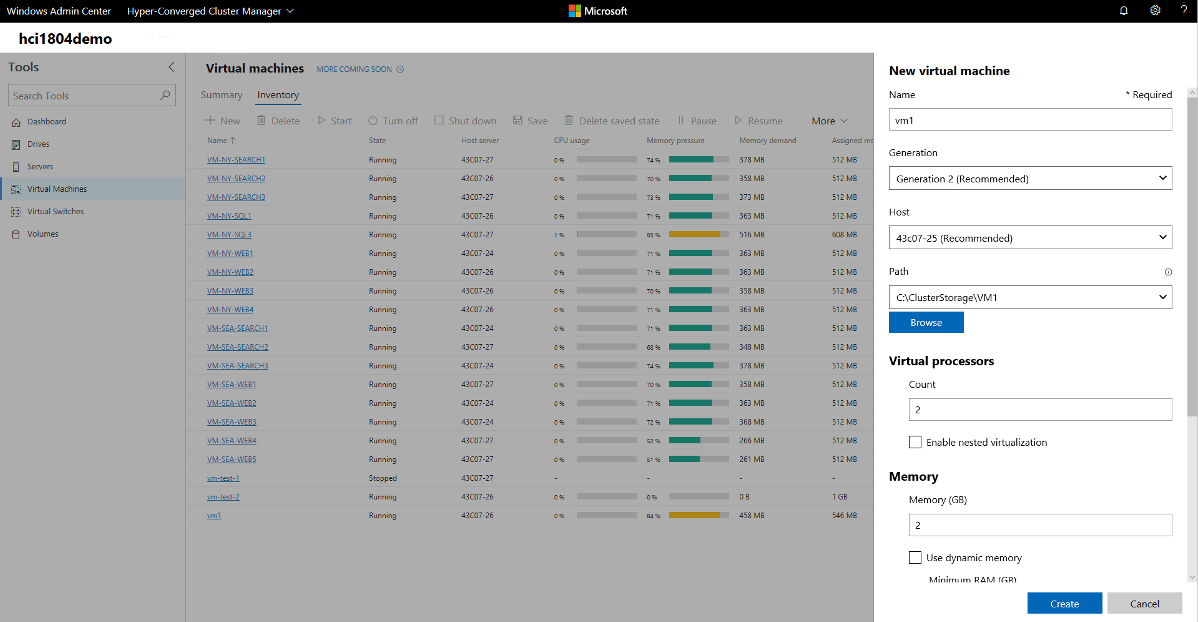

Create new virtual machine screen

  1. Select the Virtual Machines tool from the left side navigation pane.

  2. At the top of the Virtual Machines tool, choose the Inventory tab, then select Add > New to create a new virtual machine.

  3. Enter the virtual machine name and choose between generation 1 and 2 virtual machines.

  4. If you're creating a virtual machine on a cluster, you can choose which host to initially create the virtual machine on. If you're running Windows Server 2016 or later, the tool will provide a host recommendation for you.

  5. Choose a path for the virtual machine files. Choose a volume from the dropdown list or select Browse to choose a folder using the folder picker. The virtual machine configuration files and virtual hard disk file will be saved in a single folder under the \Hyper-V\\[virtual machine name] path of the selected volume or path.

    Tip

    In the folder picker, you can browse to any available SMB share on the network by entering the path in the Folder name field as \\server\share. Using a network share for VM storage will require CredSSP.

  6. Choose the number of virtual processors, whether you want nested virtualization enabled, configure memory settings, network adapters, virtual hard disks and choose whether you want to install an operating system from an .iso image file or from the network.

  7. Select Create to create the virtual machine.

  8. Once the virtual machine is created and appears in the virtual machine list, you can start the virtual machine.

  9. Once the virtual machine is started, you can connect to the virtual machine's console via VMConnect to install the operating system. Select the virtual machine from the list, select Connect > Download RDP file to download the RDP file. Open the RDP file in the Remote Desktop Connection app. Since this is connecting to the virtual machine's console, you'll need to enter the Hyper-V host's admin credentials.

Change virtual machine settings

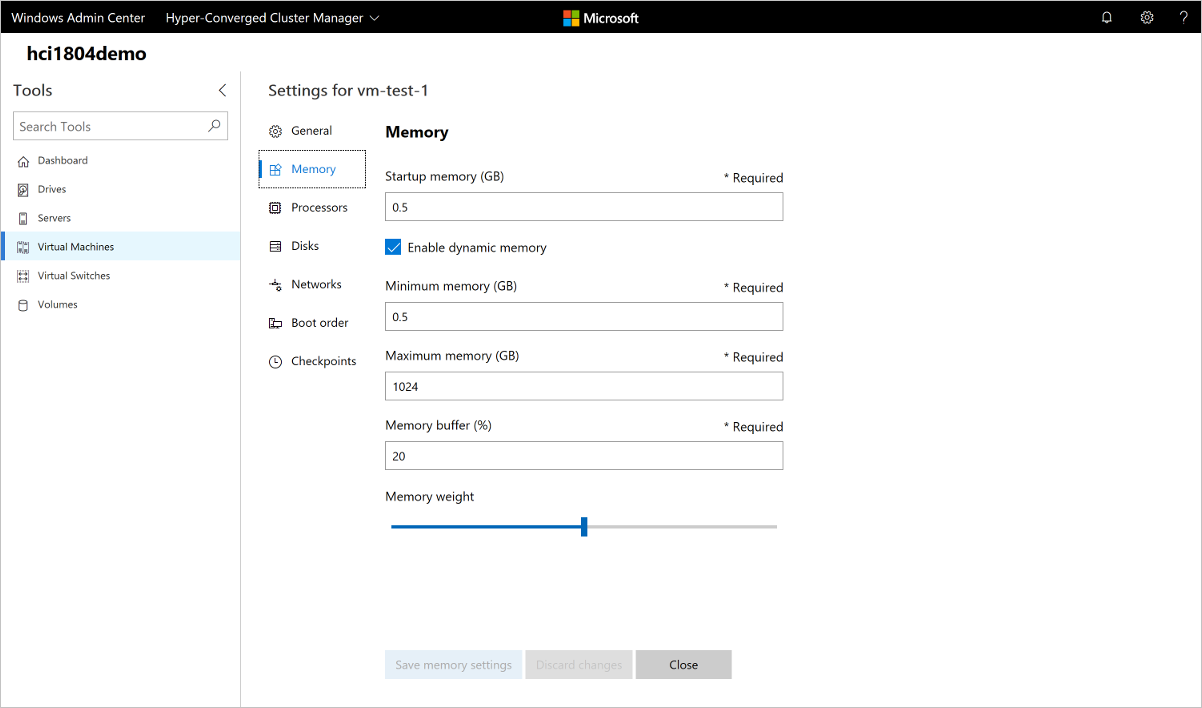

Virtual machine settings screen

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. At the top of the Virtual Machines tool, choose the Inventory tab. Choose a virtual machine from the list and select Settings.
  3. Switch between the General, Security, Memory, Processors, Disks, Networks, Boot order and Checkpoints tab, configure the necessary settings, then select Save to save the current tab's settings. The settings available will vary depending on the virtual machine's generation. Also, some settings can't be changed for running virtual machines and you'll need to stop the virtual machine first.

Live migrate a virtual machine to another cluster node

If you're connected to a cluster, you can live migrate a virtual machine to another cluster node.

  1. From a Failover Cluster or Hyper-converged cluster connection, select the Virtual Machines tool from the left side navigation pane.
  2. At the top of the Virtual Machines tool, choose the Inventory tab. Choose a virtual machine from the list and select Manage > Move.
  3. Choose a server from the list of available cluster nodes and select Move.
  4. Notifications for the move progress will be displayed in the upper right corner of Windows Admin Center. If the move is successful, you'll see the Host server name changed in the virtual machine list.

Advanced management and troubleshooting for a single virtual machine

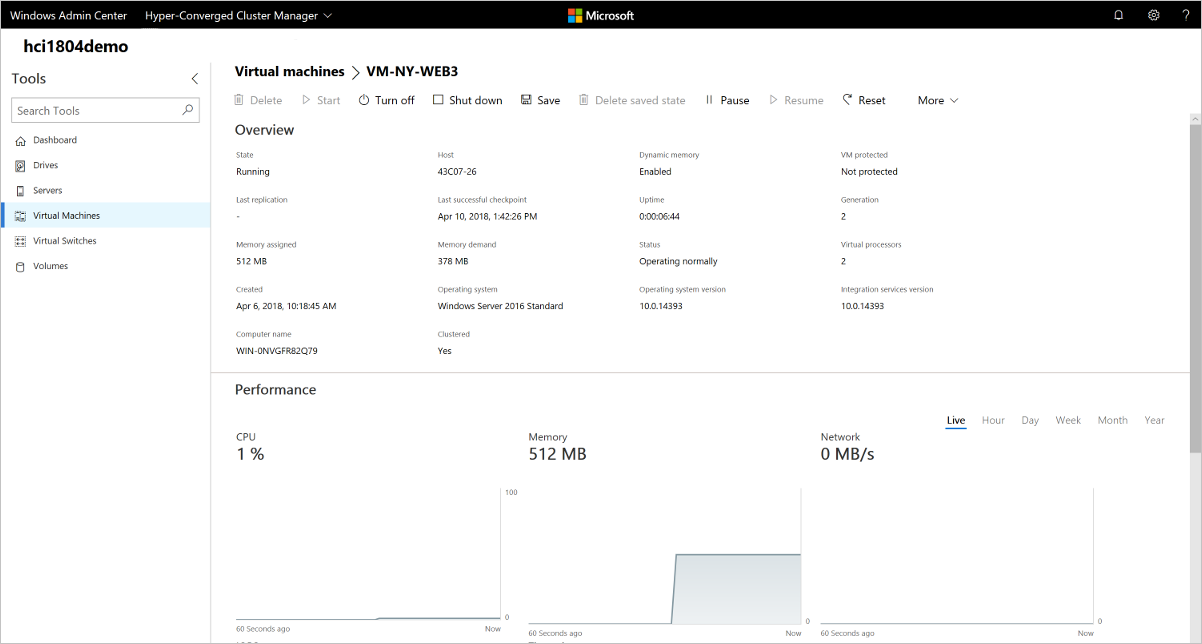

Single virtual machine details screen

You can view detailed information and performance charts for a single virtual machine from the single virtual machine page.

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. At the top of the Virtual Machines tool, choose the Inventory tab. Select on the name of a virtual machine from the virtual machine list.
  3. From the single virtual machine page, you can:
    • View detailed information for the virtual machine.
    • View Live and historical data line charts for CPU, memory, network, IOPS, and IO throughput (Historical data is only available for hyper-converged clusters running Windows Server 2019 or later)
    • View, create, apply, rename, and delete checkpoints.
    • View details for the virtual machine's virtual hard disk (.vhd) files, network adapters, and host server.
    • Delete, start, turn off, shut down, pause, resume, reset, or rename the virtual machine. Also save the virtual machine, delete a saved state, or create a checkpoint.
    • Change settings for the virtual machine.
    • Connect to the virtual machine console using VMConnect via the Hyper-V host.
    • Replicate the virtual machine using Azure Site Recovery.

Manage a virtual machine through the Hyper-V host (VMConnect)

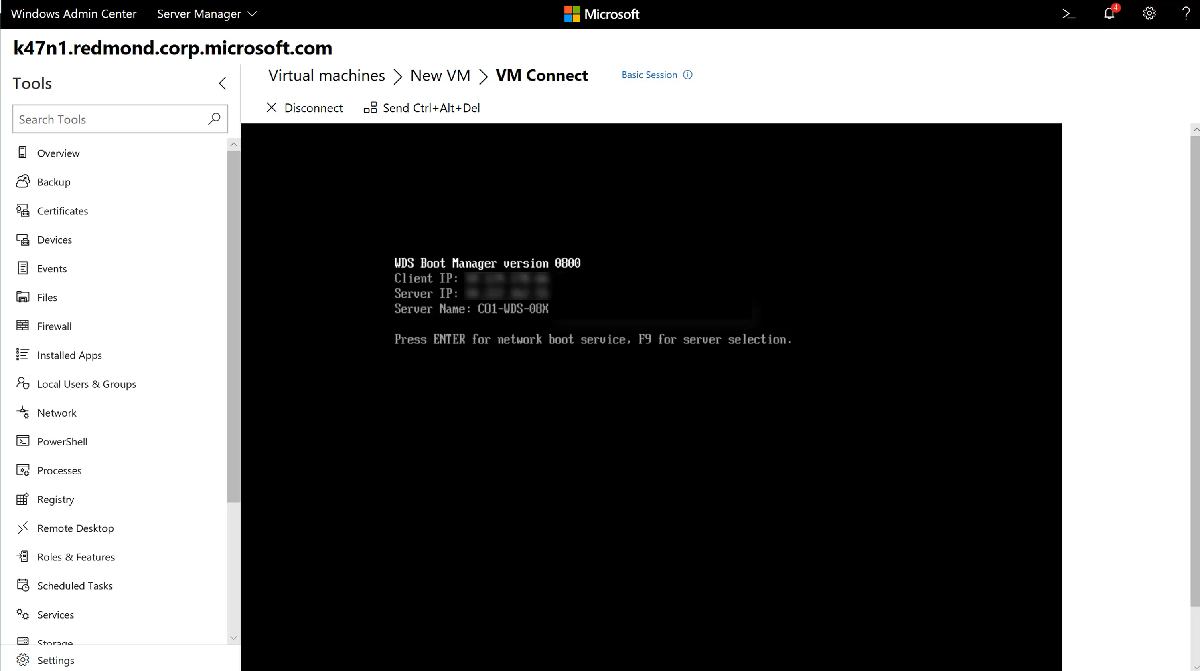

VM Connect through your web browser

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. At the top of the Virtual Machines tool, choose the Inventory tab. Choose a virtual machine from the list and select Connect or Download RDP file. Connect will allow you to interact with the guest VM through the Remote Desktop web console, integrated in to Windows Admin Center. Download RDP file will download an RDP file that you can open with the Remote Desktop Connection application (mstsc.exe). Both options will use VMConnect to connect to the guest VM through the Hyper-V host and will require you to enter administrator credentials for the Hyper-V host server.

Change Hyper-V host settings

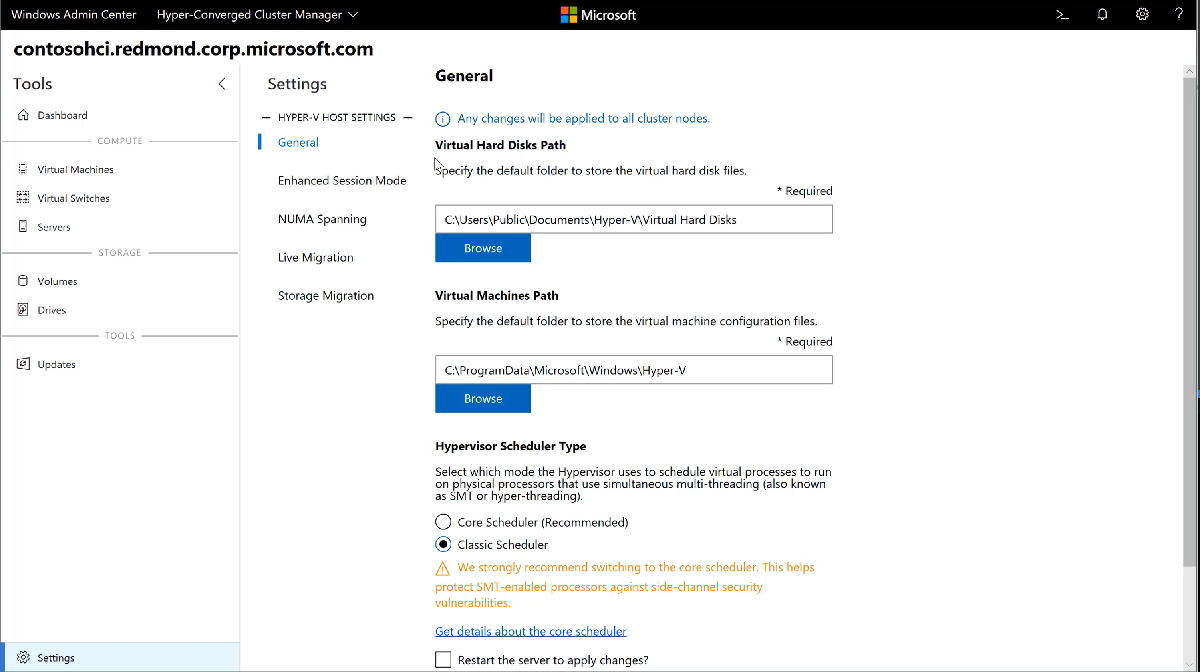

Hyper-V host settings screen

  1. On a Server, Hyper-converged Cluster or Failover Cluster connection, select the Settings menu at the bottom of the left side navigation pane.
  2. On a Hyper-V host server or cluster, you'll see a Hyper-V Host Settings group with the following sections:
    • General: Change virtual hard disks and virtual machines file path, and hypervisor schedule type (if supported)
    • Enhanced Session Mode
    • NUMA Spanning
    • Live Migration
    • Storage Migration
  3. If you make any Hyper-V host setting changes in a Hyper-converged Cluster or Failover Cluster connection, the change will be applied to all cluster nodes.

View Hyper-V event logs

You can view Hyper-V event logs directly from the Virtual Machines tool.

  1. Select the Virtual Machines tool from the left side navigation pane.
  2. At the top of the Virtual Machines tool, choose the Summary tab. In the top-right Events section, select View all events.
  3. The Event Viewer tool will show the Hyper-V event channels in the left pane. Choose a channel to view the events in the right pane. If you're managing a failover cluster or hyper-converged cluster, the event logs will display events for all cluster nodes, displaying the host server in the Machine column.

Protect virtual machines with Azure Site Recovery

You can use Windows Admin Center to configure Azure Site Recovery and replicate your on-premises virtual machines to Azure. Learn more
