Chart visualizations

  • Artikel

Workbooks can take the data returned from queries in various formats to create different visualizations from that data, such as area, line, bar, or time visualizations.

You can present monitoring data as charts. Supported chart types include:

  • Line
  • Bar
  • Bar categorical
  • Area
  • Scatter plot
  • Pie
  • Time

You can choose to customize the:

  • Height
  • Width
  • Color palette
  • Legend
  • Titles
  • No-data message
  • Other characteristics

You can also customize axis types and series colors by using chart settings.

Workbooks support charts for both logs and metric data sources.

Log charts

Azure Monitor logs give you detailed information about your apps and infrastructure. Log information isn't collected by default, and you have to configure data collection. Logs provide information about the state of the resource and data that's useful for diagnostics. You can use workbooks to present log data as visual charts for user analysis.

Add a log chart

The following example shows the trend of requests to an app over the previous days.

  1. Switch the workbook to edit mode by selecting Edit on the toolbar.
  2. Use the Add query link to add a log query control to the workbook.
  3. For Query type, select Log. For Resource type, select, for example, Application Insights, and select the resources to target.
  4. Use the query editor to enter the KQL for your analysis. An example is trend of requests.
  5. Set Visualization to Area, Bar, Bar (categorical), Line, Pie, Scatter, or Time.
  6. Set other parameters like time range, visualization, size, color palette, and legend, if needed.

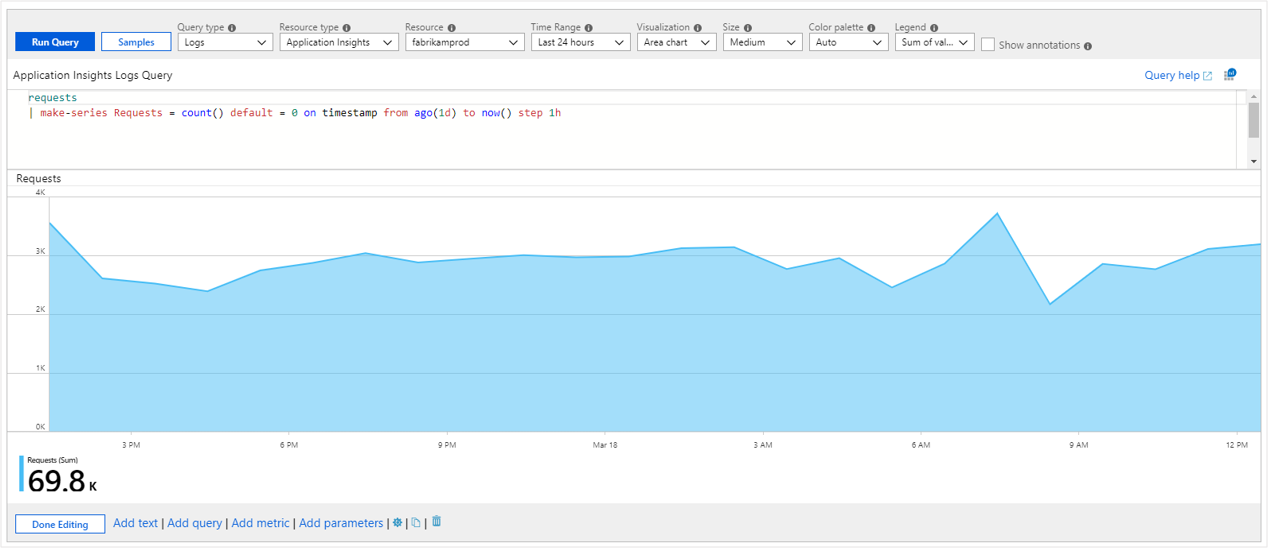

Screenshot that shows a log chart in edit mode.

Log chart parameters

Parameter Description Examples
Query type The type of query to use. Logs, Azure Resource Graph
Resource type The resource type to target. Application Insights, Log Analytics, or Azure-first
Resources A set of resources to get the metrics value from. MyApp1
Time range The time window to view the log chart. Last hour, last 24 hours
Visualization The visualization to use. Area, bar, line, pie, scatter, time, bar (categorical)
Size The vertical size of the control. Small, medium, large, or full
Color palette The color palette to use in the chart. Ignored in multi-metric or segmented mode. Blue, green, red
Legend The aggregation function to use for the legend. Sum or average of values or max, min, first, last value
Query Any KQL query that returns data in the format expected by the chart visualization. requests | make-series Requests = count() default = 0 on timestamp from ago(1d) to now() step 1h

Time-series charts

You can use the workbook's query control to create time-series charts such as area, bar, line, scatter, and time. You must have time and metric information in the result set to create a time-series chart.

Simple time series

The following query returns a table with two columns: timestamp and Requests. The query control uses timestamp for the x-axis and Requests for the y-axis.

requests
| summarize Requests = count() by bin(timestamp, 1h)

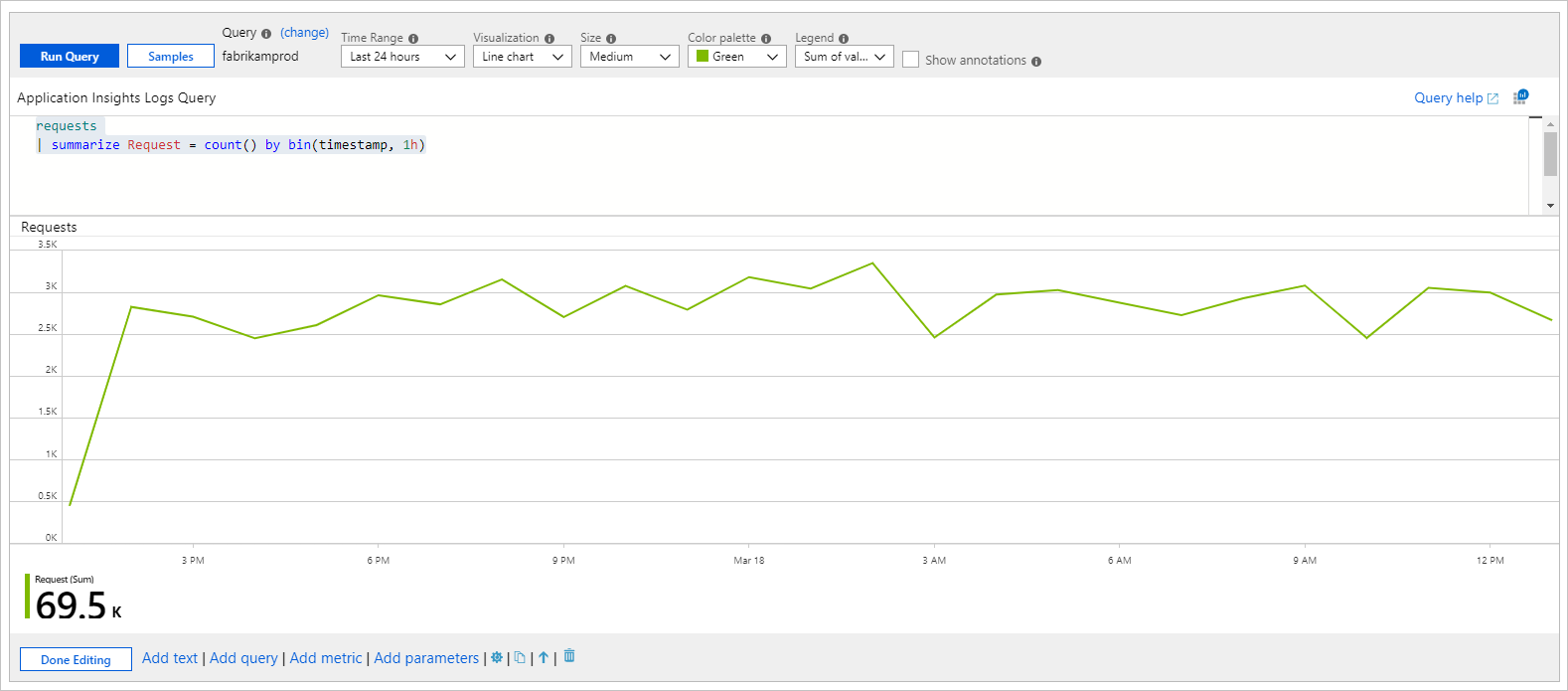

Screenshot that shows a simple time-series log line chart.

Time series with multiple metrics

The following query returns a table with three columns: timestamp, Requests, and Users. The query control uses timestamp for the x-axis and Requests and Users as separate series on the y-axis.

requests
| summarize Requests = count(), Users = dcount(user_Id) by bin(timestamp, 1h)

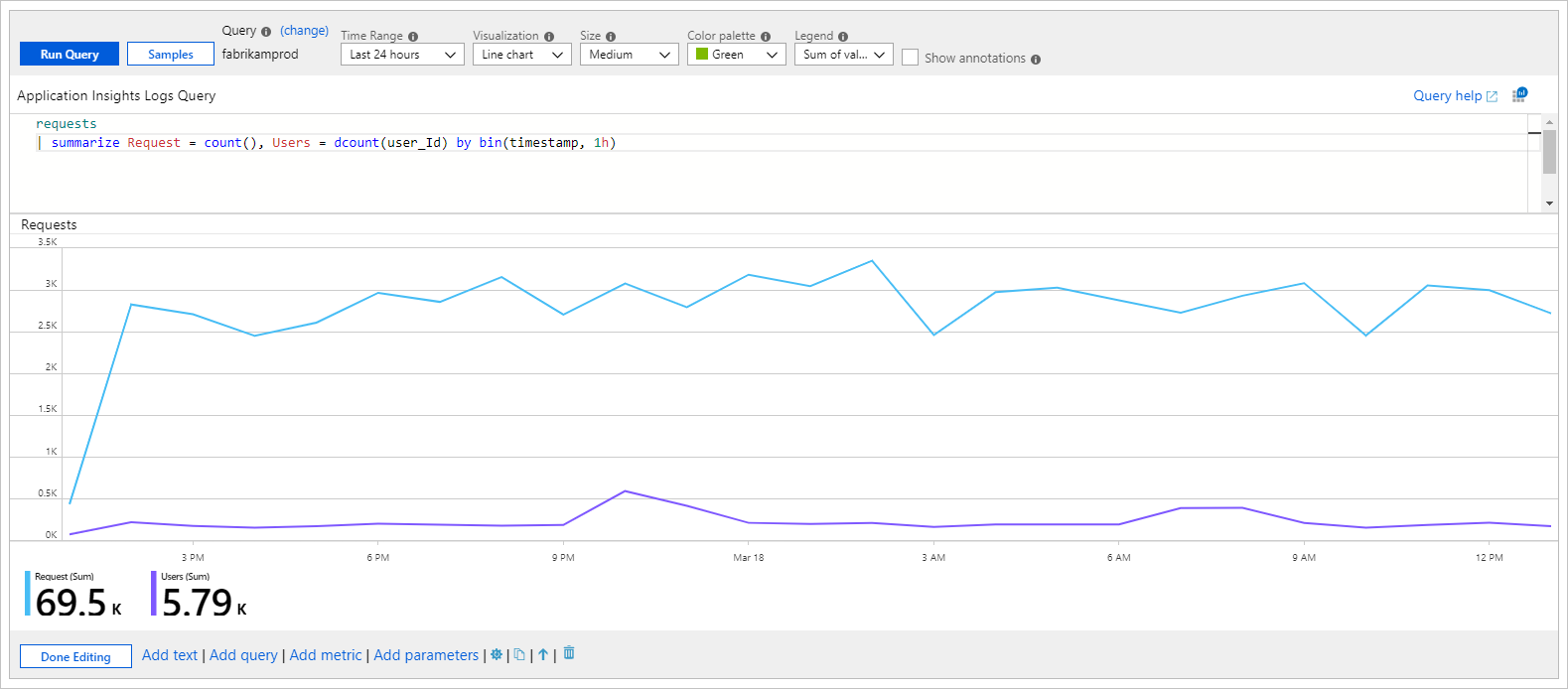

Screenshot that shows a time series with multiple metrics log line chart.

Segmented time series

The following query returns a table with three columns: timestamp, Requests, and RequestName, where RequestName is a categorical column with the names of requests. The query control here uses timestamp for the x-axis and adds a series per value of RequestName.

requests
| summarize Request = count() by bin(timestamp, 1h), RequestName = name

Screenshot that shows a segmented time-series log line chart.

Summarize vs. make-series

The examples in the previous section use the summarize operator because it's easier to understand. The summarize operator's major limitation is that it omits the results row if there are no items in the bucket. If the results row is omitted, depending on where the empty buckets are in the time range, the chart time window might shift.

We recommend using the make-series operator to create time-series data. You can provide default values for empty buckets.

The following query uses the make-series operator:

requests
| make-series Requests = count() default = 0 on timestamp from ago(1d) to now() step 1h by RequestName = name

The following query shows a similar chart with the summarize operator:

requests
| summarize Request = count() by bin(timestamp, 1h), RequestName = name

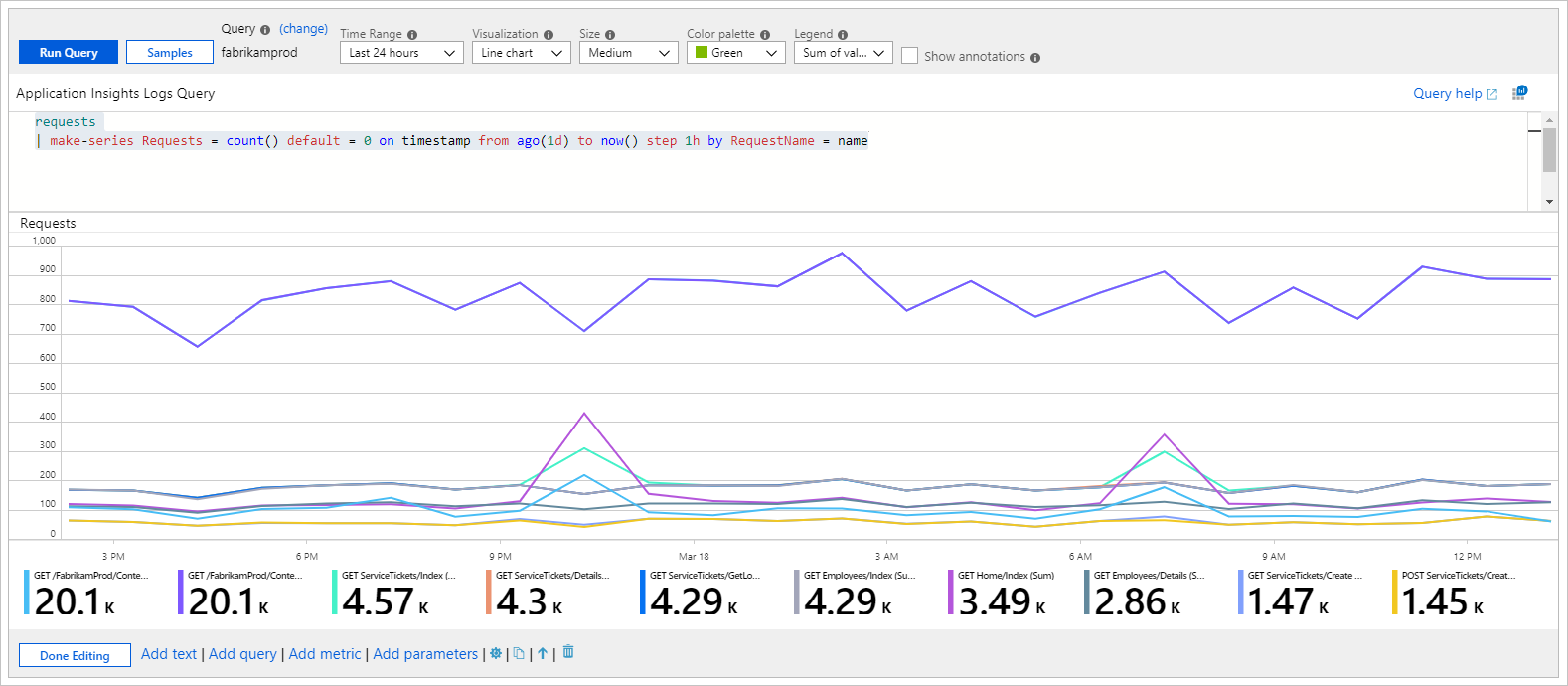

Screenshot that shows a log line chart made from a make-series query.

Categorical bar chart or histogram

You can represent a dimension or column on the x-axis by using categorical charts. Categorical charts are useful for histograms. The following example shows the distribution of requests by their result code:

requests
| summarize Requests = count() by Result = strcat('Http ', resultCode)
| order by Requests desc

The query returns two columns: Requests metric and Result category. Each value of the Result column is represented by a bar in the chart with height proportional to the Requests metric.

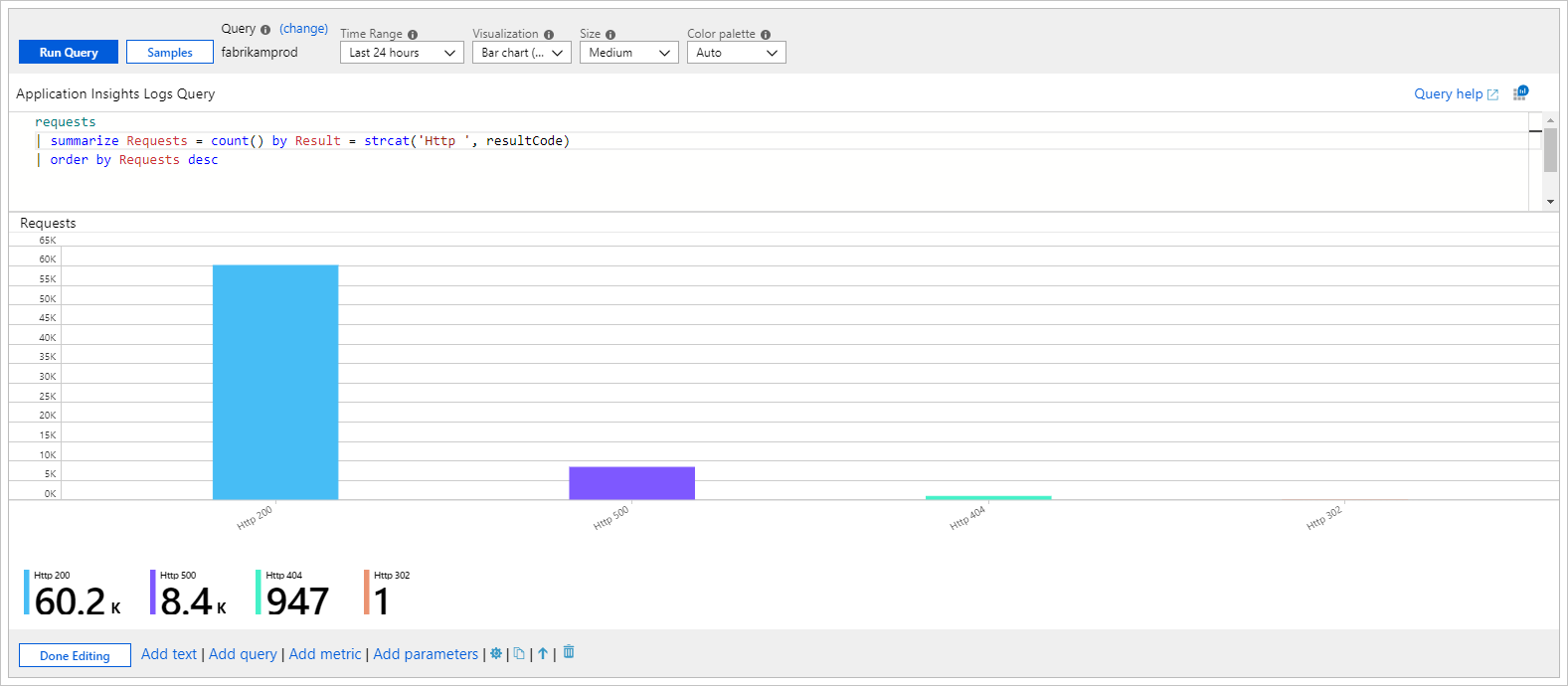

Screenshot that shows a categorical bar chart for requests by result code.

Pie charts

Pie charts allow the visualization of numerical proportion. The following example shows the proportion of requests by their result code:

requests
| summarize Requests = count() by Result = strcat('Http ', resultCode)
| order by Requests desc

The query returns two columns: Requests metric and Result category. Each value of the Result column gets its own slice in the pie with size proportional to the Requests metric.

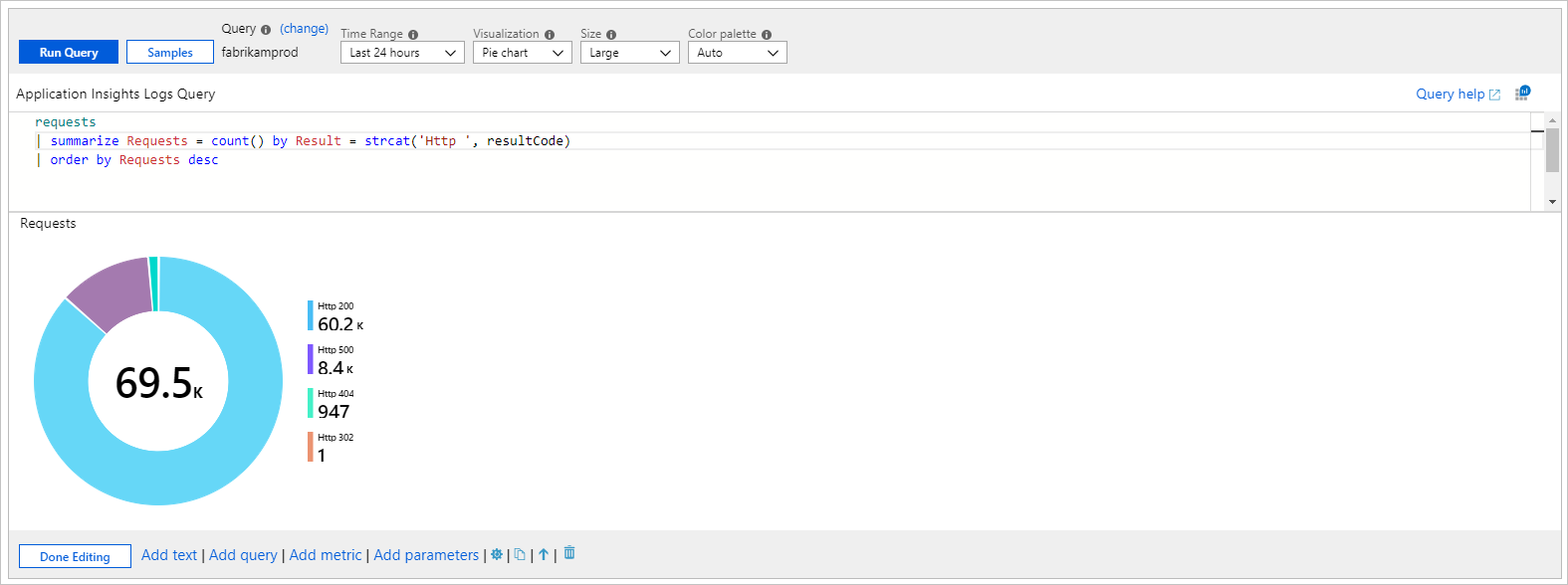

Screenshot that shows a pie chart with slices representing result code.

Metric charts

Most Azure resources emit metric data about their state and health. Examples include CPU utilization, storage availability, count of database transactions, and failing app requests. You can use workbooks to create visualizations of this data as time-series charts.

Add a metric chart

The following example shows the number of transactions in a storage account over the prior hour. This information allows the storage owner to see the transaction trend and look for anomalies in behavior.

  1. Switch the workbook to edit mode by selecting Edit on the toolbar.
  2. Use the Add metric link to add a metric control to the workbook.
  3. Select a resource type, for example, Storage account. Select the resources to target, the metric namespace and name, and the aggregation to use.
  4. Set other parameters like time range, split by, visualization, size, and color palette, if needed.

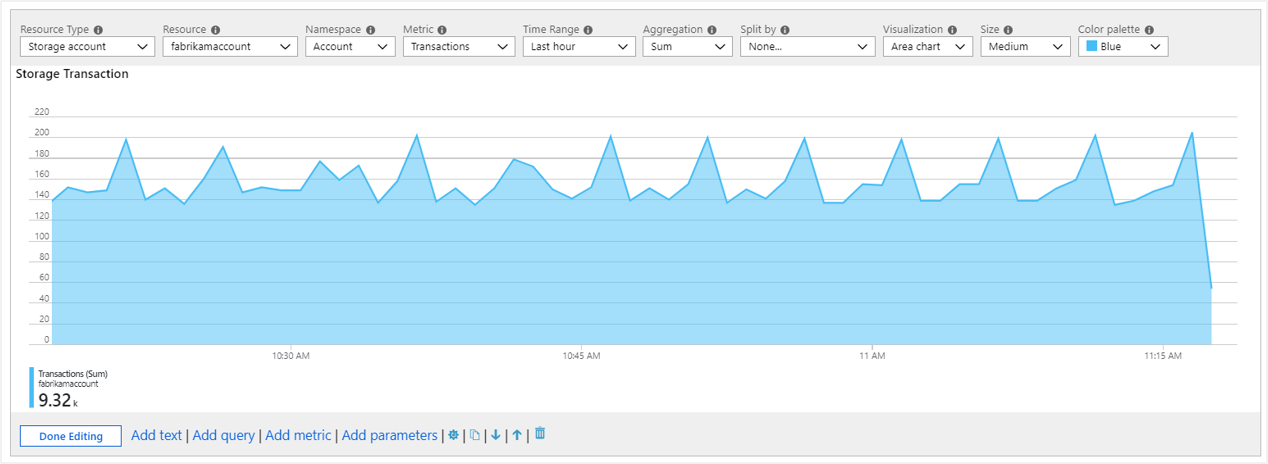

Screenshot that shows a metric chart in edit mode.

Metric chart parameters

Parameter Description Examples
Resource type The resource type to target. Storage or virtual machine
Resources A set of resources to get the metrics value from. MyStorage1
Namespace The namespace with the metric. Storage > Blob
Metric The metric to visualize. Storage > Blob > Transactions
Aggregation The aggregation function to apply to the metric. Sum, count, average
Time range The time window to view the metric in. Last hour, last 24 hours
Visualization The visualization to use. Area, bar, line, scatter, grid
Split by Optionally split the metric on a dimension. Transactions by geo type
Size The vertical size of the control. Small, medium, or large
Color palette The color palette to use in the chart. Ignored if the Split by parameter is used. Blue, green, red

Examples

Transactions split by API name as a line chart:

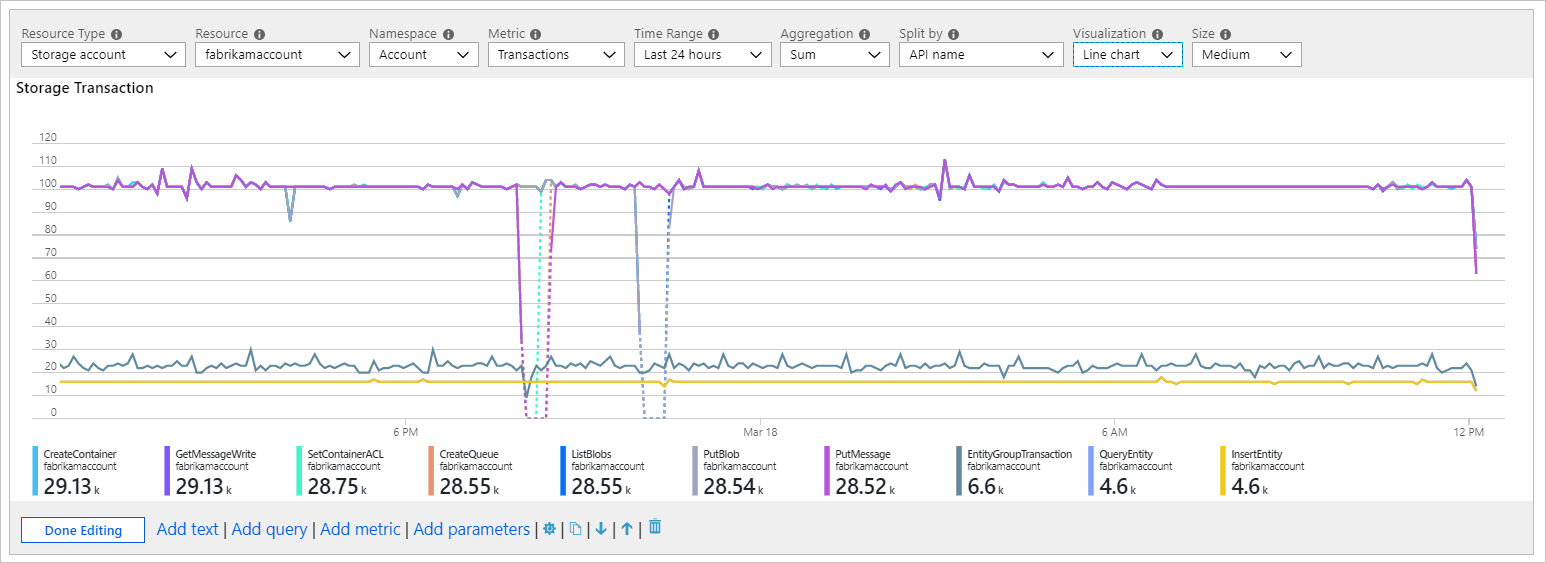

Screenshot that shows a metric line chart for storage transactions split by API name.

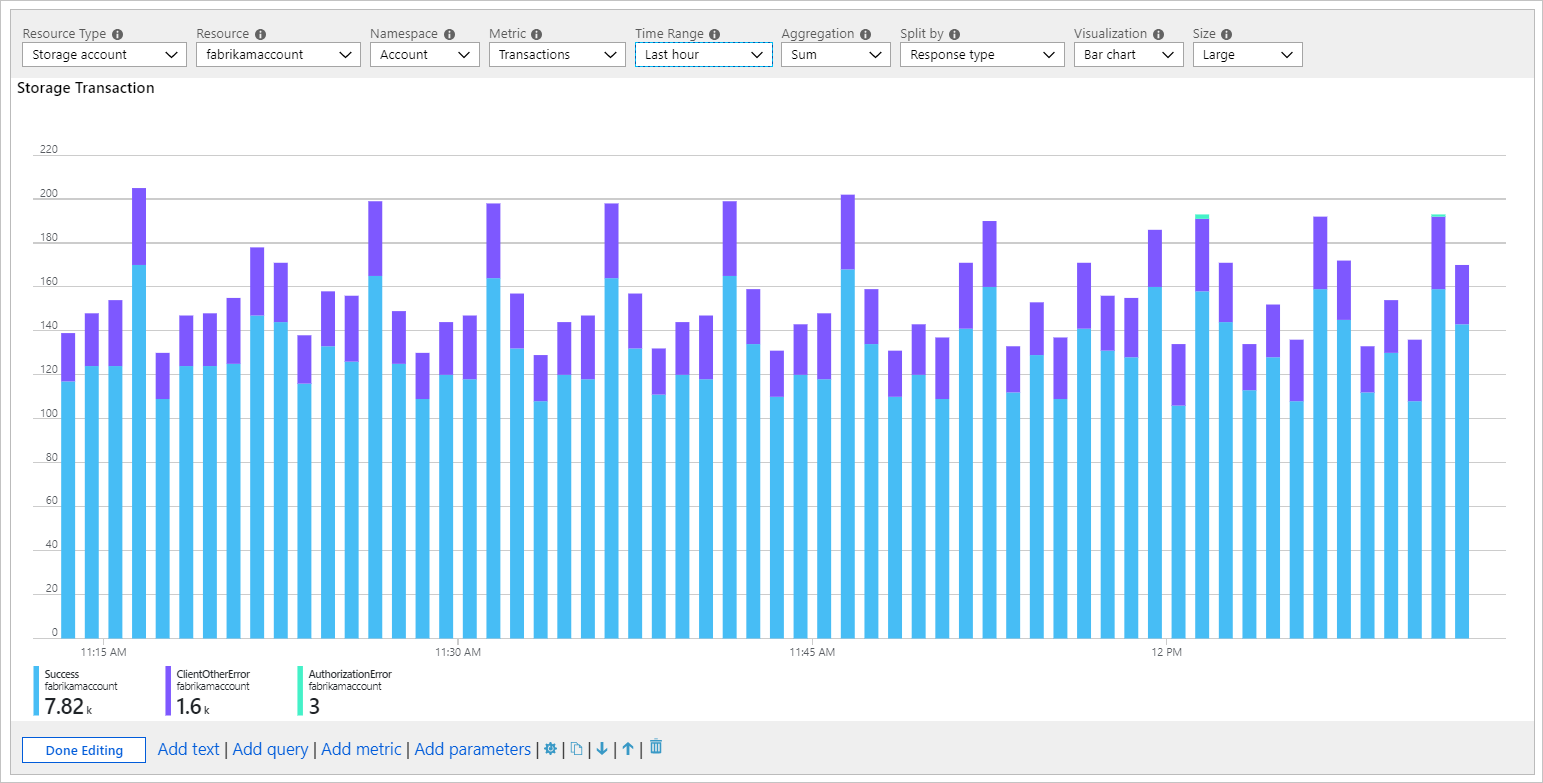

Transactions split by response type as a large bar chart:

Screenshot that shows a large metric bar chart for storage transactions split by response type.

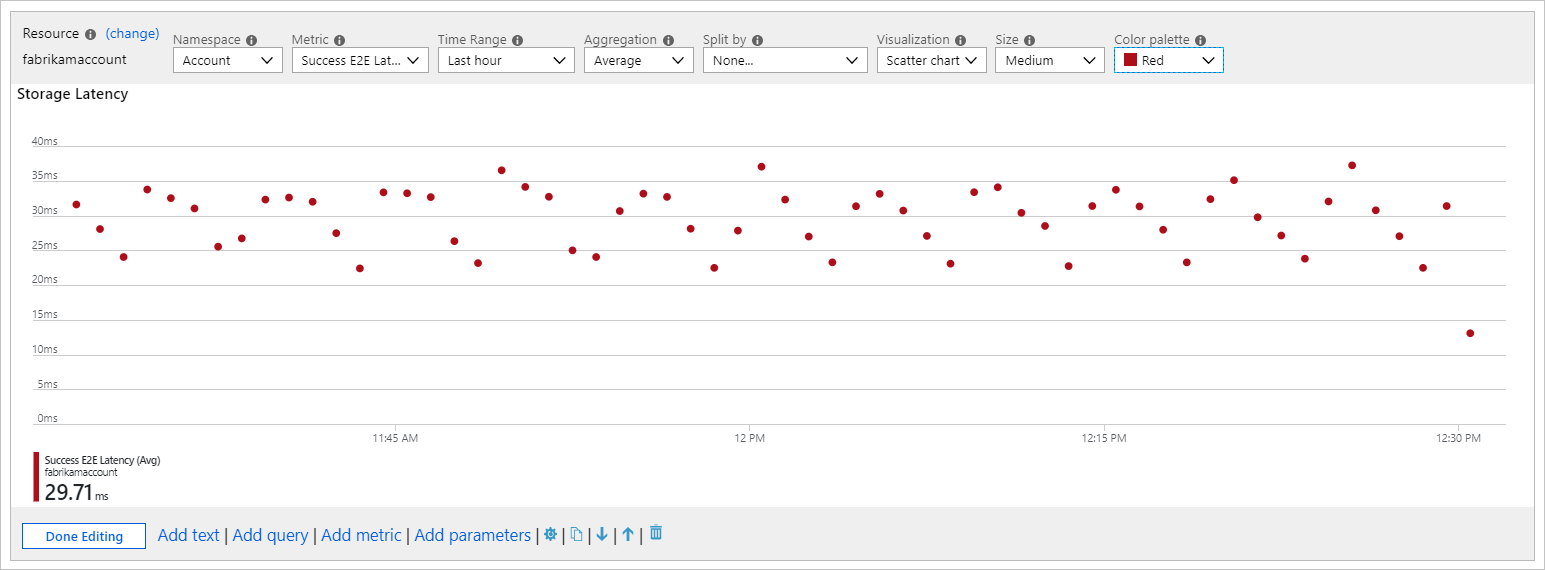

Average latency as a scatter chart:

Screenshot that shows a metric scatter chart for storage latency.

Chart settings

You can use chart settings to customize which fields are used in the:

  • Chart axes
  • Axis units
  • Custom formatting
  • Ranges
  • Grouping behaviors
  • Legends
  • Series colors

Settings tab

The Settings tab controls:

  • X-axis Settings, Y-axis Settings: Includes which fields. You can use custom formatting to set the number formatting to the axis values and custom ranges.
  • Grouping Settings: Includes which field. Sets the limits before an "Others" group is created.
  • Legend Settings: Shows metrics like series name, colors, and numbers at the bottom, and a legend like series names and colors.

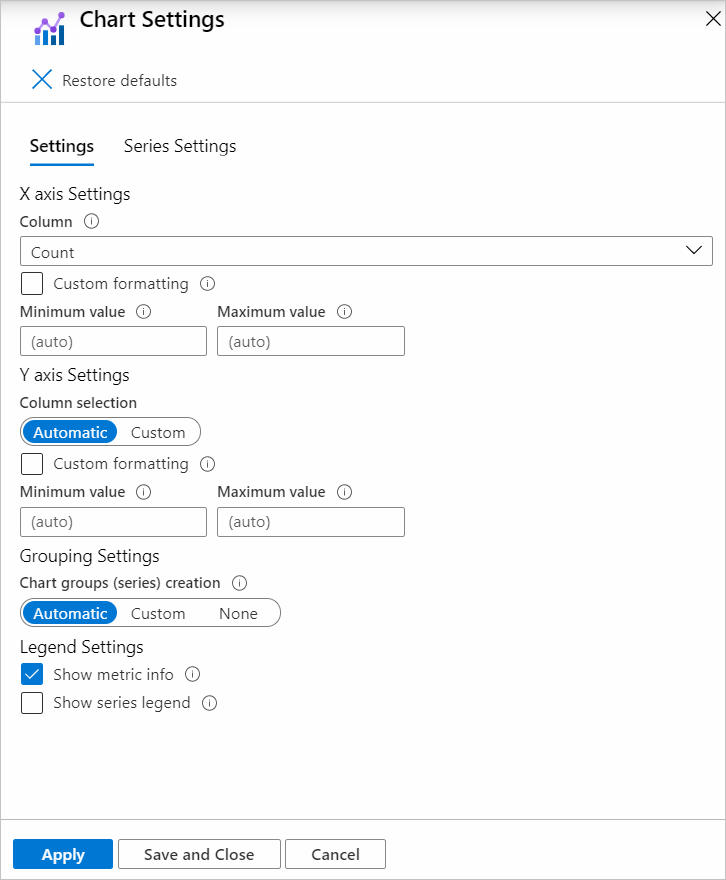

Screenshot that shows chart settings.

Custom formatting

Number formatting options are shown in this table.

Formatting option Description
Units The units for the column, such as various options for percentage, counts, time, byte, count/time, and bytes/time. For example, the unit for a value of 1234 can be set to milliseconds and it's rendered as 1.234s.
Style The format to render it as, such as decimal, currency, and percent.
Show grouping separators Checkbox to show group separators. Renders 1234 as 1,234 in the US.
Minimum integer digits Minimum number of integer digits to use (default 1).
Minimum fractional digits Minimum number of fractional digits to use (default 0).
Maximum fractional digits Maximum number of fractional digits to use.
Minimum significant digits Minimum number of significant digits to use (default 1).
Maximum significant digits Maximum number of significant digits to use.

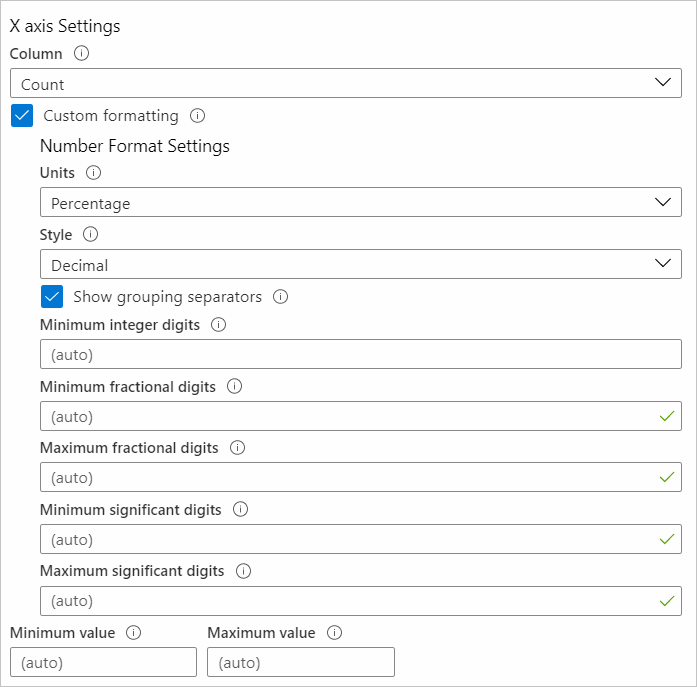

Screenshot that shows x-axis settings.

Series Settings tab

You can adjust the labels and colors shown for series in the chart with the Series Settings tab:

  • Series name: This field is used to match a series in the data and, if matched, the display label and color are displayed.
  • Comment: This field is useful for template authors because this comment might be used by translators to localize the display labels.

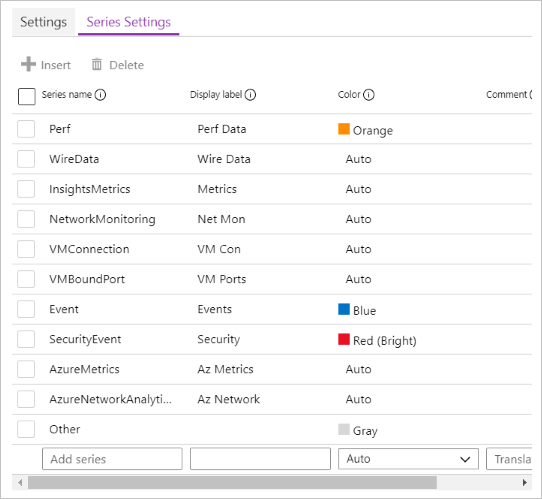

Screenshot that shows series settings.
