Customize your Kanban boards

TFS 2017 | TFS 2015 | TFS 2013

This article shows how to customize a Kanban board. You have one Kanban board for each active product or portfolio backlog.

You can configure your Kanban board in several ways to support specific tracking needs. For example:

• Update fields directly from the card.
• Highlight cards based on field assignments.
• Add columns to track other workflow states.
• Add swimlanes to speed up work or differentiate work assigned to different service classes.

Open board settings

Basic process

Each team can customize their Issues and Epics boards and sprint Taskboards.

Note

The Basic process is available when you add a project to Azure DevOps Services or Azure DevOps Server 2019 Update 1. For earlier on-premises deployments, choose Agile, Scrum, or CMMI process.

1. Open your Kanban board.

2. Choose the gear icon to configure the board setting settings.

   The Settings dialog opens.



3. Choose one of the following tabs based on what you want to customize:

   Common customizations:

   • Fields: Set what fields appear on cards.
   • Columns: Add, rename, and configure columns for the board.
   • Swimlanes: Add swimlanes to a board to easily track high priority levels, distinguish different service classes, or track blocked items.
   • Backlogs: Enable or disable issues or epics from being tracked on backlogs and boards.
   Less common customizations:
   • Styles: Specify the card color to display based on field criteria you specify.
   • Tag colors: Specify the tag color to display based on tag criteria you specify.
   • Annotations: Enable or disable task or test annotations.
   • Tests: Configure how you want tests to appear and behave on the cards.
   • Card reordering: Choose to enable/disable changing of the backlog priority when dragging and dropping cards on the board.
   • Cumulative flow: Set how you want the cumulative flow diagram to display.
   • Working days: Set the active weekdays to use when tracking capacity and burndown.

Agile process

1. Open your Kanban board.

2. Choose the gear icon to configure the board setting settings.

   The Settings dialog opens.



3. Choose one of the following tabs based on what you want to customize:

   Common customizations:

   • Fields: Set what fields appear on cards.
   • Columns: Add, rename, and configure columns for the board.
   • Swimlanes: Add swimlanes to a board to easily track high priority levels, distinguish different service classes, or track blocked items.
   • Backlogs: Enable or disable issues or epics from being tracked on backlogs and boards.
   • Show bugs: Choose how bugs are displayed on backlogs and boards.
   Less common customizations:
   • Styles: Specify the card color to display based on field criteria you specify.
   • Tag colors: Specify the tag color to display based on tag criteria you specify.
   • Annotations: Enable or disable task, test, bug, or GitHub annotations.
   • Tests: Configure how you want tests to appear and behave on the cards.
   • Card reordering: Choose to enable/disable changing of the backlog priority when dragging and dropping cards on the board.
   • Cumulative flow: Set how you want the cumulative flow diagram to display.
   • Working days: Set the active weekdays to use when tracking capacity and burndown.

Customize fields on a card

To quickly assign fields from the card without having to open the work item, add them to display on the card.

Basic process

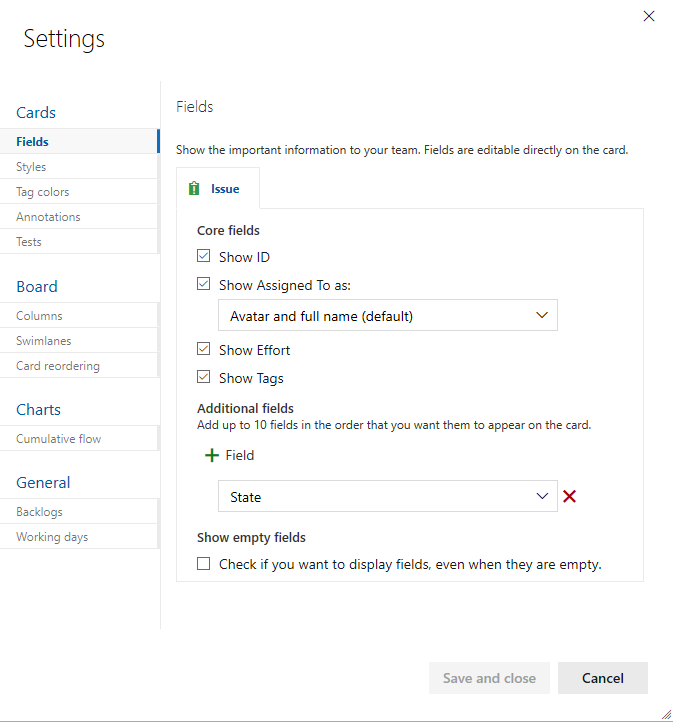

1. To configure the fields displayed on cards, choose the Fields tab.

2. Check or uncheck those fields you want to display or not display on the board.

3. To add a field, choose Field to add a field.

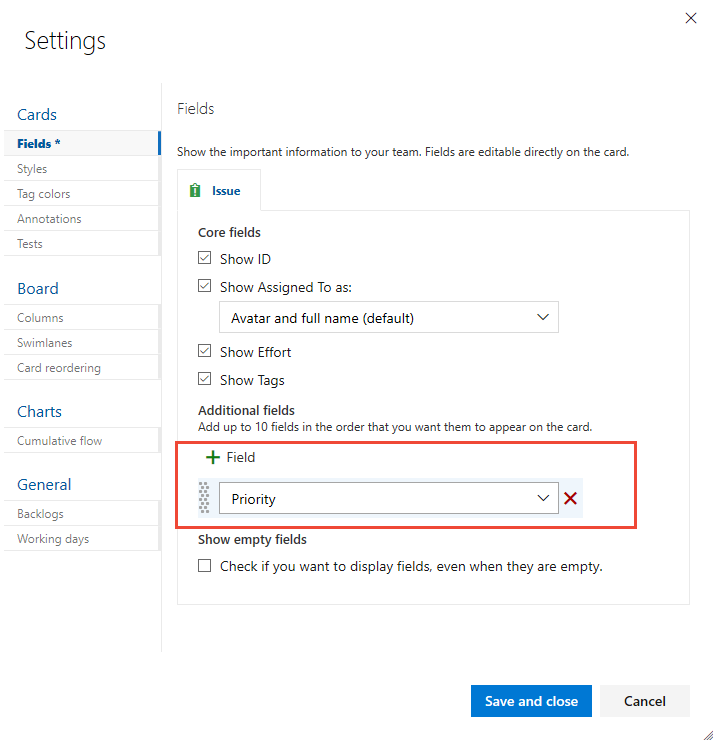

   For example, here we uncheck Show ID and add the Priority field.



4. To remove a field, choose the delete icon next to the field.

5. Choose Save and close when done. To learn more, see Customize cards.

Agile process

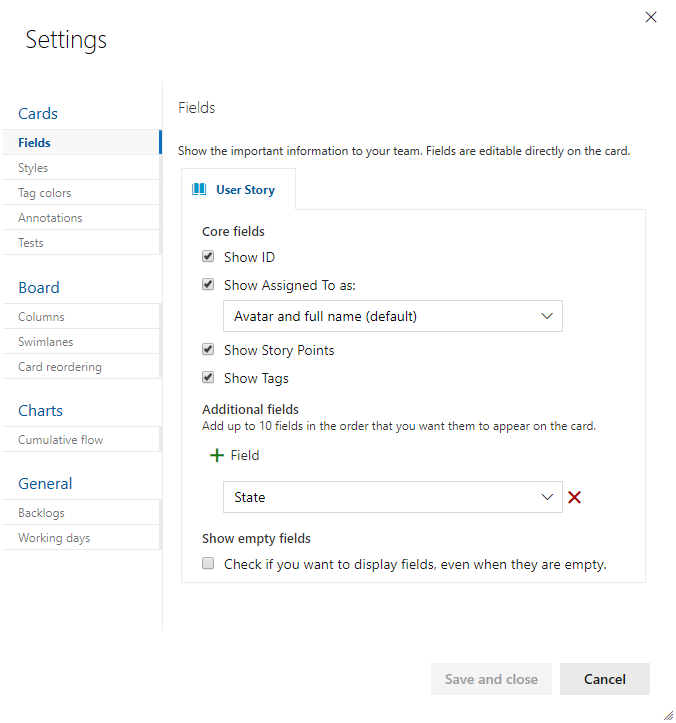

1. To configure the fields displayed on cards, choose the Fields tab.

2. Check or uncheck those fields you want to display or not display on the board.

3. To add a field, choose Field to add a field.

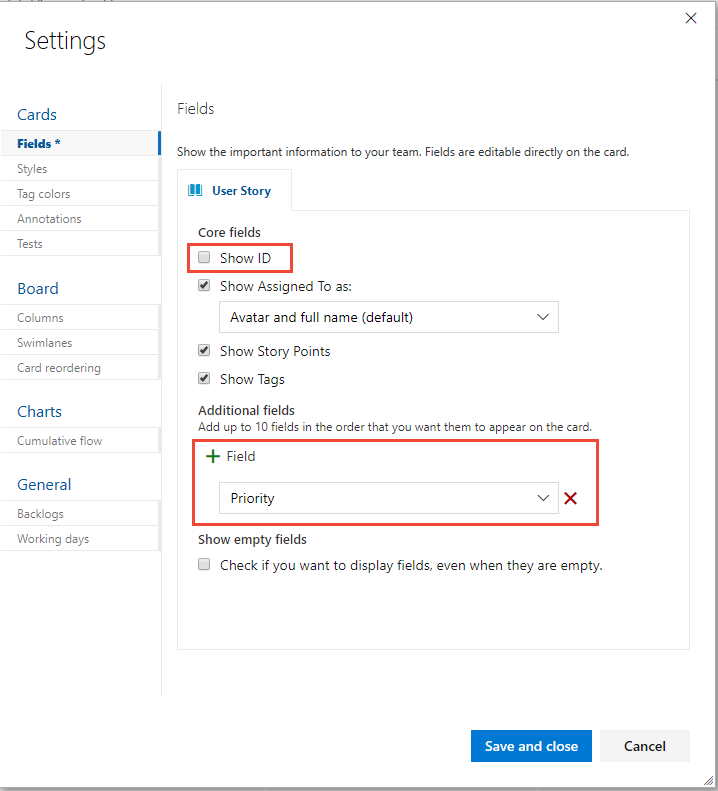

   For example, here we uncheck Show ID, remove the State field, and add the Priority field.



4. To remove a field, choose the delete icon next to the field.

5. Choose Save and close when done. To learn more, see Customize cards.

Customize your columns

You can add columns or change column names.

Basic process

1. To add a column or change column settings, choose Columns tab.

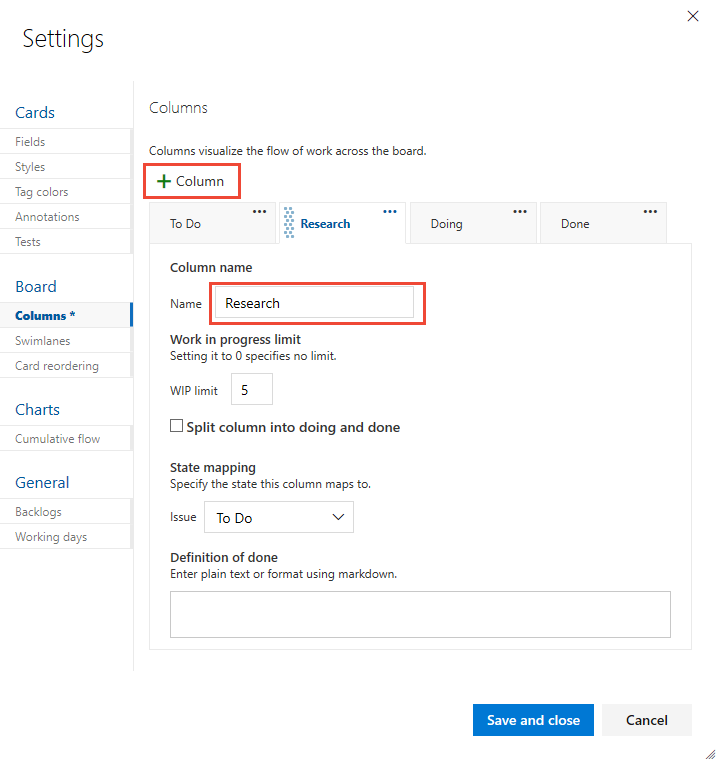

   Here we choose Column, and then specify the name as Research.



2. Choose Save and close when done. To learn more about column settings, see Add columns to your Kanban board.

Agile process

1. To add a column or change column settings, choose Columns tab.

   Here we choose Column, and then specify the name as Research.



2. Choose Save and close when done. To learn more about column settings, see Add columns to your Kanban board.

Customize your swimlanes

Swimlanes appear as rows within the Kanban board and provide yet another way to categorize work you want to track.

1. To add a swimlane, choose Swimlanes tab and choose Swimlane, and then specify the name.

   Here we label the swimlane Expedite.



2. Choose Save and close when done. To learn more about working with swimlanes, see Expedite work with swimlanes.

Add or remove backlog levels

Basic process

If you decide you don't want to use Epics to track work, you can turn it off and it won't show up as a board or backlog. By default, it's enabled for new projects.

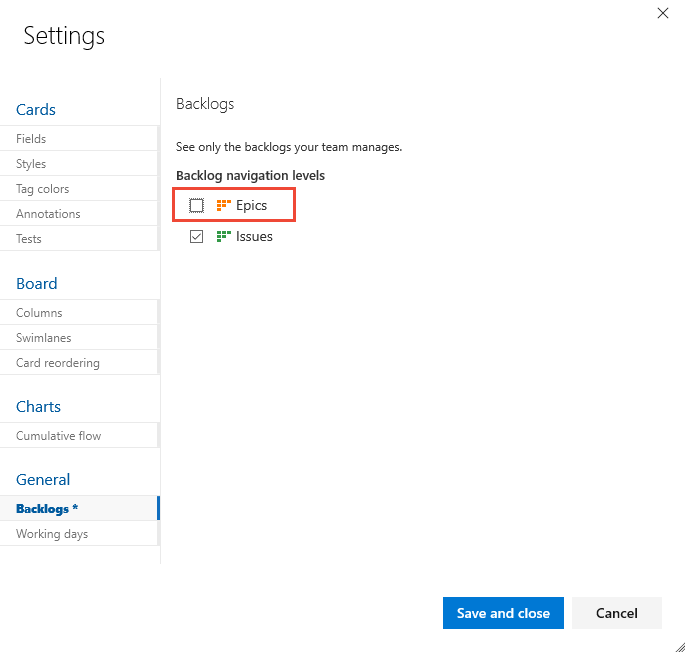

1. Choose Backlogs tab and uncheck the work item type you no longer want to track on backlogs and boards.



2. Choose Save and close when done.

Agile process

If you decide you want to use Epics to track work, you can turn it on and it will show up as a board or backlog. By default, it isn't enabled for new projects.

1. Choose the Backlogs tab and uncheck the work item type you no longer want to track on backlogs and boards.



2. Choose Save and close when done.

Note

Contributors will still be able to create Epics from other views, they just won't be able to view Epics within a backlog or board. To completely disable the Epic work item type, see Add and manage work item types, Enable or disable a WIT.

Review your changes

After you close the settings dialog, refresh (F5) your board to view your changes. Verify that all changes appear as expected, or revisit the Settings dialog to make a change.

Basic process

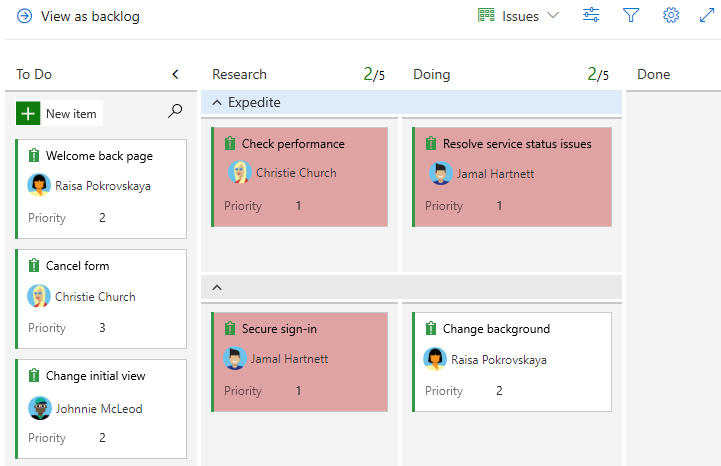

Here we show the customizations made in this article. The following image also shows a style applied to the color when the Priority=1.

Agile process

Here we show the customizations made in this article. The following image also shows a style applied to the color when the Priority=1.
