Platform-Specifics

Artikel
10/01/2018

Platform-specifics allow you to consume functionality that's only available on a specific platform, without implementing custom renderers or effects.

The process for consuming a platform-specific through XAML, or through the fluent code API is as follows:

Add a xmlns declaration or using directive for the Xamarin.Forms.PlatformConfiguration namespace.
Add a xmlns declaration or using directive for the namespace that contains the platform-specific functionality:
1. On iOS, this is the Xamarin.Forms.PlatformConfiguration.iOSSpecific namespace.
2. On Android, this is the Xamarin.Forms.PlatformConfiguration.AndroidSpecific namespace. For Android AppCompat, this is the Xamarin.Forms.PlatformConfiguration.AndroidSpecific.AppCompat namespace.
3. On the Universal Windows Platform, this is the Xamarin.Forms.PlatformConfiguration.WindowsSpecific namespace.
Apply the platform-specific from XAML, or from code with the On<T> fluent API. The value of T can be the iOS, Android, or Windows types from the Xamarin.Forms.PlatformConfiguration namespace.

Note

Note that attempting to consume a platform-specific on a platform where it is unavailable will not result in an error. Instead, the code will execute without the platform-specific being applied.

Platform-specifics consumed through the On<T> fluent code API return IPlatformElementConfiguration objects. This allows multiple platform-specifics to be invoked on the same object with method cascading.

For more information about the platform-specifics provided by Xamarin.Forms, see iOS Platform-Specifics, Android Platform-Specifics, and Windows Platform-Specifics.

Creating platform-specifics

Vendors can create their own platform-specifics with Effects. An Effect provides the specific functionality, which is then exposed through a platform-specific. The result is an Effect that can be more easily consumed through XAML, and through a fluent code API.

The process for creating a platform-specific is as follows:

Implement the specific functionality as an Effect. For more information, see Creating an Effect.
Create a platform-specific class that will expose the Effect. For more information, see Creating a Platform-Specific Class.
In the platform-specific class, implement an attached property to allow the platform-specific to be consumed through XAML. For more information, see Adding an Attached Property.
In the platform-specific class, implement extension methods to allow the platform-specific to be consumed through a fluent code API. For more information, see Adding Extension Methods.
Modify the Effect implementation so that the Effect is only applied if the platform-specific has been invoked on the same platform as the Effect. For more information, see Creating the Effect.

The result of exposing an Effect as a platform-specific is that the Effect can be more easily consumed through XAML and through a fluent code API.

Note

It's envisaged that vendors will use this technique to create their own platform-specifics, for ease of consumption by users. While users may choose to create their own platform-specifics, it should be noted that it requires more code than creating and consuming an Effect.

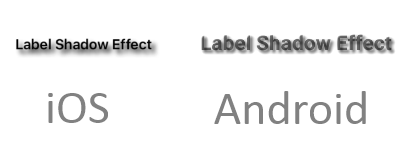

The sample application demonstrates a Shadow platform-specific that adds a shadow to the text displayed by a Label control:

Shadow Platform-Specific

The sample application implements the Shadow platform-specific on each platform, for ease of understanding. However, aside from each platform-specific Effect implementation, the implementation of the Shadow class is largely identical for each platform. Therefore, this guide focusses on the implementation of the Shadow class and associated Effect on a single platform.

For more information about Effects, see Customizing Controls with Effects.

Creating a platform-specific class

A platform-specific is created as a public static class:

namespace MyCompany.Forms.PlatformConfiguration.iOS
{
  public static Shadow
  {
    ...
  }
}

The following sections discuss the implementation of the Shadow platform-specific and associated Effect.

Adding an attached property

An attached property must be added to the Shadow platform-specific to allow consumption through XAML:

namespace MyCompany.Forms.PlatformConfiguration.iOS
{
    using System.Linq;
    using Xamarin.Forms;
    using Xamarin.Forms.PlatformConfiguration;
    using FormsElement = Xamarin.Forms.Label;

    public static class Shadow
    {
        const string EffectName = "MyCompany.LabelShadowEffect";

        public static readonly BindableProperty IsShadowedProperty =
            BindableProperty.CreateAttached("IsShadowed",
                                            typeof(bool),
                                            typeof(Shadow),
                                            false,
                                            propertyChanged: OnIsShadowedPropertyChanged);

        public static bool GetIsShadowed(BindableObject element)
        {
            return (bool)element.GetValue(IsShadowedProperty);
        }

        public static void SetIsShadowed(BindableObject element, bool value)
        {
            element.SetValue(IsShadowedProperty, value);
        }

        ...

        static void OnIsShadowedPropertyChanged(BindableObject element, object oldValue, object newValue)
        {
            if ((bool)newValue)
            {
                AttachEffect(element as FormsElement);
            }
            else
            {
                DetachEffect(element as FormsElement);
            }
        }

        static void AttachEffect(FormsElement element)
        {
            IElementController controller = element;
            if (controller == null || controller.EffectIsAttached(EffectName))
            {
                return;
            }
            element.Effects.Add(Effect.Resolve(EffectName));
        }

        static void DetachEffect(FormsElement element)
        {
            IElementController controller = element;
            if (controller == null || !controller.EffectIsAttached(EffectName))
            {
                return;
            }

            var toRemove = element.Effects.FirstOrDefault(e => e.ResolveId == Effect.Resolve(EffectName).ResolveId);
            if (toRemove != null)
            {
                element.Effects.Remove(toRemove);
            }
        }
    }
}

The IsShadowed attached property is used to add the MyCompany.LabelShadowEffect Effect to, and remove it from, the control that the Shadow class is attached to. This attached property registers the OnIsShadowedPropertyChanged method that will be executed when the value of the property changes. In turn, this method calls the AttachEffect or DetachEffect method to add or remove the effect based on the value of the IsShadowed attached property. The Effect is added to or removed from the control by modifying the control's Effects collection.

Note

Note that the Effect is resolved by specifying a value that's a concatenation of the resolution group name and unique identifier that's specified on the Effect implementation. For more information, see Creating an Effect.

For more information about attached properties, see Attached Properties.

Adding Extension Methods

Extension methods must be added to the Shadow platform-specific to allow consumption through a fluent code API:

namespace MyCompany.Forms.PlatformConfiguration.iOS
{
    using System.Linq;
    using Xamarin.Forms;
    using Xamarin.Forms.PlatformConfiguration;
    using FormsElement = Xamarin.Forms.Label;

    public static class Shadow
    {
        ...
        public static bool IsShadowed(this IPlatformElementConfiguration<iOS, FormsElement> config)
        {
            return GetIsShadowed(config.Element);
        }

        public static IPlatformElementConfiguration<iOS, FormsElement> SetIsShadowed(this IPlatformElementConfiguration<iOS, FormsElement> config, bool value)
        {
            SetIsShadowed(config.Element, value);
            return config;
        }
        ...
    }
}

The IsShadowed and SetIsShadowed extension methods invoke the get and set accessors for the IsShadowed attached property, respectively. Each extension method operates on the IPlatformElementConfiguration<iOS, FormsElement> type, which specifies that the platform-specific can be invoked on Label instances from iOS.

Creating the effect

The Shadow platform-specific adds the MyCompany.LabelShadowEffect to a Label, and removes it. The following code example shows the LabelShadowEffect implementation for the iOS project:

[assembly: ResolutionGroupName("MyCompany")]
[assembly: ExportEffect(typeof(LabelShadowEffect), "LabelShadowEffect")]
namespace ShadowPlatformSpecific.iOS
{
    public class LabelShadowEffect : PlatformEffect
    {
        protected override void OnAttached()
        {
            UpdateShadow();
        }

        protected override void OnDetached()
        {
        }

        protected override void OnElementPropertyChanged(PropertyChangedEventArgs args)
        {
            base.OnElementPropertyChanged(args);

            if (args.PropertyName == Shadow.IsShadowedProperty.PropertyName)
            {
                UpdateShadow();
            }
        }

        void UpdateShadow()
        {
            try
            {
                if (((Label)Element).OnThisPlatform().IsShadowed())
                {
                    Control.Layer.CornerRadius = 5;
                    Control.Layer.ShadowColor = UIColor.Black.CGColor;
                    Control.Layer.ShadowOffset = new CGSize(5, 5);
                    Control.Layer.ShadowOpacity = 1.0f;
                }
                else if (!((Label)Element).OnThisPlatform().IsShadowed())
                {
                    Control.Layer.ShadowOpacity = 0;
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine("Cannot set property on attached control. Error: ", ex.Message);
            }
        }
    }
}

The UpdateShadow method sets Control.Layer properties to create the shadow, provided that the IsShadowed attached property is set to true, and provided that the Shadow platform-specific has been invoked on the same platform that the Effect is implemented for. This check is performed with the OnThisPlatform method.

If the Shadow.IsShadowed attached property value changes at runtime, the Effect needs to respond by removing the shadow. Therefore, an overridden version of the OnElementPropertyChanged method is used to respond to the bindable property change by calling the UpdateShadow method.

For more information about creating an effect, see Creating an Effect and Passing Effect Parameters as Attached Properties.

Consuming the platform-specific

The Shadow platform-specific is consumed in XAML by setting the Shadow.IsShadowed attached property to a boolean value:

<ContentPage xmlns:ios="clr-namespace:MyCompany.Forms.PlatformConfiguration.iOS" ...>
  ...
  <Label Text="Label Shadow Effect" ios:Shadow.IsShadowed="true" ... />
  ...
</ContentPage>

Alternatively, it can be consumed from C# using the fluent API:

using Xamarin.Forms.PlatformConfiguration;
using MyCompany.Forms.PlatformConfiguration.iOS;

...

shadowLabel.On<iOS>().SetIsShadowed(true);
