Brand a control
If an out-of-the-box Power Apps theme doesn't match the desired look and feel for your app, you can customize many of the control properties. By adjusting a few properties such as Fill, HoverColor, and BorderColor you can completely change how the control looks. Additionally, Power Apps enables you to customize fonts.
Power Apps allows you to input color in several ways, so if you have an RGBA value, or a Hex color value, or your color matches one of the standard HTML colors available with Color.[your selected color], you can define that color. You can then use that color anywhere in your app as a custom color. Here are the common color properties for most controls.
Typical properties
These properties are in effect when the user isn't interacting with the control.
Fill - the background color
Color - the text color
BorderColor - the color of the control's border
BorderStyle - the style of the control's border, either solid, dashed, dotted or none
Hover properties
Users see hover properties when they hover over the control with a mouse. All of these apply when a mouse is over the control.
HoverFill - the background color of the control
HoverColor - the font color
Disabled properties
These properties are in effect when a control is disabled. By default, you'll notice a light grey color scheme, to let the user know that a control exists but isn't accessible. This color scheme only shows when the control's DisplayMode property is set to Disabled.
DisabledFill - the background color
DisabledColor - the text color
Color settings only controlled by the theme
There are some color settings that can't be altered and are specific to the theme that you select. For example, there's the Date picker control.
If you add a Date picker control to your app, you'll notice that you have the option to change the Color property of the font, the Border (color, but also style and thickness) and the Background color. All these options are available in the command bar interface.
Furthermore, you can adjust these and other properties via the formula (fx) input field. A couple that you'll find in the changeable properties include the IconBackground and IconFill (the color of the calendar icon). However, if you place the app in preview mode, you're unable to change the colors in the calendar away from the selected Theme color.

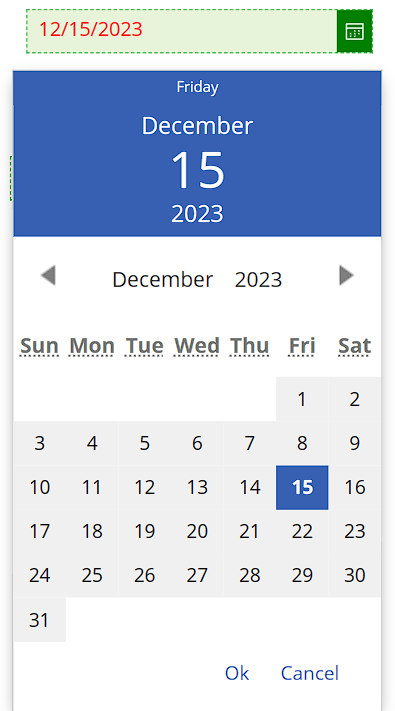

In the image of the Date picker control shown below, we've set the Color to display red text, adjusted the Border color to green (even made the Border style dashed), and we changed the IconBackground to green. When we placed the app in Preview mode, the calendar color shows the blue theme that is currently applied to our app.
Font property

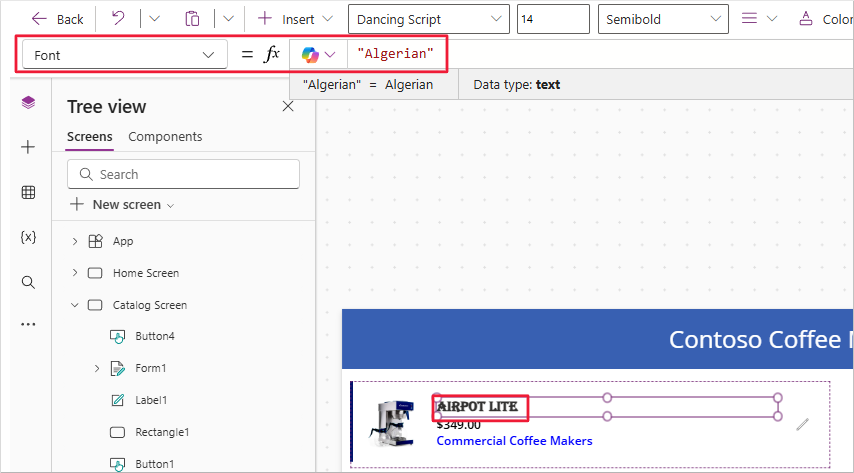

The Font property is available on any control that displays text. When you insert/select a control with the Font property, your command bar option will show a dropdown displaying 14 common fonts already programmed in Power Apps, however, it's possible to display many other types of fonts that are available in other Microsoft products. For example, if you want to display the font: Algerian, you can type "Algerian" in the Font property for that control.
How to apply custom branding across your app
Remember that Power Apps recognizes color as a data type. If we define a variable as type: Color, then we can use that variable anywhere in our app where we want to represent that color. Likewise for Fonts, we can define a font type that Power Apps understands as a variable.
If we define desired color/font values as variables, then we can insert those values into our control properties having to do with colors. A great way to do this is to use named Formulas. Formulas is an app property, accessible when you select App from the Tree view panel. In the following example, we'll walk through how to define some branding colors while using our Contoso Coffee Machines app.
From the Home Screen, select App from the Tree view panel. Notice that the property StartScreen appears in the formula drop-down.
Select the properties drop-down and find/select Formulas.
Contoso Electronics has three primary colors including a dark teal color and a light teal color along with white. Since Power Apps has already defined white, we only need to define the other two colors. These colors can be defined for Power Apps as:
nfBrandingLight = RGBA(3, 131, 135, 1);nfBrandingDark = ColorValue("#334A5F");We used the prefix "nf" for named formula, then we used the equals (=) symbol and then added a color value that Power Apps understands, and then finally placed a semi-colon at the end. If you input your code in App > Formulas just like this, you can then use that formula value anywhere in your app where you need that color.
In our app, go to the Fill property of your header rectangles and input "nfBrandingDark".
Go to your button controls and update the Fill property as "nfBrandingLight".
A final thought on branding, once you have a control looking exactly how you want it, copy that control, and place it on a hidden screen as a template. Then you can copy the control and use it elsewhere in your app.
