Copy data from Jira using Azure Data Factory or Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Jira. It builds on the copy activity overview article that presents a general overview of copy activity.

Important

The Jira connector version 2.0 provides improved native Jira support. If you are using Jira connector version 1.0 in your solution, please upgrade the Jira connector before March 31, 2026. Refer to this section for details on the difference between version 2.0 and version 1.0.

Supported capabilities

This Jira connector is supported for the following capabilities:

Supported capabilities	IR
Copy activity (source/-)	① ②
Lookup activity	① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks, see the Supported data stores table.

The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.

Getting started

To perform the copy activity with a pipeline, you can use one of the following tools or SDKs:

Create a linked service to Jira using UI

Use the following steps to create a linked service to Jira in the Azure portal UI.

Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:
- Azure Data Factory
- Azure Synapse

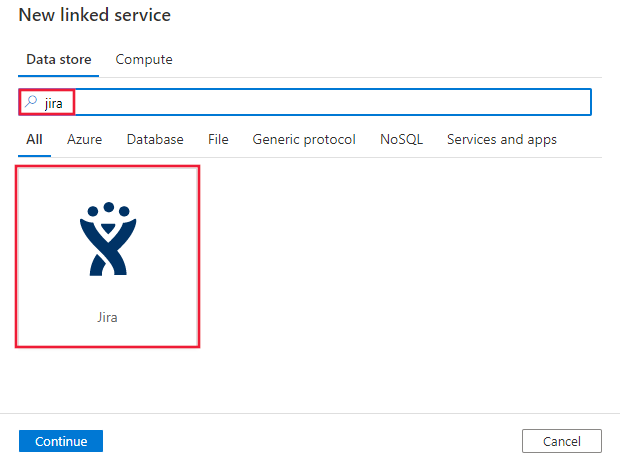

Search for Jira and select the Jira connector.

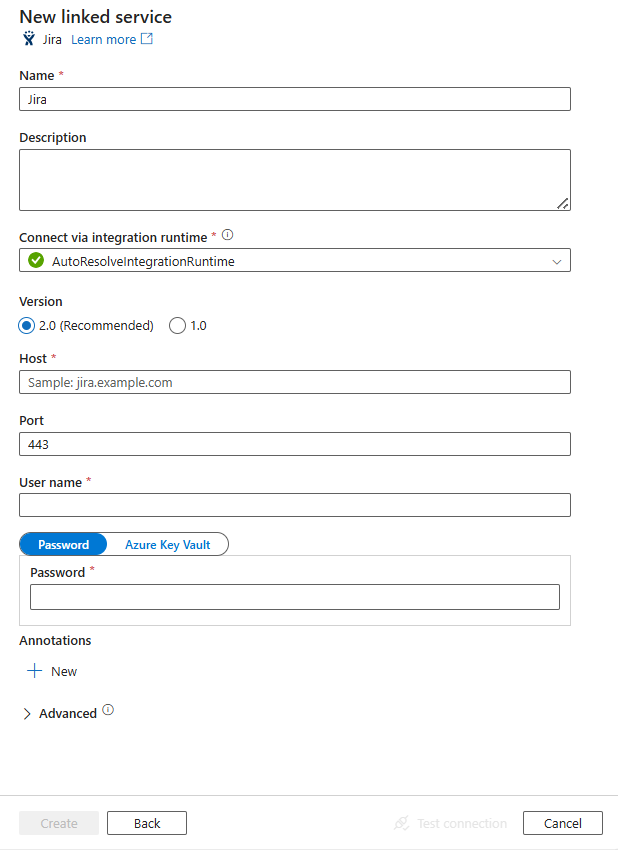

Configure the service details, test the connection, and create the new linked service.

Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to Jira connector.

Linked service properties

The Jira connector now supports version 2.0. Refer to this section to upgrade your Jira connector version from version 1.0. For the property details, see the corresponding sections.

Version 2.0
Version 1.0

Version 2.0

The Jira linked service supports the following properties when applying version 2.0:

Property	Description	Required
type	The type property must be set to: Jira	Yes
version	The version that you specify. The value is `2.0`.	Yes
host	The IP address or host name of the Jira service. For example, `jira.example.com`.	Yes
port	The TCP port that the Jira server uses to listen for client connections. The default value is 443 if connecting through HTTPS, or 8080 if connecting through HTTP.	No
username	The user name that you use to access Jira Service.	Yes
password	The Atlassian API token (if two-step verification is enabled on the Atlassian account) or password corresponding to the user name that you provided in the username field. Mark this field as a SecureString to store it securely, or reference a secret stored in Azure Key Vault.	Yes
connectVia	The integration runtime to be used to connect to the data store. If no value is specified, the property uses the default Azure integration runtime. You can use the self-hosted integration runtime and its version should be 5.61 or above.	No

Example:

{
    "name": "JiraLinkedService",
    "properties": {
        "type": "Jira",
        "version": "2.0",
        "typeProperties": {
            "host" : "<host>",
            "port" : "<port>",
            "username" : "<username>",
            "password": {
                "type": "SecureString",
                "value": "<password>"
            }
        }
    }
}

Version 1.0

The Jira linked service supports the following properties when applying version 1.0:

Property	Description	Required
type	The type property must be set to: Jira	Yes
host	The IP address or host name of the Jira service. (for example, jira.example.com)	Yes
port	The TCP port that the Jira server uses to listen for client connections. The default value is 443 if connecting through HTTPS, or 8080 if connecting through HTTP.	No
username	The user name that you use to access Jira Service.	Yes
password	The Atlassian API token (if two-step verification is enabled on the Atlassian account) or password corresponding to the user name that you provided in the username field. Mark this field as a SecureString to store it securely, or reference a secret stored in Azure Key Vault.	Yes
useEncryptedEndpoints	Specifies whether the data source endpoints are encrypted using HTTPS. The default value is true.	No
useHostVerification	Specifies whether to require the host name in the server's certificate to match the host name of the server when connecting over TLS. The default value is true.	No
usePeerVerification	Specifies whether to verify the identity of the server when connecting over TLS. The default value is true.	No

Example:

{
    "name": "JiraLinkedService",
    "properties": {
        "type": "Jira",
        "typeProperties": {
            "host" : "<host>",
            "port" : "<port>",
            "username" : "<username>",
            "password": {
                "type": "SecureString",
                "value": "<password>"
            }
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Jira dataset.

To copy data from Jira, set the type property of the dataset to JiraObject. The following properties are supported:

Property	Description	Required
type	The type property of the dataset must be set to: JiraObject	Yes
schema	Name of the schema. This property is only supported in version 2.0.	Yes
table	Name of the table. This property is only supported in version 2.0.	Yes
tableName	Name of the table. This property is only supported in version 1.0.	No (if "query" in activity source is specified)

Example

{
    "name": "JiraDataset",
    "properties": {
        "type": "JiraObject",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<Jira linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

The connector version 2.0 supports the following Jira tables:

AdvancedSettings
AllAccessibleProjectTypes
AllApplicationRoles
AllAvailableDashboardGadgets
AllDashboards
AllFieldConfigurations
AllFieldConfigurationSchemes
AllIssueTypeSchemes
AllLabels
AllPermissions
AllPermissionSchemes
AllProjectCategories
AllProjectRoles
AllProjectTypes
AllUserDataClassificationLevels
AllUsers
AllUsersDefault
AllWorkflowSchemes
ApplicationProperty
ApproximateLicenseCount
AttachmentMeta
AutoComplete
AvailableTimeTrackingImplementations
Banner
BulkGetGroups
Configuration
CurrentUser
DashboardsPaginated
DefaultEditor
DefaultShareScope
Events
FavouriteFilters
FieldAutoCompleteForQueryString
FieldConfigurationSchemeMappings
Fields
FieldsPaginated
FiltersPaginated
FindComponentsForProjects
FindGroups
IdsOfWorklogsDeletedSince
IdsOfWorklogsModifiedSince
IssueAllTypes
IssueLimitReport
IssueLinkTypes
IssueNavigatorDefaultColumns
IssuePickerResource
IssueSecuritySchemes
IssueTypeSchemesMapping
IssueTypeScreenSchemeMappings
IssueTypeScreenSchemes
License
Locale
MyFilters
NotificationSchemes
NotificationSchemeToProjectMappings
Plans
PrioritySchemes
Recent
Screens
ScreenSchemes
Search
SearchProjects
SearchProjectsUsingSecuritySchemes
SearchResolutions
SearchSecuritySchemes
SearchWorkflows
SecurityLevelMembers
SecurityLevels
SelectedTimeTrackingImplementation
ServerInfo
SharedTimeTrackingConfiguration
StatusCategories
Statuses
TrashedFieldsPaginated
UserDefaultColumns

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Jira source.

Jira as source

To copy data from Jira, set the source type in the copy activity to JiraSource. The following properties are supported in the copy activity source section:

Property	Description	Required
type	The type property of the copy activity source must be set to: JiraSource	Yes
query	Use the custom SQL query to read data. For example: `"SELECT * FROM MyTable"`.	No (if "tableName" in dataset is specified)

Note

query is not supported in version 2.0.

Example:

"activities":[
    {
        "name": "CopyFromJira",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<Jira input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "JiraSource",
                "query": "SELECT * FROM MyTable"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Data type mapping for Jira

When you copy data from Jira, the following mappings apply from Jira's data types to the internal data types used by the service. To learn about how the copy activity maps the source schema and data type to the sink, see Schema and data type mappings.

Jira data type	Interim service data type (for version 2.0)	Interim service data type (for version 1.0)
string	String	Varchar, Text
integer	Integer	Int, Bigint
datetime	String, DateTime	DateTime, Timestamp
boolean	Boolean	Bit, Boolean
object	Object	Flattened, Json
array	Array	Json, Separate table

Lookup activity properties

To learn details about the properties, check Lookup activity.

Jira connector lifecycle and upgrade

The following table shows the release stage and change logs for different versions of the Jira connector:

Version	Release stage	Change log
Version 1.0	End of support announced	/
Version 2.0	GA version available	• Support `schema` and `table` in Dataset. • Support specific Jira tables. For the supported table list, go to Dataset properties. • The self-hosted integration runtime version should be 5.61 or above. • The data type mapping for the Jira linked service version 2.0 is different from that for the version 1.0. For the latest data type mapping, go to Data type mapping for Jira. • `useEncryptedEndpoints`, `useHostVerification`, `usePeerVerification` are not supported in the linked service. • `query` is not supported. • OAuth 1.0 authentication is not supported.

Upgrade the Jira connector from version 1.0 to version 2.0

In Edit linked service page, select version 2.0 and configure the linked service by referring to Linked service properties version 2.0.
The data type mapping for the Jira linked service version 2.0 is different from that for the version 1.0. To learn the latest data type mapping, see Data type mapping for Jira.
If you use the self-hosted integration runtime, its version should be 5.61 or above.
query is only supported in version 1.0. You should use schema and table instead of query in version 2.0.

Note

Version 2.0 supports specific Jira tables. For the supported table list, go to Dataset properties.

For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
