Error handling in API Management policies

APPLIES TO: All API Management tiers

By providing a ProxyError object, Azure API Management allows publishers to respond to error conditions, which may occur during processing of requests. The ProxyError object is accessed through the context.LastError property and can be used by policies in the on-error policy section. This article provides a reference for the error handling capabilities in Azure API Management.

Error handling in API Management

Policies in Azure API Management are divided into inbound, backend, outbound, and on-error sections as shown in the following example.

<policies>
    <inbound>
        <!-- statements to be applied to the request go here -->
    </inbound>
    <backend>
        <!-- statements to be applied before the request is
             forwarded to the backend service go here -->
    </backend>
    <outbound>
        <!-- statements to be applied to the response go here -->
    </outbound>
    <on-error>
        <!-- statements to be applied if there is an error
             condition go here -->
    </on-error>
</policies>

During the processing of a request, built-in steps are executed along with any policies, which are in scope for the request. If an error occurs, processing immediately jumps to the on-error policy section. The on-error policy section can be used at any scope. API publishers can configure custom behavior such as logging the error to event hubs or creating a new response to return to the caller.

Note

The on-error section is not present in policies by default. To add the on-error section to a policy, browse to the desired policy in the policy editor and add it. For more information about configuring policies, see Policies in API Management.

If there is no on-error section, callers will receive 400 or 500 HTTP response messages if an error condition occurs.

Policies allowed in on-error

The following policies can be used in the on-error policy section.

• choose
• set-variable
• find-and-replace
• return-response
• set-header
• set-method
• set-status
• send-request
• send-one-way-request
• log-to-eventhub
• json-to-xml
• xml-to-json
• limit-concurrency
• mock-response
• retry
• trace

LastError

When an error occurs and control jumps to the on-error policy section, the error is stored in context.LastError property, which can be accessed by policies in the on-error section. LastError has the following properties.

Name	Type	Description	Required
Source	string	Names the element where the error occurred. Could be either policy or a built-in pipeline step name.	Yes
Reason	string	Machine-friendly error code, which could be used in error handling.	No
Message	string	Human-readable error description.	Yes
Scope	string	Name of the scope where the error occurred and could be one of "global", "product", "api", or "operation"	No
Section	string	Section name where error occurred. Possible values: "inbound", "backend", "outbound", or "on-error".	No
Path	string	Specifies nested policy, for example "choose[3]/when[2]".	No
PolicyId	string	Value of the id attribute, if specified by the customer, on the policy where error occurred	No

Tip

You can access the status code through context.Response.StatusCode.

Note

All policies have an optional id attribute that can be added to the root element of the policy. If this attribute is present in a policy when an error condition occurs, the value of the attribute can be retrieved using the context.LastError.PolicyId property.

Predefined errors for built-in steps

The following errors are predefined for error conditions that can occur during the evaluation of built-in processing steps.

Source	Condition	Reason	Message
configuration	Uri doesn't match to any API or Operation	OperationNotFound	Unable to match incoming request to an operation.
authorization	Subscription key not supplied	SubscriptionKeyNotFound	Access denied due to missing subscription key. Make sure to include subscription key when making requests to this API.
authorization	Subscription key value is invalid	SubscriptionKeyInvalid	Access denied due to invalid subscription key. Make sure to provide a valid key for an active subscription.
multiple	Downstream connection (from a client to an API Management gateway) was aborted by the client while request was pending	ClientConnectionFailure	multiple
multiple	Upstream connection (from an API Management gateway to a backend service) was not established or was aborted by the backend	BackendConnectionFailure	multiple
multiple	Runtime exception had occurred during evaluation of a particular expression	ExpressionValueEvaluationFailure	multiple

Predefined errors for policies

The following errors are predefined for error conditions that can occur during policy evaluation.

Source	Condition	Reason	Message
rate-limit	Rate limit exceeded	RateLimitExceeded	Rate limit is exceeded
quota	Quota exceeded	QuotaExceeded	Out of call volume quota. Quota will be replenished in xx:xx:xx. -or- Out of bandwidth quota. Quota will be replenished in xx:xx:xx.
jsonp	Callback parameter value is invalid (contains wrong characters)	CallbackParameterInvalid	Value of callback parameter {callback-parameter-name} is not a valid JavaScript identifier.
ip-filter	Failed to parse caller IP from request	FailedToParseCallerIP	Failed to establish IP address for the caller. Access denied.
ip-filter	Caller IP is not in allowed list	CallerIpNotAllowed	Caller IP address {ip-address} is not allowed. Access denied.
ip-filter	Caller IP is in blocked list	CallerIpBlocked	Caller IP address is blocked. Access denied.
check-header	Required header not presented or value is missing	HeaderNotFound	Header {header-name} was not found in the request. Access denied.
check-header	Required header not presented or value is missing	HeaderValueNotAllowed	Header {header-name} value of {header-value} is not allowed. Access denied.
validate-jwt	Jwt token is missing in request	TokenNotPresent	JWT not present.
validate-jwt	Signature validation failed	TokenSignatureInvalid	<message from jwt library>. Access denied.
validate-jwt	Invalid audience	TokenAudienceNotAllowed	<message from jwt library>. Access denied.
validate-jwt	Invalid issuer	TokenIssuerNotAllowed	<message from jwt library>. Access denied.
validate-jwt	Token expired	TokenExpired	<message from jwt library>. Access denied.
validate-jwt	Signature key was not resolved by ID	TokenSignatureKeyNotFound	<message from jwt library>. Access denied.
validate-jwt	Required claims are missing from token	TokenClaimNotFound	JWT token is missing the following claims: <c1>, <c2>, … Access denied.
validate-jwt	Claim values mismatch	TokenClaimValueNotAllowed	Claim {claim-name} value of {claim-value} is not allowed. Access denied.
validate-jwt	Other validation failures	JwtInvalid	<message from jwt library>
forward-request or send-request	HTTP response status code and headers were not received from the backend within the configured timeout	Timeout	multiple

Example

Setting an API policy to:

<policies>
    <inbound>
        <base />
    </inbound>
    <backend>
        <base />
    </backend>
    <outbound>
        <base />
    </outbound>
    <on-error>
        <set-header name="ErrorSource" exists-action="override">
            <value>@(context.LastError.Source)</value>
        </set-header>
        <set-header name="ErrorReason" exists-action="override">
            <value>@(context.LastError.Reason)</value>
        </set-header>
        <set-header name="ErrorMessage" exists-action="override">
            <value>@(context.LastError.Message)</value>
        </set-header>
        <set-header name="ErrorScope" exists-action="override">
            <value>@(context.LastError.Scope)</value>
        </set-header>
        <set-header name="ErrorSection" exists-action="override">
            <value>@(context.LastError.Section)</value>
        </set-header>
        <set-header name="ErrorPath" exists-action="override">
            <value>@(context.LastError.Path)</value>
        </set-header>
        <set-header name="ErrorPolicyId" exists-action="override">
            <value>@(context.LastError.PolicyId)</value>
        </set-header>
        <set-header name="ErrorStatusCode" exists-action="override">
            <value>@(context.Response.StatusCode.ToString())</value>
        </set-header>
        <base />
    </on-error>
</policies>

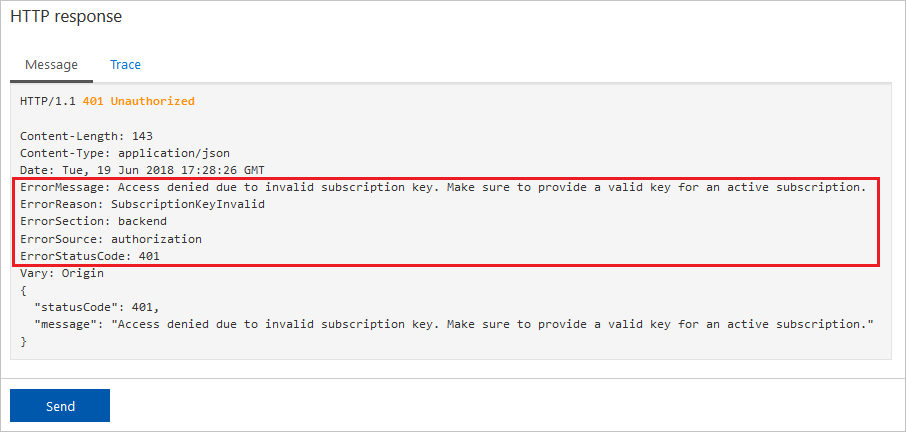

and sending an unauthorized request will result in the following response:

Next steps

For more information working with policies, see:

• Policies in API Management
• Transform APIs
• Policy Reference for a full list of policy statements and their settings
• Policy samples
