Migrate data from MongoDB to an Azure Cosmos DB for MongoDB account by using Azure Databricks

  • บทความ

APPLIES TO: MongoDB

This migration guide is part of series on migrating databases from MongoDB to Azure Cosmos DB API for MongoDB. The critical migration steps are pre-migration, migration, and post-migration, as shown below.

Diagram of migration steps

Data migration using Azure Databricks

Azure Databricks is a platform as a service (PaaS) offering for Apache Spark. It offers a way to do offline migrations on a large-scale dataset. You can use Azure Databricks to do an offline migration of databases from MongoDB to Azure Cosmos DB for MongoDB.

In this tutorial, you will learn how to:

  • Provision an Azure Databricks cluster

  • Add dependencies

  • Create and run Scala or Python notebook

  • Optimize the migration performance

  • Troubleshoot rate-limiting errors that may be observed during migration

Prerequisites

To complete this tutorial, you need to:

Provision an Azure Databricks cluster

You can follow instructions to provision an Azure Databricks cluster. We recommend selecting Databricks runtime version 7.6, which supports Spark 3.0.

Diagram of databricks new cluster creation.

Add dependencies

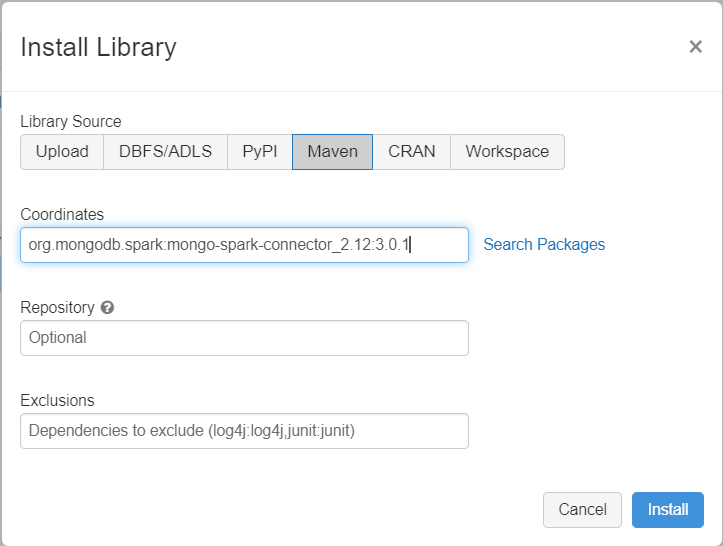

Add the MongoDB Connector for Spark library to your cluster to connect to both native MongoDB and Azure Cosmos DB for MongoDB endpoints. In your cluster, select Libraries > Install New > Maven, and then add org.mongodb.spark:mongo-spark-connector_2.12:3.0.1 Maven coordinates.

Diagram of adding databricks cluster dependencies.

Select Install, and then restart the cluster when installation is complete.

Note

Make sure that you restart the Databricks cluster after the MongoDB Connector for Spark library has been installed.

After that, you may create a Scala or Python notebook for migration.

Create Scala notebook for migration

Create a Scala Notebook in Databricks. Make sure to enter the right values for the variables before running the following code:

import com.mongodb.spark._
import com.mongodb.spark.config._
import org.apache.spark._
import org.apache.spark.sql._

var sourceConnectionString = "mongodb://<USERNAME>:<PASSWORD>@<HOST>:<PORT>/<AUTHDB>"
var sourceDb = "<DB NAME>"
var sourceCollection =  "<COLLECTIONNAME>"
var targetConnectionString = "mongodb://<ACCOUNTNAME>:<PASSWORD>@<ACCOUNTNAME>.mongo.cosmos.azure.com:10255/?ssl=true&replicaSet=globaldb&retrywrites=false&maxIdleTimeMS=120000&appName=@<ACCOUNTNAME>@"
var targetDb = "<DB NAME>"
var targetCollection =  "<COLLECTIONNAME>"

val readConfig = ReadConfig(Map(
  "spark.mongodb.input.uri" -> sourceConnectionString,
  "spark.mongodb.input.database" -> sourceDb,
  "spark.mongodb.input.collection" -> sourceCollection,
))

val writeConfig = WriteConfig(Map(
  "spark.mongodb.output.uri" -> targetConnectionString,
  "spark.mongodb.output.database" -> targetDb,
  "spark.mongodb.output.collection" -> targetCollection,
  "spark.mongodb.output.maxBatchSize" -> "8000"
))

val sparkSession = SparkSession
  .builder()
  .appName("Data transfer using spark")
  .getOrCreate()

val customRdd = MongoSpark.load(sparkSession, readConfig)

MongoSpark.save(customRdd, writeConfig)

Create Python notebook for migration

Create a Python Notebook in Databricks. Make sure to enter the right values for the variables before running the following code:

from pyspark.sql import SparkSession

sourceConnectionString = "mongodb://<USERNAME>:<PASSWORD>@<HOST>:<PORT>/<AUTHDB>"
sourceDb = "<DB NAME>"
sourceCollection =  "<COLLECTIONNAME>"
targetConnectionString = "mongodb://<ACCOUNTNAME>:<PASSWORD>@<ACCOUNTNAME>.mongo.cosmos.azure.com:10255/?ssl=true&replicaSet=globaldb&retrywrites=false&maxIdleTimeMS=120000&appName=@<ACCOUNTNAME>@"
targetDb = "<DB NAME>"
targetCollection =  "<COLLECTIONNAME>"

my_spark = SparkSession \
    .builder \
    .appName("myApp") \
    .getOrCreate()

df = my_spark.read.format("com.mongodb.spark.sql.DefaultSource").option("uri", sourceConnectionString).option("database", sourceDb).option("collection", sourceCollection).load()

df.write.format("mongo").mode("append").option("uri", targetConnectionString).option("maxBatchSize",2500).option("database", targetDb).option("collection", targetCollection).save()

Optimize the migration performance

The migration performance can be adjusted through these configurations:

  • Number of workers and cores in the Spark cluster: More workers mean more compute shards to execute tasks.

  • maxBatchSize: The maxBatchSize value controls the rate at which data is saved to the target Azure Cosmos DB collection. However, if the maxBatchSize is too high for the collection throughput, it can cause rate limiting errors.

    You would need to adjust the number of workers and maxBatchSize, depending on the number of executors in the Spark cluster, potentially the size (and that's why RU cost) of each document being written, and the target collection throughput limits.

    Tip

    maxBatchSize = Collection throughput / ( RU cost for 1 document * number of Spark workers * number of CPU cores per worker )

  • MongoDB Spark partitioner and partitionKey: The default partitioner used is MongoDefaultPartitioner and default partitionKey is _id. Partitioner can be changed by assigning value MongoSamplePartitioner to the input configuration property spark.mongodb.input.partitioner. Similarly, partitionKey can be changed by assigning the appropriate field name to the input configuration property spark.mongodb.input.partitioner.partitionKey. Right partitionKey can help avoid data skew (large number of records being written for the same shard key value).

  • Disable indexes during data transfer: For large amounts of data migration, consider disabling indexes, specially wildcard index on the target collection. Indexes increase the RU cost for writing each document. Freeing these RUs can help improve the data transfer rate. You may enable the indexes once the data has been migrated over.

Troubleshoot

Timeout Error (Error code 50)

You might see a 50 error code for operations against the Azure Cosmos DB for MongoDB database. The following scenarios can cause timeout errors:

  • Throughput allocated to the database is low: Ensure that the target collection has sufficient throughput assigned to it.
  • Excessive data skew with large data volume. If you have a large amount of data to migrate into a given table but have a significant skew in the data, you might still experience rate limiting even if you have several request units provisioned in your table. Request units are divided equally among physical partitions, and heavy data skew can cause a bottleneck of requests to a single shard. Data skew means large number of records for the same shard key value.

Rate limiting (Error code 16500)

You might see a 16500 error code for operations against the Azure Cosmos DB for MongoDB database. These are rate limiting errors and may be observed on older accounts or accounts where server-side retry feature is disabled.

  • Enable Server-side retry: Enable the Server Side Retry (SSR) feature and let the server retry the rate limited operations automatically.

Post-migration optimization

After you migrate the data, you can connect to Azure Cosmos DB and manage the data. You can also follow other post-migration steps such as optimizing the indexing policy, update the default consistency level, or configure global distribution for your Azure Cosmos DB account. For more information, see the Post-migration optimization article.
