Mapping data flow Debug Mode

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Overview

Azure Data Factory and Synapse Analytics mapping data flow's debug mode allows you to interactively watch the data shape transform while you build and debug your data flows. The debug session can be used both in Data Flow design sessions and during pipeline debug execution of data flows. To turn on debug mode, use the Data Flow Debug button in the top bar of data flow canvas or pipeline canvas when you have data flow activities.

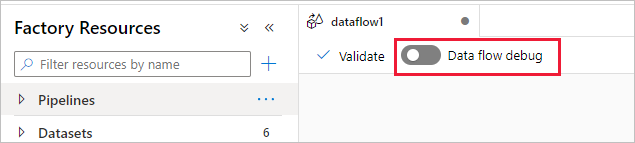

Screenshot that shows where is the Debug slider 1

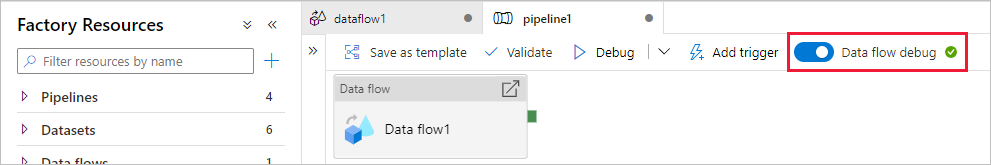

Screenshot that shows where is the Debug slider 2

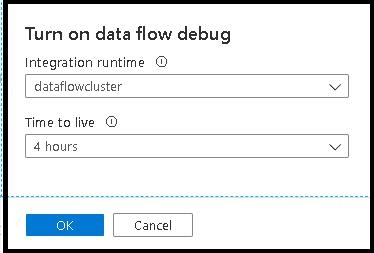

Once you turn on the slider, you'll be prompted to select which integration runtime configuration you wish to use. If AutoResolveIntegrationRuntime is chosen, a cluster with eight cores of general compute with a default 60-minute time to live will be spun up. If you'd like to allow for more idle team before your session times out, you can choose a higher TTL setting. For more information on data flow integration runtimes, see Integration Runtime performance.

Debug IR selection

When Debug mode is on, you'll interactively build your data flow with an active Spark cluster. The session closes once you turn debug off. You should be aware of the hourly charges incurred by Data Factory during the time that you have the debug session turned on.

In most cases, it's a good practice to build your Data Flows in debug mode so that you can validate your business logic and view your data transformations before publishing your work. Use the "Debug" button on the pipeline panel to test your data flow in a pipeline.

Note

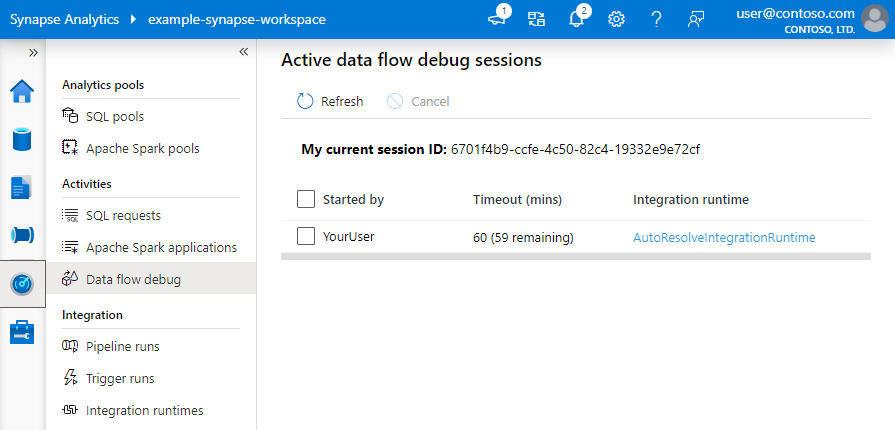

Every debug session that a user starts from their browser UI is a new session with its own Spark cluster. You can use the monitoring view for debug sessions shown in the previous images to view and manage debug sessions. You are charged for every hour that each debug session is executing including the TTL time.

This video clip talks about tips, tricks, and good practices for data flow debug mode.

Cluster status

The cluster status indicator at the top of the design surface turns green when the cluster is ready for debug. If your cluster is already warm, then the green indicator appears almost instantly. If your cluster wasn't already running when you entered debug mode, then the Spark cluster performs a cold boot. The indicator spins until the environment is ready for interactive debugging.

When you're finished with your debugging, turn the Debug switch off so that your Spark cluster can terminate and you'll no longer be billed for debug activity.

Debug settings

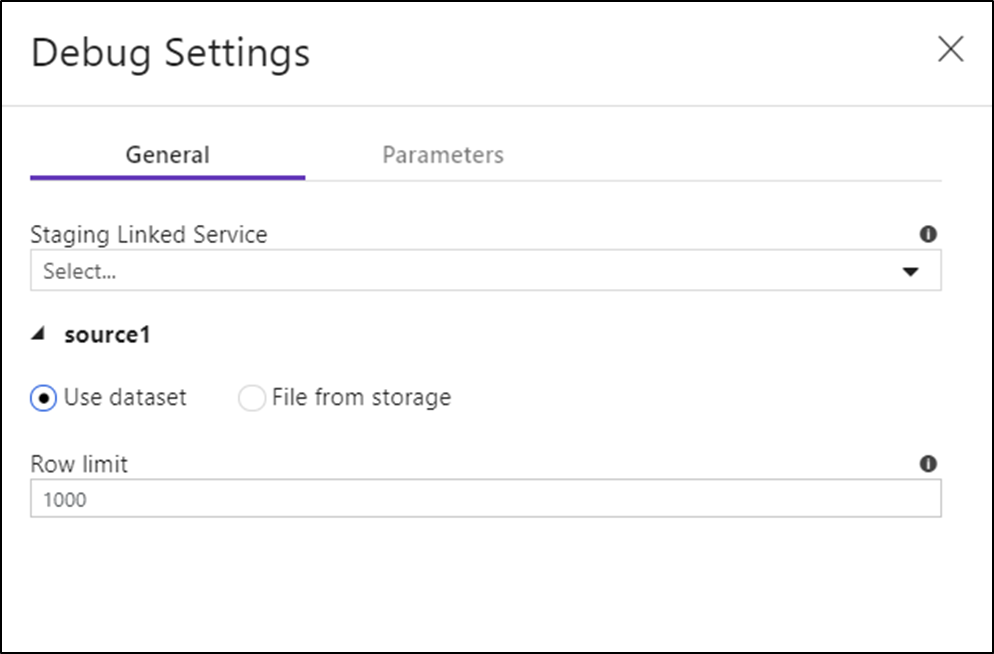

Once you turn on debug mode, you can edit how a data flow previews data. Debug settings can be edited by clicking "Debug Settings" on the Data Flow canvas toolbar. You can select the row limit or file source to use for each of your Source transformations here. The row limits in this setting are only for the current debug session. You can also select the staging linked service to be used for an Azure Synapse Analytics source.

Debug settings

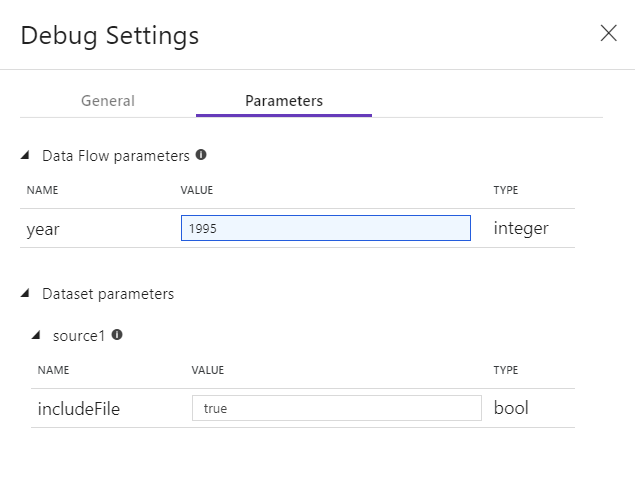

If you have parameters in your Data Flow or any of its referenced datasets, you can specify what values to use during debugging by selecting the Parameters tab.

Use the sampling settings here to point to sample files or sample tables of data so that you don't have to change your source datasets. By using a sample file or table here, you can maintain the same logic and property settings in your data flow while testing against a subset of data.

Debug settings parameters

The default IR used for debug mode in data flows is a small 4-core single worker node with a 4-core single driver node. This works fine with smaller samples of data when testing your data flow logic. If you expand the row limits in your debug settings during data preview or set a higher number of sampled rows in your source during pipeline debug, then you might wish to consider setting a larger compute environment in a new Azure Integration Runtime. Then you can restart your debug session using the larger compute environment.

Data preview

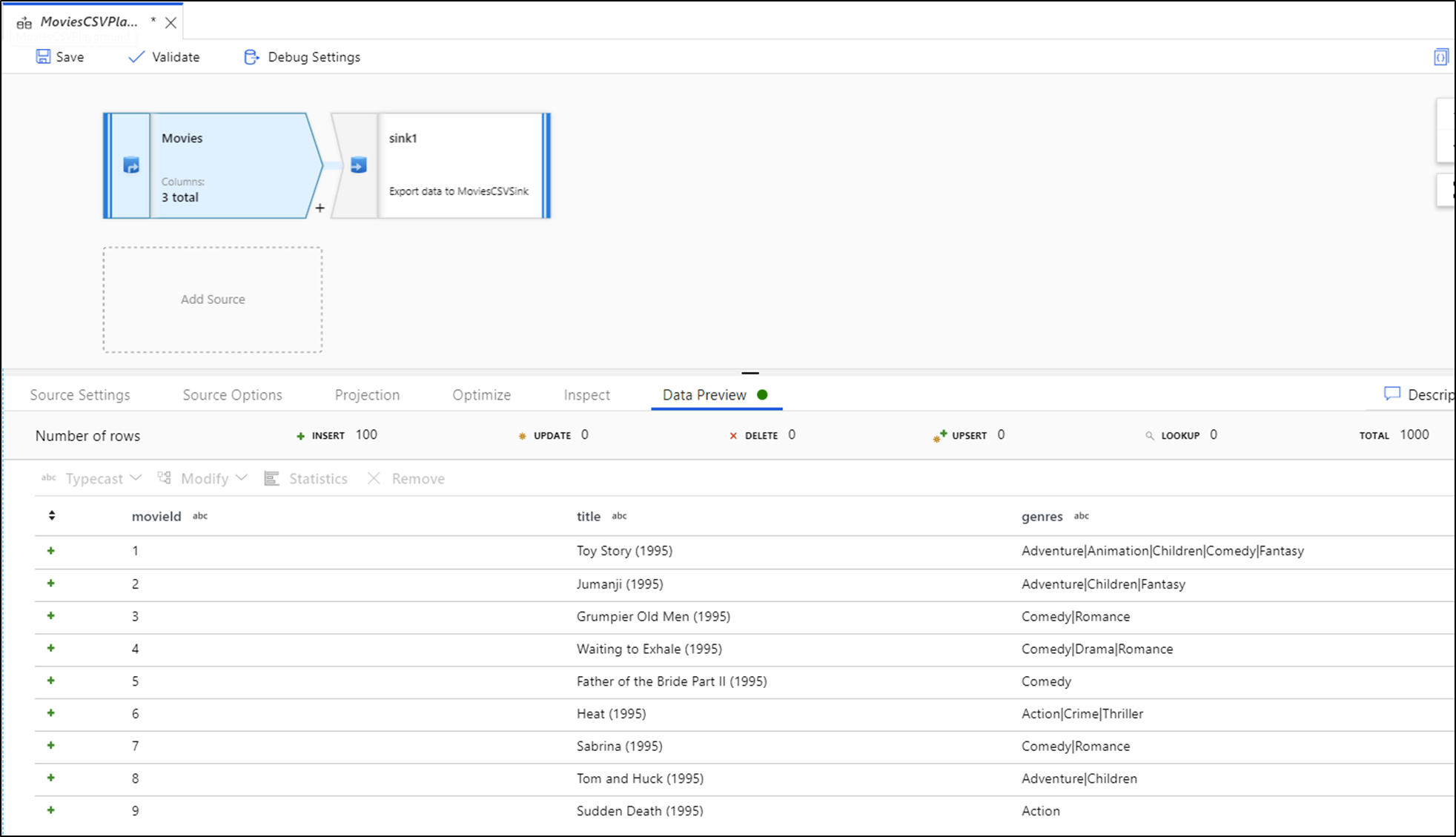

With debug on, the Data Preview tab lights up on the bottom panel. Without debug mode on, Data Flow shows you only the current metadata in and out of each of your transformations in the Inspect tab. The data preview will only query the number of rows that you have set as your limit in your debug settings. Select Refresh to update the data preview based on your current transformations. If your source data has changed, then select the Refresh > Refetch from source.

Data preview

You can sort columns in data preview and rearrange columns using drag and drop. Additionally, there's an export button on the top of the data preview panel that you can use to export the preview data to a CSV file for offline data exploration. You can use this feature to export up to 1,000 rows of preview data.

Note

File sources only limit the rows that you see, not the rows being read. For very large datasets, it is recommended that you take a small portion of that file and use it for your testing. You can select a temporary file in Debug Settings for each source that is a file dataset type.

When running in Debug Mode in Data Flow, your data won't be written to the Sink transform. A Debug session is intended to serve as a test harness for your transformations. Sinks aren't required during debug and are ignored in your data flow. If you wish to test writing the data in your Sink, execute the Data Flow from a pipeline and use the Debug execution from a pipeline.

Data Preview is a snapshot of your transformed data using row limits and data sampling from data frames in Spark memory. Therefore, the sink drivers aren't utilized or tested in this scenario.

Note

Data Preview displays time as per the browser's locale setting.

Testing join conditions

When unit testing Joins, Exists, or Lookup transformations, make sure that you use a small set of known data for your test. You can use the Debug Settings option described previously to set a temporary file to use for your testing. This is needed because when limiting or sampling rows from a large dataset, you can't predict which rows and which keys are read into the flow for testing. The result is nondeterministic, meaning that your join conditions might fail.

Quick actions

Once you see the data preview, you can generate a quick transformation to typecast, remove, or do a modification on a column. Select the column header and then select one of the options from the data preview toolbar.

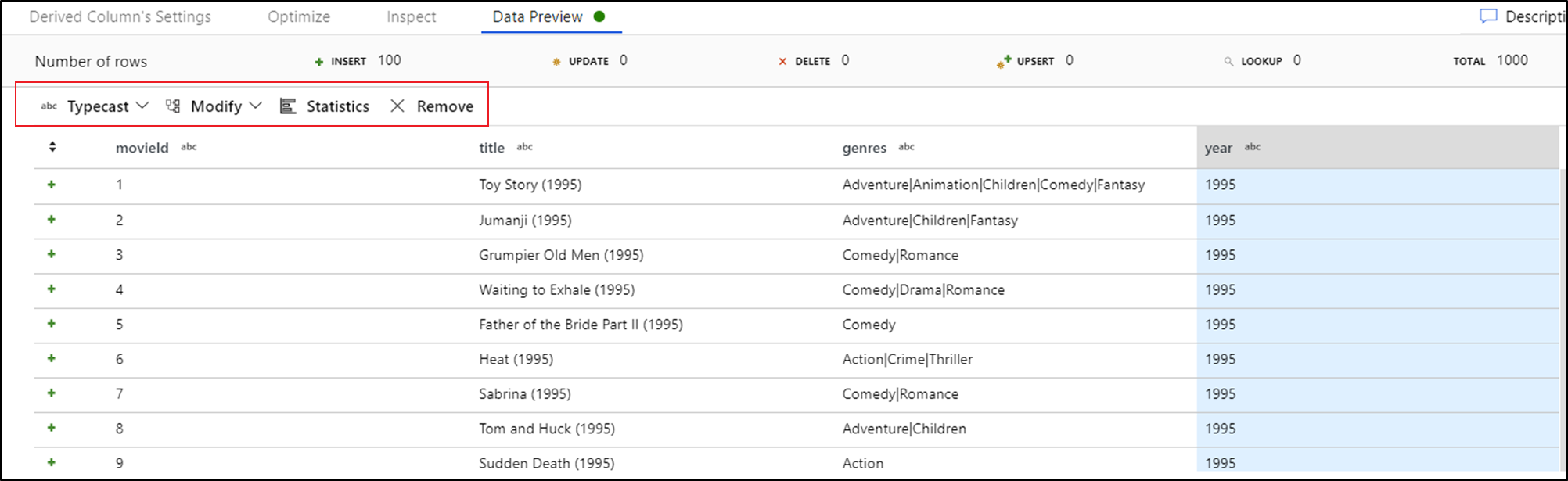

Screenshot shows the data preview toolbar with options: Typecast, Modify, Statistics, and Remove.

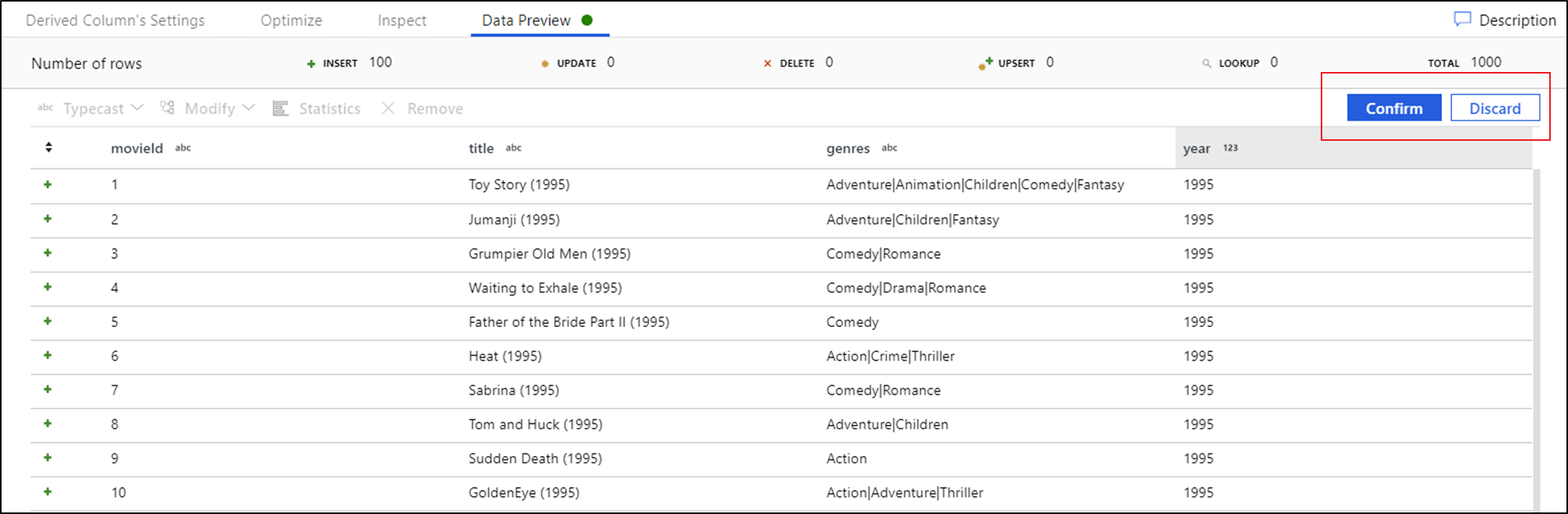

Once you select a modification, the data preview will immediately refresh. Select Confirm in the top-right corner to generate a new transformation.

Screenshot shows the Confirm button.

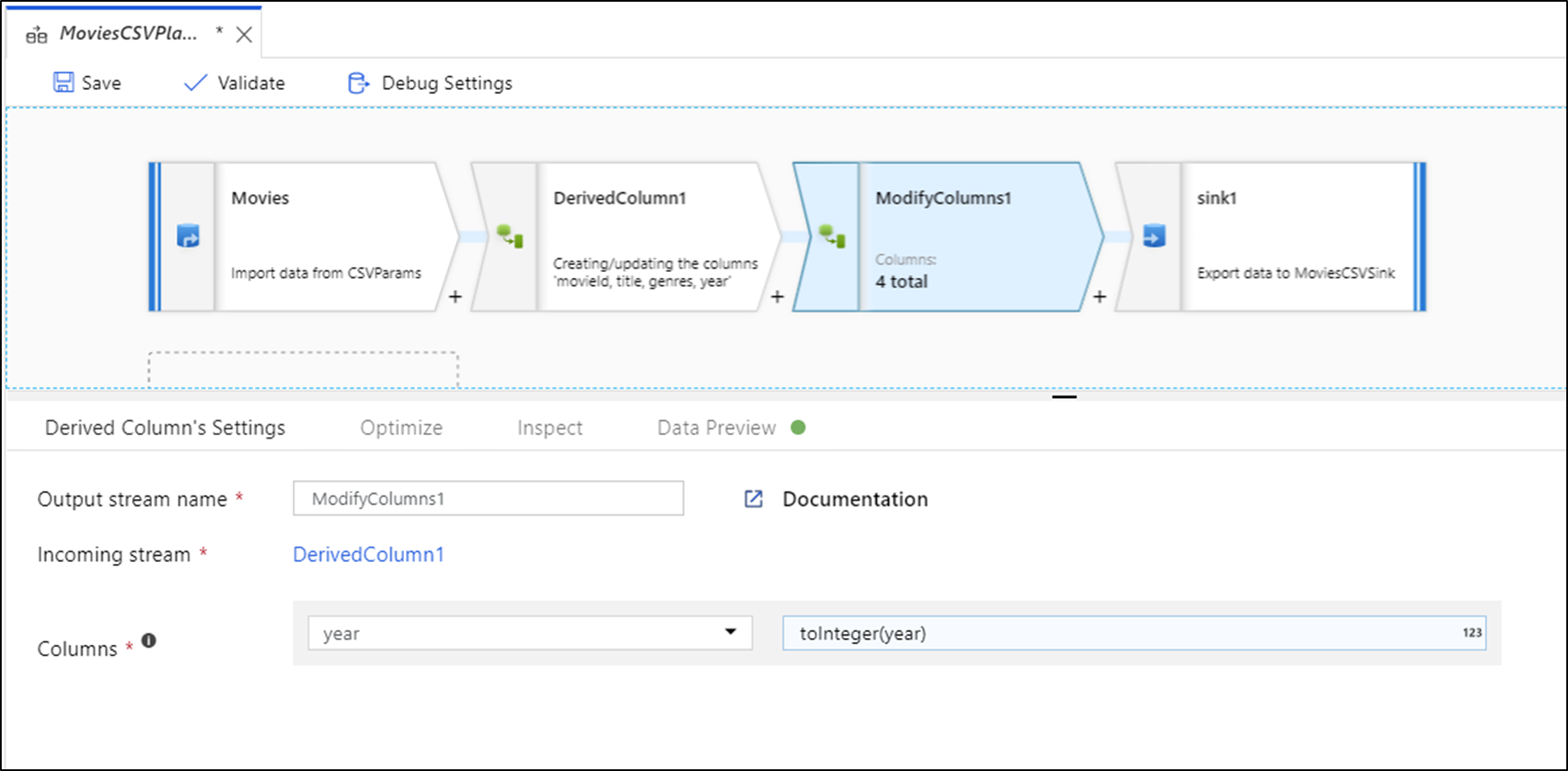

Typecast and Modify generates a Derived Column transformation and Remove generates a Select transformation.

Screenshot shows Derived Column’s Settings.

Note

If you edit your Data Flow, you need to re-fetch the data preview before adding a quick transformation.

Data profiling

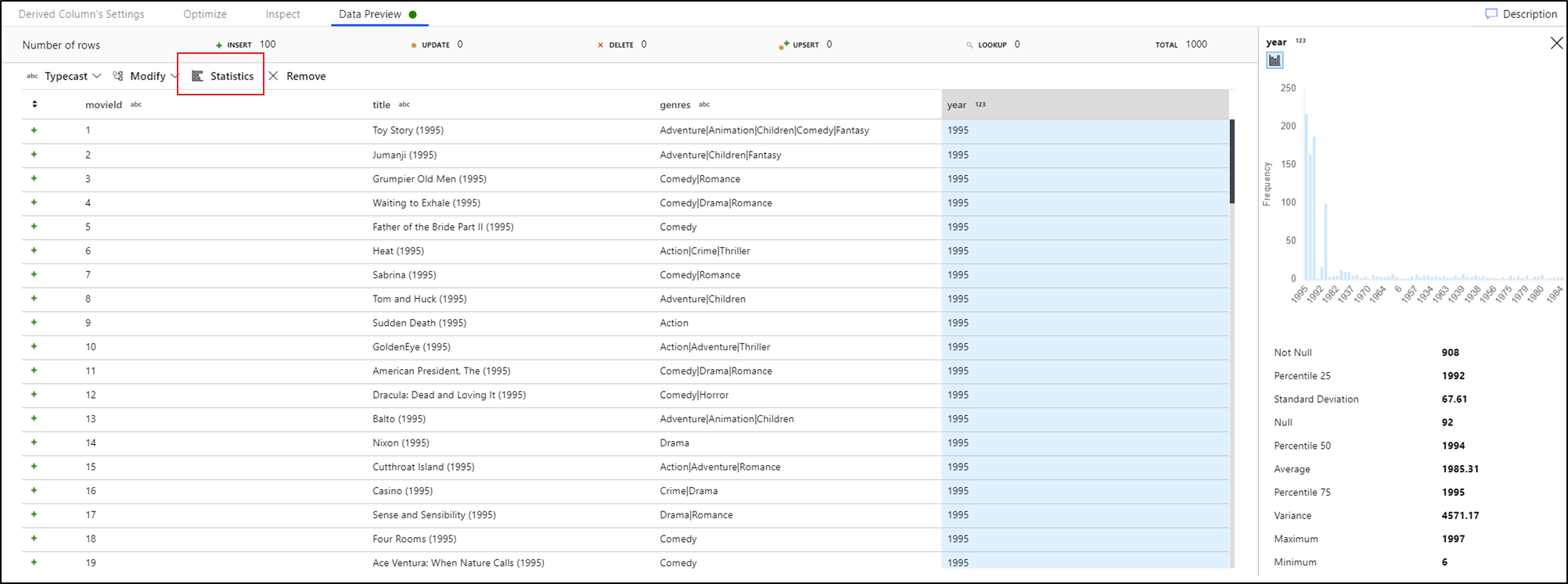

Selecting a column in your data preview tab and clicking Statistics in the data preview toolbar pops up a chart on the far-right of your data grid with detailed statistics about each field. The service makes a determination base upon the data sampling of which type of chart to display. High-cardinality fields default to NULL/NOT NULL charts while categorical and numeric data that has low cardinality displays bar charts showing data value frequency. You also see max/len length of string fields, min/max values in numeric fields, standard dev, percentiles, counts, and average.

Column statistics
