Build large-scale data copy pipelines with metadata-driven approach in copy data tool

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

When you want to copy huge amounts of objects (for example, thousands of tables) or load data from large variety of sources, the appropriate approach is to input the name list of the objects with required copy behaviors in a control table, and then use parameterized pipelines to read the same from the control table and apply them to the jobs accordingly. By doing so, you can maintain (for example, add/remove) the objects list to be copied easily by just updating the object names in control table instead of redeploying the pipelines. What’s more, you will have single place to easily check which objects copied by which pipelines/triggers with defined copy behaviors.

Copy data tool in ADF eases the journey of building such metadata driven data copy pipelines. After you go through an intuitive flow from a wizard-based experience, the tool can generate parameterized pipelines and SQL scripts for you to create external control tables accordingly. After you run the generated scripts to create the control table in your SQL database, your pipelines will read the metadata from the control table and apply them on the copy jobs automatically.

Create metadata-driven copy jobs from copy data tool

  1. Select Metadata-driven copy task in copy data tool.

    You need to input the connection and table name of your control table, so that the generated pipeline will read metadata from that.

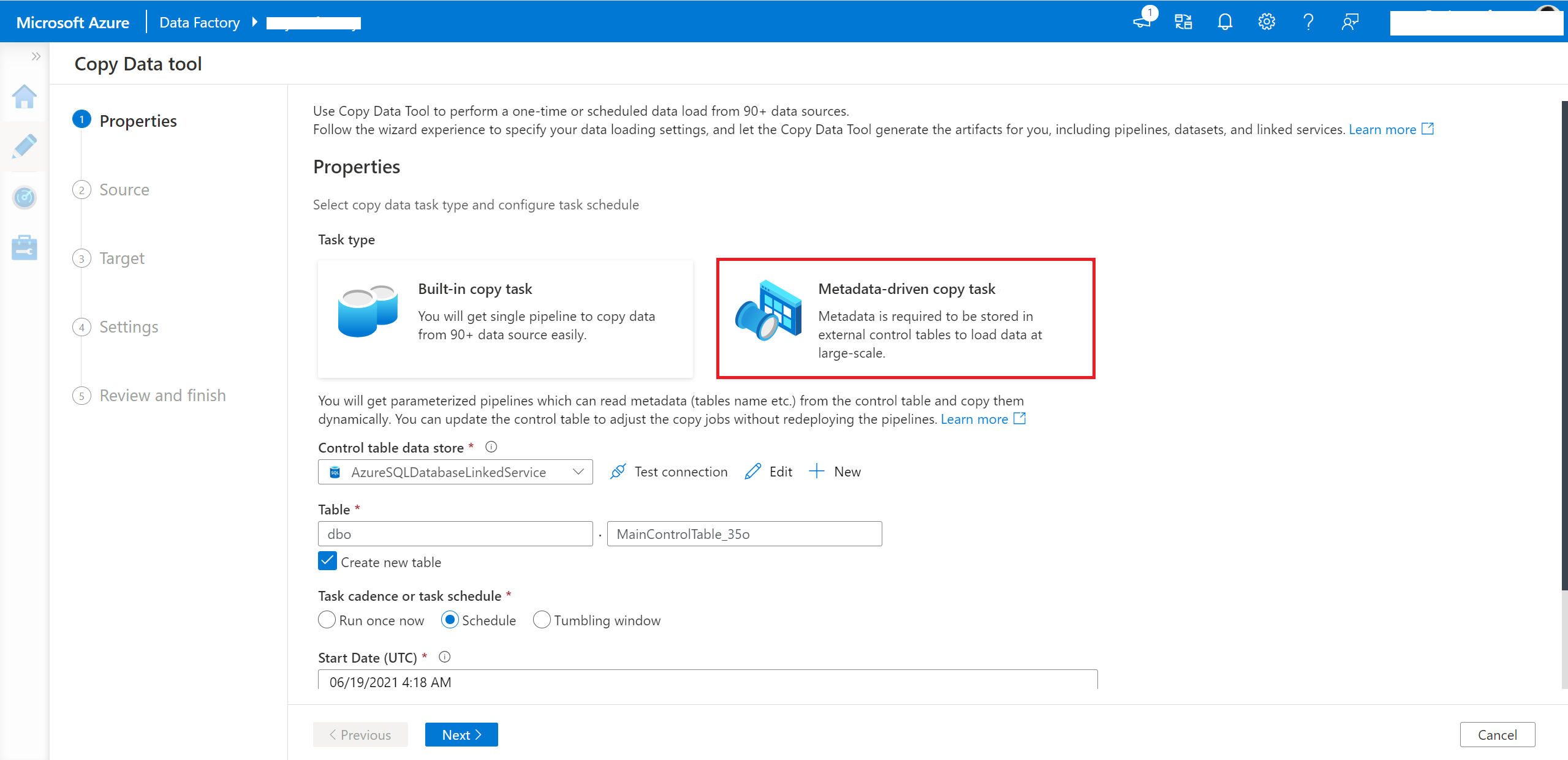

    Select task type

  2. Input the connection of your source database. You can use parameterized linked service as well.

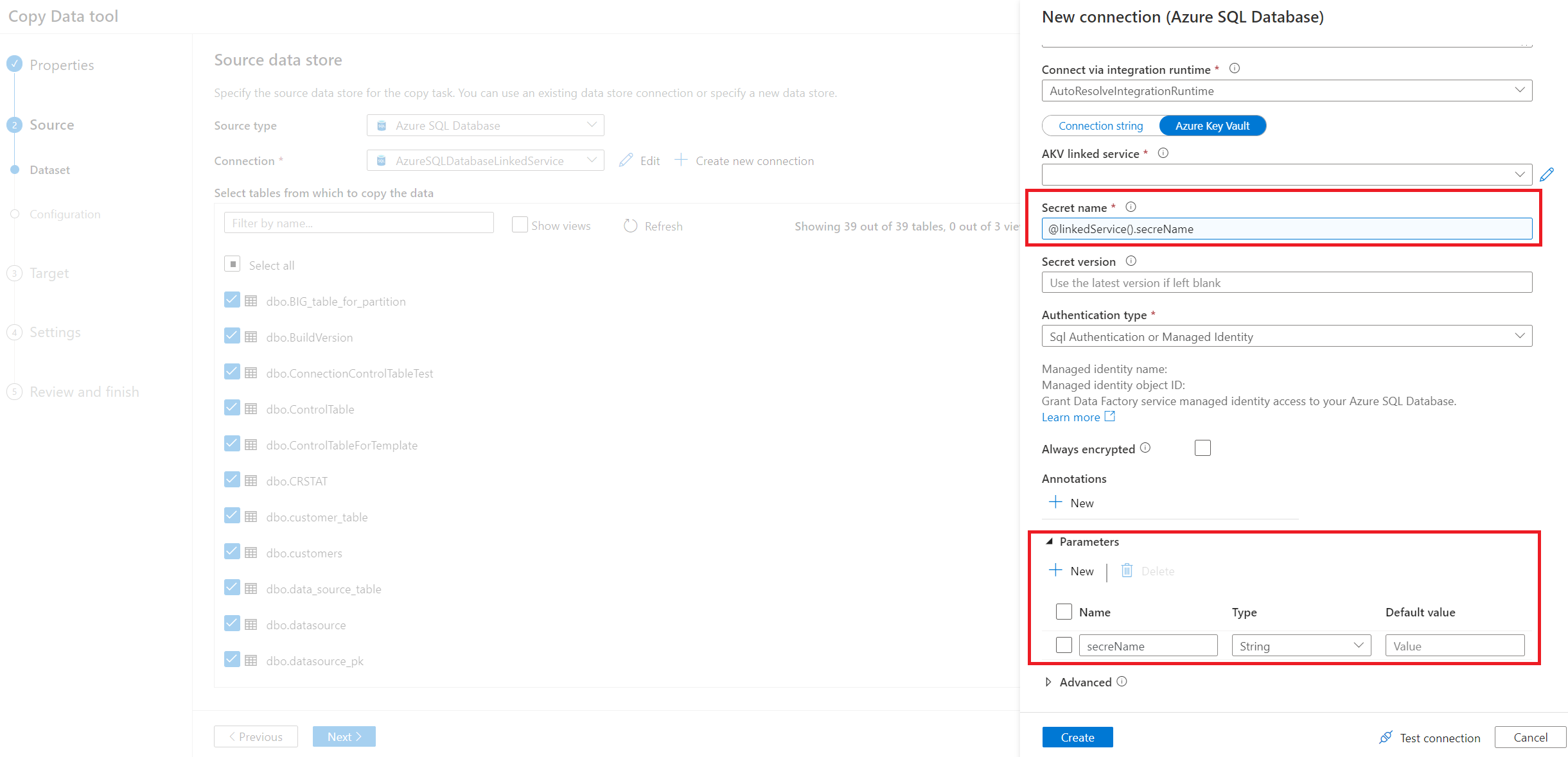

    Select parameterized linked service

  3. Select the table name to copy.

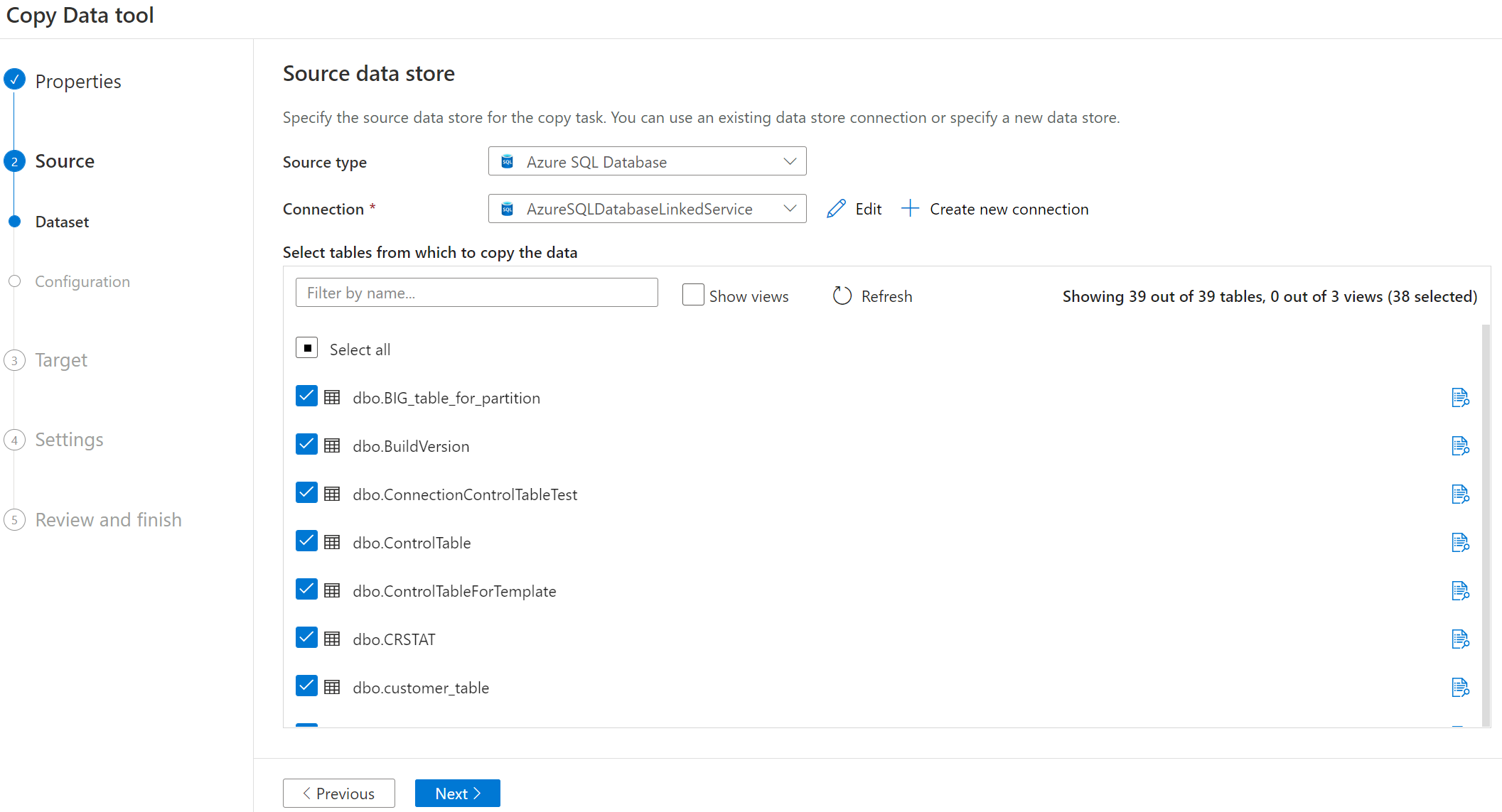

    Select table

    Note

    If you select tabular data store, you will have chance to further select either full load or delta load in the next page. If you select storage store, you can further select full load only in the next page. Incrementally loading new files only from storage store is currently not supported.

  4. Choose loading behavior.

    Tip

    If you want to do full copy on all the tables, select Full load all tables. If you want to do incremental copy, you can select configure for each table individually, and select Delta load as well as watermark column name & value to start for each table.

  5. Select Destination data store.

  6. In Settings page, You can decide the max number of copy activities to copy data from your source store concurrently via Number of concurrent copy tasks. The default value is 20.

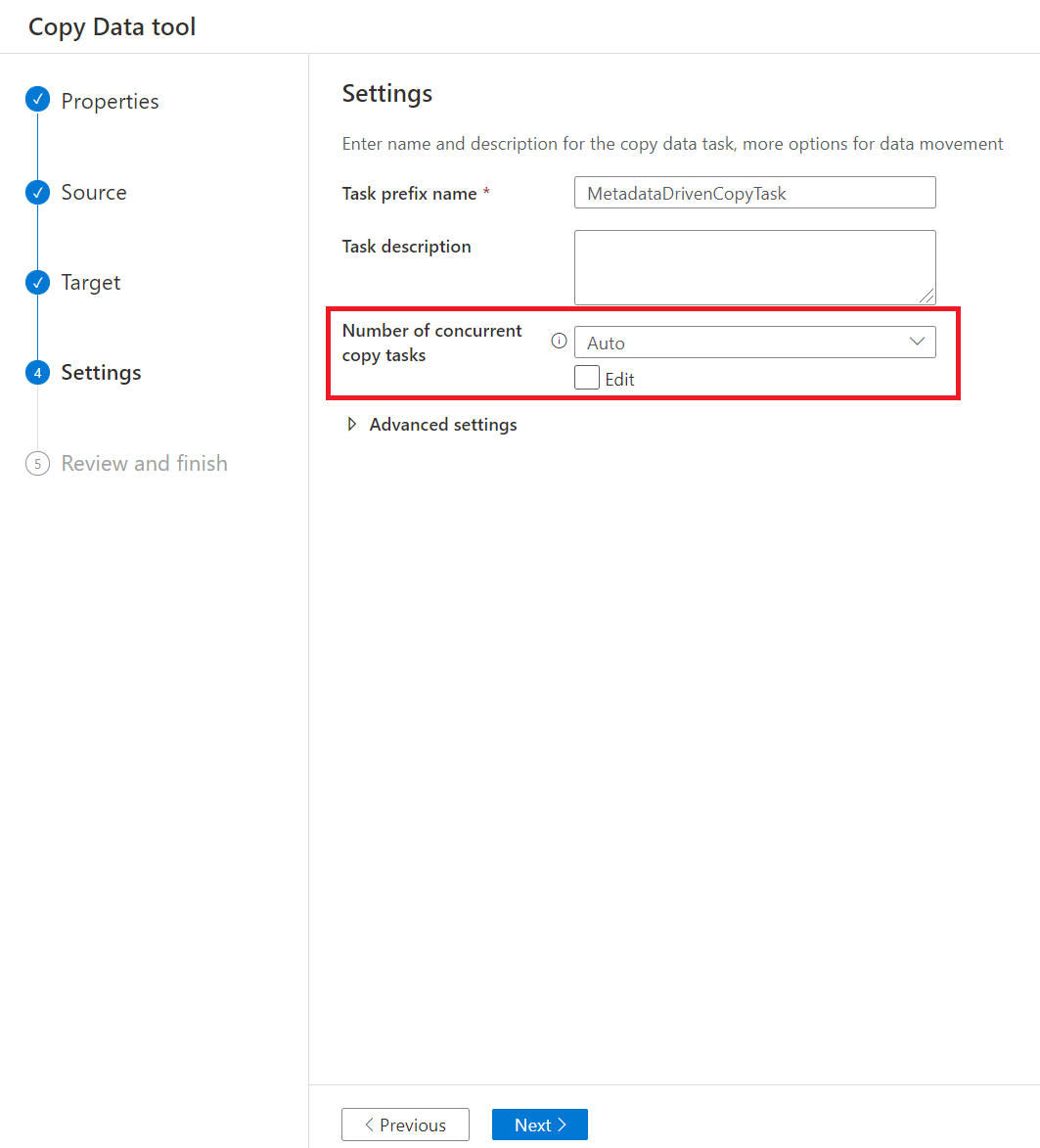

    Settings page

  7. After pipeline deployment, you can copy or download the SQL scripts from UI for creating control table and store procedure.

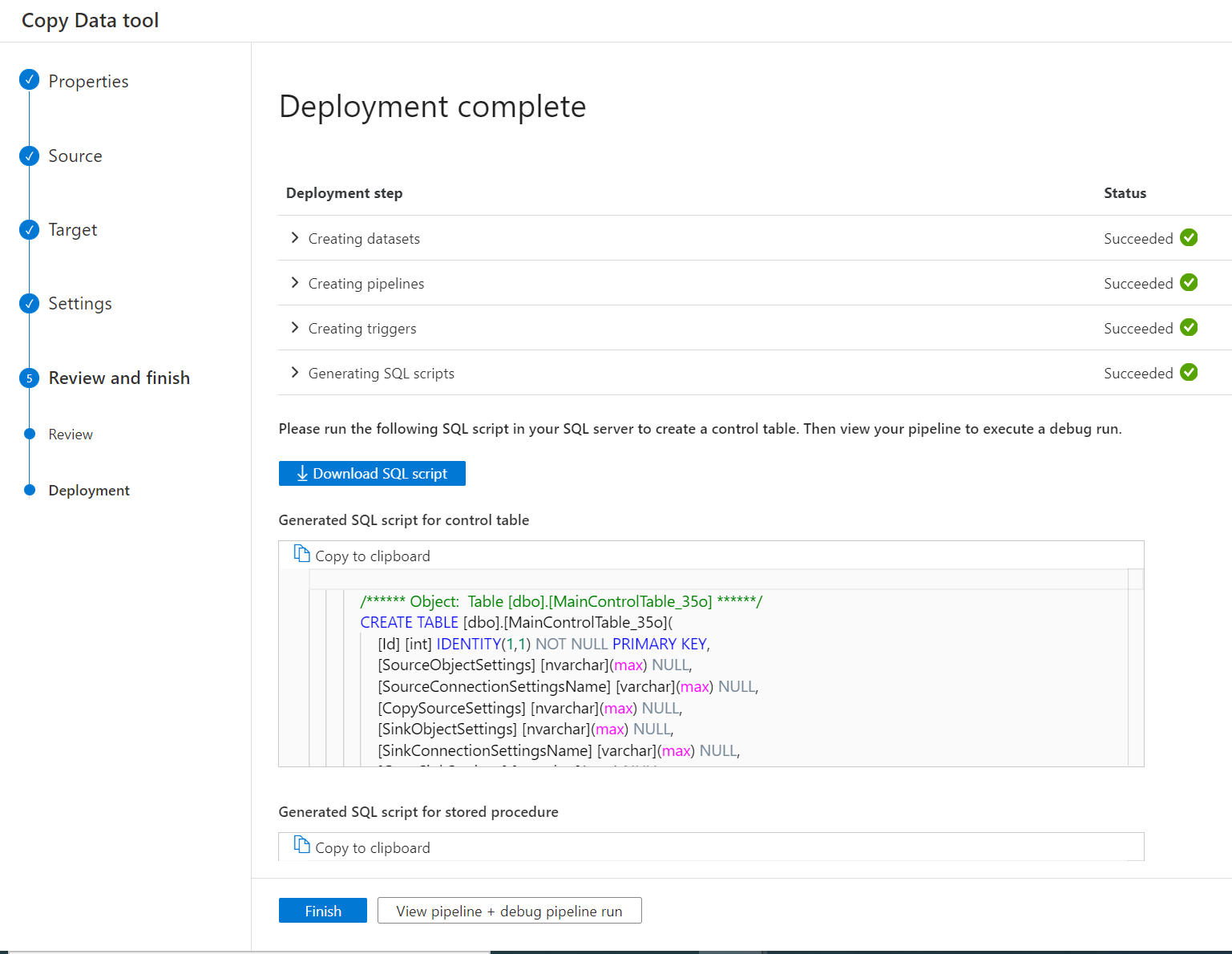

    Download scripts

    You will see two SQL scripts.

    • The first SQL script is used to create two control tables. The main control table stores the table list, file path or copy behaviors. The connection control table stores the connection value of your data store if you used parameterized linked service.
    • The second SQL script is used to create a store procedure. It is used to update the watermark value in main control table when the incremental copy jobs complete every time.
  8. Open SSMS to connect to your control table server, and run the two SQL scripts to create control tables and store procedure.

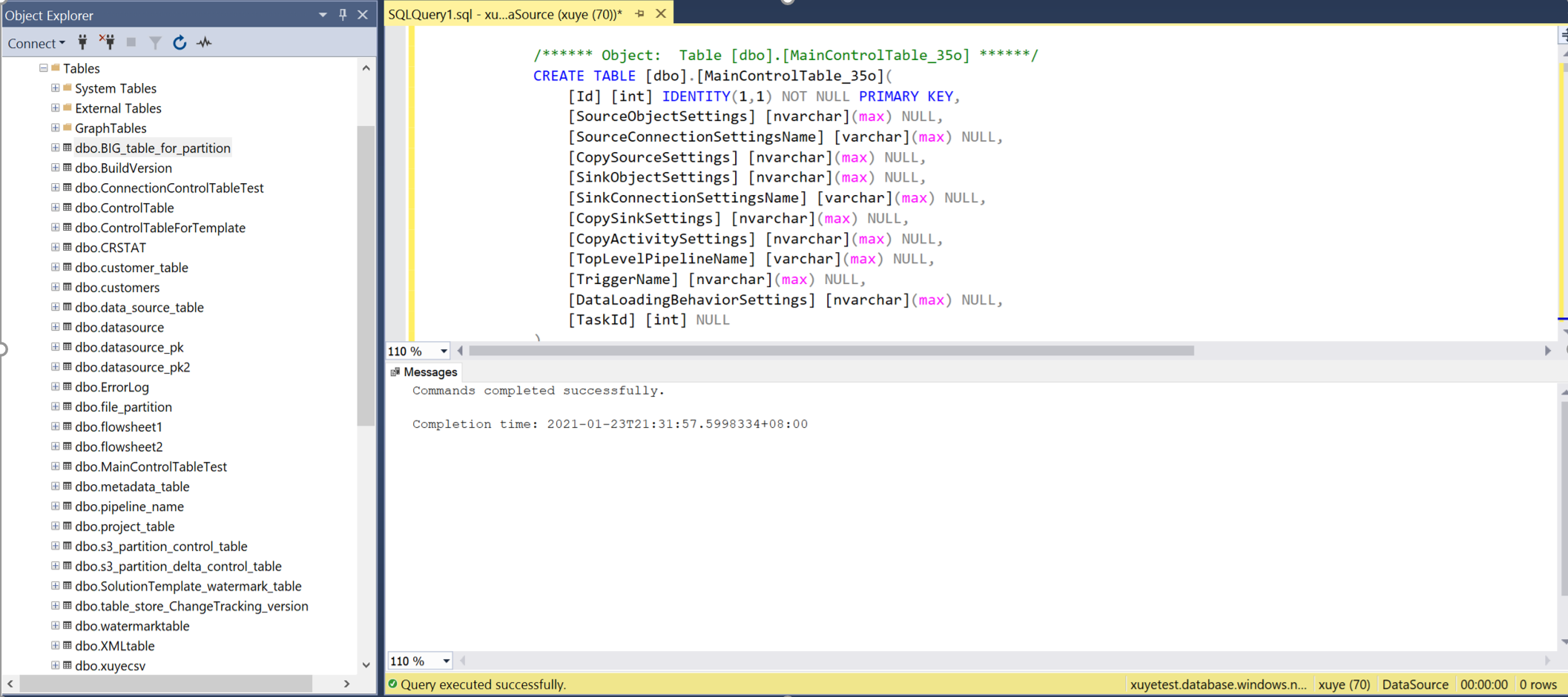

    Create control table script

  9. Query the main control table and connection control table to review the metadata in it.

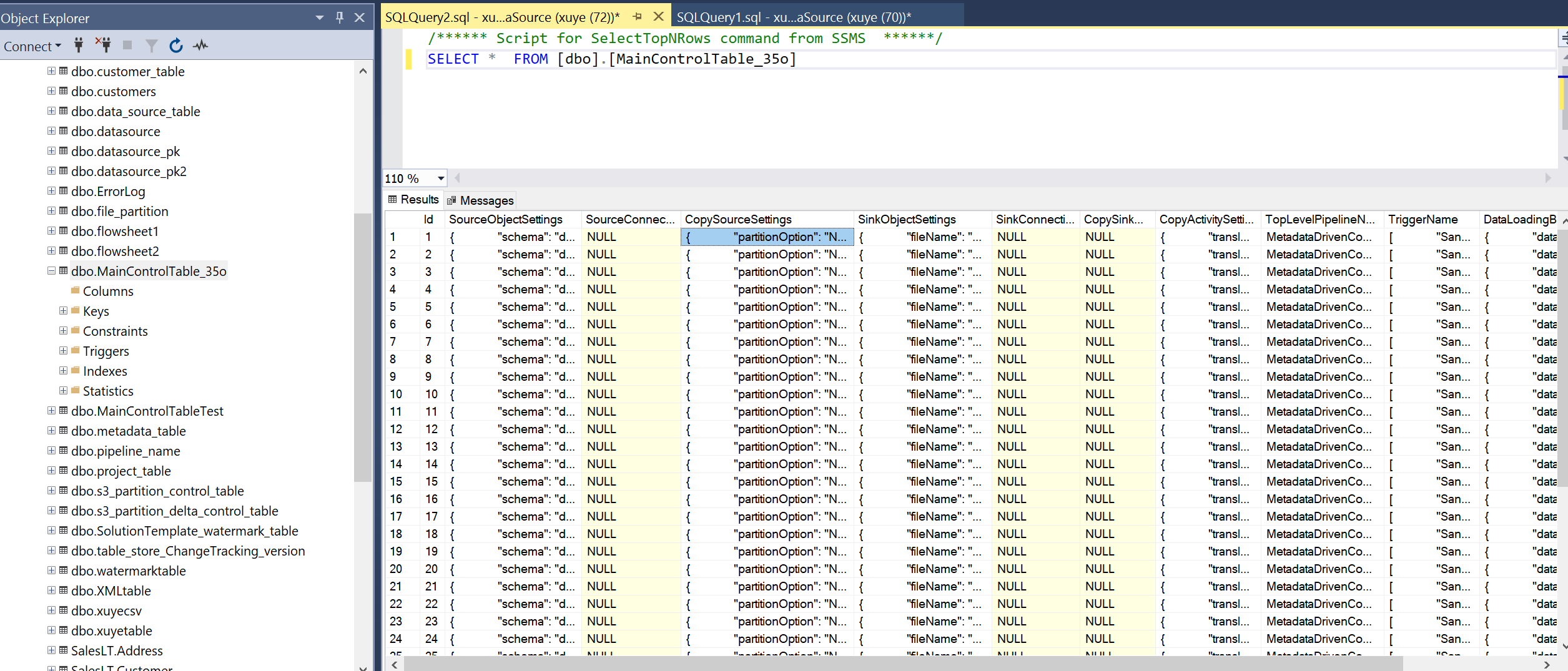

    Main control table Query control table script1

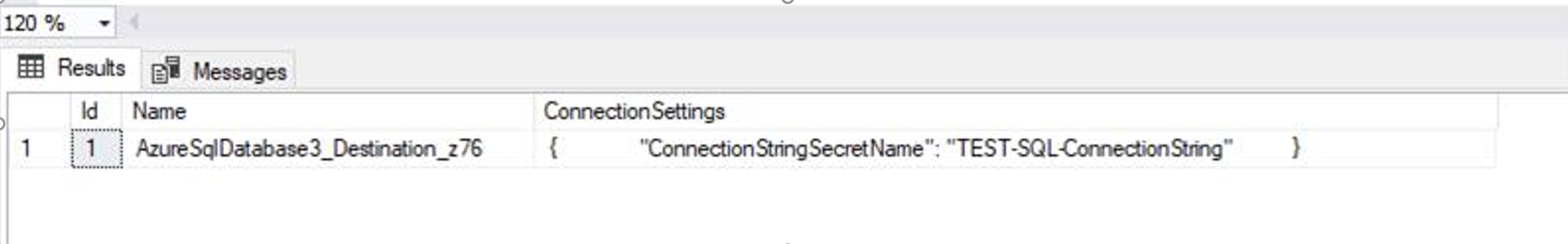

    Connection control table Query control table script2

  10. Go back to ADF portal to view and debug pipelines. You will see a folder created by naming "MetadataDrivenCopyTask_#########". Click the pipeline naming with "MetadataDrivenCopyTask###_TopLevel" and click debug run.

    You are required to input the following parameters:

    Parameters name Description
    MaxNumberOfConcurrentTasks You can always change the max number of concurrent copy activities run before pipeline run. The default value will be the one you input in copy data tool.
    MainControlTableName You can always change the main control table name, so the pipeline will get the metadata from that table before run.
    ConnectionControlTableName You can always change the connection control table name (optional), so the pipeline will get the metadata related to data store connection before run.
    MaxNumberOfObjectsReturnedFromLookupActivity In order to avoid reaching the limit of output lookup activity, there is a way to define the max number of objects returned by lookup activity. In most cases, the default value is not required to be changed.
    windowStart When you input dynamic value (for example, yyyy/mm/dd) as folder path, the parameter is used to pass the current trigger time to pipeline in order to fill the dynamic folder path. When the pipeline is triggered by schedule trigger or tumbling windows trigger, users do not need to input the value of this parameter. Sample value: 2021-01-25T01:49:28Z
  11. Enable the trigger to operationalize the pipelines.

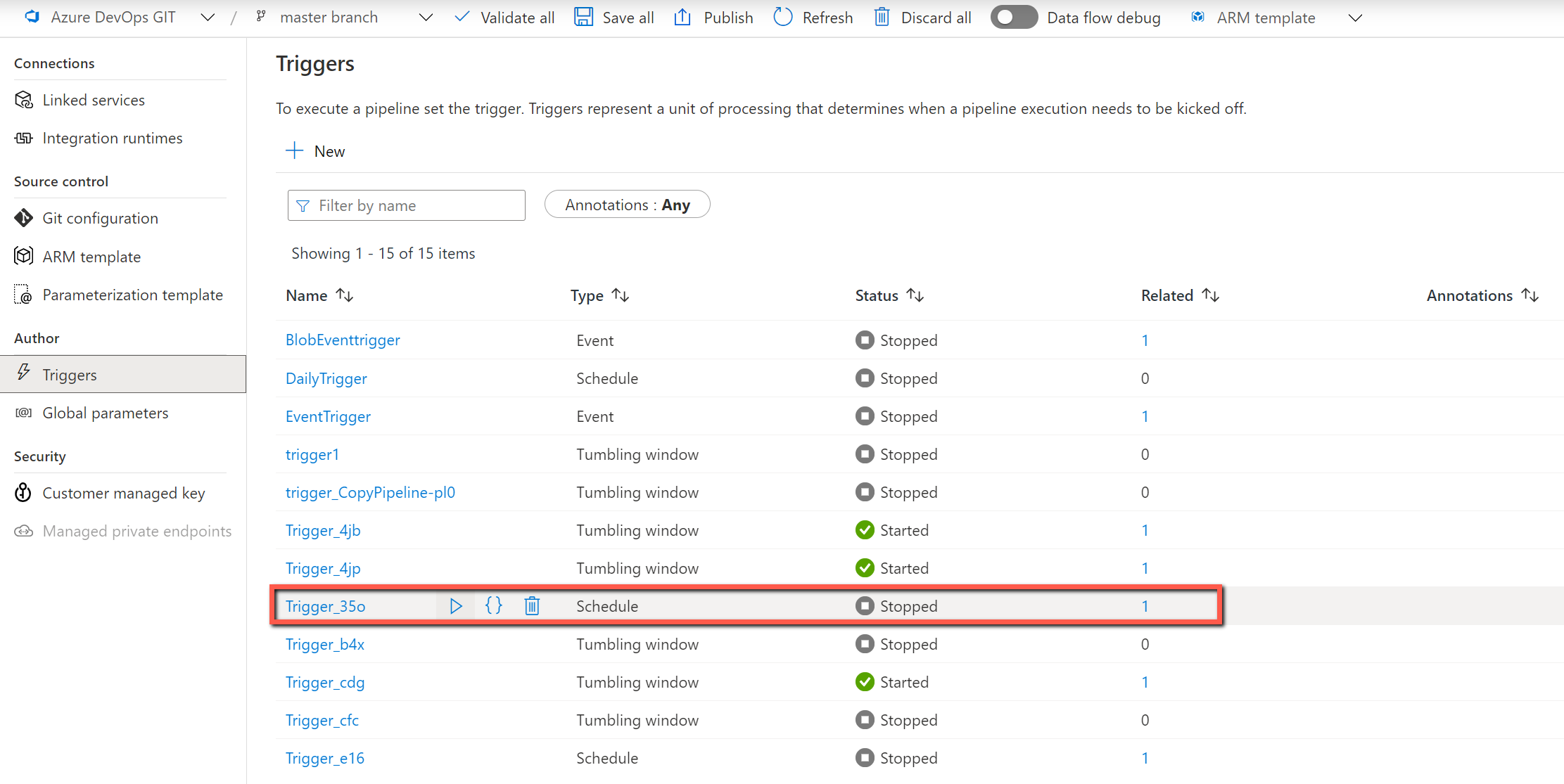

    Enable trigger

Update control table by copy data tool

You can always directly update the control table by adding or removing the object to be copied or changing the copy behavior for each table. We also create UI experience in copy data tool to ease the journey of editing the control table.

  1. Right-click the top-level pipeline: MetadataDrivenCopyTask_xxx_TopLevel, and then select Edit control table.

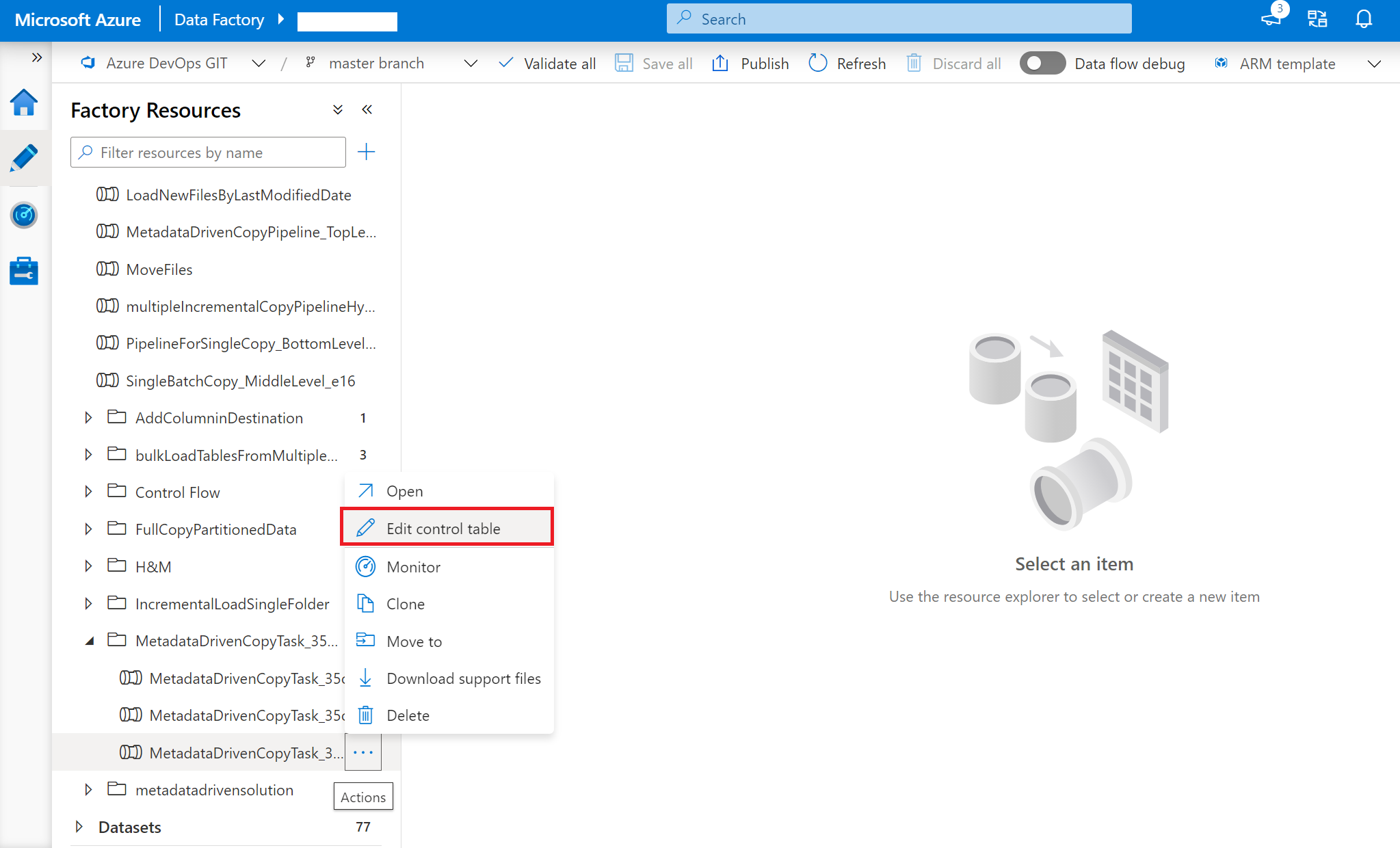

    Edit control table1

  2. Select rows from the control table to edit.

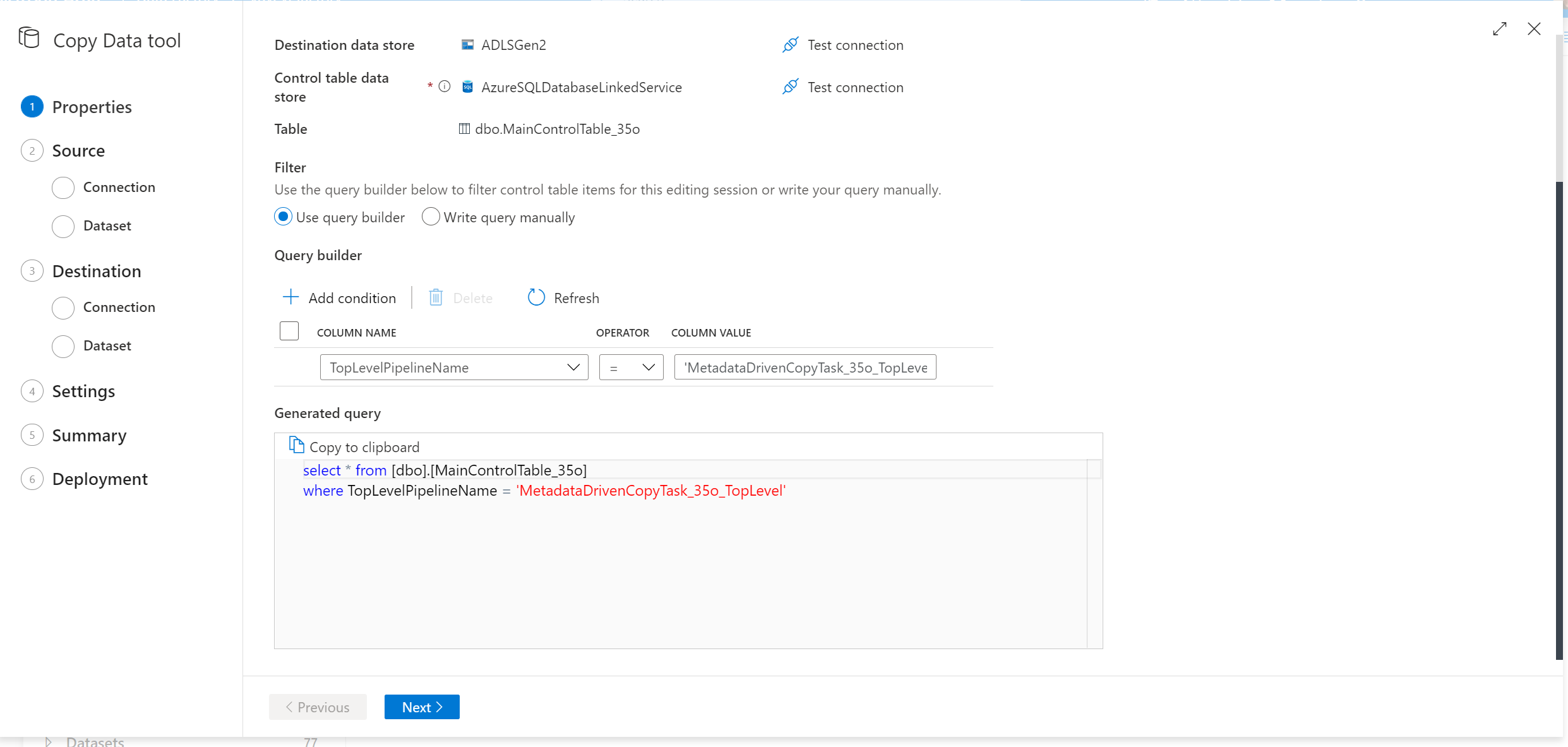

    Edit control table2

  3. Go throughput the copy data tool, and it will come up with a new SQL script for you. Rerun the SQL script to update your control table.

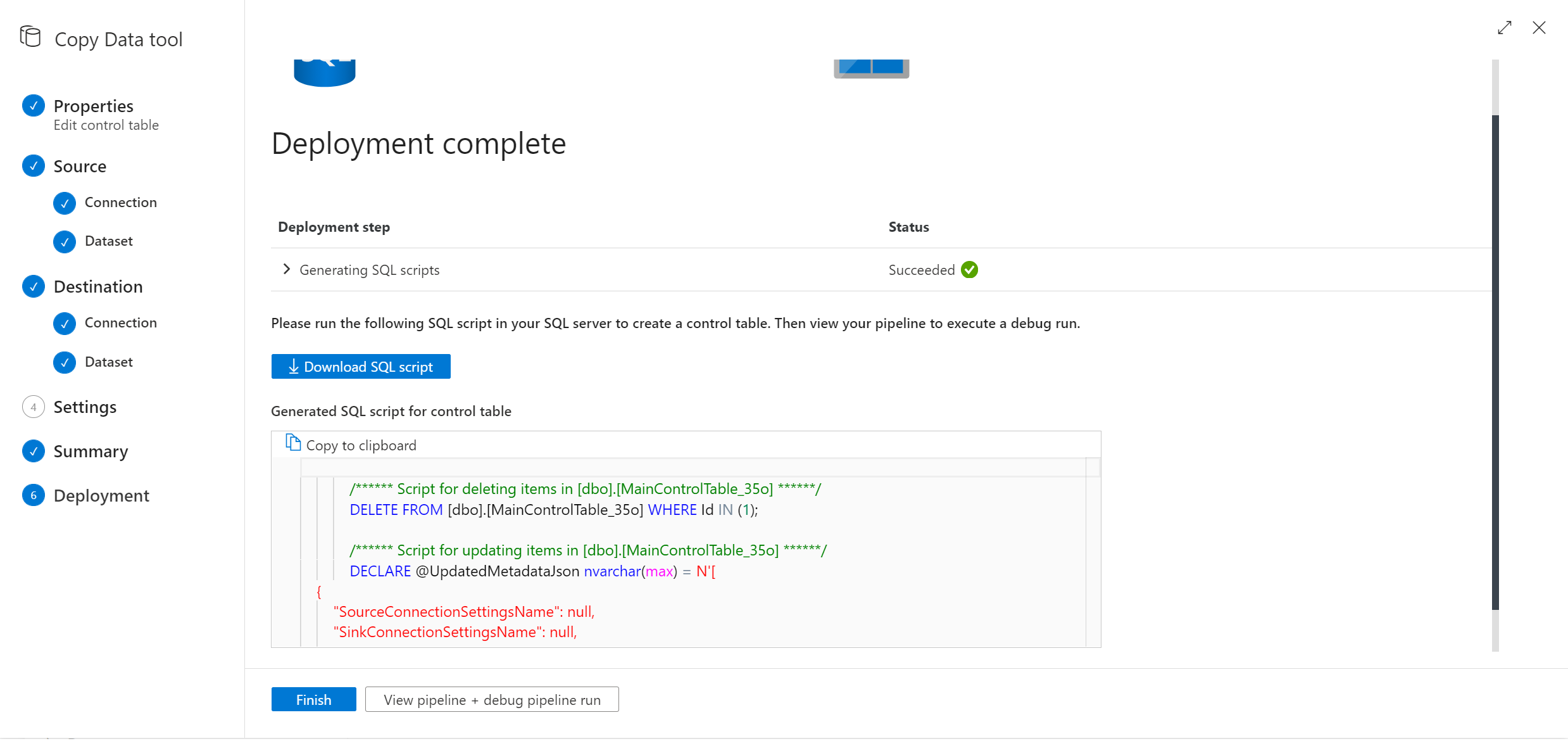

    Edit control table3

    Note

    The pipeline will NOT be redeployed. The new created SQL script help you to update the control table only.

Control tables

Main control table

Each row in control table contains the metadata for one object (for example, one table) to be copied.

Column name Description
ID Unique ID of the object to be copied.
SourceObjectSettings Metadata of source dataset. It can be schema name, table name etc. Here is an example.
SourceConnectionSettingsName The name of the source connection setting in connection control table. It is optional.
CopySourceSettings Metadata of source property in copy activity. It can be query, partitions etc. Here is an example.
SinkObjectSettings Metadata of destination dataset. It can be file name, folder path, table name etc. Here is an example. If dynamic folder path specified, the variable value will not be written here in control table.
SinkConnectionSettingsName The name of the destination connection setting in connection control table. It is optional.
CopySinkSettings Metadata of sink property in copy activity. It can be preCopyScript, tableOption etc. Here is an example.
CopyActivitySettings Metadata of translator property in copy activity. It is used to define column mapping.
TopLevelPipelineName Top Pipeline name, which can copy this object.
TriggerName Trigger name, which can trigger the pipeline to copy this object. If debug run, the name is Sandbox. If manual execution, the name is Manual. If scheduled run, the name is the associated trigger name. It can be input multiple names.
DataLoadingBehaviorSettings Full load vs. delta load.
TaskId The order of objects to be copied following the TaskId in control table (ORDER BY [TaskId] DESC). If you have huge amounts of objects to be copied but only limited concurrent number of copied allowed, you can change the TaskId for each object to decide which objects can be copied earlier. The default value is 0.
CopyEnabled Specify if the item is enabled in data ingestion process. Allowed values: 1 (enabled), 0 (disabled). Default value is 1.

Connection control table

Each row in control table contains one connection setting for the data store.

Column name Description
Name Name of the parameterized connection in main control table.
ConnectionSettings The connection settings. It can be DB name, Server name and so on.

Pipelines

You will see three levels of pipelines are generated by copy data tool.

MetadataDrivenCopyTask_xxx_TopLevel

This pipeline will calculate the total number of objects (tables etc.) required to be copied in this run, come up with the number of sequential batches based on the max allowed concurrent copy task, and then execute another pipeline to copy different batches sequentially.

Parameters

Parameters name Description
MaxNumberOfConcurrentTasks You can always change the max number of concurrent copy activities run before pipeline run. The default value will be the one you input in copy data tool.
MainControlTableName The table name of main control table. The pipeline will get the metadata from this table before run
ConnectionControlTableName The table name of connection control table (optional). The pipeline will get the metadata related to data store connection before run
MaxNumberOfObjectsReturnedFromLookupActivity In order to avoid reaching the limit of output lookup activity, there is a way to define the max number of objects returned by lookup activity. In most cases, the default value is not required to be changed.
windowStart When you input dynamic value (for example, yyyy/mm/dd) as folder path, the parameter is used to pass the current trigger time to pipeline in order to fill the dynamic folder path. When the pipeline is triggered by schedule trigger or tumbling windows trigger, users do not need to input the value of this parameter. Sample value: 2021-01-25T01:49:28Z

Activities

Activity name Activity type Description
GetSumOfObjectsToCopy Lookup Calculate the total number of objects (tables etc.) required to be copied in this run.
CopyBatchesOfObjectsSequentially ForEach Come up with the number of sequential batches based on the max allowed concurrent copy tasks, and then execute another pipeline to copy different batches sequentially.
CopyObjectsInOneBtach Execute Pipeline Execute another pipeline to copy one batch of objects. The objects belonging to this batch will be copied in parallel.

MetadataDrivenCopyTask_xxx_ MiddleLevel

This pipeline will copy one batch of objects. The objects belonging to this batch will be copied in parallel.

Parameters

Parameters name Description
MaxNumberOfObjectsReturnedFromLookupActivity In order to avoid reaching the limit of output lookup activity, there is a way to define the max number of objects returned by lookup activity. In most case, the default value is not required to be changed.
TopLevelPipelineName The name of top layer pipeline.
TriggerName The name of trigger.
CurrentSequentialNumberOfBatch The ID of sequential batch.
SumOfObjectsToCopy The total number of objects to copy.
SumOfObjectsToCopyForCurrentBatch The number of objects to copy in current batch.
MainControlTableName The name of main control table.
ConnectionControlTableName The name of connection control table.

Activities

Activity name Activity type Description
DivideOneBatchIntoMultipleGroups ForEach Divide objects from single batch into multiple parallel groups to avoid reaching the output limit of lookup activity.
GetObjectsPerGroupToCopy Lookup Get objects (tables etc.) from control table required to be copied in this group. The order of objects to be copied following the TaskId in control table (ORDER BY [TaskId] DESC).
CopyObjectsInOneGroup Execute Pipeline Execute another pipeline to copy objects from one group. The objects belonging to this group will be copied in parallel.

MetadataDrivenCopyTask_xxx_ BottomLevel

This pipeline will copy objects from one group. The objects belonging to this group will be copied in parallel.

Parameters

Parameters name Description
ObjectsPerGroupToCopy The number of objects to copy in current group.
ConnectionControlTableName The name of connection control table.
windowStart It used to pass the current trigger time to pipeline in order to fill the dynamic folder path if configured by user.

Activities

Activity name Activity type Description
ListObjectsFromOneGroup ForEach List objects from one group and iterate each of them to downstream activities.
RouteJobsBasedOnLoadingBehavior Switch Check the loading behavior for each object. If it is default or FullLoad case, do full load. If it is DeltaLoad case, do incremental load via watermark column to identify changes
FullLoadOneObject Copy Take a full snapshot on this object and copy it to the destination.
DeltaLoadOneObject Copy Copy the changed data only from last time via comparing the value in watermark column to identify changes.
GetMaxWatermarkValue Lookup Query the source object to get the max value from watermark column.
UpdateWatermarkColumnValue StoreProcedure Write back the new watermark value to control table to be used next time.

Known limitations

  • IR name, database type, file format type cannot be parameterized in ADF. For example, if you want to ingest data from both Oracle Server and SQL Server, you will need two different parameterized pipelines. But the single control table can be shared by two sets of pipelines.
  • OPENJSON is used in generated SQL scripts by copy data tool. If you are using SQL Server to host control table, it must be SQL Server 2016 (13.x) and later in order to support OPENJSON function.
