Integrate Fortinet with Microsoft Defender for IoT

This article helps you learn how to integrate and use Fortinet with Microsoft Defender for IoT.

Microsoft Defender for IoT mitigates IIoT, ICS, and SCADA risk with ICS-aware self-learning engines that deliver immediate insights about ICS devices, vulnerabilities, and threats. Defender for IoT accomplishes this without relying on agents, rules, signatures, specialized skills, or prior knowledge of the environment.

Defender for IoT and Fortinet have established a technological partnership that detects and stop attacks on IoT and ICS networks.

Fortinet and Microsoft Defender for IoT prevent:

  • Unauthorized changes to programmable logic controllers (PLC).

  • Malware that manipulates ICS and IoT devices via their native protocols.

  • Reconnaissance tools from collecting data.

  • Protocol violations caused by misconfigurations or malicious attackers.

Defender for IoT detects anomalous behavior in IoT and ICS networks and delivers that information to FortiGate and FortiSIEM, as follows:

  • Visibility: The information provided by Defender for IoT gives FortiSIEM administrators visibility into previously invisible IoT and ICS networks.

  • Blocking malicious attacks: FortiGate administrators can use the information discovered by Defender for IoT to create rules to stop anomalous behavior, regardless of whether that behavior is caused by chaotic actors or misconfigured devices, before it causes damage to production, profits, or people.

FortiSIEM and Fortinet’s multivendor security incident and events management solution brings visibility, correlation, automated response, and remediation to a single scalable solution.

Using a Business Services view, the complexity of managing network and security operations is reduced, freeing resources and improving breach detection. FortiSIEM provides cross correlation, while applying machine learning and UEBA, to improve the response in order to stop breaches before they occur.

In this article, you learn how to:

  • Create an API key in Fortinet
  • Set a forwarding rule to block malware-related alerts
  • Block the source of suspicious alerts
  • Send Defender for IoT alerts to FortiSIEM
  • Block a malicious source using the Fortigate firewall

Prerequisites

Before you begin, make sure that you have the following prerequisites:

Create an API key in Fortinet

An application programming interface (API) key is a uniquely generated code that allows an API to identify the application or user requesting access to it. An API key is needed for Microsoft Defender for IoT and Fortinet to communicate correctly.

To create an API key in Fortinet:

  1. In FortiGate, navigate to System > Admin Profiles.

  2. Create a profile with the following permissions:

    Parameter Selection
    Security Fabric None
    Fortiview None
    User & Device None
    Firewall Custom
    Policy Read/Write
    Address Read/Write
    Service None
    Schedule None
    Logs & Report None
    Network None
    System None
    Security Profile None
    VPN None
    WAN Opt & Cache None
    WiFi & Switch None
  3. Navigate to System > Administrators, and create a new REST API Admin with the following fields:

    Parameter Description
    Username Enter the forwarding rule name.
    Comments Enter the minimal security level incident to forward. For example, if Minor is selected, minor alerts and any alert above this severity level will be forwarded.
    Administrator Profile From the dropdown list, select the profile name that you've defined in the previous step.
    PKI Group Toggle the switch to Disable.
    CORS Allow Origin Toggle the switch to Enable.
    Restrict login to trusted hosts Add the IP addresses of the sensors and on-premises management consoles that will connect to FortiGate.

Save the API key when it's generated, as it will not be provided again. The bearer of the generated API key will be granted all access privileges assigned to the account.

The FortiGate firewall can be used to block suspicious traffic.

Forwarding alert rules run only on alerts triggered after the forwarding rule is created. Alerts already in the system from before the forwarding rule was created aren't affected by the rule.

When creating your forwarding rule:

  1. In the Actions area, select FortiGate.

  2. Define the server IP address where you want to send the data.

  3. Enter an API key created in FortiGate.

  4. Enter the incoming and outgoing firewall interface ports.

  5. Select to forward specific alert details. We recommend selecting one of more of the following:

    • Block illegal function codes: Protocol violations - Illegal field value violating ICS protocol specification (potential exploit)
    • Block unauthorized PLC programming / firmware updates: Unauthorized PLC changes
    • Block unauthorized PLC stop PLC stop (downtime)
    • Block malware related alerts: Blocking of the industrial malware attempts, such as TRITON or NotPetya
    • Block unauthorized scanning: Unauthorized scanning (potential reconnaissance)

For more information, see Forward on-premises OT alert information.

Block the source of suspicious alerts

The source of suspicious alerts can be blocked in order to prevent further occurrences.

To block the source of suspicious alerts:

  1. Sign in to the on-premises management console, then select Alerts.

  2. Select the alert related to Fortinet integration.

  3. To automatically block the suspicious source, select Block Source.

  4. In the Please Confirm dialog box, select OK.

Send Defender for IoT alerts to FortiSIEM

Defender for IoT alerts provide information about an extensive range of security events, including:

  • Deviations from learned baseline network activity

  • Malware detections

  • Detections based on suspicious operational changes

  • Network anomalies

  • Protocol deviations from protocol specifications

You can configure Defender for IoT to send alerts to the FortiSIEM server, where alert information is displayed in the ANALYTICS window:

Each Defender for IoT alert is then parsed without any other configuration on the FortiSIEM side, and they're presented in the FortiSIEM as security events. The following event details appear by default:

  • Application Protocol
  • Application Version
  • Category Type
  • Collector ID
  • Count
  • Device Time
  • Event ID
  • Event Name
  • Event Parse Status

You can then use Defender for IoT's Forwarding Rules to send alert information to FortiSIEM.

Forwarding alert rules run only on alerts triggered after the forwarding rule is created. Alerts already in the system from before the forwarding rule was created aren't affected by the rule.

To use Defender for IoT's Forwarding Rules to send alert information to FortiSIEM:

  1. From the sensor console, select Forwarding.

  2. Select + Create new rule.

  3. In the Add forwarding rule pane, define the rule parameters:

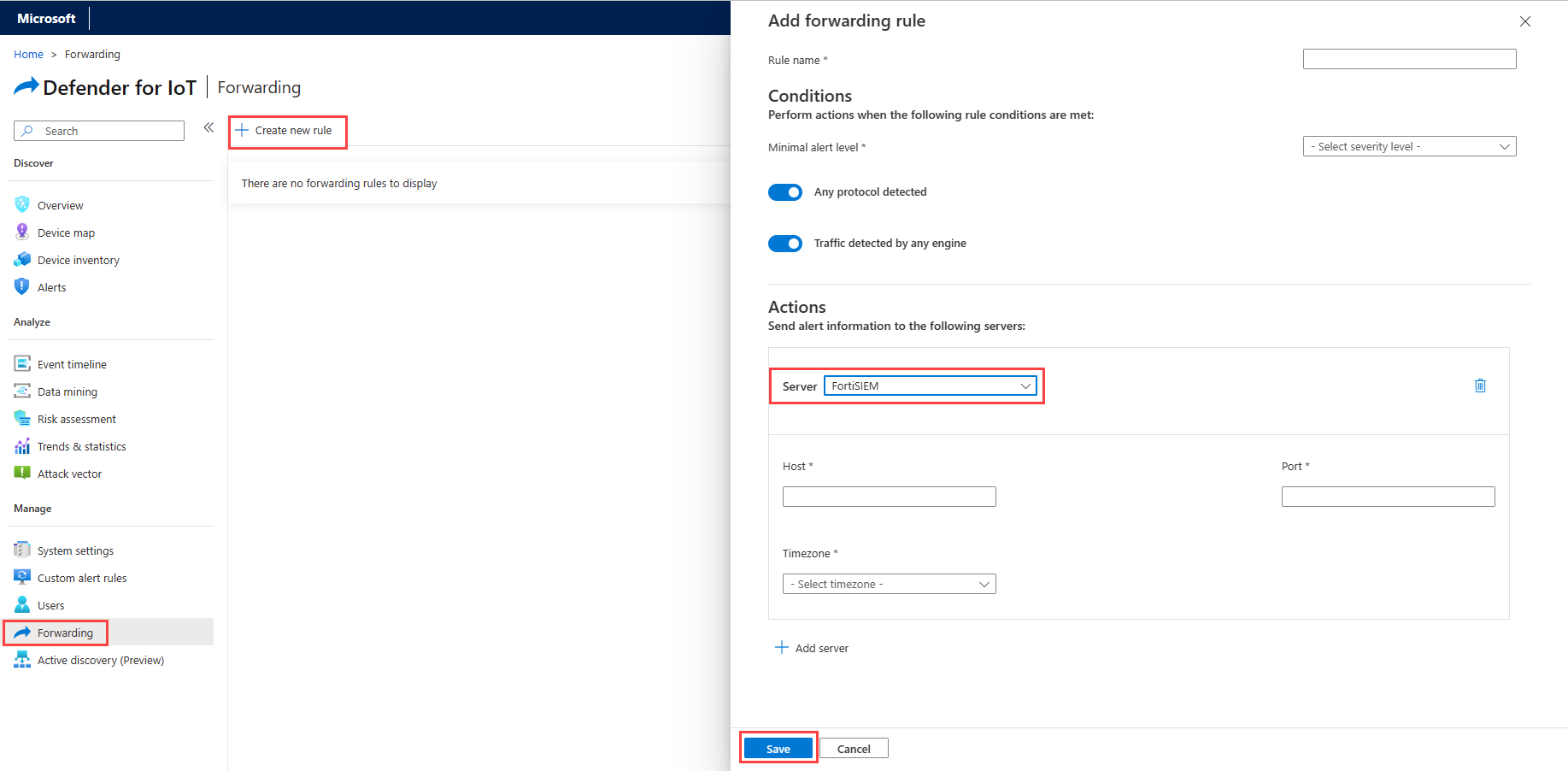

    Screenshot of the view of your forwarding rules in the Forwarding window.

    Parameter Description
    Rule name The forwarding rule name.
    Minimal alert level The minimal security level incident to forward. For example, if Minor is selected, minor alerts and any alert above this severity level will be forwarded.
    Any protocol detected Toggle off to select the protocols you want to include in the rule.
    Traffic detected by any engine Toggle off to select the traffic you want to include in the rule.
  4. In the Actions area, define the following values:

    Parameter Description
    Server Select FortiSIEM.
    Host Define the ClearPass server IP to send alert information.
    Port Define the ClearPass port to send alert information.
    Timezone The time stamp for the alert detection.
  5. Select Save.

Block a malicious source using the Fortigate firewall

You can set policies to automatically block malicious sources in the FortiGate firewall, using alerts in Defender for IoT.

To set a FortiGate firewall rule that blocks a malicious source:

  1. In FortiGate, create an API key.

  2. Sign in to the Defender for IoT sensor, or the on-premises management console, and select Forwarding, set a forwarding rule that blocks malware-related alerts.

  3. In the Defender for IoT sensor, or the on-premises management console, select Alerts, and block a malicious source.

  4. Navigate to the FortiGage Administrator window, and locate the malicious source address you blocked.

    The blocking policy is automatically created, and appears in the FortiGate IPv4 Policy window.

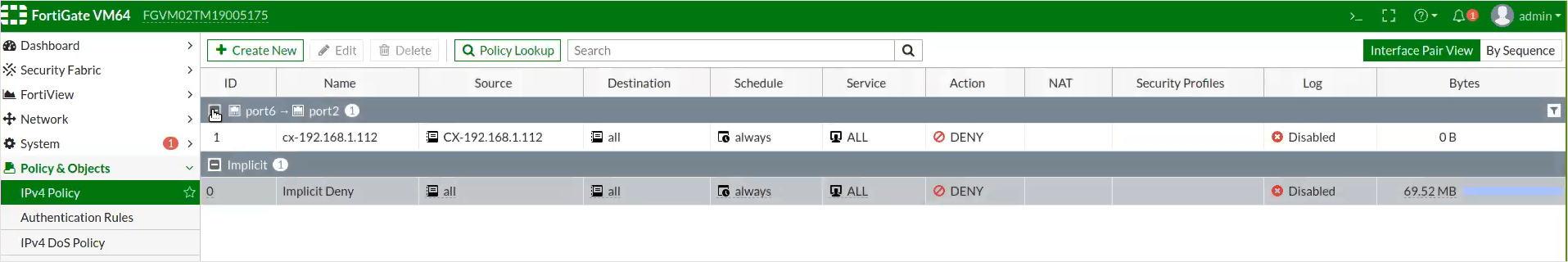

    Screenshot of the FortiGate IPv4 Policy window view.

  5. Select the policy and ensure that Enable this policy is toggled on.

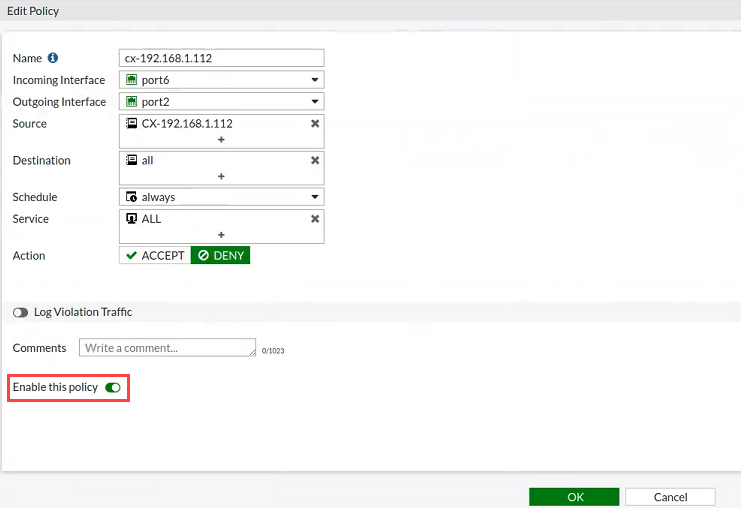

    Screenshot of the FortiGate IPv4 Policy Edit view.

    Parameter Description
    Name The name of the policy.
    Incoming Interface The inbound firewall interface for the traffic.
    Outgoing Interface The outbound firewall interface for the traffic.
    Source The source address(es) for the traffic.
    Destination The destination address(es) for the traffic.
    Schedule The occurrence of the newly defined rule. For example, always.
    Service The protocol, or specific ports for the traffic.
    Action The action that the firewall will perform.
