Private resolver architecture

This article discusses two architectural design options that are available to resolve DNS names, including private DNS zones across your Azure network using an Azure DNS Private Resolver. Example configurations are provided with design recommendations for centralized vs distributed DNS resolution in a hub and spoke VNet topology.

Distributed DNS architecture

Consider the following hub and spoke VNet topology in Azure with a private resolver located in the hub and a ruleset link to the spoke VNet. Both the hub and the spoke use Azure-provided DNS in their VNet settings:

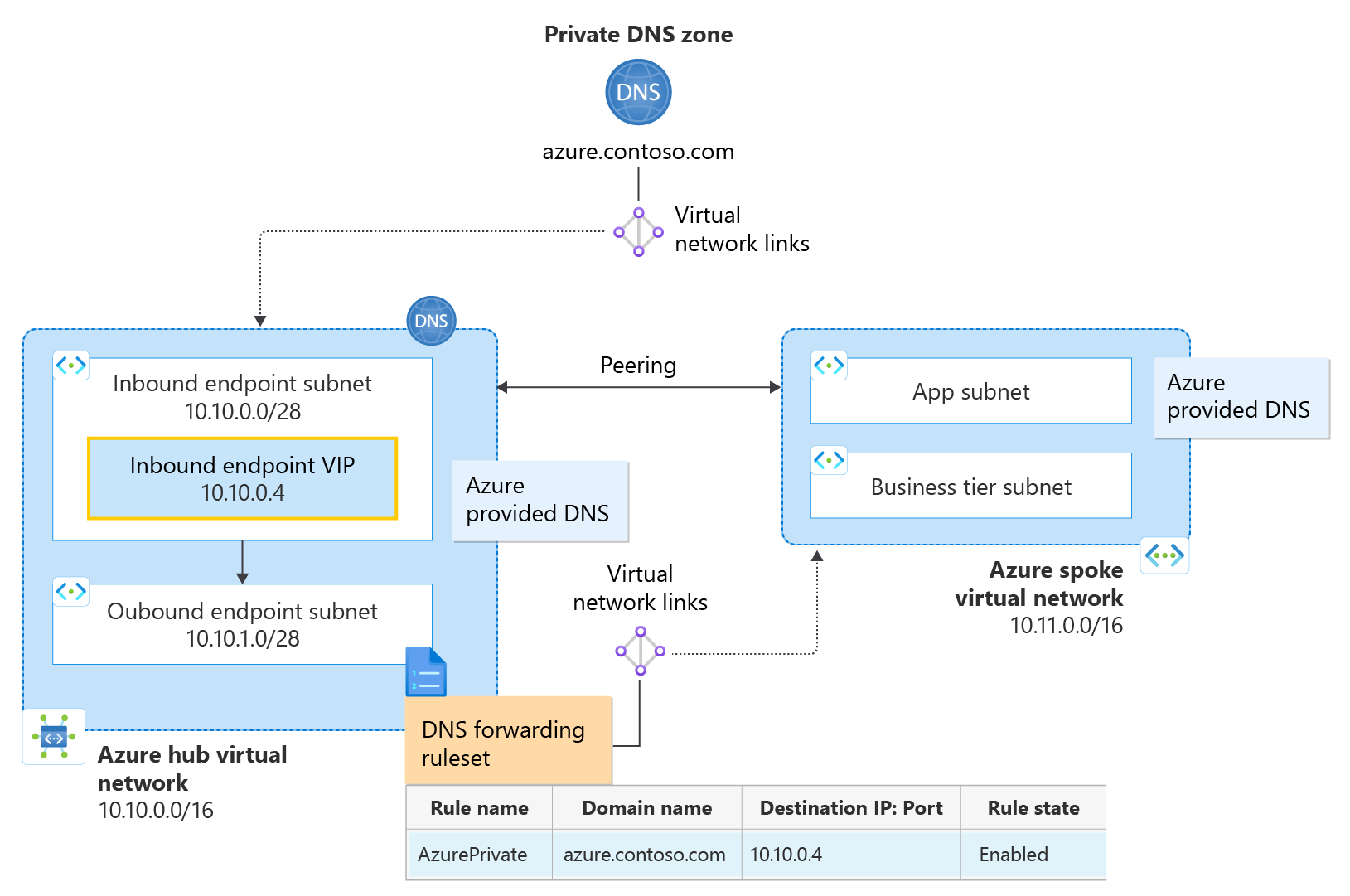

Hub and spoke with ruleset diagram.

Figure 1: Distributed DNS architecture using ruleset links

  • A hub VNet is configured with address space 10.10.0.0/16.
  • A spoke VNet is configured with address space 10.11.0.0/16.
  • A private DNS zone azure.contoso.com is linked to the hub VNet.
  • A private resolver is provisioned in the hub VNet.
    • The private resolver has one inbound endpoint with an IP address of 10.10.0.4.
    • The private resolver has one outbound endpoint and an associated DNS forwarding ruleset.
      • The DNS forwarding ruleset is linked to the spoke VNet.
      • A ruleset rule is configured to forward queries for the private zone to the inbound endpoint.

DNS resolution in the hub VNet: The virtual network link from the private zone to the Hub VNet enables resources inside the hub VNet to automatically resolve DNS records in azure.contoso.com using Azure-provided DNS (168.63.129.16). All other namespaces are also resolved using Azure-provided DNS. The hub VNet doesn't use ruleset rules to resolve DNS names because it isn't linked to the ruleset. To use forwarding rules in the hub VNet, create and link another ruleset to the Hub VNet.

DNS resolution in the spoke VNet: The virtual network link from the ruleset to the spoke VNet enables the spoke VNet to resolve azure.contoso.com using the configured forwarding rule. A link from the private zone to the spoke VNet isn't required here. The spoke VNet sends queries for azure.contoso.com to the hub's inbound endpoint via Azure-provided DNS because there is a rule matching this domain name in the linked ruleset. Queries for other namespaces can also be forwarded by configuring additional rules. DNS queries that don't match a ruleset rule are not forwarded and are resolved using Azure-provided DNS.

Important

In this example configuration, the hub VNet must be linked to the private zone, but must not be linked to a forwarding ruleset with an inbound endpoint forwarding rule. Linking a forwarding ruleset that contains a rule with the inbound endpoint as a destination to the same VNet where the inbound endpoint is provisioned can cause DNS resolution loops.

Centralized DNS architecture

Consider the following hub and spoke VNet topology with an inbound endpoint provisioned as custom DNS in the spoke VNet. The spoke VNet uses a Custom DNS setting of 10.10.0.4, corresponding to the Hub's private resolver inbound endpoint:

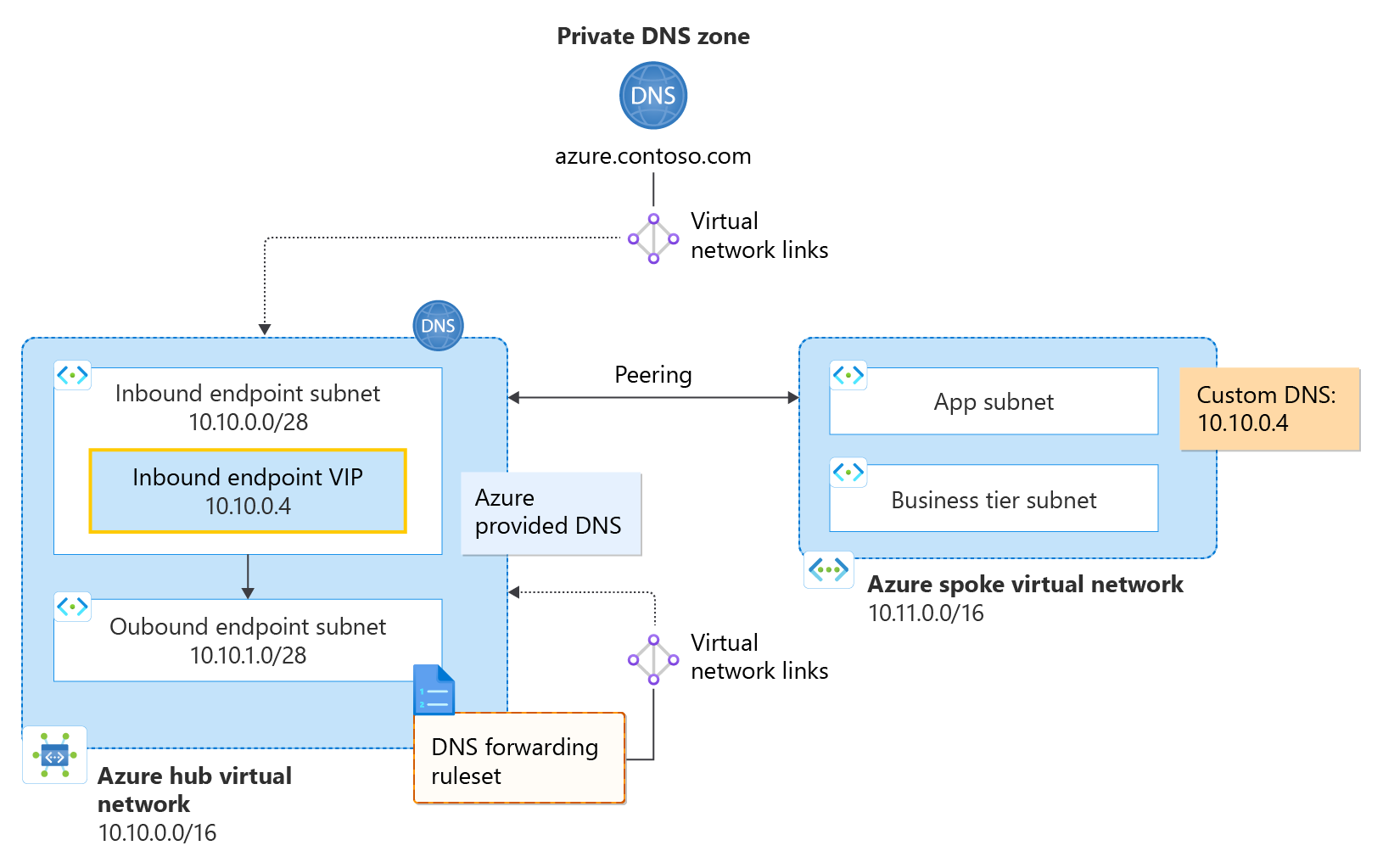

Hub and spoke with custom DNS diagram.

Figure 2: Centralized DNS architecture using custom DNS

  • A hub VNet is configured with address space 10.10.0.0/16.
  • A spoke VNet is configured with address space 10.11.0.0/16.
  • A private DNS zone azure.contoso.com is linked to the hub VNet.
  • A private resolver is located in the hub VNet.
    • The private resolver has one inbound endpoint with an IP address of 10.10.0.4.
    • The private resolver has one (optional) outbound endpoint and an associated DNS forwarding ruleset.
      • The DNS forwarding ruleset is linked to the hub VNet.
      • A ruleset rule is not configured to forward queries for the private zone to the inbound endpoint.

DNS resolution in the hub VNet: The virtual network link from the private zone to the Hub VNet enables resources inside the hub VNet to automatically resolve DNS records in azure.contoso.com using Azure-provided DNS (168.63.129.16). If configured, ruleset rules determine how DNS names are forwarded and resolved. Namespaces that don't match a ruleset rule are resolved without forwarding using Azure-provided DNS.

DNS resolution in the spoke VNet: In this example, the spoke VNet sends all of its DNS traffic to the inbound endpoint in the Hub VNet. Since azure.contoso.com has a virtual network link to the Hub VNet, all resources in the Hub can resolve azure.contoso.com, including the inbound endpoint (10.10.0.4). Thus, the spoke uses the hub inbound endpoint to resolve the private zone. Other DNS names are resolved for the spoke VNet according to rules provisioned in a forwarding ruleset, if they exist.

Note

In the centralized DNS architecture scenario, both the hub and the spoke VNets can use the optional hub-linked ruleset when resolving DNS names. This is because all DNS traffic from the spoke VNet is being sent to the hub due to the VNet's custom DNS setting. The hub VNet doesn't require an outbound endpoint or ruleset here, but if one is provisioned and linked to the hub (as shown in Figure 2), both the hub and spoke VNets will use the forwarding rules. As mentioned previously, it is important that a forwarding rule for the private zone isn't present in the ruleset because this configuration can cause a DNS resolution loop.
