Manage system extensions using Jamf

This article describes how to use Jamf to approve system extensions, grant Full Disk Access through Privacy Preferences Policy Control, and configure the network extension policy for Microsoft Defender for Endpoint on macOS. Complete the prerequisites for deploying Microsoft Defender for Endpoint before you follow these procedures.

Configure system extensions in Jamf

Configure the Jamf system extensions policy

To approve the system extensions, perform the following steps:

  1. Select Computers > Configuration Profiles, and then select Options > System Extensions.

  2. Select Allowed System Extensions from the System Extension Types drop-down list.

  3. Use UBF8T346G9 for Team ID.

  4. Add the following bundle identifiers to the Allowed System Extensions list:

    • com.microsoft.wdav.epsext
    • com.microsoft.wdav.netext

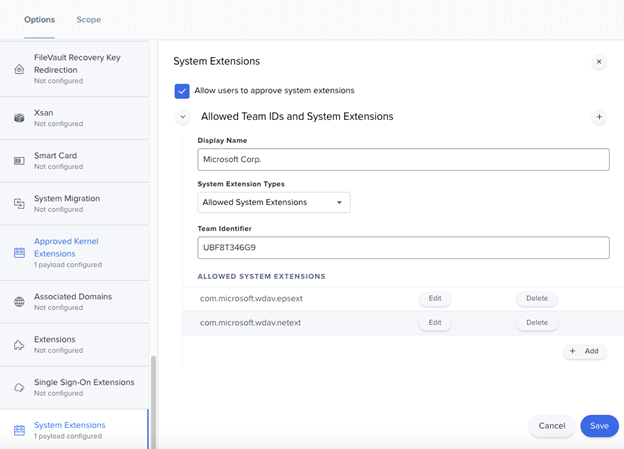

    Approving system extensions in Jamf.

Configure Privacy Preferences Policy Control for Full Disk Access

Add the following Jamf payload to grant Full Disk Access to the Microsoft Defender for Endpoint Security Extension. The Privacy Preferences Policy Control payload is a prerequisite for running the extension on your device.

  1. Select Options > Privacy Preferences Policy Control.

  2. Use com.microsoft.wdav.epsext as the Identifier and Bundle ID as Bundle type.

  3. Set Code Requirement to the following value:

    identifier com.microsoft.wdav.epsext and anchor apple generic and certificate 1[field.1.2.840.113635.100.6.2.6] /* exists */ and certificate leaf[field.1.2.840.113635.100.6.1.13] /* exists */ and certificate leaf[subject.OU] = UBF8T346G9

  4. Set App or service to SystemPolicyAllFiles and access to Allow.

    Privacy preferences policy control.

Configure the Network Extension policy in Jamf

As part of the Endpoint Detection and Response capabilities, Microsoft Defender for Endpoint on macOS inspects socket traffic and reports this information to the Microsoft Defender portal. The following policy allows the network extension to inspect socket traffic and report this information to the Microsoft Defender portal:

Note

Jamf doesn't have built-in support for content filtering policies, which are a prerequisite for enabling the network extensions that Microsoft Defender for Endpoint on macOS installs on the device. Furthermore, Jamf sometimes changes the content of the policies being deployed. Because of these limitations, the following steps provide a workaround that involves signing the configuration profile.

  1. Save the following content to your device as com.microsoft.network-extension.mobileconfig using a text editor:
   <?xml version="1.0" encoding="UTF-8"?><!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1">
    <dict>
        <key>PayloadUUID</key>
        <string>DA2CC794-488B-4AFF-89F7-6686A7E7B8AB</string>
        <key>PayloadType</key>
        <string>Configuration</string>
        <key>PayloadOrganization</key>
        <string>Microsoft Corporation</string>
        <key>PayloadIdentifier</key>
        <string>DA2CC794-488B-4AFF-89F7-6686A7E7B8AB</string>
        <key>PayloadDisplayName</key>
        <string>Microsoft Defender Network Extension</string>
        <key>PayloadDescription</key>
        <string/>
        <key>PayloadVersion</key>
        <integer>1</integer>
        <key>PayloadEnabled</key>
        <true/>
        <key>PayloadRemovalDisallowed</key>
        <true/>
        <key>PayloadScope</key>
        <string>System</string>
        <key>PayloadContent</key>
        <array>
            <dict>
                <key>PayloadUUID</key>
                <string>2BA070D9-2233-4827-AFC1-1F44C8C8E527</string>
                <key>PayloadType</key>
                <string>com.apple.webcontent-filter</string>
                <key>PayloadOrganization</key>
                <string>Microsoft Corporation</string>
                <key>PayloadIdentifier</key>
                <string>CEBF7A71-D9A1-48BD-8CCF-BD9D18EC155A</string>
                <key>PayloadDisplayName</key>
                <string>Approved Network Extension</string>
                <key>PayloadDescription</key>
                <string/>
                <key>PayloadVersion</key>
                <integer>1</integer>
                <key>PayloadEnabled</key>
                <true/>
                <key>FilterType</key>
                <string>Plugin</string>
                <key>UserDefinedName</key>
                <string>Microsoft Defender Network Extension</string>
                <key>PluginBundleID</key>
                <string>com.microsoft.wdav</string>
                <key>FilterSockets</key>
                <true/>
                <key>FilterDataProviderBundleIdentifier</key>
                <string>com.microsoft.wdav.netext</string>
                <key>FilterDataProviderDesignatedRequirement</key>
                <string>identifier "com.microsoft.wdav.netext" and anchor apple generic and certificate 1[field.1.2.840.113635.100.6.2.6] /* exists */ and certificate leaf[field.1.2.840.113635.100.6.1.13] /* exists */ and certificate leaf[subject.OU] = UBF8T346G9</string>
            </dict>
        </array>
    </dict>
</plist>
  1. Verify that the XML configuration profile content was copied correctly into the com.microsoft.network-extension.mobileconfig file by running the plutil utility in terminal. This command checks whether the mobileconfig file is a valid property list (plist):
$ plutil -lint <PathToFile>/com.microsoft.network-extension.mobileconfig

For example, the following command validates a profile stored in the Documents folder:

$ plutil -lint ~/Documents/com.microsoft.network-extension.mobileconfig
  1. Verify that the plutil -lint command outputs OK. The following sample output confirms the profile file is valid:
<PathToFile>/com.microsoft.network-extension.mobileconfig: OK

  1. Follow the instructions in Jamf technical articles to create a signing certificate using Jamf's built-in certificate authority.

  2. After the Jamf signing certificate is created and installed on your device, run the following command from terminal to sign the configuration profile. Replace <CertificateName> with the name of your signing certificate, <PathToFile> with the path to the unsigned mobileconfig file, and <PathToSignedFile> with the desired output path for the signed file:

$ security cms -S -N "<CertificateName>" -i <PathToFile>/com.microsoft.network-extension.mobileconfig -o <PathToSignedFile>/com.microsoft.network-extension.signed.mobileconfig

For example, the following command signs a profile stored in the Documents folder using a certificate named SigningCertificate and saves the signed output to the same folder:

$ security cms -S -N "SigningCertificate" -i ~/Documents/com.microsoft.network-extension.mobileconfig -o ~/Documents/com.microsoft.network-extension.signed.mobileconfig
  1. From the Jamf portal, navigate to Configuration Profiles and select the Upload button. Select com.microsoft.network-extension.signed.mobileconfig when prompted to choose a configuration profile file to upload.
