Use Dynamics 365 Remote Assist HoloLens in low-bandwidth situations

  • บทความ

Tip

Dynamics 365 Remote Assist customers now have access to Remote Assist in Microsoft Teams mobile. Take advantage of all that Teams has to offer and collaborate with other users! For the best calling experience on HoloLens, use Dynamics 365 Guides.

With Guides, the same remote experts can assist you through a problem while you have the holographic content of a Guide appearing before you.

Learn more and try Guides!

Technicians sometimes find themselves on factory floors or remote locations with poor network connectivity. Without strong network connectivity (bandwidth (up/down) of 1.5 Mbps or higher), technicians might experience difficulty troubleshooting and resolving problems in real time. Dynamics 365 Remote Assist HoloLens gives technicians the ability to discuss, diagnose, and resolve issues with remote collaborators even in low-bandwidth situations.

Important

To use the low-bandwidth feature, you must turn on the new Microsoft Teams meeting experience.

What determines poor network connectivity

Poor network connectivity is determined by the following conditions:

  • The bandwidth is between 150 kbps and 1.5 Mbps

  • The latency is higher than 1,000 ms

  • The packet loss is higher than 10 percent

Dynamics 365 Remote Assist autodetects if the technician is experiencing poor network conditions. If so, the technician is prompted to share snapshots with the remote expert to collaborate, instead of transmitting a live video feed. This way, the expert can view and annotate high-quality images instead of a low-quality video feed.

How it works

Let's take a quick look at what happens in a field scenario when a technician encounters poor network connectivity. In this scenario, the technician is a field worker. The remote collaborator is elsewhere with good network conditions.

  1. The technician launches a video call with a remote collaborator.

    Screenshot of Dynamics 365 Remote Assist on HoloLens, launching a call.

  2. In the call, Dynamics 365 Remote Assist autodetects if the technician is experiencing poor network conditions.

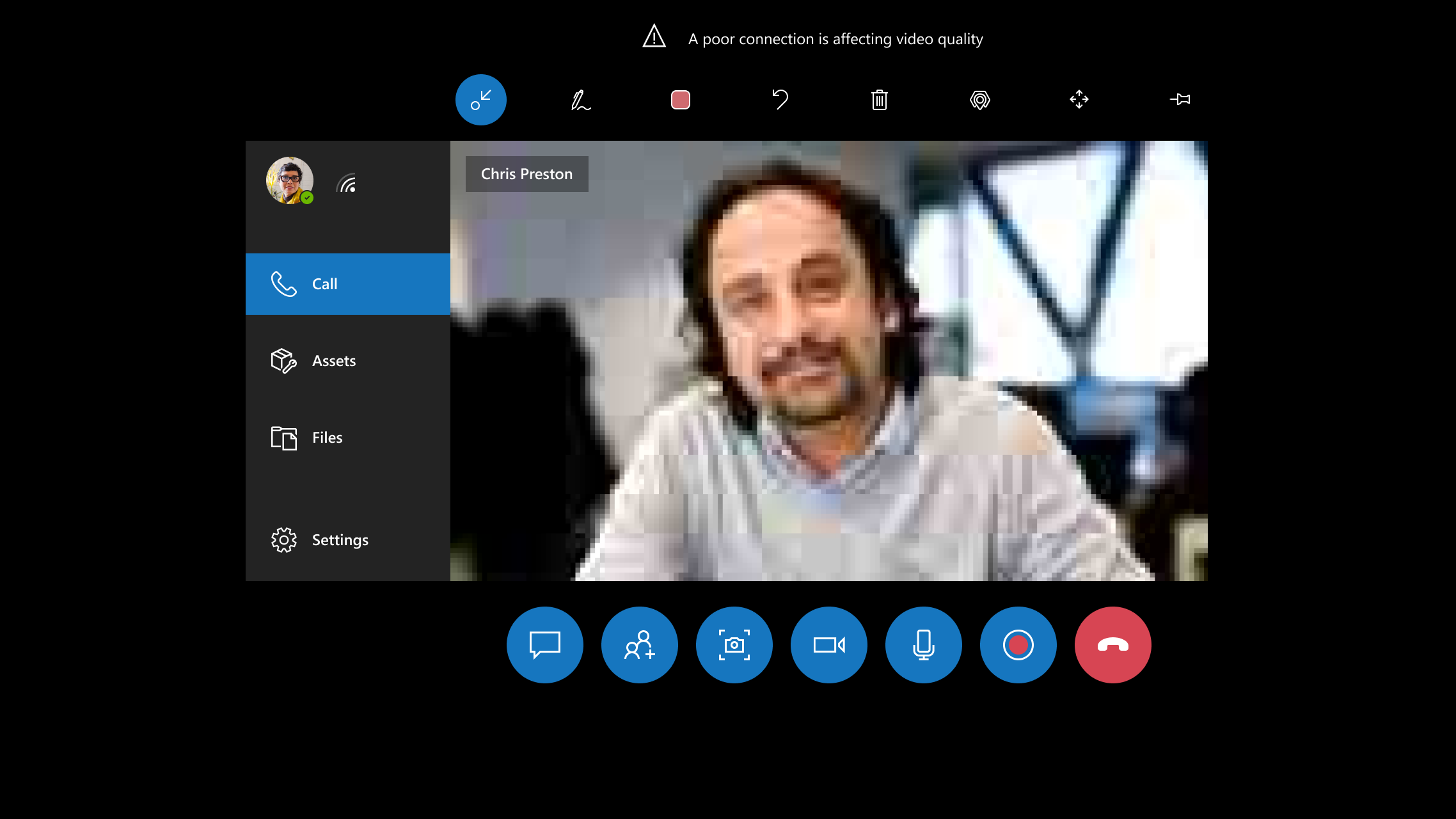

    Screenshot of Dynamics 365 Remote Assist on HoloLens, showing a low-quality image in the chat window because of poor network conditions.

  3. The technician is prompted to use the Snapshot tool to share images with the expert.

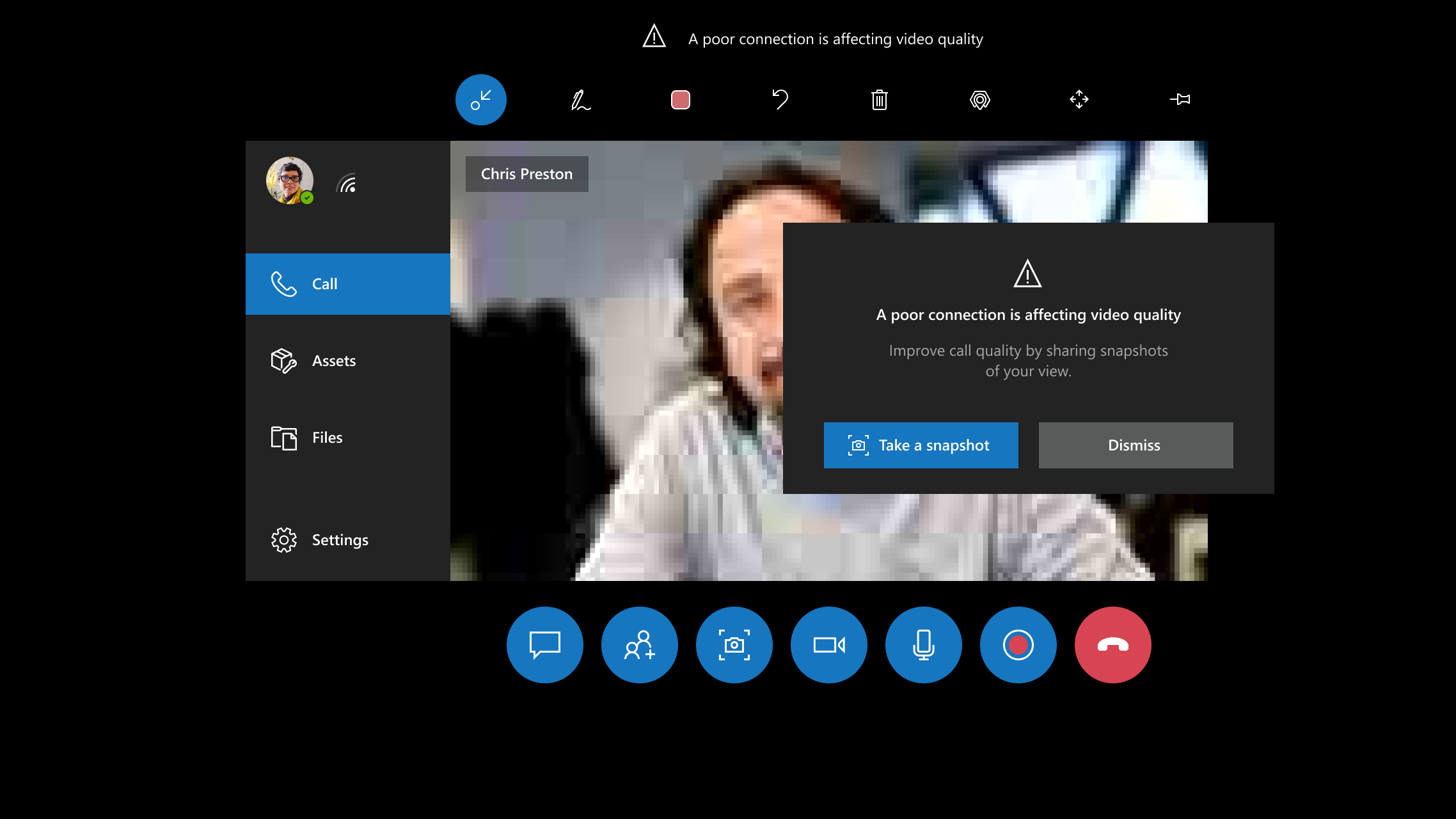

    Screenshot of Dynamics 365 Remote Assist on HoloLens, showing the Poor Network notification and the Share Snapshot option on the HoloLens device screen.

    Note

    A OneDrive license is required to share snapshots with the Snapshot tool.

  4. The technician is instructed on how to use the Snapshot tool.

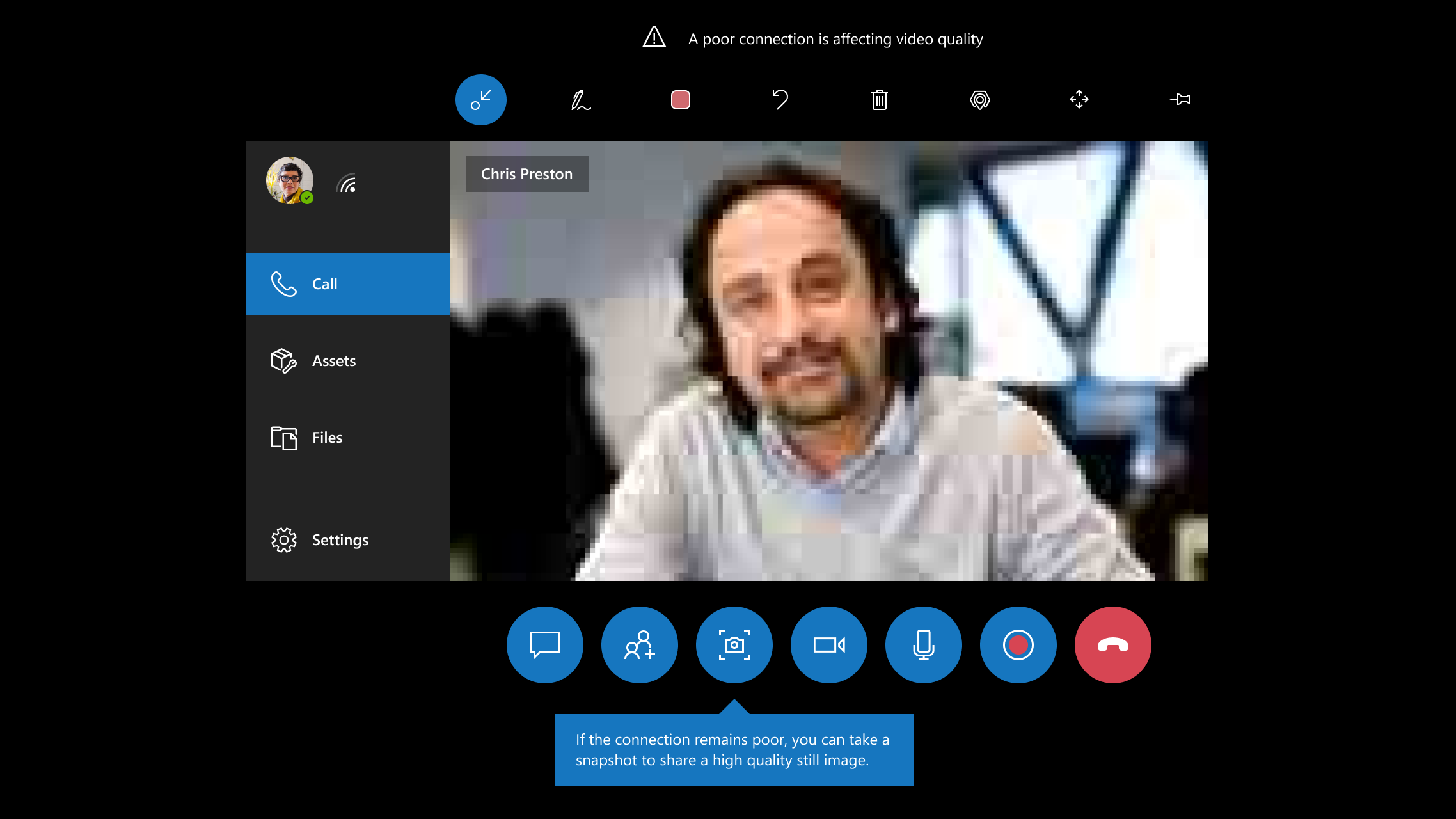

    Screenshots of Dynamics 365 Remote Assist on HoloLens , showing the tooltip on HoloLens that prompts the technician to share a snapshot.

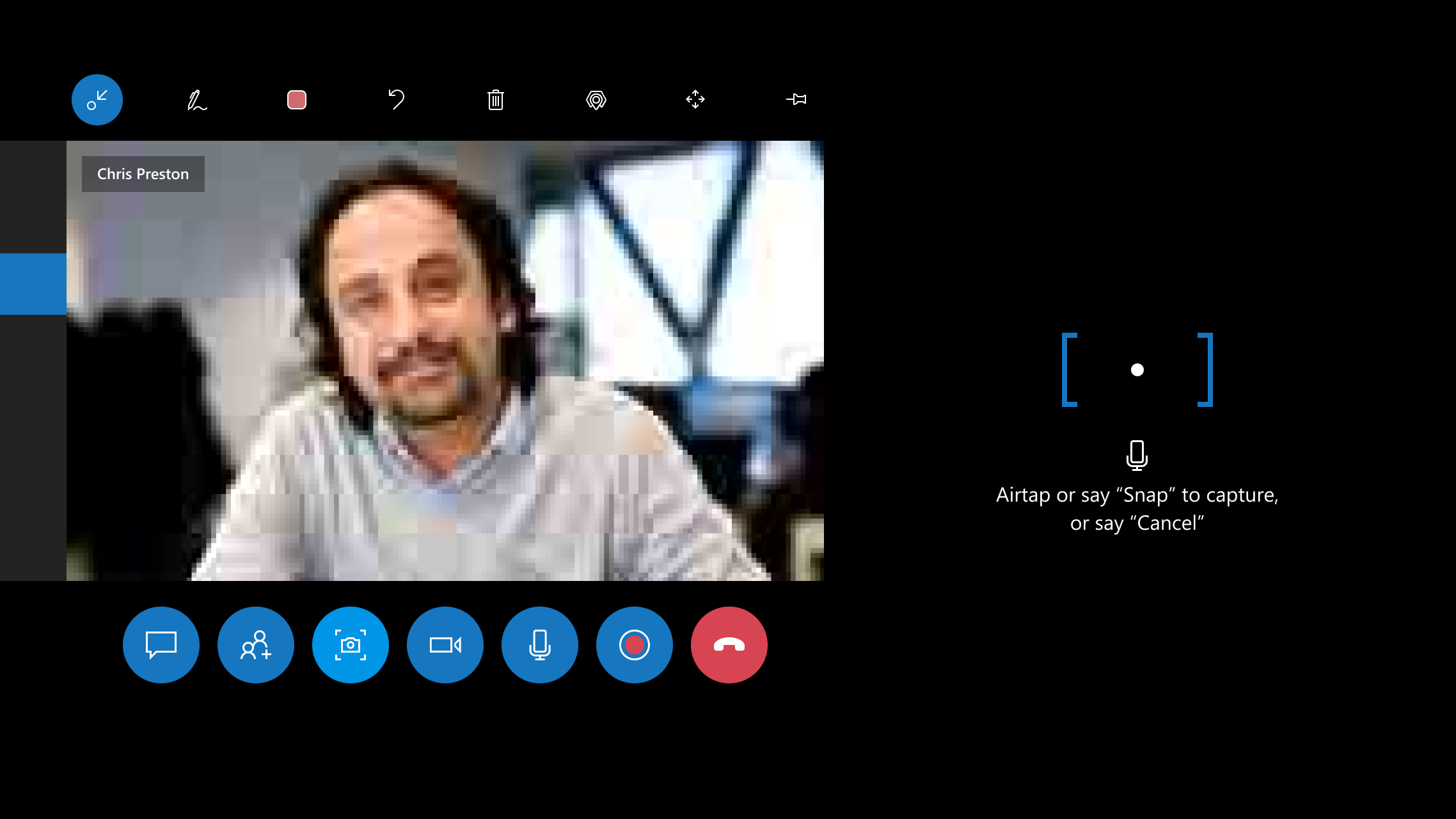

  5. The technician takes a snapshot, which is shared with the remote collaborator. The remote collaborator now sees a snapshot that has better quality. The technician and remote collaborator can annotate simultaneously on the snapshot.

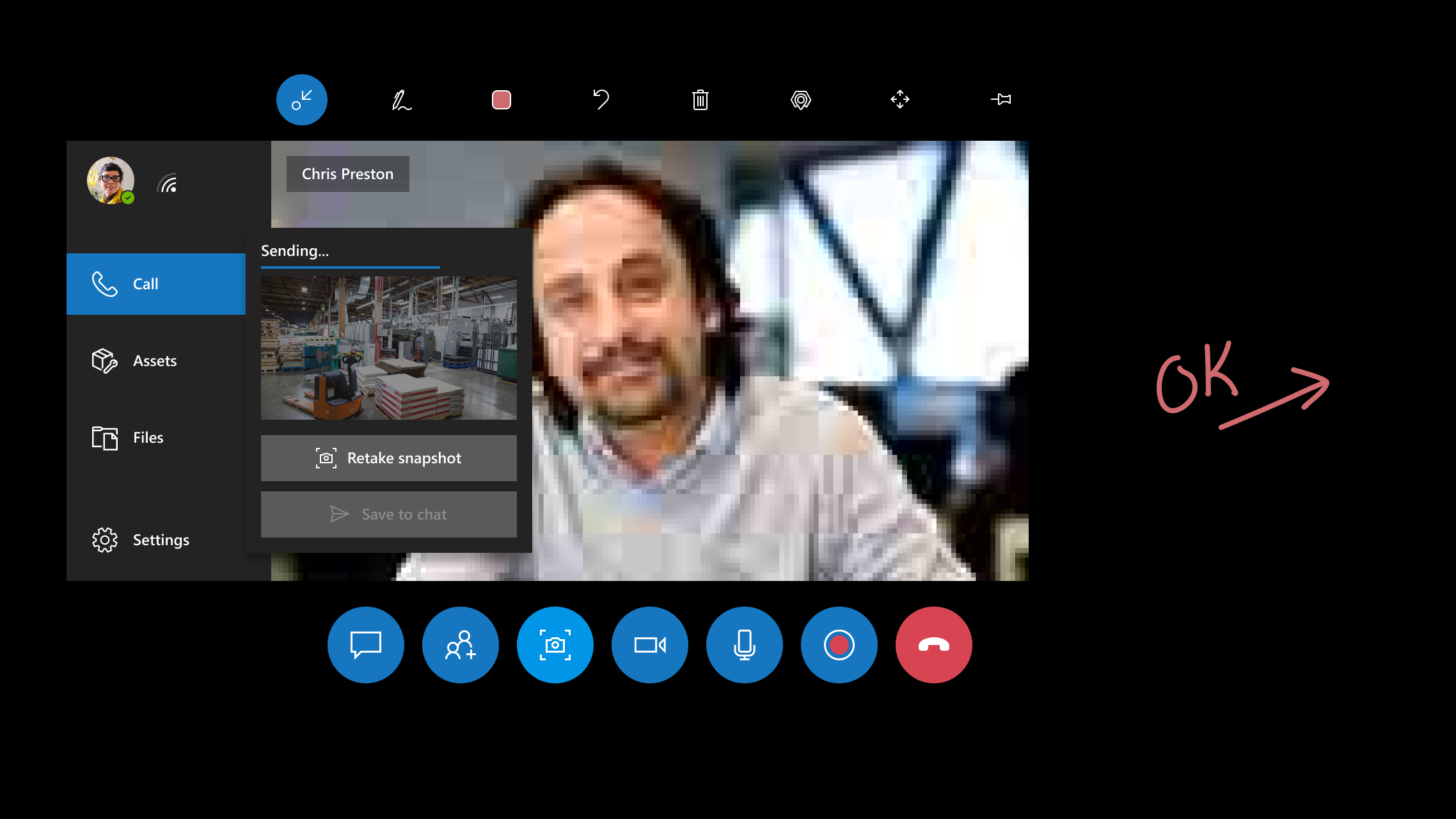

    Screenshot of Dynamics 365 Remote Assist on HoloLens, showing the snapshot is sent.

  6. After sharing a snapshot, the technician can save it to the meeting's chat or retake the snapshot.

    Screenshot of Dynamics 365 on HoloLens, showing the option to either save or retake snapshot on HoloLens.

  7. The technician returns to the video call and can continue to send snapshots to the remote collaborator.

    Screenshot of Dynamics 365 Remote Assist on HoloLens showing the return to video call.

Note

The low-bandwidth feature is not supported in group calling scenarios.
