Microsoft Entra SSO integration with Blinq

  • บทความ

In this tutorial, you'll learn how to integrate Blinq with Microsoft Entra ID. When you integrate Blinq with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Blinq.
  • Enable your users to be automatically signed-in to Blinq with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To integrate Microsoft Entra ID with Blinq, you need:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Blinq single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Blinq supports only SP initiated SSO.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Blinq into Microsoft Entra ID, you need to add Blinq from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Blinq in the search box.
  4. Select Blinq from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Blinq

Configure and test Microsoft Entra SSO with Blinq using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Blinq.

To configure and test Microsoft Entra SSO with Blinq, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra ID test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra ID test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Blinq SSO - to configure the single sign-on settings on application side.
    1. Create Blinq test user - to have a counterpart of B.Simon in Blinq that is linked to the Microsoft Entra ID representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO in the Microsoft Entra admin center.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Blinq > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows how to edit Basic SAML Configuration.

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier (Entity ID) text box, type the URL: https://auth.blinq.me/

    b. In the Reply URL text box, type a URL using the following pattern: https://auth.blinq.me/authorize/callback/<ID>

    c. In the Sign on URL text box, type a URL using the following pattern: https://auth.blinq.me/authorize/callback/<ID>

    Note

    These values are not real. Update these values with the actual Reply URL and Sign on URL. Contact Blinq support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Microsoft Entra admin center.

  6. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    Screenshot shows the Certificate download link.

  7. On the Set up Blinq section, copy the appropriate URL(s) based on your requirement.

    Screenshot shows to copy configuration URLs.

Create a Microsoft Entra ID test user

In this section, you'll create a test user in the Microsoft Entra admin center called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra ID test user

In this section, you'll enable B.Simon to use Microsoft Entra single sign-on by granting access to Blinq.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Blinq.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Blinq SSO

  1. Log in to Blinq company site as an administrator.

  2. Go to My Team > Team Settings > Integrations and perform the following steps:

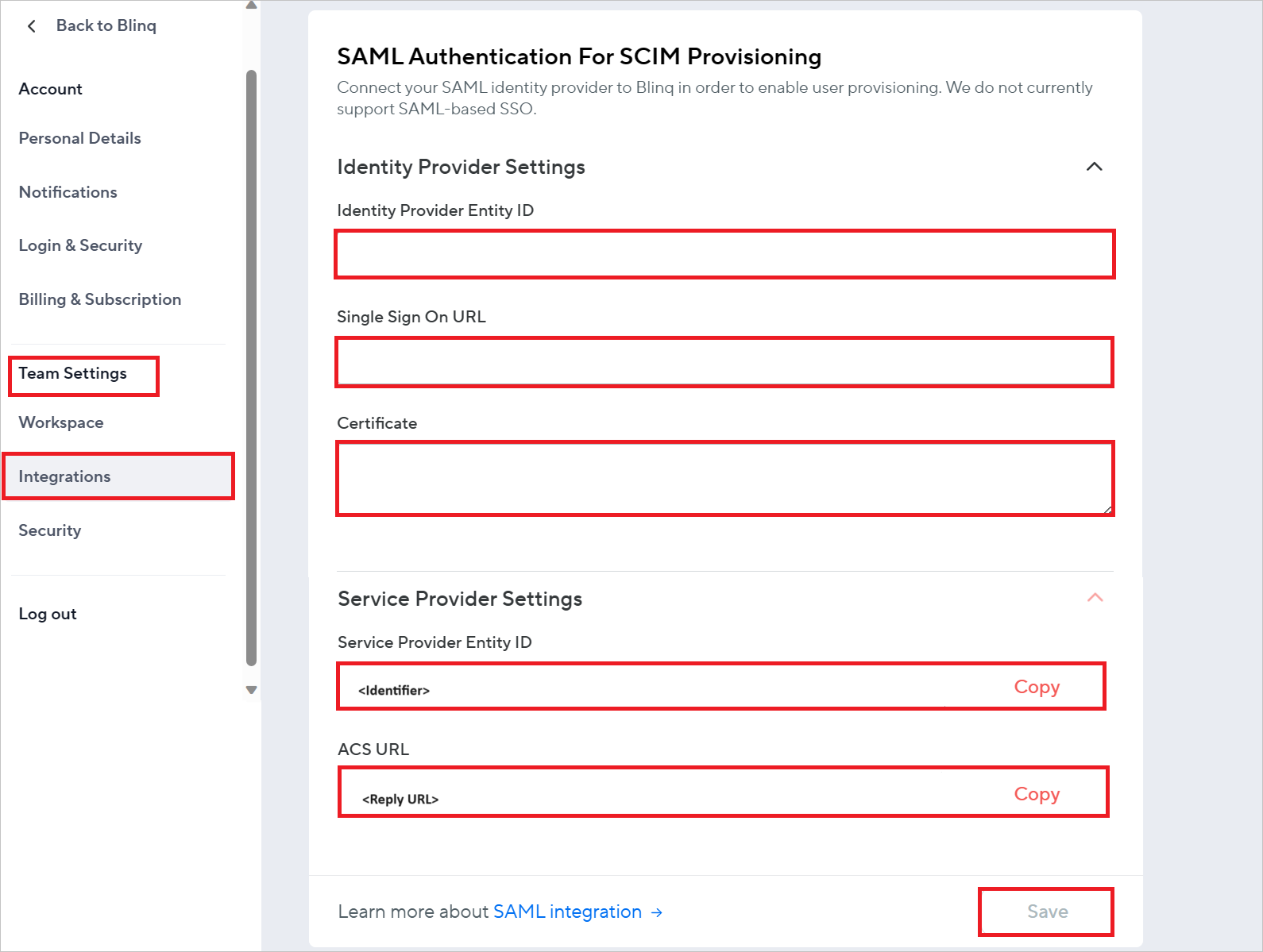

    Screenshot shows the Configuration.

    1. In the Identity Provider Entity ID textbox, paste the Microsoft Entra Identifier value, which you have copied from the Microsoft Entra admin center.

    2. In the Single Sign On URL text box, paste the Login URL value, which you have copied from the Microsoft Entra admin center.

    3. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Certificate textbox.

    4. Copy the Service Provider Entity ID and paste it in the Identifier (Entity ID) textbox in the Basic SAML Configuration section in the Microsoft Entra admin center.

    5. Copy the ACS URL and paste it in the Reply URL textbox in the Basic SAML Configuration section in the Microsoft Entra admin center.

    6. Click Save

Create Blinq test user

  1. In a different web browser window, sign into Blinq website as an administrator.

  2. Go to Team members and click Add team member +.

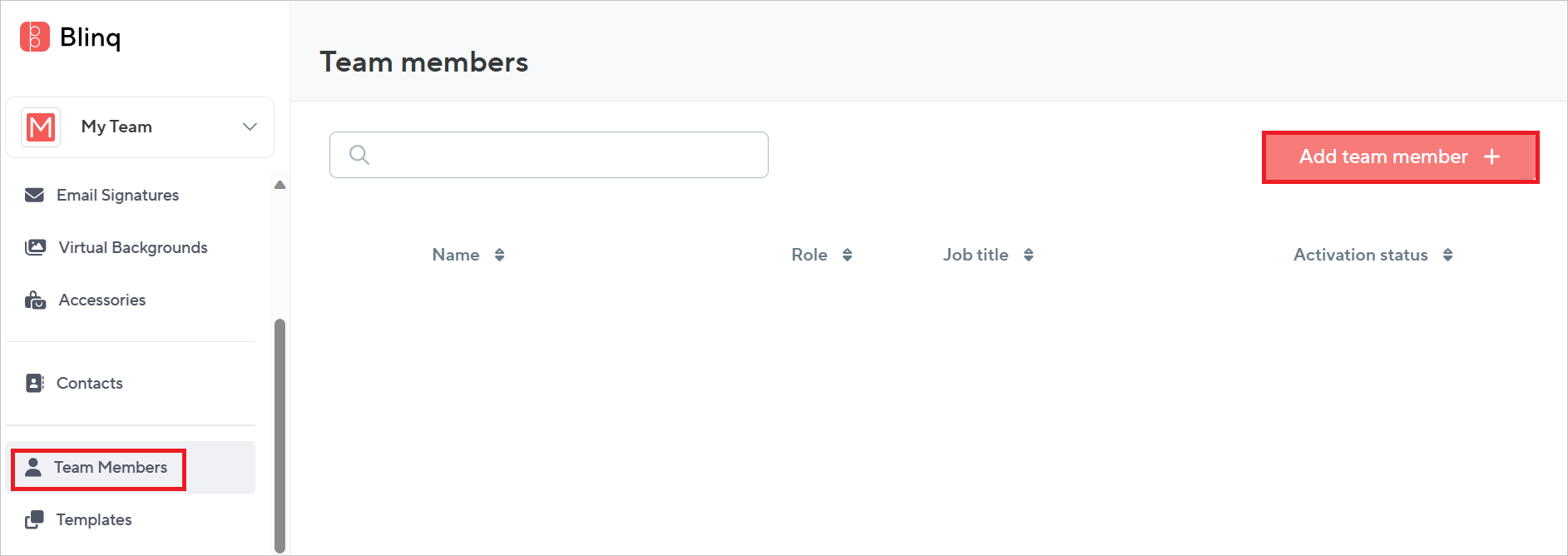

    Screenshot shows how to add New User.

  3. Perform the following steps in the below page.

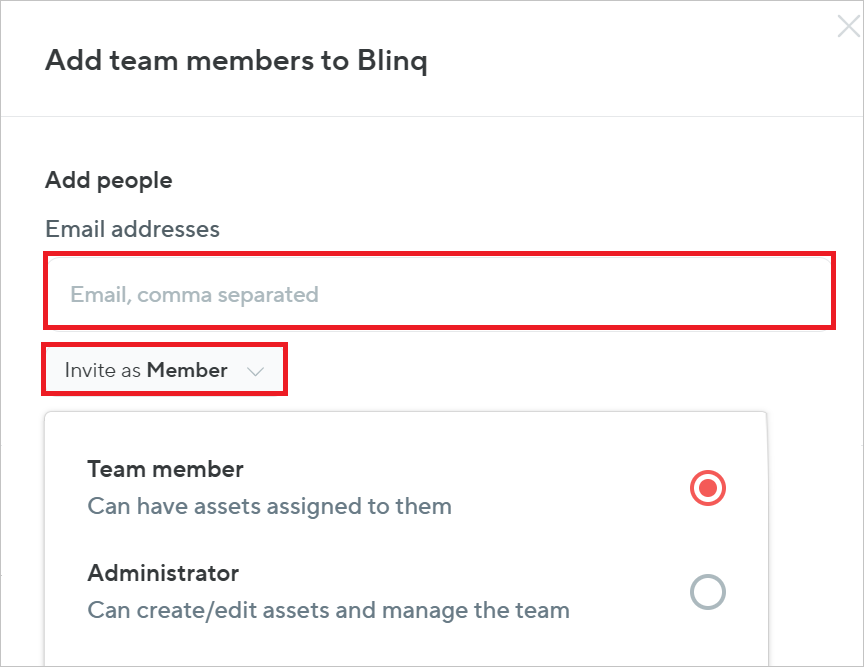

    Screenshot shows a New User section where you enter user information.

    1. In the Email textbox, enter a valid emailaddress of the user.

    2. Invite as Member or Administrator from the drop-down according to your organization requirement.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application in Microsoft Entra admin center. This will redirect to Blinq Sign-on URL where you can initiate the login flow.

  • Go to Blinq Sign-on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the Blinq tile in the My Apps, this will redirect to Blinq Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Blinq you can enforce session control, which protects exfiltration and infiltration of your organization's sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
