Tutorial: Microsoft Entra single sign-on (SSO) integration with Kendis

  • บทความ

In this tutorial, you'll learn how to integrate Kendis - Microsoft Entra Integration with Microsoft Entra ID. When you integrate Kendis - Microsoft Entra Integration with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Kendis - Microsoft Entra Integration.
  • Enable your users to be automatically signed-in to Kendis - Microsoft Entra Integration with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Kendis - Microsoft Entra Integration single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Kendis - Microsoft Entra Integration supports SP and IDP initiated SSO
  • Kendis - Microsoft Entra Integration supports Just In Time user provisioning

Adding Kendis - Microsoft Entra Integration from the gallery

To configure the integration of Kendis - Microsoft Entra Integration into Microsoft Entra ID, you need to add Kendis - Microsoft Entra Integration from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Kendis - Microsoft Entra Integration in the search box.
  4. Select Kendis - Microsoft Entra Integration from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Kendis - Microsoft Entra Integration

Configure and test Microsoft Entra SSO with Kendis - Microsoft Entra Integration using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Kendis - Microsoft Entra Integration.

To configure and test Microsoft Entra SSO with Kendis - Microsoft Entra Integration, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Kendis-Azure AD Integration SSO - to configure the single sign-on settings on application side.
    1. Create Kendis-Azure AD Integration test user - to have a counterpart of B.Simon in Kendis - Microsoft Entra Integration that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Kendis - Microsoft Entra Integration > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, enter the values for the following fields:

    a. In the Identifier text box, type a URL using the following pattern: https://<SUBDOMAIN>.kendis.io

    b. In the Reply URL text box, type a URL using the following pattern: https://<SUBDOMAIN>.kendis.io/login/saml

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type a URL using the following pattern: https://<SUBDOMAIN>.kendis.io/login

    Note

    These values are not real. Update these values with the actual Identifier, Reply URL and Sign-on URL. Contact Kendis - Microsoft Entra Integration Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  7. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    The Certificate download link

  8. On the Set up Kendis - Microsoft Entra Integration section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Kendis - Microsoft Entra Integration.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Kendis - Microsoft Entra Integration.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Kendis-Azure AD Integration SSO

  1. In a different web browser window, sign in to your Kendis - Microsoft Entra Integration company site as an administrator

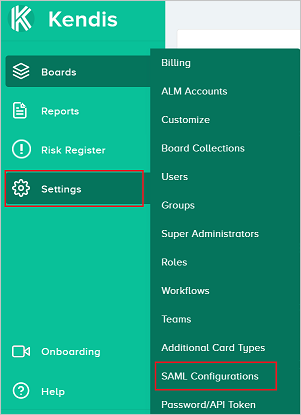

  2. Go to the Settings > SAML Configurations.

    settings to SAML Configurations

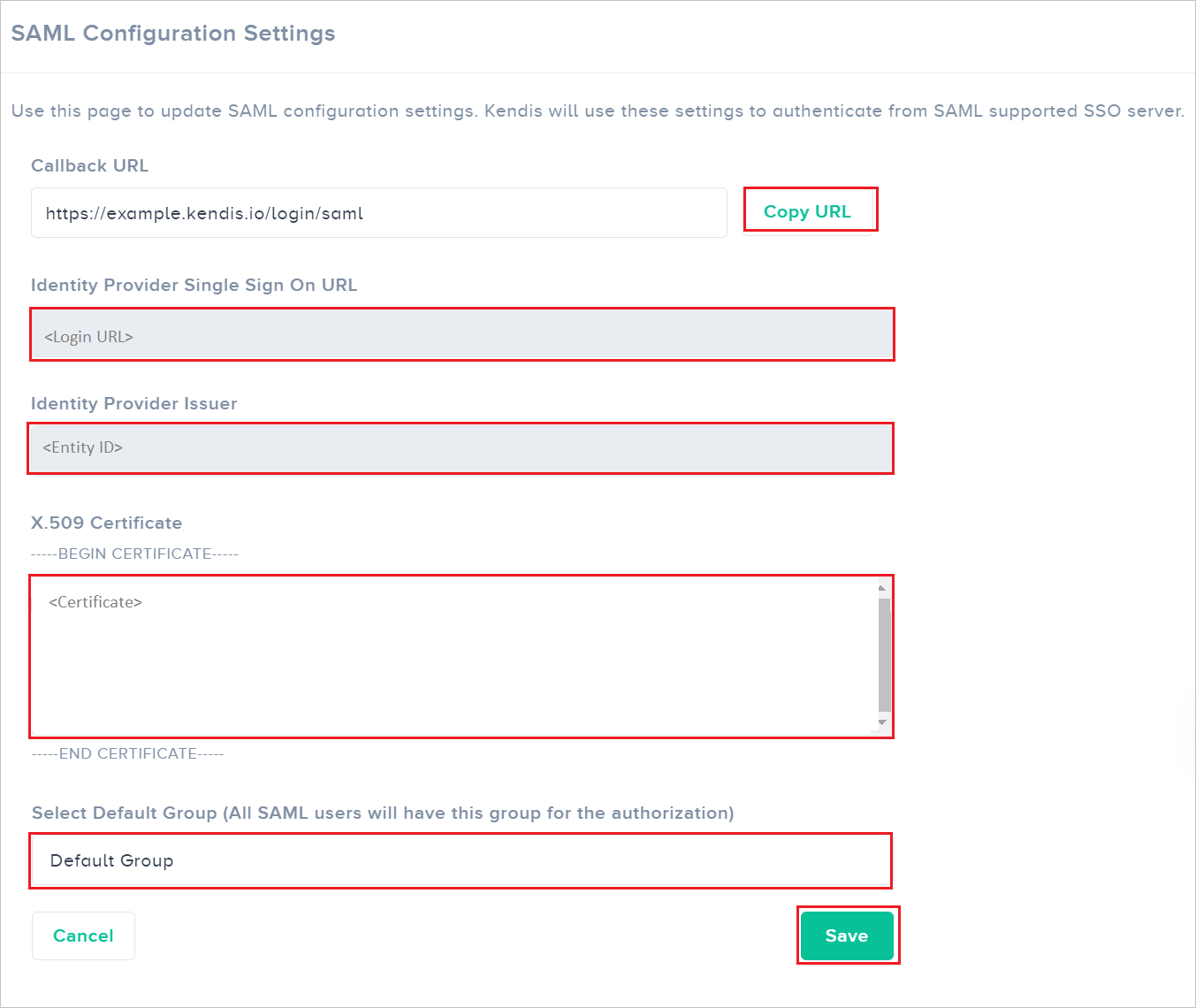

  3. Click on Edit button at the bottom of the page and perform the following steps.

    SAML Configurations

    a. Copy Callback URL value, paste this value into the Reply URL text box in the Basic SAML Configuration section.

    b. In the Identity Provider Single Sign On URL textbox, paste the Login URL value which you copied previously.

    c. In the Identity Provider Issuer textbox, paste the Microsoft Entra Identifier(Entity ID) value which you copied previously.

    d. Open the downloaded Certificate (Base64) into Notepad and paste the content into the X.509 Certificate textbox.

    e. Select Default Group from the list of options.

    f. Click Save.

Create Kendis-Azure AD Integration test user

In this section, a user called Britta Simon is created in Kendis - Microsoft Entra Integration. Kendis - Microsoft Entra Integration supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Kendis - Microsoft Entra Integration, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Kendis - Microsoft Entra Integration Sign on URL where you can initiate the login flow.

  • Go to Kendis - Microsoft Entra Integration Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Kendis - Microsoft Entra Integration for which you set up the SSO

You can also use Microsoft My Apps to test the application in any mode. When you click the Kendis - Microsoft Entra Integration tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Kendis - Microsoft Entra Integration for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Kendis - Microsoft Entra Integration you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
