Set up iOS or iPadOS device with Company Portal and DISA Purebred

  • บทความ

Enroll your device with the Intune Company Portal app to gain secure, mobile access to your organization's email, files, and apps. After your device is enrolled, it becomes managed. Your organization can assign policies and apps to the device through a mobile device management (MDM) provider, such as Intune.

During enrollment, you'll also install a derived credential on your device. Your organization might require you to use the derived credential as an authentication method when accessing resources, or for signing and encrypting emails.

You likely need to set up a derived credential if you use a smart card to:

  • Sign in to school or work apps, Wi-Fi, and virtual private networks (VPN)
  • Sign and encrypt school or work emails using S/MIME certificates

In this article, you will:

  • Enroll a mobile iOS or iPadOS device with Intune Company Portal.
  • Get a derived credential from your organization's derived credential provider, DISA Purebred: https://cyber.mil/pki-pke/purebred/.

What are derived credentials?

A derived credential is a certificate that's derived from your smart card credentials and installed on your device. It grants you remote access to work resources, while preventing unauthorized users from accessing sensitive information.

Derived credentials are used to:

  • Authenticate students and employees who sign in to school or work apps, Wi-Fi, and VPN
  • Sign and encrypt school or work emails with S/MIME certificates

Derived credentials are an implementation of the National Institute of Standards and Technology (NIST) guidelines for Derived Personal Identity Verification (PIV) credentials as part of Special Publication (SP) 800-157.

Prerequisites

To complete enrollment, you must have:

  • Your school or work-provided smart card
  • Access to a computer or kiosk where you can sign in with your smart card
  • Your mobile device
  • The Intune Company Portal app for iOS and iPadOS installed on your device

You'll also need to contact a Purebred agent or representative during setup.

Enroll device

  1. Open the Company Portal app for iOS/iPadOS on your mobile device and sign in with your work account.

  2. Write down the onscreen code.

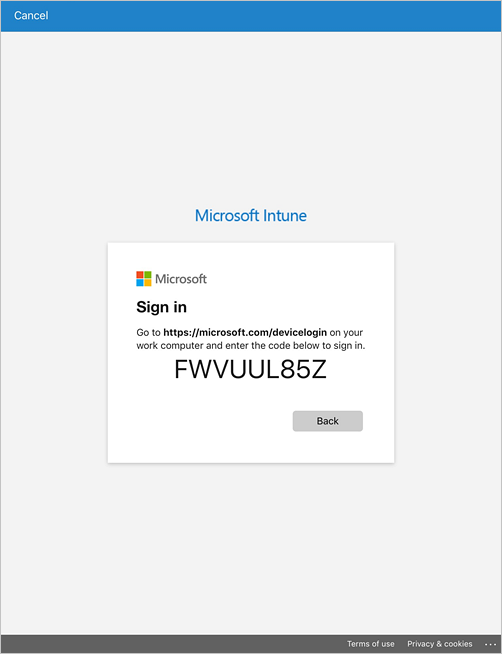

    Example image of Company Portal app with onscreen message and code.

  3. Switch to your smart card-enabled device and go to https://microsoft.com/devicelogin. If you're a government employee signing in from another device, you'll need to change the settings on your device so that you're redirected to the government cloud for authentication. For more information about the setting changes you need to make, see Troubleshoot iOS/iPadOS enrollment errors.

  4. Enter the code you previously wrote down.

    Example screenshot of the Company Portal website "Enter code" prompt.

  5. Insert your smart card to sign in.

  6. Return to the Company Portal app on your mobile device and follow the onscreen instructions to enroll your device.

  7. After enrollment is complete, Company Portal will notify you to set up your smart card. Tap the notification. If you don't get a notification, check your email.

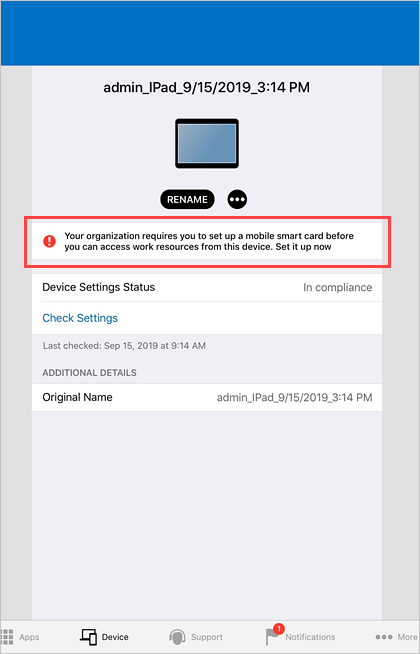

    Example screenshot of the Company Portal push notification on device home screen.

  8. On the Setup mobile smart card access screen:
    a. Tap the link to your organization's set up instructions. If your organization doesn't provide additional instructions, you'll be sent to this article.
    b. Click Open to open the Purebred app.

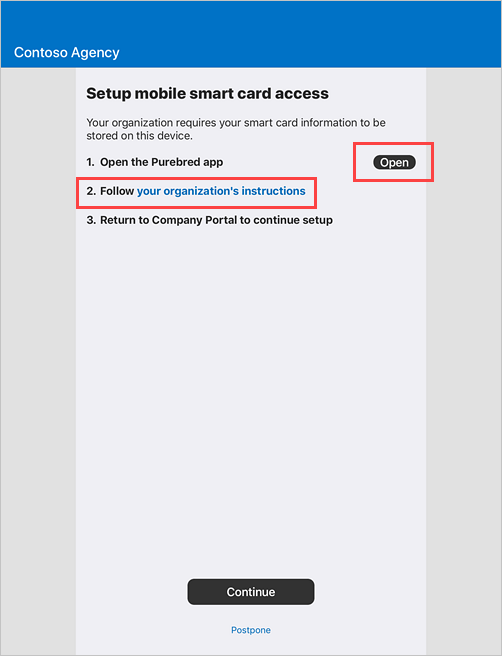

    Example screenshot of the Company Portal Set up mobile smart card access screen.

  9. When prompted to allow Company Portal to open the Purebred Registration app, select Open.

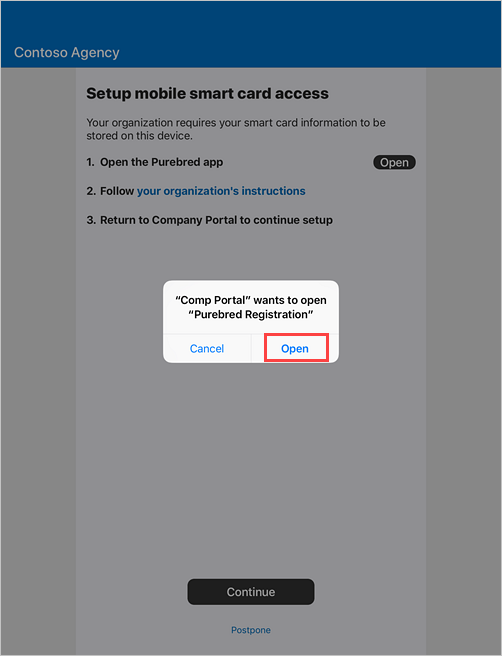

    Example screenshot of the Company Portal prompt to open DISA Purebred app.

  10. When the app works, work with your organization's Purebred agent to configure and download the Purebred pre-enrollment configuration profile.

  11. Go to the Settings app > General > Profiles & Device Management > Install Profile and tap Install.

  12. Enter your device passcode.

  13. Install the profile. You might need to tap Install more than once to start the installation.

  14. Return to the Purebred Registration app. Follow your Purebred agent's instructions to continue.

  15. After you download the configuration profile, go to the Settings app > General > Profiles & Device Management > Install Profile and tap Install.

  16. Enter your device passcode.

  17. Install the profile. You might need to tap Install more than once to start the installation.

  18. After installation is complete, return to the Company Portal app.

  19. On the Setup mobile smart card access screen, tap Continue.

  20. From the Import certificates screen, you'll retrieve and import the derived credential you got from DISA Purebred.

    a. Tap Continue.

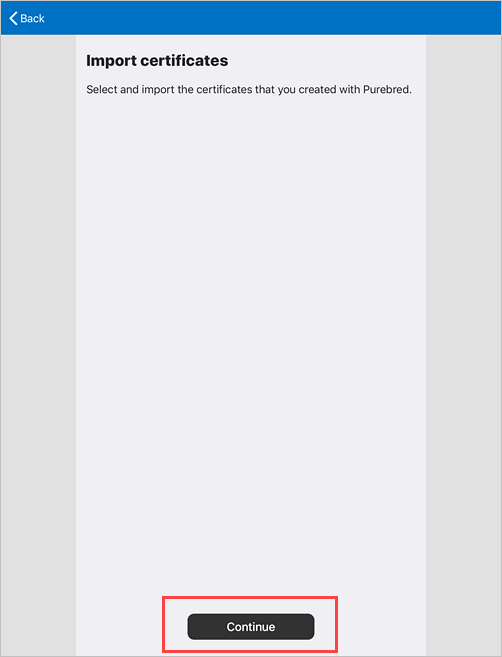

    Example screenshot of the Company Portal Set Import Certificates screen.

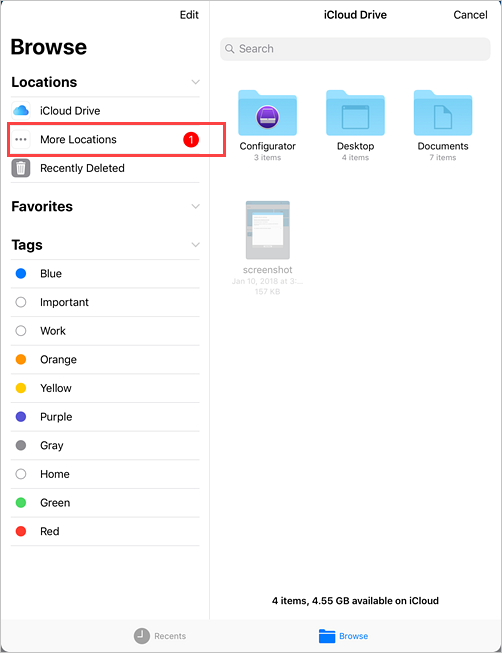

    b. Go to iCloud Drive Browse > Locations and tap More Locations.

    Example screenshot of iCloud Drive, Browse menu highlighting More Locations option.
    c. Tap the switch to enable Purebred Key Chain.

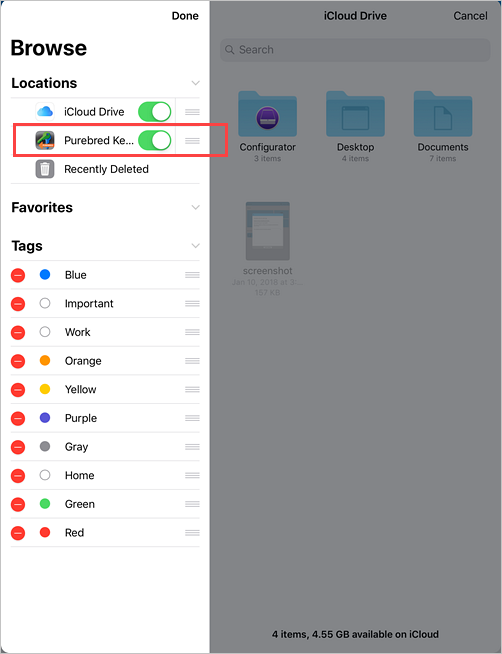

    Example screenshot of iCloud Drive, Browse view, highlighting that the Purebred Key Chain switch is enabled.

    d. Tap Purebred Credential Package.

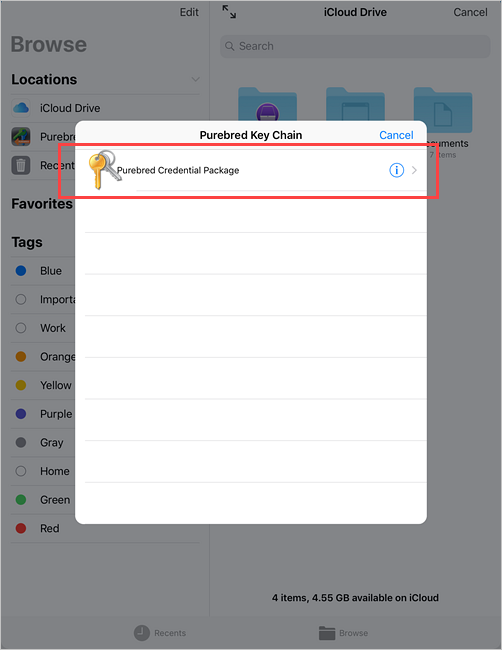

    Example screenshot of an iOS screen with a selectable Purebred Credential Package option.
    f. A list of certificates appears. Select one and then tap Import key.

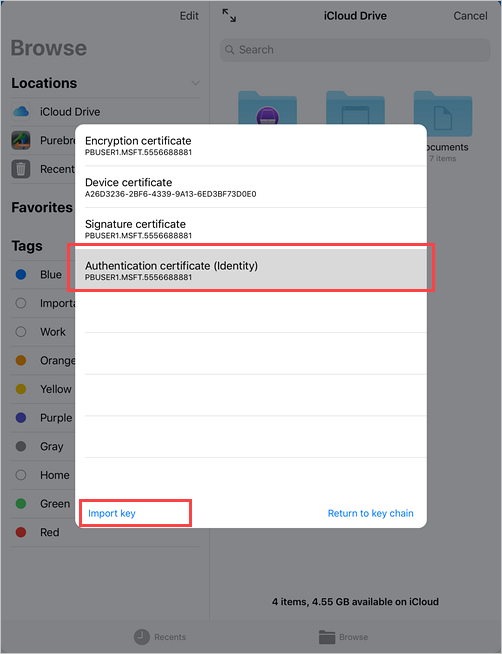

    Example screenshot of a list of selectable certificates, with one already selected.

  21. Return to the Company Portal app and wait for Company Portal to finish setting up your device.

Next steps

After enrollment is complete, you'll have access to work resources, such as email, Wi-Fi, and any apps that your organization makes available. For more information about how to get, search for, install, and uninstall apps in the Company Portal see:

Still need help? Contact your company support. For contact information, check the Company Portal website.
