Python tutorial: Explore and visualize data

Applies to: SQL Server 2017 (14.x) and later Azure SQL Managed Instance

In part two of this five-part tutorial series, you'll explore the sample data and generate some plots. Later, you'll learn how to serialize graphics objects in Python, and then deserialize those objects and make plots.

In this article, you'll:

  • Review the sample data
  • Create plots using Python in T-SQL

In part one, you installed the prerequisites and restored the sample database.

In part three, you'll learn how to create features from raw data by using a Transact-SQL function. You'll then call that function from a stored procedure to create a table that contains the feature values.

In part four, you'll load the modules and call the necessary functions to create and train the model using a SQL Server stored procedure.

In part five, you'll learn how to operationalize the models that you trained and saved in part four.

Review the data

First, take a minute to browse the data schema, as we've made some changes to make it easier to use the NYC Taxi data

  • The original dataset used separate files for the taxi identifiers and trip records. We've joined the two original datasets on the columns medallion, hack_license, and pickup_datetime.
  • The original dataset spanned many files and was quite large. We've downsampled to get just 1% of the original number of records. The current data table has 1,703,957 rows and 23 columns.

Taxi identifiers

The medallion column represents the taxi's unique ID number.

The hack_license column contains the taxi driver's license number (anonymized).

Trip and fare records

Each trip record includes the pickup and drop-off location and time, and the trip distance.

Each fare record includes payment information such as the payment type, total amount of payment, and the tip amount.

The last three columns can be used for various machine learning tasks. The tip_amount column contains continuous numeric values and can be used as the label column for regression analysis. The tipped column has only yes/no values and is used for binary classification. The tip_class column has multiple class labels and therefore can be used as the label for multi-class classification tasks.

The values used for the label columns are all based on the tip_amount column, using these business rules:

  • Label column tipped has possible values 0 and 1

    If tip_amount > 0, tipped = 1; otherwise tipped = 0

  • Label column tip_class has possible class values 0-4

    Class 0: tip_amount = $0

    Class 1: tip_amount > $0 and tip_amount <= $5

    Class 2: tip_amount > $5 and tip_amount <= $10

    Class 3: tip_amount > $10 and tip_amount <= $20

    Class 4: tip_amount > $20

Create plots using Python in T-SQL

Developing a data science solution usually includes intensive data exploration and data visualization. Because visualization is such a powerful tool for understanding the distribution of the data and outliers, Python provides many packages for visualizing data. The matplotlib module is one of the more popular libraries for visualization, and includes many functions for creating histograms, scatter plots, box plots, and other data exploration graphs.

In this section, you learn how to work with plots using stored procedures. Rather than open the image on the server, you store the Python object plot as varbinary data, and then write that to a file that can be shared or viewed elsewhere.

Create a plot as varbinary data

The stored procedure returns a serialized Python figure object as a stream of varbinary data. You cannot view the binary data directly, but you can use Python code on the client to deserialize and view the figures, and then save the image file on a client computer.

  1. Create the stored procedure PyPlotMatplotlib.

    In the following script:

    • The variable @query defines the query text SELECT tipped FROM nyctaxi_sample, which is passed to the Python code block as the argument to the script input variable, @input_data_1.
    • The Python script is fairly simple: matplotlib figure objects are used to make the histogram and scatter plot, and these objects are then serialized using the pickle library.
    • The Python graphics object is serialized to a pandas DataFrame for output.
    DROP PROCEDURE IF EXISTS PyPlotMatplotlib;
    GO

    CREATE PROCEDURE [dbo].[PyPlotMatplotlib]
    AS
    BEGIN
        SET NOCOUNT ON;
        DECLARE @query nvarchar(max) =
        N'SELECT cast(tipped as int) as tipped, tip_amount, fare_amount FROM [dbo].[nyctaxi_sample]'
        EXECUTE sp_execute_external_script
        @language = N'Python',
        @script = N'
    import matplotlib
    matplotlib.use("Agg")
    import matplotlib.pyplot as plt
    import pandas as pd
    import pickle

    fig_handle = plt.figure()
    plt.hist(InputDataSet.tipped)
    plt.xlabel("Tipped")
    plt.ylabel("Counts")
    plt.title("Histogram, Tipped")
    plot0 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
    plt.clf()

    plt.hist(InputDataSet.tip_amount)
    plt.xlabel("Tip amount ($)")
    plt.ylabel("Counts")
    plt.title("Histogram, Tip amount")
    plot1 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
    plt.clf()

    plt.hist(InputDataSet.fare_amount)
    plt.xlabel("Fare amount ($)")
    plt.ylabel("Counts")
    plt.title("Histogram, Fare amount")
    plot2 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
    plt.clf()

    plt.scatter( InputDataSet.fare_amount, InputDataSet.tip_amount)
    plt.xlabel("Fare Amount ($)")
    plt.ylabel("Tip Amount ($)")
    plt.title("Tip amount by Fare amount")
    plot3 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
    plt.clf()

    OutputDataSet = plot0.append(plot1, ignore_index=True).append(plot2, ignore_index=True).append(plot3, ignore_index=True)
    ',
    @input_data_1 = @query
    WITH RESULT SETS ((plot varbinary(max)))
    END
    GO

  2. Now run the stored procedure with no arguments to generate a plot from the data hard-coded as the input query.

    EXEC [dbo].[PyPlotMatplotlib]

  3. The results should be something like this:

    plot
    0xFFD8FFE000104A4649...
     0xFFD8FFE000104A4649...
     0xFFD8FFE000104A4649...
     0xFFD8FFE000104A4649...

  4. From a Python client, you can now connect to the SQL Server instance that generated the binary plot objects, and view the plots.

    To do this, run the following Python code, replacing the server name, database name, and credentials as appropriate (for Windows authentication, replace the UID and PWD parameters with Trusted_Connection=True). Make sure the Python version is the same on the client and the server. Also make sure that the Python libraries on your client (such as matplotlib) are the same or higher version relative to the libraries installed on the server. To view a list of installed packages and their versions, see Get Python package information.

    %matplotlib notebook
    import pyodbc
    import pickle
    import os
    cnxn = pyodbc.connect('DRIVER=SQL Server;SERVER={SERVER_NAME};DATABASE={DB_NAME};UID={USER_NAME};PWD={PASSWORD}')
    cursor = cnxn.cursor()
    cursor.execute("EXECUTE [dbo].[PyPlotMatplotlib]")
    tables = cursor.fetchall()
    for i in range(0, len(tables)):
        fig = pickle.loads(tables[i][0])
        fig.savefig(str(i)+'.png')
    print("The plots are saved in directory: ",os.getcwd())

  5. If the connection is successful, you should see a message like the following:

    The plots are saved in directory: xxxx

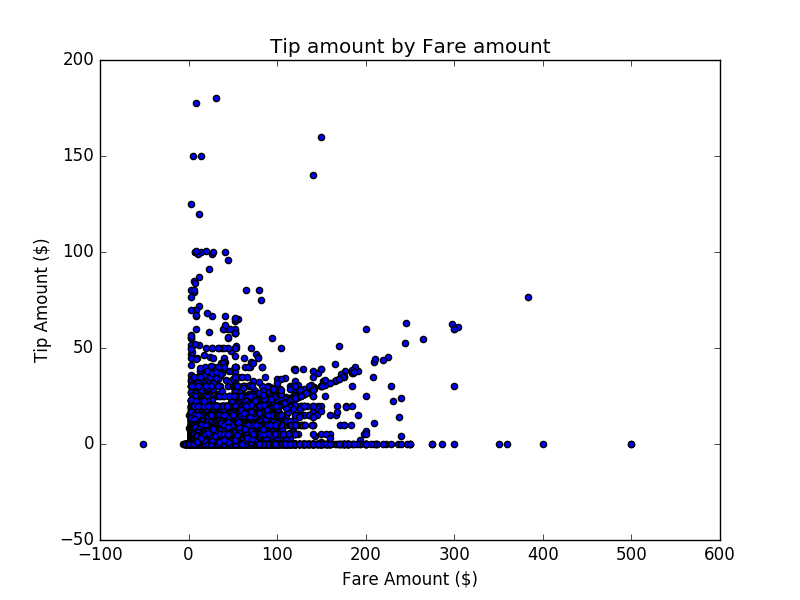

  6. The output file is created in the Python working directory. To view the plot, locate the Python working directory, and open the file. The following image shows a plot saved on the client computer.

    Tip amount vs Fare amount

Next steps

In this article, you:

  • Reviewed the sample data
  • Created plots using Python in T-SQL
